Page 2241 of 2493

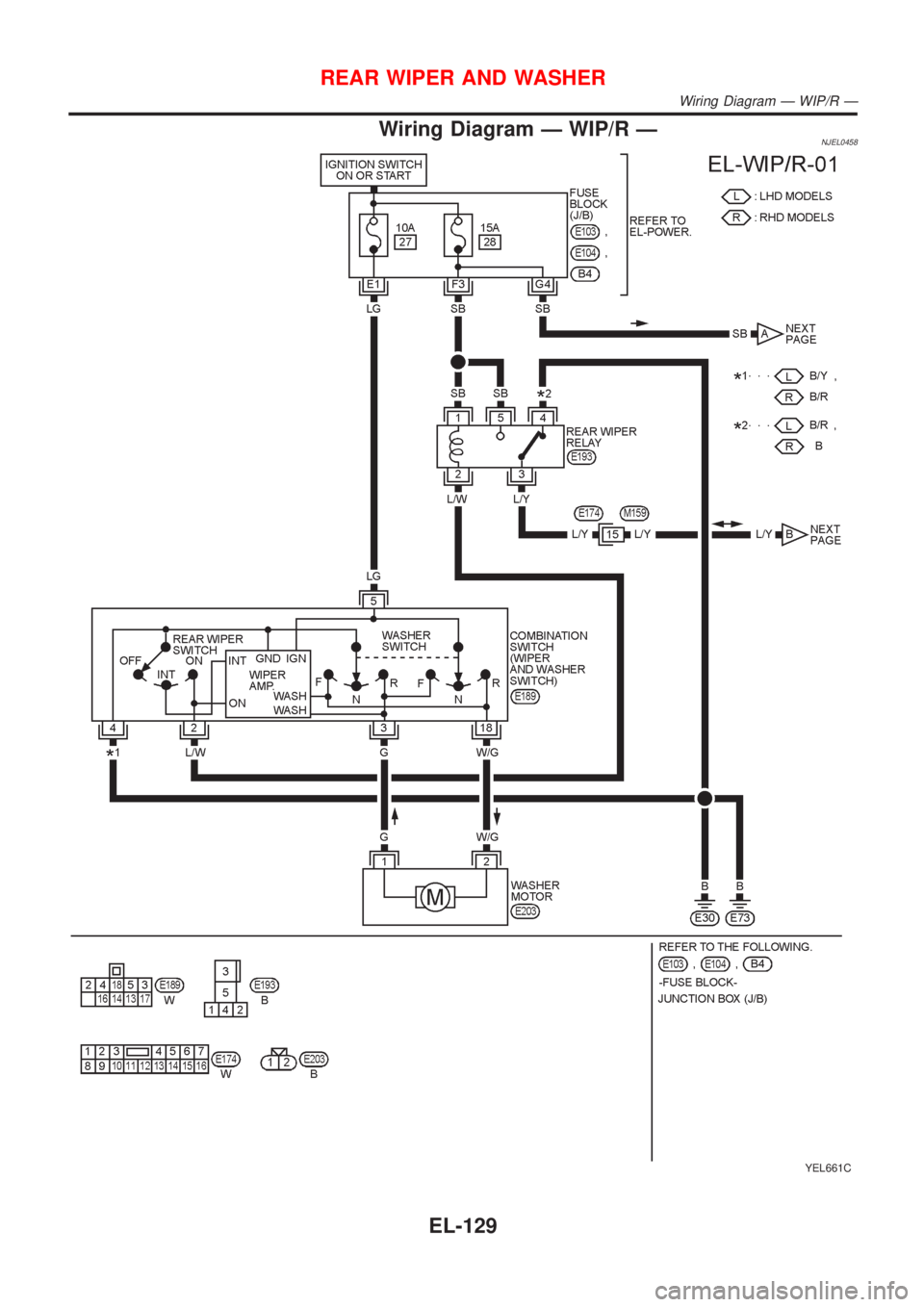

Wiring Diagram Ð WIP/R ÐNJEL0458
YEL661C
REAR WIPER AND WASHER
Wiring Diagram Ð WIP/R Ð
EL-129
Page 2242 of 2493
YEL662C
REAR WIPER AND WASHER
Wiring Diagram Ð WIP/R Ð (Cont'd)
EL-130
Page 2243 of 2493

SEL451XA
Removal and InstallationNJEL0301WIPER ARMSNJEL0301S011. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it ªOFFº (Auto Stop).
2. Lift the blade up and then set it down onto glass surface. Set
the black center to clearance ªEº immediately before tighten-
ing the nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it ªOFFº.
4. Ensure that wiper blades stop on the lowest heat wire.
+Tighten windshield wiper arm nuts to specified torque.
: 13 - 18 N´m (1.3 - 1.8 kg-m, 10 - 13 ft-lb)
SEL024J
+Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.
GEL270
Washer Nozzle AdjustmentNJEL0302+Adjust washer nozzle with suitable tool as shown in the figure
at left.
Adjustable range:±15É (In any direction)
SEL452XA
The diameter of the washer spit circle is less than 30 mm (1.18 in).
REAR WIPER AND WASHER
Removal and Installation
EL-131
Page 2244 of 2493

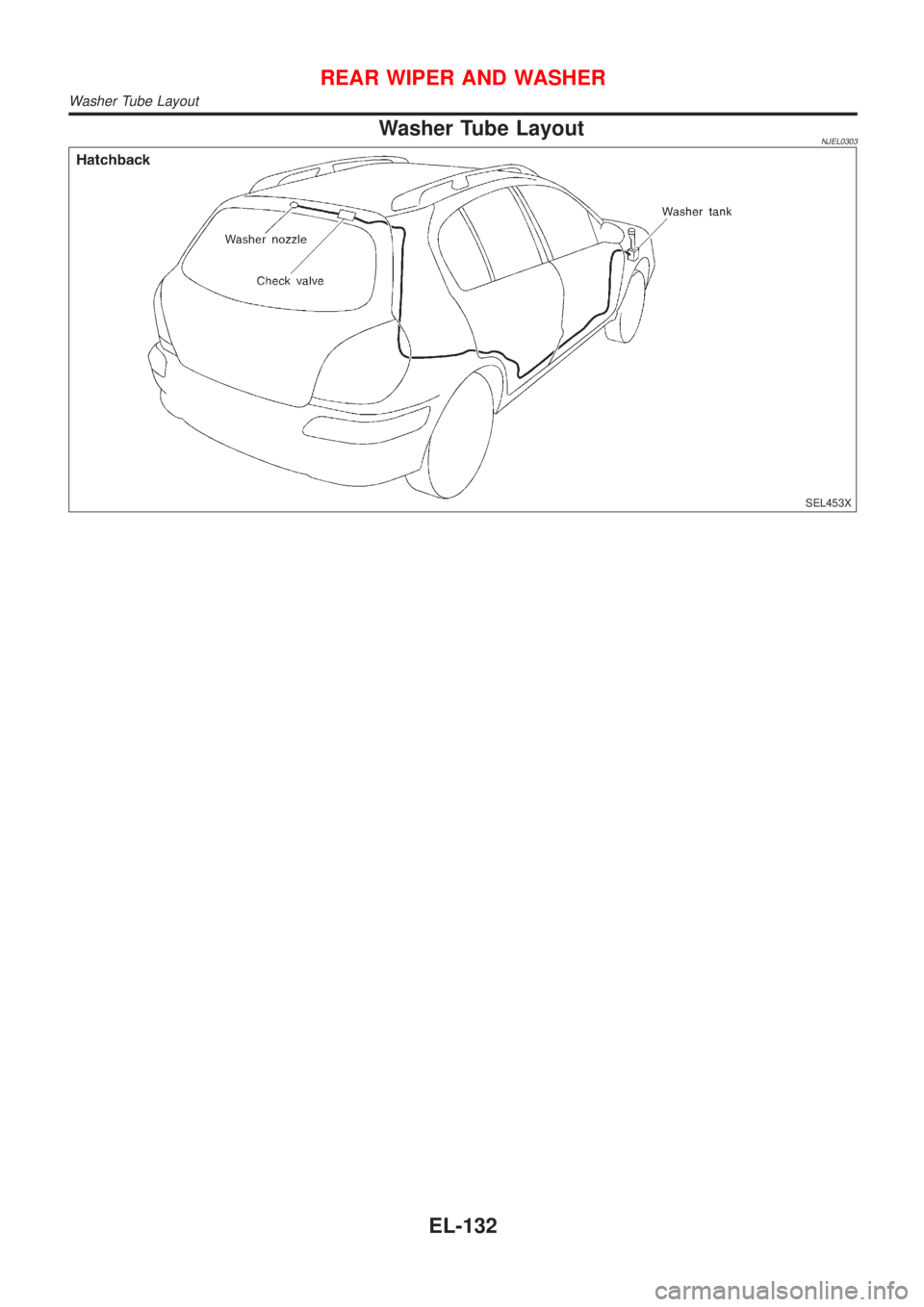

Washer Tube LayoutNJEL0303
SEL453X
REAR WIPER AND WASHER
Washer Tube Layout
EL-132
Page 2245 of 2493

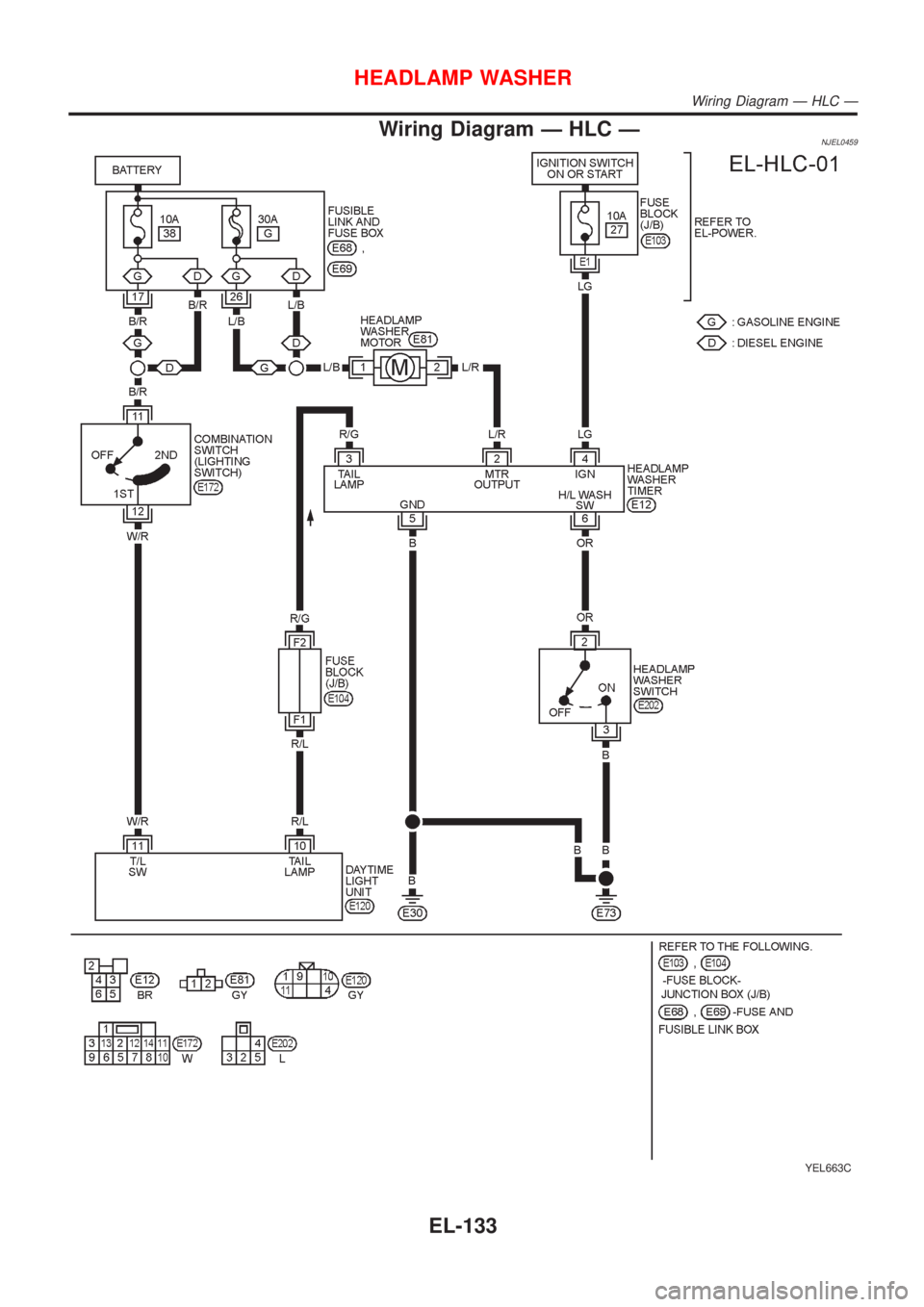

Wiring Diagram Ð HLC ÐNJEL0459
YEL663C
HEADLAMP WASHER
Wiring Diagram Ð HLC Ð
EL-133
Page 2246 of 2493
NEL802

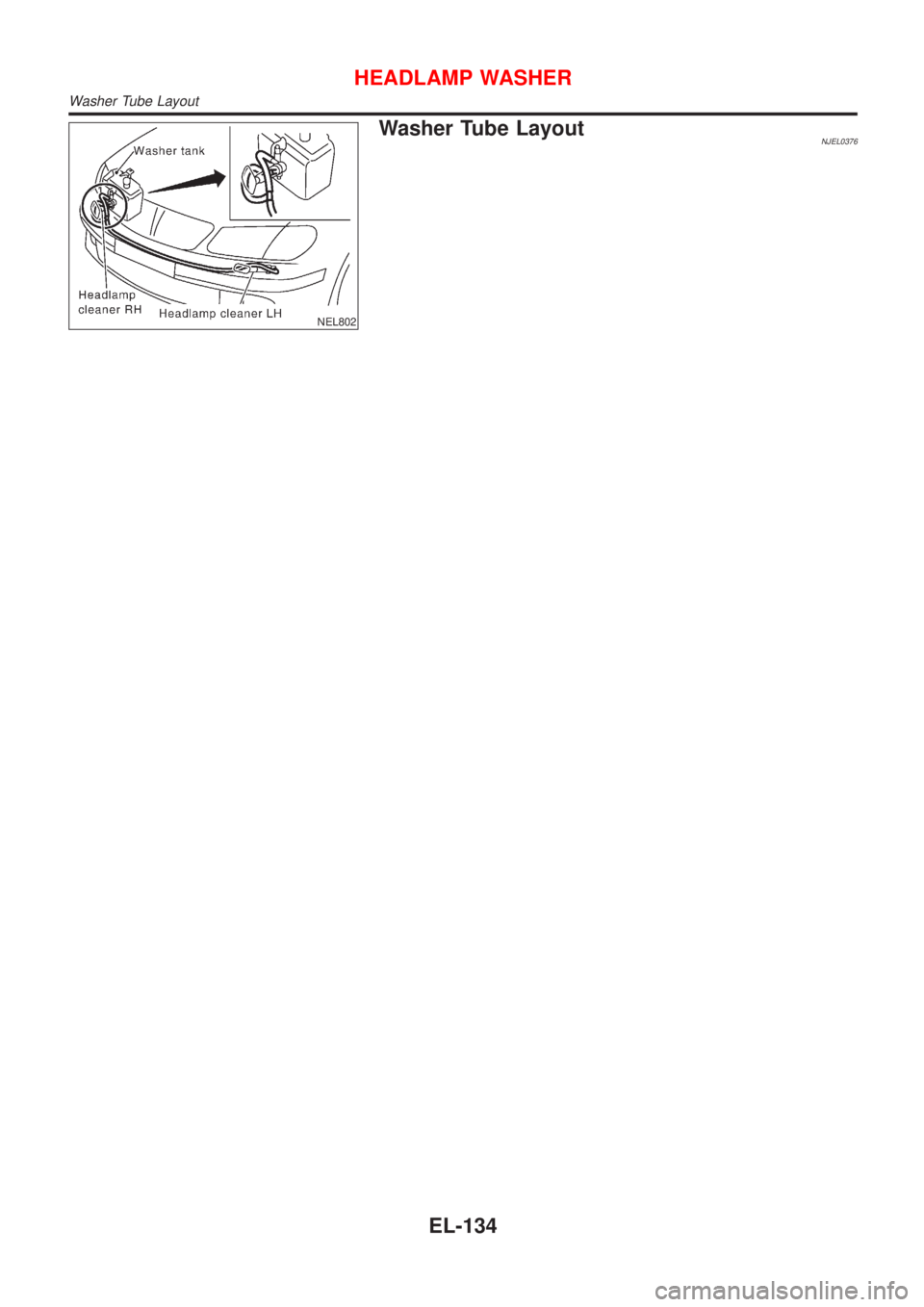

Washer Tube LayoutNJEL0376
HEADLAMP WASHER
Washer Tube Layout
EL-134
Page 2247 of 2493

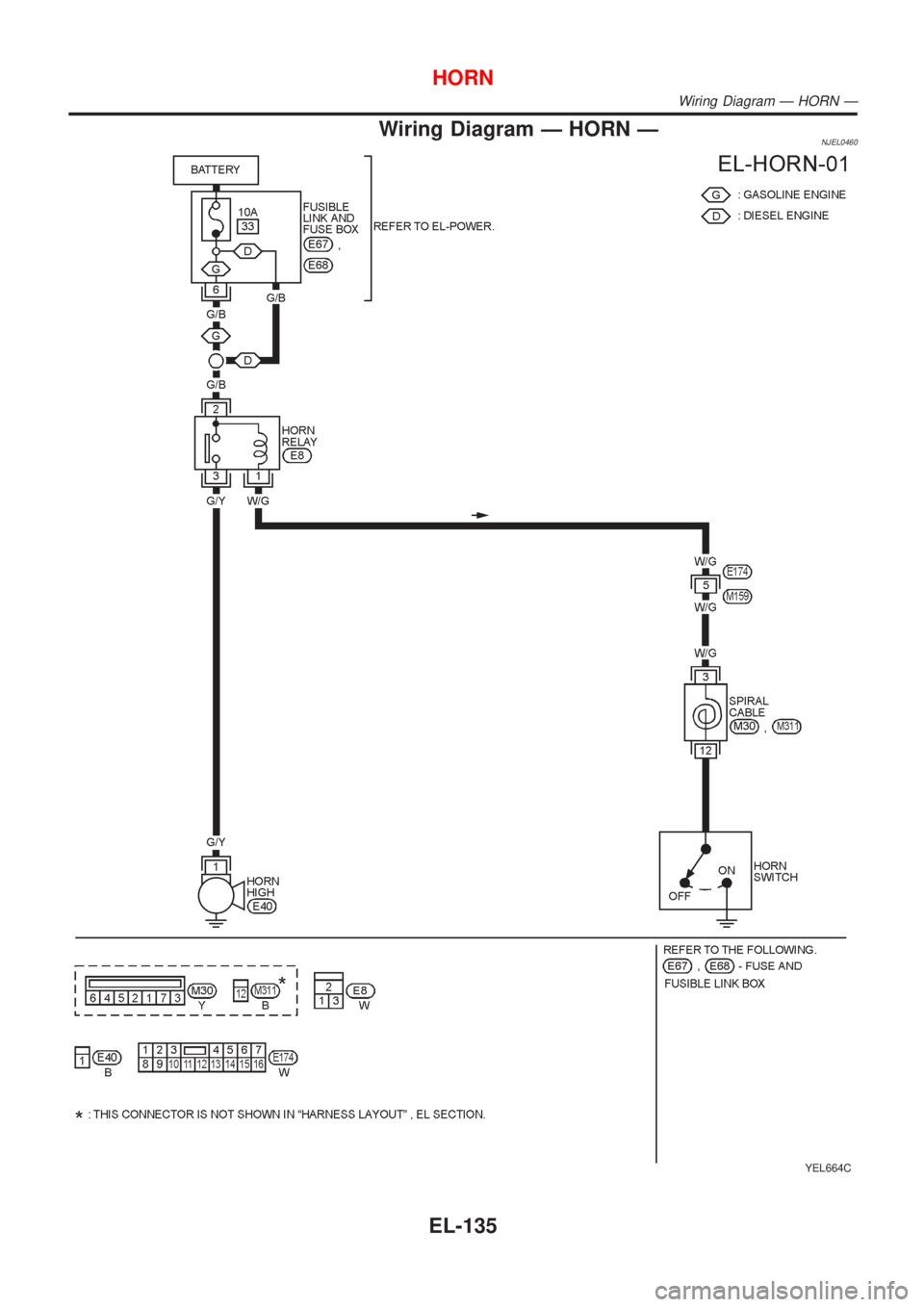

Wiring Diagram Ð HORN ÐNJEL0460
YEL664C
HORN
Wiring Diagram Ð HORN Ð
EL-135
Page 2248 of 2493

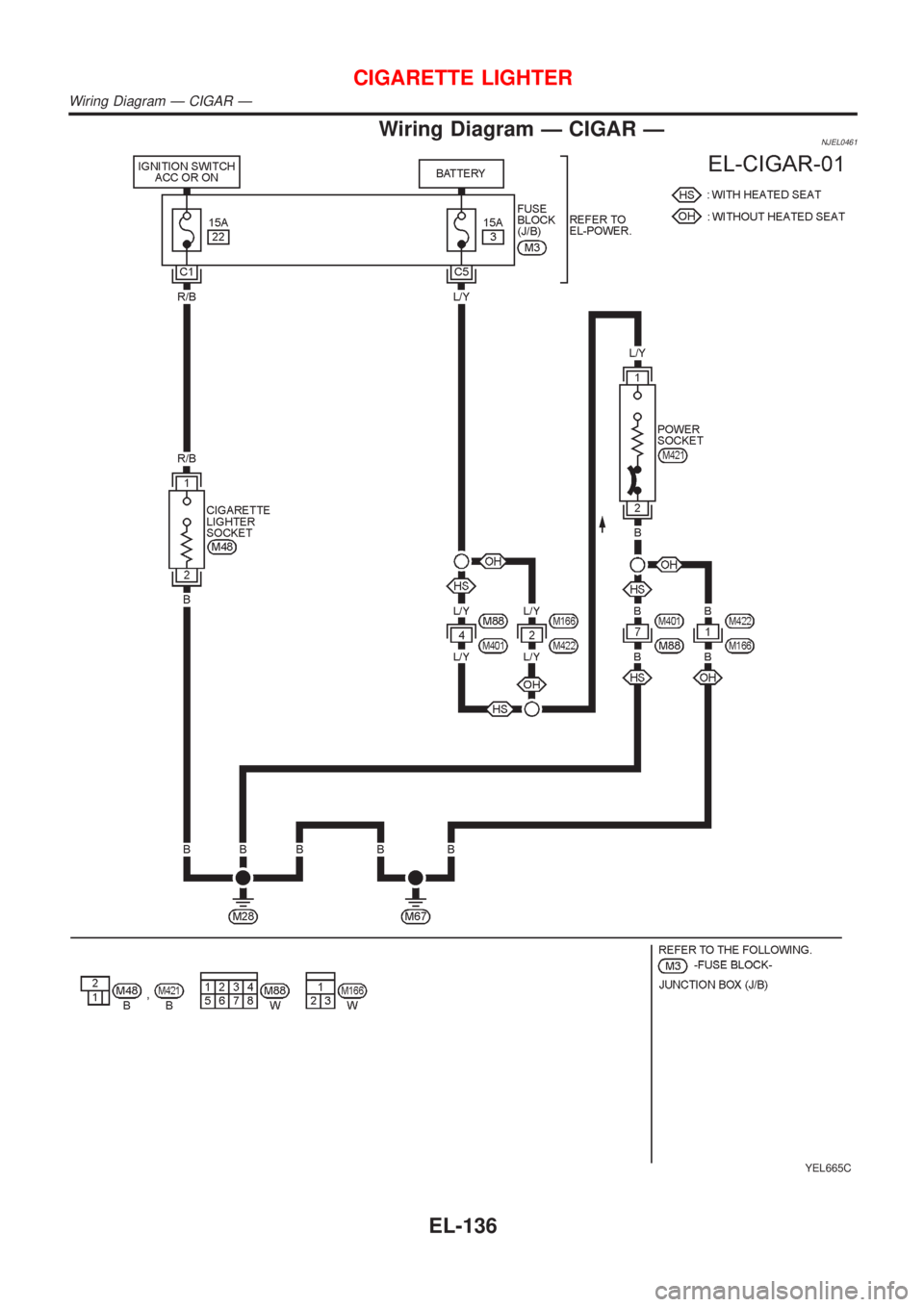

Wiring Diagram Ð CIGAR ÐNJEL0461
YEL665C
CIGARETTE LIGHTER
Wiring Diagram Ð CIGAR Ð
EL-136
