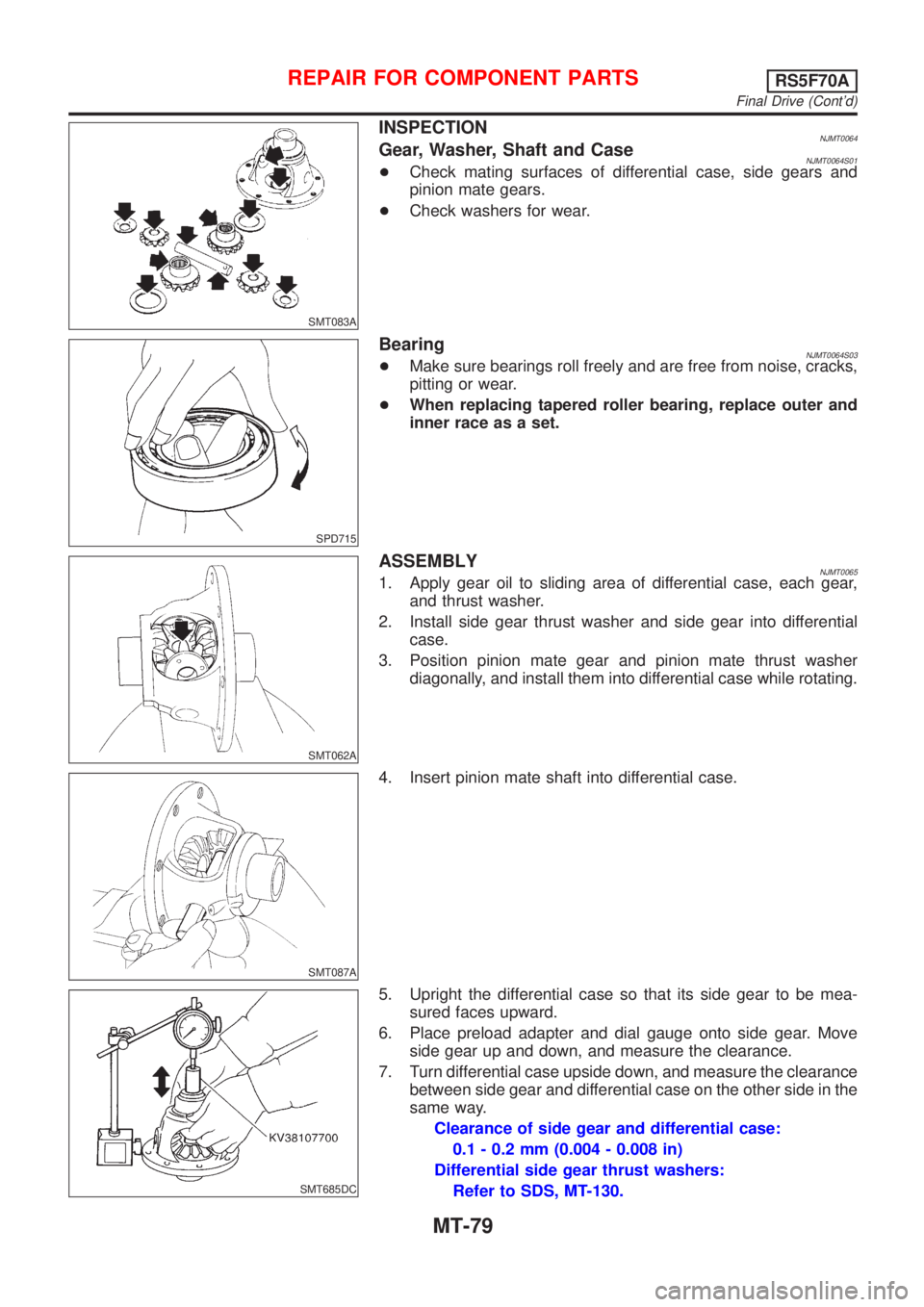

INSPECTIONNJMT0064Gear, Washer, Shaft and CaseNJMT0064S01+Check mating surfaces of differential case, side gears and
pinion mate gears.
+Check washers for wear.
SPD715
BearingNJMT0064S03+Make sure bearings roll freely and are free from noise, cracks,
pitting or wear.
+When replacing tapered roller bearing, replace outer and
inner race as a set.
SMT062A
ASSEMBLYNJMT00651. Apply gear oil to sliding area of differential case, each gear,
and thrust washer.
2. Install side gear thrust washer and side gear into differential
case.
3. Position pinion mate gear and pinion mate thrust washer
diagonally, and install them into differential case while rotating.
SMT087A
4. Insert pinion mate shaft into differential case.
SMT685DC
5. Upright the differential case so that its side gear to be mea-
sured faces upward.
6. Place preload adapter and dial gauge onto side gear. Move
side gear up and down, and measure the clearance.
7. Turn differential case upside down, and measure the clearance
between side gear and differential case on the other side in the
same way.
Clearance of side gear and differential case:
0.1 - 0.2 mm (0.004 - 0.008 in)
Differential side gear thrust washers:
Refer to SDS, MT-130.
REPAIR FOR COMPONENT PARTSRS5F70A
Final Drive (Cont'd)
MT-79
Page 1130 of 2493

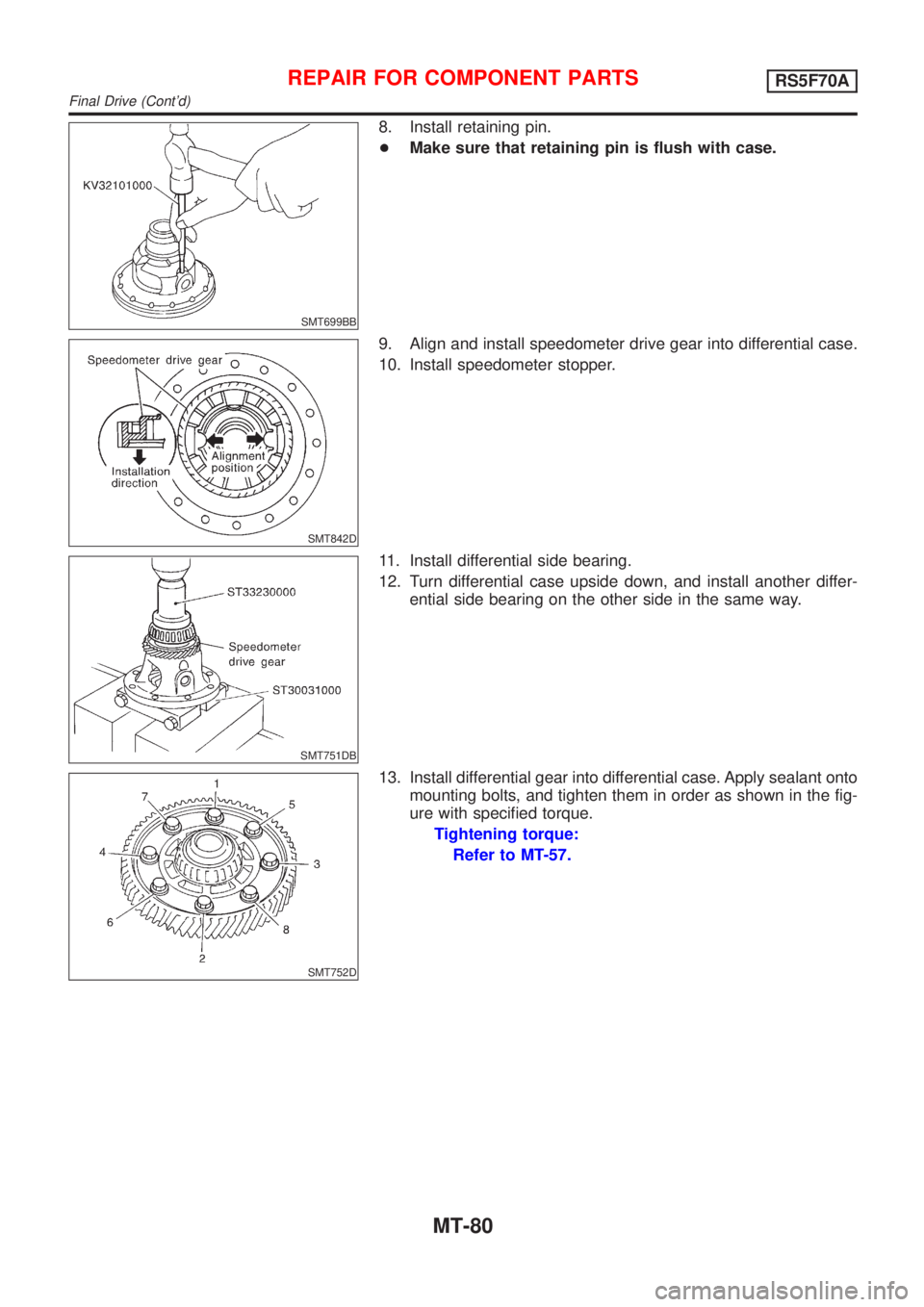

SMT699BB
8. Install retaining pin.
+Make sure that retaining pin is flush with case.
SMT842D
9. Align and install speedometer drive gear into differential case.
10. Install speedometer stopper.
SMT751DB
11. Install differential side bearing.
12. Turn differential case upside down, and install another differ-
ential side bearing on the other side in the same way.
SMT752D
13. Install differential gear into differential case. Apply sealant onto
mounting bolts, and tighten them in order as shown in the fig-
ure with specified torque.
Tightening torque:
Refer to MT-57.
REPAIR FOR COMPONENT PARTSRS5F70A
Final Drive (Cont'd)
MT-80
Page 1131 of 2493
SMT801D
Shift Control Components

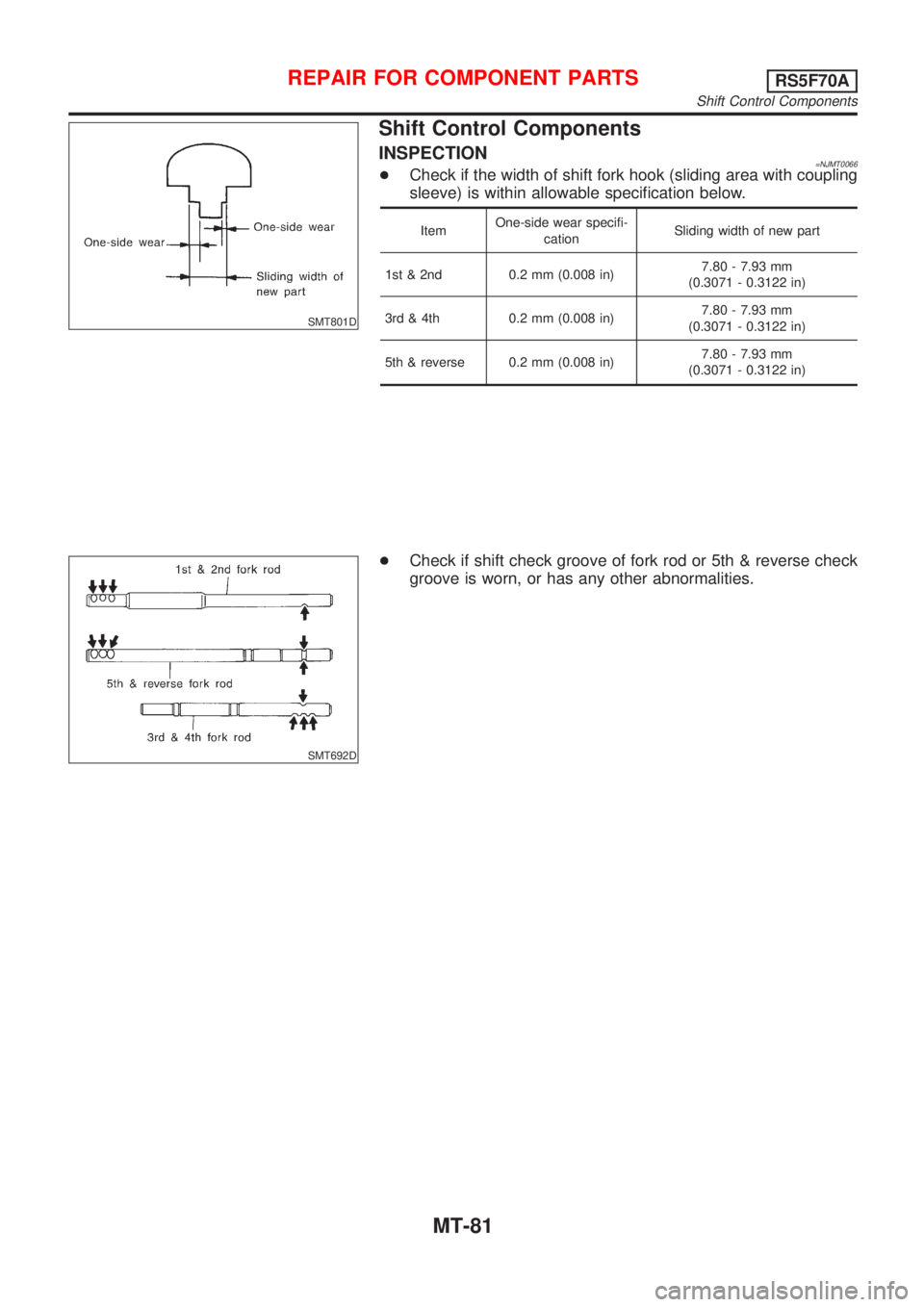

INSPECTION=NJMT0066+Check if the width of shift fork hook (sliding area with coupling
sleeve) is within allowable specification below.
ItemOne-side wear specifi-
cationSliding width of new part
1st & 2nd 0.2 mm (0.008 in)7.80 - 7.93 mm
(0.3071 - 0.3122 in)
3rd & 4th 0.2 mm (0.008 in)7.80 - 7.93 mm
(0.3071 - 0.3122 in)
5th & reverse 0.2 mm (0.008 in)7.80 - 7.93 mm
(0.3071 - 0.3122 in)
SMT692D
+Check if shift check groove of fork rod or 5th & reverse check
groove is worn, or has any other abnormalities.
REPAIR FOR COMPONENT PARTSRS5F70A
Shift Control Components
MT-81
Page 1132 of 2493
NJMT0067
SMT722DB
Clutch HousingNJMT0067S011. Hammer the striking rod oil seal into clutch housing as far as
it will go.
CAUTION:
Do not reuse striking rod oil seal.
SMT723DA
2. Hammer the differential oil seal into clutch housing until it
becomes flush with clutch housing end face.
CAUTION:
Do not reuse differential oil seal.
SMT724DA
3. Hammer input shaft oil seal into clutch housing as far as it will
go.
CAUTION:
Do not reuse input shaft oil seal.
SMT725DB
4. Hammer the dust seal into clutch housing as far as it will go.
CAUTION:
Do not reuse dust seal.
SMT726DB
5. Install outer race of differential side bearing.
ASSEMBLYRS5F70A
Clutch Housing
MT-82

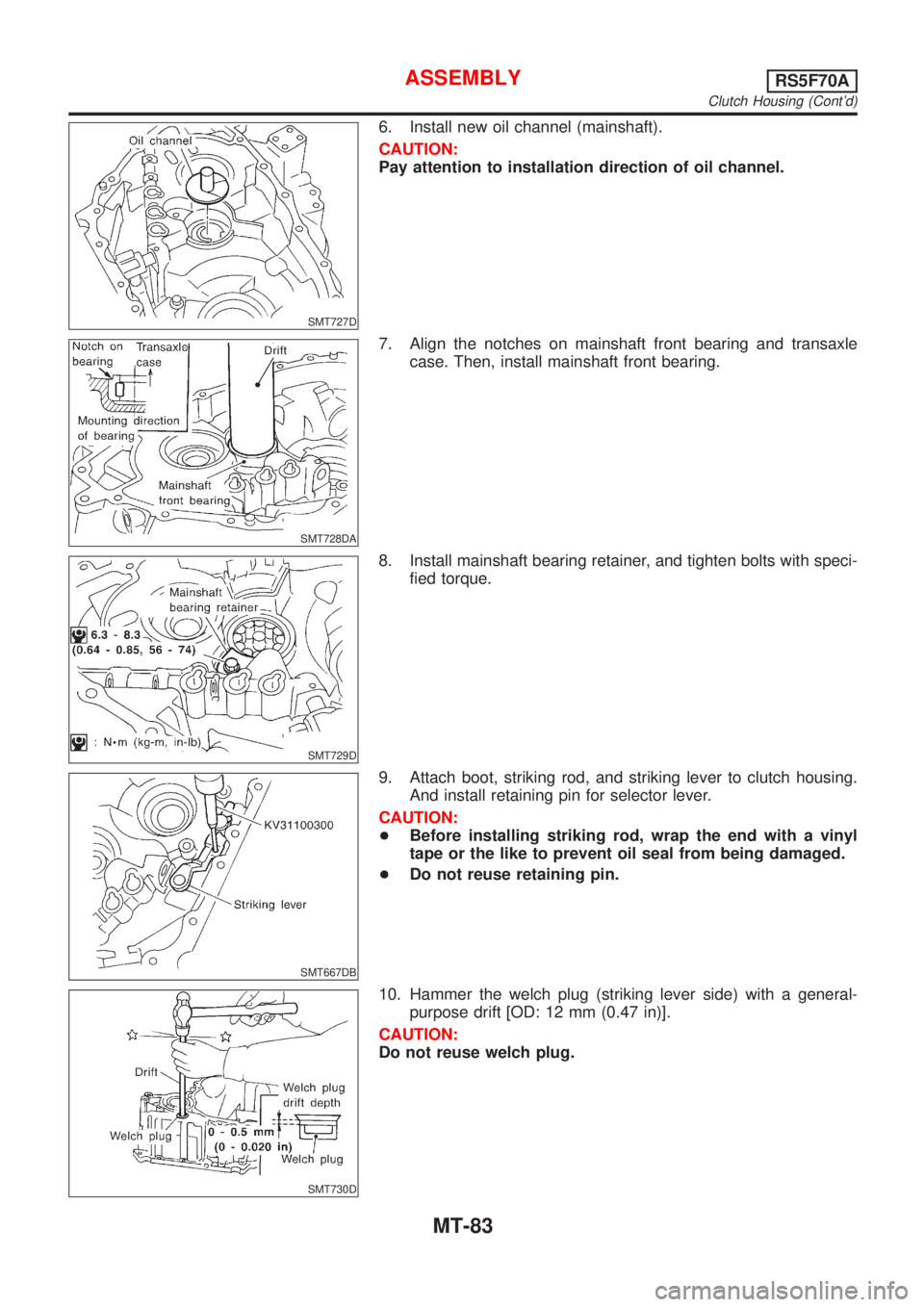

Page 1133 of 2493
SMT727D
6. Install new oil channel (mainshaft).
CAUTION:
Pay attention to installation direction of oil channel.
SMT728DA
7. Align the notches on mainshaft front bearing and transaxle
case. Then, install mainshaft front bearing.
SMT729D
8. Install mainshaft bearing retainer, and tighten bolts with speci-
fied torque.
SMT667DB
9. Attach boot, striking rod, and striking lever to clutch housing.
And install retaining pin for selector lever.
CAUTION:
+Before installing striking rod, wrap the end with a vinyl
tape or the like to prevent oil seal from being damaged.
+Do not reuse retaining pin.
SMT730D
10. Hammer the welch plug (striking lever side) with a general-
purpose drift [OD: 12 mm (0.47 in)].
CAUTION:
Do not reuse welch plug.
ASSEMBLYRS5F70A
Clutch Housing (Cont'd)
MT-83

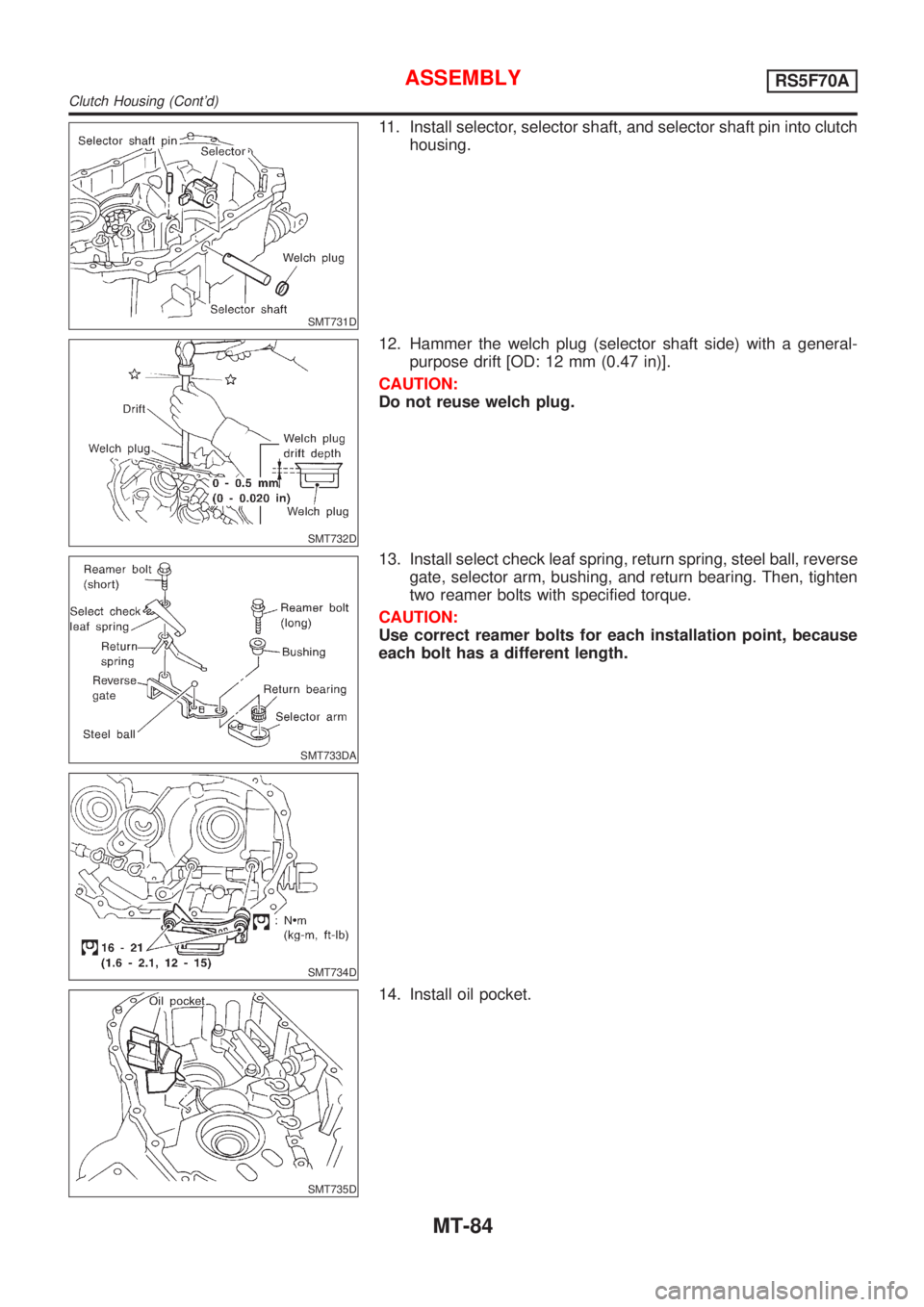

Page 1134 of 2493
SMT731D
11. Install selector, selector shaft, and selector shaft pin into clutch
housing.
SMT732D
12. Hammer the welch plug (selector shaft side) with a general-
purpose drift [OD: 12 mm (0.47 in)].
CAUTION:
Do not reuse welch plug.
SMT733DA
SMT734D
13. Install select check leaf spring, return spring, steel ball, reverse
gate, selector arm, bushing, and return bearing. Then, tighten
two reamer bolts with specified torque.
CAUTION:
Use correct reamer bolts for each installation point, because
each bolt has a different length.
SMT735D
14. Install oil pocket.
ASSEMBLYRS5F70A
Clutch Housing (Cont'd)
MT-84
Page 1135 of 2493

SMT736D
15. Install differential assembly, input shaft assembly, and main-
shaft assembly into clutch housing.
CAUTION:
Be careful not to damage input shaft oil seal during installa-
tion of input shaft assembly.
SMT659DC
16. Install 5th & reverse shift fork.
17. Install 1st & 2nd shift fork, bracket, and fork rod.
18. Install retaining pin for 1st & 2nd bracket.
CAUTION:
Do not reuse retaining pin.
19. Install two check balls.
SMT657DC
20. Install interlock pin into 5th & reverse fork rod.
21. Install reverse switch bracket, 5th & reverse bracket, and fork
rod.
22. Install retaining pin for 5th & reverse shift fork and reverse
switch bracket.
CAUTION:
Do not reuse retaining pin.
23. Install 5th & reverse bracket stopper ring.
CAUTION:
Do not reuse stopper pin.
SMT656DC
24. Install check ball and interlock plunger.
25. Install 3rd & 4th shift fork, bracket, and fork rod.
26. Install 3rd & 4th bracket retaining pin.
CAUTION:
Do not reuse retaining pin.
SMT655D
27. Install 3rd & 4th shift fork stopper ring.
CAUTION:
Do not reuse stopper ring.
28. Install check ball, check pin, and check spring, and apply
Three Bond TB1215, Loctite Part No. 51813 or equivalent onto
check plug. Then, tighten it with specified torque.
Tightening torque:
Refer to MT-56.
ASSEMBLYRS5F70A
Clutch Housing (Cont'd)
MT-85
Page 1136 of 2493
SMT737DA

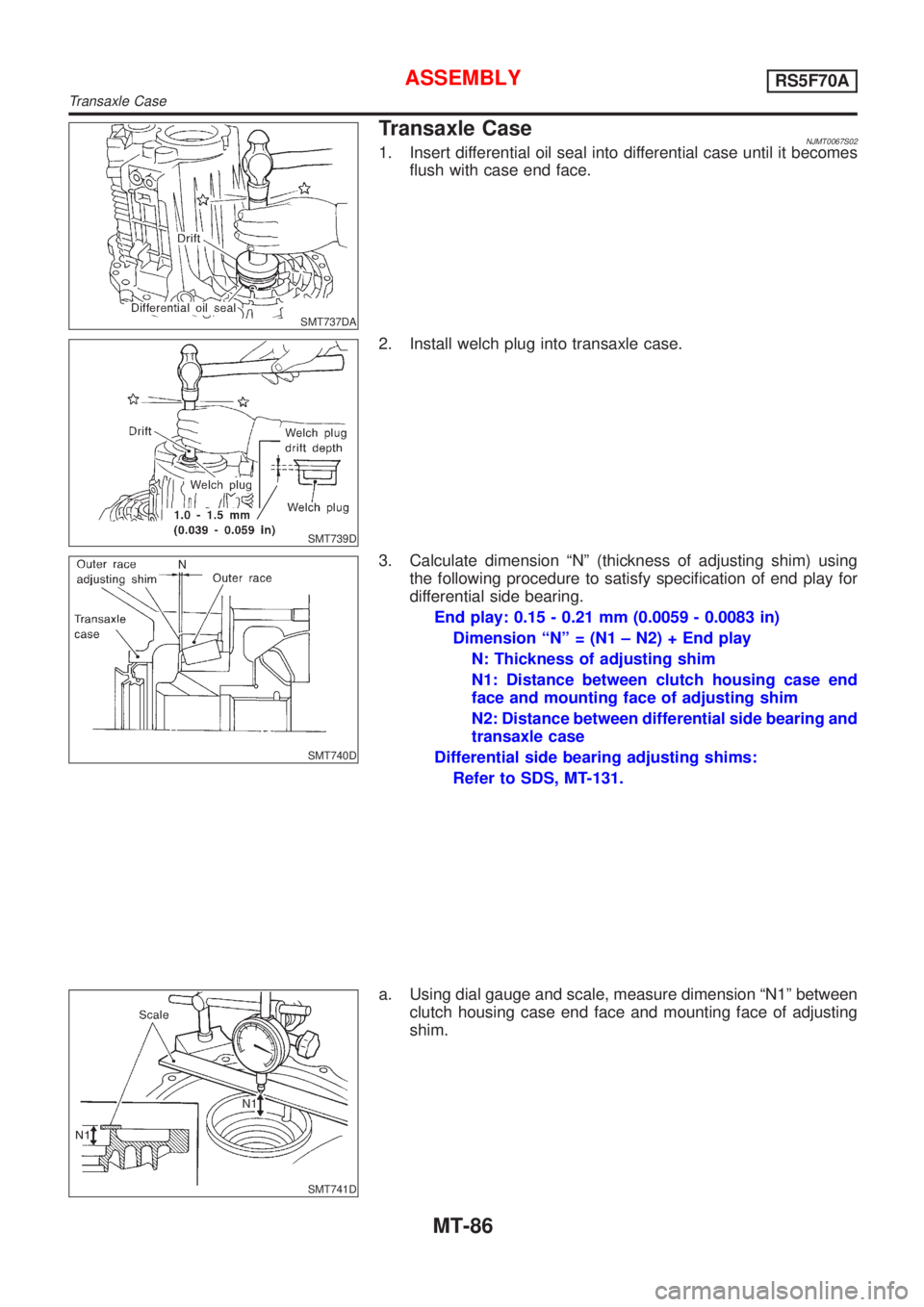

Transaxle CaseNJMT0067S021. Insert differential oil seal into differential case until it becomes
flush with case end face.
SMT739D
2. Install welch plug into transaxle case.
SMT740D
3. Calculate dimension ªNº (thickness of adjusting shim) using
the following procedure to satisfy specification of end play for
differential side bearing.
End play: 0.15 - 0.21 mm (0.0059 - 0.0083 in)
Dimension ªNº = (N1 ± N2) + End play
N: Thickness of adjusting shim
N1: Distance between clutch housing case end
face and mounting face of adjusting shim
N2: Distance between differential side bearing and
transaxle case
Differential side bearing adjusting shims:
Refer to SDS, MT-131.
SMT741D
a. Using dial gauge and scale, measure dimension ªN1º between
clutch housing case end face and mounting face of adjusting
shim.
ASSEMBLYRS5F70A
Transaxle Case
