Page 97 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual ComponentsNJEM0008 SEM391G SEM067F RemovalNJEM00091. Remove front RH side cover. 2. Drain engine oil. 3. Remove front exhaust tube. Refer to FE-11, ªEXHAUST SYSTEMº. 4. Set a suitable transmission j

Page 98 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM071FA SEM110G 6. Remove engine gussets. Refer to MT-24 or AT-347, ªInstallationº. 7. Remove rear plate cover (A/T models). SEM365EB 8. Remove oil pan. a. Insert Tool between cylinder block and oi

Page 99 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM259G +Be sure liquid gasket diameter is 3.5 to 4.5 mm (0.138 to 0.177 in). +Attaching should be done within 5 minutes after coating. SEM072F 3. Install oil pan. +Tighten oil pan nuts and bolts in t

Page 100 of 2493

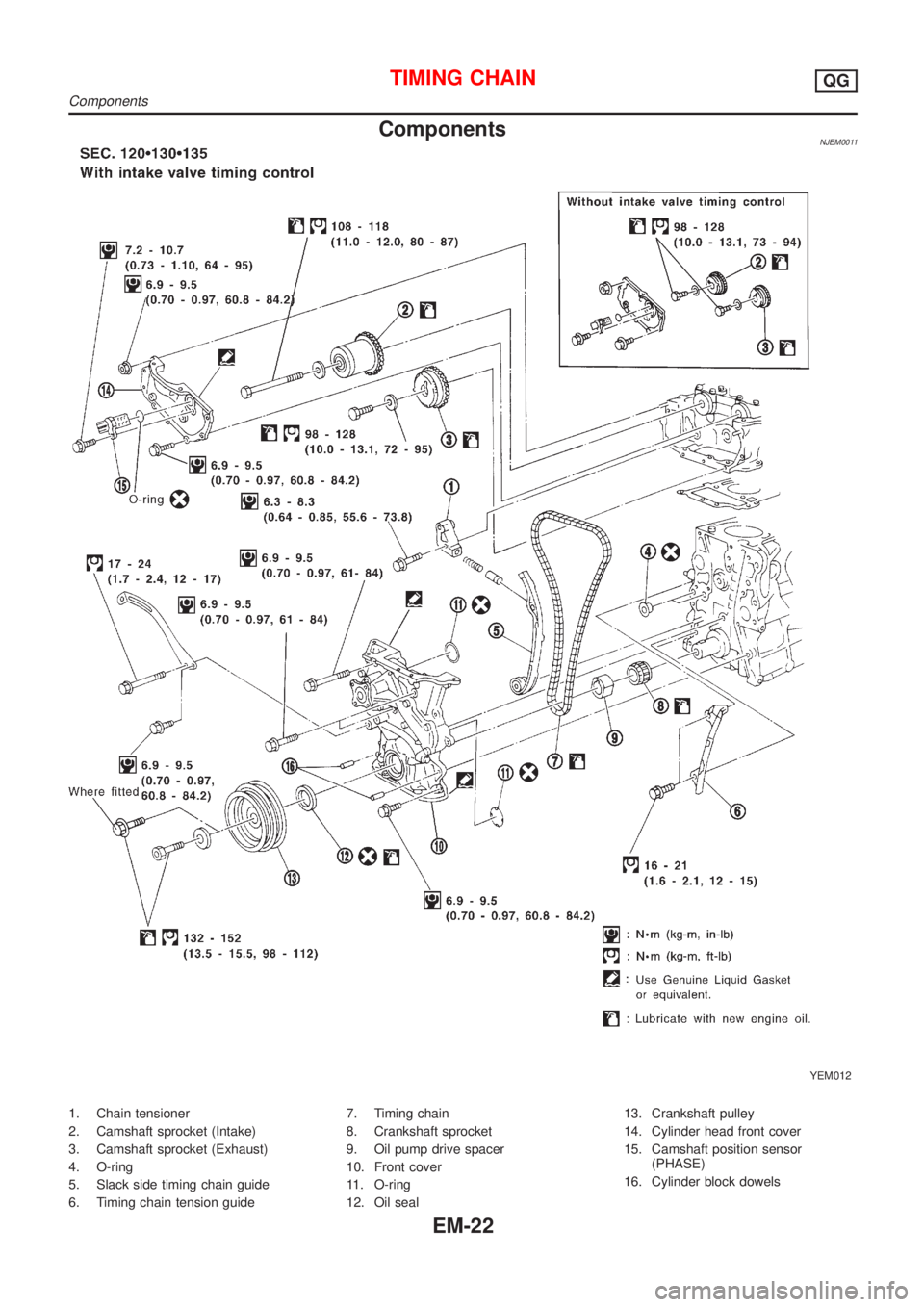

NISSAN ALMERA N16 2001 Electronic Repair Manual ComponentsNJEM0011 YEM012 1. Chain tensioner 2. Camshaft sprocket (Intake) 3. Camshaft sprocket (Exhaust) 4. O-ring 5. Slack side timing chain guide 6. Timing chain tension guide7. Timing chain 8. Cra

Page 101 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual CAUTION: +After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike piston heads. +When installing chain tensioner, oil seats, or other sliding parts, lubricat

Page 102 of 2493

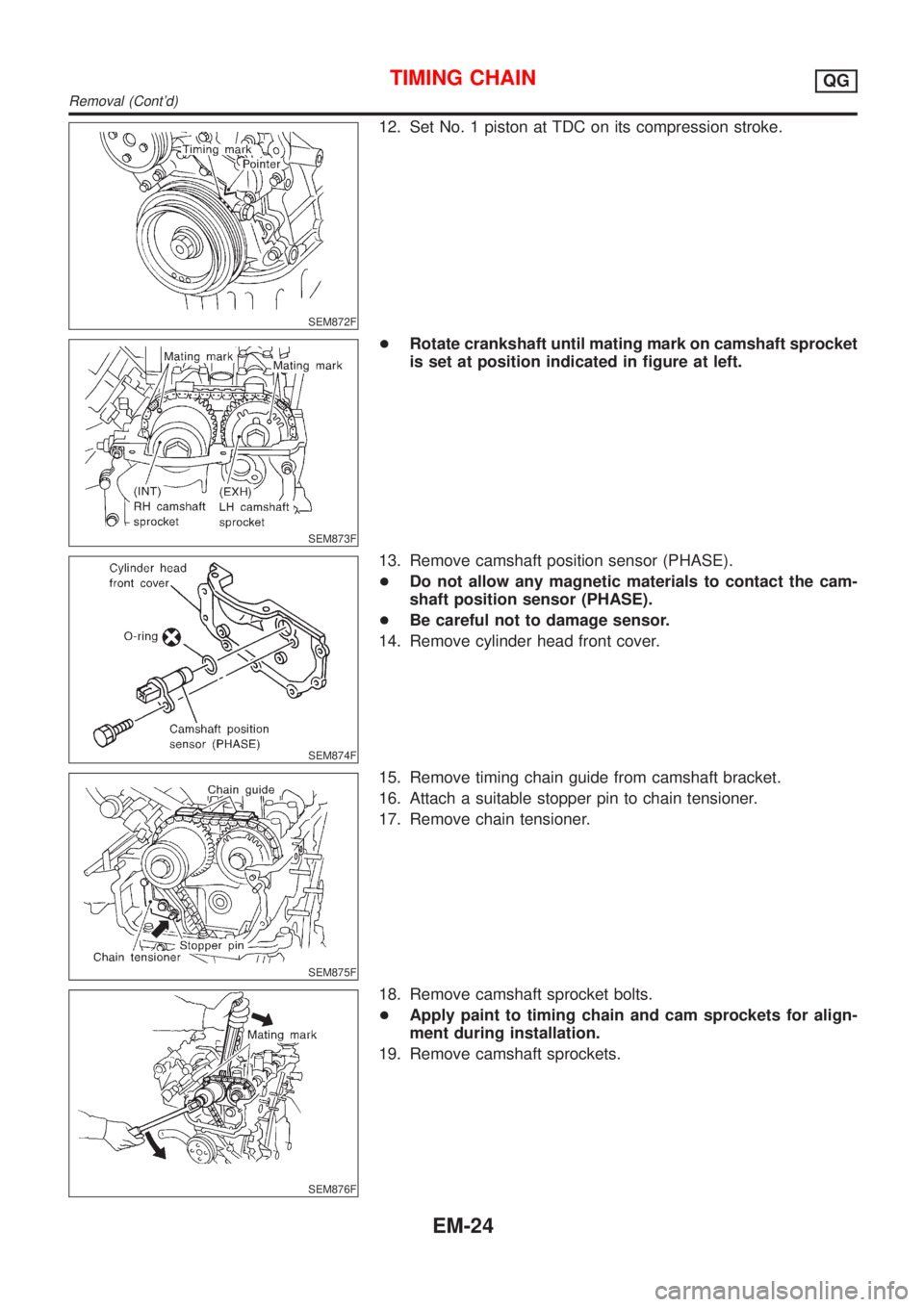

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM872F 12. Set No. 1 piston at TDC on its compression stroke. SEM873F +Rotate crankshaft until mating mark on camshaft sprocket is set at position indicated in figure at left. SEM874F 13. Remove cams

Page 103 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM008G 20. Remove cylinder head bolts at engine front side. SEM879F 21. Remove oil pan. Refer to EM-19, ªRemovalº. 22. Remove oil strainer. SEM880F 23. Remove starter motor, and set ring gear stopp

Page 104 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEM104G 27. Remove RH engine mounting bracket. 28. Remove idler pulley and bracket. SEM883F 29. Remove water pump pulley and water pump. 30. Remove front cover bolts and front cover as shown. H1: Loca
