Page 1777 of 2585

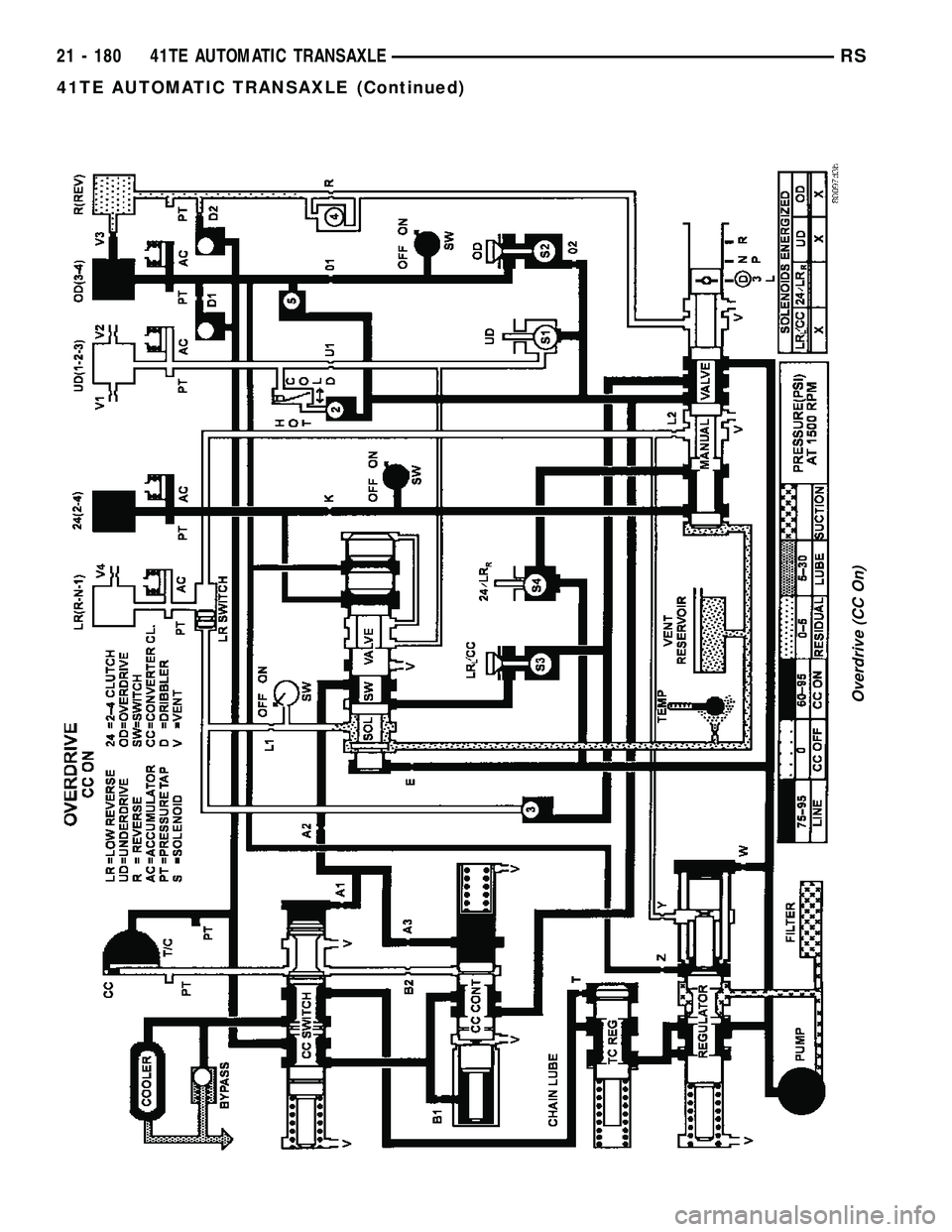

CHRYSLER VOYAGER 2004 Service Manual Overdrive (CC On) 21 - 180 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1778 of 2585

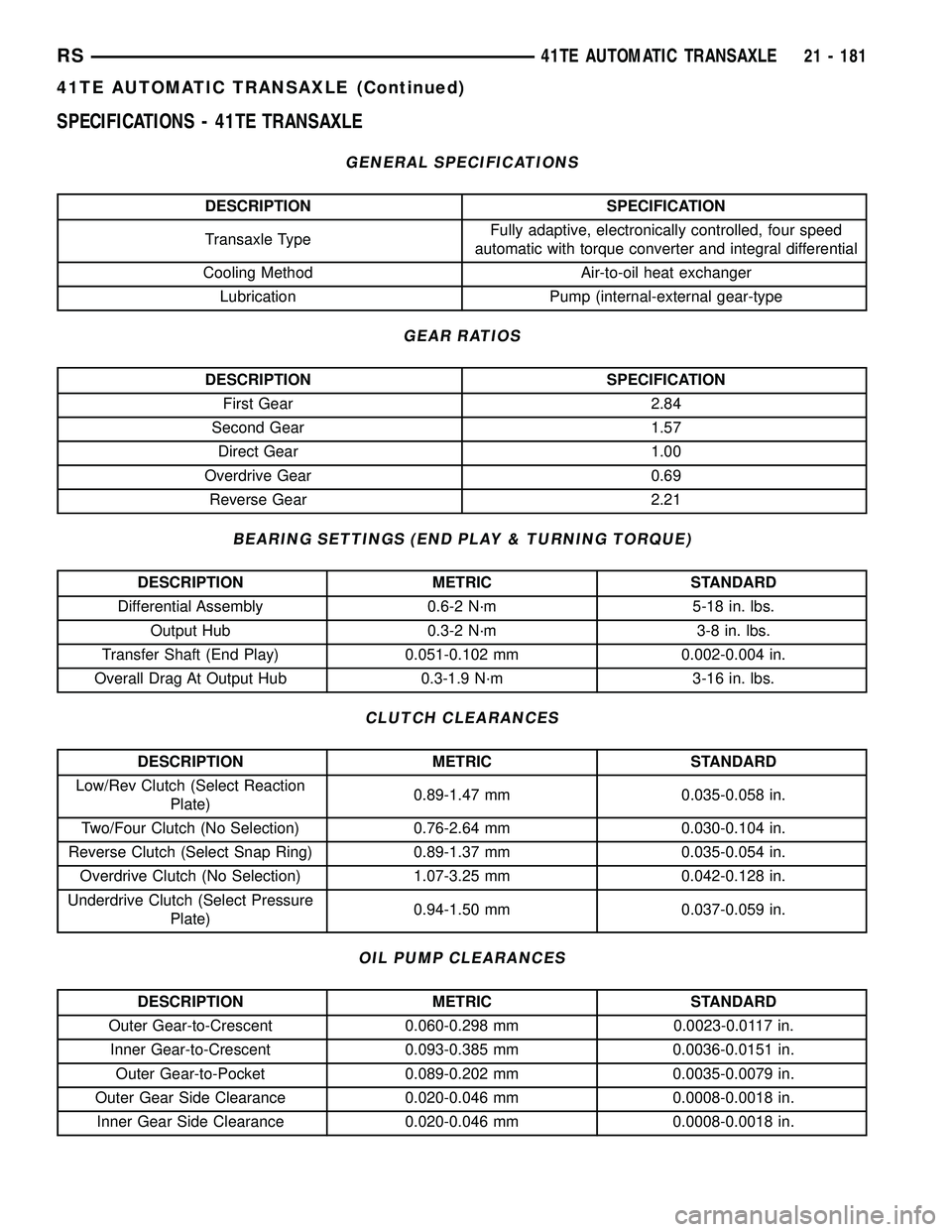

CHRYSLER VOYAGER 2004 Service Manual SPECIFICATIONS - 41TE TRANSAXLE GENERAL SPECIFICATIONS DESCRIPTION SPECIFICATION Transaxle TypeFully adaptive, electronically controlled, four speed automatic with torque converter and integral differ

Page 1779 of 2585

CHRYSLER VOYAGER 2004 Service Manual INPUT SHAFT DESCRIPTION METRIC SPECIFICATION End Play 0.127-0.635mm 0.005-0.025 in. TORQUE SPECIFICATIONS DESCRIPTION N´m Ft. Lbs. In. Lbs. Bolt, Differential Cover-to-Case 19 Ð 165 Bolt, Differenti

Page 1780 of 2585

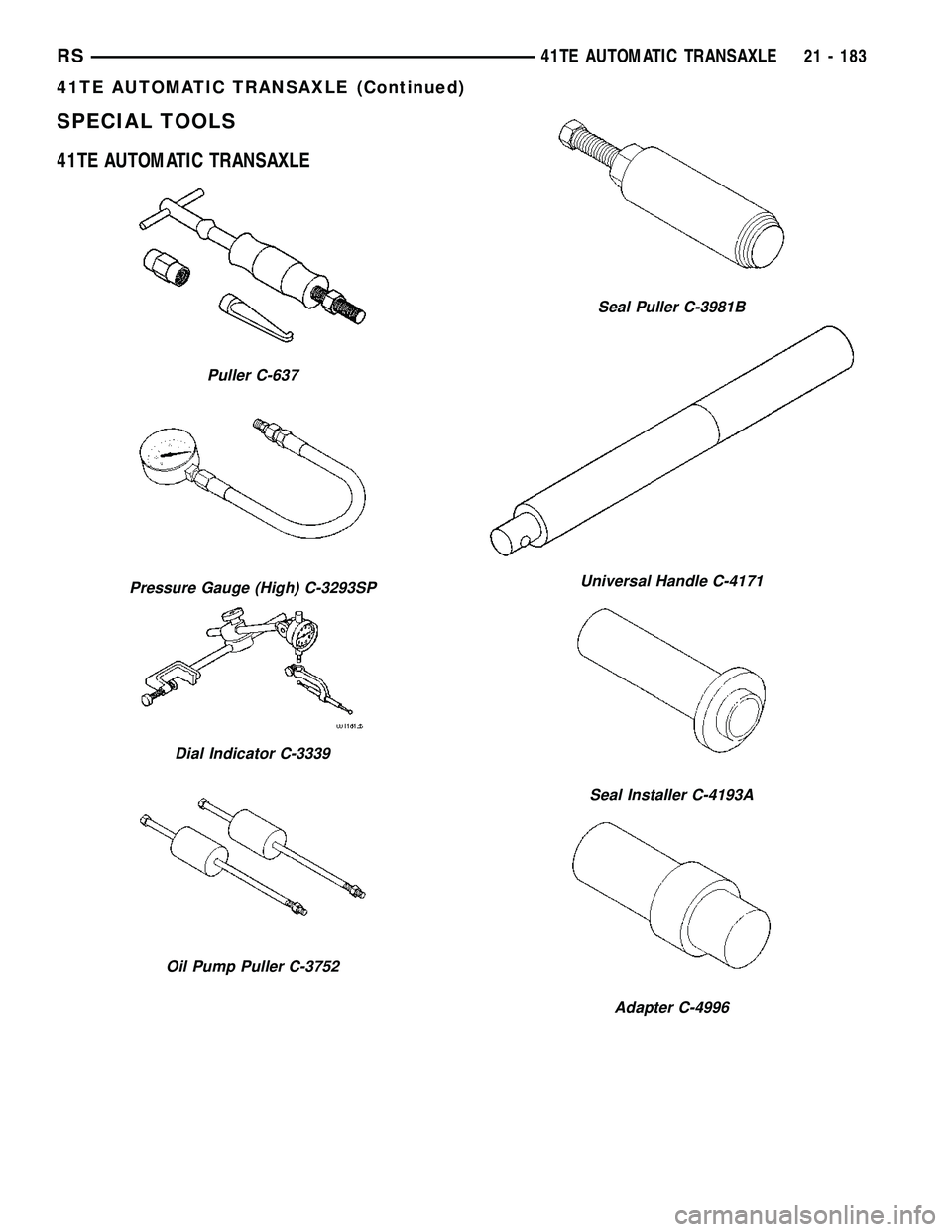

CHRYSLER VOYAGER 2004 Service Manual SPECIAL TOOLS 41TE AUTOMATIC TRANSAXLE Puller C-637 Pressure Gauge (High) C-3293SP Dial Indicator C-3339 Oil Pump Puller C-3752 Seal Puller C-3981B Universal Handle C-4171 Seal Installer C-4193A Adapt

Page 1781 of 2585

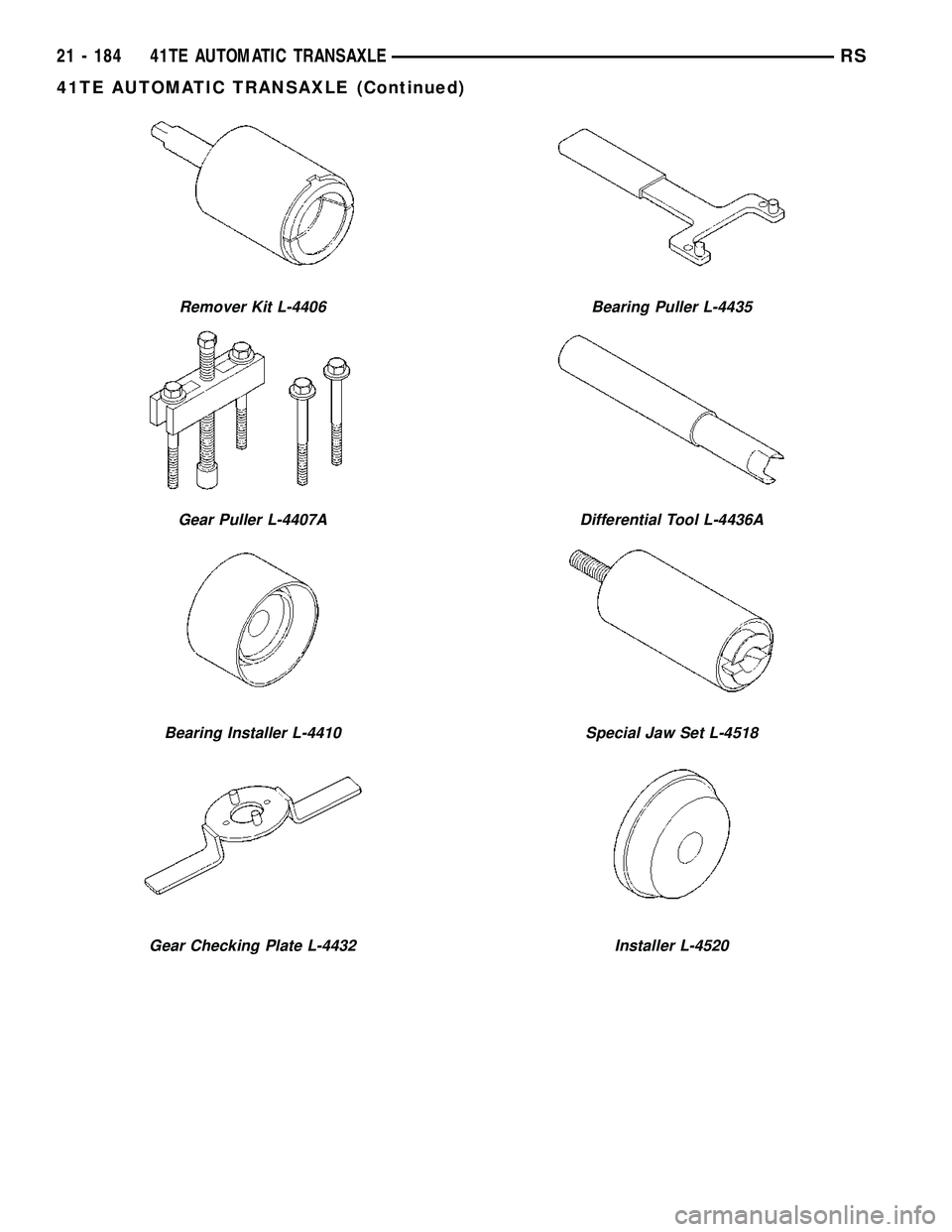

CHRYSLER VOYAGER 2004 Service Manual Remover Kit L-4406 Gear Puller L-4407A Bearing Installer L-4410 Gear Checking Plate L-4432 Bearing Puller L-4435 Differential Tool L-4436A Special Jaw Set L-4518 Installer L-4520 21 - 184 41TE AUTOMAT

Page 1782 of 2585

CHRYSLER VOYAGER 2004 Service Manual Thrust Button L-4539-2 Adapter L-4559 Adapter L-4559-2 Bearing Splitter P-334 Puller Set 5048 Remover/Installer 5049-A Installer 5050A Installer 5052 RS41TE AUTOMATIC TRANSAXLE21 - 185 41TE AUTOMATIC

Page 1783 of 2585

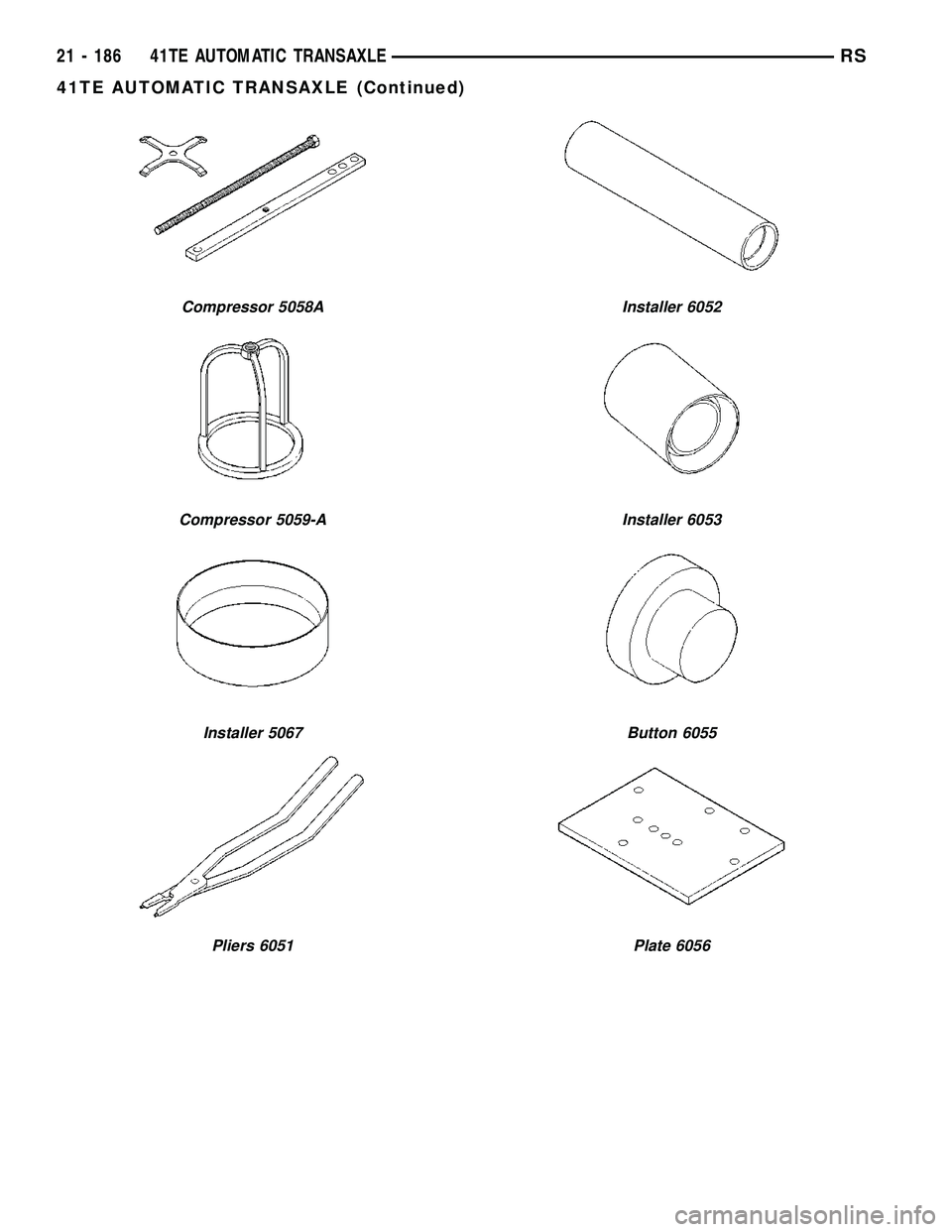

CHRYSLER VOYAGER 2004 Service Manual Compressor 5058A Compressor 5059-A Installer 5067 Pliers 6051 Installer 6052 Installer 6053 Button 6055 Plate 6056 21 - 186 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1784 of 2585

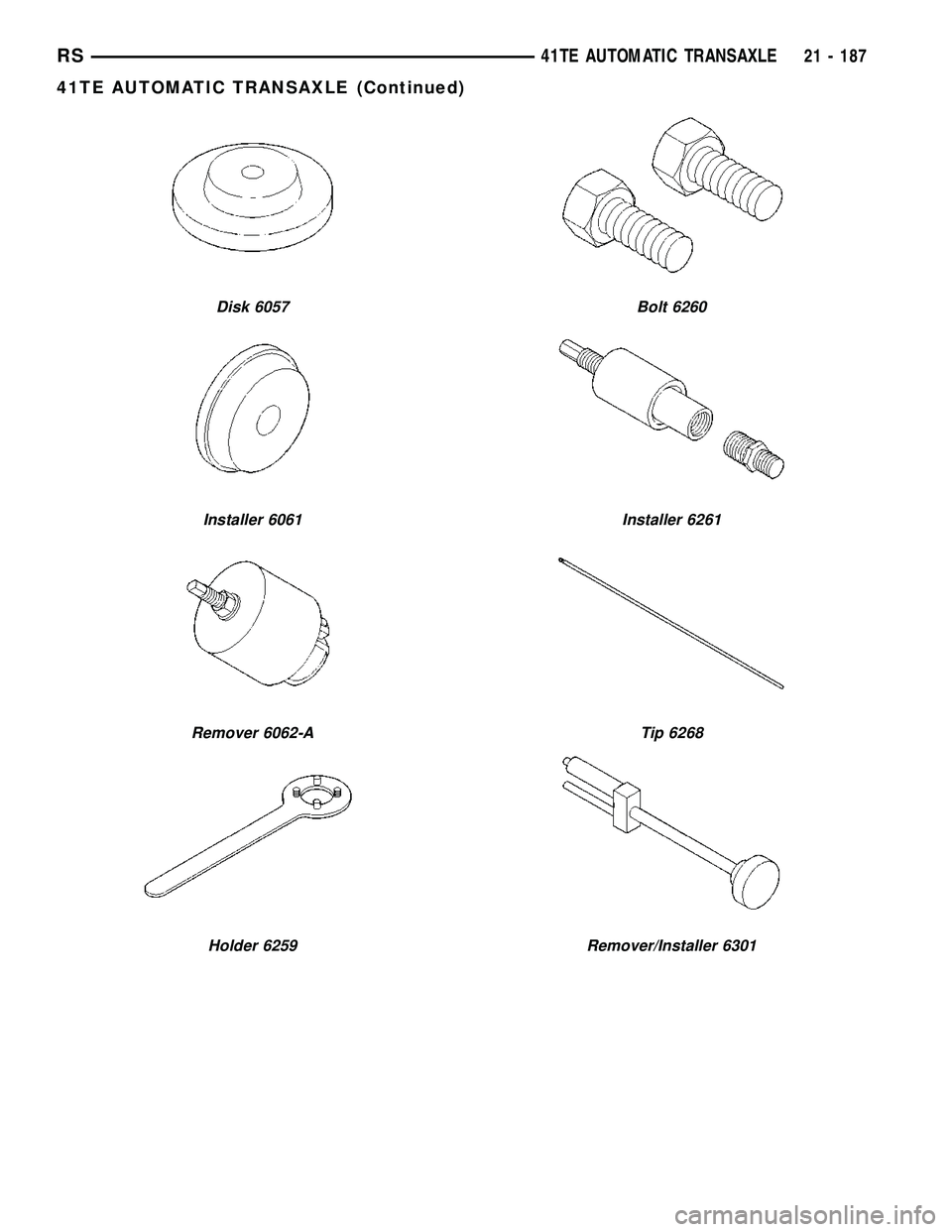

CHRYSLER VOYAGER 2004 Service Manual Disk 6057 Installer 6061 Remover 6062-A Holder 6259 Bolt 6260 Installer 6261 Tip 6268 Remover/Installer 6301 RS41TE AUTOMATIC TRANSAXLE21 - 187 41TE AUTOMATIC TRANSAXLE (Continued)
