Page 1129 of 2585

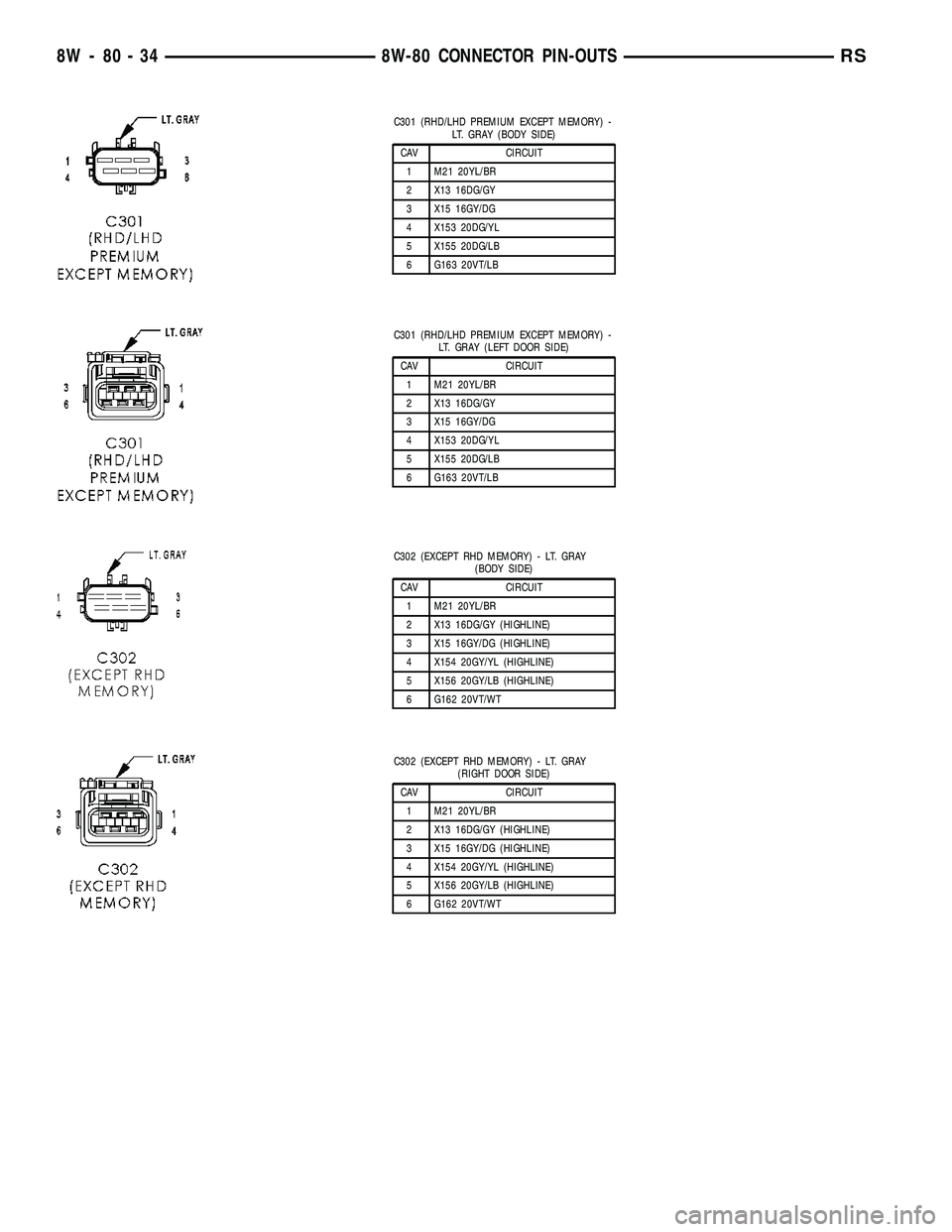

CHRYSLER VOYAGER 2004 Service Manual C301 (RHD/LHD PREMIUM EXCEPT MEMORY) - LT. GRAY (BODY SIDE) CAV CIRCUIT 1 M21 20YL/BR 2 X13 16DG/GY 3 X15 16GY/DG 4 X153 20DG/YL 5 X155 20DG/LB 6 G163 20VT/LB C301 (RHD/LHD PREMIUM EXCEPT MEMORY) - LT

Page 1130 of 2585

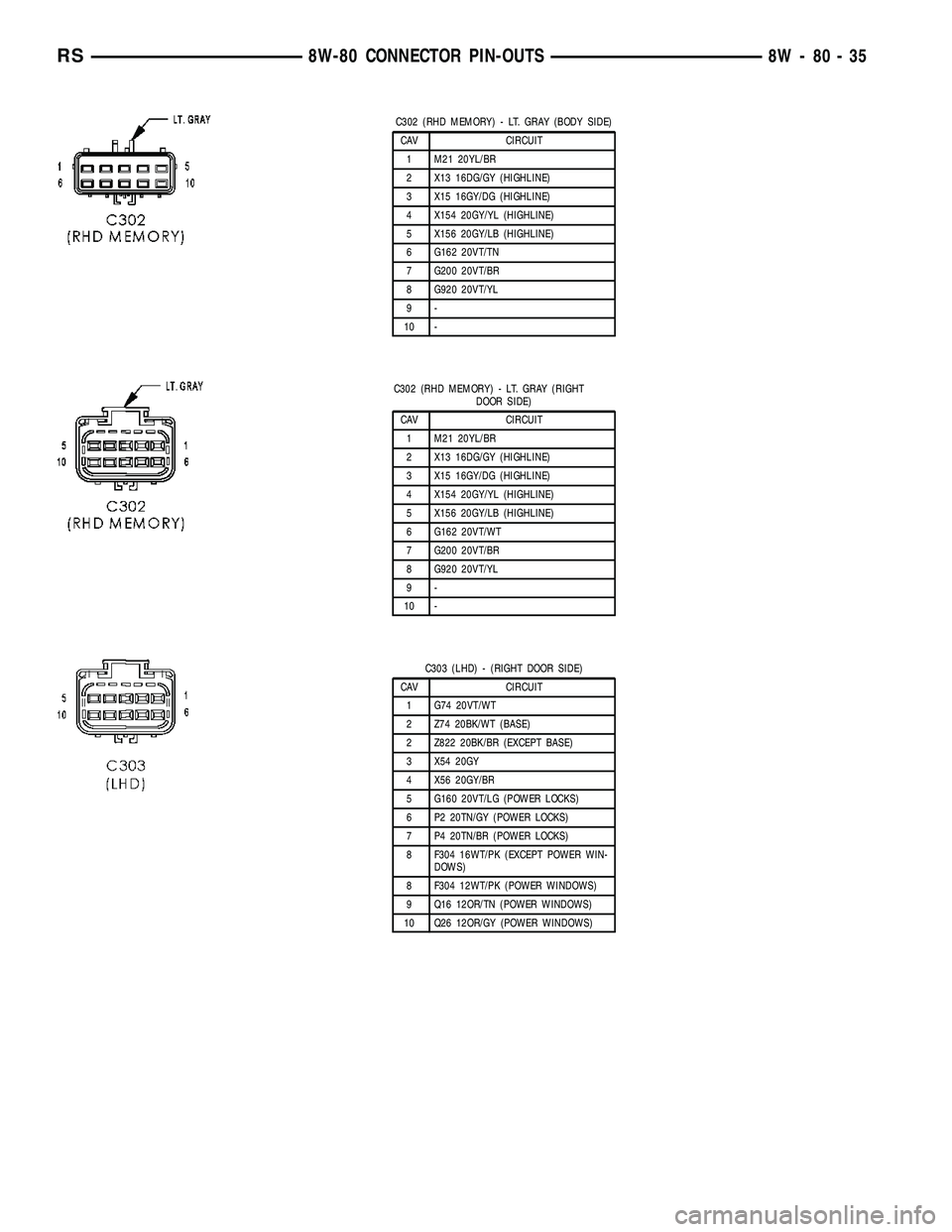

CHRYSLER VOYAGER 2004 Service Manual C302 (RHD MEMORY) - LT. GRAY (BODY SIDE) CAV CIRCUIT 1 M21 20YL/BR 2 X13 16DG/GY (HIGHLINE) 3 X15 16GY/DG (HIGHLINE) 4 X154 20GY/YL (HIGHLINE) 5 X156 20GY/LB (HIGHLINE) 6 G162 20VT/TN 7 G200 20VT/BR 8

Page 1131 of 2585

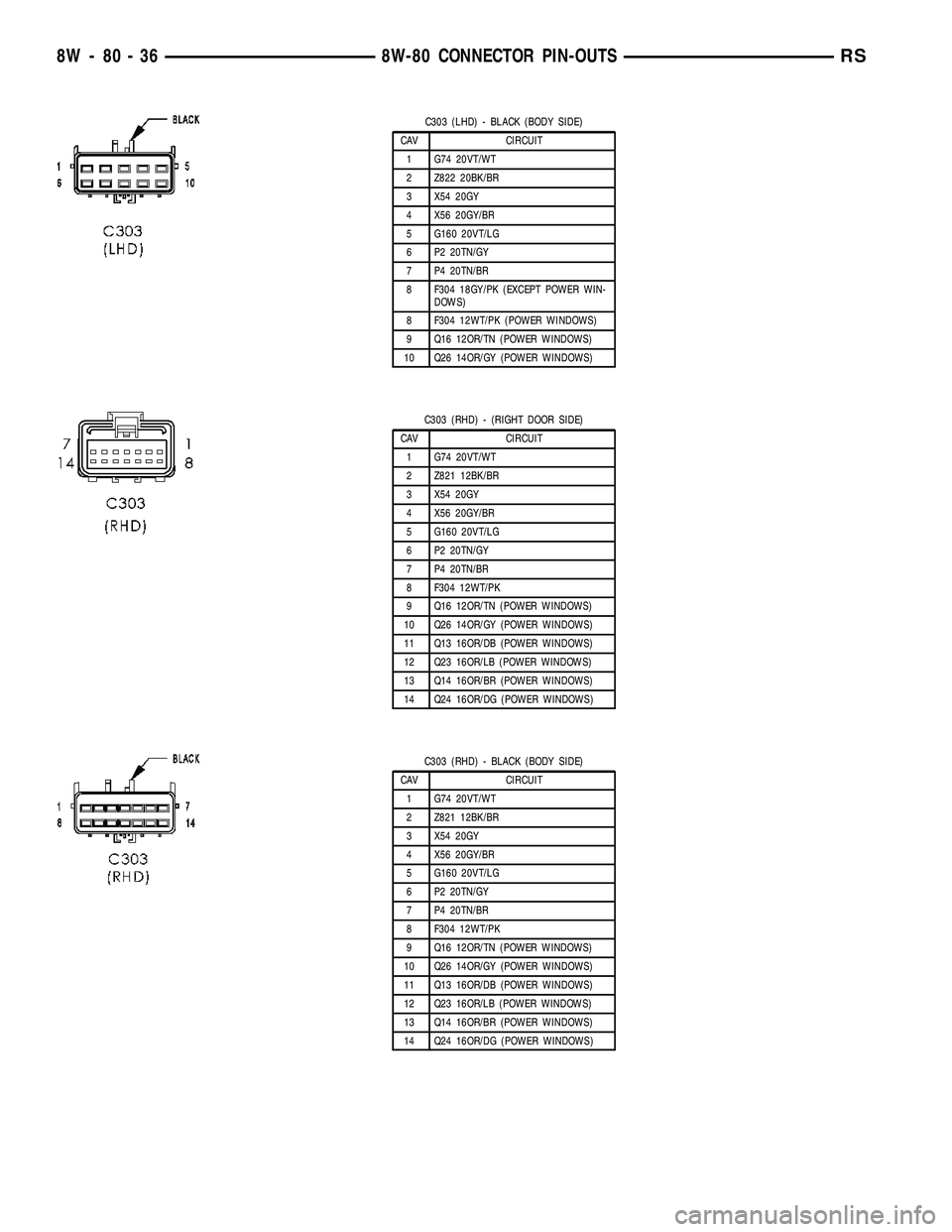

CHRYSLER VOYAGER 2004 Service Manual C303 (LHD) - BLACK (BODY SIDE) CAV CIRCUIT 1 G74 20VT/WT 2 Z822 20BK/BR 3 X54 20GY 4 X56 20GY/BR 5 G160 20VT/LG 6 P2 20TN/GY 7 P4 20TN/BR 8 F304 18GY/PK (EXCEPT POWER WIN- DOWS) 8 F304 12WT/PK (POWER

Page 1132 of 2585

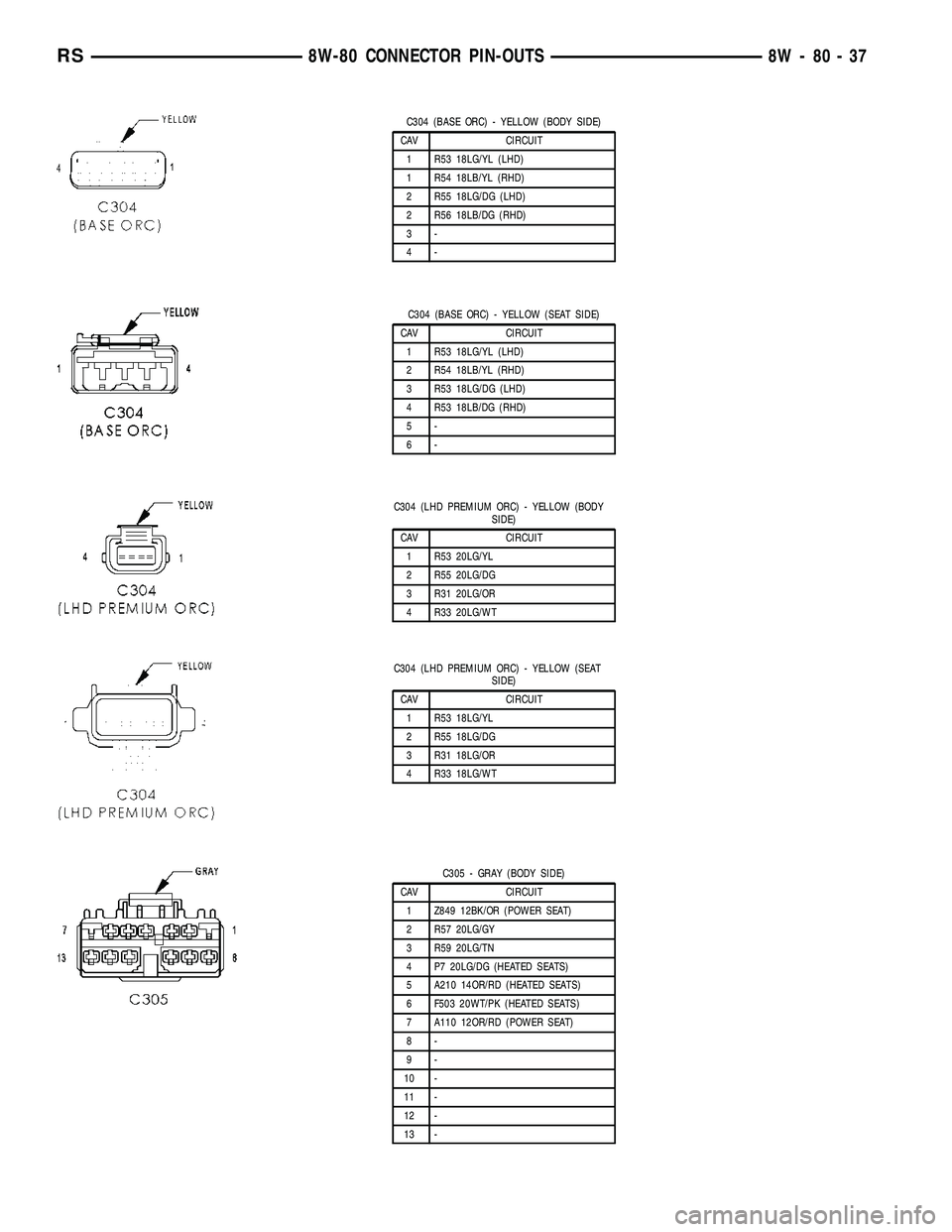

CHRYSLER VOYAGER 2004 Service Manual C304 (BASE ORC) - YELLOW (BODY SIDE) CAV CIRCUIT 1 R53 18LG/YL (LHD) 1 R54 18LB/YL (RHD) 2 R55 18LG/DG (LHD) 2 R56 18LB/DG (RHD) 3- 4- C304 (BASE ORC) - YELLOW (SEAT SIDE) CAV CIRCUIT 1 R53 18LG/YL (L

Page 1133 of 2585

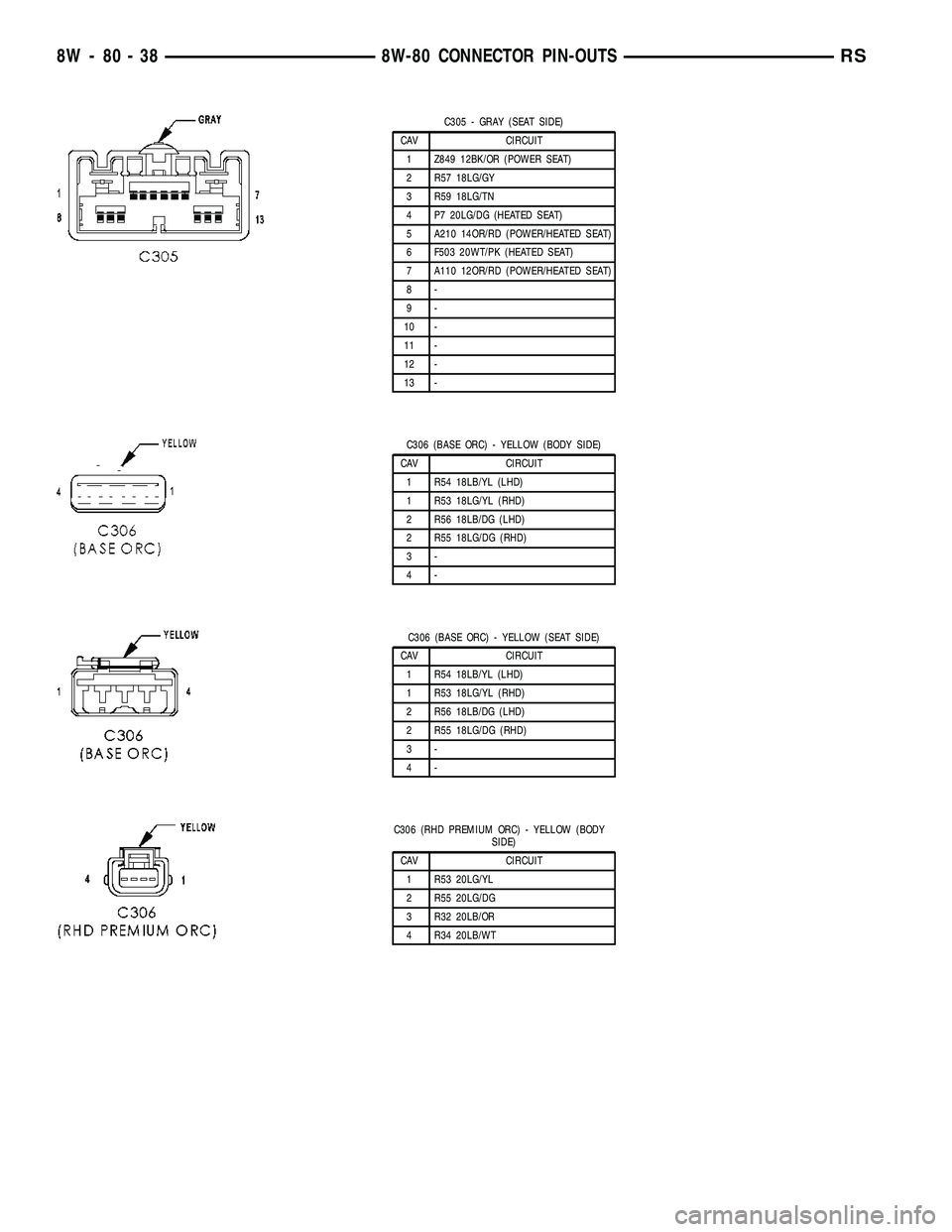

CHRYSLER VOYAGER 2004 Service Manual C305 - GRAY (SEAT SIDE) CAV CIRCUIT 1 Z849 12BK/OR (POWER SEAT) 2 R57 18LG/GY 3 R59 18LG/TN 4 P7 20LG/DG (HEATED SEAT) 5 A210 14OR/RD (POWER/HEATED SEAT) 6 F503 20WT/PK (HEATED SEAT) 7 A110 12OR/RD (P

Page 1134 of 2585

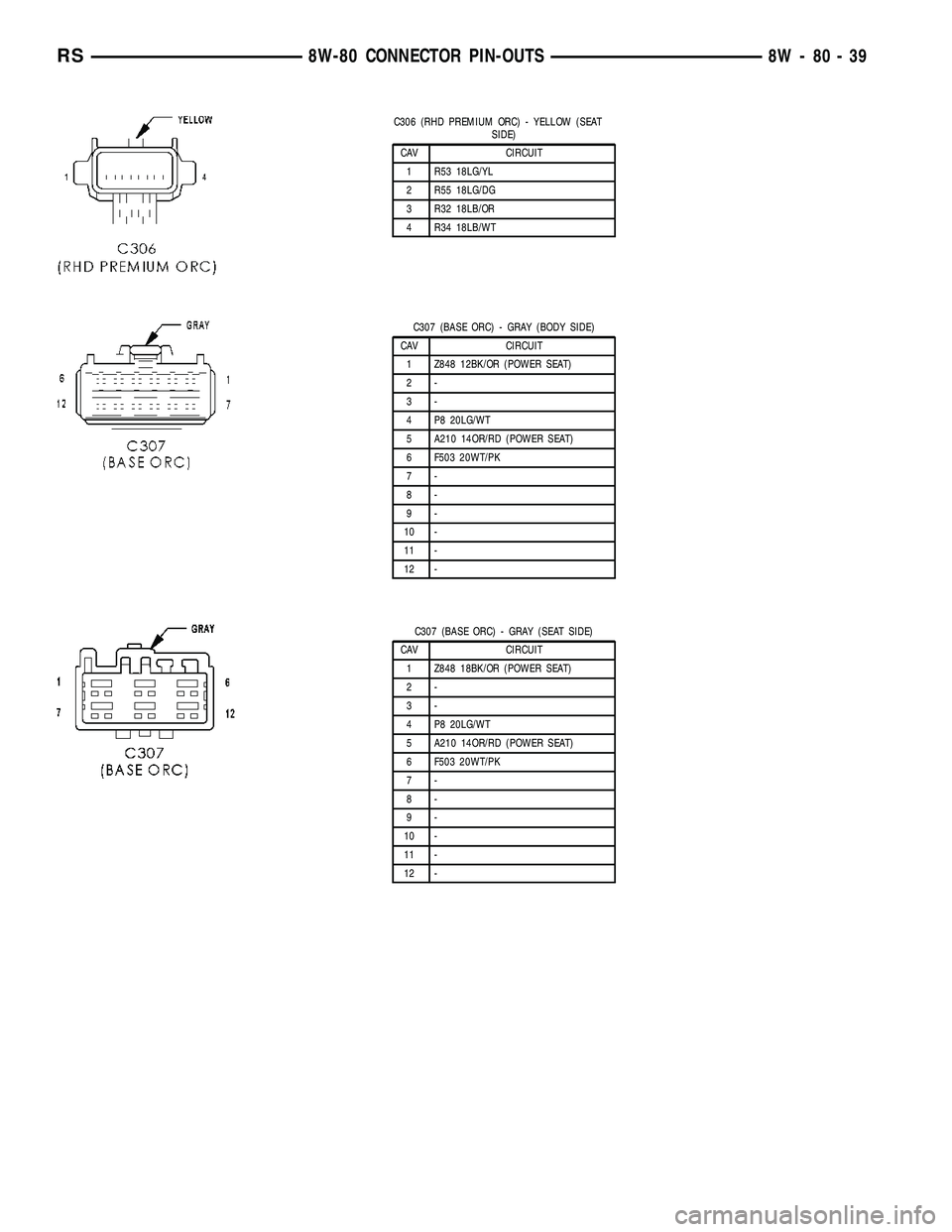

CHRYSLER VOYAGER 2004 Service Manual C306 (RHD PREMIUM ORC) - YELLOW (SEAT SIDE) CAV CIRCUIT 1 R53 18LG/YL 2 R55 18LG/DG 3 R32 18LB/OR 4 R34 18LB/WT C307 (BASE ORC) - GRAY (BODY SIDE) CAV CIRCUIT 1 Z848 12BK/OR (POWER SEAT) 2- 3- 4 P8 20

Page 1135 of 2585

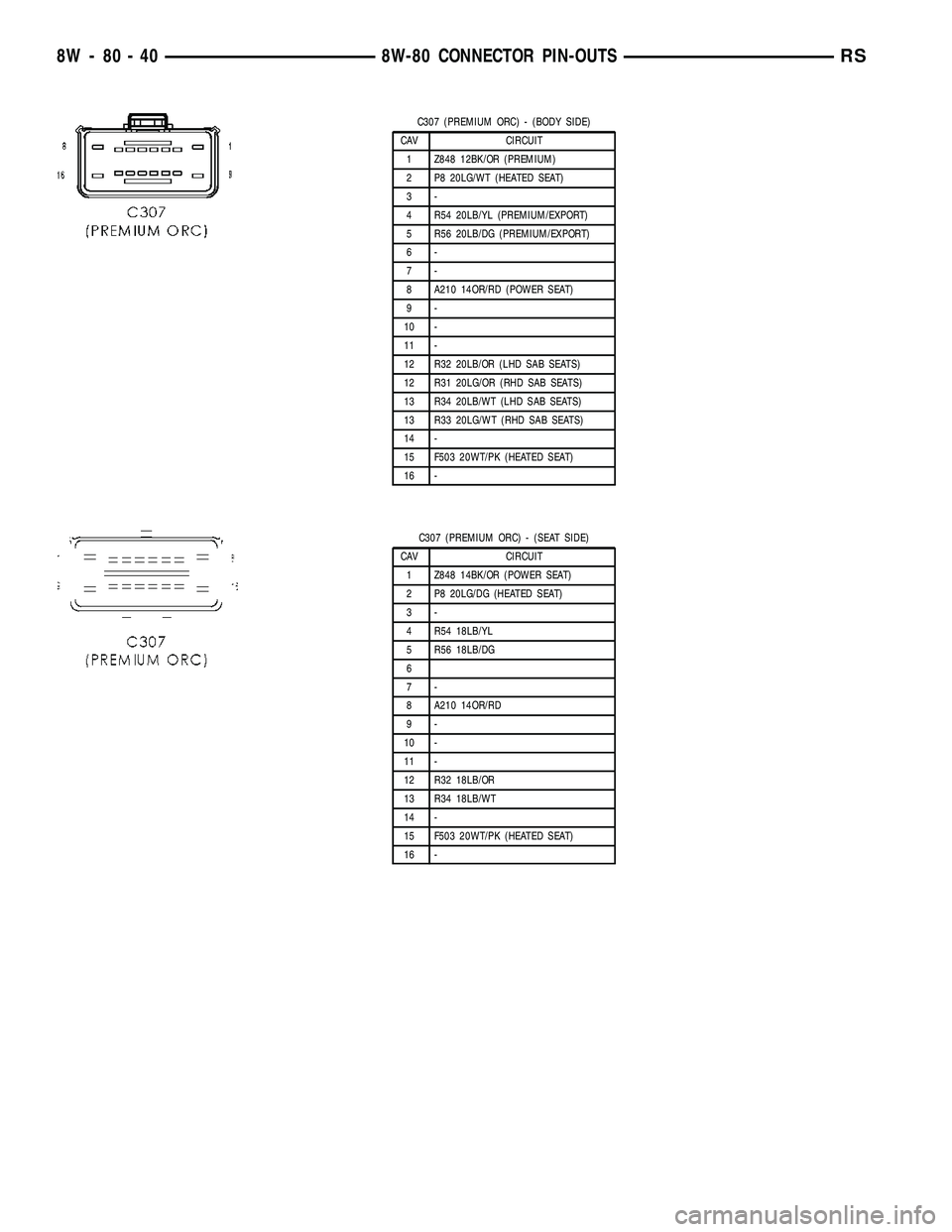

CHRYSLER VOYAGER 2004 Service Manual C307 (PREMIUM ORC) - (BODY SIDE) CAV CIRCUIT 1 Z848 12BK/OR (PREMIUM) 2 P8 20LG/WT (HEATED SEAT) 3- 4 R54 20LB/YL (PREMIUM/EXPORT) 5 R56 20LB/DG (PREMIUM/EXPORT) 6- 7- 8 A210 14OR/RD (POWER SEAT) 9- 1

Page 1136 of 2585

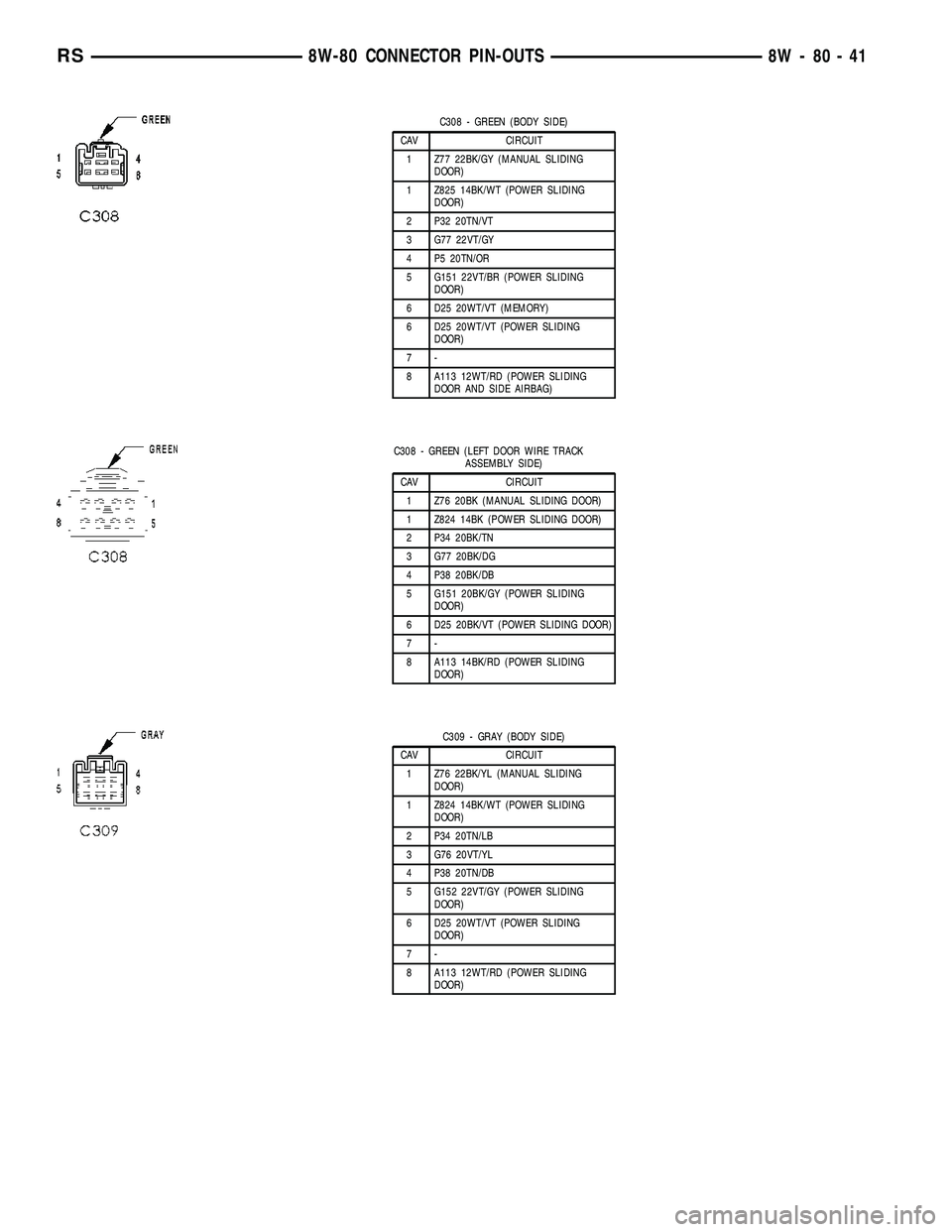

CHRYSLER VOYAGER 2004 Service Manual C308 - GREEN (BODY SIDE) CAV CIRCUIT 1 Z77 22BK/GY (MANUAL SLIDING DOOR) 1 Z825 14BK/WT (POWER SLIDING DOOR) 2 P32 20TN/VT 3 G77 22VT/GY 4 P5 20TN/OR 5 G151 22VT/BR (POWER SLIDING DOOR) 6 D25 20WT/VT
