Page 1201 of 2585

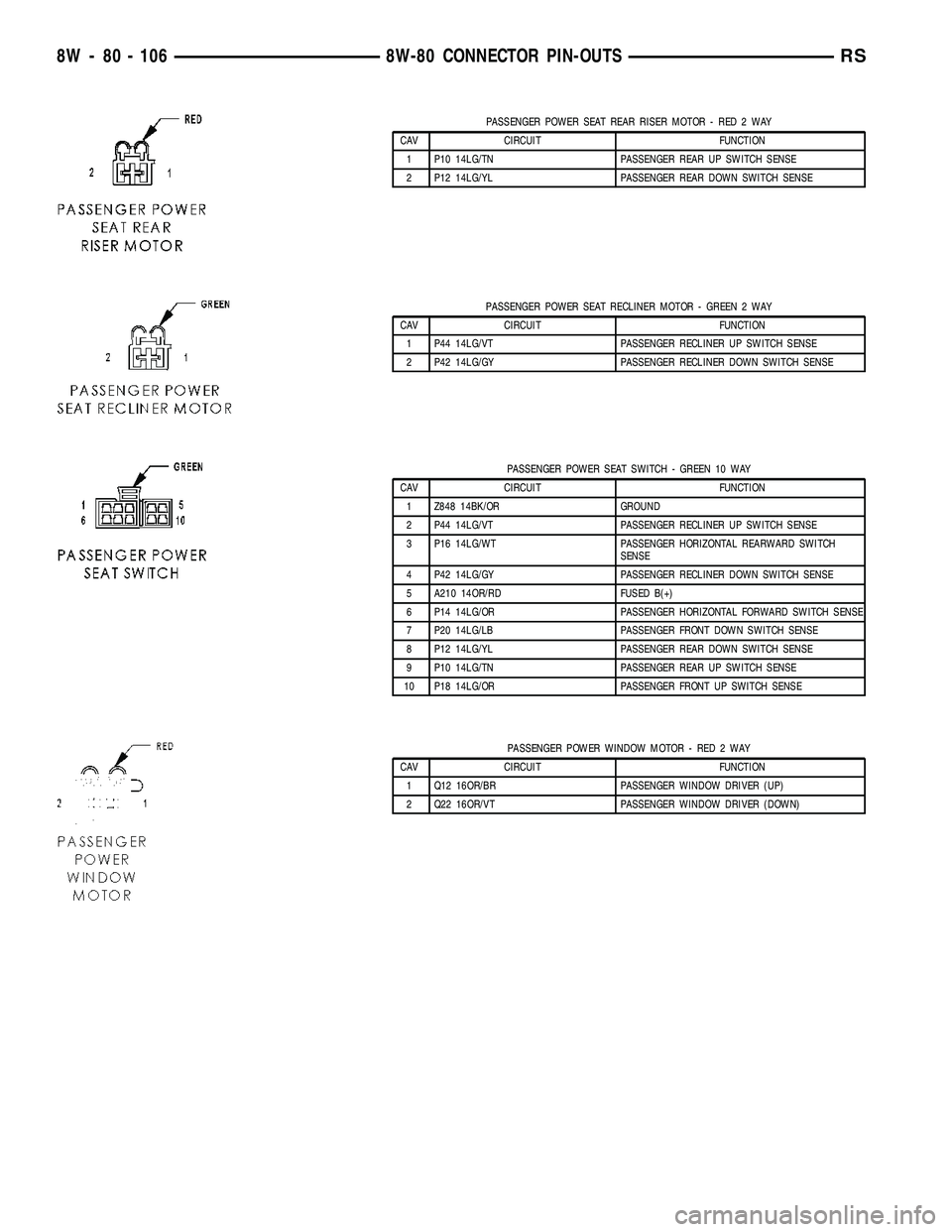

CHRYSLER VOYAGER 2004 Service Manual PASSENGER POWER SEAT REAR RISER MOTOR - RED 2 WAY CAV CIRCUIT FUNCTION 1 P10 14LG/TN PASSENGER REAR UP SWITCH SENSE 2 P12 14LG/YL PASSENGER REAR DOWN SWITCH SENSE PASSENGER POWER SEAT RECLINER MOTOR -

Page 1202 of 2585

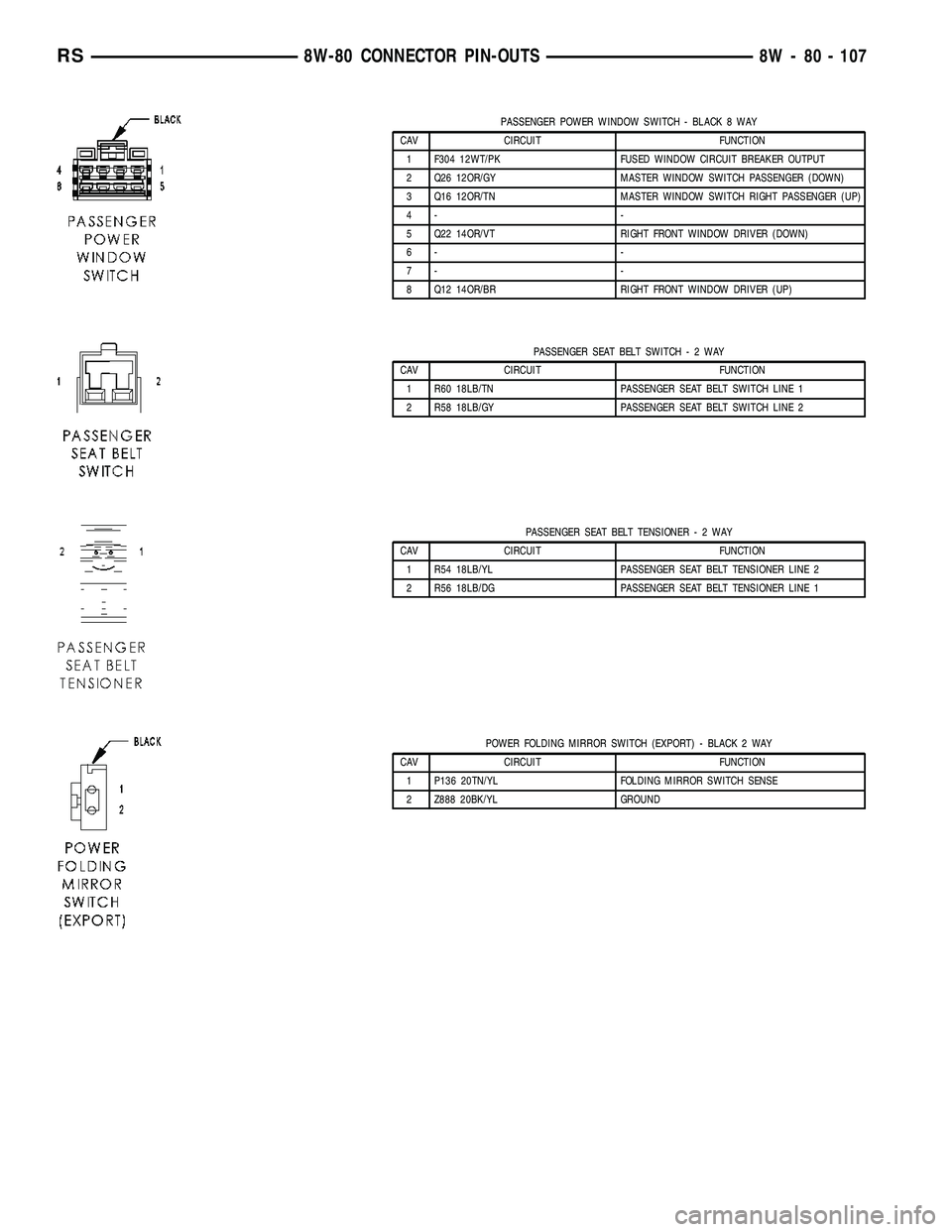

CHRYSLER VOYAGER 2004 Service Manual PASSENGER POWER WINDOW SWITCH - BLACK 8 WAY CAV CIRCUIT FUNCTION 1 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT 2 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN) 3 Q16 12OR/TN MASTER WINDOW SWIT

Page 1203 of 2585

CHRYSLER VOYAGER 2004 Service Manual POWER LIFTGATE MODULE C1 - BLACK 8 WAY CAV CIRCUIT FUNCTION 1 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER 2 Q88 14TN/BR LIFTGATE OPEN DRIVER 3 Q89 14TN/OR LIFTGATE CLOSE DRIVER 4- - 5 A115 12YL/RD FUSED

Page 1204 of 2585

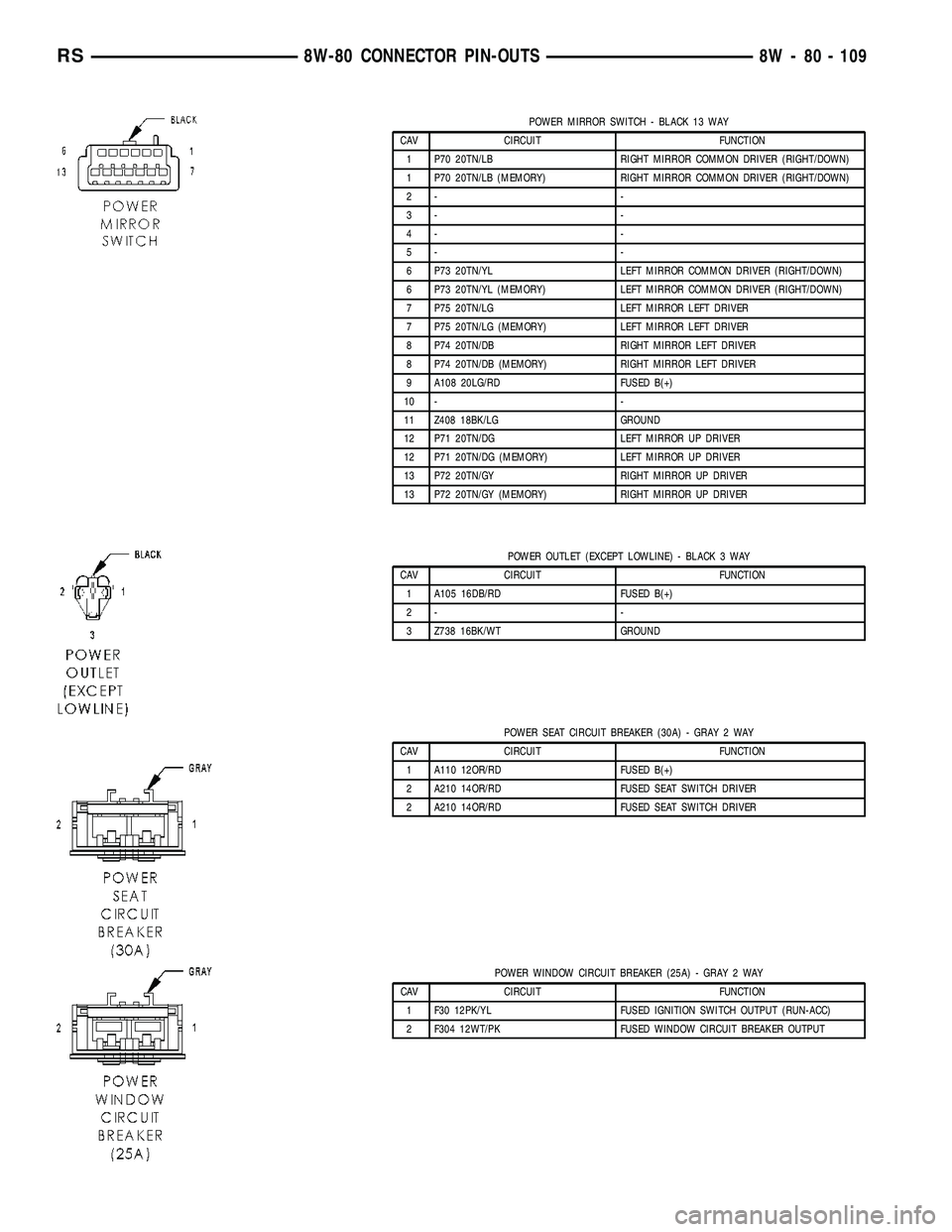

CHRYSLER VOYAGER 2004 Service Manual POWER MIRROR SWITCH - BLACK 13 WAY CAV CIRCUIT FUNCTION 1 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN) 1 P70 20TN/LB (MEMORY) RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN) 2- - 3- - 4- - 5- - 6 P73 2

Page 1205 of 2585

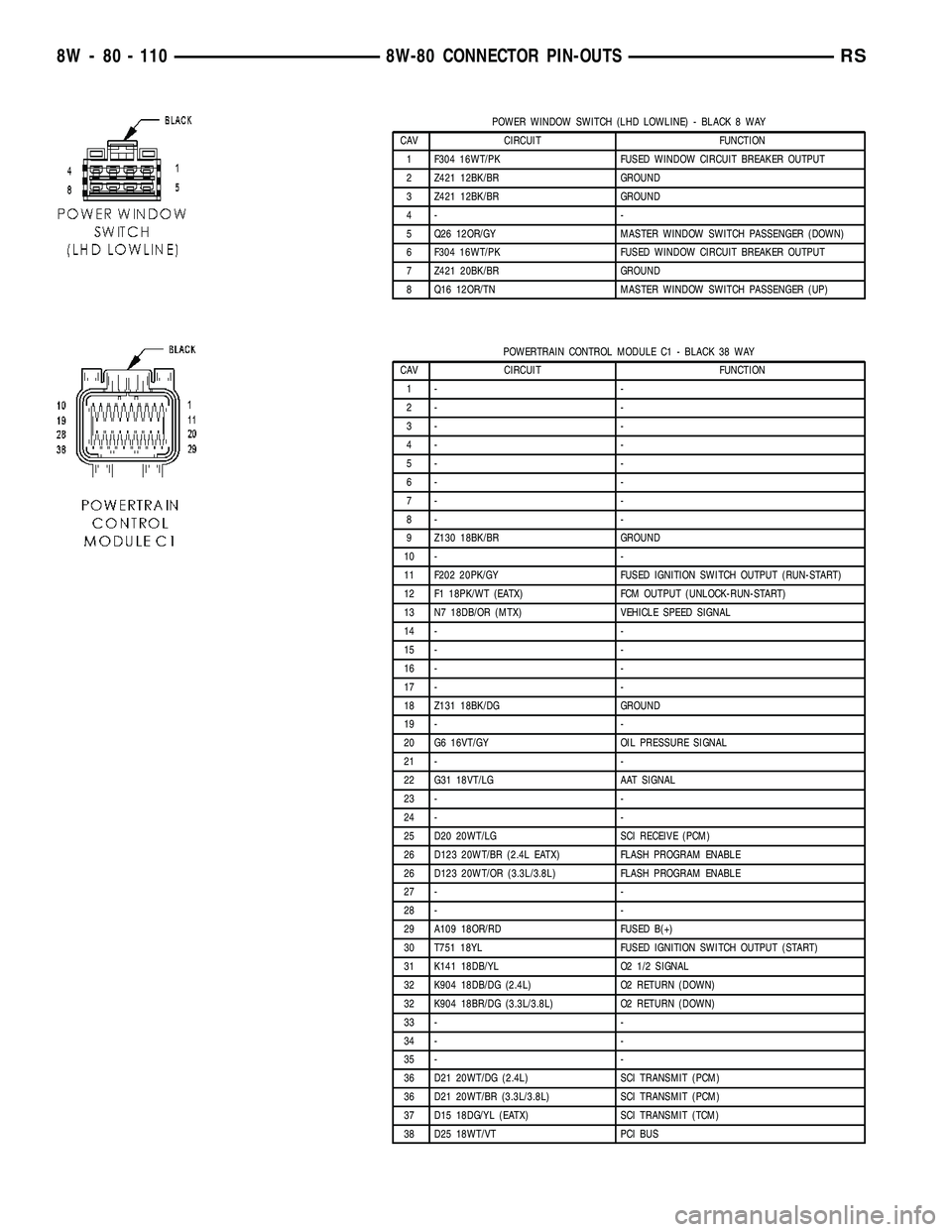

CHRYSLER VOYAGER 2004 Service Manual POWER WINDOW SWITCH (LHD LOWLINE) - BLACK 8 WAY CAV CIRCUIT FUNCTION 1 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT 2 Z421 12BK/BR GROUND 3 Z421 12BK/BR GROUND 4- - 5 Q26 12OR/GY MASTER WINDOW SWI

Page 1206 of 2585

CHRYSLER VOYAGER 2004 Service Manual POWERTRAIN CONTROL MODULE C2 - BLACK 38 WAY CAV CIRCUIT FUNCTION 1- - 2- - 3- - 4 K58 16BR/VT (3.3L/3.8L) INJECTOR CONTROL NO. 6 5 K38 16BR/OR (3.3L/3.8L) INJECTOR CONTROL NO. 5 6- - 7 K18 16BR/OR (3.

Page 1207 of 2585

CHRYSLER VOYAGER 2004 Service Manual POWERTRAIN CONTROL MODULE C3 - BLACK 38 WAY CAV CIRCUIT FUNCTION 1- - 2- - 3 K51 18BR/WT ASD RELAY CONTROL 4- - 5 V35 18VT/OR S/C VENT CONTROL 6 K173 18BR/VT CONDENSER FAN RELAY CONTROL 7 V32 18VT/YL

Page 1208 of 2585

CHRYSLER VOYAGER 2004 Service Manual POWERTRAIN CONTROL MODULE C4 - DK. GREEN 38 WAY CAV CIRCUIT FUNCTION 1 T60 18YL/GY OVERDRIVE SOLENOID CONTROL 2 T59 18YL/LB UNDERDRIVE SOLENOID CONTROL 3- - 4- - 5- - 6 T19 18YL/DB 2-4 SOLENOID CONTRO
