Page 2337 of 2585

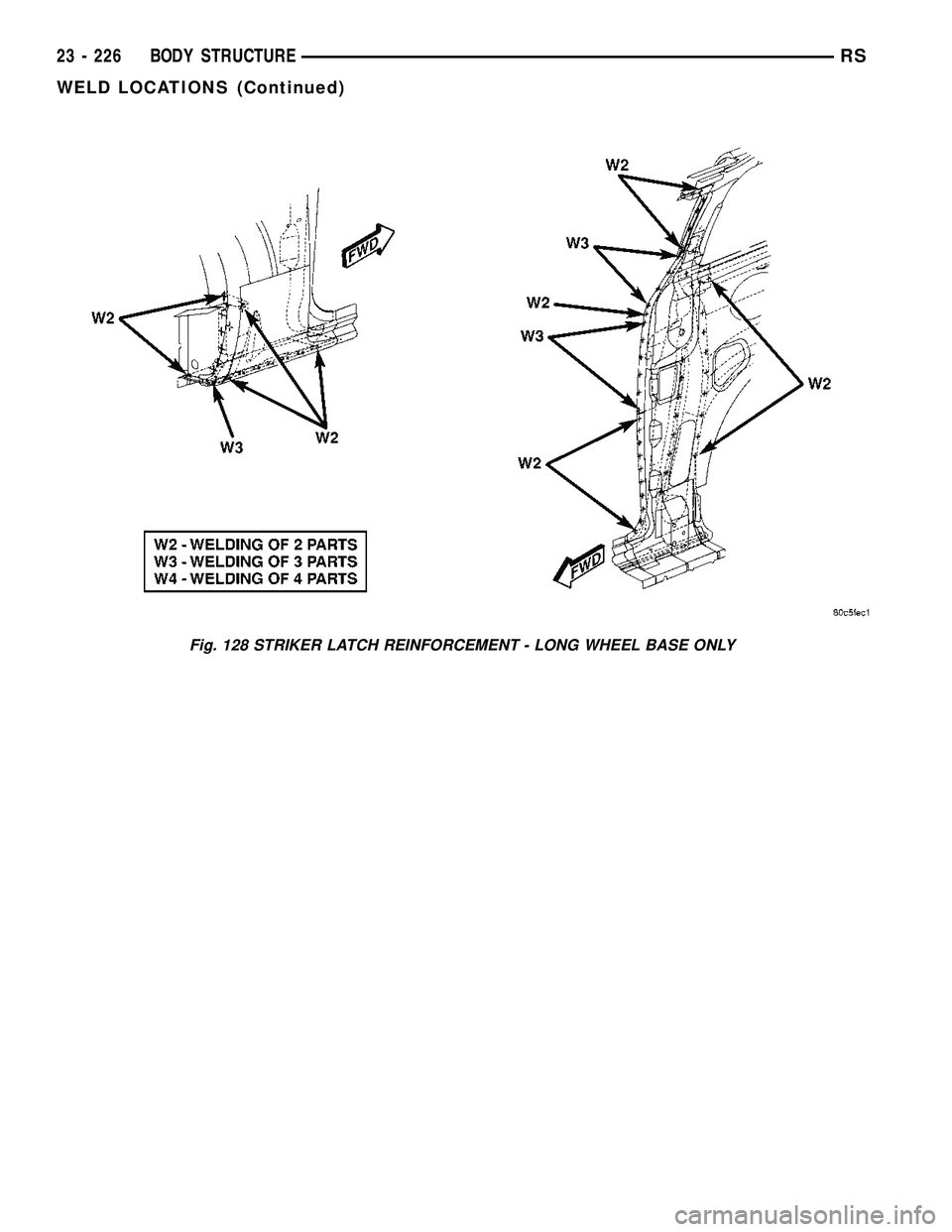

CHRYSLER VOYAGER 2004 Service Manual Fig. 128 STRIKER LATCH REINFORCEMENT - LONG WHEEL BASE ONLY 23 - 226 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2338 of 2585

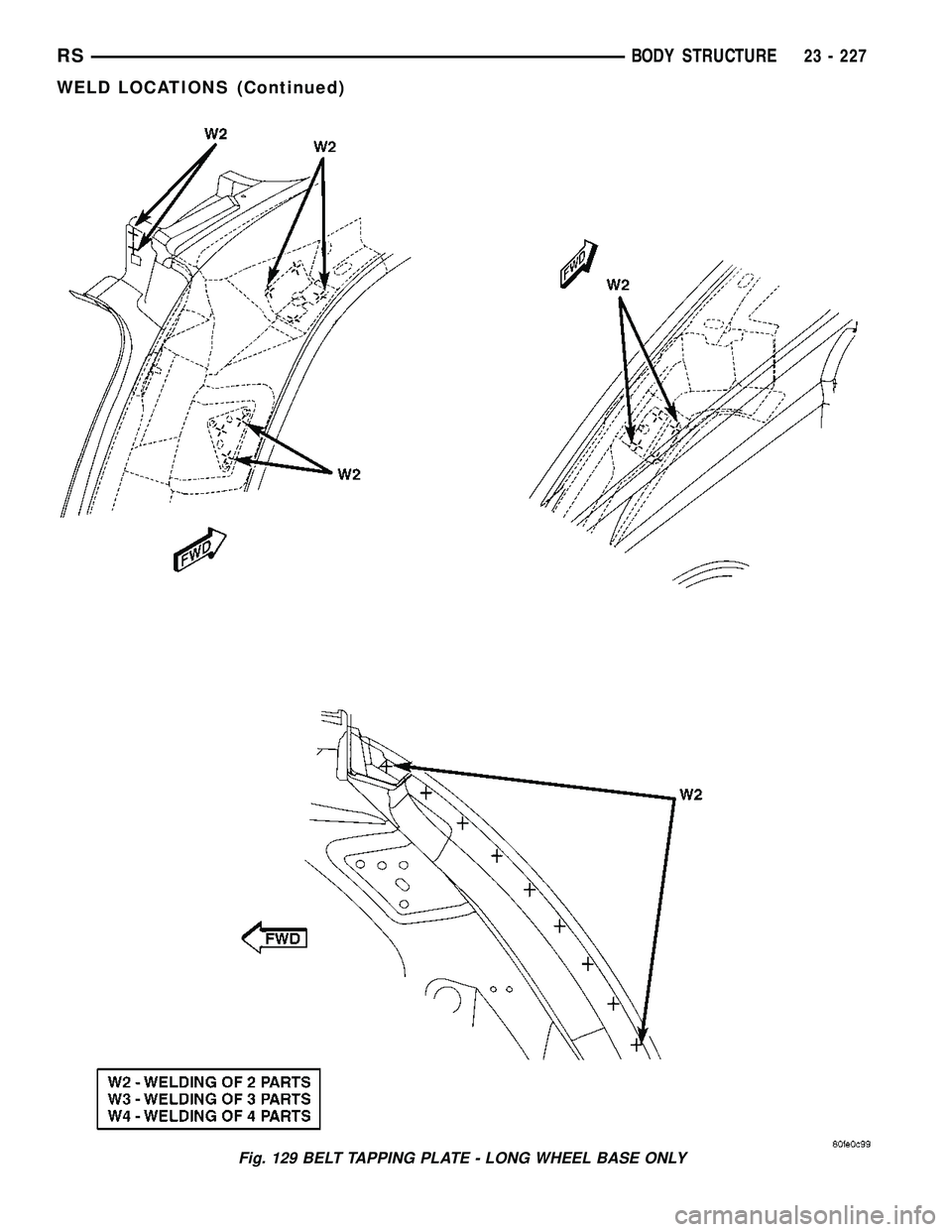

CHRYSLER VOYAGER 2004 Service Manual Fig. 129 BELT TAPPING PLATE - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 227 WELD LOCATIONS (Continued)

Page 2339 of 2585

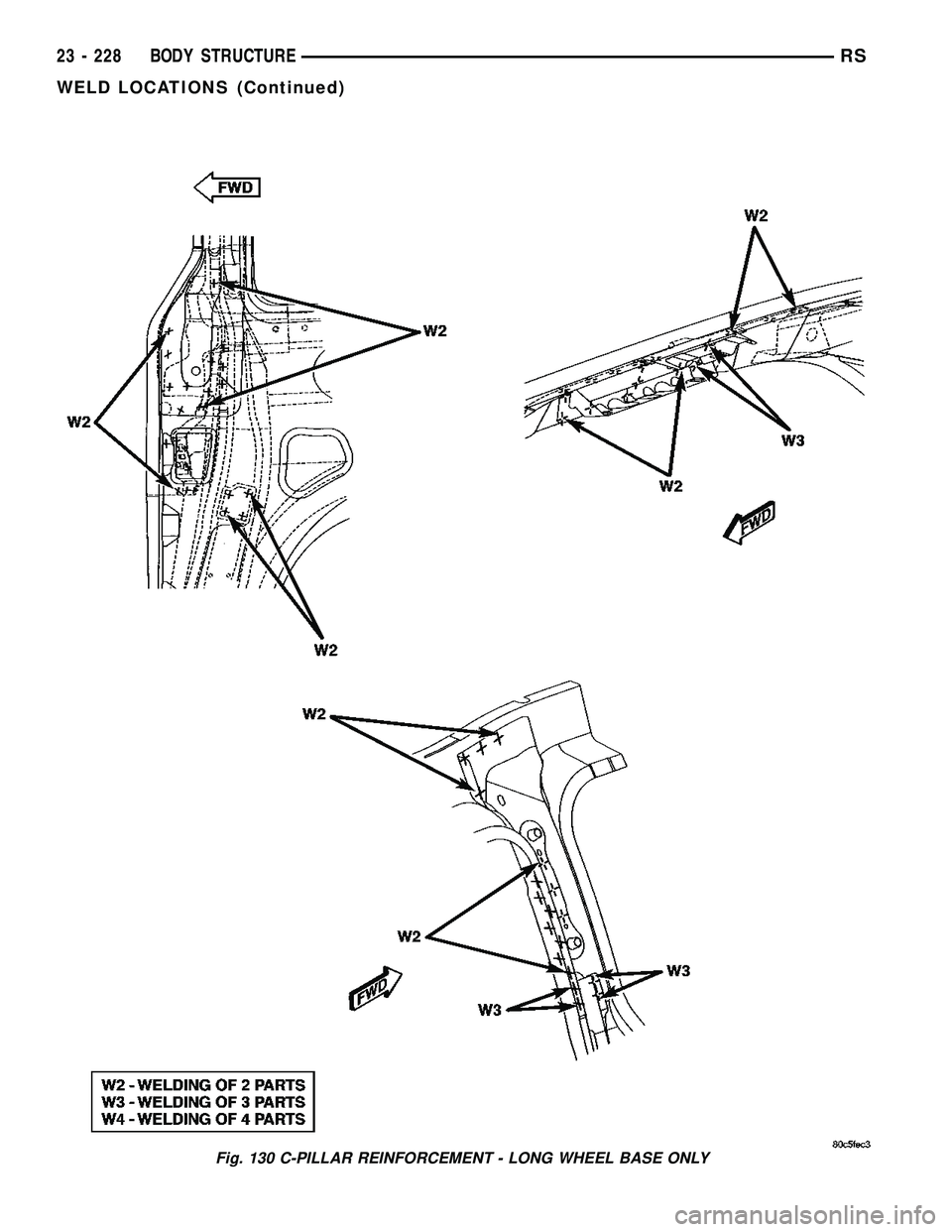

CHRYSLER VOYAGER 2004 Service Manual Fig. 130 C-PILLAR REINFORCEMENT - LONG WHEEL BASE ONLY 23 - 228 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2340 of 2585

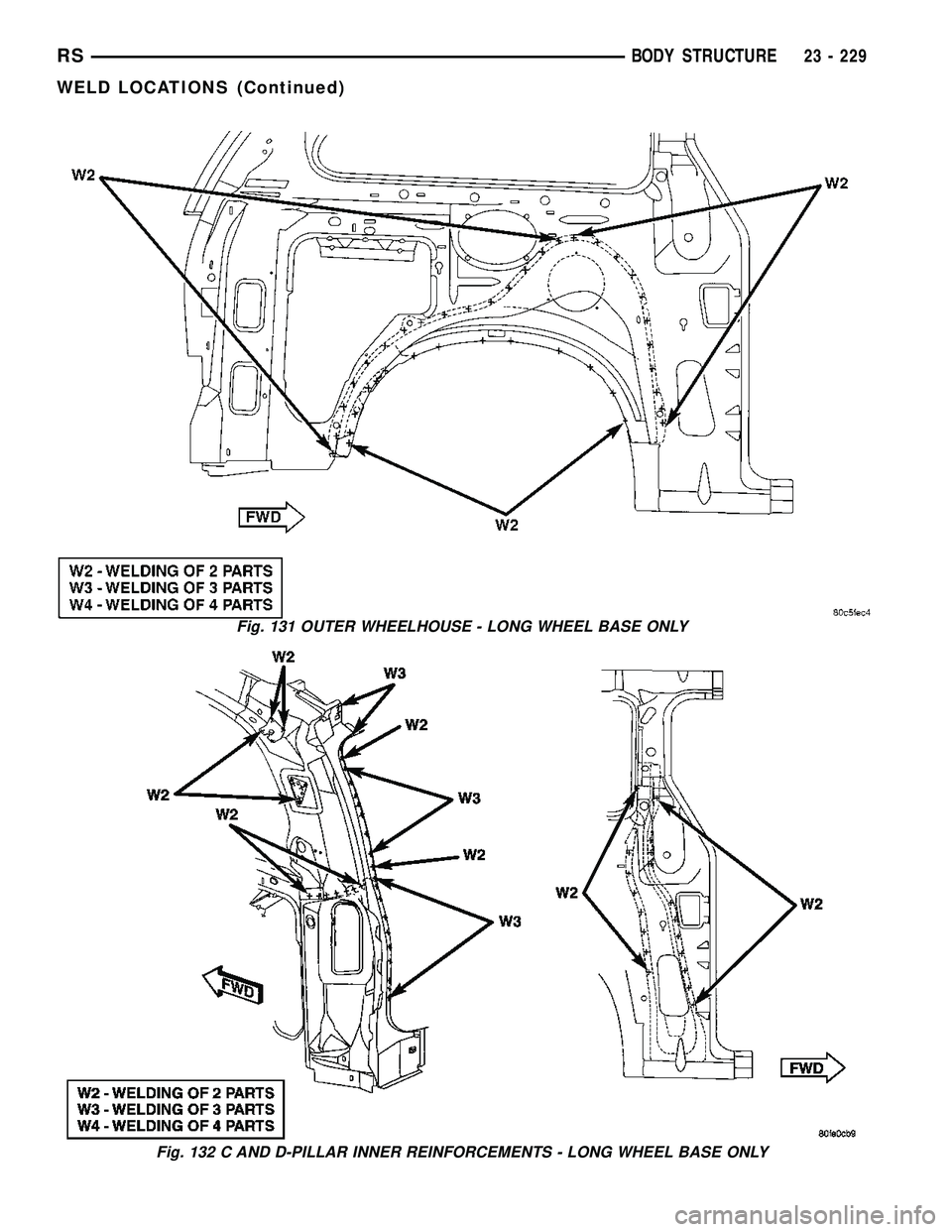

CHRYSLER VOYAGER 2004 Service Manual Fig. 131 OUTER WHEELHOUSE - LONG WHEEL BASE ONLY Fig. 132 C AND D-PILLAR INNER REINFORCEMENTS - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 229 WELD LOCATIONS (Continued)

Page 2341 of 2585

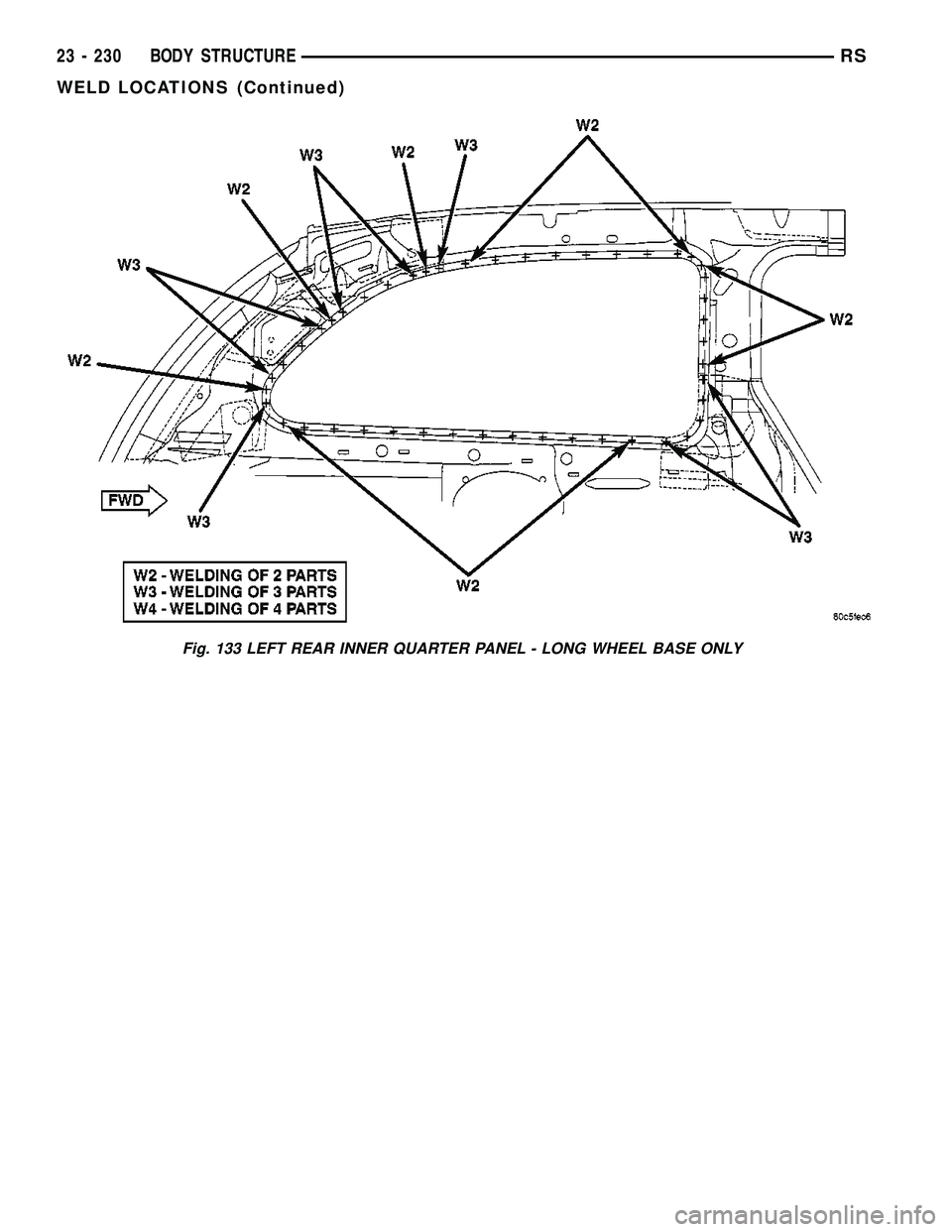

CHRYSLER VOYAGER 2004 Service Manual Fig. 133 LEFT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY 23 - 230 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2342 of 2585

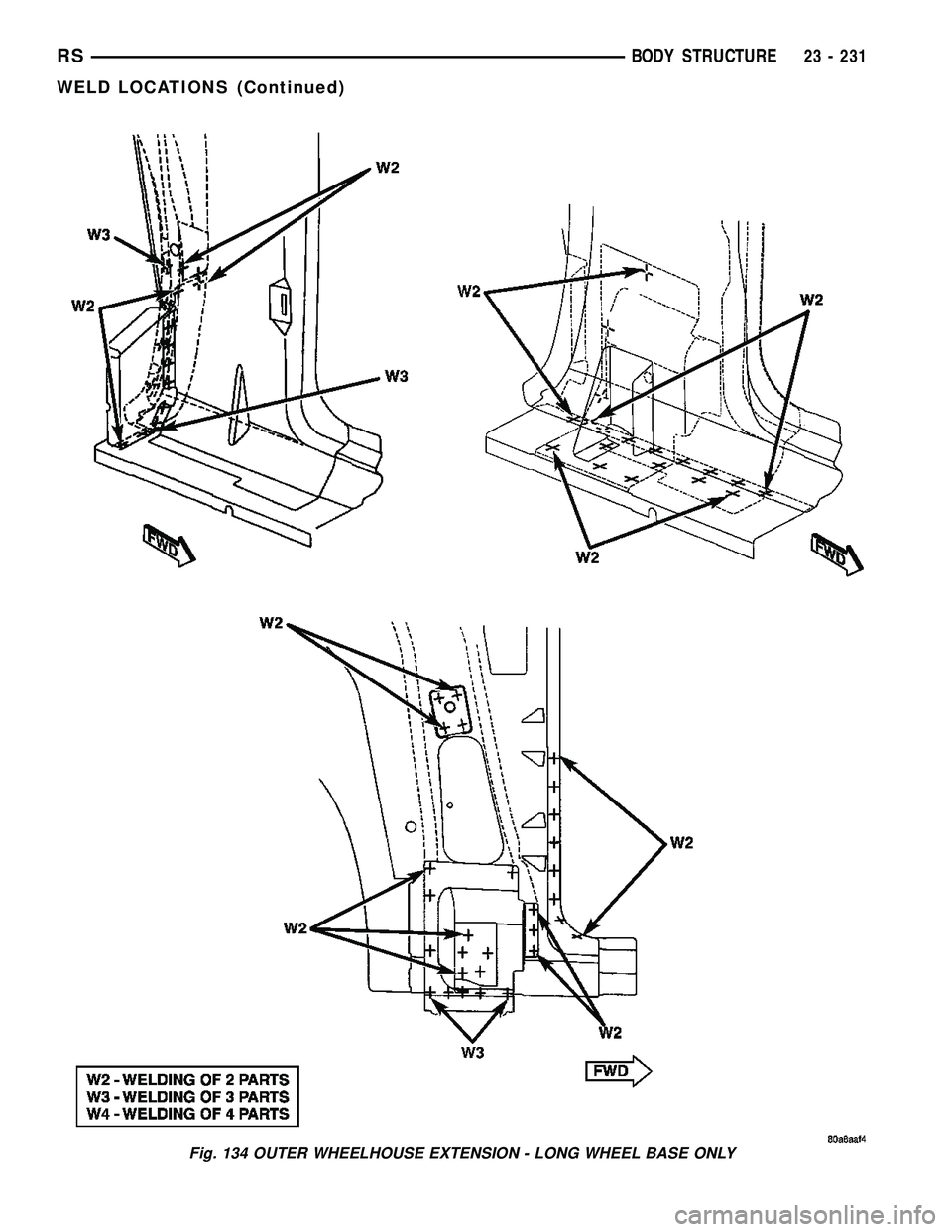

CHRYSLER VOYAGER 2004 Service Manual Fig. 134 OUTER WHEELHOUSE EXTENSION - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 231 WELD LOCATIONS (Continued)

Page 2343 of 2585

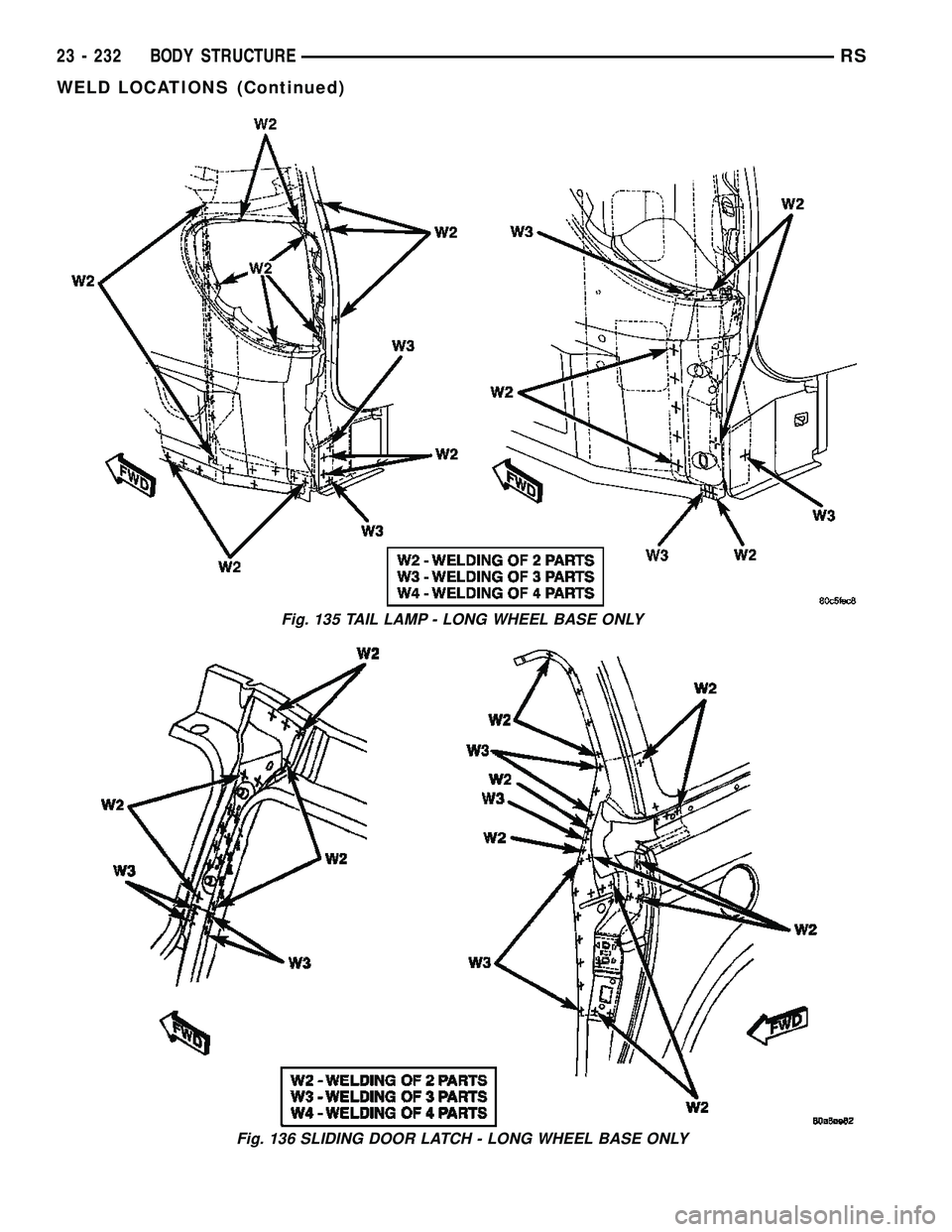

CHRYSLER VOYAGER 2004 Service Manual Fig. 135 TAIL LAMP - LONG WHEEL BASE ONLY Fig. 136 SLIDING DOOR LATCH - LONG WHEEL BASE ONLY 23 - 232 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2344 of 2585

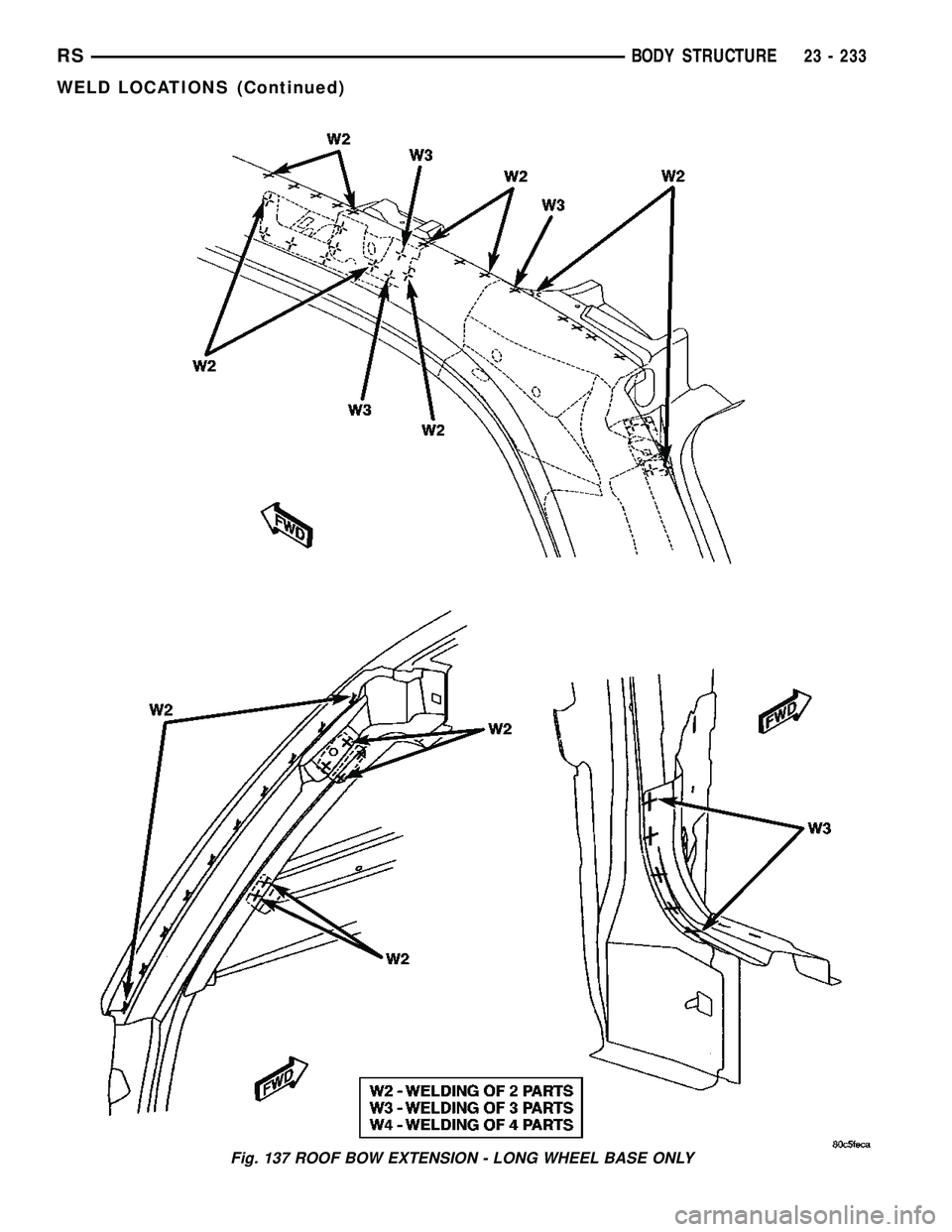

CHRYSLER VOYAGER 2004 Service Manual Fig. 137 ROOF BOW EXTENSION - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 233 WELD LOCATIONS (Continued)
