Page 1761 of 2585

CHRYSLER VOYAGER 2004 Service Manual (61) Install low/reverse accumulator snap ring (Fig. 153). NOTE: Depending on engine application, some accumulators will have two springs, and others will have one spring. The springs are color-coded

Page 1762 of 2585

CHRYSLER VOYAGER 2004 Service Manual (63) Install valve body to transaxle (Fig. 157). Rotate manual valve shaft fully clockwise to ease installation. Make sure park rod rollers are posi- tioned within park guide bracket. (64) Install and

Page 1763 of 2585

CHRYSLER VOYAGER 2004 Service Manual (67) Install oil pan-to-case bolts and torque to 19 N´m (165 in. lbs.). (68) Install solenoid/pressure switch assembly and gasket to case (Fig. 161). (69) Install and tighten solenoid/pressure switch

Page 1764 of 2585

CHRYSLER VOYAGER 2004 Service Manual (11) Align and install rear mount bracket-to-case bolts by hand (Fig. 164). Torque horizontal bolt to 102 N´m (75 ft. lbs.). (12) AWD models: Install power transfer unit. (Refer to 21 - TRANSMISSION/

Page 1765 of 2585

CHRYSLER VOYAGER 2004 Service Manual (20) Connect solenoid/pressure switch assembly (Fig. 166). (21) Connect transmission range sensor connector (Fig. 166). (22) Connect input and output speed sensor con- nectors (Fig. 166). (23) Remove

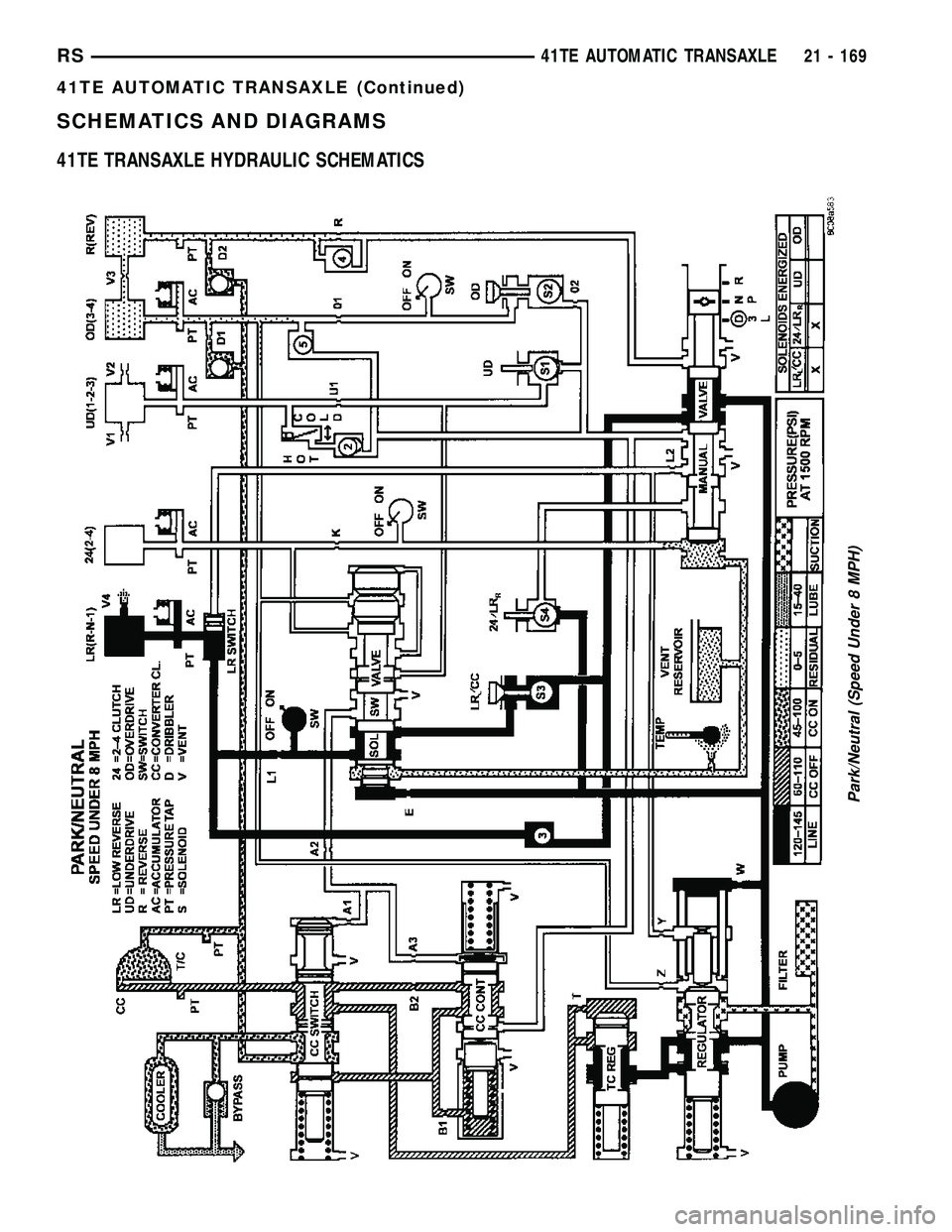

Page 1766 of 2585

CHRYSLER VOYAGER 2004 Service Manual SCHEMATICS AND DIAGRAMS 41TE TRANSAXLE HYDRAULIC SCHEMATICS Park/Neutral (Speed Under 8 MPH) RS41TE AUTOMATIC TRANSAXLE21 - 169 41TE AUTOMATIC TRANSAXLE (Continued)

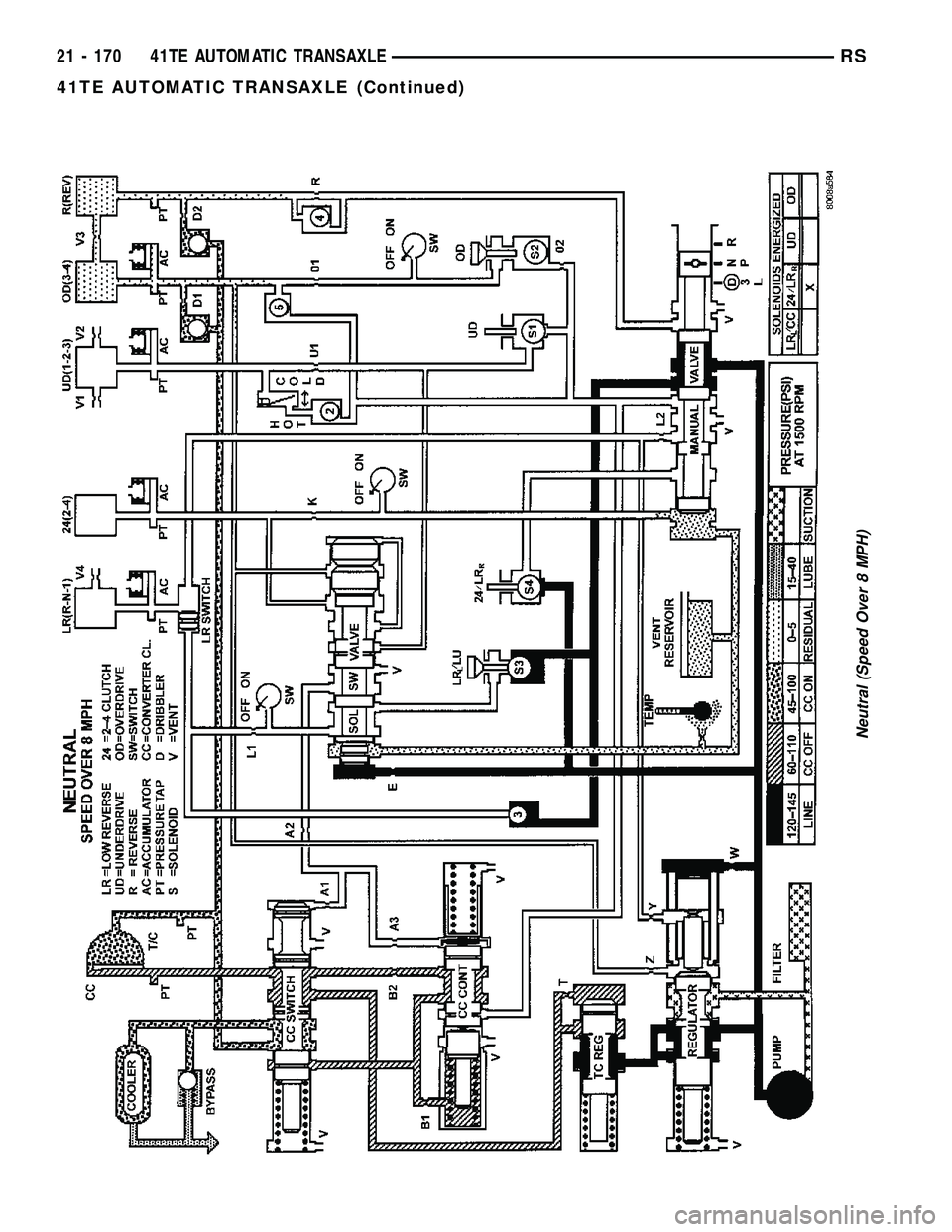

Page 1767 of 2585

CHRYSLER VOYAGER 2004 Service Manual Neutral (Speed Over 8 MPH) 21 - 170 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

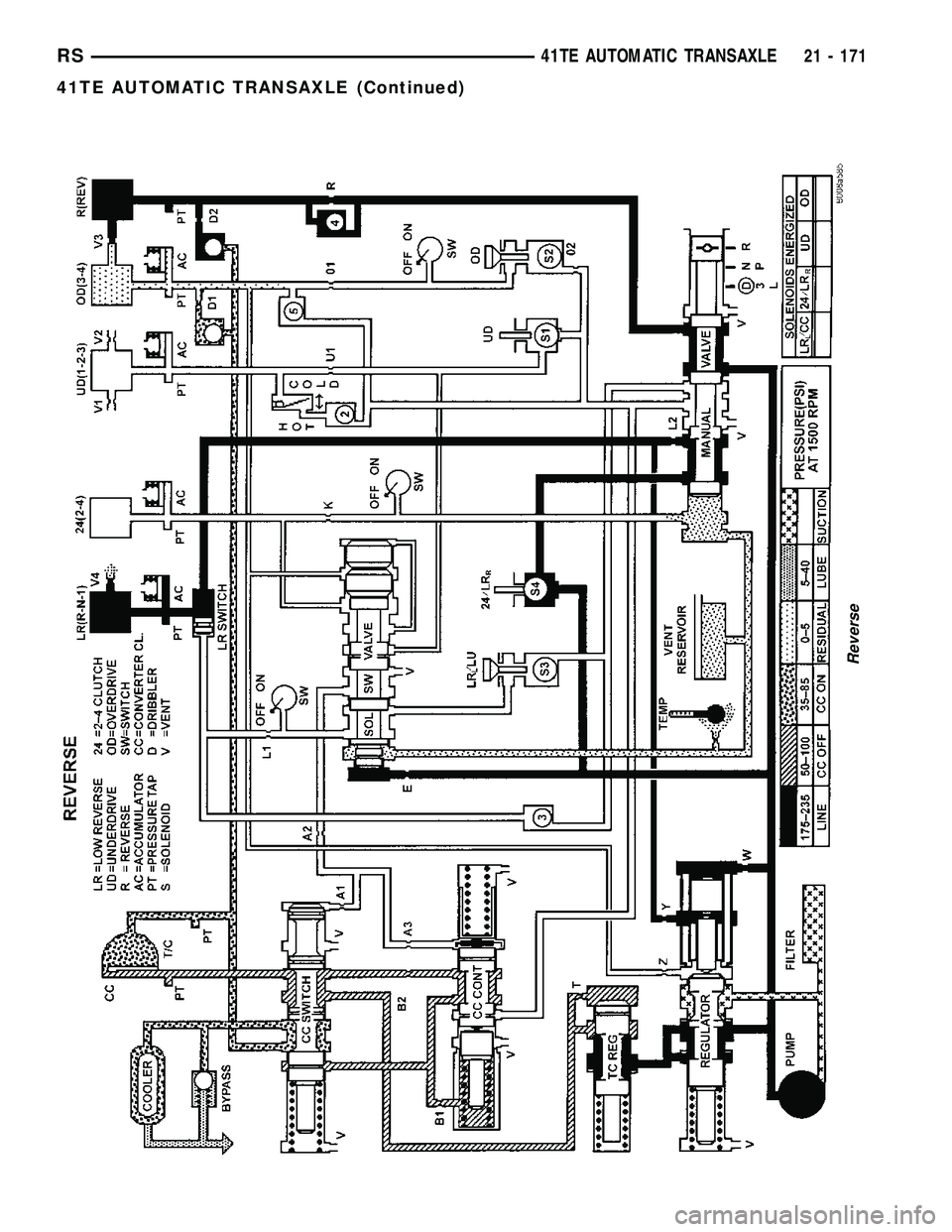

Page 1768 of 2585

CHRYSLER VOYAGER 2004 Service Manual Reverse RS41TE AUTOMATIC TRANSAXLE21 - 171 41TE AUTOMATIC TRANSAXLE (Continued)
