2004 CHRYSLER VOYAGER Service Manual

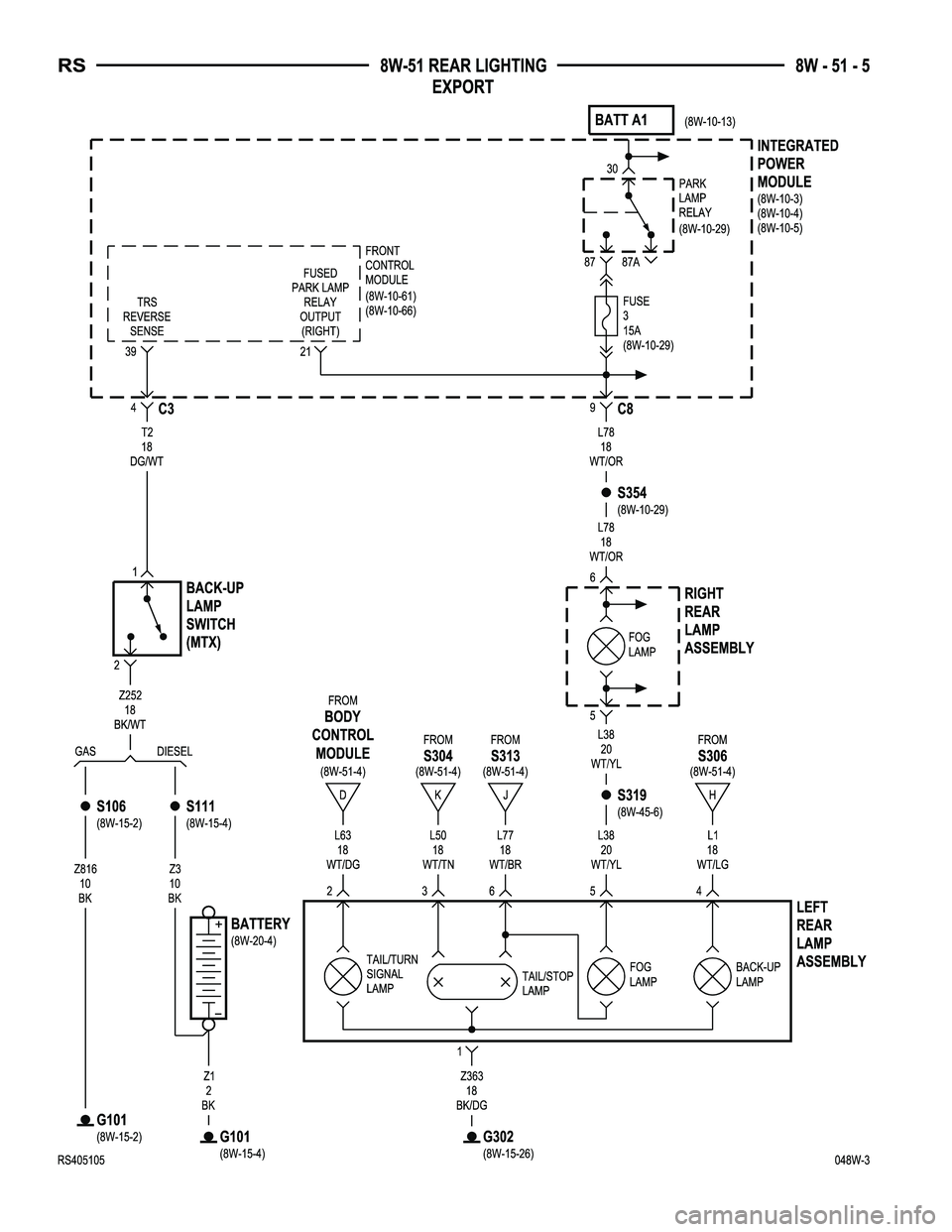

Page 1017 of 2585

CHRYSLER VOYAGER 2004  Service Manual

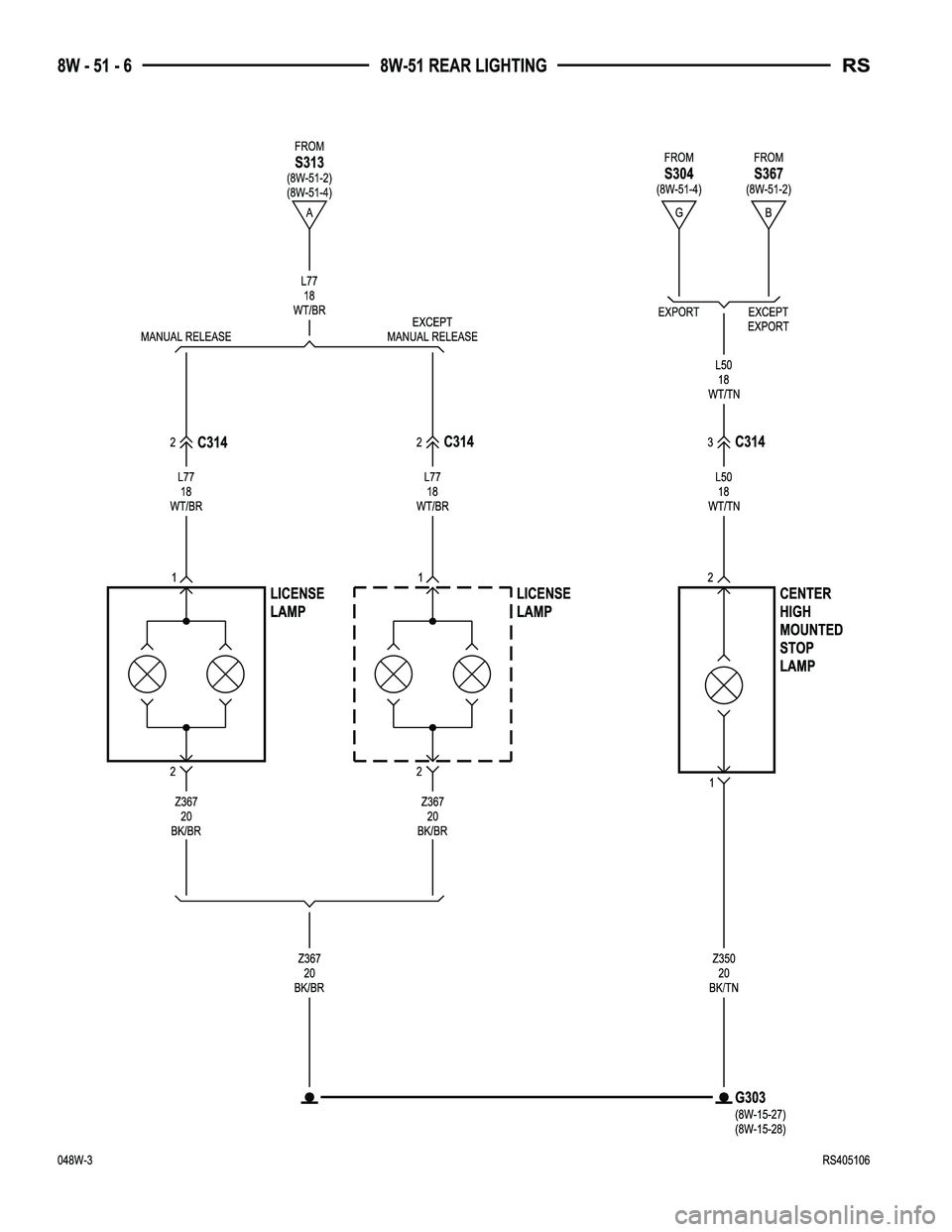

Page 1018 of 2585

CHRYSLER VOYAGER 2004  Service Manual

Page 1019 of 2585

CHRYSLER VOYAGER 2004  Service Manual

Page 1020 of 2585

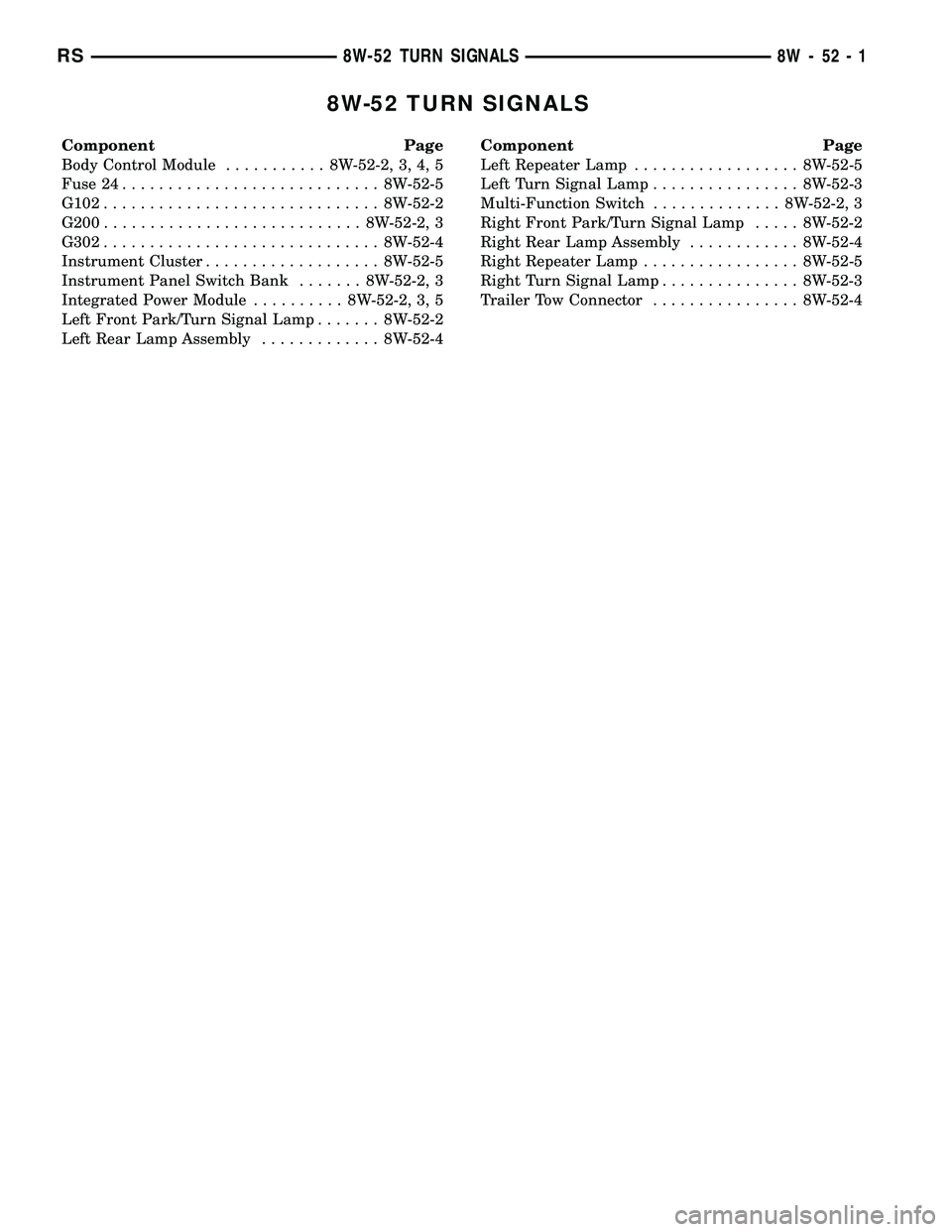

CHRYSLER VOYAGER 2004  Service Manual 8W-52 TURN SIGNALS
Component Page
Body Control Module........... 8W-52-2, 3, 4, 5
Fuse 24............................ 8W-52-5
G102.............................. 8W-52-2
G200...........................

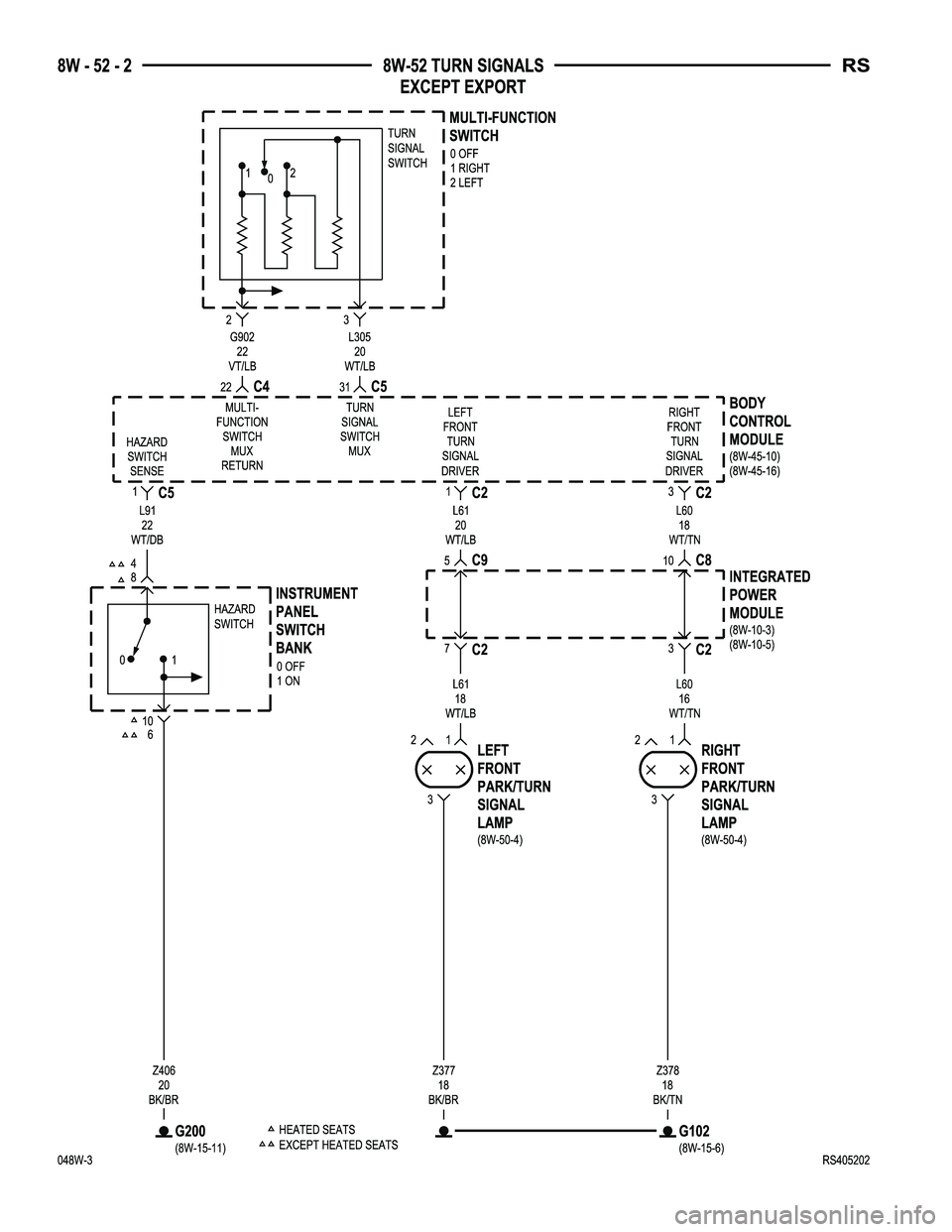

Page 1021 of 2585

CHRYSLER VOYAGER 2004  Service Manual

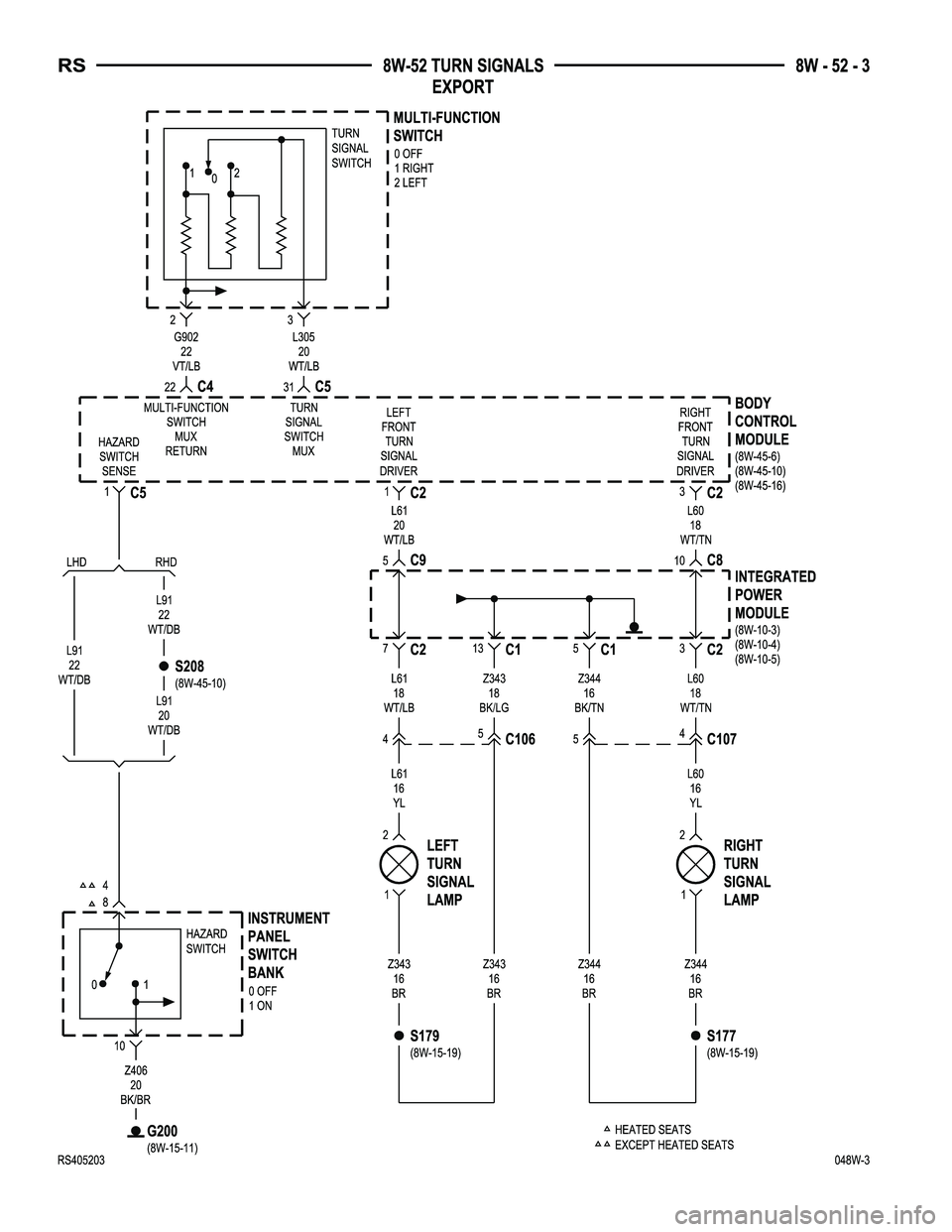

Page 1022 of 2585

CHRYSLER VOYAGER 2004  Service Manual

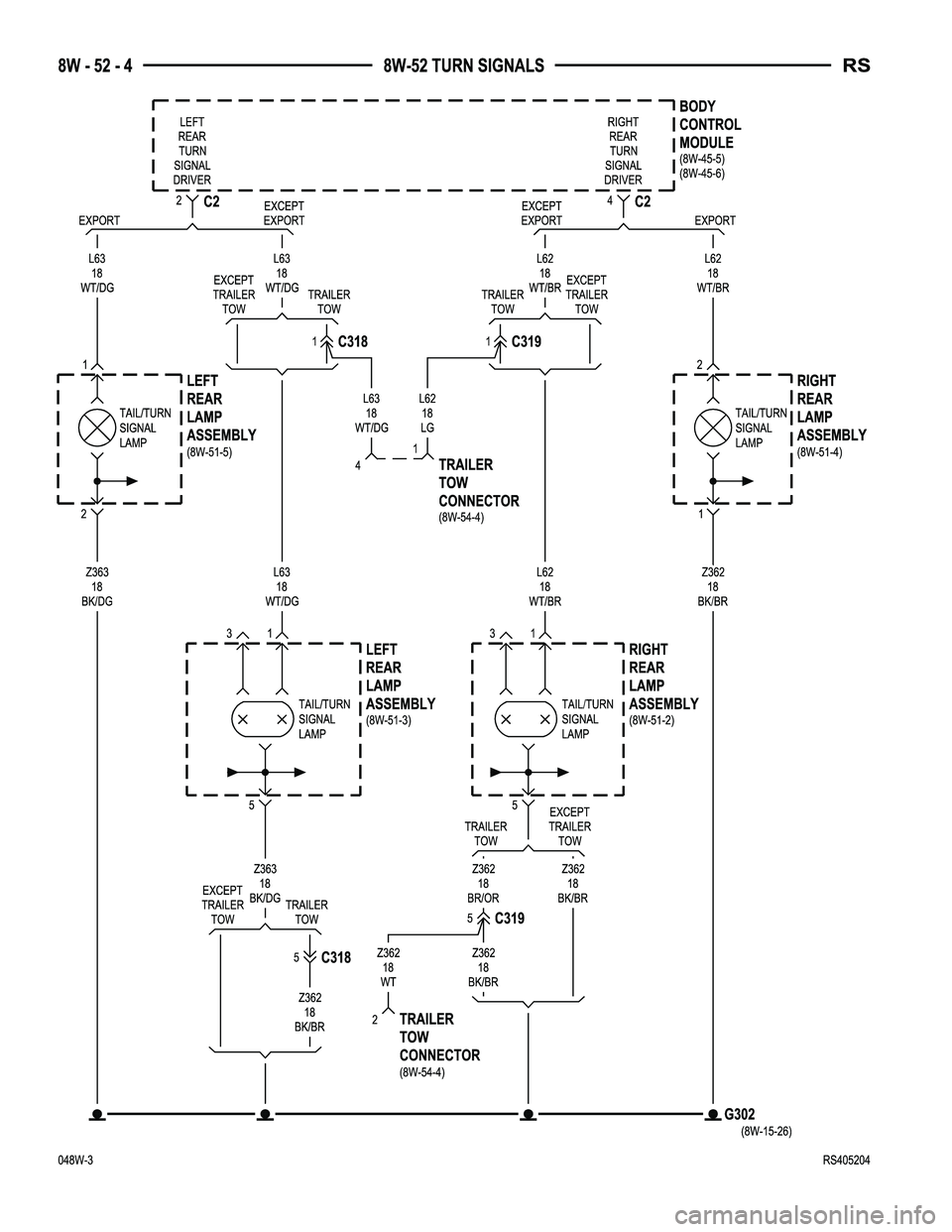

Page 1023 of 2585

CHRYSLER VOYAGER 2004  Service Manual

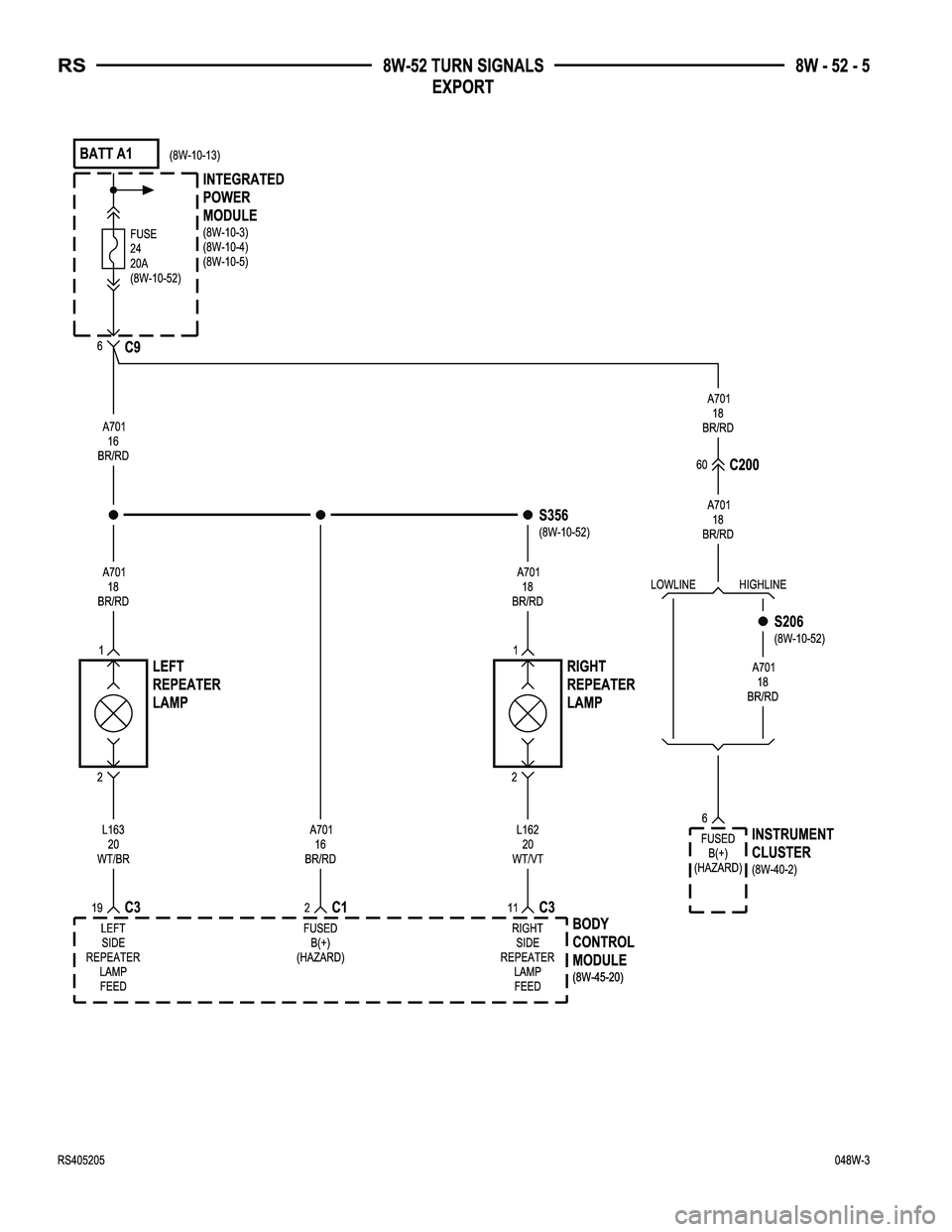

Page 1024 of 2585

CHRYSLER VOYAGER 2004  Service Manual
