Page 2345 of 2585

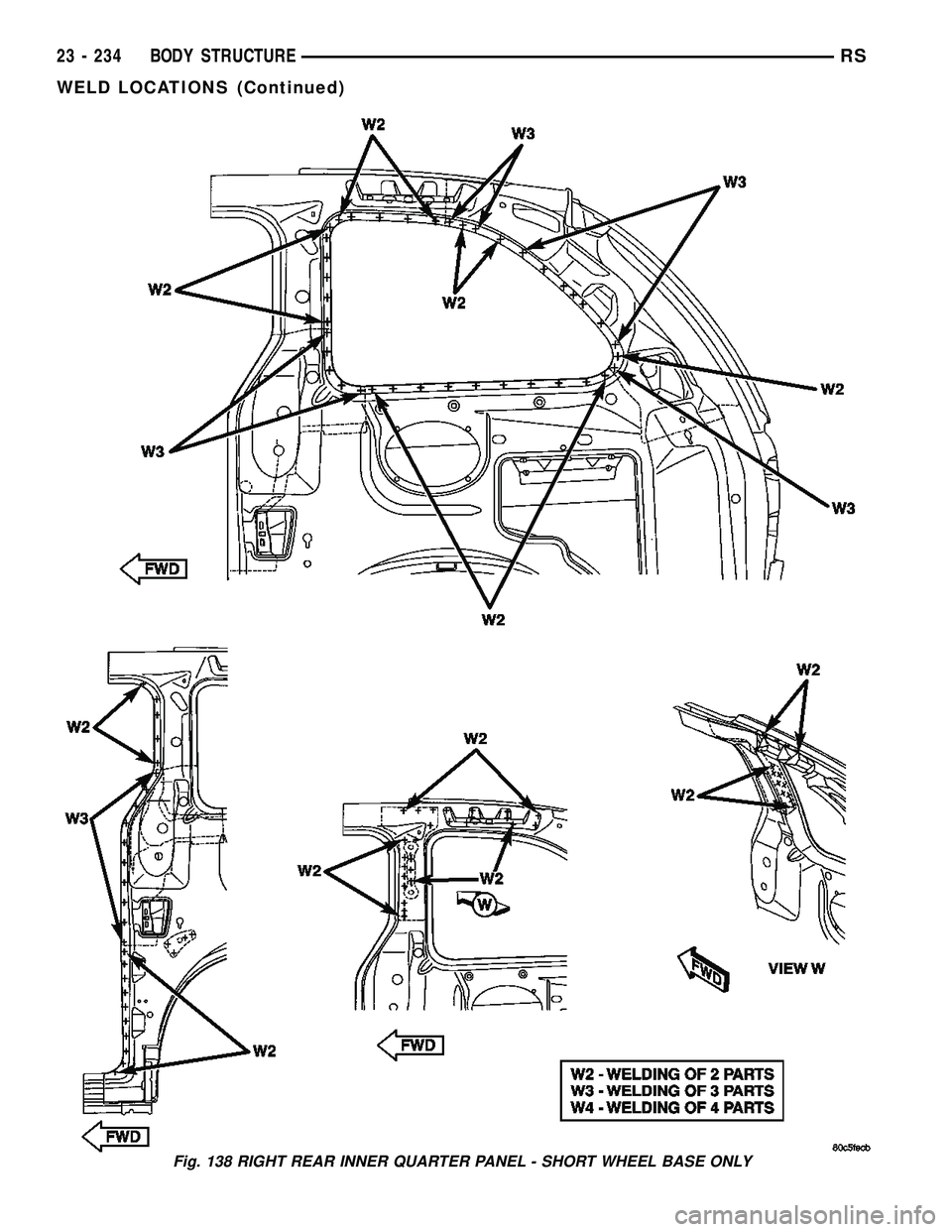

CHRYSLER VOYAGER 2004 Service Manual Fig. 138 RIGHT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 23 - 234 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2346 of 2585

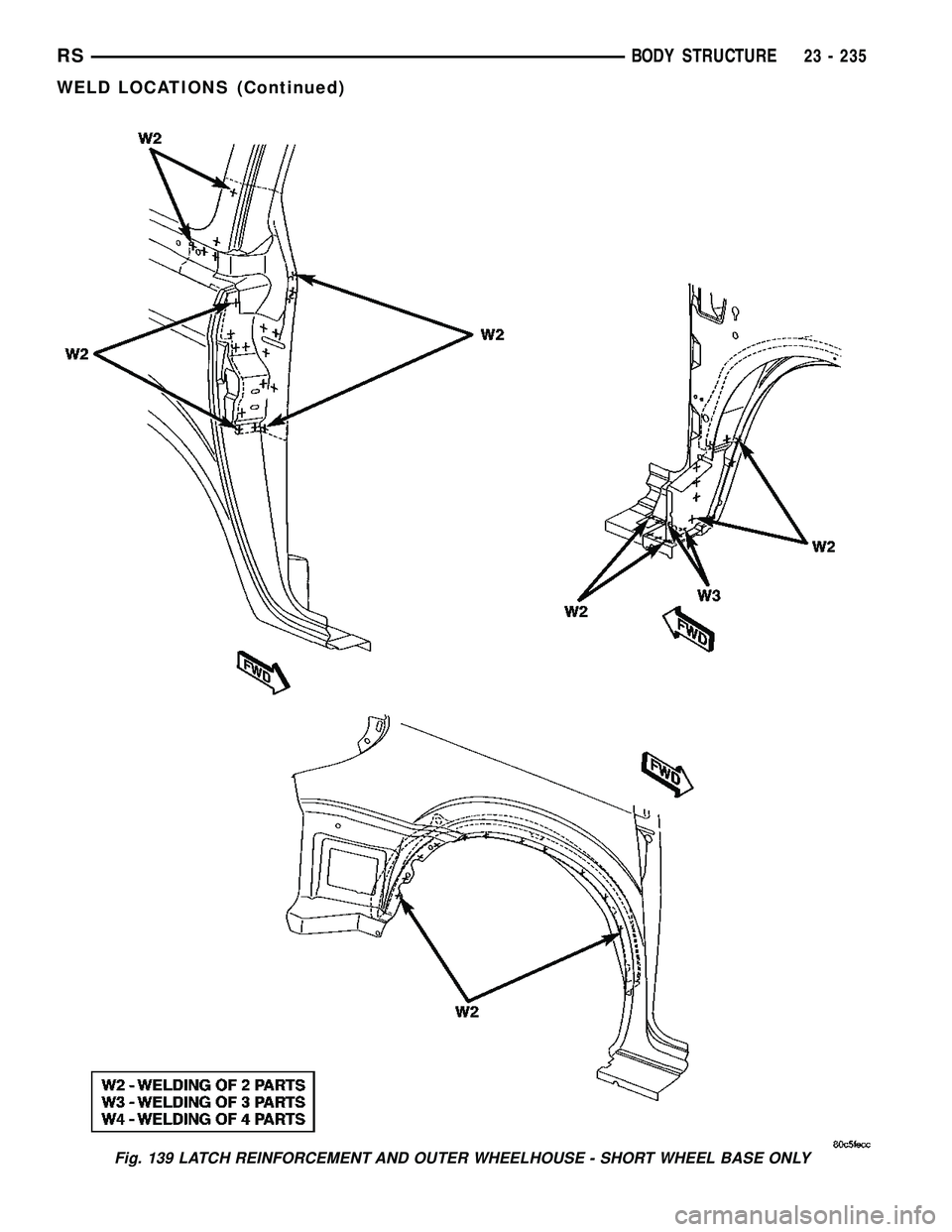

CHRYSLER VOYAGER 2004 Service Manual Fig. 139 LATCH REINFORCEMENT AND OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 235 WELD LOCATIONS (Continued)

Page 2347 of 2585

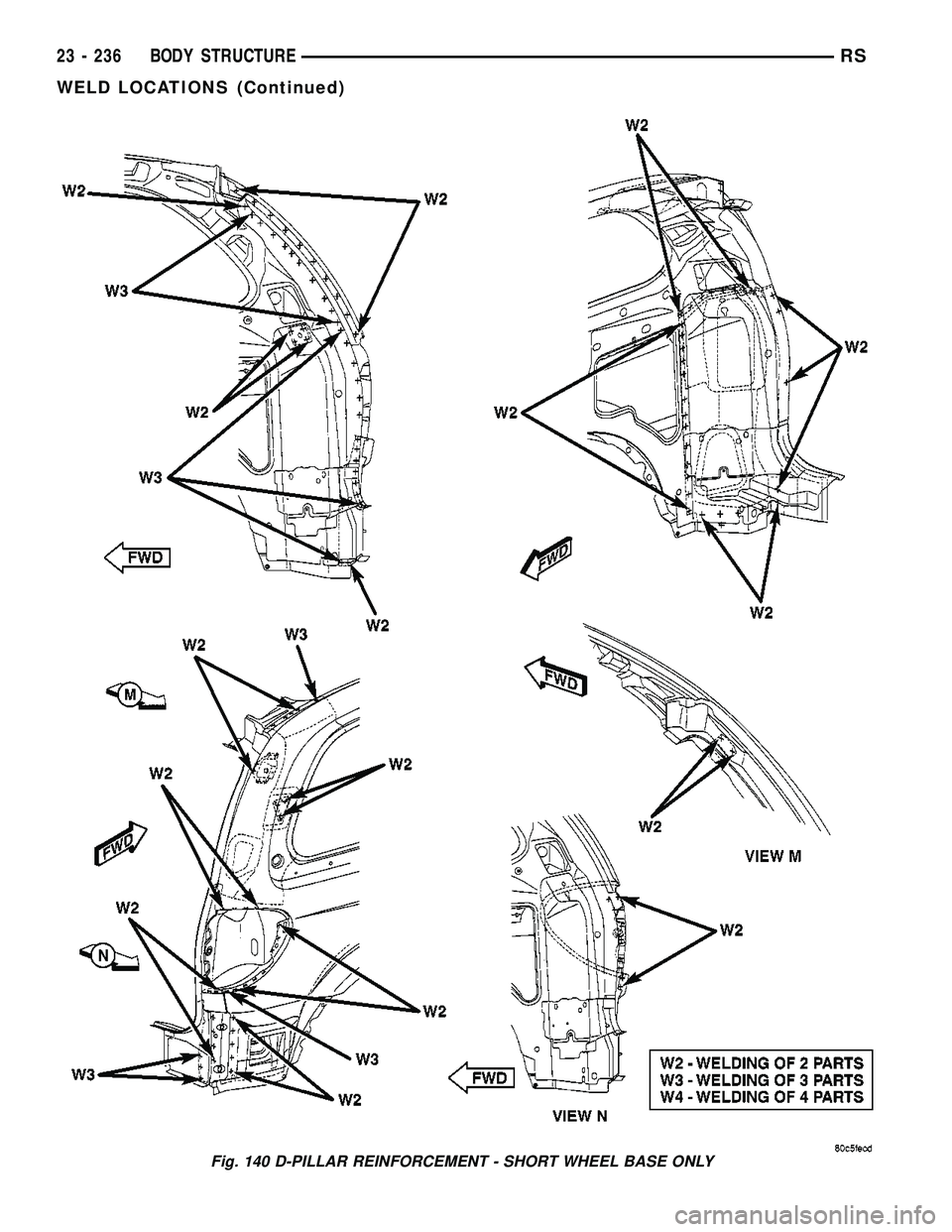

CHRYSLER VOYAGER 2004 Service Manual Fig. 140 D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY 23 - 236 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2348 of 2585

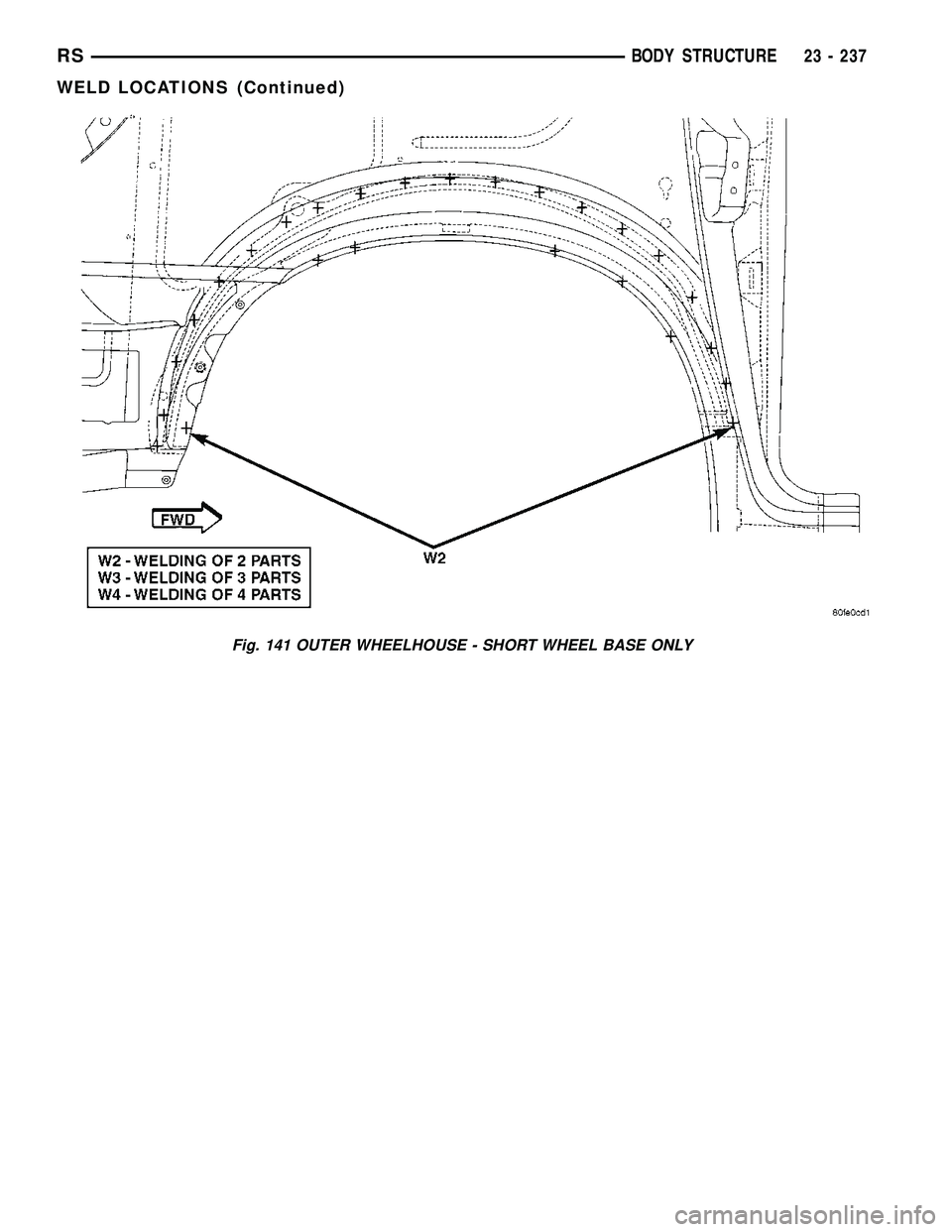

CHRYSLER VOYAGER 2004 Service Manual Fig. 141 OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 237 WELD LOCATIONS (Continued)

Page 2349 of 2585

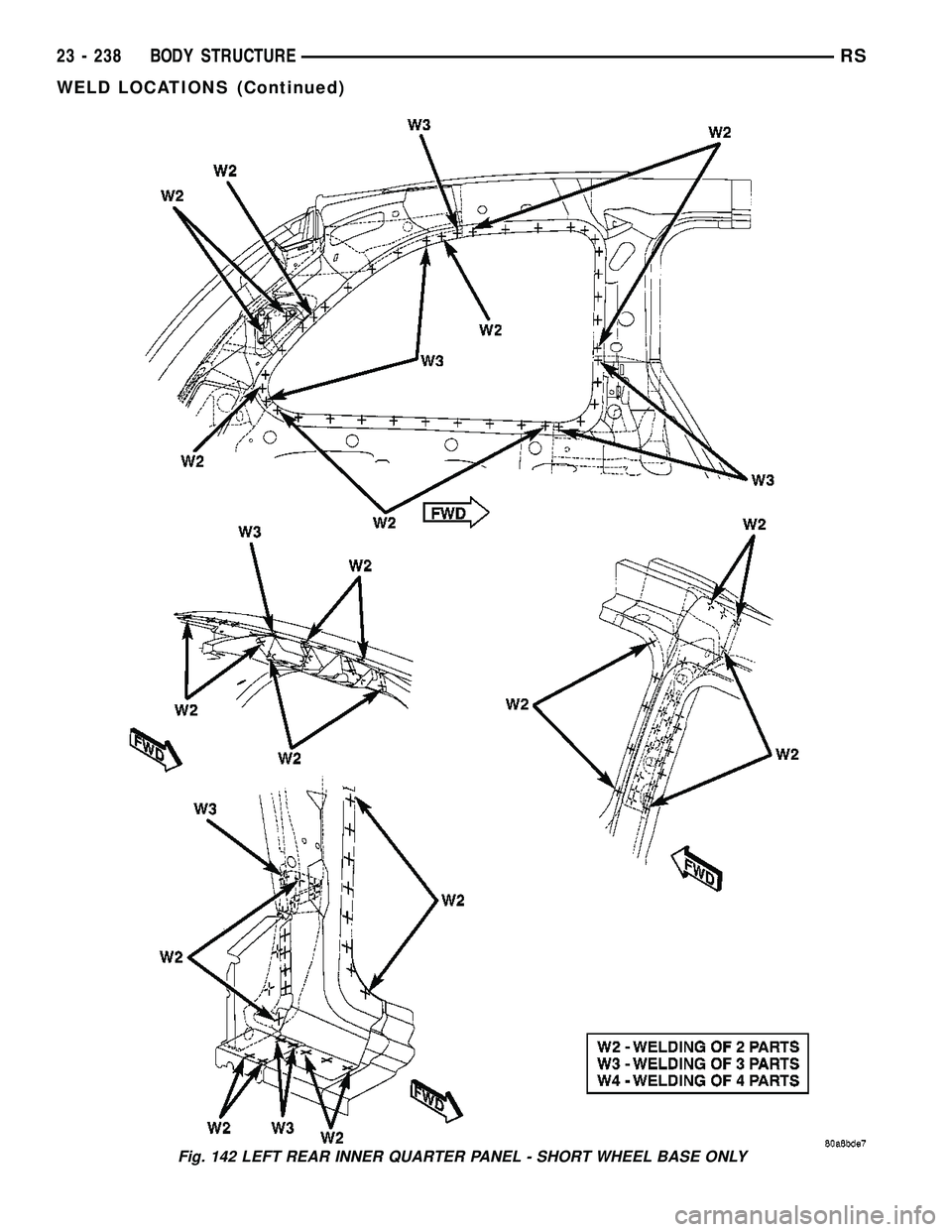

CHRYSLER VOYAGER 2004 Service Manual Fig. 142 LEFT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 23 - 238 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2350 of 2585

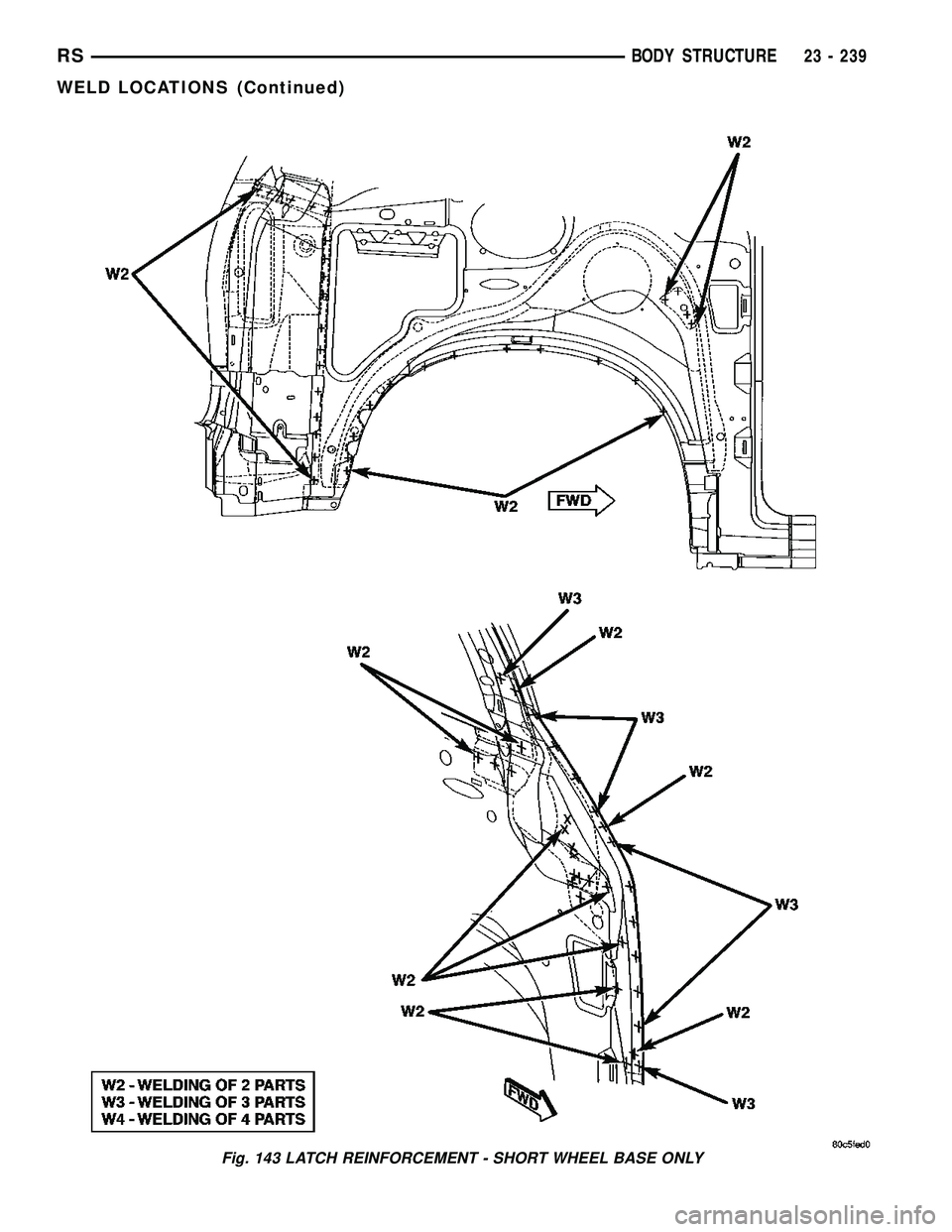

CHRYSLER VOYAGER 2004 Service Manual Fig. 143 LATCH REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 239 WELD LOCATIONS (Continued)

Page 2351 of 2585

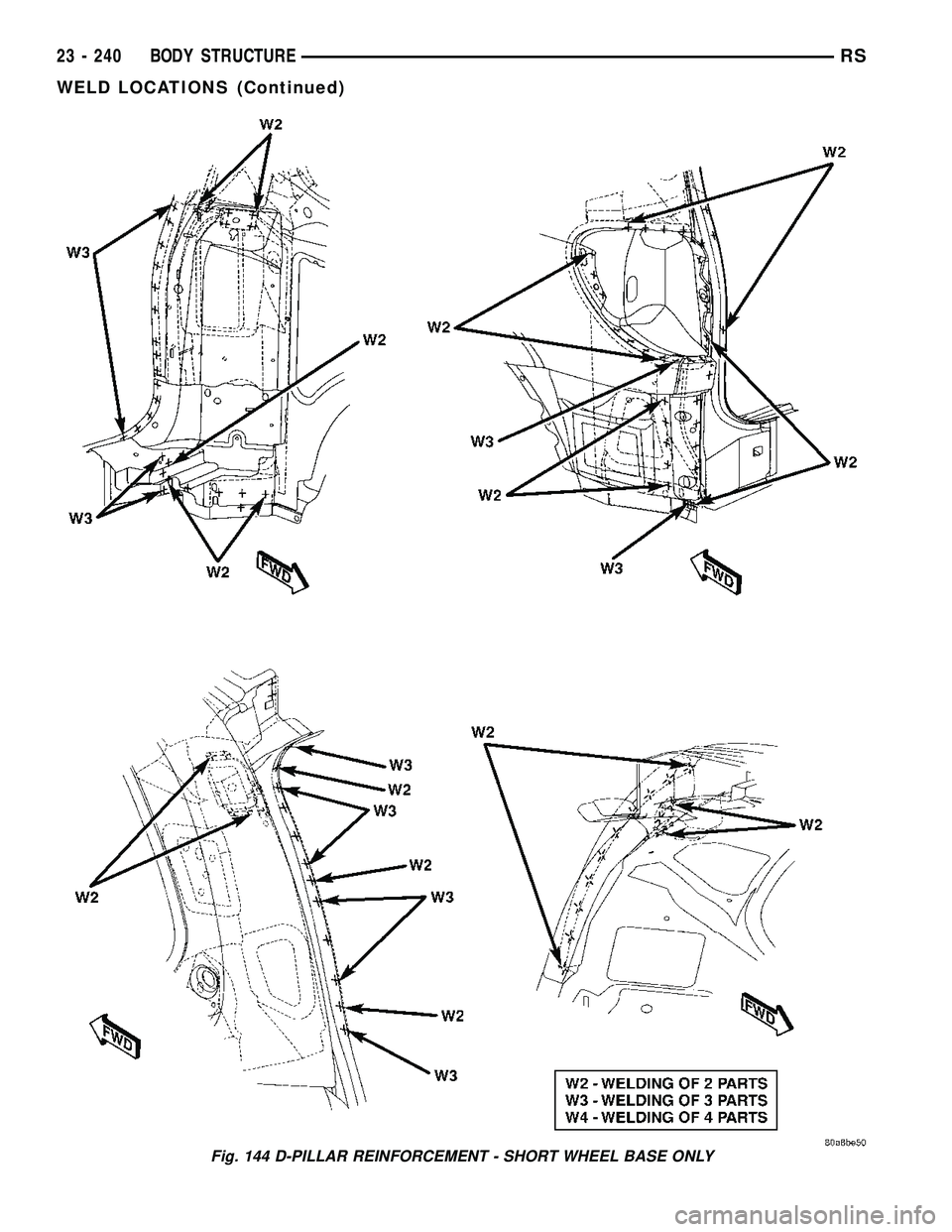

CHRYSLER VOYAGER 2004 Service Manual Fig. 144 D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY 23 - 240 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2352 of 2585

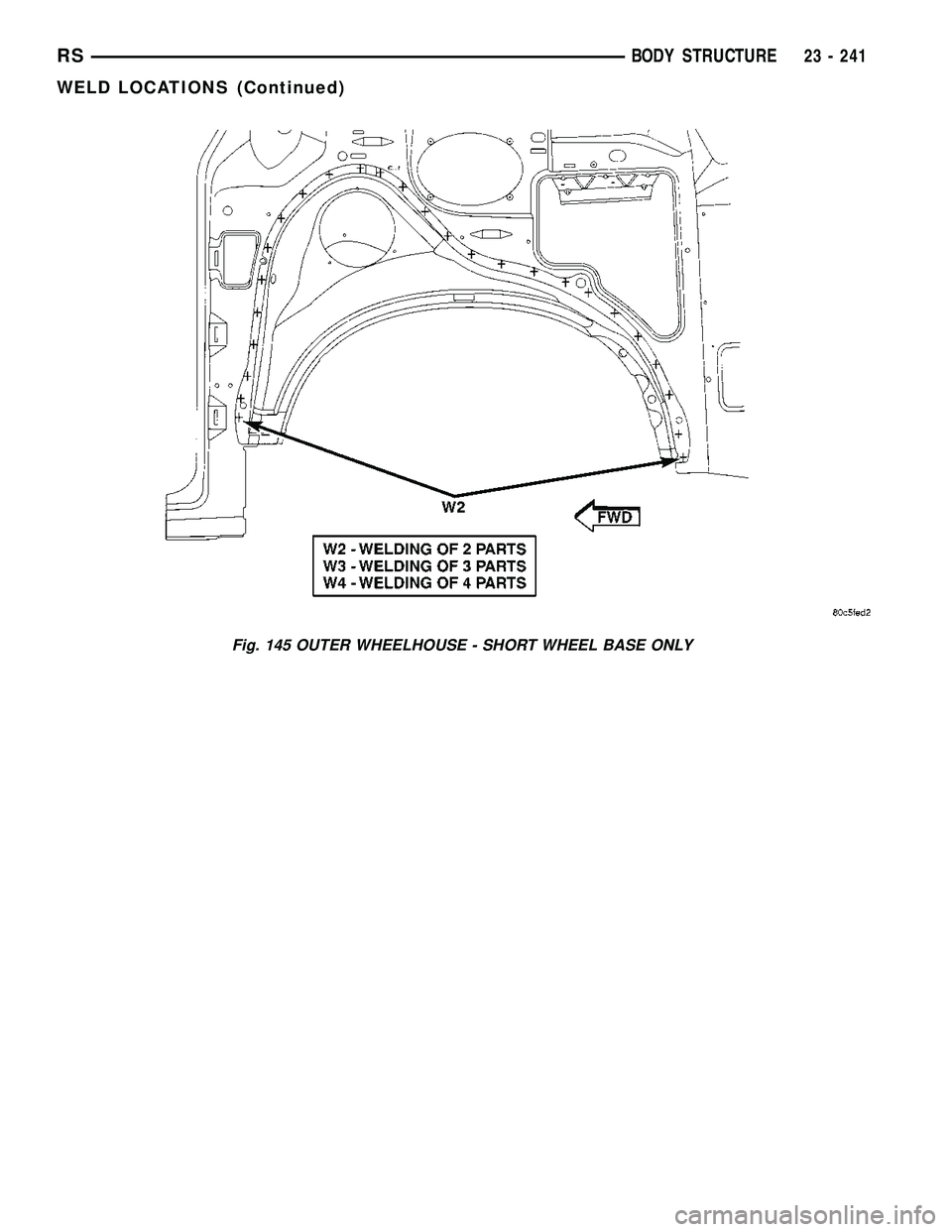

CHRYSLER VOYAGER 2004 Service Manual Fig. 145 OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 241 WELD LOCATIONS (Continued)
