Page 2321 of 2585

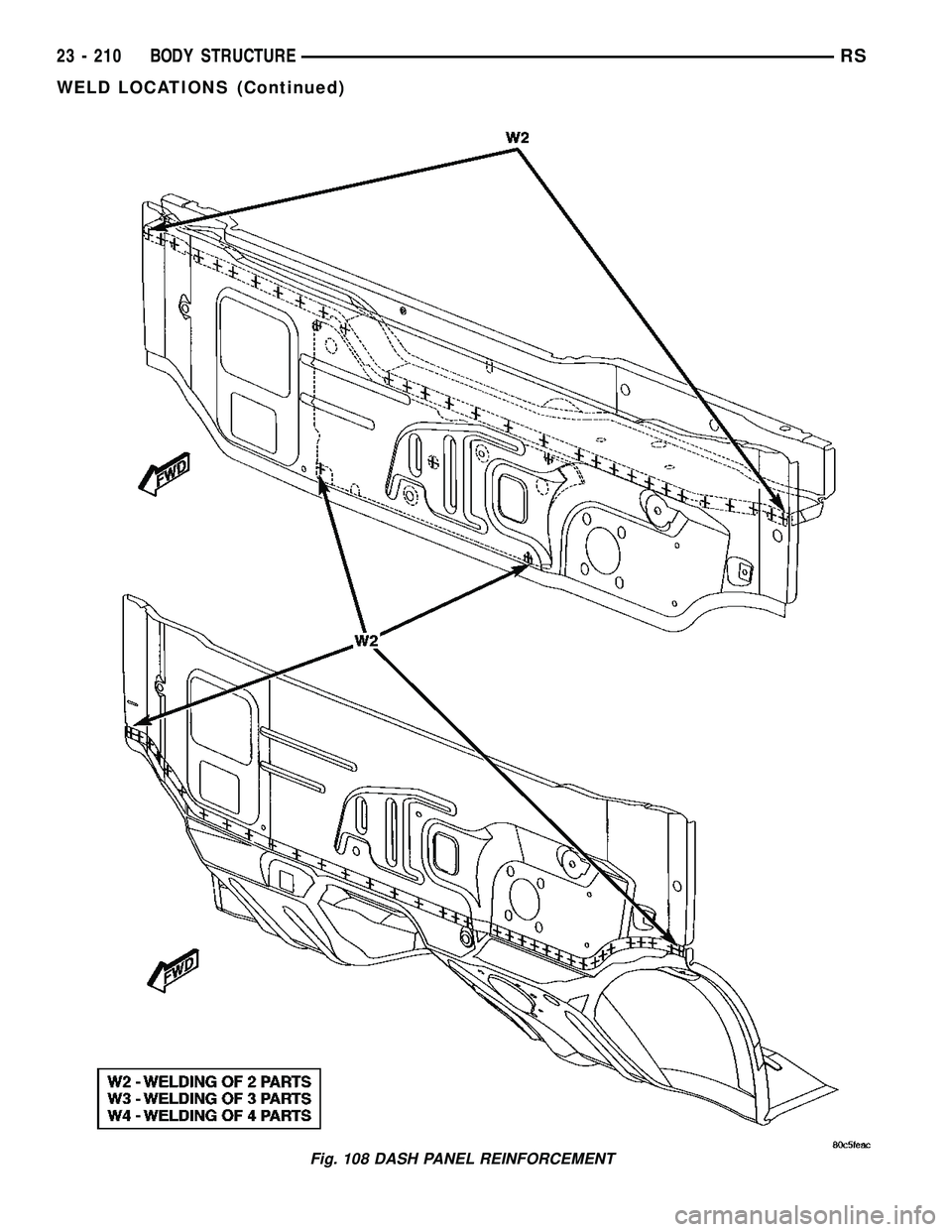

CHRYSLER VOYAGER 2004 Service Manual Fig. 108 DASH PANEL REINFORCEMENT 23 - 210 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2322 of 2585

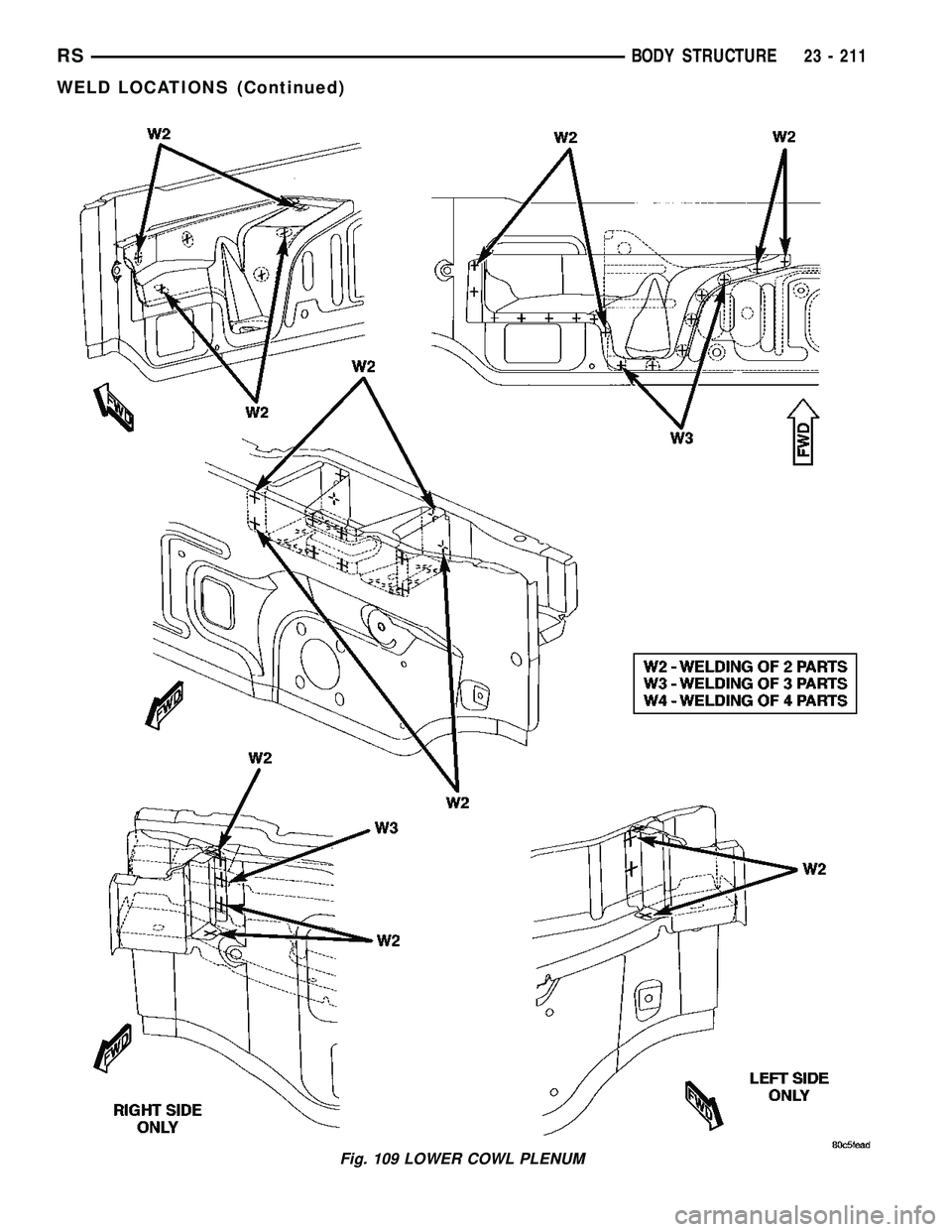

CHRYSLER VOYAGER 2004 Service Manual Fig. 109 LOWER COWL PLENUM RSBODY STRUCTURE23 - 211 WELD LOCATIONS (Continued)

Page 2323 of 2585

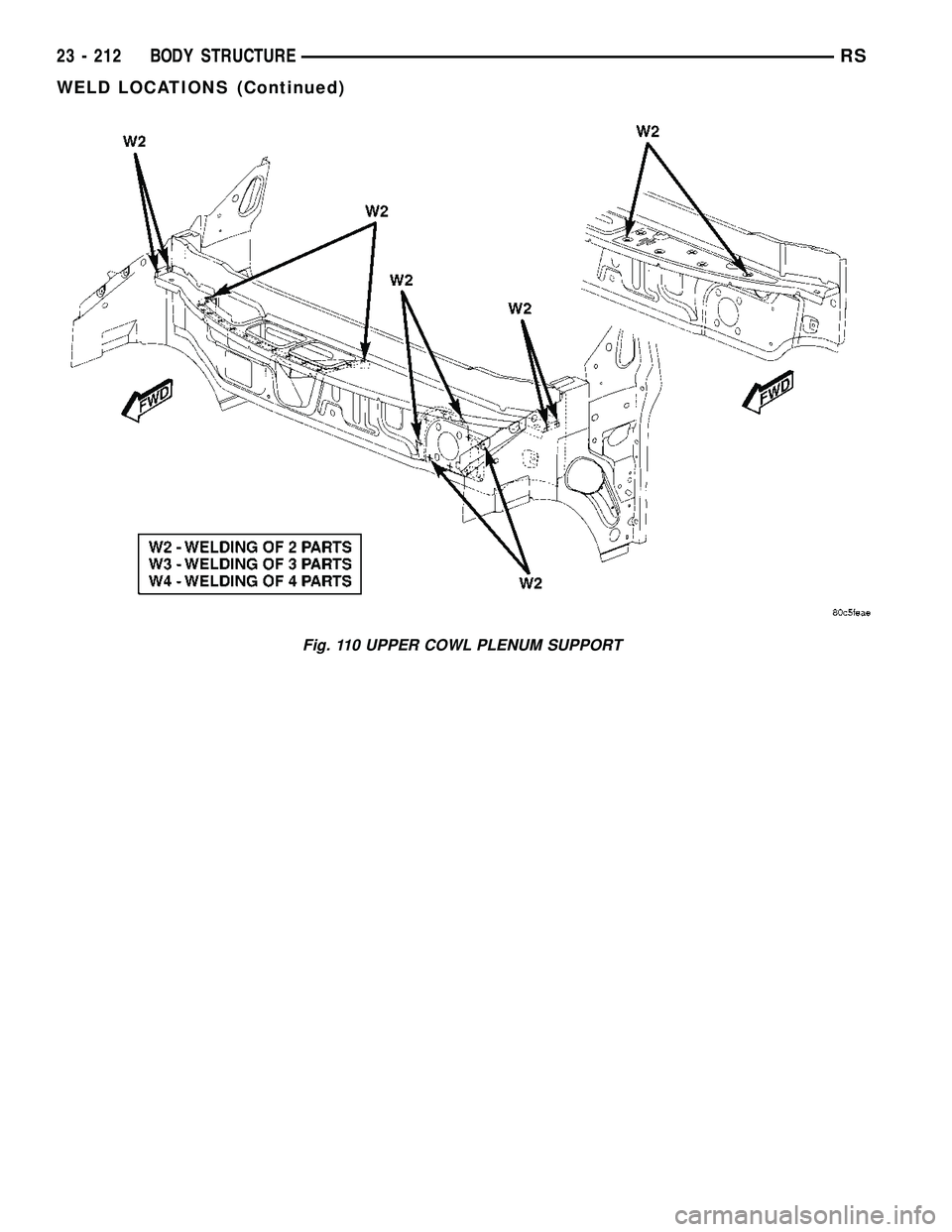

CHRYSLER VOYAGER 2004 Service Manual Fig. 110 UPPER COWL PLENUM SUPPORT 23 - 212 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2324 of 2585

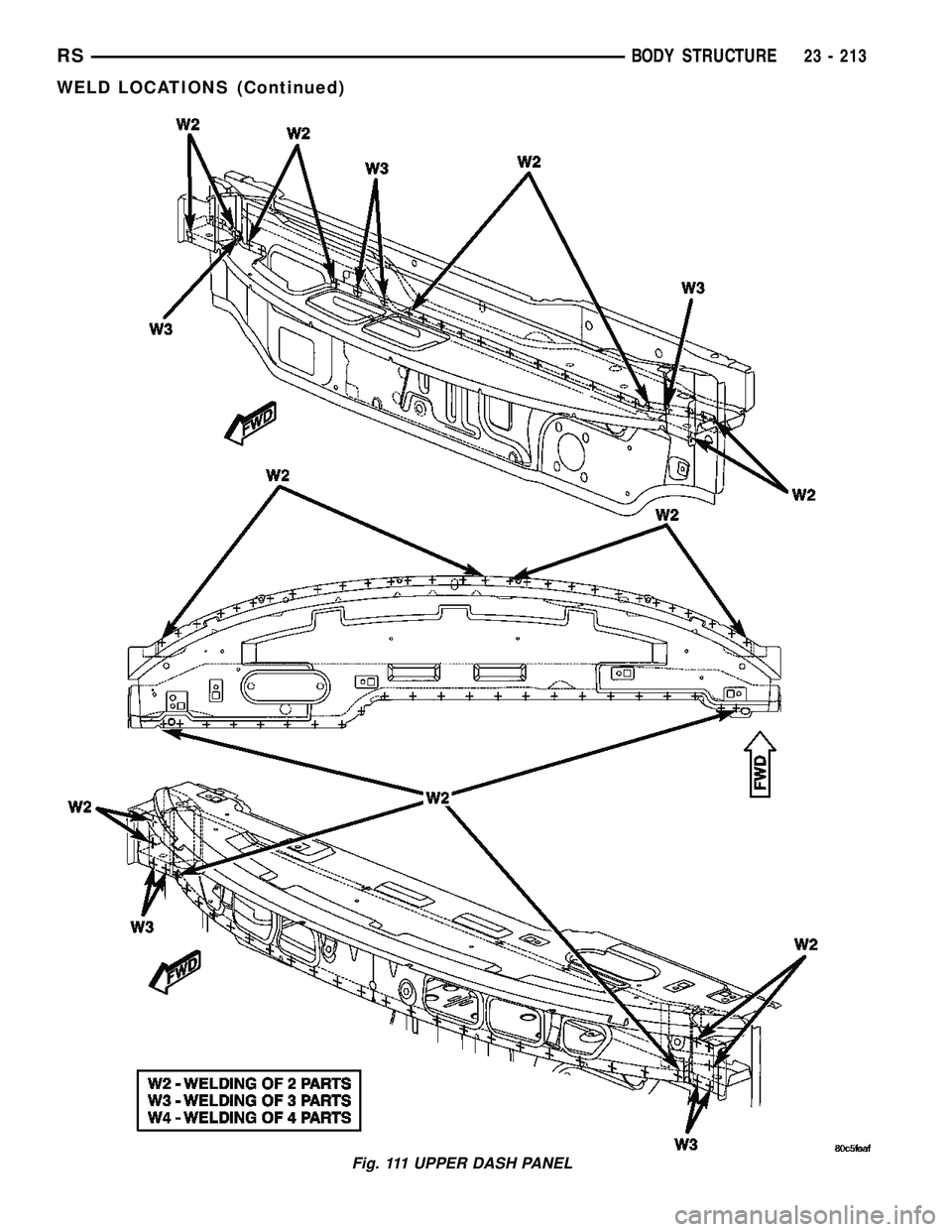

CHRYSLER VOYAGER 2004 Service Manual Fig. 111 UPPER DASH PANEL RSBODY STRUCTURE23 - 213 WELD LOCATIONS (Continued)

Page 2325 of 2585

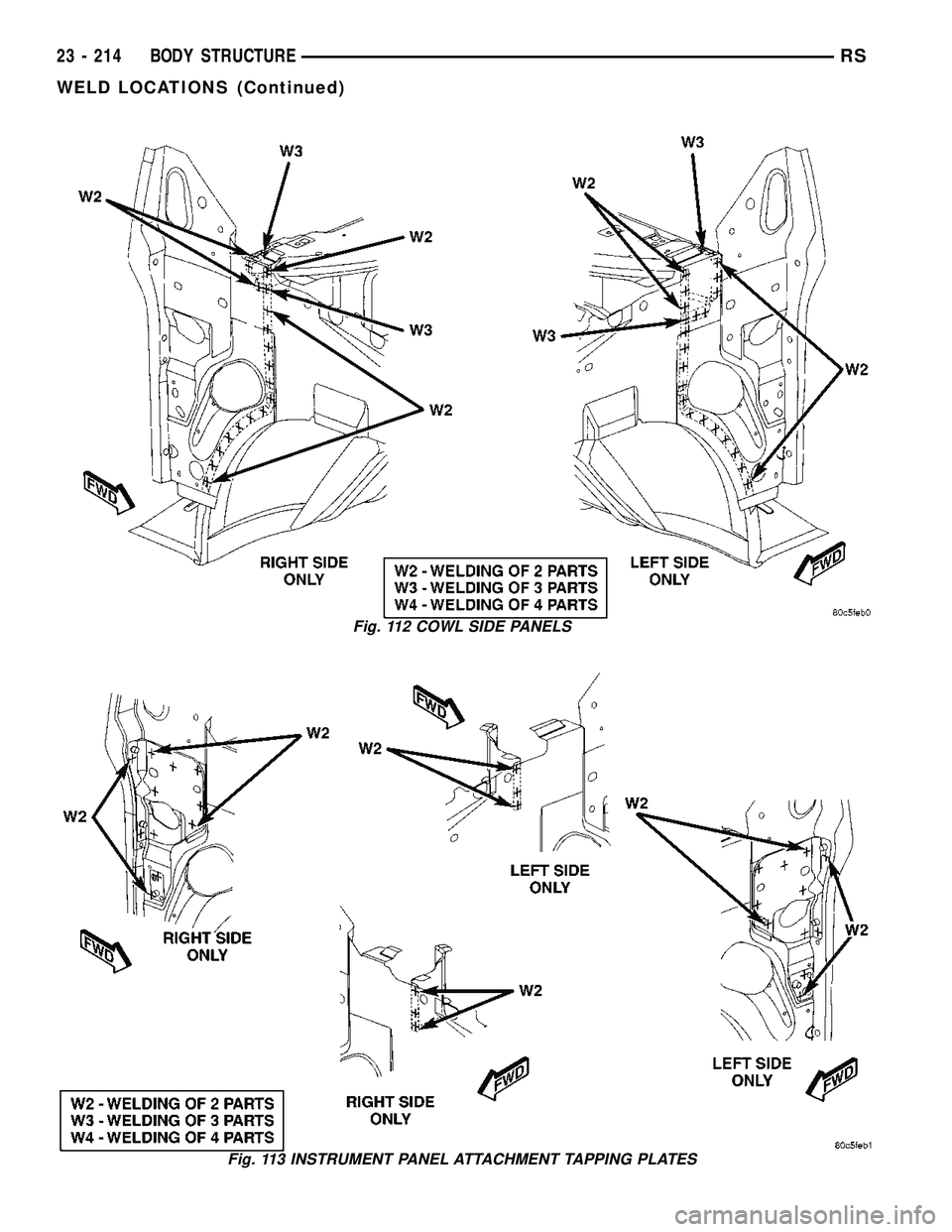

CHRYSLER VOYAGER 2004 Service Manual Fig. 112 COWL SIDE PANELS Fig. 113 INSTRUMENT PANEL ATTACHMENT TAPPING PLATES 23 - 214 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2326 of 2585

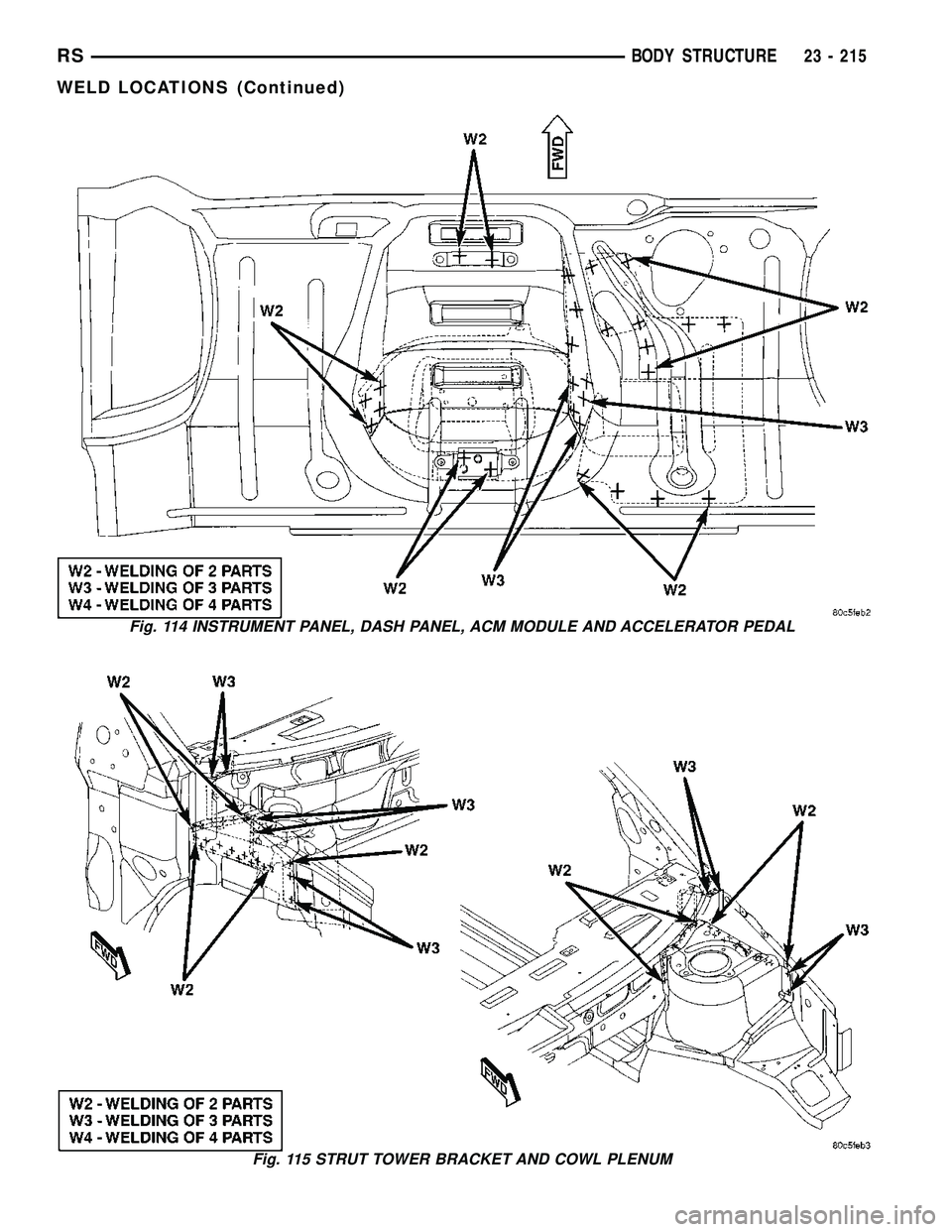

CHRYSLER VOYAGER 2004 Service Manual Fig. 114 INSTRUMENT PANEL, DASH PANEL, ACM MODULE AND ACCELERATOR PEDAL Fig. 115 STRUT TOWER BRACKET AND COWL PLENUM RSBODY STRUCTURE23 - 215 WELD LOCATIONS (Continued)

Page 2327 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 116 FRONT SIDE RAILS TO LOWER DASH PANEL 23 - 216 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2328 of 2585

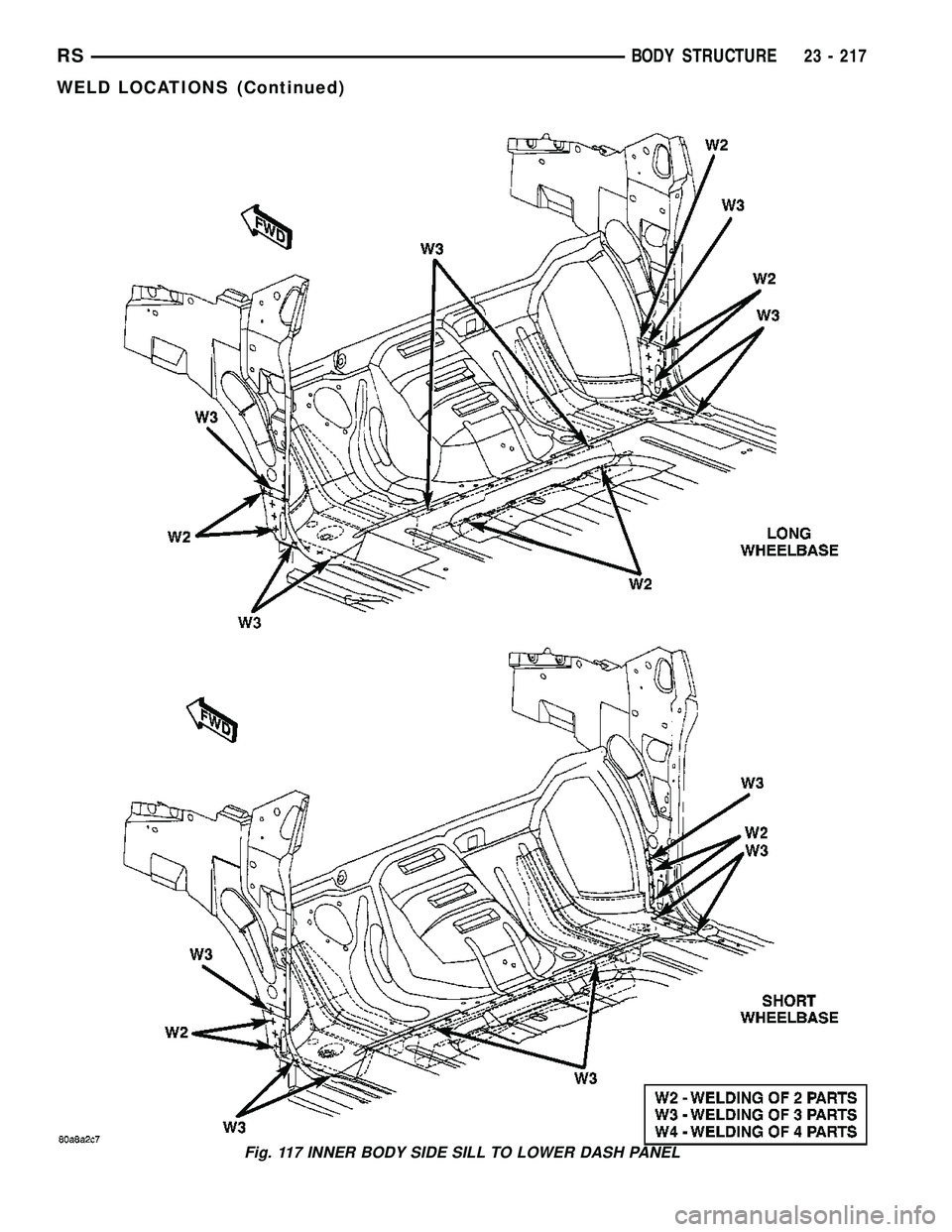

CHRYSLER VOYAGER 2004 Service Manual Fig. 117 INNER BODY SIDE SILL TO LOWER DASH PANEL RSBODY STRUCTURE23 - 217 WELD LOCATIONS (Continued)
