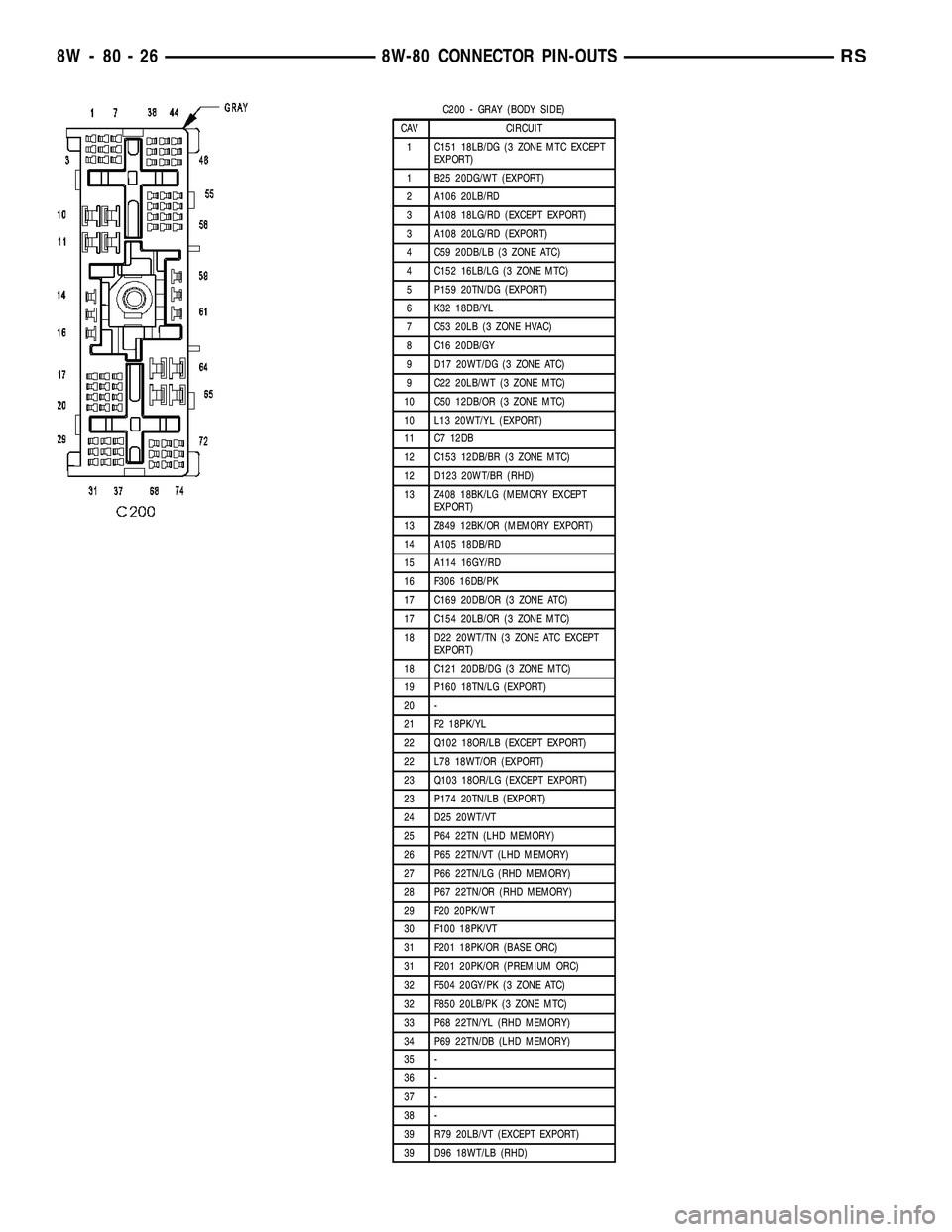

Page 1121 of 2585

CHRYSLER VOYAGER 2004 Service Manual C200 - GRAY (BODY SIDE) CAV CIRCUIT 1 C151 18LB/DG (3 ZONE MTC EXCEPT EXPORT) 1 B25 20DG/WT (EXPORT) 2 A106 20LB/RD 3 A108 18LG/RD (EXCEPT EXPORT) 3 A108 20LG/RD (EXPORT) 4 C59 20DB/LB (3 ZONE ATC) 4

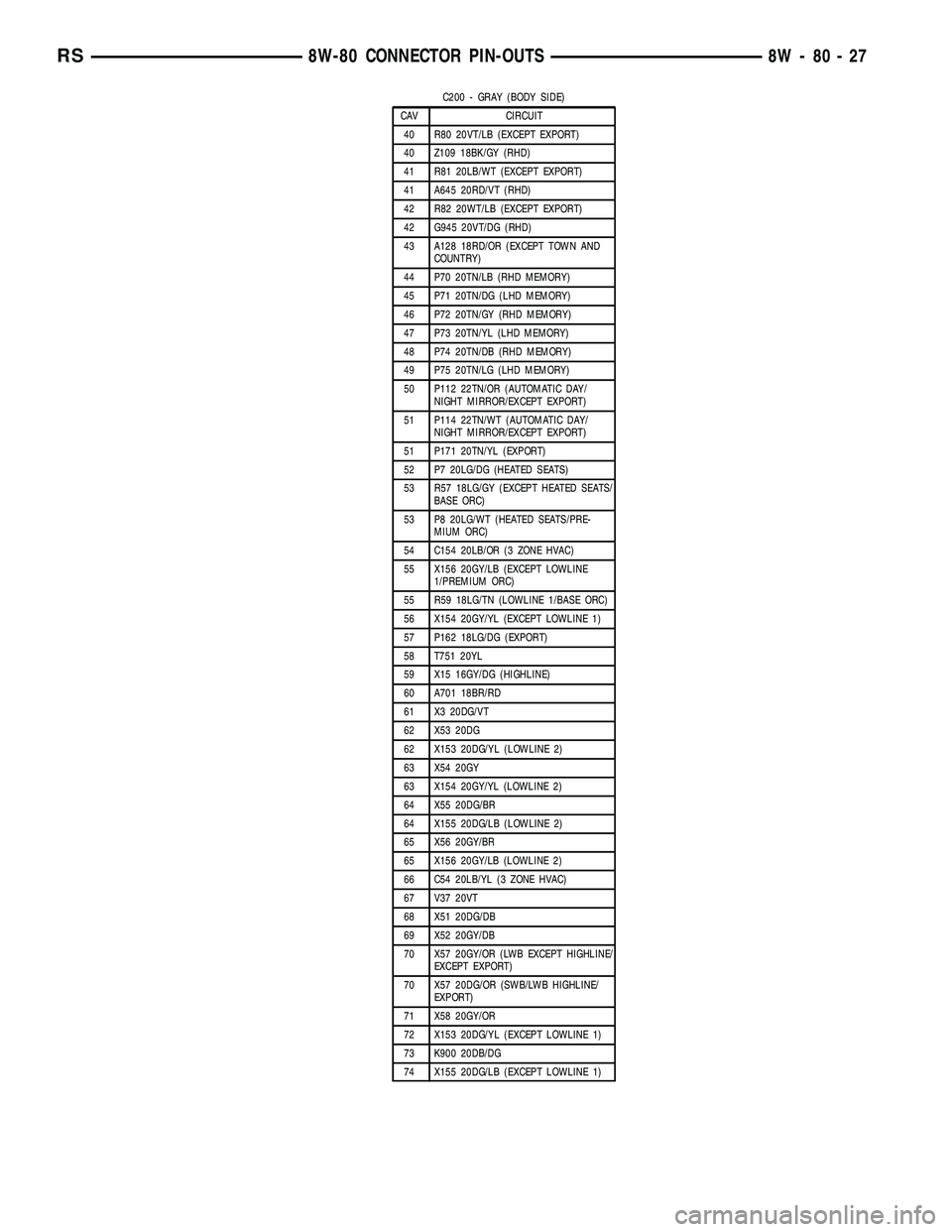

Page 1122 of 2585

CHRYSLER VOYAGER 2004 Service Manual C200 - GRAY (BODY SIDE) CAV CIRCUIT 40 R80 20VT/LB (EXCEPT EXPORT) 40 Z109 18BK/GY (RHD) 41 R81 20LB/WT (EXCEPT EXPORT) 41 A645 20RD/VT (RHD) 42 R82 20WT/LB (EXCEPT EXPORT) 42 G945 20VT/DG (RHD) 43 A1

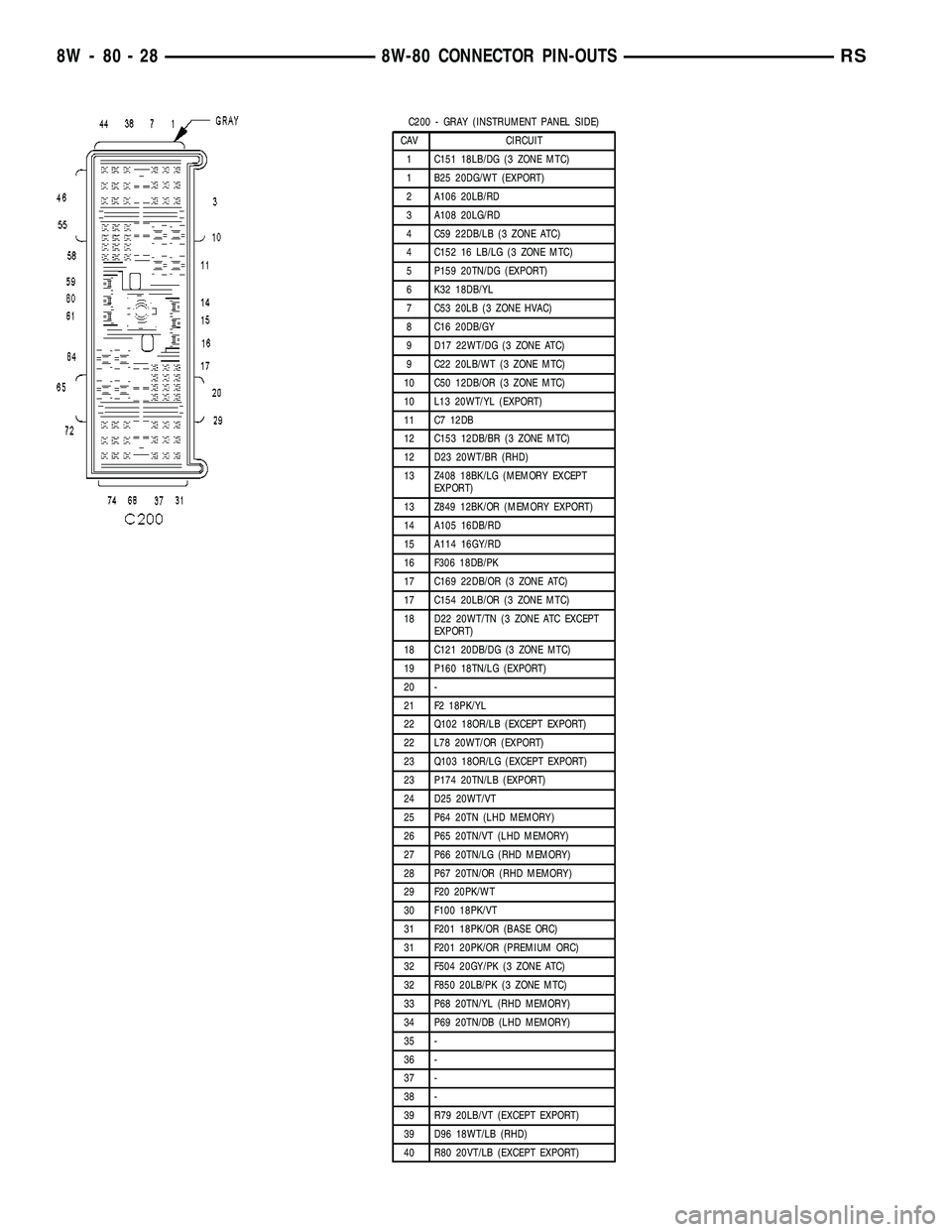

Page 1123 of 2585

CHRYSLER VOYAGER 2004 Service Manual C200 - GRAY (INSTRUMENT PANEL SIDE) CAV CIRCUIT 1 C151 18LB/DG (3 ZONE MTC) 1 B25 20DG/WT (EXPORT) 2 A106 20LB/RD 3 A108 20LG/RD 4 C59 22DB/LB (3 ZONE ATC) 4 C152 16 LB/LG (3 ZONE MTC) 5 P159 20TN/DG

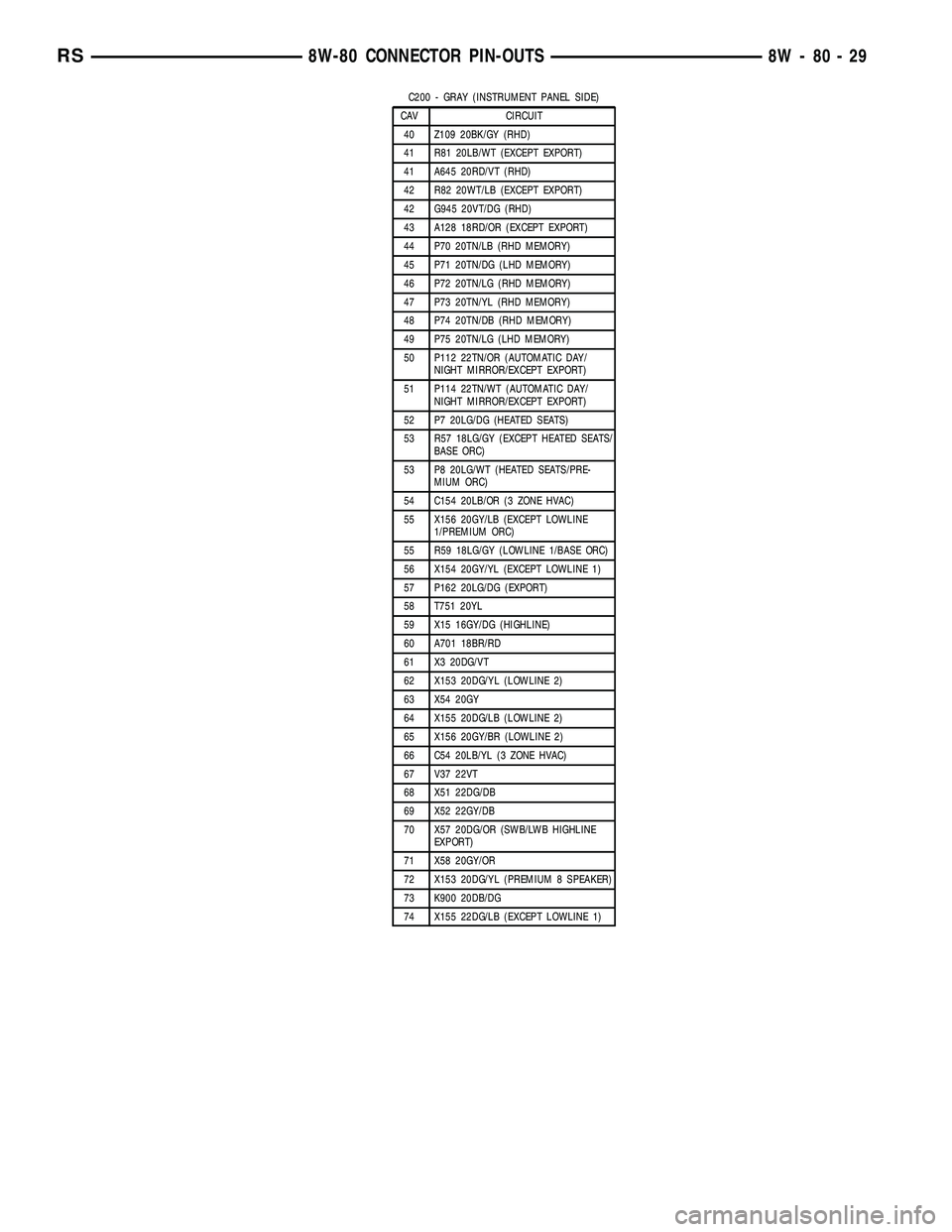

Page 1124 of 2585

CHRYSLER VOYAGER 2004 Service Manual C200 - GRAY (INSTRUMENT PANEL SIDE) CAV CIRCUIT 40 Z109 20BK/GY (RHD) 41 R81 20LB/WT (EXCEPT EXPORT) 41 A645 20RD/VT (RHD) 42 R82 20WT/LB (EXCEPT EXPORT) 42 G945 20VT/DG (RHD) 43 A128 18RD/OR (EXCEPT

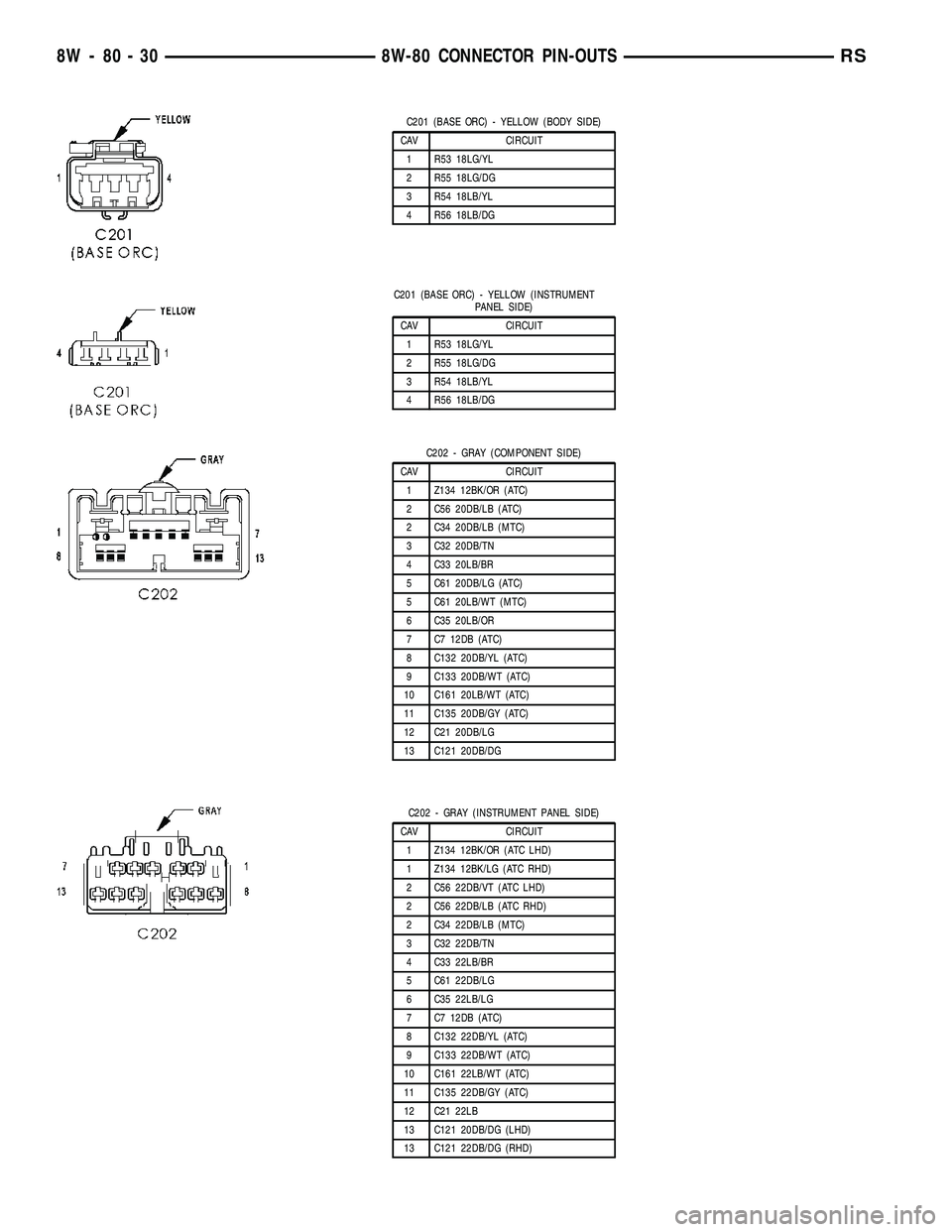

Page 1125 of 2585

CHRYSLER VOYAGER 2004 Service Manual C201 (BASE ORC) - YELLOW (BODY SIDE) CAV CIRCUIT 1 R53 18LG/YL 2 R55 18LG/DG 3 R54 18LB/YL 4 R56 18LB/DG C201 (BASE ORC) - YELLOW (INSTRUMENT PANEL SIDE) CAV CIRCUIT 1 R53 18LG/YL 2 R55 18LG/DG 3 R54

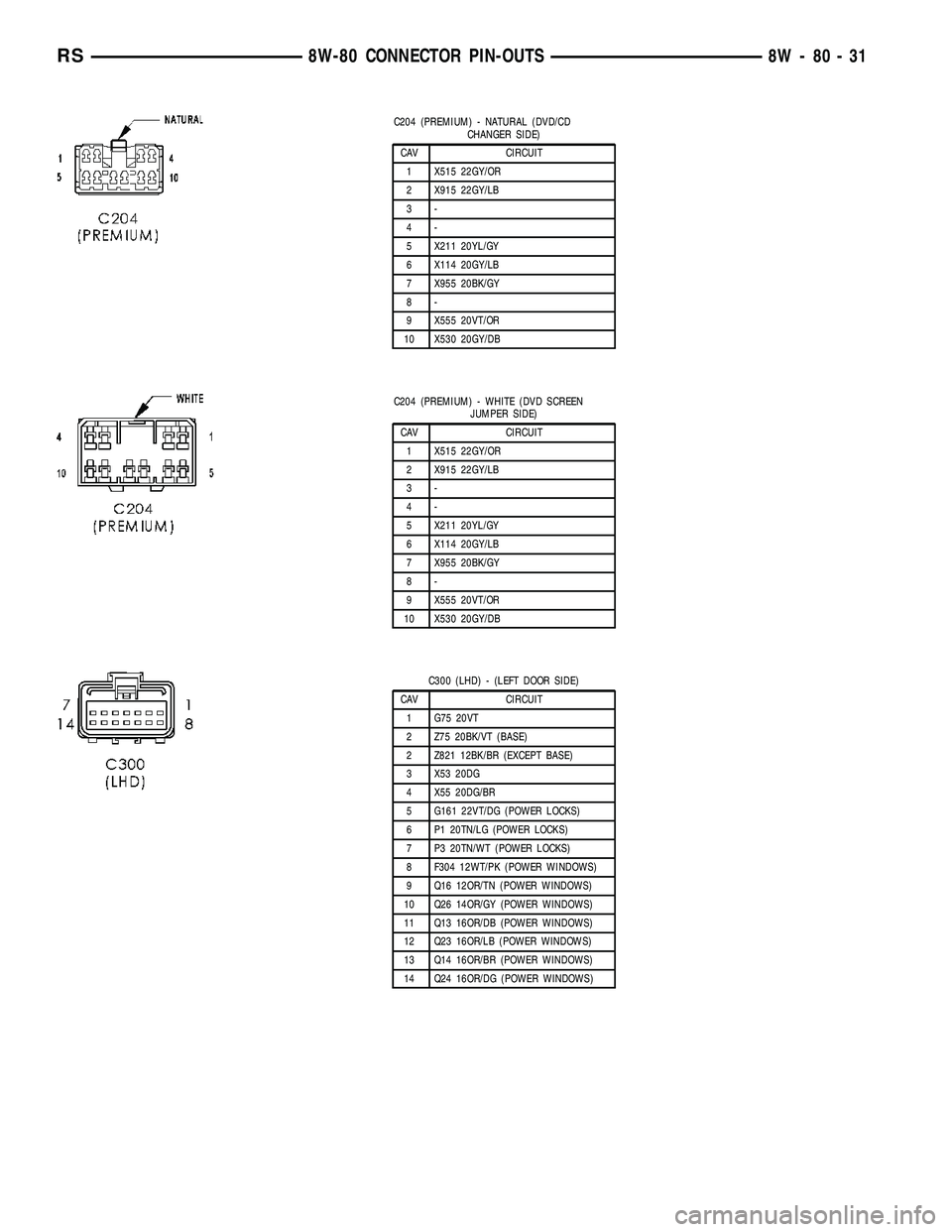

Page 1126 of 2585

CHRYSLER VOYAGER 2004 Service Manual C204 (PREMIUM) - NATURAL (DVD/CD CHANGER SIDE) CAV CIRCUIT 1 X515 22GY/OR 2 X915 22GY/LB 3- 4- 5 X211 20YL/GY 6 X114 20GY/LB 7 X955 20BK/GY 8- 9 X555 20VT/OR 10 X530 20GY/DB C204 (PREMIUM) - WHITE (DV

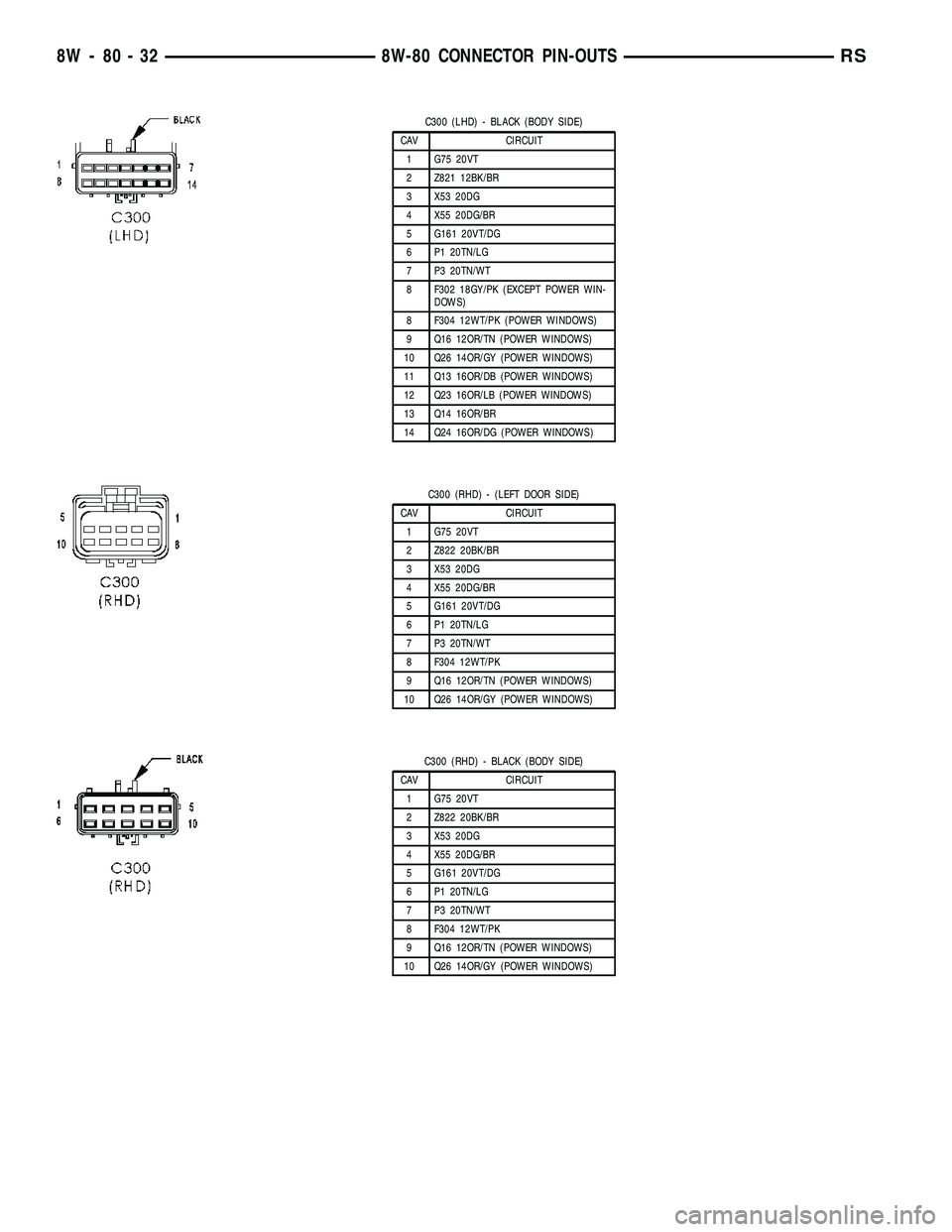

Page 1127 of 2585

CHRYSLER VOYAGER 2004 Service Manual C300 (LHD) - BLACK (BODY SIDE) CAV CIRCUIT 1 G75 20VT 2 Z821 12BK/BR 3 X53 20DG 4 X55 20DG/BR 5 G161 20VT/DG 6 P1 20TN/LG 7 P3 20TN/WT 8 F302 18GY/PK (EXCEPT POWER WIN- DOWS) 8 F304 12WT/PK (POWER WIN

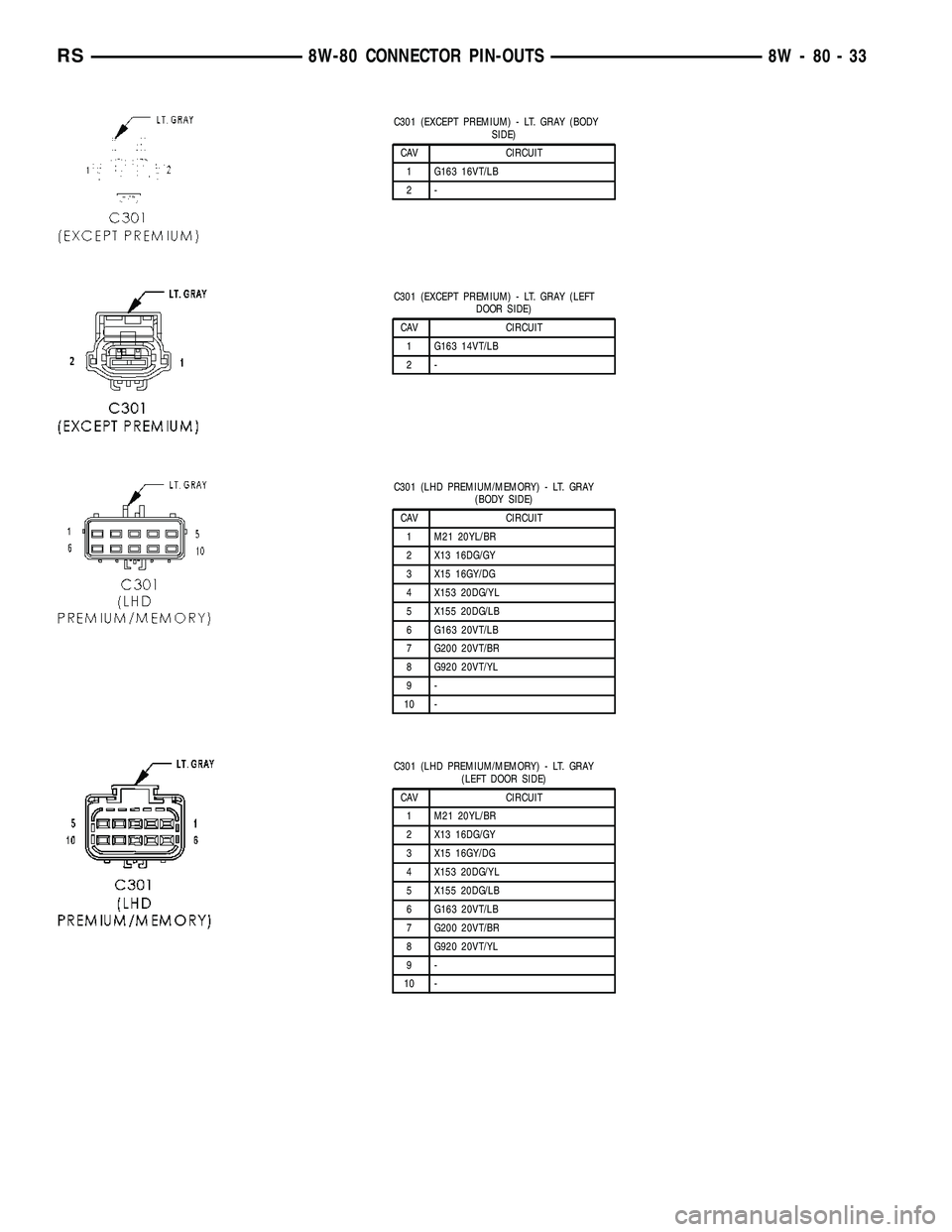

Page 1128 of 2585

CHRYSLER VOYAGER 2004 Service Manual C301 (EXCEPT PREMIUM) - LT. GRAY (BODY SIDE) CAV CIRCUIT 1 G163 16VT/LB 2- C301 (EXCEPT PREMIUM) - LT. GRAY (LEFT DOOR SIDE) CAV CIRCUIT 1 G163 14VT/LB 2- C301 (LHD PREMIUM/MEMORY) - LT. GRAY (BODY SI
