Page 2281 of 2585

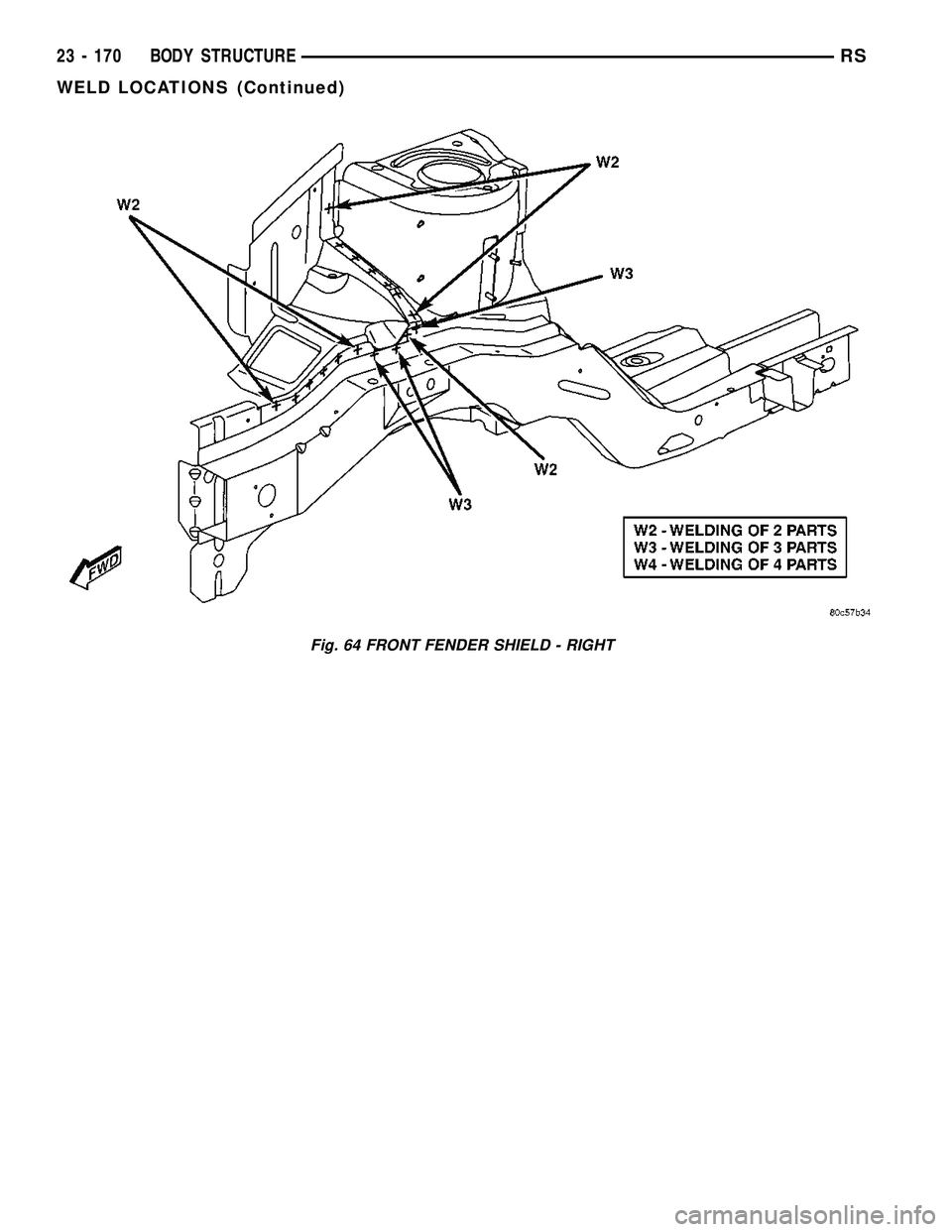

CHRYSLER VOYAGER 2004 Service Manual Fig. 64 FRONT FENDER SHIELD - RIGHT 23 - 170 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2282 of 2585

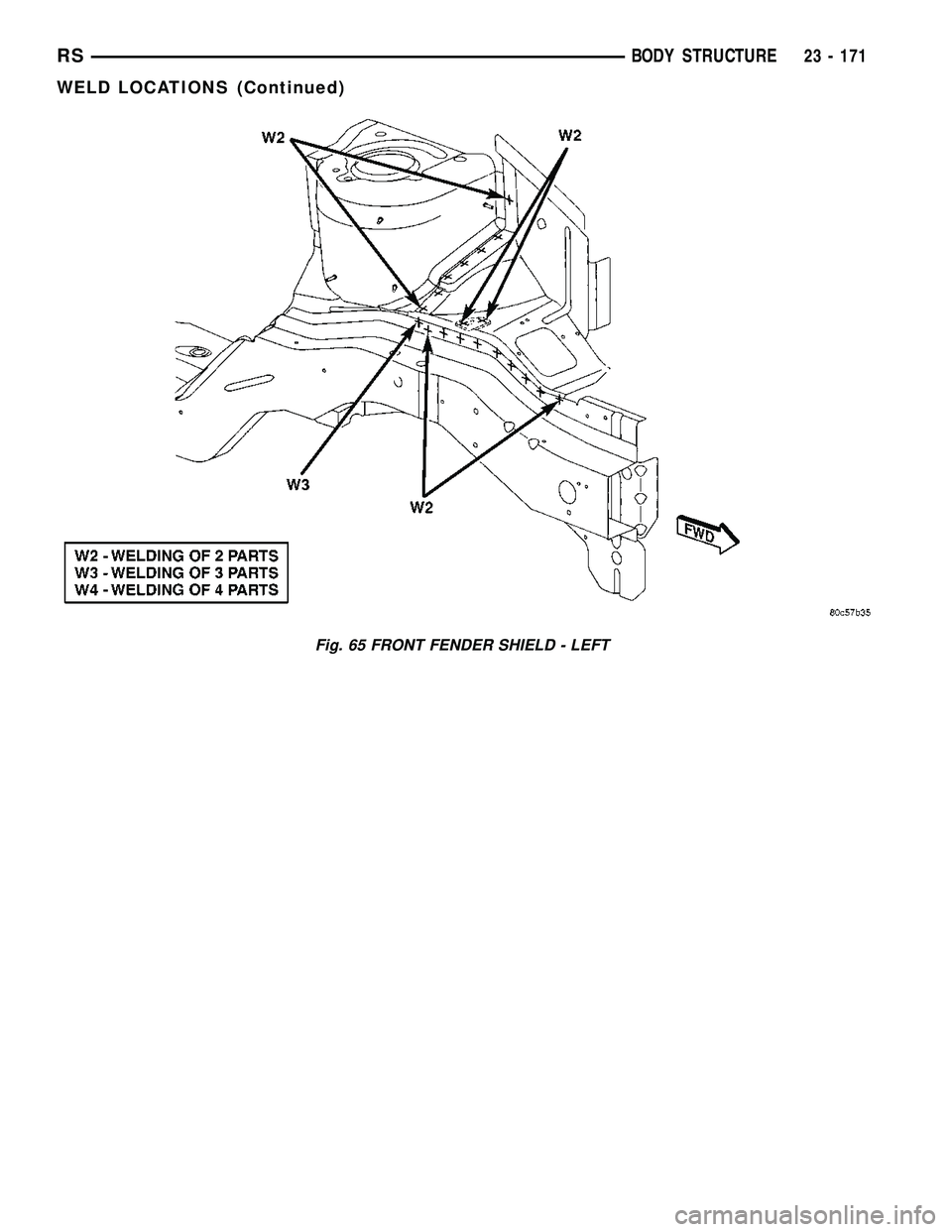

CHRYSLER VOYAGER 2004 Service Manual Fig. 65 FRONT FENDER SHIELD - LEFT RSBODY STRUCTURE23 - 171 WELD LOCATIONS (Continued)

Page 2283 of 2585

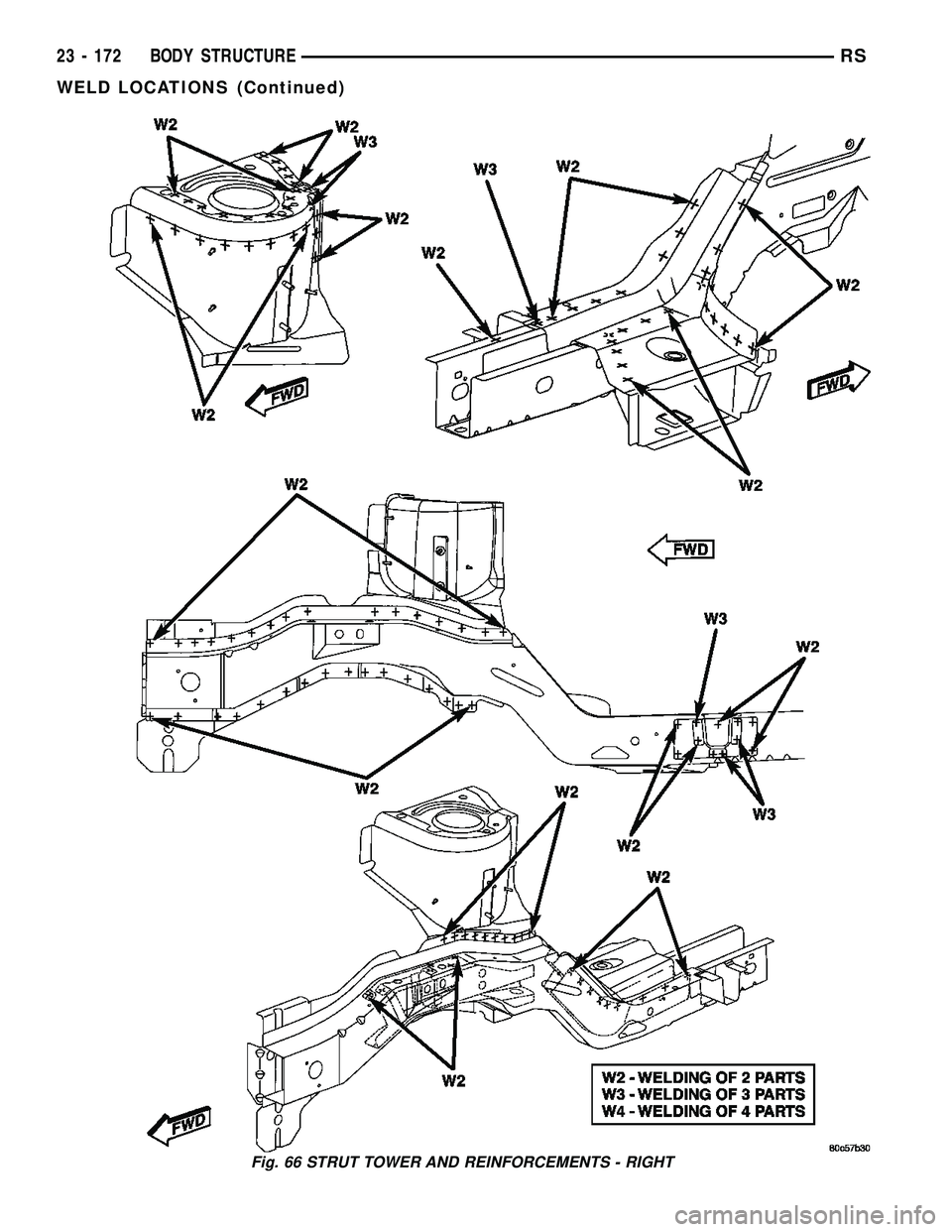

CHRYSLER VOYAGER 2004 Service Manual Fig. 66 STRUT TOWER AND REINFORCEMENTS - RIGHT 23 - 172 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2284 of 2585

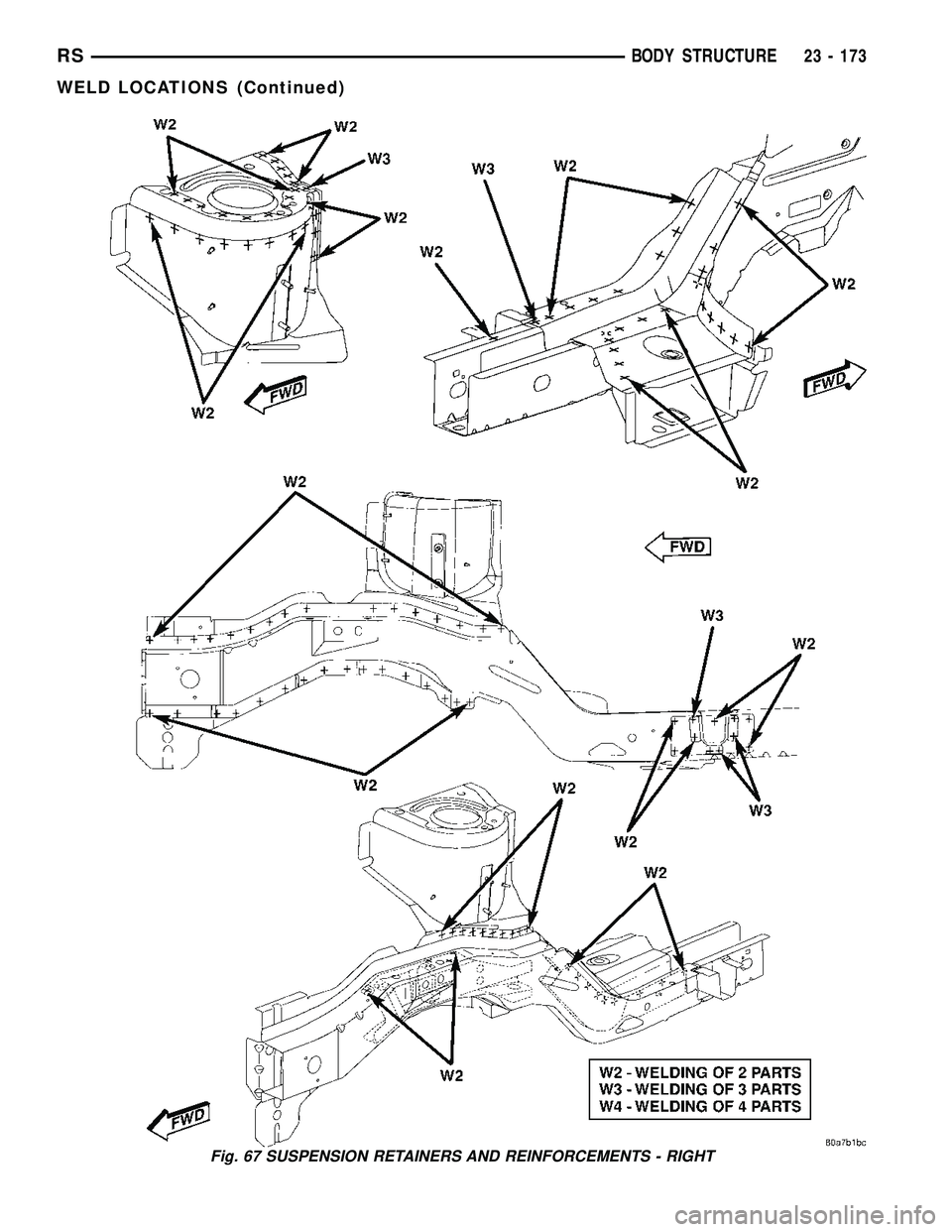

CHRYSLER VOYAGER 2004 Service Manual Fig. 67 SUSPENSION RETAINERS AND REINFORCEMENTS - RIGHT RSBODY STRUCTURE23 - 173 WELD LOCATIONS (Continued)

Page 2285 of 2585

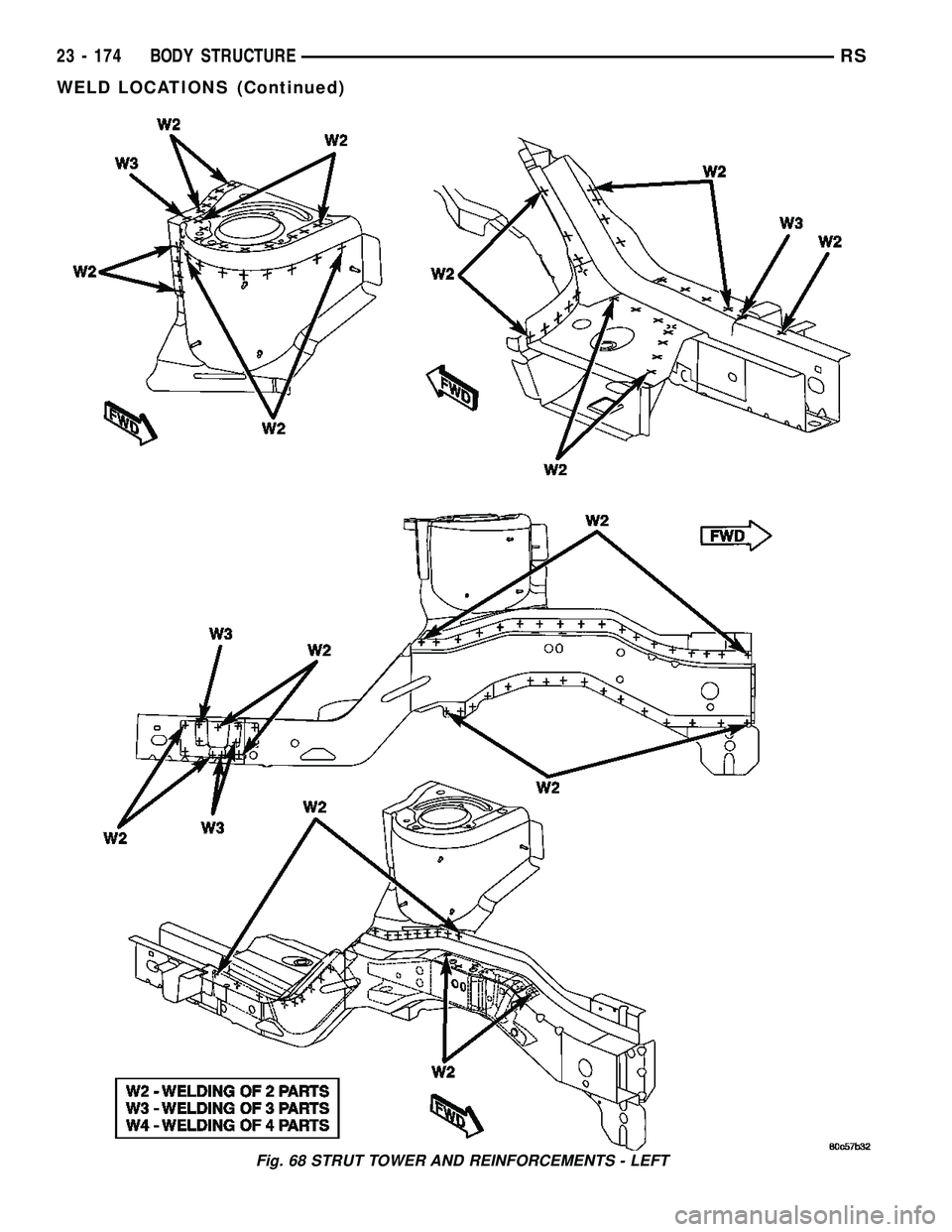

CHRYSLER VOYAGER 2004 Service Manual Fig. 68 STRUT TOWER AND REINFORCEMENTS - LEFT 23 - 174 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2286 of 2585

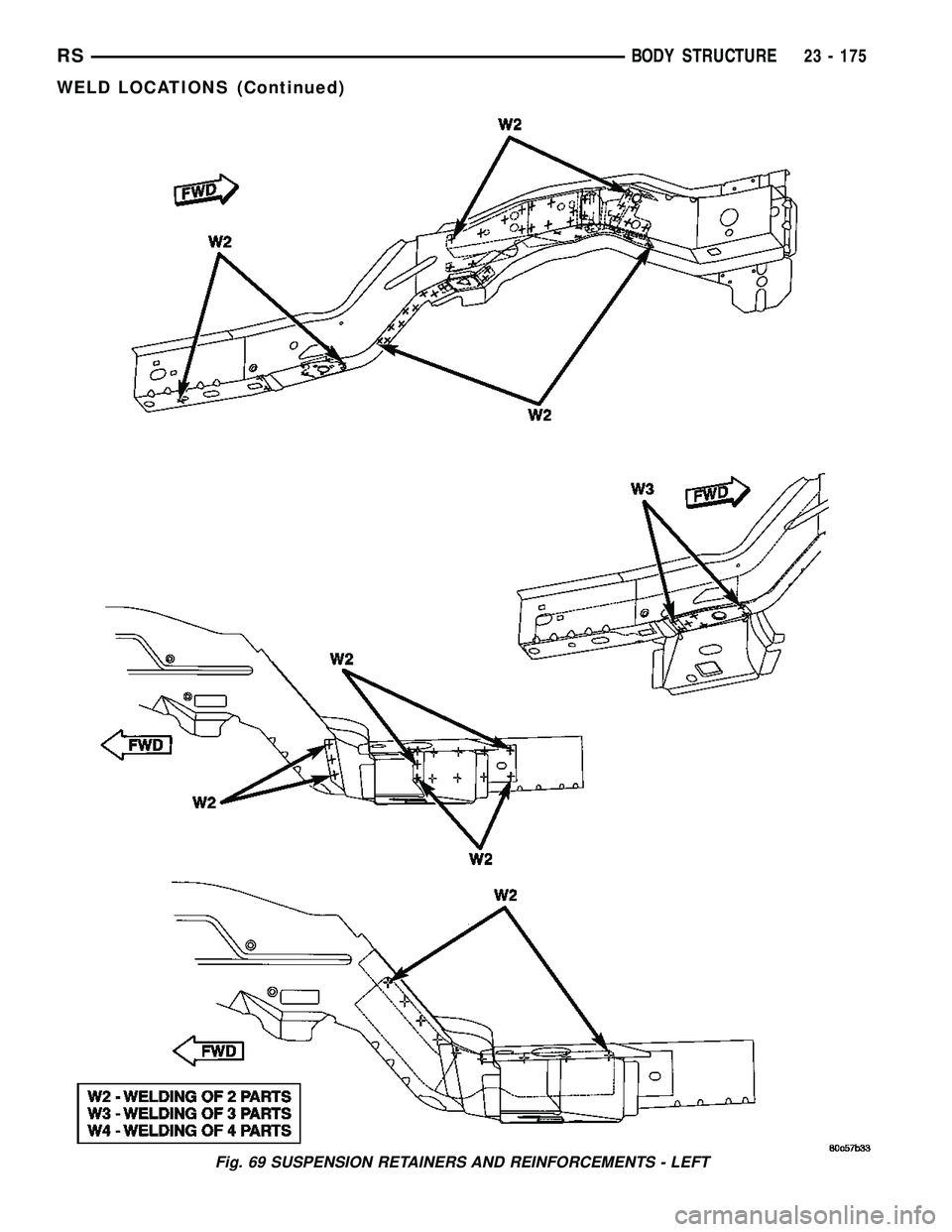

CHRYSLER VOYAGER 2004 Service Manual Fig. 69 SUSPENSION RETAINERS AND REINFORCEMENTS - LEFT RSBODY STRUCTURE23 - 175 WELD LOCATIONS (Continued)

Page 2287 of 2585

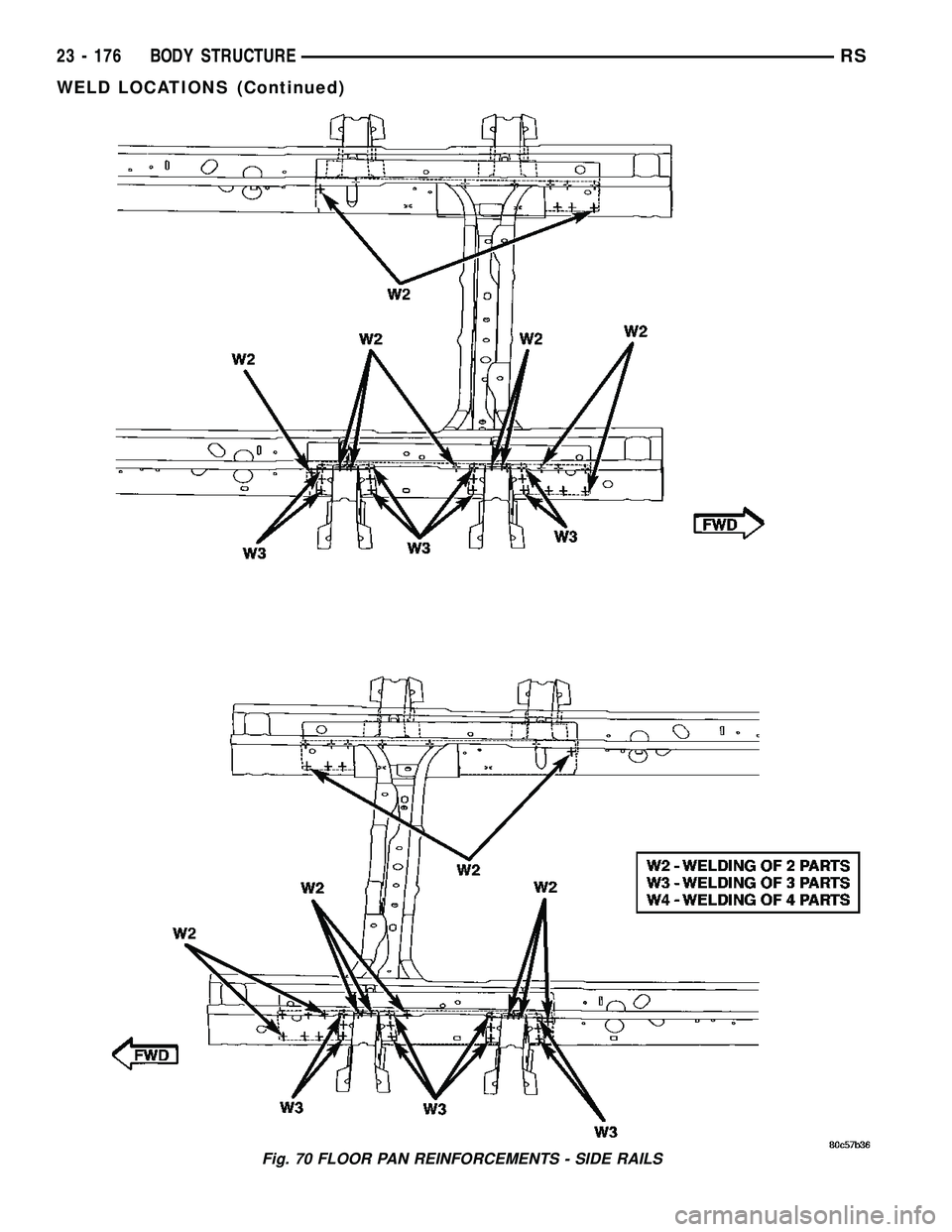

CHRYSLER VOYAGER 2004 Service Manual Fig. 70 FLOOR PAN REINFORCEMENTS - SIDE RAILS 23 - 176 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2288 of 2585

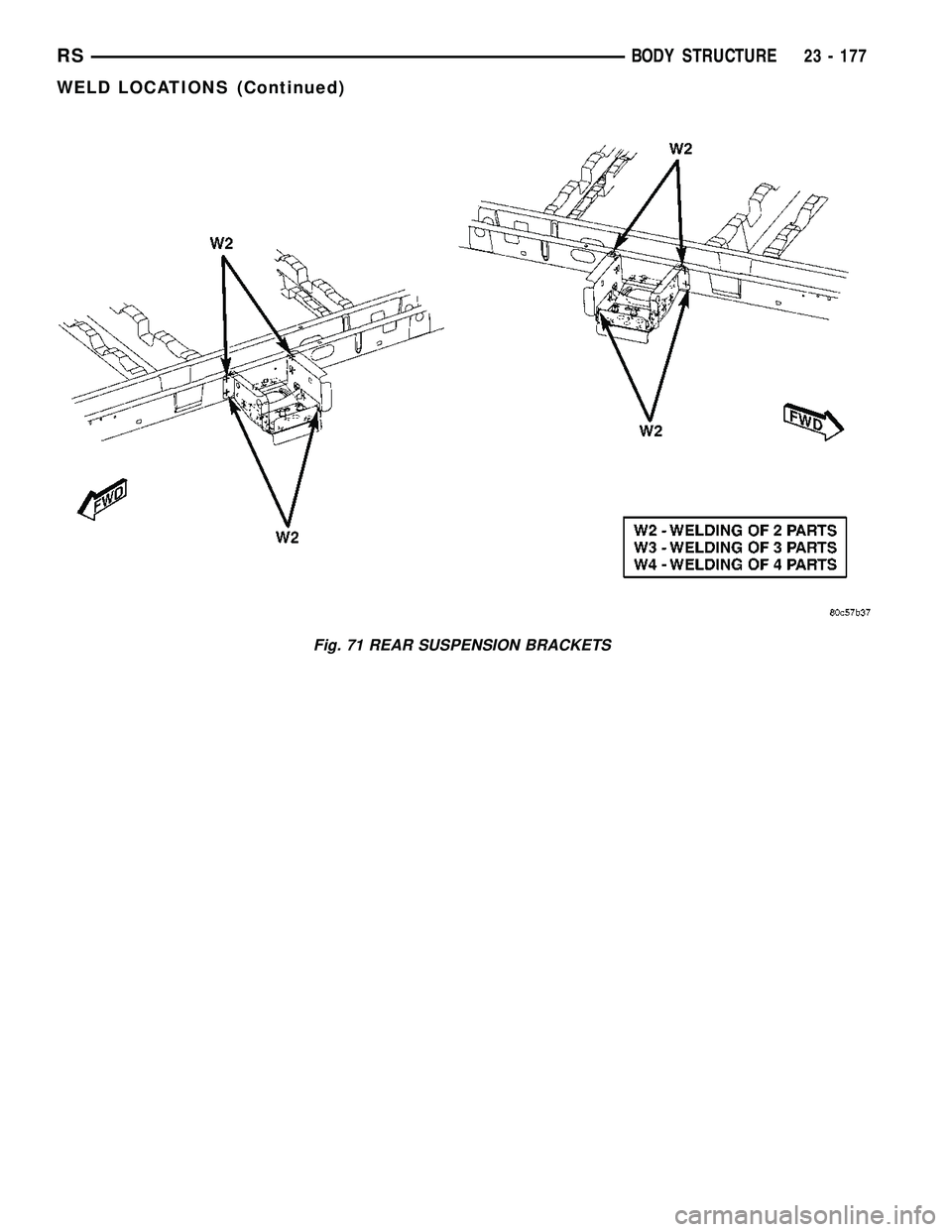

CHRYSLER VOYAGER 2004 Service Manual Fig. 71 REAR SUSPENSION BRACKETS RSBODY STRUCTURE23 - 177 WELD LOCATIONS (Continued)
