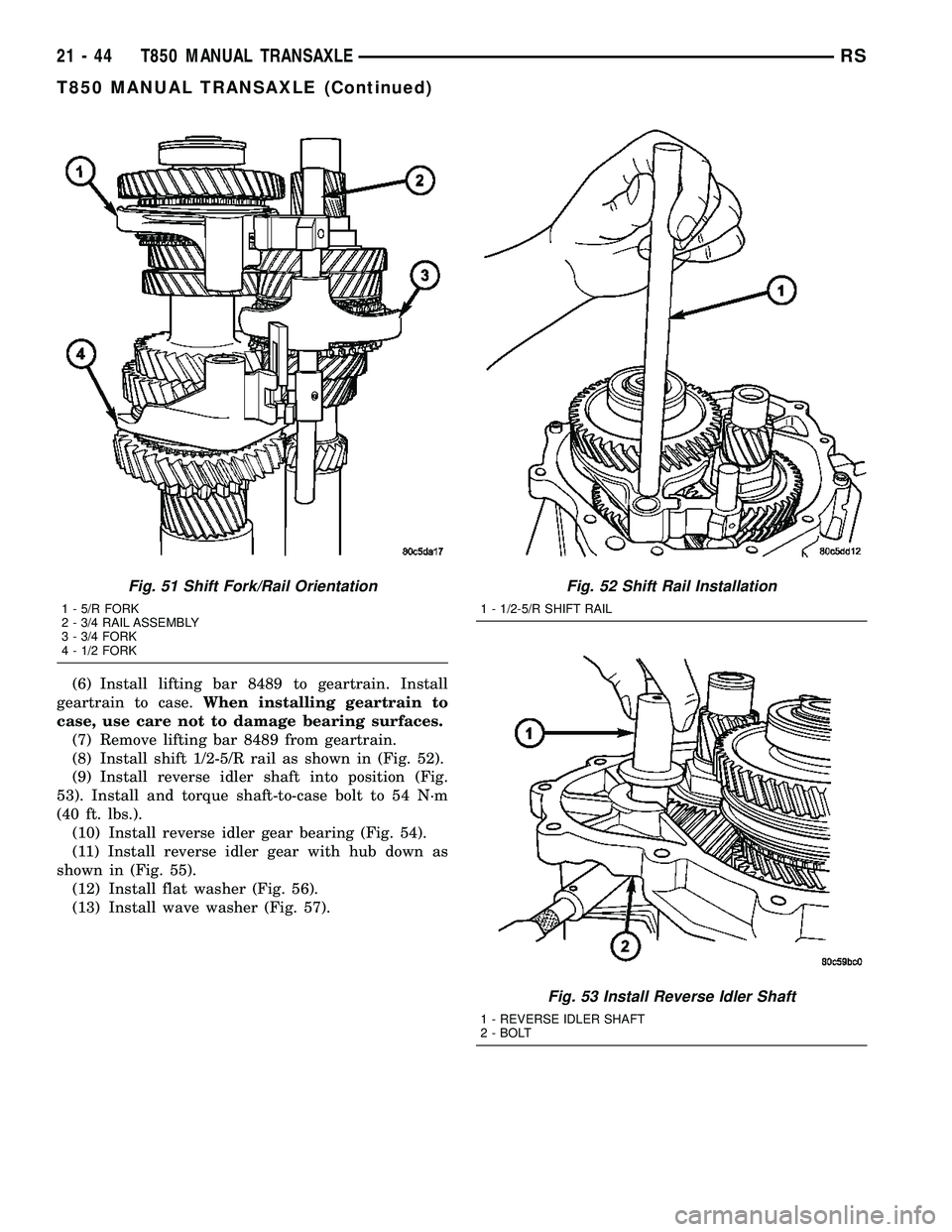

CHRYSLER VOYAGER 2004 Service Manual (6) Install lifting bar 8489 to geartrain. Install geartrain to case.When installing geartrain to case, use care not to damage bearing surfaces. (7) Remove lifting bar 8489 from geartrain. (8) Install

Page 1642 of 2585

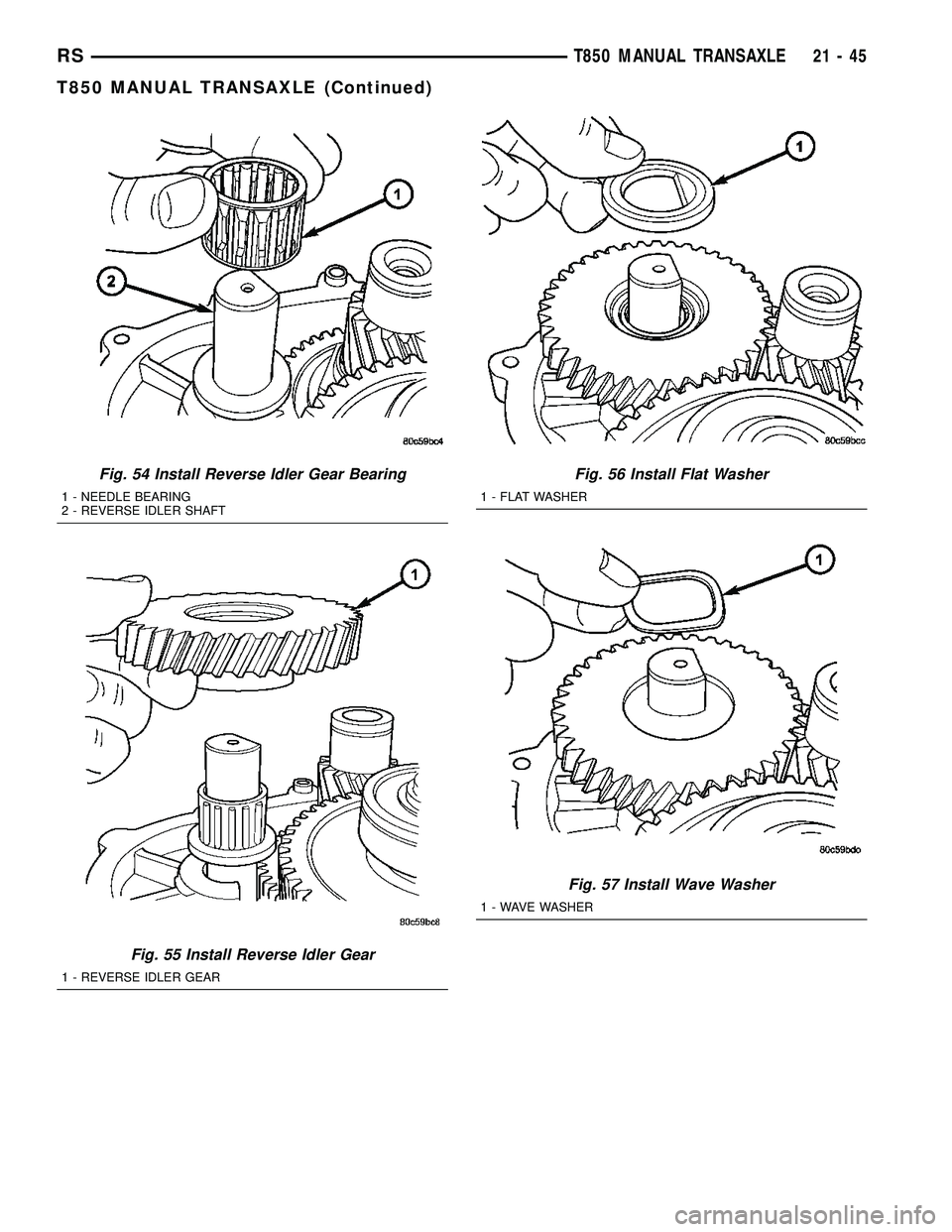

CHRYSLER VOYAGER 2004 Service Manual Fig. 54 Install Reverse Idler Gear Bearing 1 - NEEDLE BEARING 2 - REVERSE IDLER SHAFT Fig. 55 Install Reverse Idler Gear 1 - REVERSE IDLER GEAR Fig. 56 Install Flat Washer 1 - FLAT WASHER Fig. 57 Inst

Page 1643 of 2585

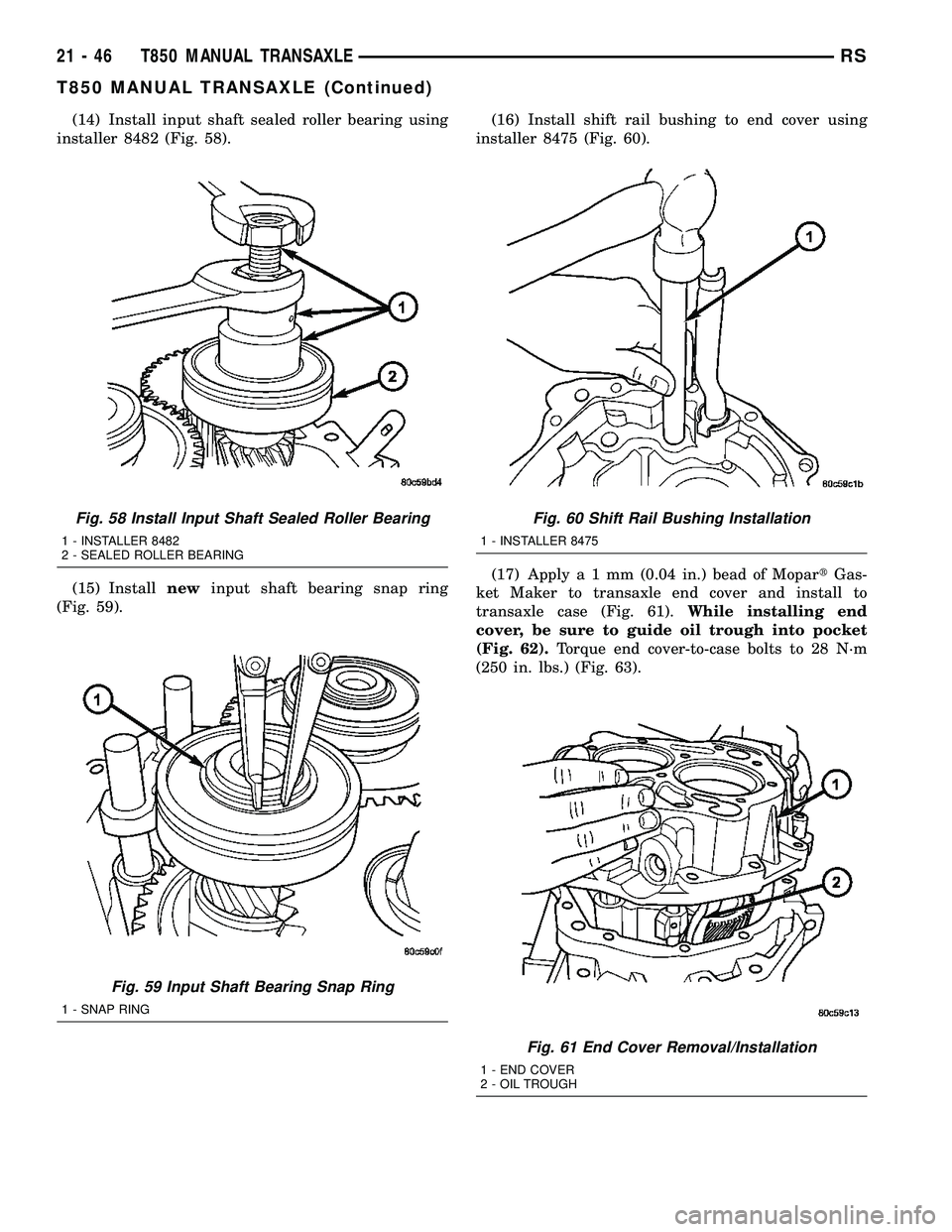

CHRYSLER VOYAGER 2004 Service Manual (14) Install input shaft sealed roller bearing using installer 8482 (Fig. 58). (15) Installnewinput shaft bearing snap ring (Fig. 59).(16) Install shift rail bushing to end cover using installer 8475

Page 1644 of 2585

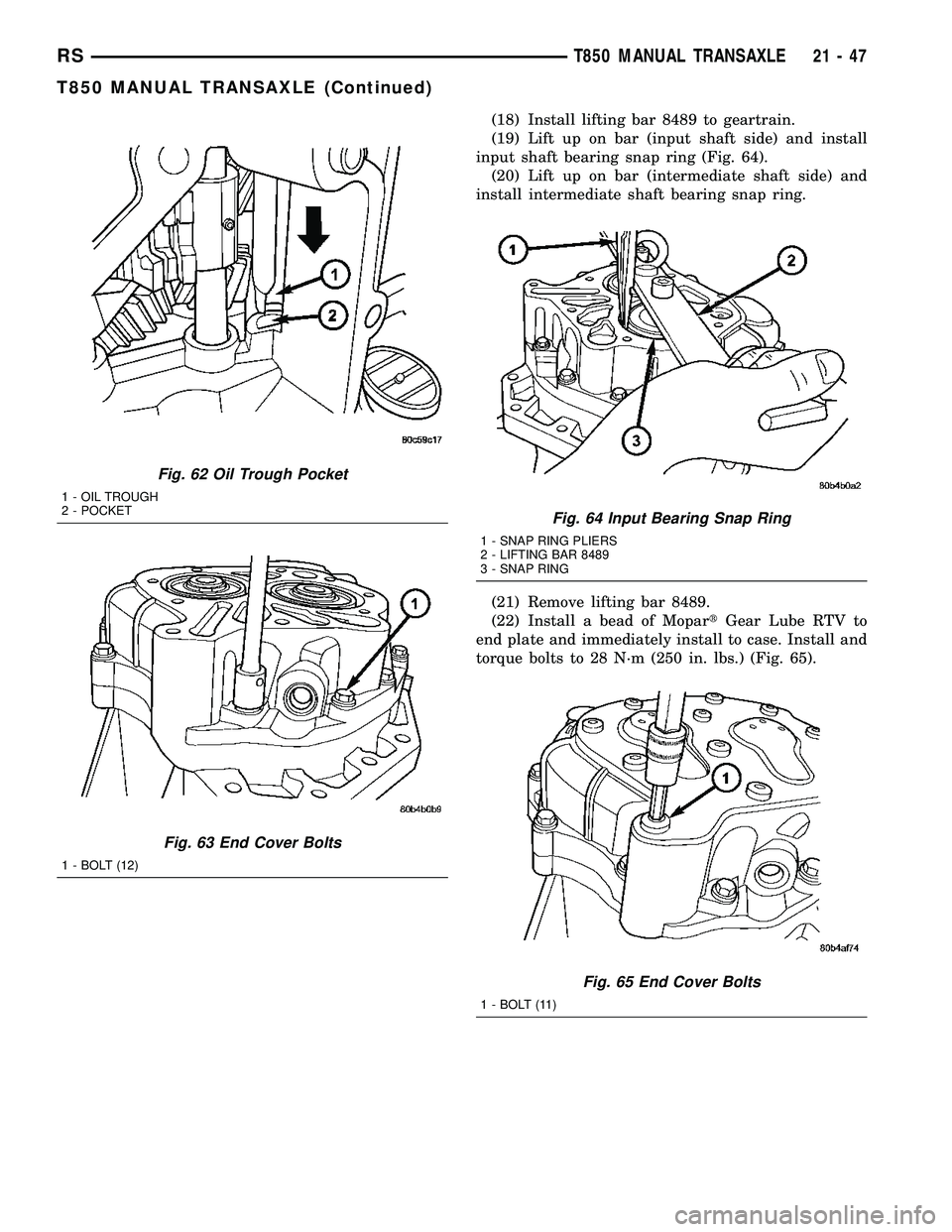

CHRYSLER VOYAGER 2004 Service Manual (18) Install lifting bar 8489 to geartrain. (19) Lift up on bar (input shaft side) and install input shaft bearing snap ring (Fig. 64). (20) Lift up on bar (intermediate shaft side) and install interm

Page 1645 of 2585

CHRYSLER VOYAGER 2004 Service Manual (23) Install back up lamp switch and torque to 23 N´m (17 ft. lbs.) (Fig. 66). (24) Roll transaxle assembly on side. (25) Install differential chip collector magnet (Fig. 67). Retain to case with a d

Page 1646 of 2585

CHRYSLER VOYAGER 2004 Service Manual (29) Install both axle output shaft seals using driver handle C-4171 and installer 8476 (Fig. 70) (Fig. 71).(30) Applya1mm(0.04 in.) bead of MopartGas- ket Maker to shift cover assembly. Place shift c

Page 1647 of 2585

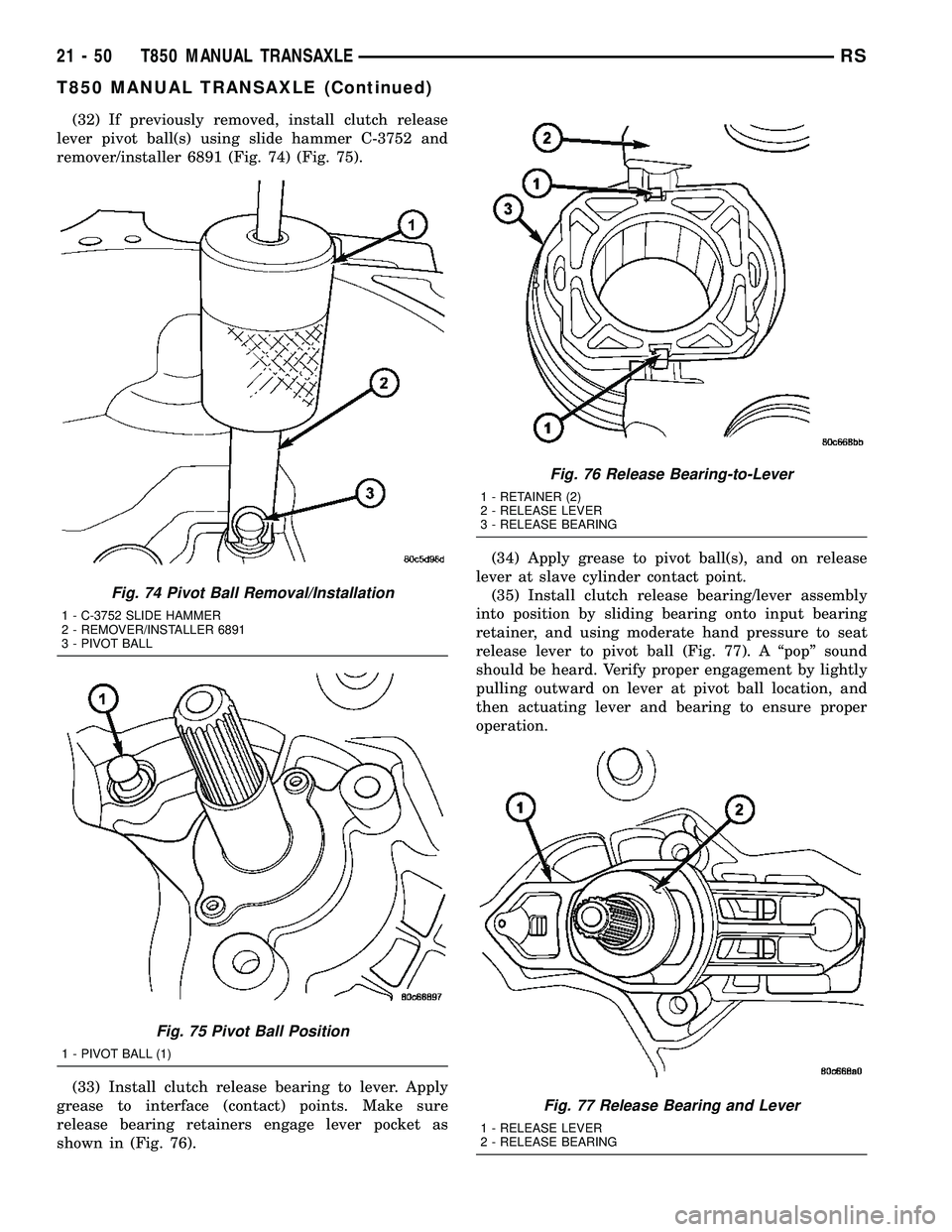

CHRYSLER VOYAGER 2004 Service Manual (32) If previously removed, install clutch release lever pivot ball(s) using slide hammer C-3752 and remover/installer 6891 (Fig. 74) (Fig. 75). (33) Install clutch release bearing to lever. Apply gre

Page 1648 of 2585

CHRYSLER VOYAGER 2004 Service Manual INSTALLATION INSTALLATION - 2.4L GAS (1) Install modular clutch assembly to transaxle. Assemble transaxle to engine. (2) Install and torque transaxle-to-engine bolts to 95 N´m (70 ft. lbs.). (3) Rais
