2004 CHRYSLER VOYAGER Service Manual

Page 1665 of 2585

CHRYSLER VOYAGER 2004  Service Manual (9) Install differential support plate. Align support
plate to differential case with alignment pins 8470
(Fig. 118).
(10) Install thrust buttons 8491 to both bearing
journals and press halves togethe

Page 1666 of 2585

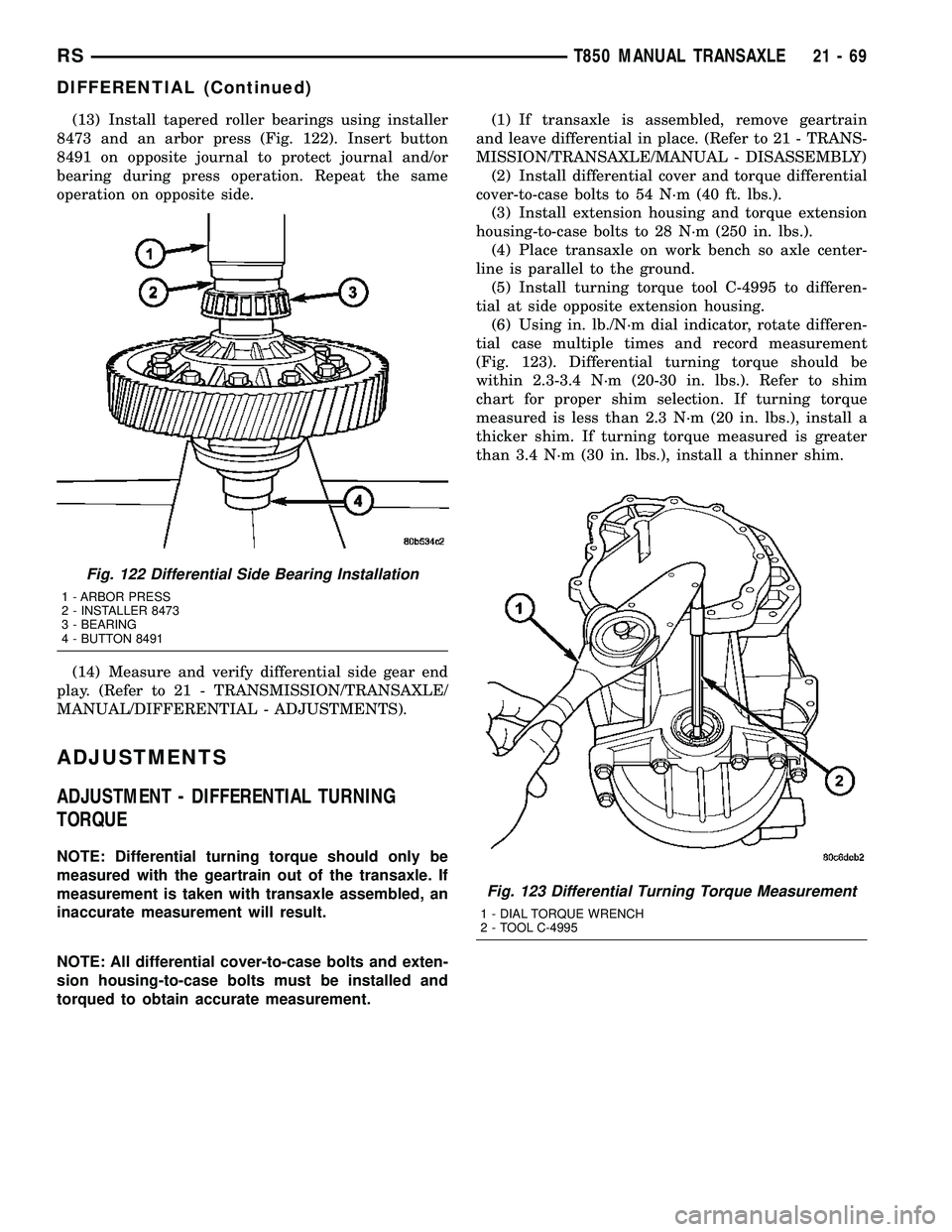

CHRYSLER VOYAGER 2004  Service Manual (13) Install tapered roller bearings using installer
8473 and an arbor press (Fig. 122). Insert button
8491 on opposite journal to protect journal and/or
bearing during press operation. Repeat the sam

Page 1667 of 2585

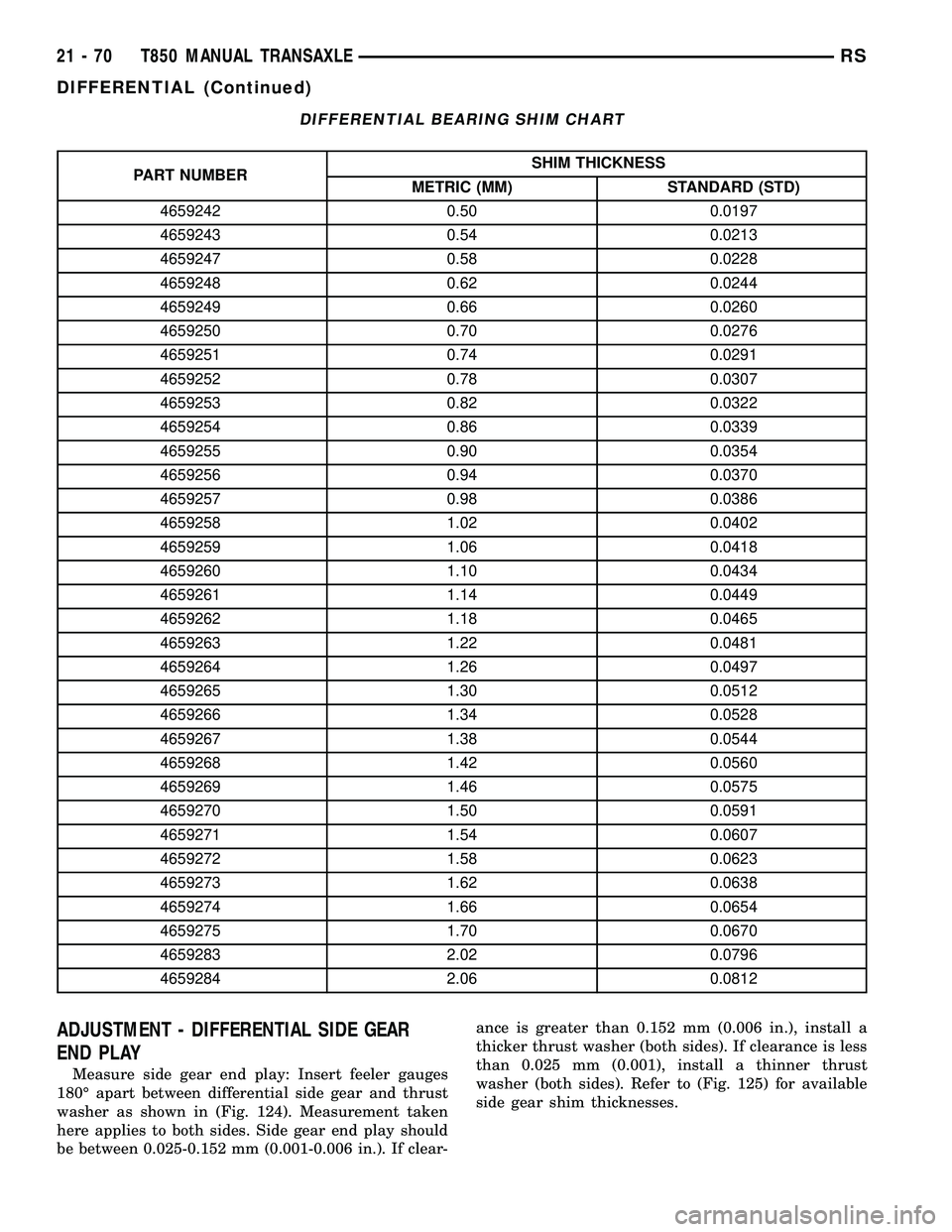

CHRYSLER VOYAGER 2004  Service Manual DIFFERENTIAL BEARING SHIM CHART
PART NUMBERSHIM THICKNESS
METRIC (MM) STANDARD (STD)
4659242 0.50 0.0197
4659243 0.54 0.0213
4659247 0.58 0.0228
4659248 0.62 0.0244
4659249 0.66 0.0260
4659250 0.70 0.

Page 1668 of 2585

CHRYSLER VOYAGER 2004  Service Manual If end play measurement indicates a thrust washer
change is necessary, the differential must be disas-
sembled. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/MANUAL/DIFFERENTIAL - DISASSEMBLY)FLUID
STANDARD

Page 1669 of 2585

CHRYSLER VOYAGER 2004  Service Manual FLUID DRAIN
(1) Raise vehicle on hoist.
(2) Remove transaxle drain plug (Fig. 127) and
drain fluid into suitable container.
(3) Install drain plug and torque to 23 N´m (17 ft.
lbs.).
FLUID FILL
(1) R

Page 1670 of 2585

CHRYSLER VOYAGER 2004  Service Manual INSTALLATION
(1) Install gearshift boot to console and secure
with three (3) retaining clips (Fig. 130).
(2) Install gearshift knob (Fig. 129). Orient shift
pattern
1¤4-turn clockwise, press down, an

Page 1671 of 2585

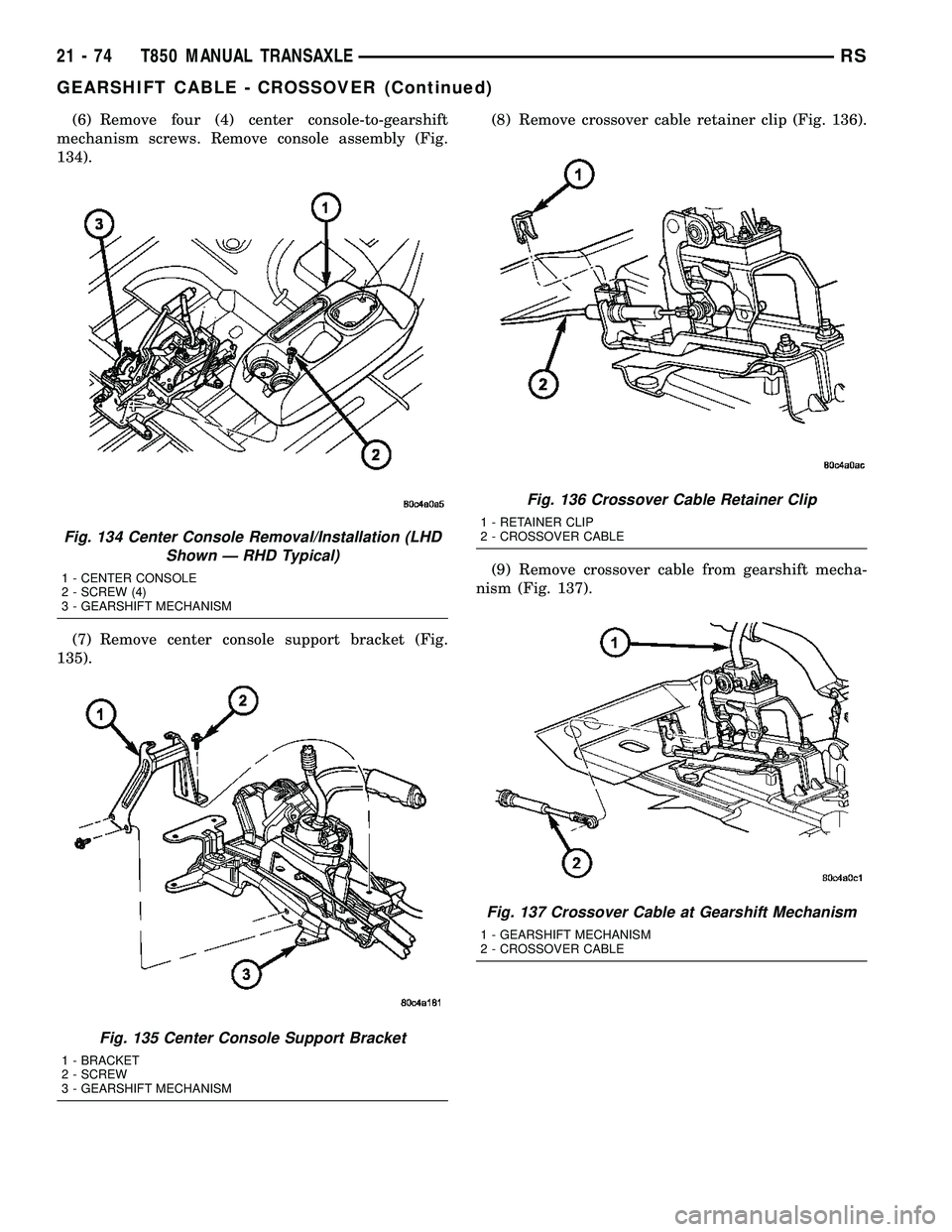

CHRYSLER VOYAGER 2004  Service Manual (6) Remove four (4) center console-to-gearshift
mechanism screws. Remove console assembly (Fig.
134).
(7) Remove center console support bracket (Fig.
135).(8) Remove crossover cable retainer clip (Fig

Page 1672 of 2585

CHRYSLER VOYAGER 2004  Service Manual (10)2.4L Gas equipped models goto Step 15.
2.5L TD models:Remove battery thermal shield
(Fig. 138).
(11) Remove battery hold down nut, clamp, and
battery (Fig. 139).(12) Remove battery tray (Fig. 140)
