Page 1225 of 2585

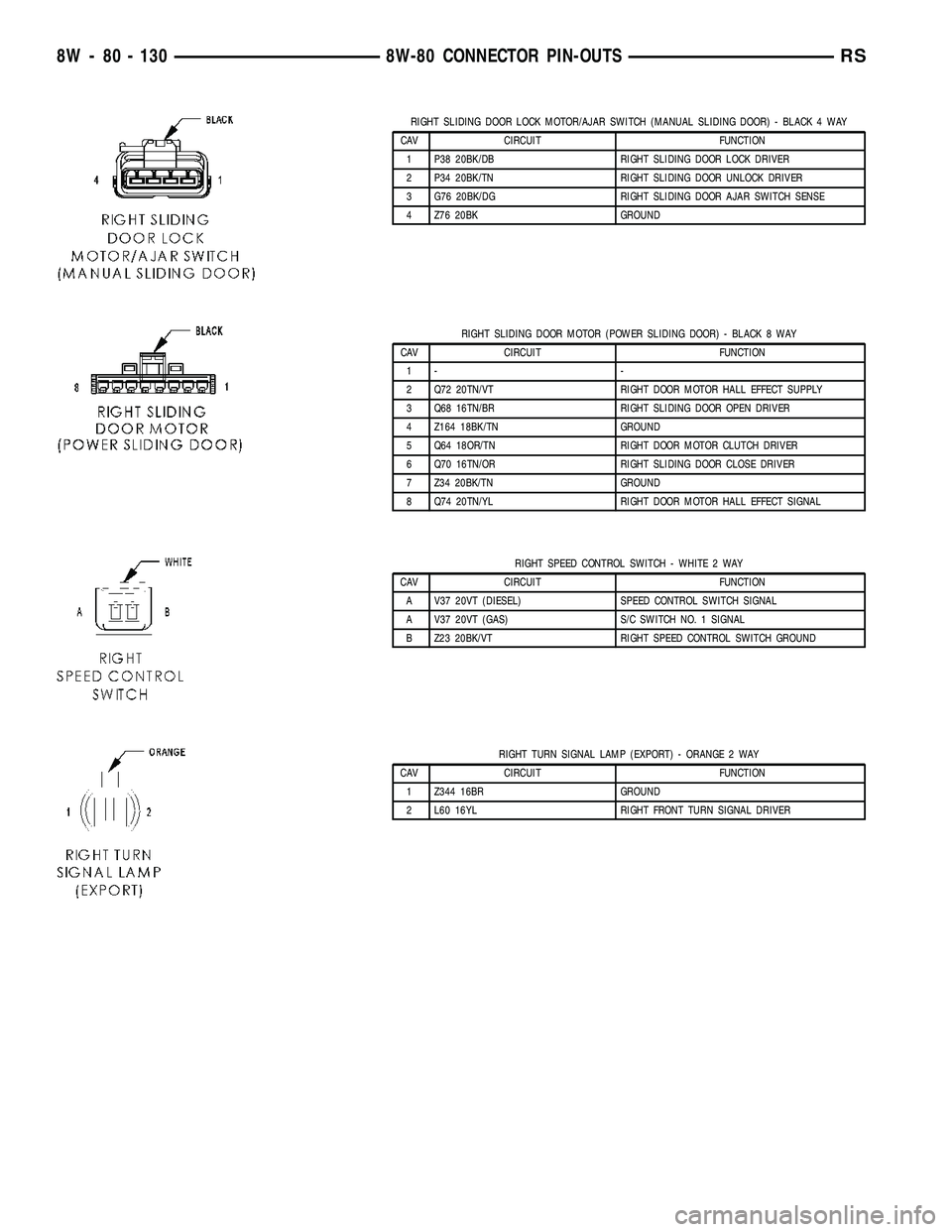

CHRYSLER VOYAGER 2004 Service Manual RIGHT SLIDING DOOR LOCK MOTOR/AJAR SWITCH (MANUAL SLIDING DOOR) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 P38 20BK/DB RIGHT SLIDING DOOR LOCK DRIVER 2 P34 20BK/TN RIGHT SLIDING DOOR UNLOCK DRIVER 3 G76 20B

Page 1226 of 2585

CHRYSLER VOYAGER 2004 Service Manual RIGHT VISOR/VANITY LAMP (PREMIUM/LUXURY EXCEPT EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION A Z327 20BK/OR GROUND B M27 20YL/LB READING LAMPS DRIVER SENTRY KEY REMOTE ENTRY MODULE (SKREEM) - BLACK 6 WAY

Page 1227 of 2585

CHRYSLER VOYAGER 2004 Service Manual SUNROOF MODULE (EXCEPT EXPORT) - BLACK 12 WAY CAV CIRCUIT FUNCTION 1 Q3 20OR/TN SUNROOF VENT 2 Q5 20OR/LB SUNROOF CLOSE 3 Q4 20OR/YL SUNROOF OPEN 4 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT 5 A115 14Y

Page 1228 of 2585

CHRYSLER VOYAGER 2004 Service Manual THROTTLE POSITION SENSOR (GAS) - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 K900 18DB/DG SENSOR GROUND 2 K22 18BR/OR TP NO. 1 SIGNAL 3 F855 20PK/YL (2.4L) 5 VOLT SUPPLY 3 F855 18PK/YL (3.3L/3.8L) 5 VOLT SUPPLY

Page 1229 of 2585

CHRYSLER VOYAGER 2004 Service Manual TRANSMISSION SOLENOID/PRESSURE SWITCH ASSEMBLY - BLACK 8 WAY CAV CIRCUIT FUNCTION 1 T47 18YL/DG 2-4 PRESSURE SWITCH SENSE 2 T50 18YL/TN LOW/REVERSE PRESSURE SWITCH SENSE 3 T9 18DG/TN OVERDRIVE PRESSUR

Page 1230 of 2585

CHRYSLER VOYAGER 2004 Service Manual WATER IN FUEL SENSOR (DIESEL) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 F853 20RD WATER IN FUEL SENSOR SIGNAL 2 K900 18RD SENSOR GROUND WIPER MODULE - DK. GRAY 4 WAY CAV CIRCUIT FUNCTION 1 W3 14BR/WT FRONT

Page 1231 of 2585

CHRYSLER VOYAGER 2004 Service Manual

Page 1232 of 2585

CHRYSLER VOYAGER 2004 Service Manual 8W-91 CONNECTOR/GROUND/SPLICE LOCATION TABLE OF CONTENTS page CONNECTOR/GROUND/SPLICE LOCATION DESCRIPTION..........................1 CONNECTOR/GROUND/SPLICE LOCATION DESCRIPTION This section provides
