Page 1217 of 2585

CHRYSLER VOYAGER 2004 Service Manual RIGHT FOG LAMP (EXCEPT EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION A L90 18WT/OR FRONT FOG LAMP RELAY OUTPUT B Z348 18BK/OR GROUND RIGHT FOG LAMP (EXPORT) - WHITE 2 WAY CAV CIRCUIT FUNCTION 1 L90 18WT/

Page 1218 of 2585

CHRYSLER VOYAGER 2004 Service Manual RIGHT FRONT PARK/TURN SIGNAL LAMP (EXCEPT EXPORT) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER 2 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT) 3 Z378 18BK/TN GROU

Page 1219 of 2585

CHRYSLER VOYAGER 2004 Service Manual RIGHT HEADLAMP LEVELING MOTOR (EXPORT) - WHITE 3 WAY CAV CIRCUIT FUNCTION 1 Z203 16BR GROUND 2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT) 3 L13 16RD HEADLAMP ADJUST SIGNAL RIGHT HIGH BEAM LAMP (EXP

Page 1220 of 2585

CHRYSLER VOYAGER 2004 Service Manual RIGHT LOW BEAM LAMP (EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 Z344 16BR GROUND 2 L44 16WT RIGHT LOW BEAM DRIVER RIGHT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 M22 20YL

Page 1221 of 2585

CHRYSLER VOYAGER 2004 Service Manual RIGHT REAR LAMP ASSEMBLY - BLACK 6 WAY CAV CIRCUIT FUNCTION 1 L62 18WT/BR (EXCEPT EXPORT) RIGHT REAR TURN SIGNAL DRIVER 1 Z362 18BK/BR (EXPORT) GROUND 2 L62 18WT/BR (EXPORT) RIGHT REAR TURN SIGNAL DRI

Page 1222 of 2585

CHRYSLER VOYAGER 2004 Service Manual RIGHT REAR SPEAKER (LOWLINE)-3WAY CAV CIRCUIT FUNCTION 1 X58 20GY/OR RIGHT REAR SPEAKER (-) 2- - 3 X52 20GY/DB RIGHT REAR SPEAKER (+) RIGHT REAR VENT MOTOR - NATURAL 3 WAY CAV CIRCUIT FUNCTION 1- - 2

Page 1223 of 2585

CHRYSLER VOYAGER 2004 Service Manual RIGHT REPEATER LAMP (EXPORT) - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 A701 18BR/RD FUSED B(+) (HAZARD) 2 L162 20WT/VT RIGHT SIDE REPEATER LAMP FEED RIGHT SEAT AIRBAG - YELLOW 2 WAY CAV CIRCUIT FUNCTION 1 R

Page 1224 of 2585

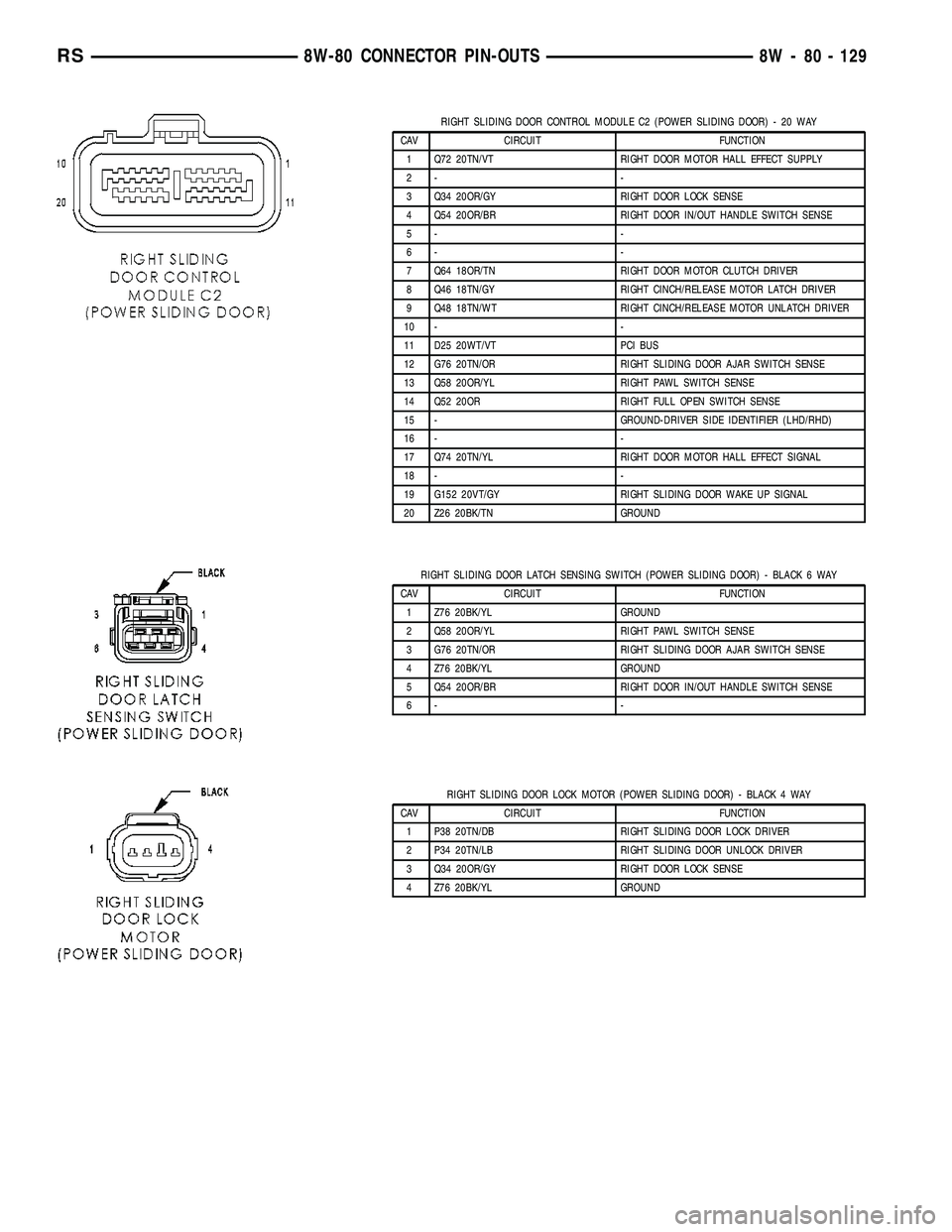

CHRYSLER VOYAGER 2004 Service Manual RIGHT SLIDING DOOR CONTROL MODULE C2 (POWER SLIDING DOOR) - 20 WAY CAV CIRCUIT FUNCTION 1 Q72 20TN/VT RIGHT DOOR MOTOR HALL EFFECT SUPPLY 2- - 3 Q34 20OR/GY RIGHT DOOR LOCK SENSE 4 Q54 20OR/BR RIGHT D
