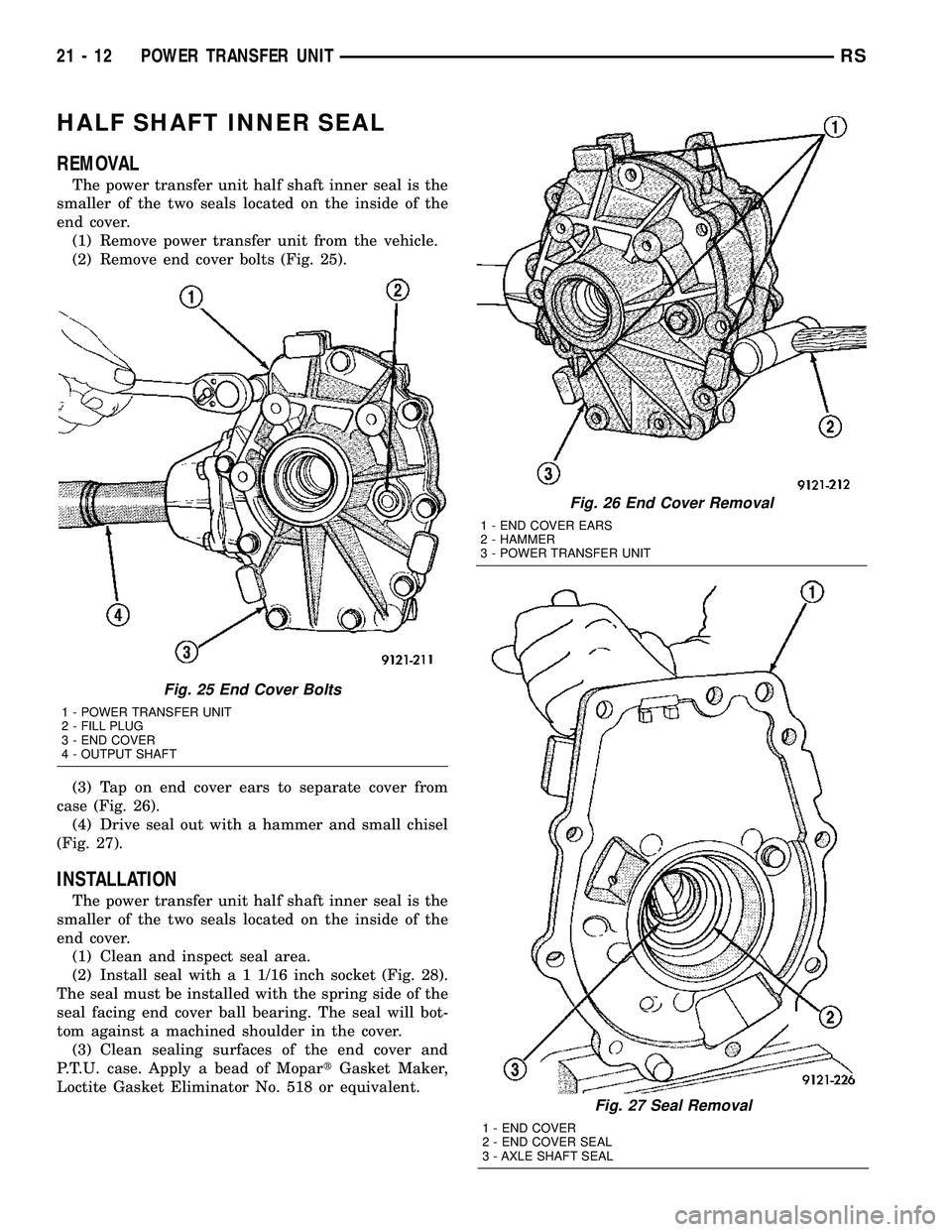

CHRYSLER VOYAGER 2004 Service Manual HALF SHAFT INNER SEAL REMOVAL The power transfer unit half shaft inner seal is the smaller of the two seals located on the inside of the end cover. (1) Remove power transfer unit from the vehicle. (2)

Page 1610 of 2585

CHRYSLER VOYAGER 2004 Service Manual (4) Place end cover onto P.T.U. case and install bolts. Tighten bolts to 28 N´m (250 in. lbs.) in the sequence shown in (Fig. 29). Retighten first bolt after all other bolts are tight. (5) Reinstall

Page 1611 of 2585

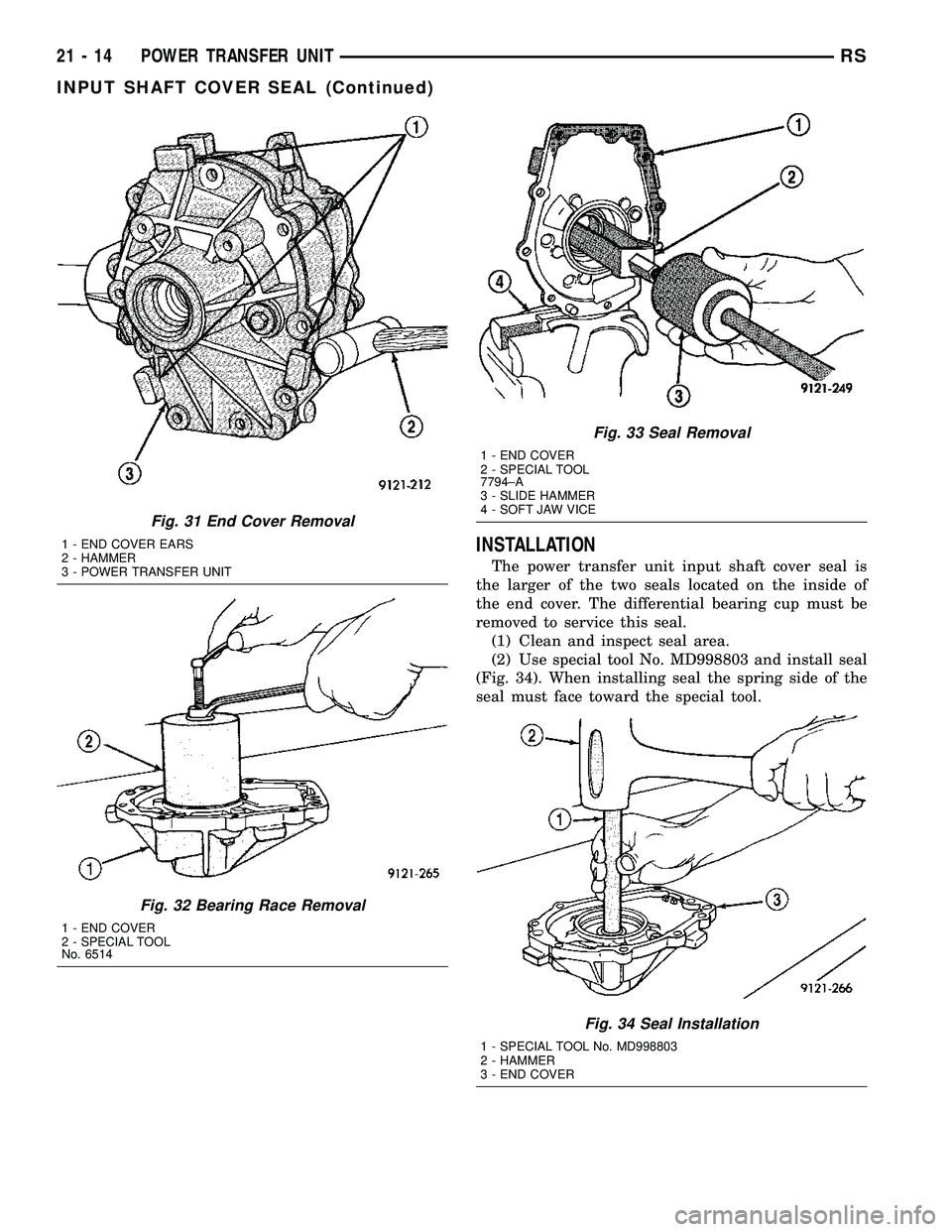

CHRYSLER VOYAGER 2004 Service Manual INSTALLATION The power transfer unit input shaft cover seal is the larger of the two seals located on the inside of the end cover. The differential bearing cup must be removed to service this seal. (1

Page 1612 of 2585

CHRYSLER VOYAGER 2004 Service Manual (3) Reinstall the original bearing race and shim using special tool No. 6522 (Fig. 35) and (Fig. 36). CAUTION: The original shim must be installed behind the bearing cup to maintain proper bearing pre

Page 1613 of 2585

CHRYSLER VOYAGER 2004 Service Manual (3) Tap on end cover ears to separate end cover from case (Fig. 39). (4) Pry out seal with a pry bar (Fig. 40).INSTALLATION The input shaft end seal is located on the end of the input shaft. (1) Clean

Page 1614 of 2585

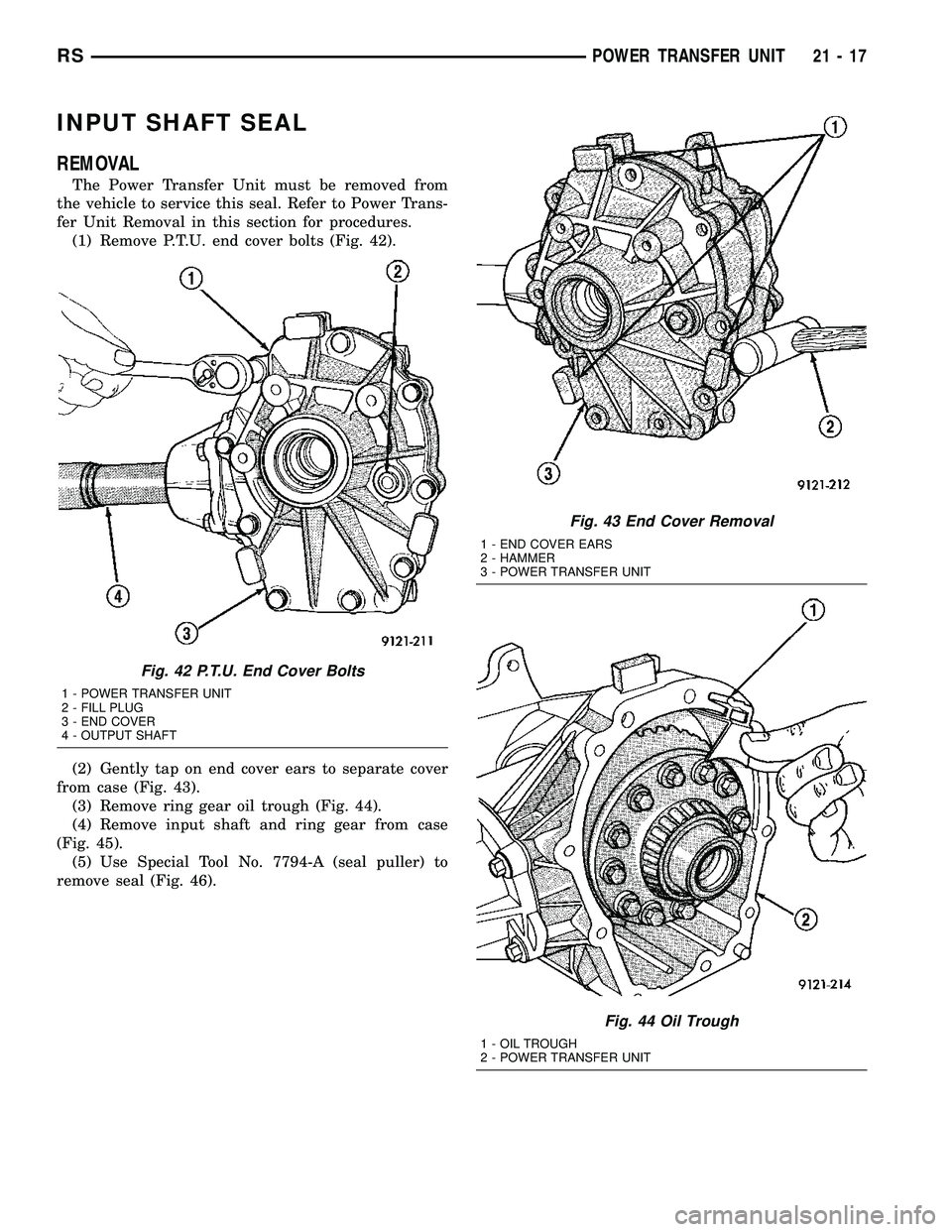

CHRYSLER VOYAGER 2004 Service Manual INPUT SHAFT SEAL REMOVAL The Power Transfer Unit must be removed from the vehicle to service this seal. Refer to Power Trans- fer Unit Removal in this section for procedures. (1) Remove P.T.U. end cov

Page 1615 of 2585

CHRYSLER VOYAGER 2004 Service Manual INSTALLATION The Power Transfer Unit must be removed from the vehicle to service this seal. Refer to Power Trans- fer Unit Removal in this section for procedures. (1) Clean and inspect seal area. (2)

Page 1616 of 2585

CHRYSLER VOYAGER 2004 Service Manual OUTER HALF SHAFT SEAL REMOVAL The outer half shaft seal is located on the outside of the end cover. The P.T.U. does not have to be removed to replace this seal. (1) Lift vehicle on hoist. (2) Remove r
