Page 1273 of 2585

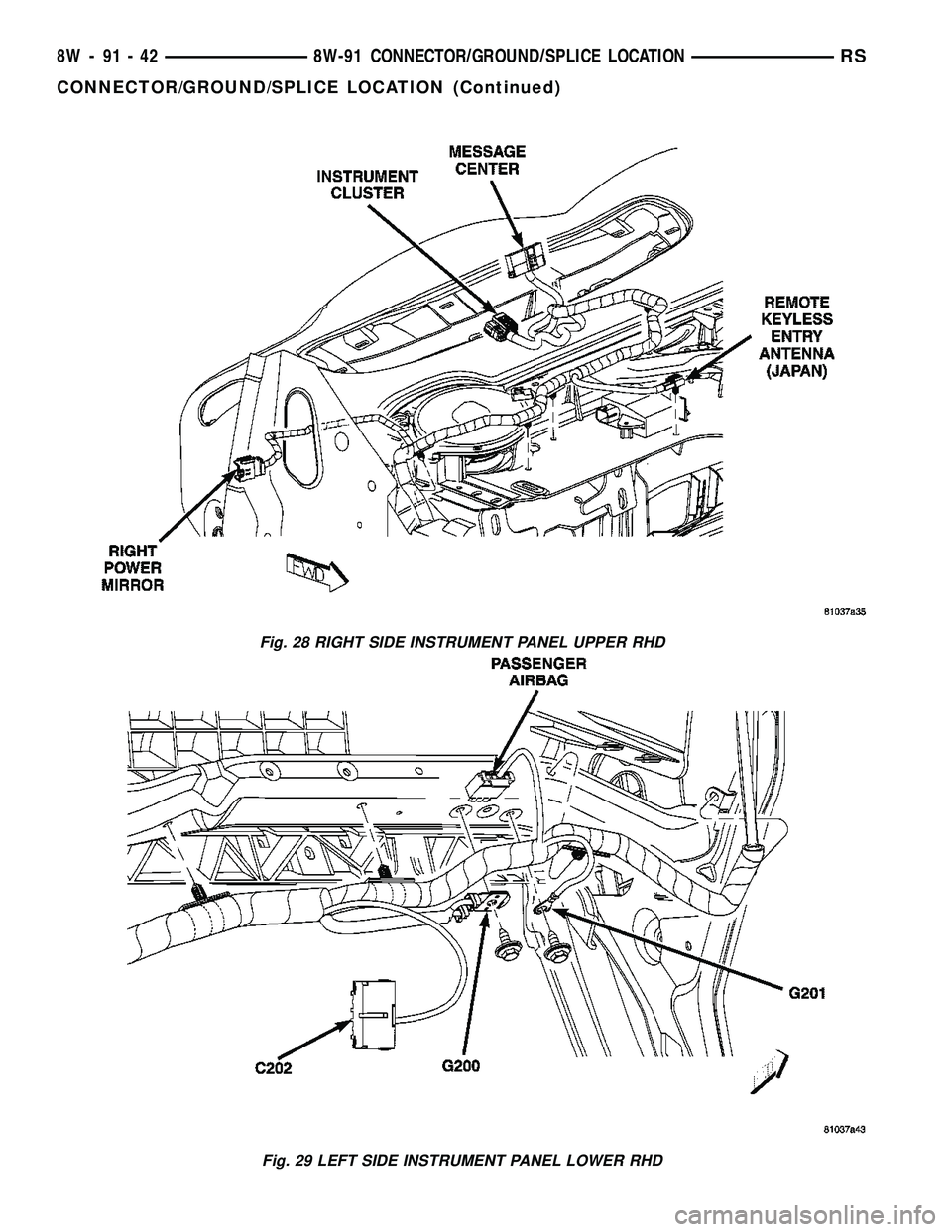

CHRYSLER VOYAGER 2004 Service Manual Fig. 28 RIGHT SIDE INSTRUMENT PANEL UPPER RHD Fig. 29 LEFT SIDE INSTRUMENT PANEL LOWER RHD 8W - 91 - 42 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1274 of 2585

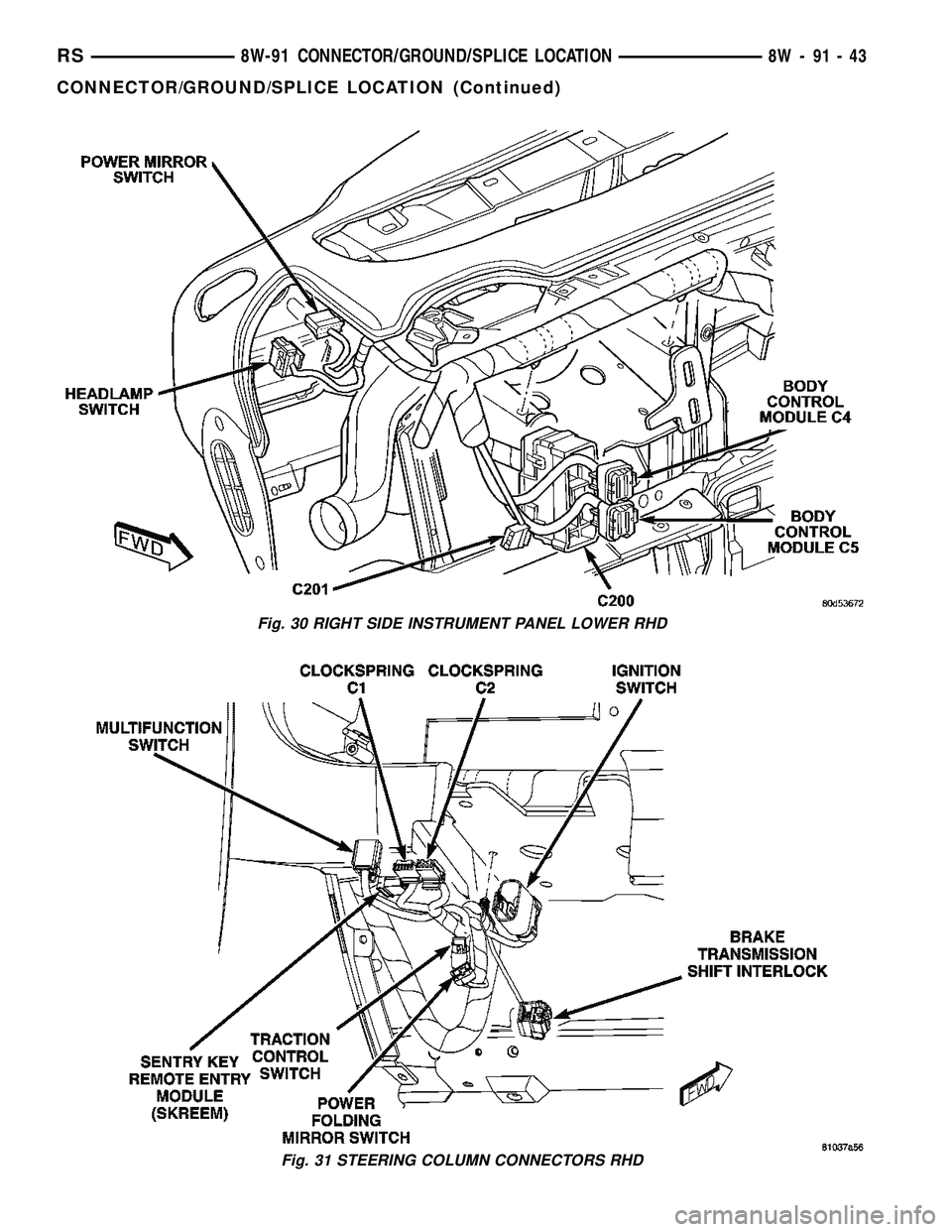

CHRYSLER VOYAGER 2004 Service Manual Fig. 30 RIGHT SIDE INSTRUMENT PANEL LOWER RHD Fig. 31 STEERING COLUMN CONNECTORS RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-43 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1275 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 32 LEFT SIDE BODY LHD 8W - 91 - 44 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1276 of 2585

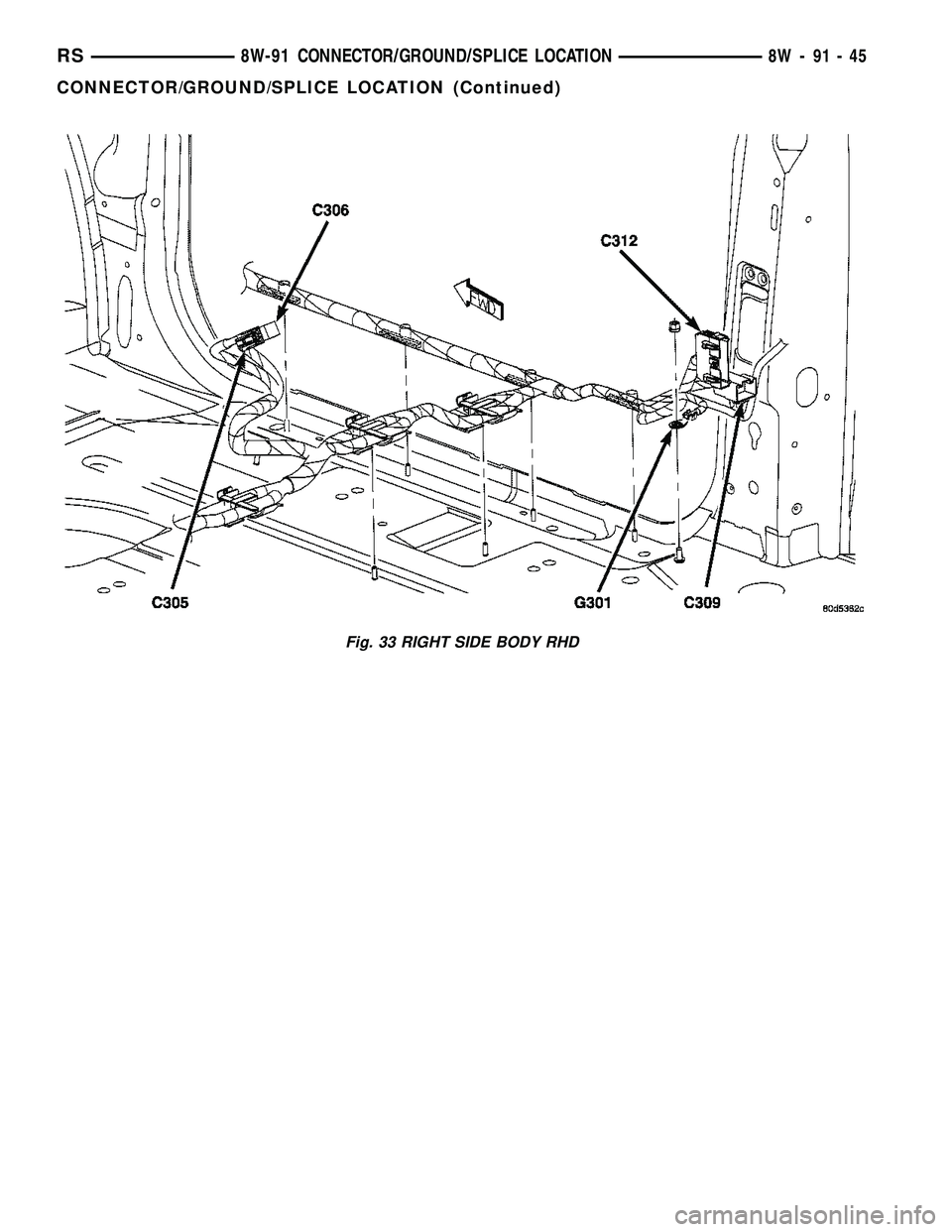

CHRYSLER VOYAGER 2004 Service Manual Fig. 33 RIGHT SIDE BODY RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-45 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1277 of 2585

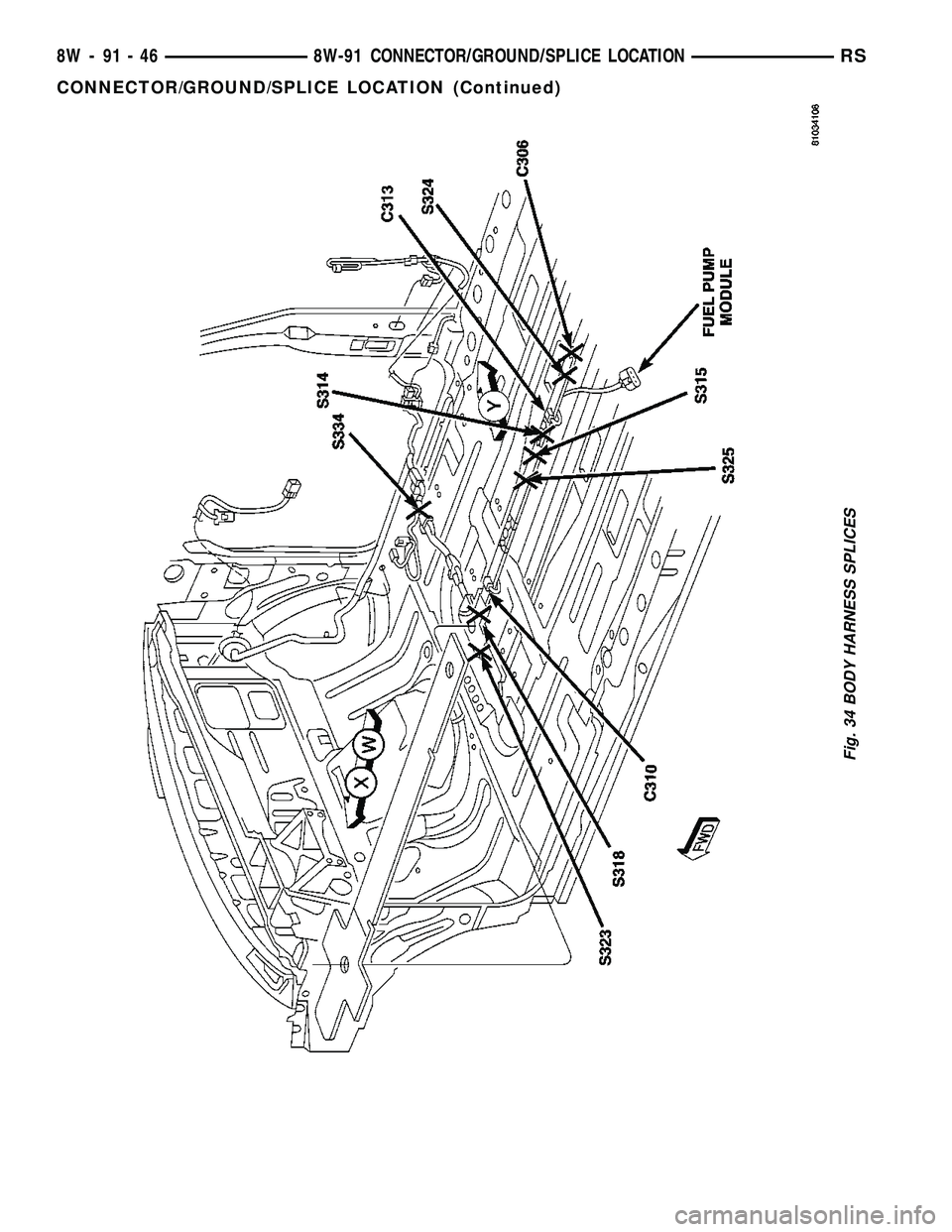

CHRYSLER VOYAGER 2004 Service Manual Fig. 34 BODY HARNESS SPLICES 8W - 91 - 46 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1278 of 2585

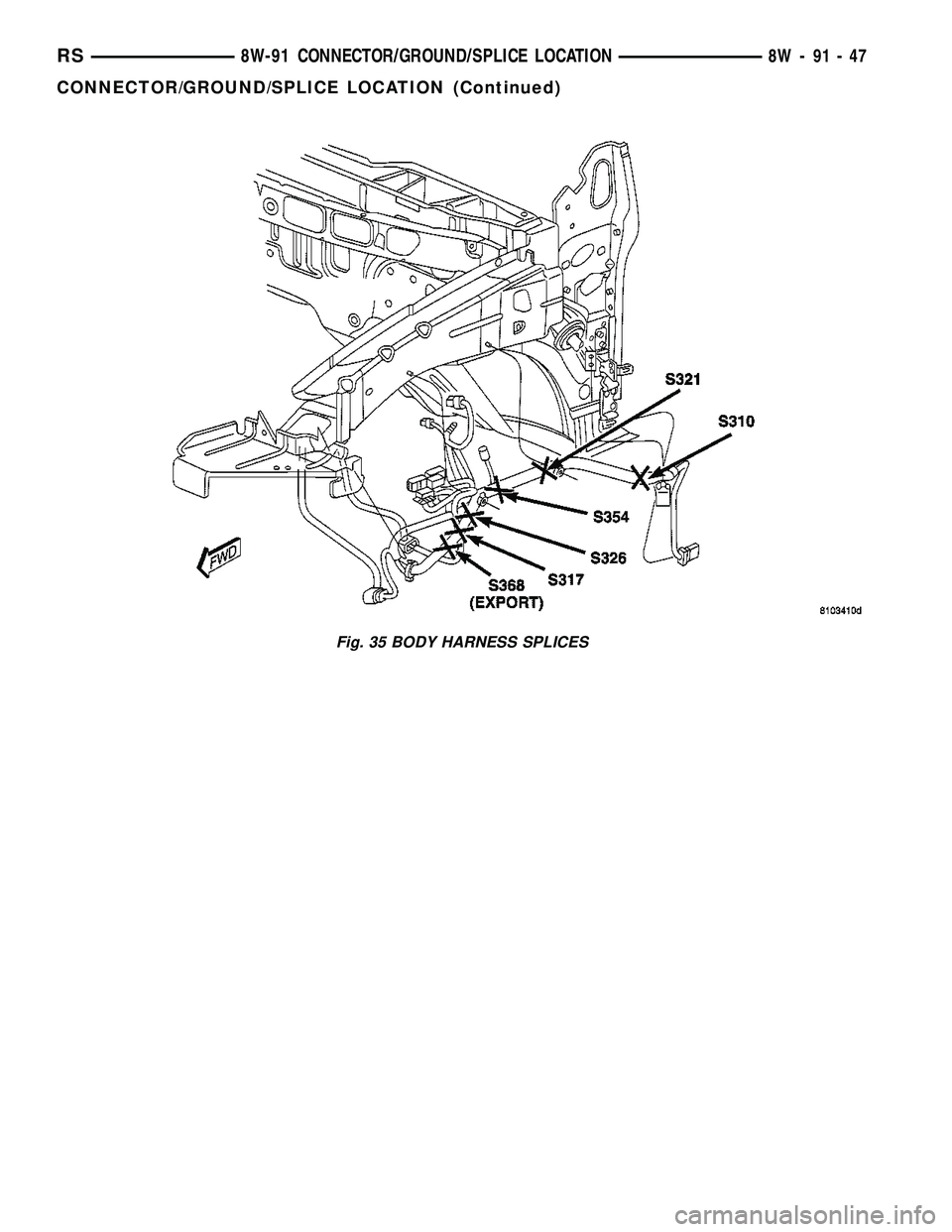

CHRYSLER VOYAGER 2004 Service Manual Fig. 35 BODY HARNESS SPLICES RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-47 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1279 of 2585

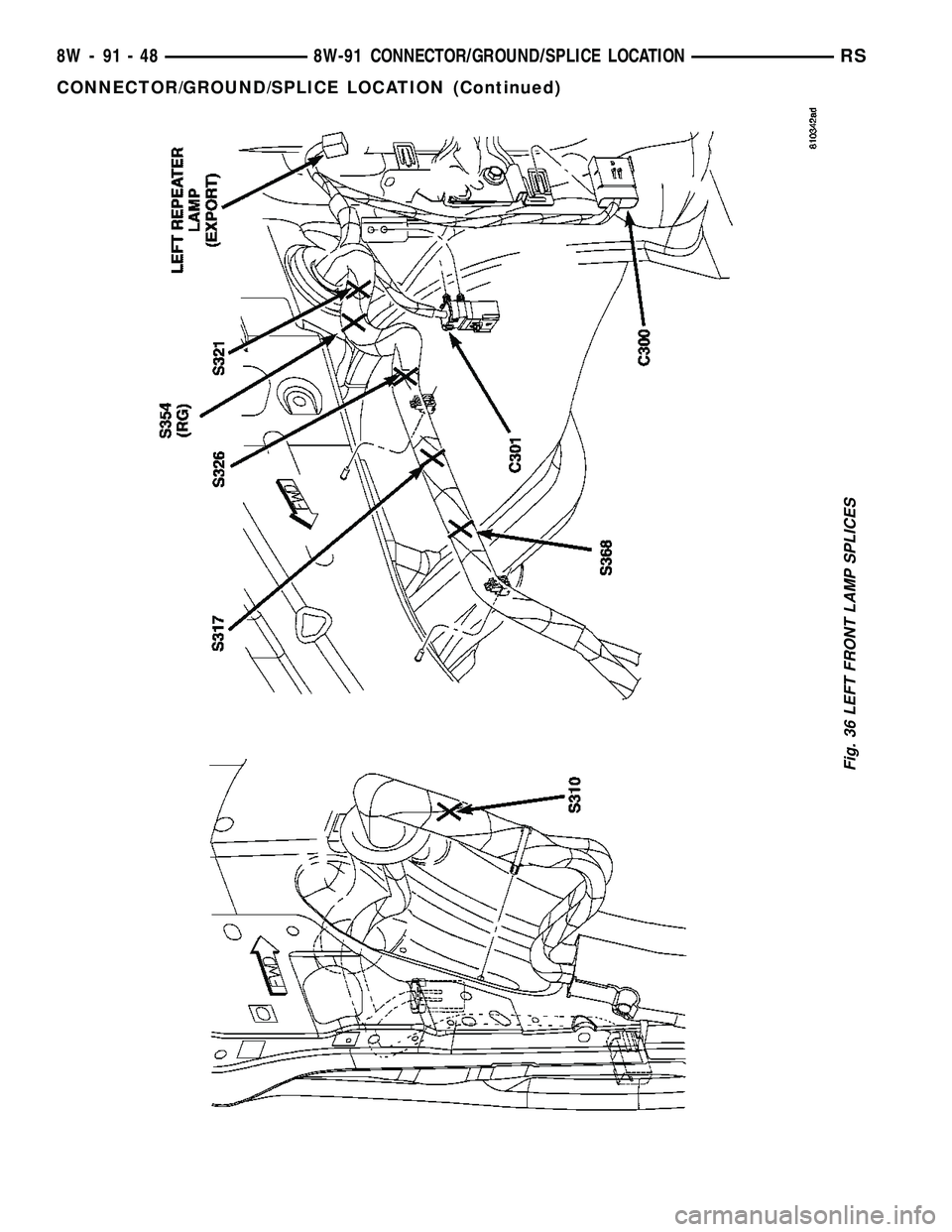

CHRYSLER VOYAGER 2004 Service Manual Fig. 36 LEFT FRONT LAMP SPLICES 8W - 91 - 48 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1280 of 2585

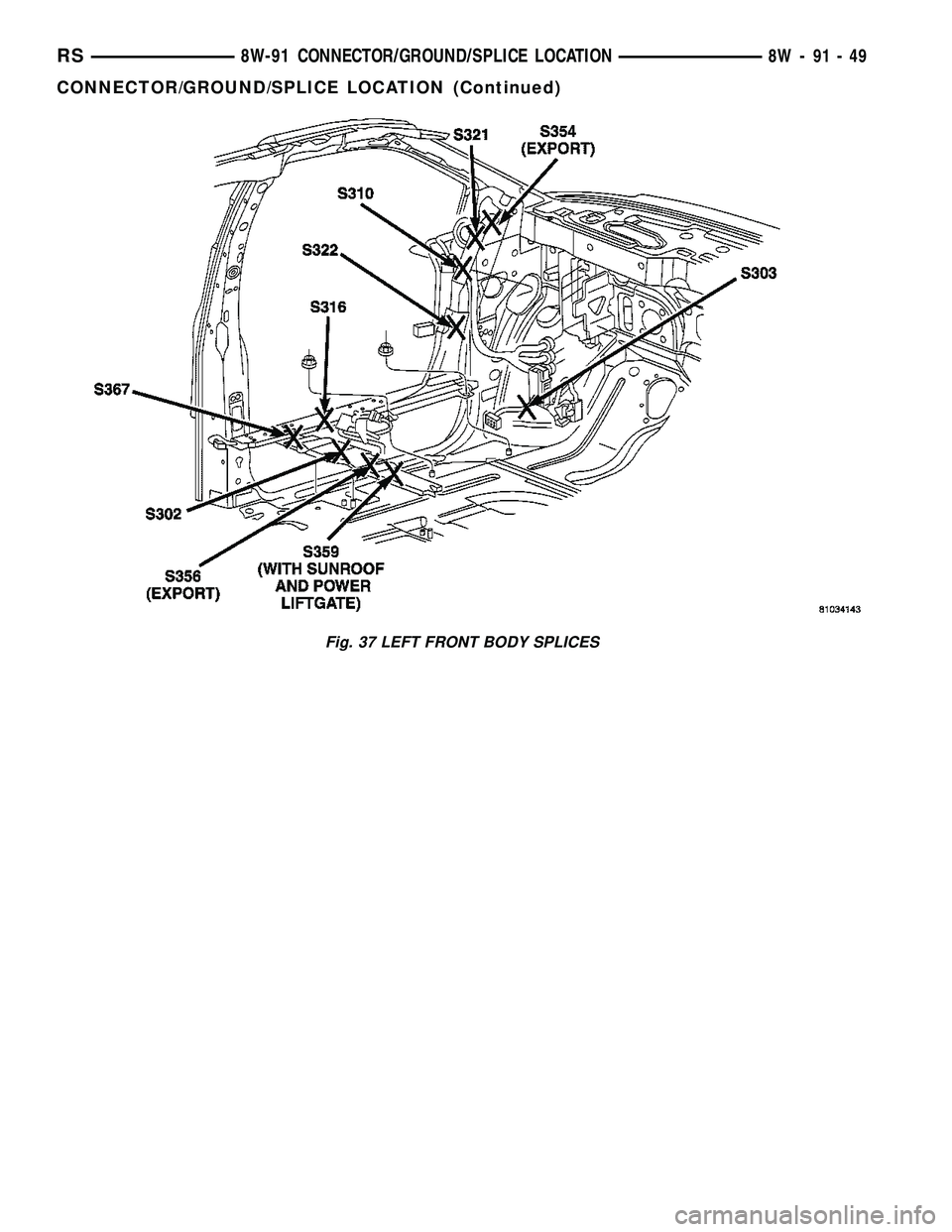

CHRYSLER VOYAGER 2004 Service Manual Fig. 37 LEFT FRONT BODY SPLICES RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-49 CONNECTOR/GROUND/SPLICE LOCATION (Continued)
