Page 2353 of 2585

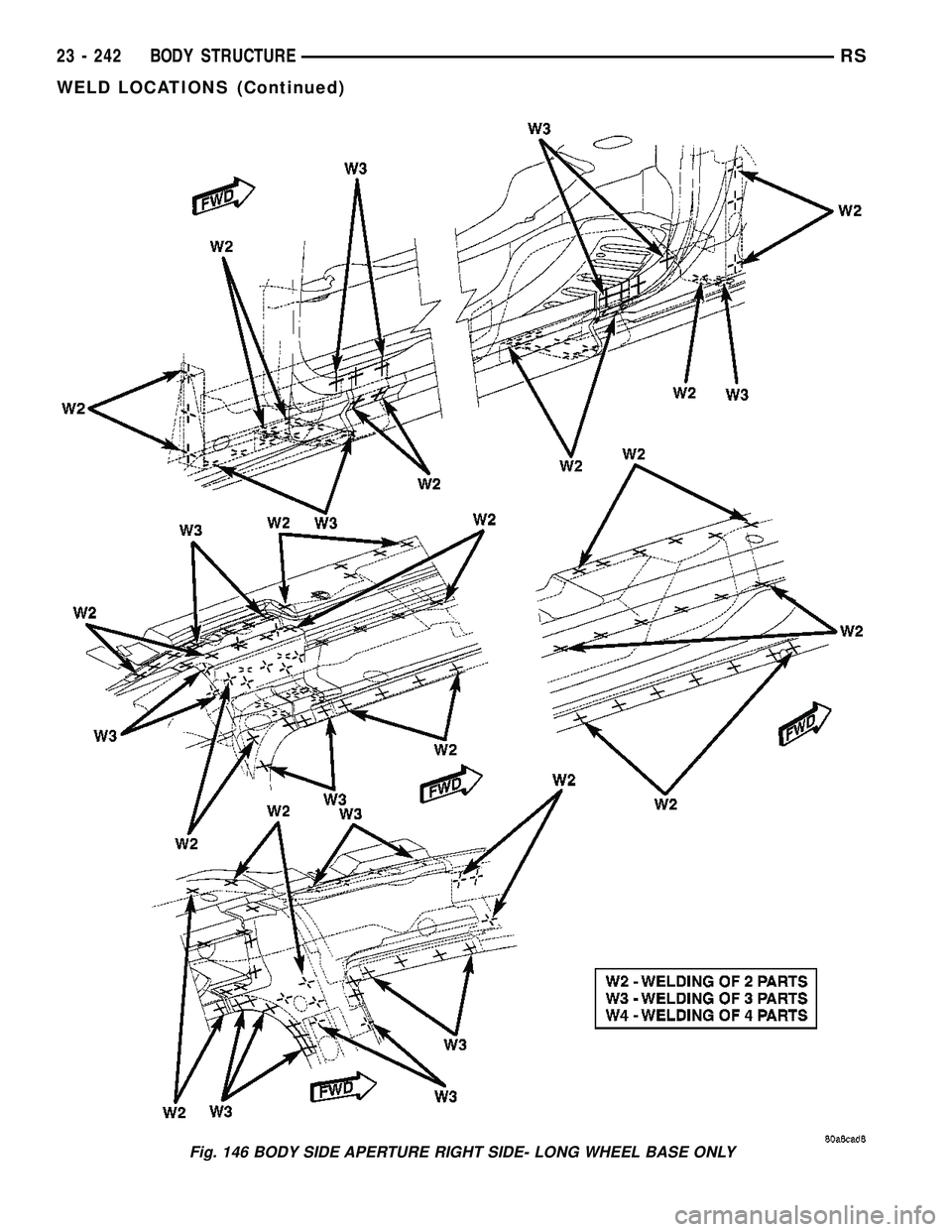

CHRYSLER VOYAGER 2004 Service Manual Fig. 146 BODY SIDE APERTURE RIGHT SIDE- LONG WHEEL BASE ONLY 23 - 242 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2354 of 2585

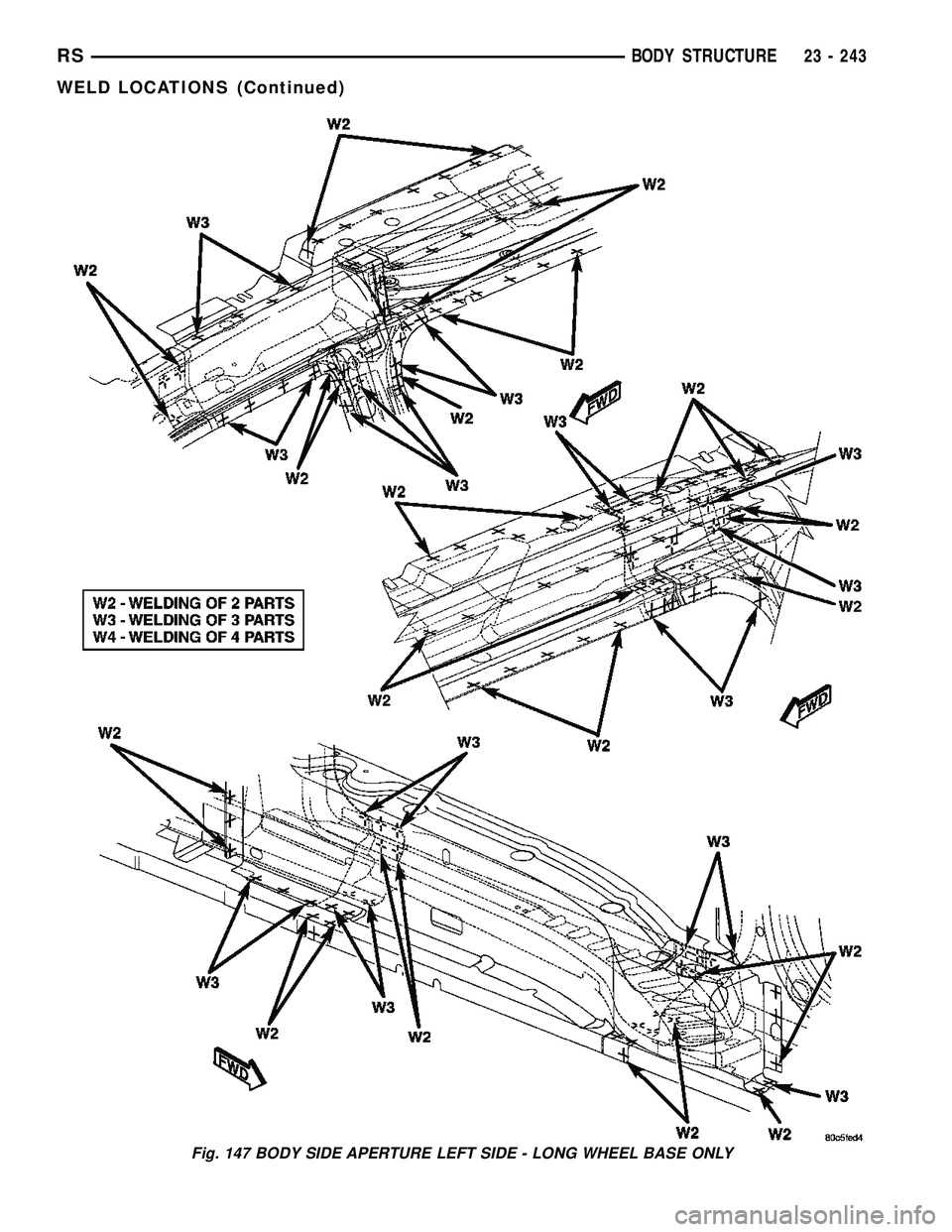

CHRYSLER VOYAGER 2004 Service Manual Fig. 147 BODY SIDE APERTURE LEFT SIDE - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 243 WELD LOCATIONS (Continued)

Page 2355 of 2585

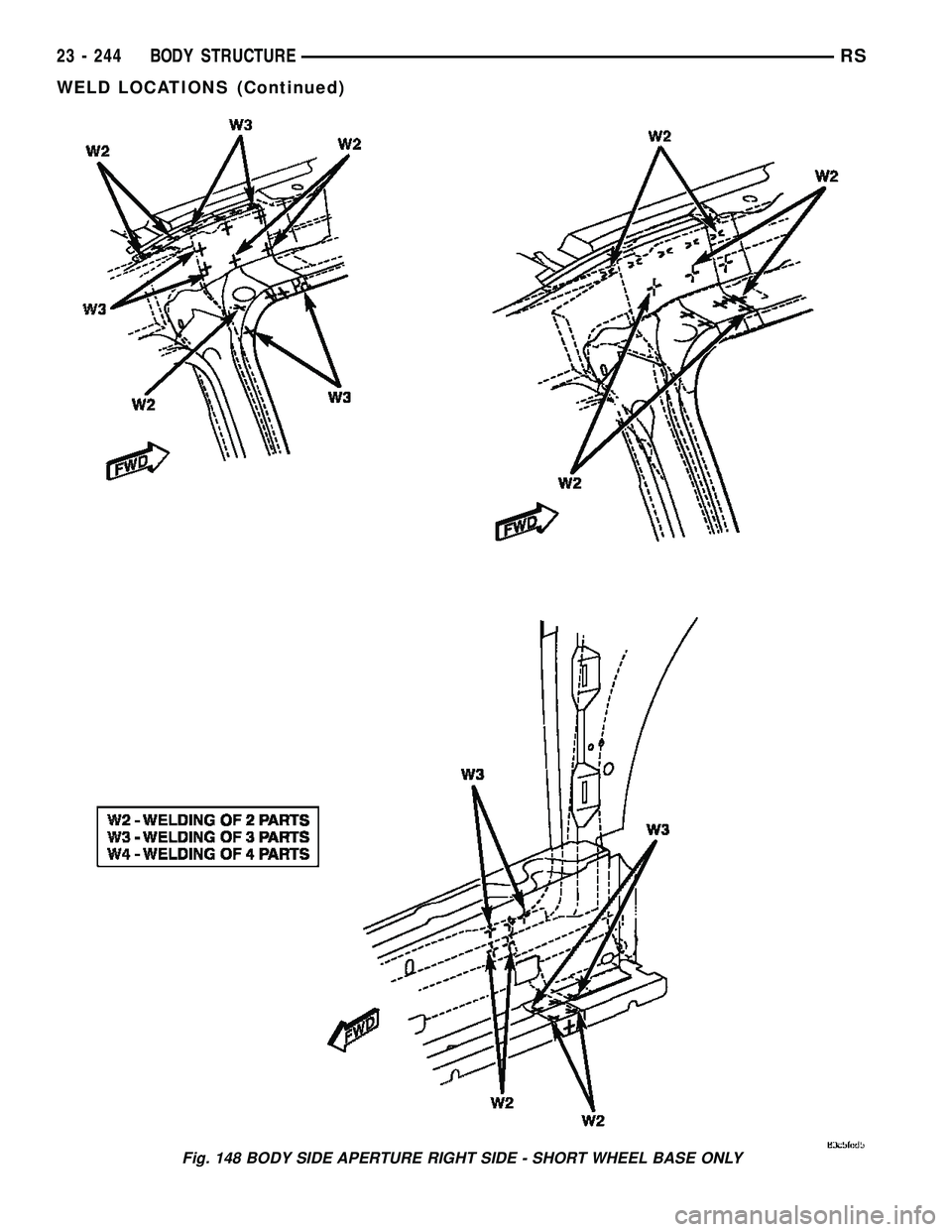

CHRYSLER VOYAGER 2004 Service Manual Fig. 148 BODY SIDE APERTURE RIGHT SIDE - SHORT WHEEL BASE ONLY 23 - 244 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2356 of 2585

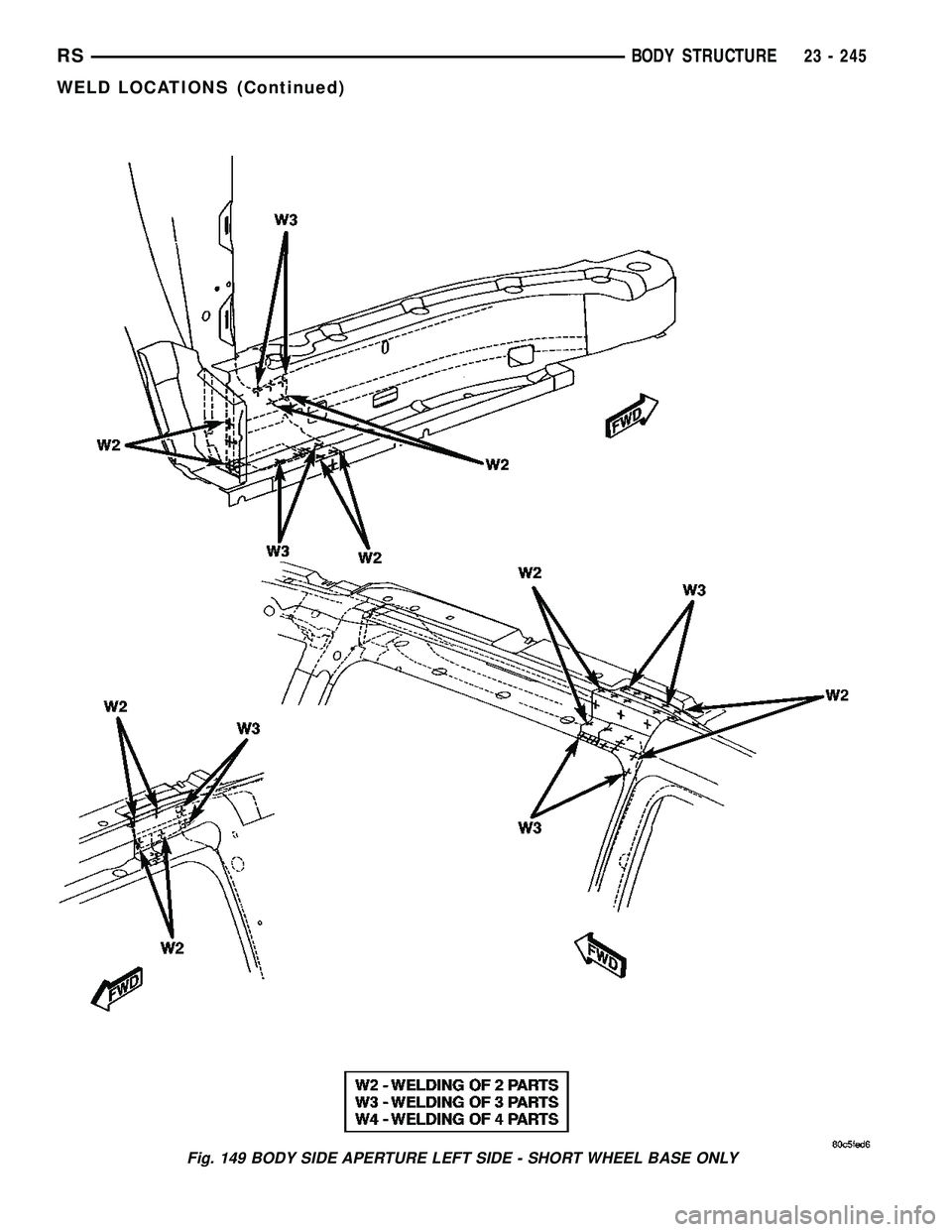

CHRYSLER VOYAGER 2004 Service Manual Fig. 149 BODY SIDE APERTURE LEFT SIDE - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 245 WELD LOCATIONS (Continued)

Page 2357 of 2585

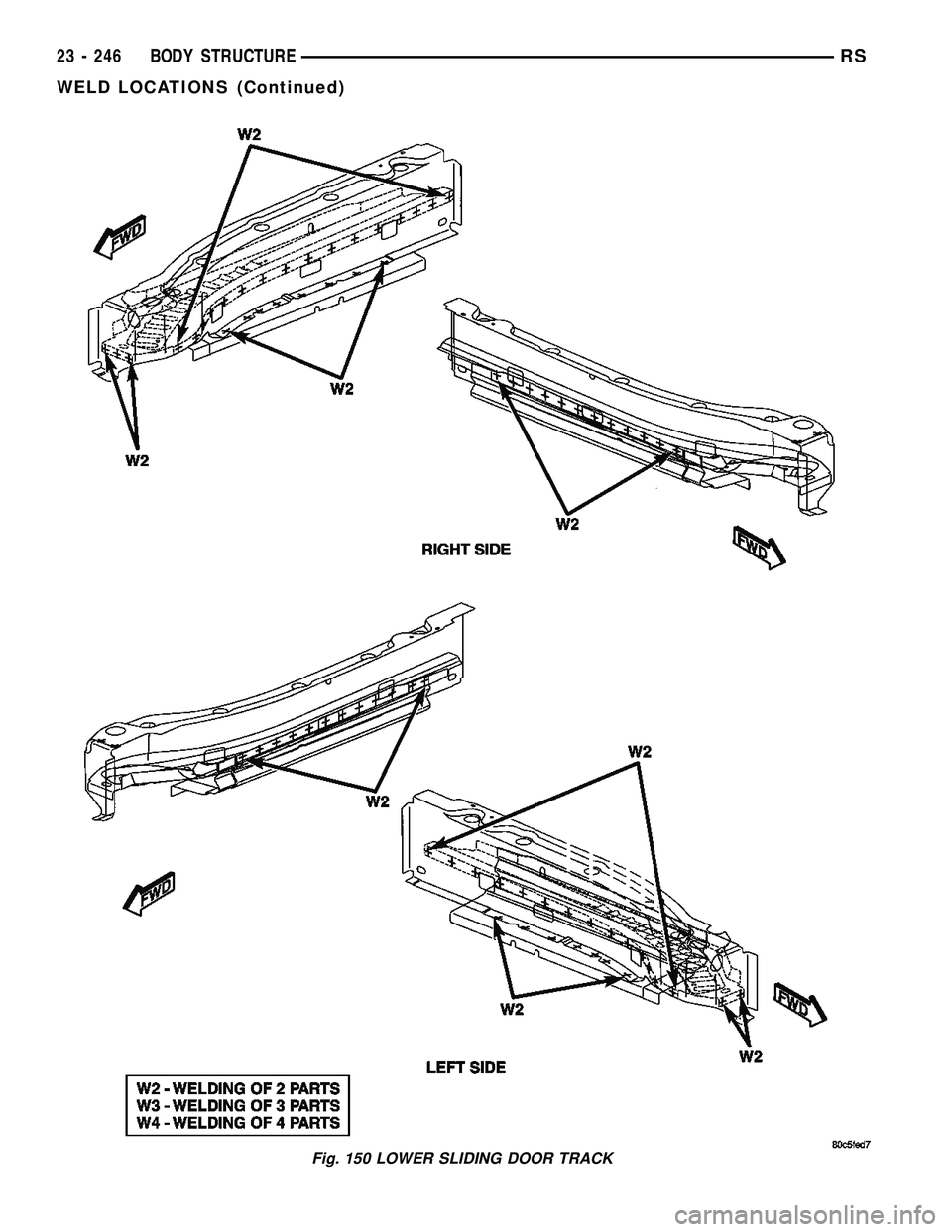

CHRYSLER VOYAGER 2004 Service Manual Fig. 150 LOWER SLIDING DOOR TRACK 23 - 246 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2358 of 2585

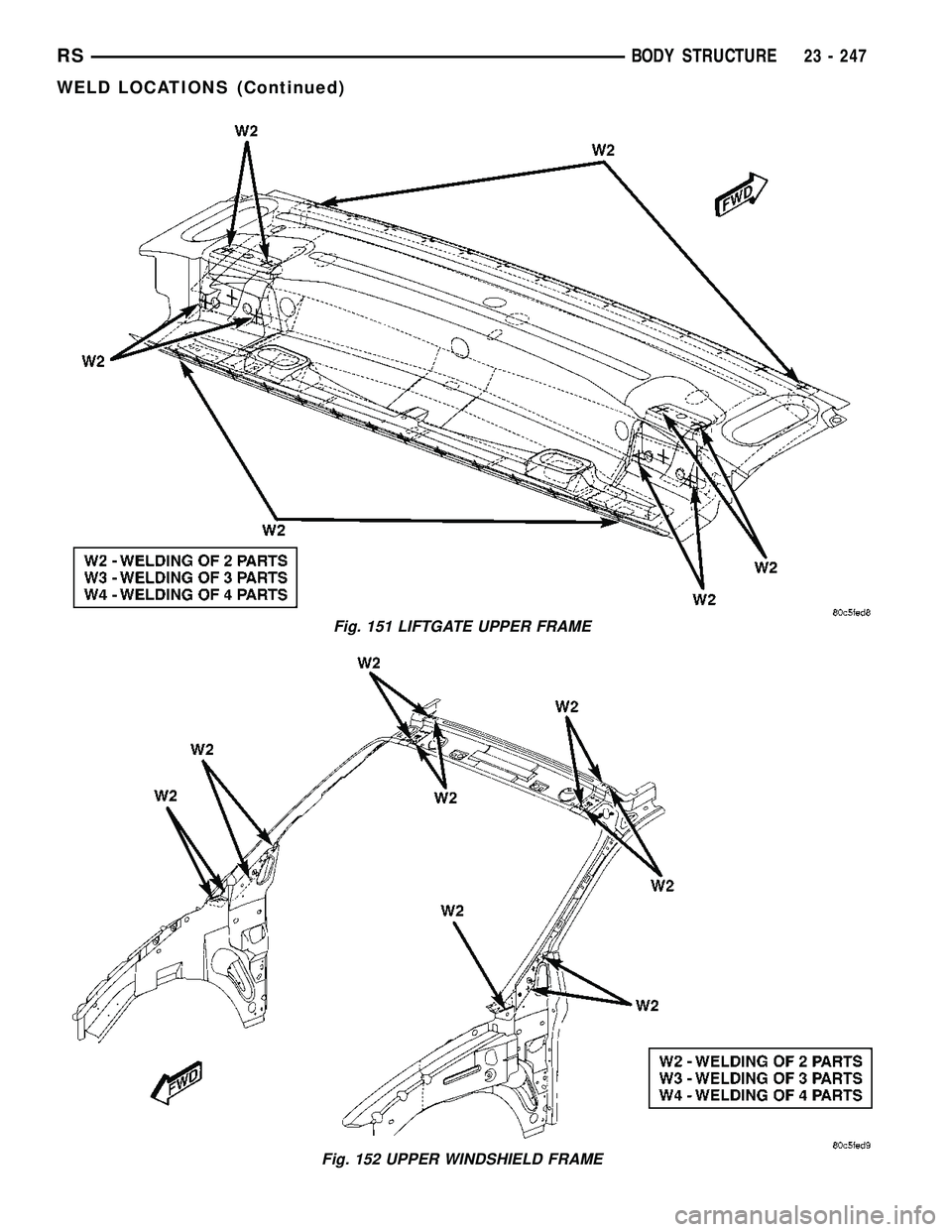

CHRYSLER VOYAGER 2004 Service Manual Fig. 151 LIFTGATE UPPER FRAME Fig. 152 UPPER WINDSHIELD FRAME RSBODY STRUCTURE23 - 247 WELD LOCATIONS (Continued)

Page 2359 of 2585

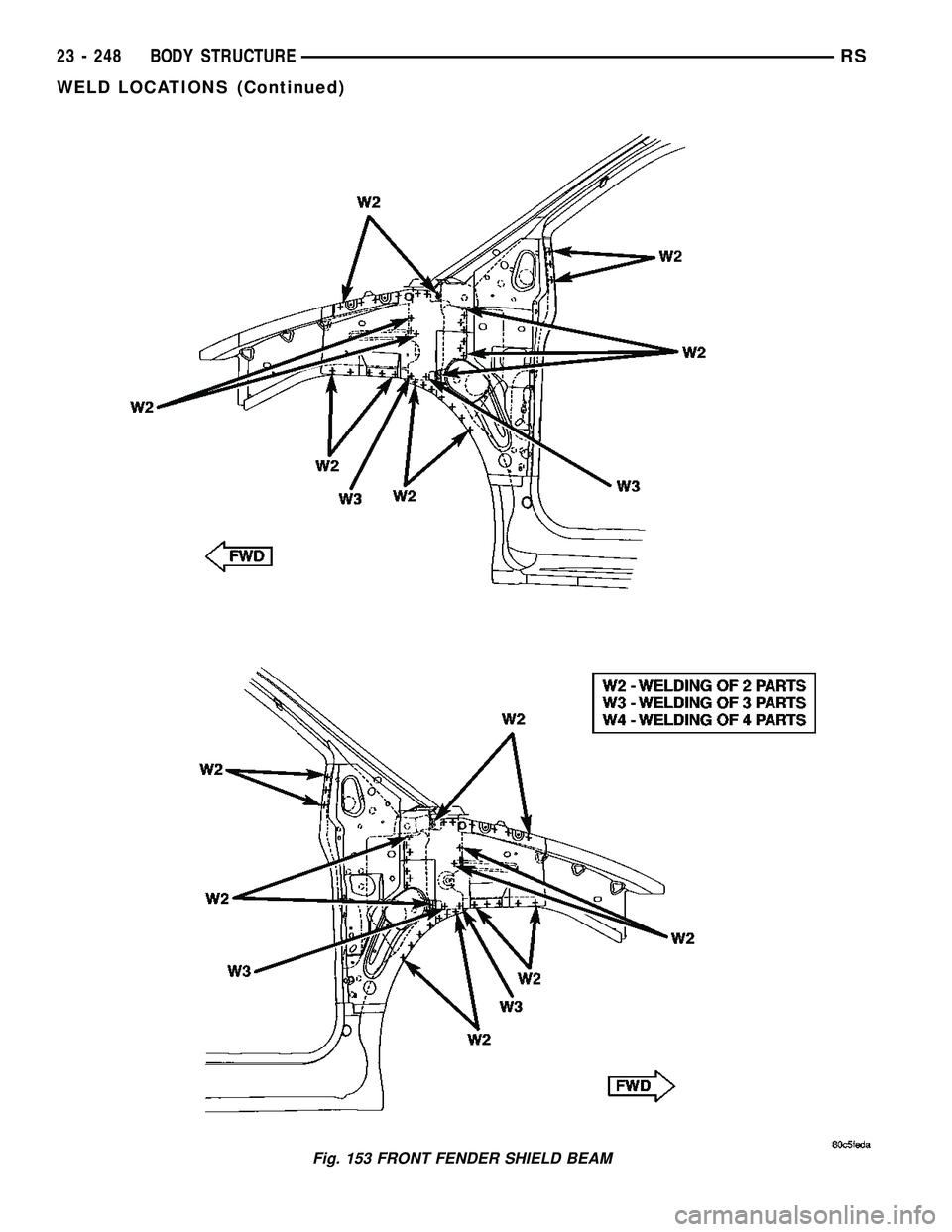

CHRYSLER VOYAGER 2004 Service Manual Fig. 153 FRONT FENDER SHIELD BEAM 23 - 248 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2360 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 154 FRONT FENDER SHIELD BEAM/COWL SIDE PANEL RSBODY STRUCTURE23 - 249 WELD LOCATIONS (Continued)
