CHRYSLER VOYAGER 2004 Service Manual 8W-30 FUEL/IGNITION SYSTEM
Component Page
A/C Compressor Clutch.............. 8W-30-24
A/C Compressor Clutch Relay........ 8W-30-4, 24
A/C Pressure Sensor........... 8W-30-14, 19, 31
Accelerator Pedal

8W-30 FUEL/IGNITION SYSTEM
Component Page
A/C Compressor Clutch.............. 8W-30-24
A/C Compressor Clutch Relay........ 8W-30-4, 24
A/C Pressure Sensor........... 8W-30-14, 19, 31
Accelerator Pedal Position Sensor...... 8W-30-38
Adjustable Pedals Module............ 8W-30-23
Adjustable Pedals Motor.............. 8W-30-23
Adjustable Pedals Relay.............. 8W-30-22
Adjustable Pedals Sensor............. 8W-30-23
Adjustable Pedals Switch............. 8W-30-22
Ambient Temperature Sensor........... 8W-30-8
Auto Shut Down Relay.... 8W-30-4, 12, 15, 17, 20
Battery........... 8W-30-2, 6, 10, 16, 21, 24, 32
Battery Temperature Sensor......... 8W-30-8, 31
Body Control Module.............. 8W-30-5, 25
Boost Pressure Sensor............... 8W-30-31
Brake Lamp Switch............ 8W-30-7, 27, 37
Cabin Heater Assist................. 8W-30-28
Camshaft Position Sensor........... 8W-30-8, 30
Clockspring................... 8W-30-5, 29, 36
Clutch Pedal Interlock Switch.......... 8W-30-4
Clutch Pedal Upstop Switch........... 8W-30-36
Crank Case Ventilation Heater......... 8W-30-25
Crankshaft Position Sensor...... 8W-30-13, 18, 30

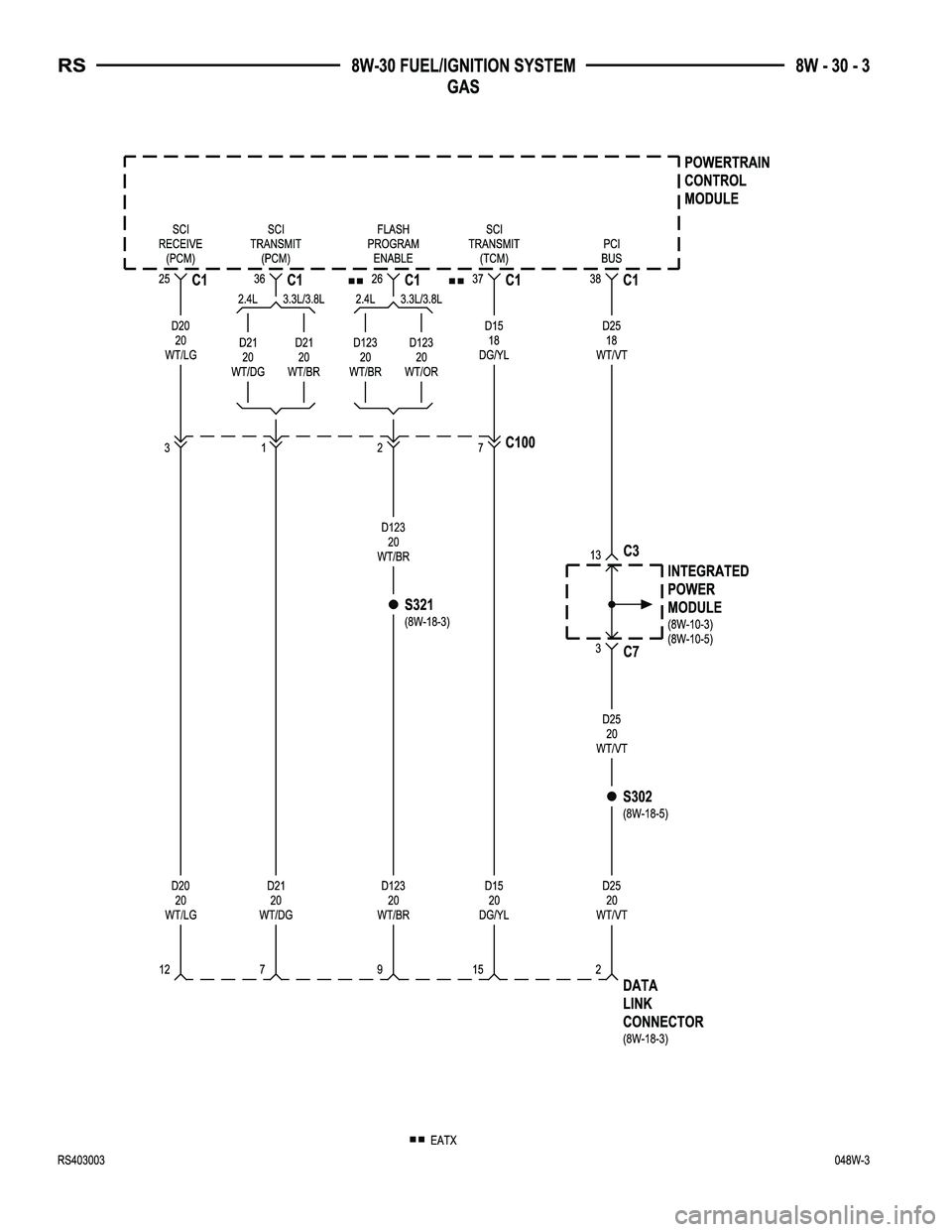

Data Link Connector.............. 8W-30-3, 28
Dosing Pump...................... 8W-30-28
ECM/PCM Relay........ 8W-30-24, 26, 30, 32, 34
EGR Solenoid................... 8W-30-16, 34
Engine Control Module . . . 8W-30-24, 25, 26, 27, 28,
29, 30, 31, 32, 33, 34, 35, 36, 37, 38
Engine Coolant Temp Sensor.... 8W-30-14, 19, 31
Engine Oil Pressure Sensor........... 8W-30-27
Engine Oil Pressure Switch............ 8W-30-7
EVAP/Purge Solenoid................. 8W-30-4
Front Control Module...... 8W-30-2, 5, 22, 28, 36
Fuel Heater....................... 8W-30-35
Fuel Heater Relay................ 8W-30-25, 35
Fuel Injector No. 1............ 8W-30-15, 20, 33
Fuel Injector No. 2............ 8W-30-15, 20, 33
Fuel Injector No. 3............ 8W-30-15, 20, 33
Fuel Injector No. 4............ 8W-30-15, 20, 33
Fuel Injector No. 5.................. 8W-30-20
Fuel Injector No. 6.................. 8W-30-20
Fuel Pressure Sensor................ 8W-30-37
Fuel Pressure Solenoid............... 8W-30-26
Fuel Pump Module................ 8W-30-5, 25
Fuel Pump Relay.................... 8W-30-5
Fuse 14........................... 8W-30-22
Fuse 15..................... 8W-30-21, 28, 35
Fuse 16 . . 8W-30-4, 12, 15, 17, 20, 24, 26, 30, 32, 34
Fuse 17.................... 8W-30-2, 5, 25, 35
Fuse 18........................ 8W-30-22, 24
Fuse 26........................... 8W-30-37Component Page
Fuselink.......................... 8W-30-32
G100................... 8W-30-2, 6, 16, 21, 25
G101.............. 8W-30-2, 6, 7, 10, 16, 21, 24
G103....................... 8W-30-24, 25, 28
G200............................. 8W-30-22
G300................... 8W-30-4, 7, 23, 27, 36
G302........................ 8W-30-5, 25, 35
Generator....................... 8W-30-4, 25
Glow Plug No. 1.................... 8W-30-32
Glow Plug No. 2.................... 8W-30-32
Glow Plug No. 3.................... 8W-30-32
Glow Plug No. 4.................... 8W-30-32
Glow Plug Relay.................... 8W-30-32
Idle Air Control Motor................ 8W-30-9
Ignition Coil.................... 8W-30-12, 17
Ignition Switch..................... 8W-30-10
Inlet Air Temperature Sensor....... 8W-30-13, 18
Input Speed Sensor................. 8W-30-21
Integrated Power Module . . 8W-30-2, 3, 4, 5, 10, 12,
15, 17, 20, 21, 22, 24, 25,
26, 28, 30, 32, 34, 35, 36, 37
Knock Sensor....................... 8W-30-9
Left Speed Control Switch.......... 8W-30-5, 29
Lift Pump Motor.................... 8W-30-35
Lift Pump Relay.................... 8W-30-35
Manifold Absolute Pressure Sensor . . . 8W-30-14, 19
Mass Air Flow Sensor................ 8W-30-26
Memory Seat/Mirror Module.......... 8W-30-22
Natural Vacuum Leak Detection
Assembly....................... 8W-30-10
Output Speed Sensor................ 8W-30-21

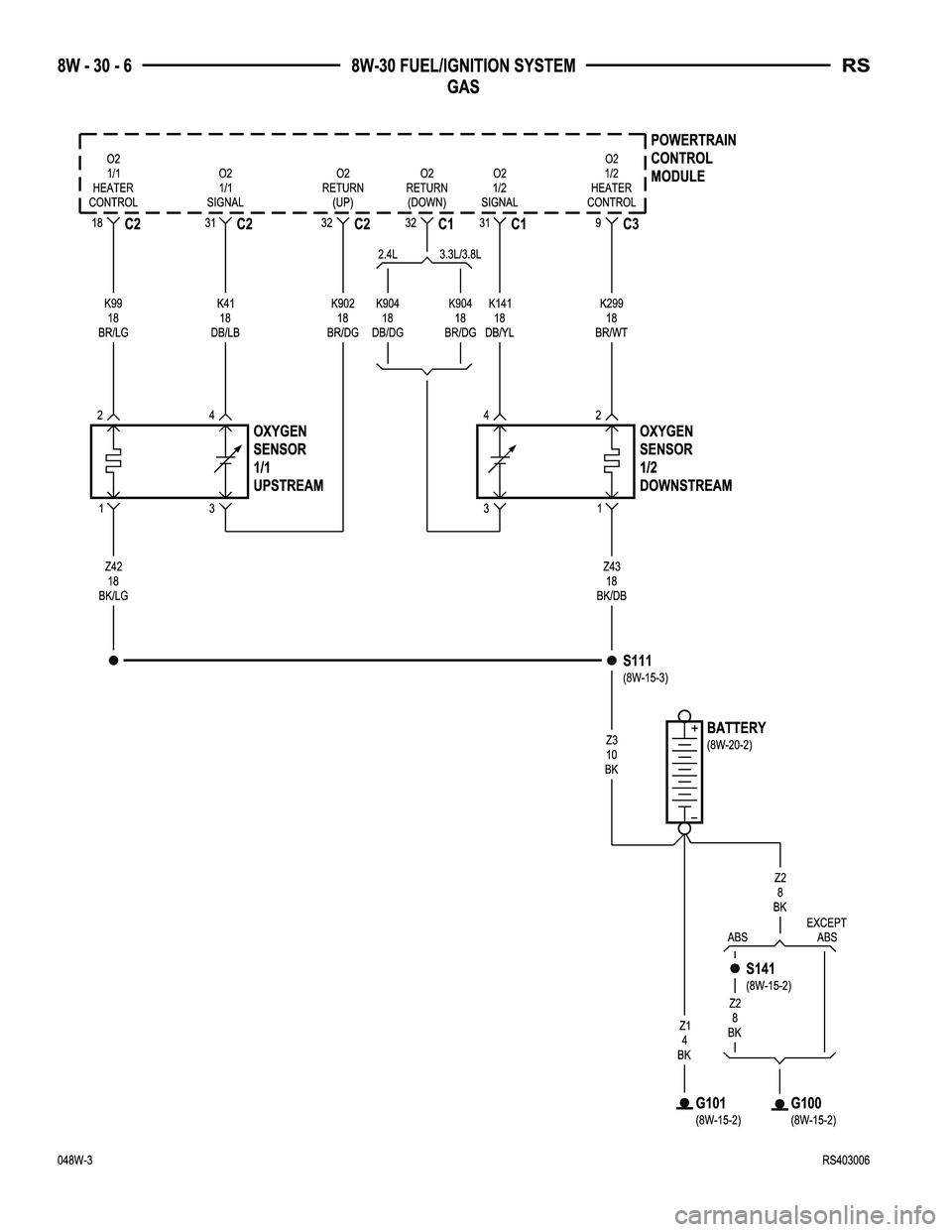

Oxygen Sensor 1/1 Upstream........... 8W-30-6
Oxygen Sensor 1/2 Downstream......... 8W-30-6
Powertrain Control Module . . 8W-30-2, 3, 4, 5, 6, 7,
8, 9, 10, 11, 12, 13, 14, 15,
16, 17, 18, 19, 20, 21
Radiator Fan Relay............... 8W-30-12, 17
Radiator Fan Relay No. 1............. 8W-30-37
Radiator Fan Relay No. 2............. 8W-30-37
Radiator Fan Relay No. 3............. 8W-30-37
Right Speed Control Switch......... 8W-30-5, 29
Speed Control Servo.................. 8W-30-7
Starter Motor Relay............... 8W-30-5, 25
Throttle Position Sensor........... 8W-30-13, 18
Transmission Control Relay........... 8W-30-21
Transmission Range Sensor........... 8W-30-11
Transmission Solenoid/Pressure Switch
Assembly..................... 8W-30-11, 21
Vehicle Speed Sensor.............. 8W-30-9, 34
Water In Fuel Sensor................ 8W-30-36

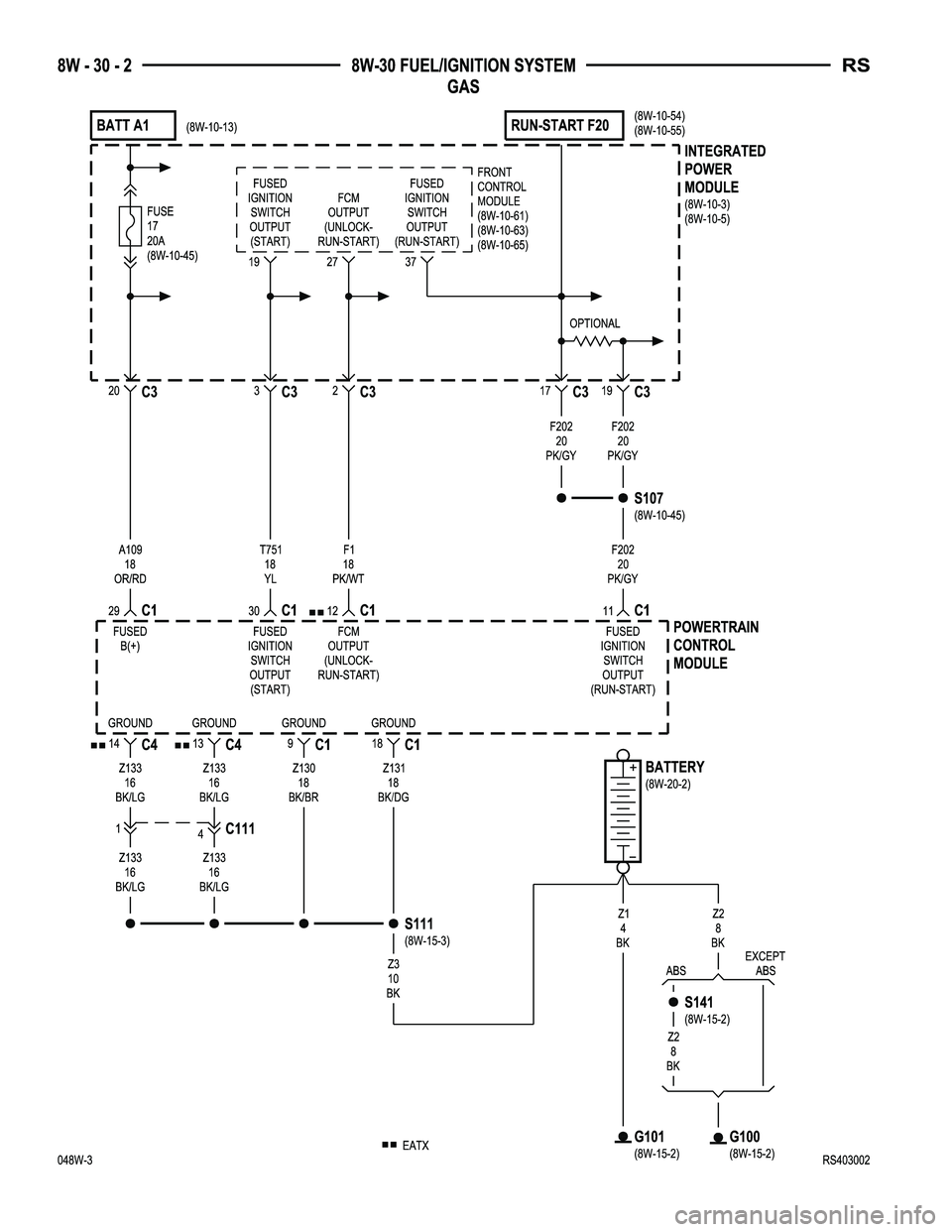

RS8W-30 FUEL/IGNITION SYSTEM8W-30-1
