Page 1769 of 2585

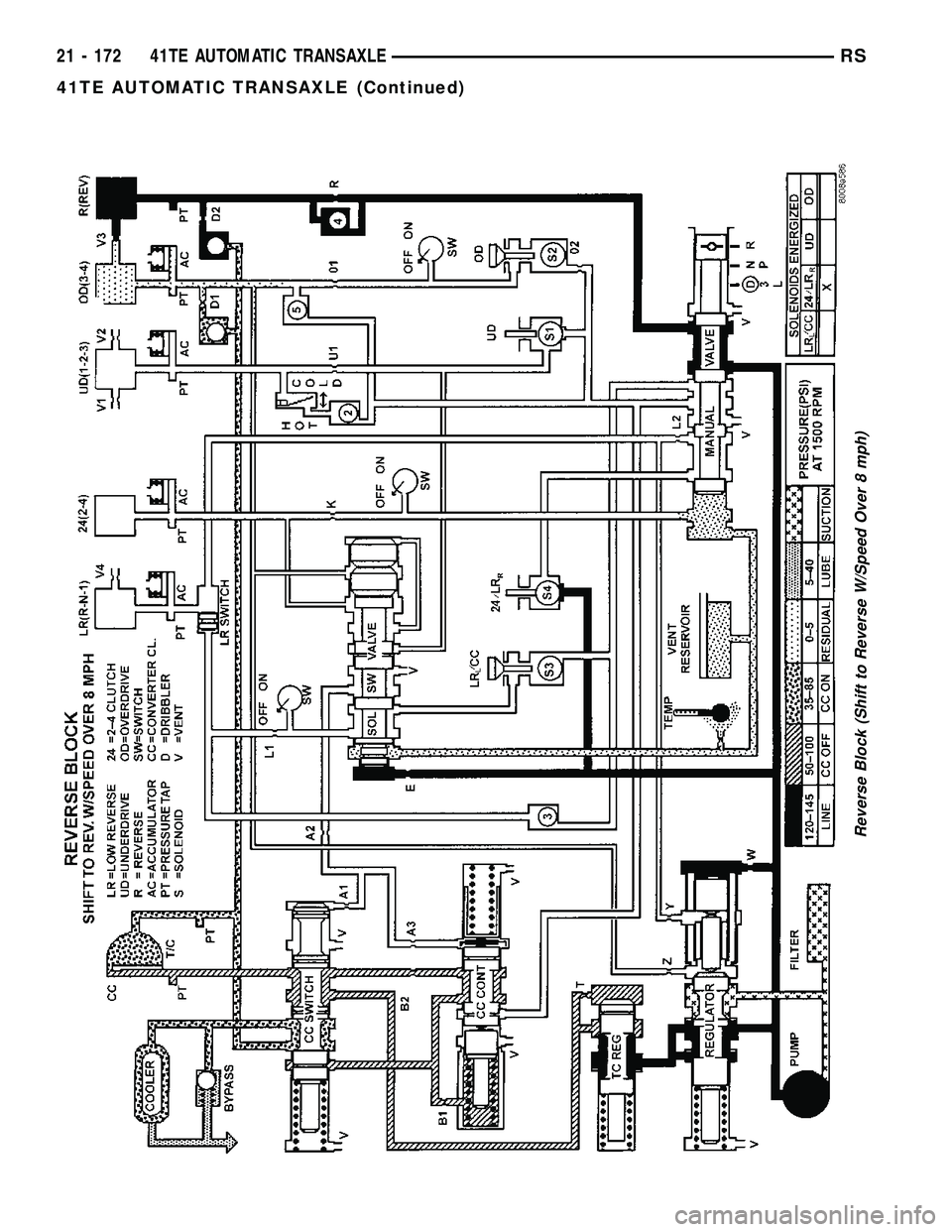

CHRYSLER VOYAGER 2004 Service Manual Reverse Block (Shift to Reverse W/Speed Over 8 mph) 21 - 172 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1770 of 2585

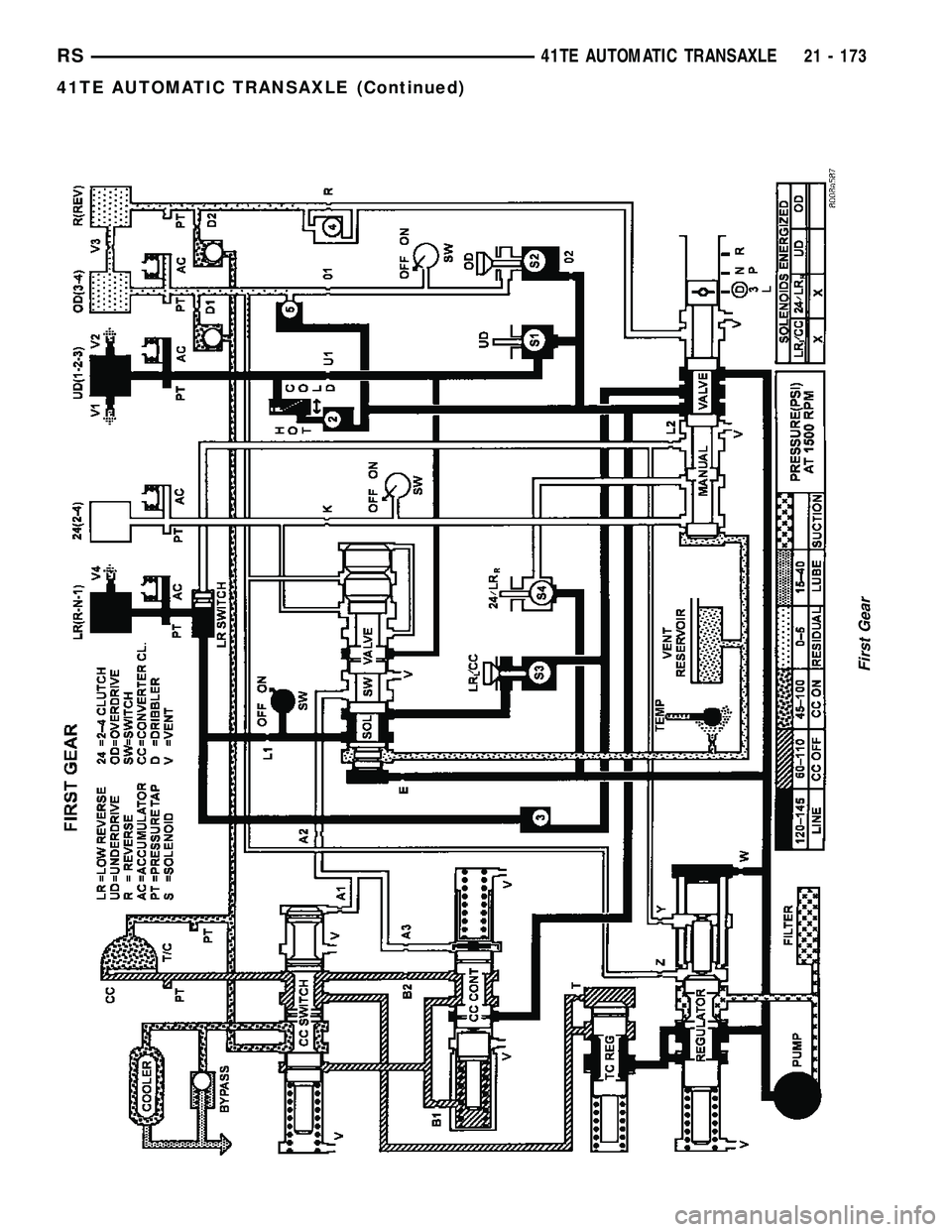

CHRYSLER VOYAGER 2004 Service Manual First Gear RS41TE AUTOMATIC TRANSAXLE21 - 173 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1771 of 2585

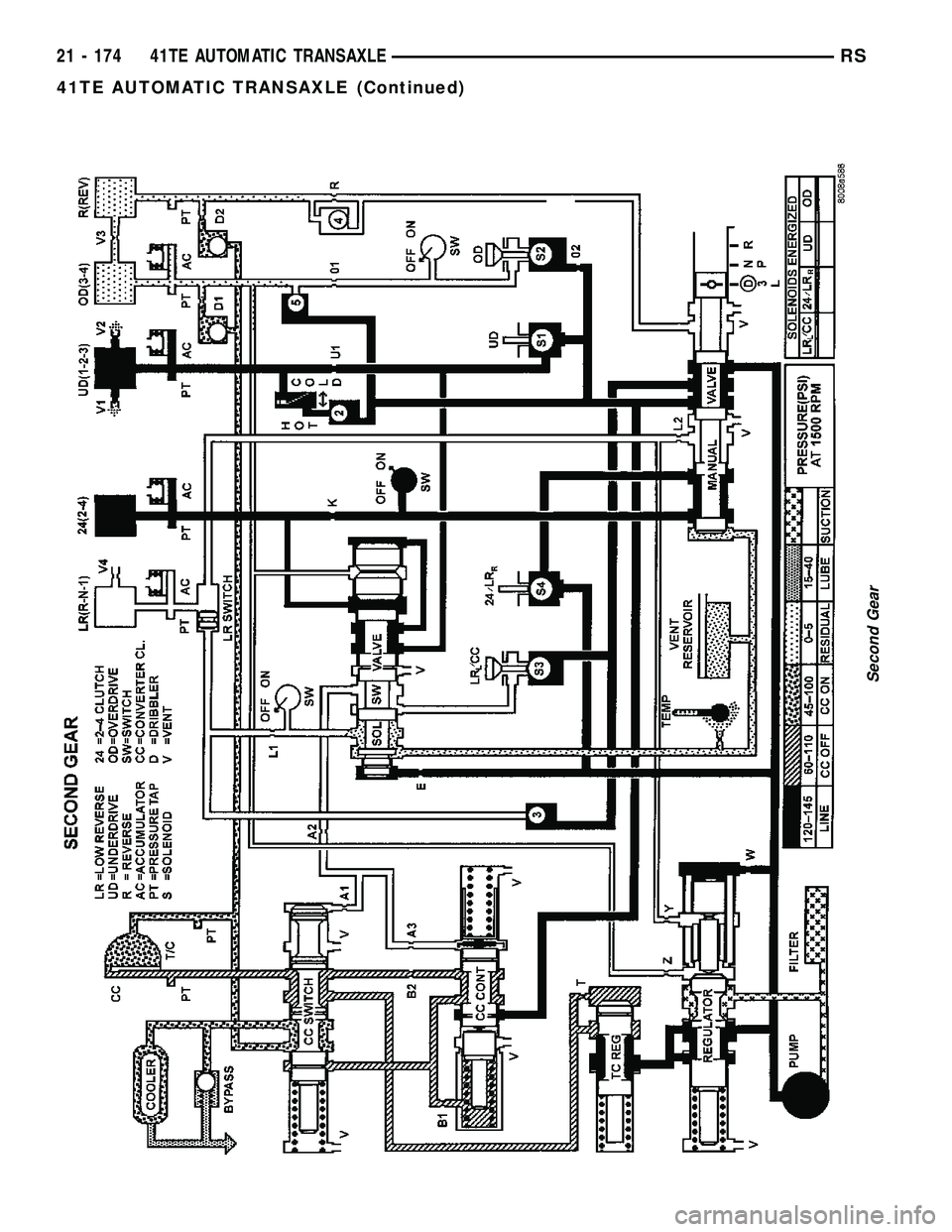

CHRYSLER VOYAGER 2004 Service Manual Second Gear 21 - 174 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1772 of 2585

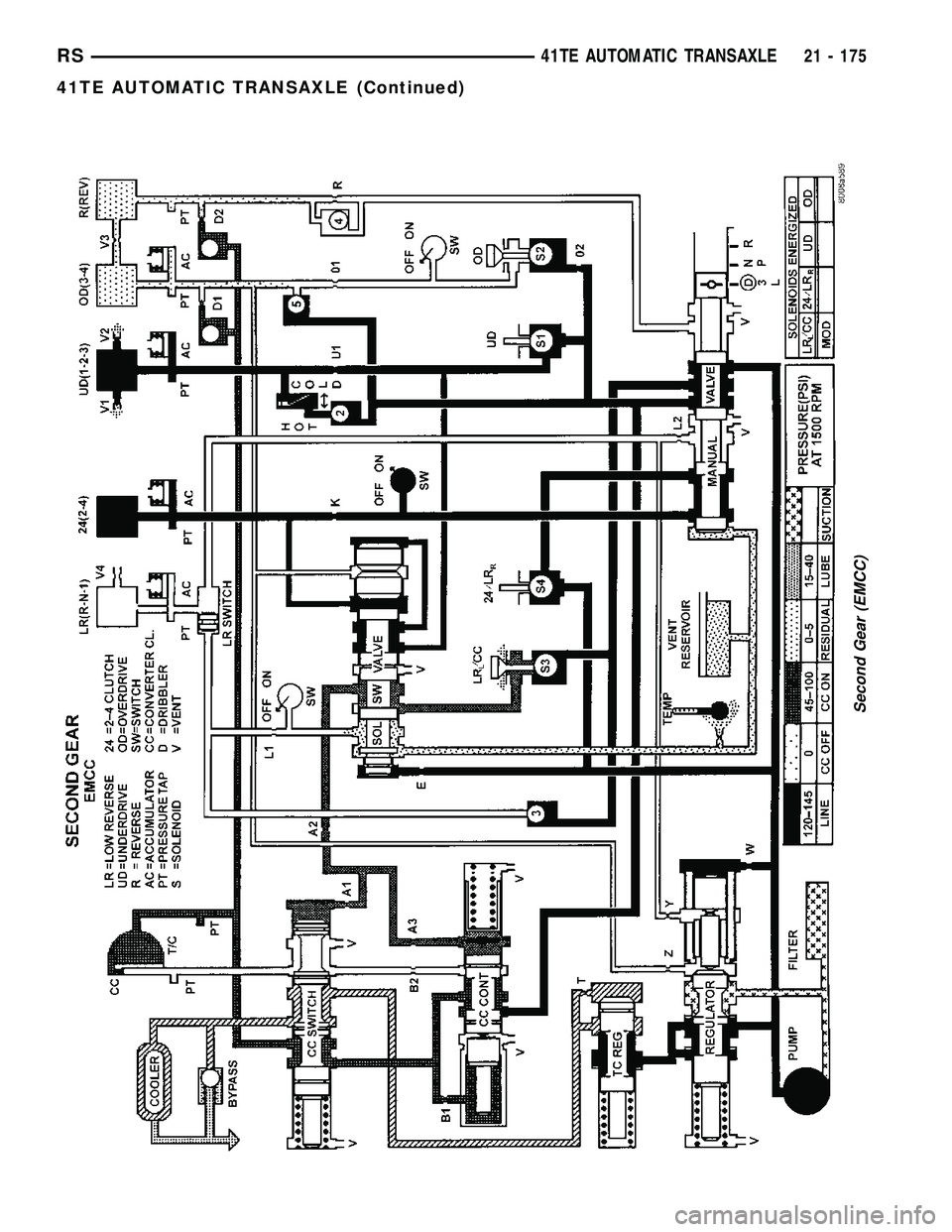

CHRYSLER VOYAGER 2004 Service Manual Second Gear (EMCC) RS41TE AUTOMATIC TRANSAXLE21 - 175 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1773 of 2585

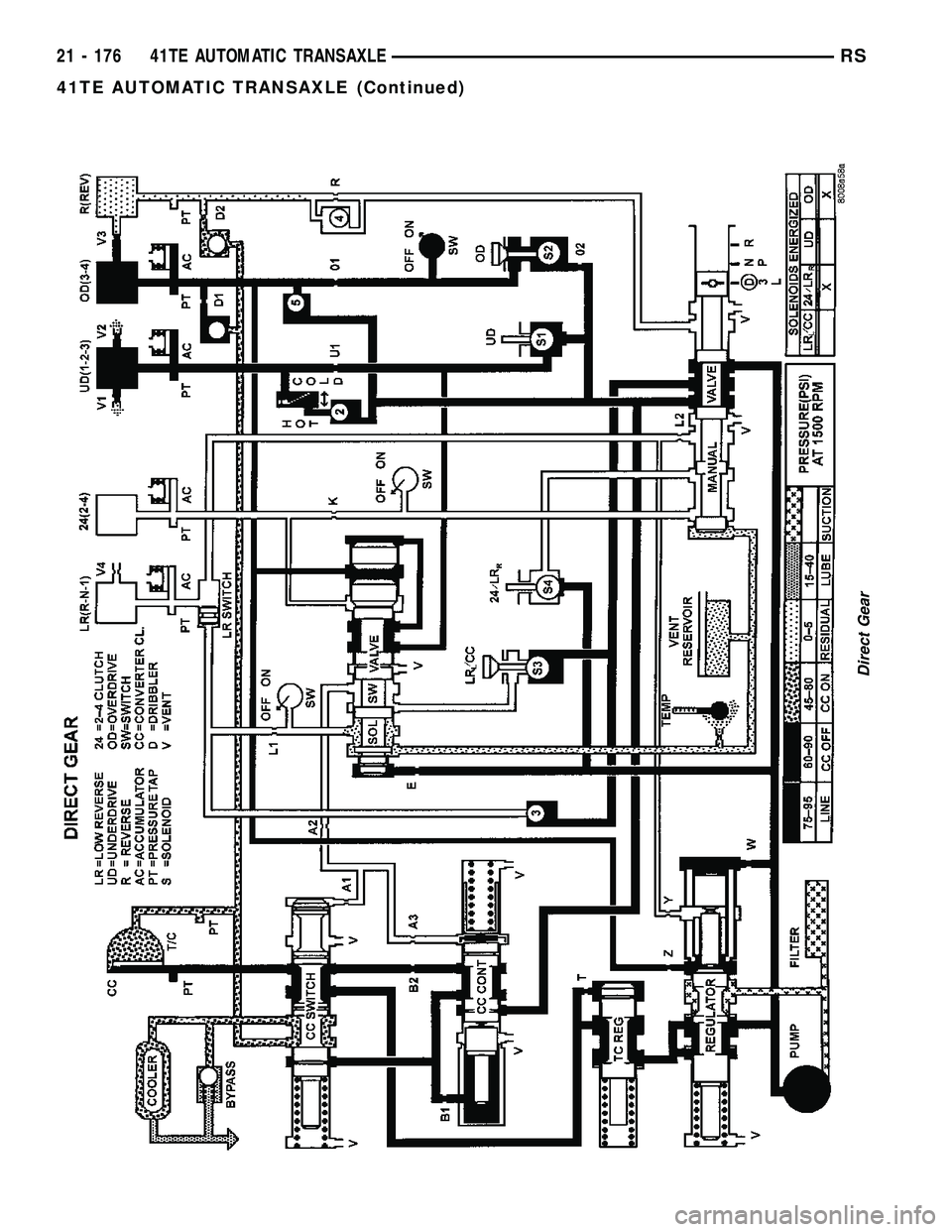

CHRYSLER VOYAGER 2004 Service Manual Direct Gear 21 - 176 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1774 of 2585

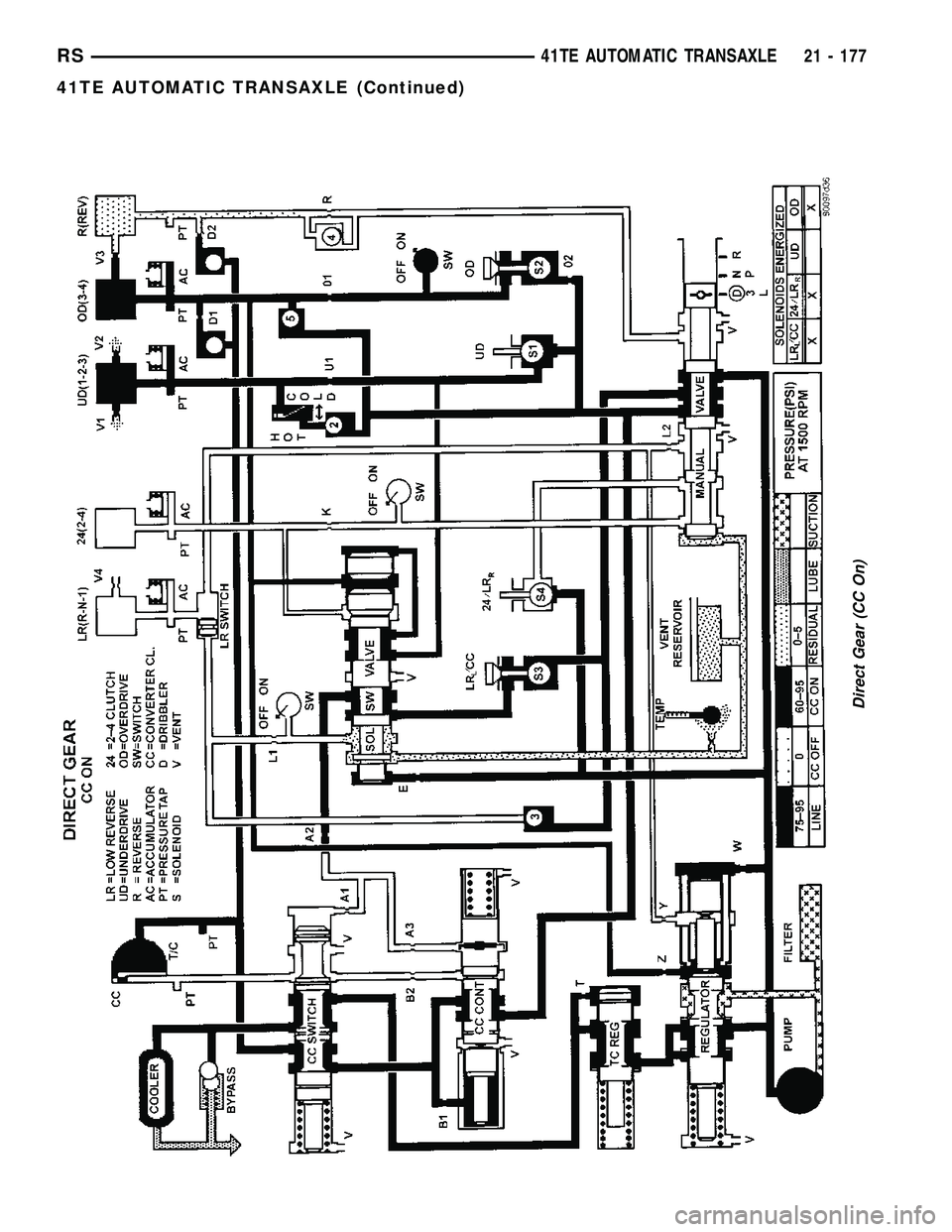

CHRYSLER VOYAGER 2004 Service Manual Direct Gear (CC On) RS41TE AUTOMATIC TRANSAXLE21 - 177 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1775 of 2585

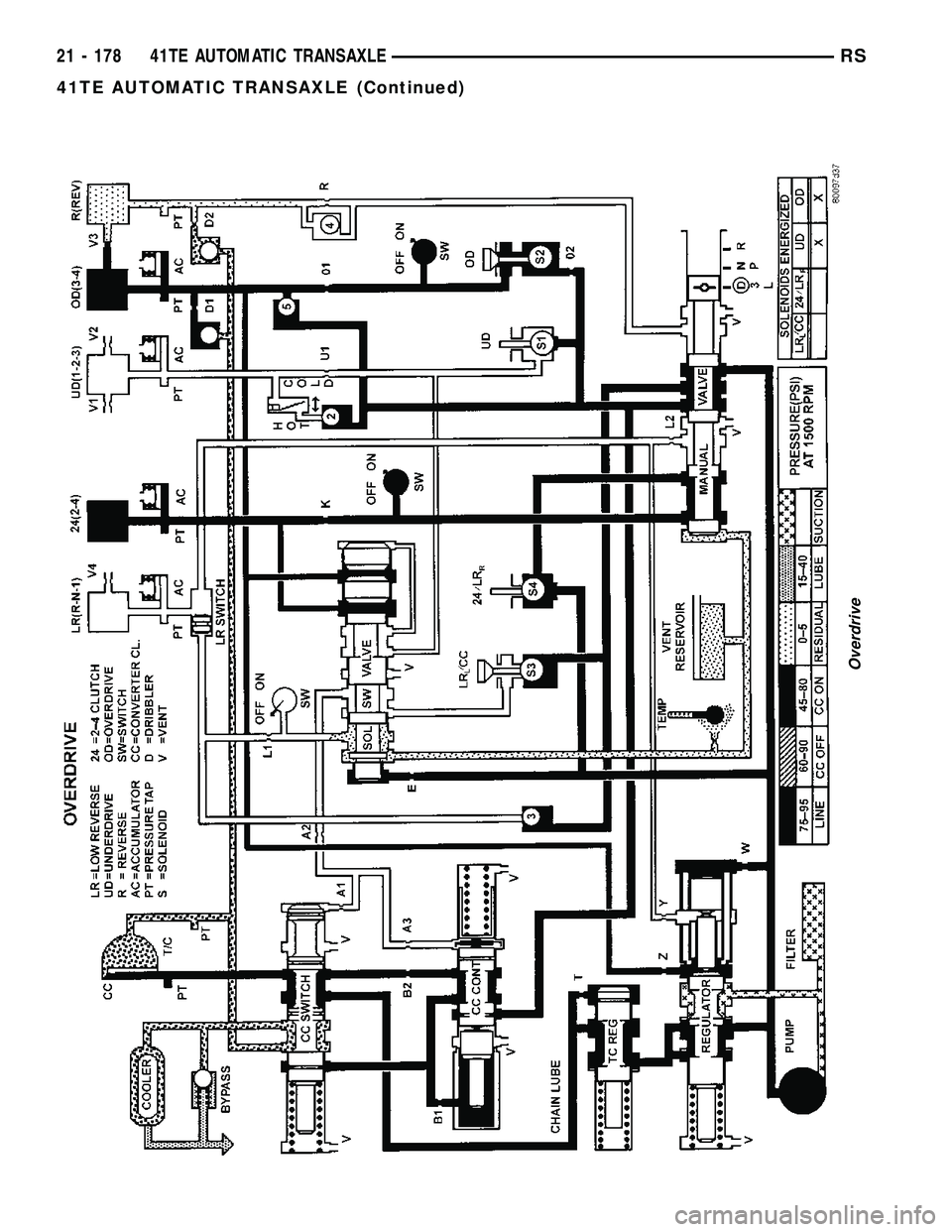

CHRYSLER VOYAGER 2004 Service Manual Overdrive 21 - 178 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1776 of 2585

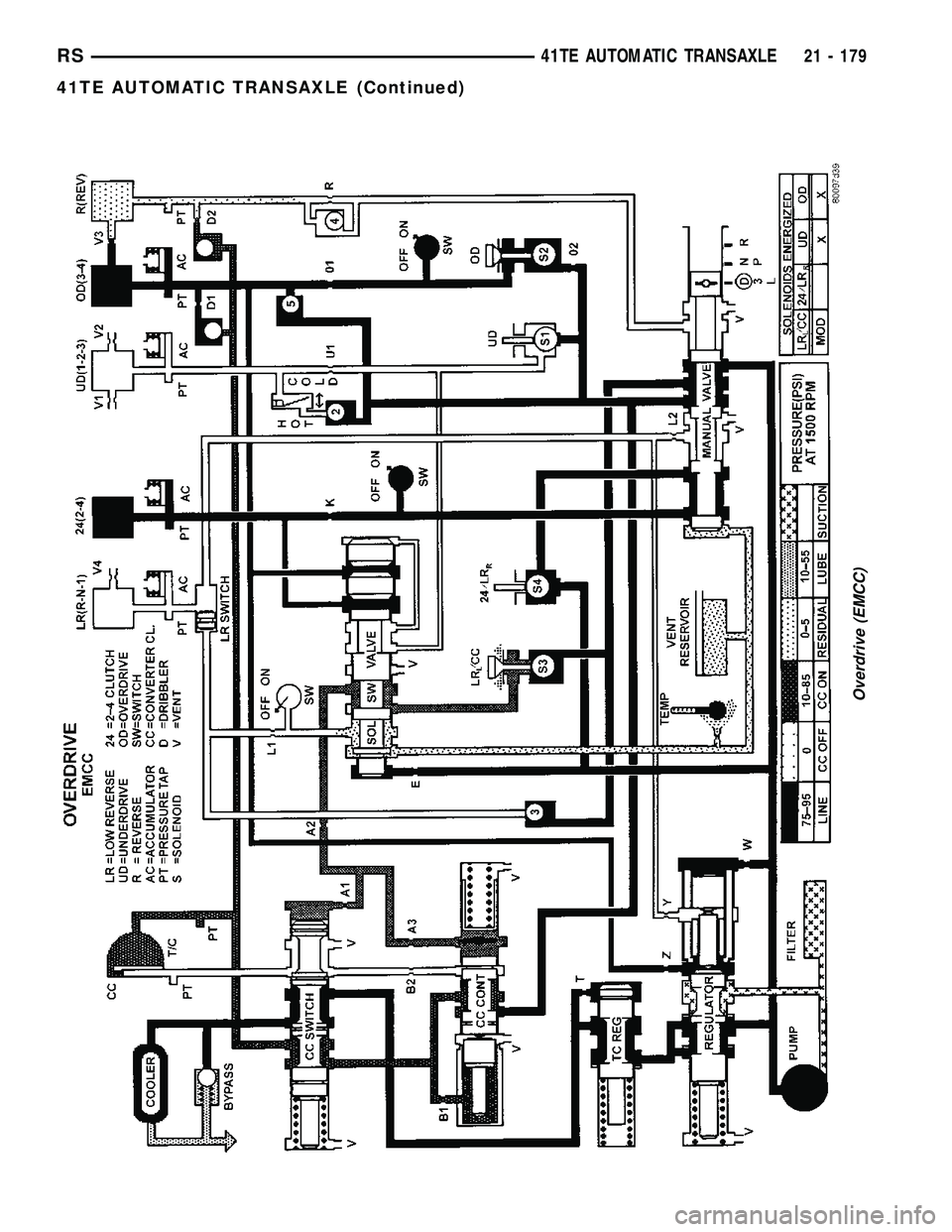

CHRYSLER VOYAGER 2004 Service Manual Overdrive (EMCC) RS41TE AUTOMATIC TRANSAXLE21 - 179 41TE AUTOMATIC TRANSAXLE (Continued)
