Page 2385 of 2585

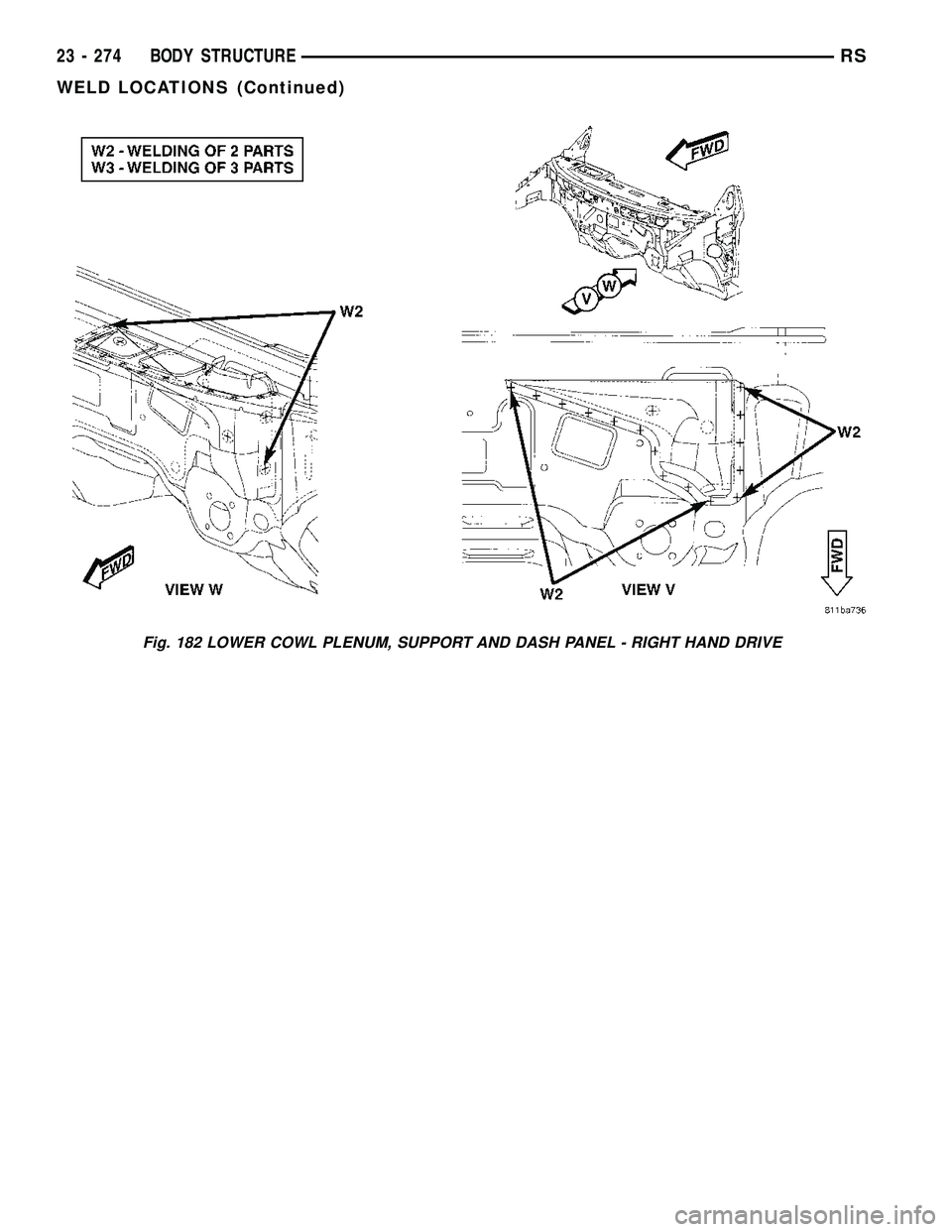

CHRYSLER VOYAGER 2004 Service Manual Fig. 182 LOWER COWL PLENUM, SUPPORT AND DASH PANEL - RIGHT HAND DRIVE 23 - 274 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2386 of 2585

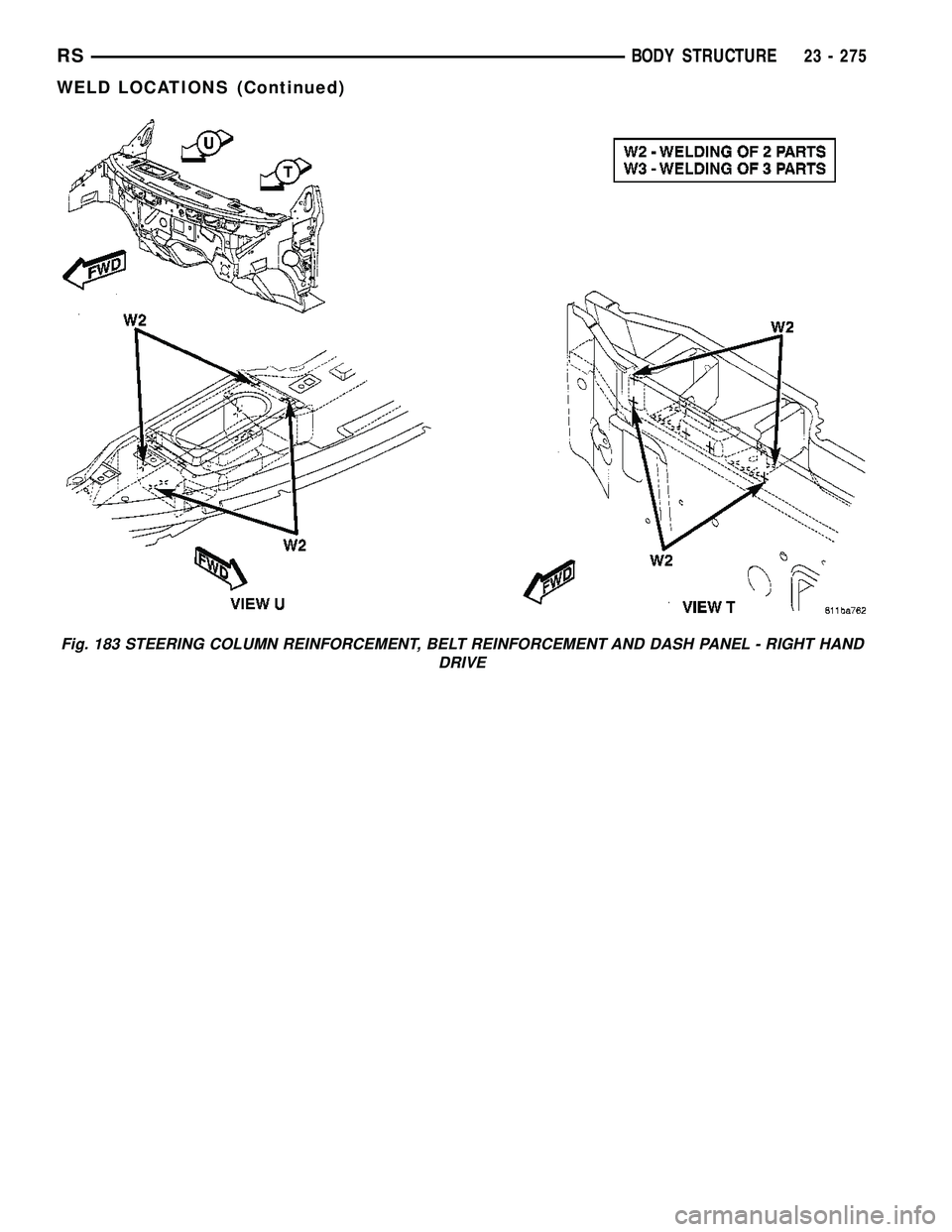

CHRYSLER VOYAGER 2004 Service Manual Fig. 183 STEERING COLUMN REINFORCEMENT, BELT REINFORCEMENT AND DASH PANEL - RIGHT HAND DRIVE RSBODY STRUCTURE23 - 275 WELD LOCATIONS (Continued)

Page 2387 of 2585

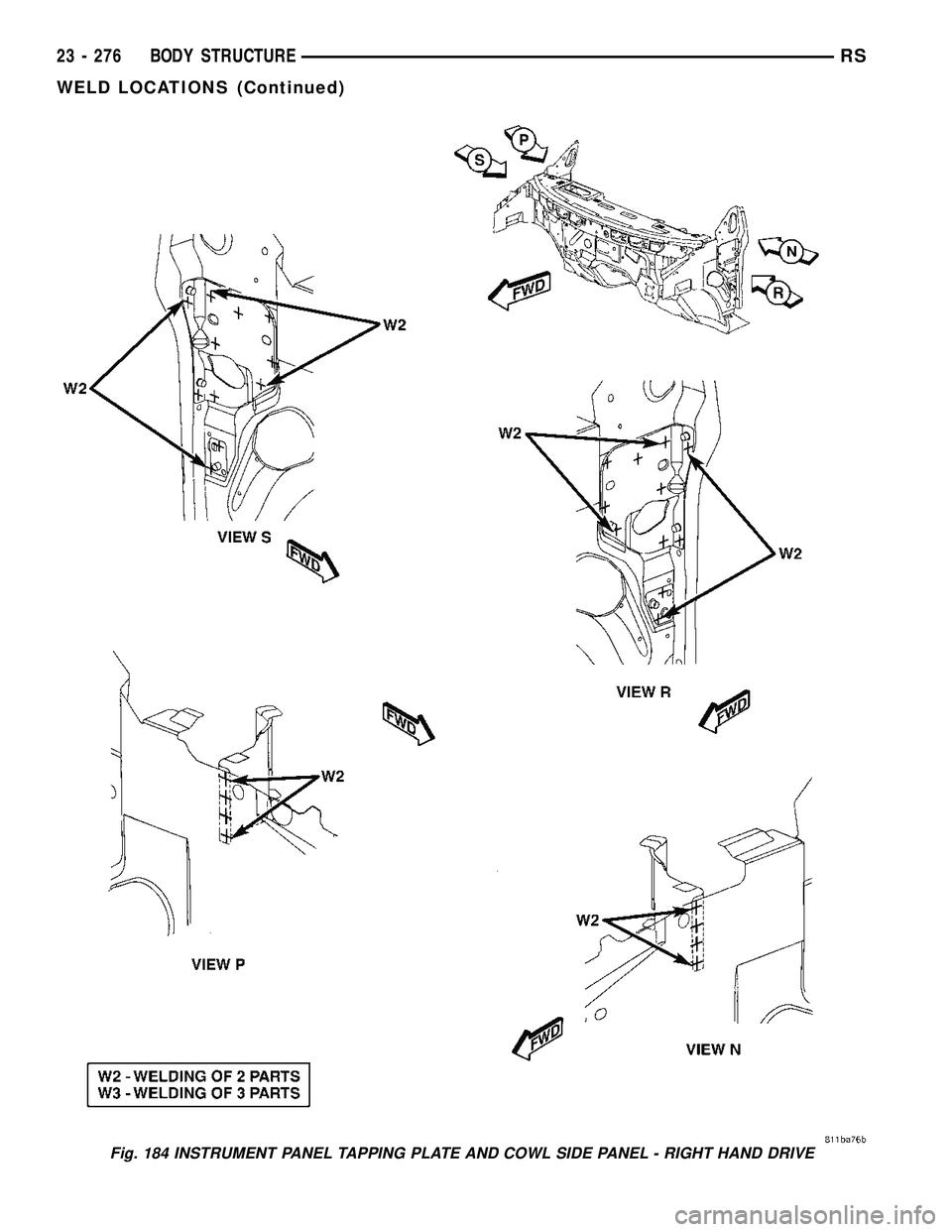

CHRYSLER VOYAGER 2004 Service Manual Fig. 184 INSTRUMENT PANEL TAPPING PLATE AND COWL SIDE PANEL - RIGHT HAND DRIVE 23 - 276 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2388 of 2585

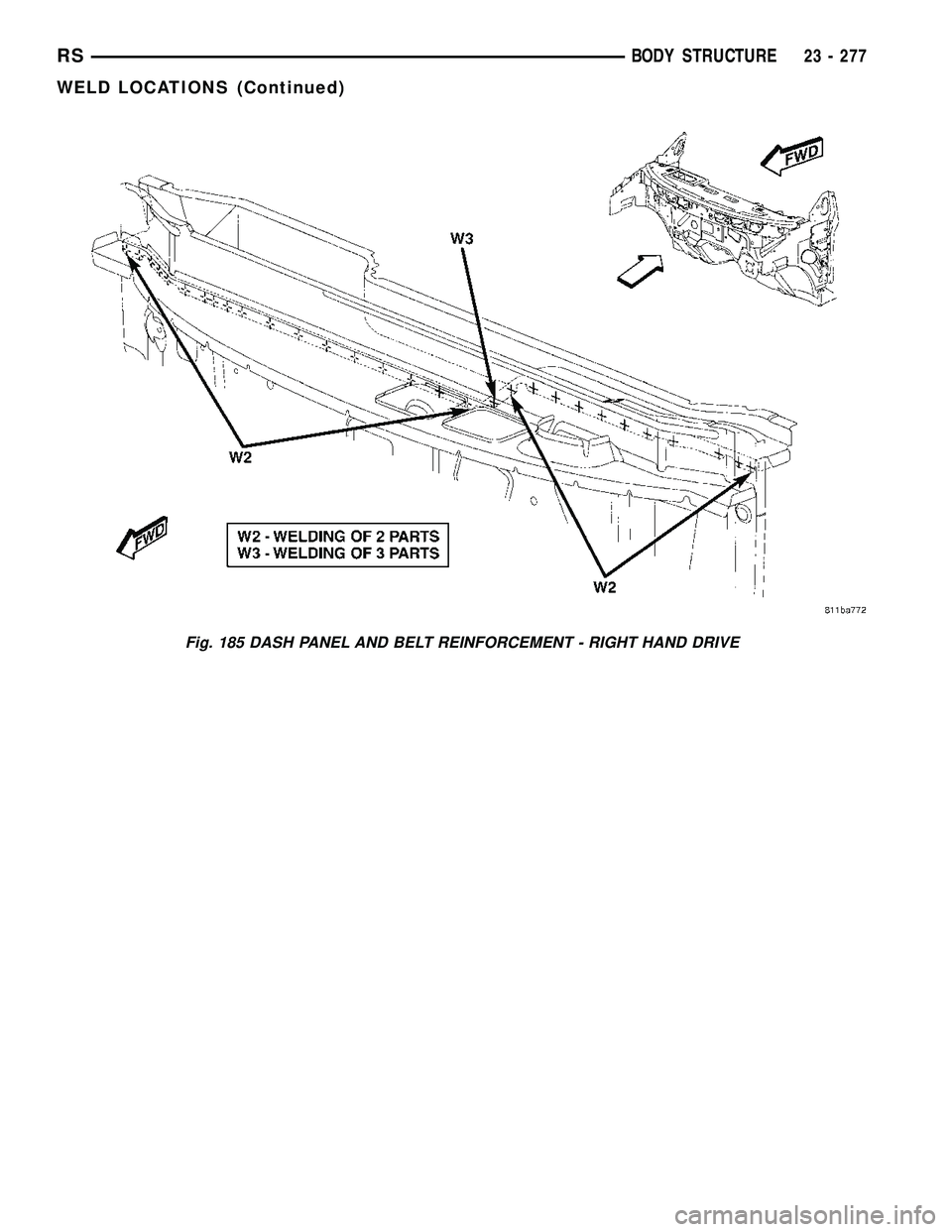

CHRYSLER VOYAGER 2004 Service Manual Fig. 185 DASH PANEL AND BELT REINFORCEMENT - RIGHT HAND DRIVE RSBODY STRUCTURE23 - 277 WELD LOCATIONS (Continued)

Page 2389 of 2585

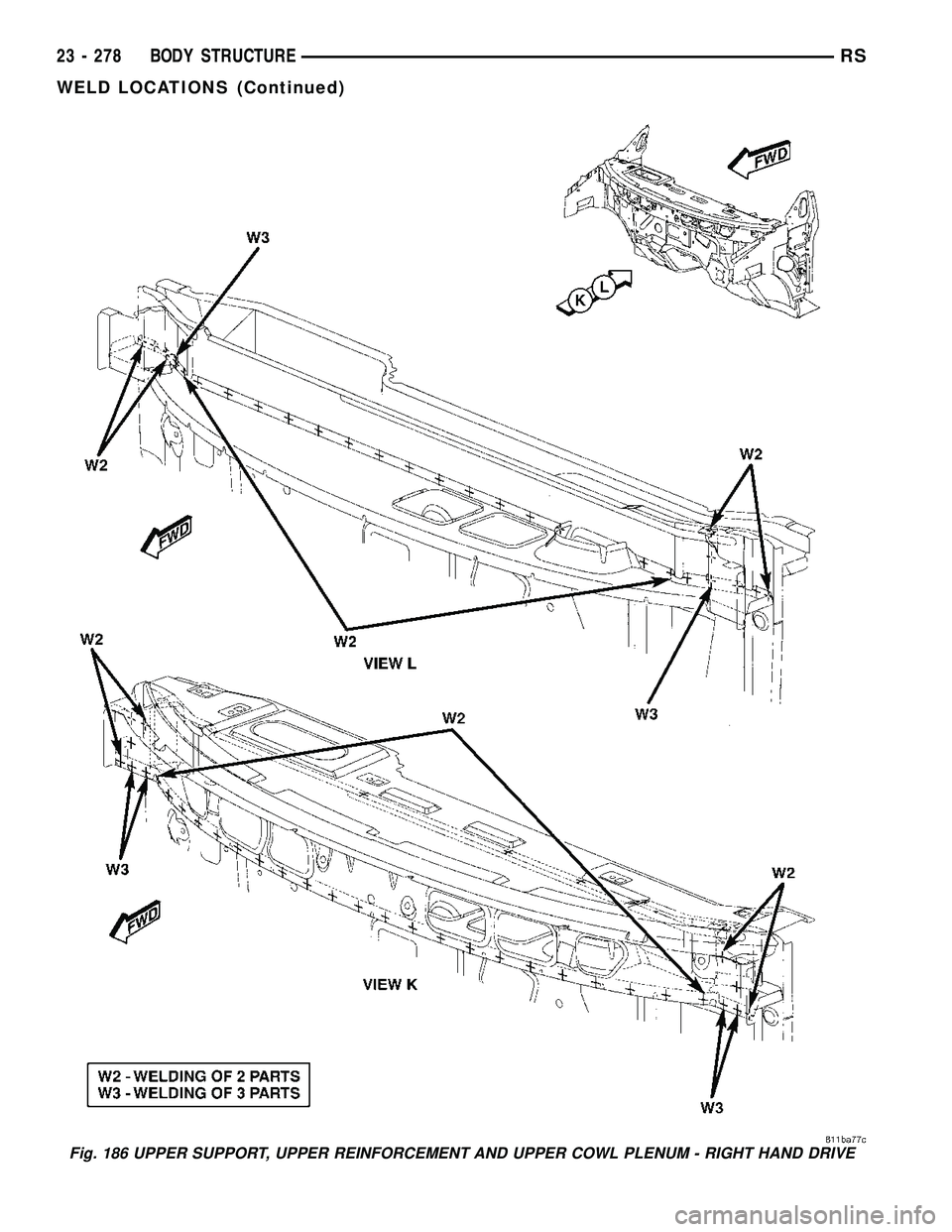

CHRYSLER VOYAGER 2004 Service Manual Fig. 186 UPPER SUPPORT, UPPER REINFORCEMENT AND UPPER COWL PLENUM - RIGHT HAND DRIVE 23 - 278 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2390 of 2585

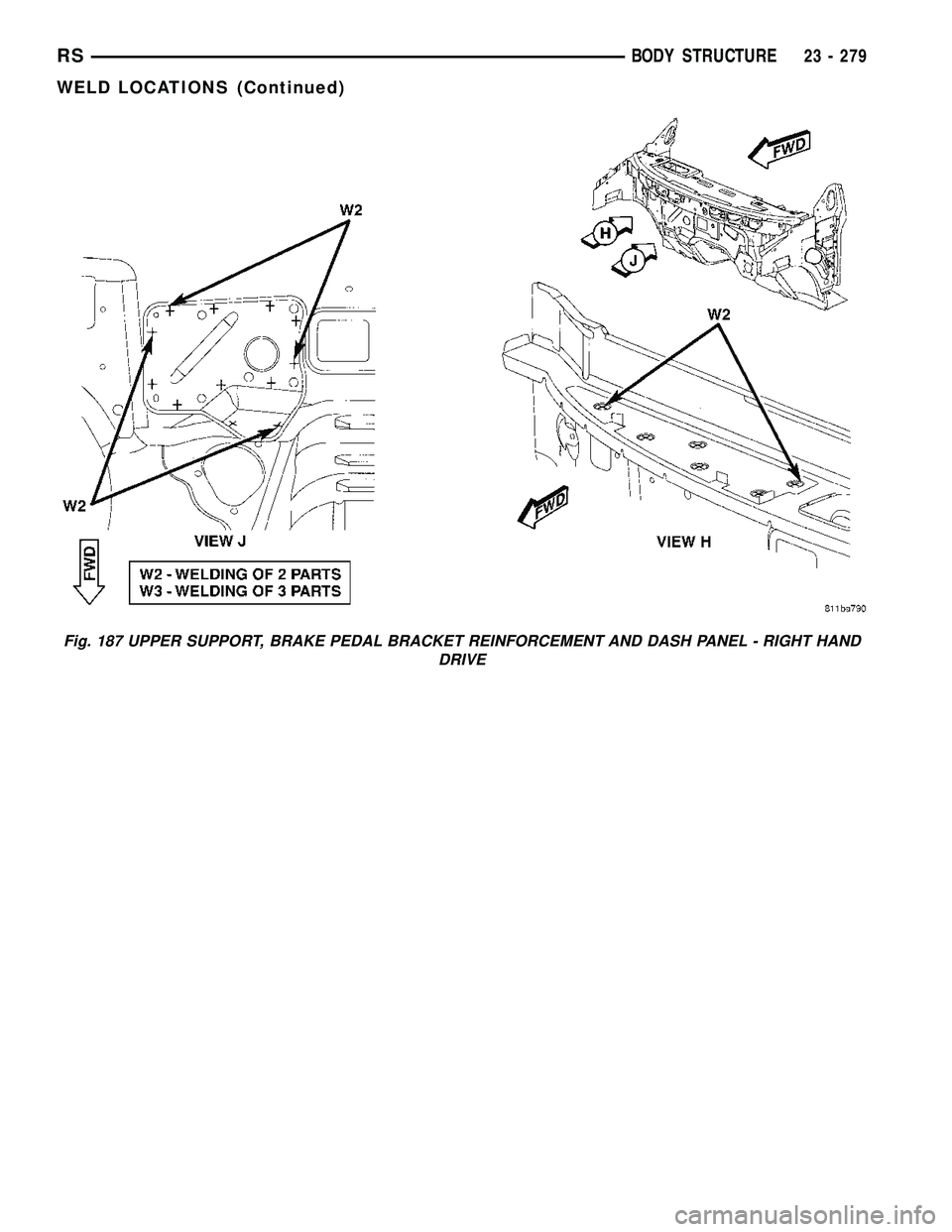

CHRYSLER VOYAGER 2004 Service Manual Fig. 187 UPPER SUPPORT, BRAKE PEDAL BRACKET REINFORCEMENT AND DASH PANEL - RIGHT HAND DRIVE RSBODY STRUCTURE23 - 279 WELD LOCATIONS (Continued)

Page 2391 of 2585

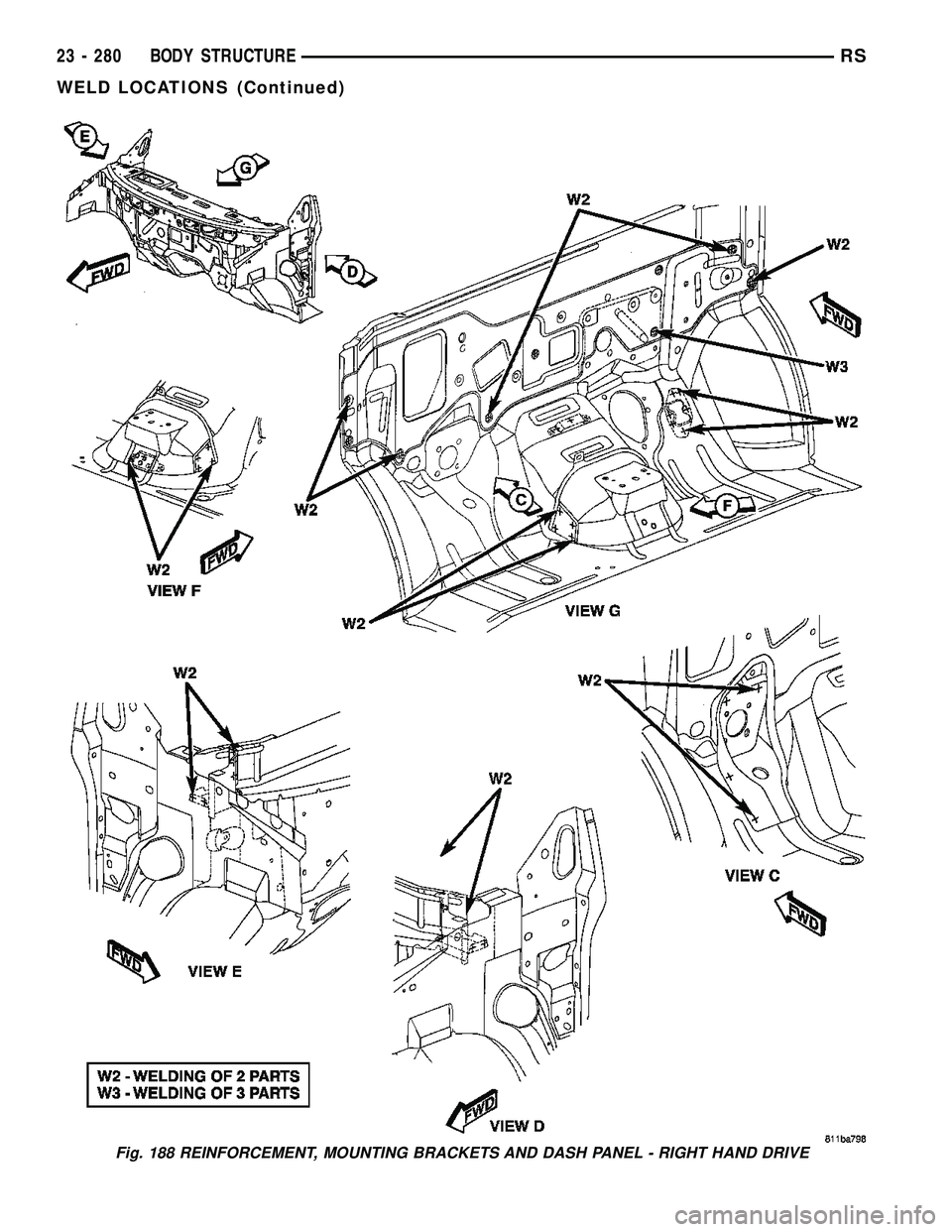

CHRYSLER VOYAGER 2004 Service Manual Fig. 188 REINFORCEMENT, MOUNTING BRACKETS AND DASH PANEL - RIGHT HAND DRIVE 23 - 280 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2392 of 2585

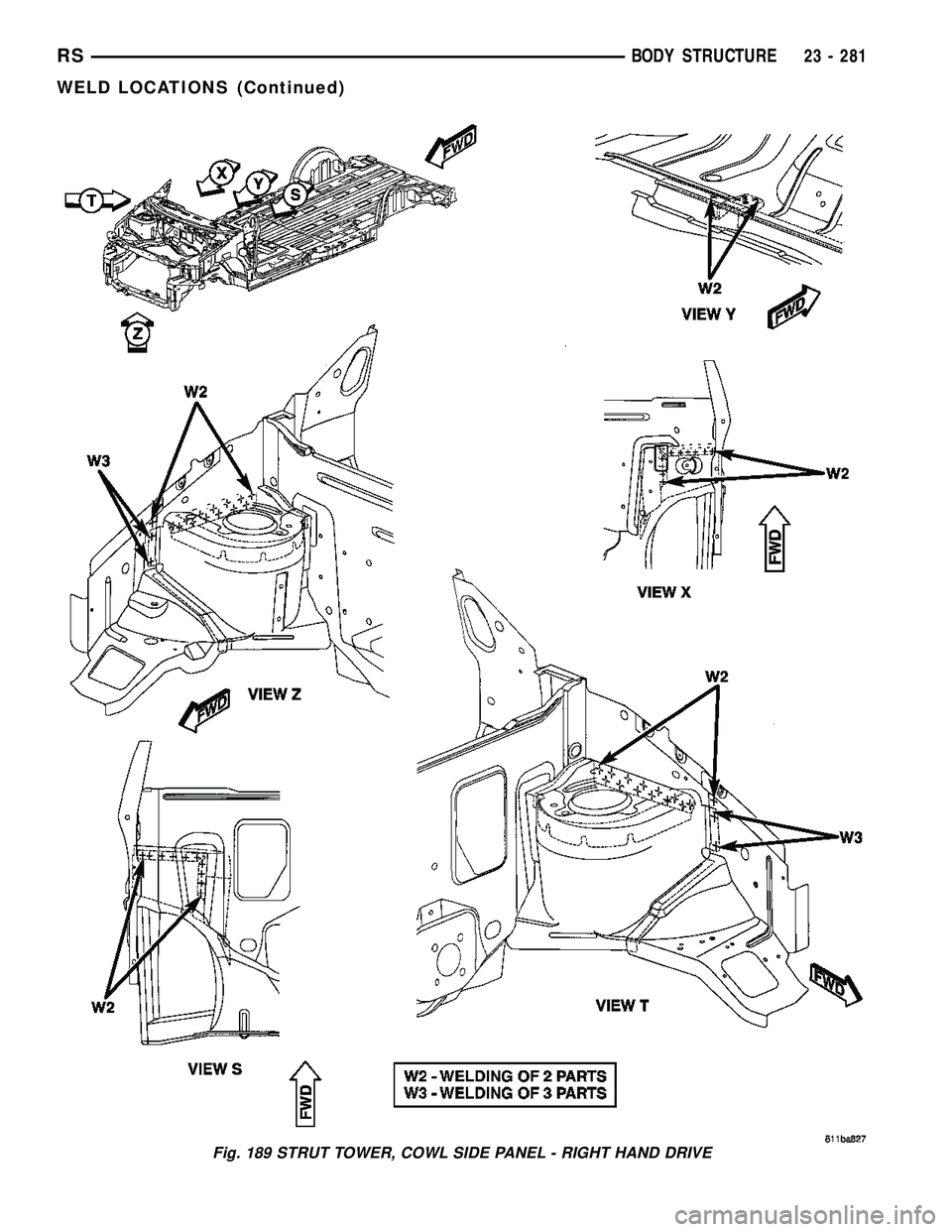

CHRYSLER VOYAGER 2004 Service Manual Fig. 189 STRUT TOWER, COWL SIDE PANEL - RIGHT HAND DRIVE RSBODY STRUCTURE23 - 281 WELD LOCATIONS (Continued)
