CHRYSLER VOYAGER 2004 Service Manual LEFT HEADLAMP LEVELING MOTOR (EXPORT) - WHITE 3 WAY CAV CIRCUIT FUNCTION 1 Z203 16BR GROUND 2 L77 16BK FUSED PARK LAMP RELAY OUTPUT (LEFT) 3 L13 16RD HEADLAMP ADJUST SIGNAL LEFT HIGH BEAM LAMP (EXPORT

Page 1186 of 2585

CHRYSLER VOYAGER 2004 Service Manual LEFT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 M22 20YL/OR COURTESY LAMPS DRIVER 2 Z327 20BK/OR GROUND 3 M27 20YL/LB READING LAMPS DRIVER LEFT PARK LAMP (EXPORT) - BLACK 2

Page 1187 of 2585

CHRYSLER VOYAGER 2004 Service Manual LEFT REAR PILLAR SPEAKER - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 X157 20DG LEFT REAR PILLAR SPEAKER (-) 2 X151 20DG/WT LEFT REAR PILLAR SPEAKER (+) LEFT REAR READING LAMP (LUXURY) - GRAY 3 WAY CAV CIRCUI

Page 1188 of 2585

CHRYSLER VOYAGER 2004 Service Manual LEFT REAR WHEEL SPEED SENSOR - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP- PLY 2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL LEFT REMOTE RADIO SWITCH - B

Page 1189 of 2585

CHRYSLER VOYAGER 2004 Service Manual LEFT SIDE IMPACT SENSOR 1 (PREMIUM ORC) - DK. GRAY 2 WAY CAV CIRCUIT FUNCTION 1 R15 20DB (EXCEPT RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND 1 R15 20LB (RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND 2 R13 2

Page 1190 of 2585

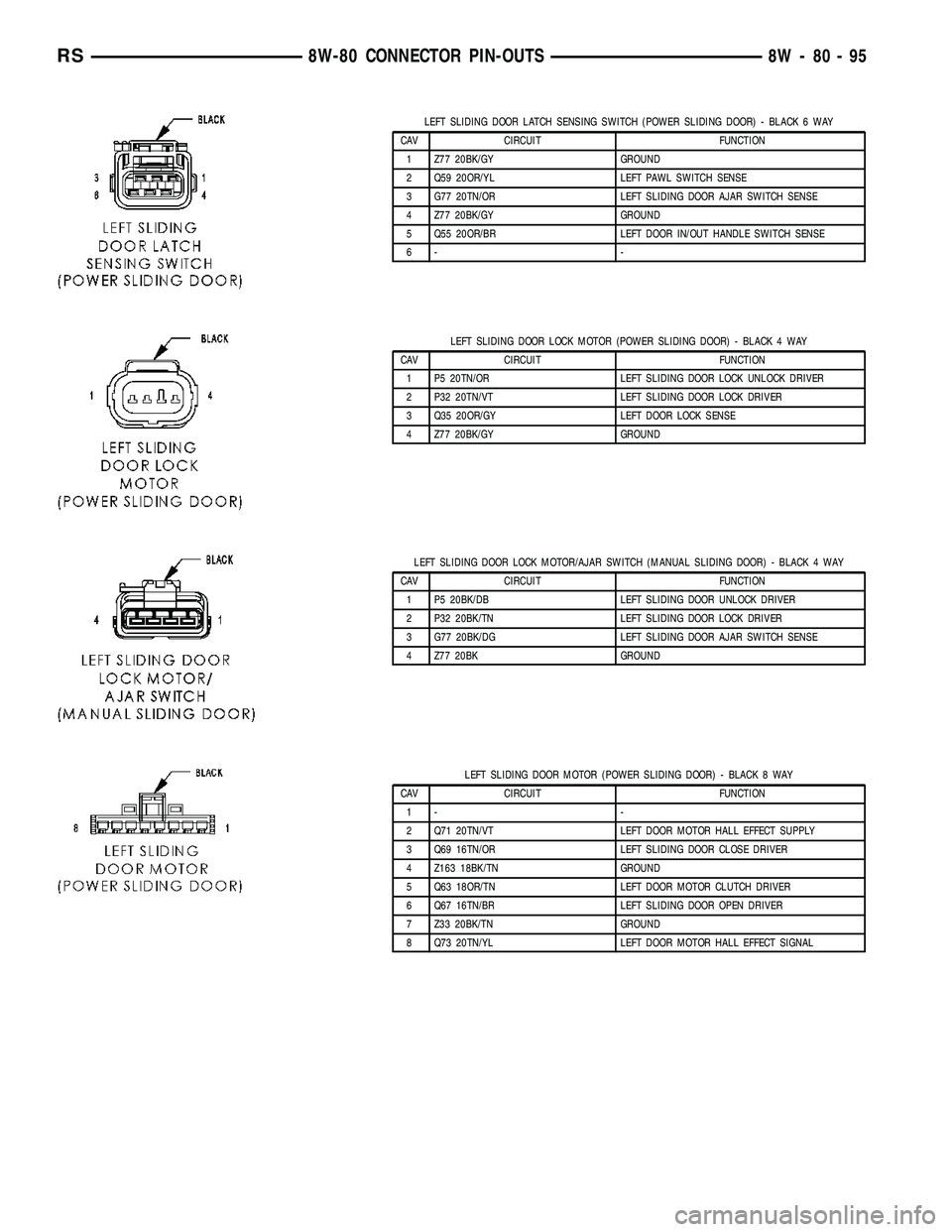

CHRYSLER VOYAGER 2004 Service Manual LEFT SLIDING DOOR LATCH SENSING SWITCH (POWER SLIDING DOOR) - BLACK 6 WAY CAV CIRCUIT FUNCTION 1 Z77 20BK/GY GROUND 2 Q59 20OR/YL LEFT PAWL SWITCH SENSE 3 G77 20TN/OR LEFT SLIDING DOOR AJAR SWITCH SEN

Page 1191 of 2585

CHRYSLER VOYAGER 2004 Service Manual LEFT SPEED CONTROL SWITCH - WHITE 2 WAY CAV CIRCUIT FUNCTION A V37 20VT (DIESEL) SPEED CONTROL SWITCH SIGNAL A V37 20VT (GAS) S/C SWITCH NO. 1 SIGNAL B Z23 20BK/VT LEFT SPEED CONTROL SWITCH GROUND LEF

Page 1192 of 2585

CHRYSLER VOYAGER 2004 Service Manual LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAY CAV CIRCUIT FUNCTION 1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT) 2 Z367 20BK/BR GROUND 3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE 4 Z430 20BK/LG GRO
