Page 2297 of 2585

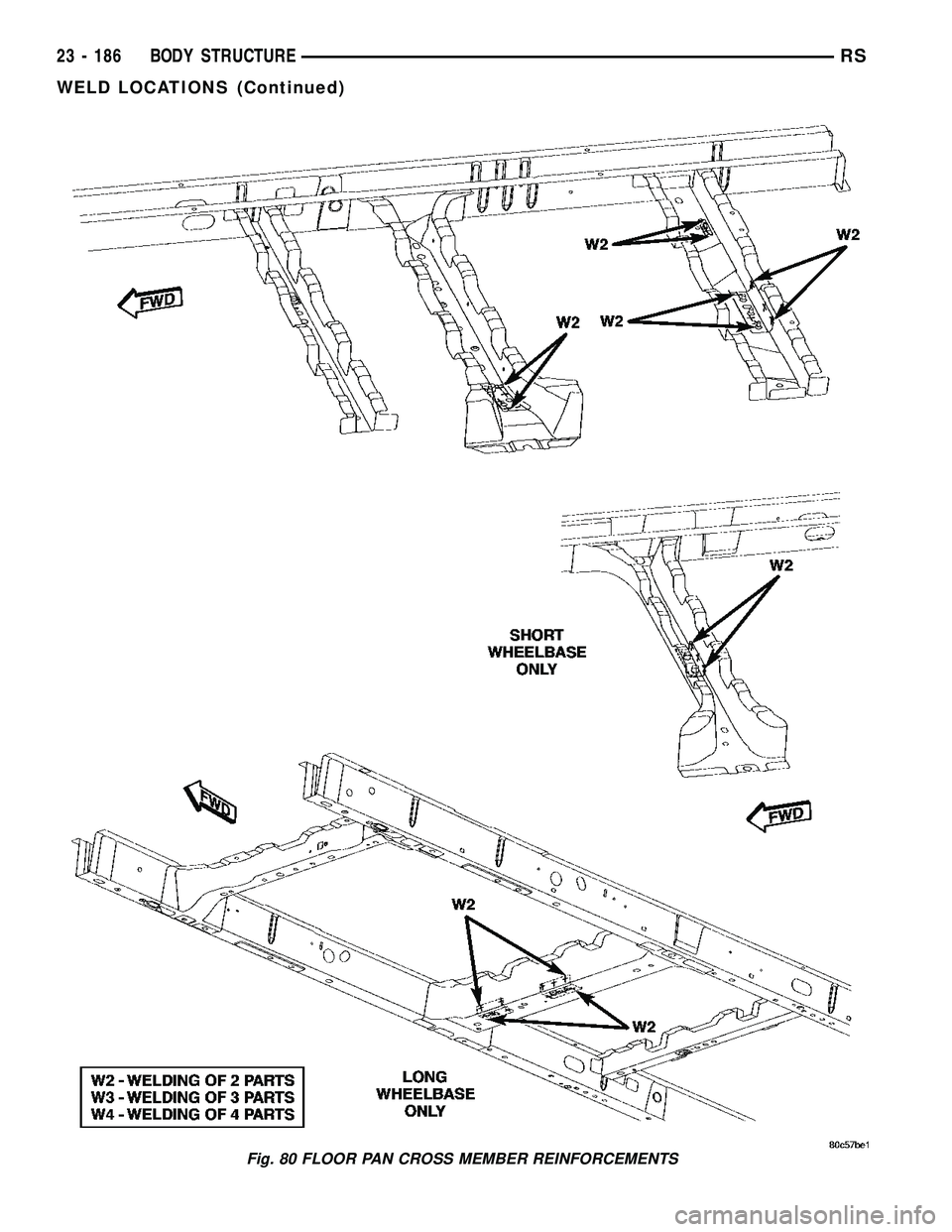

CHRYSLER VOYAGER 2004 Service Manual Fig. 80 FLOOR PAN CROSS MEMBER REINFORCEMENTS 23 - 186 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2298 of 2585

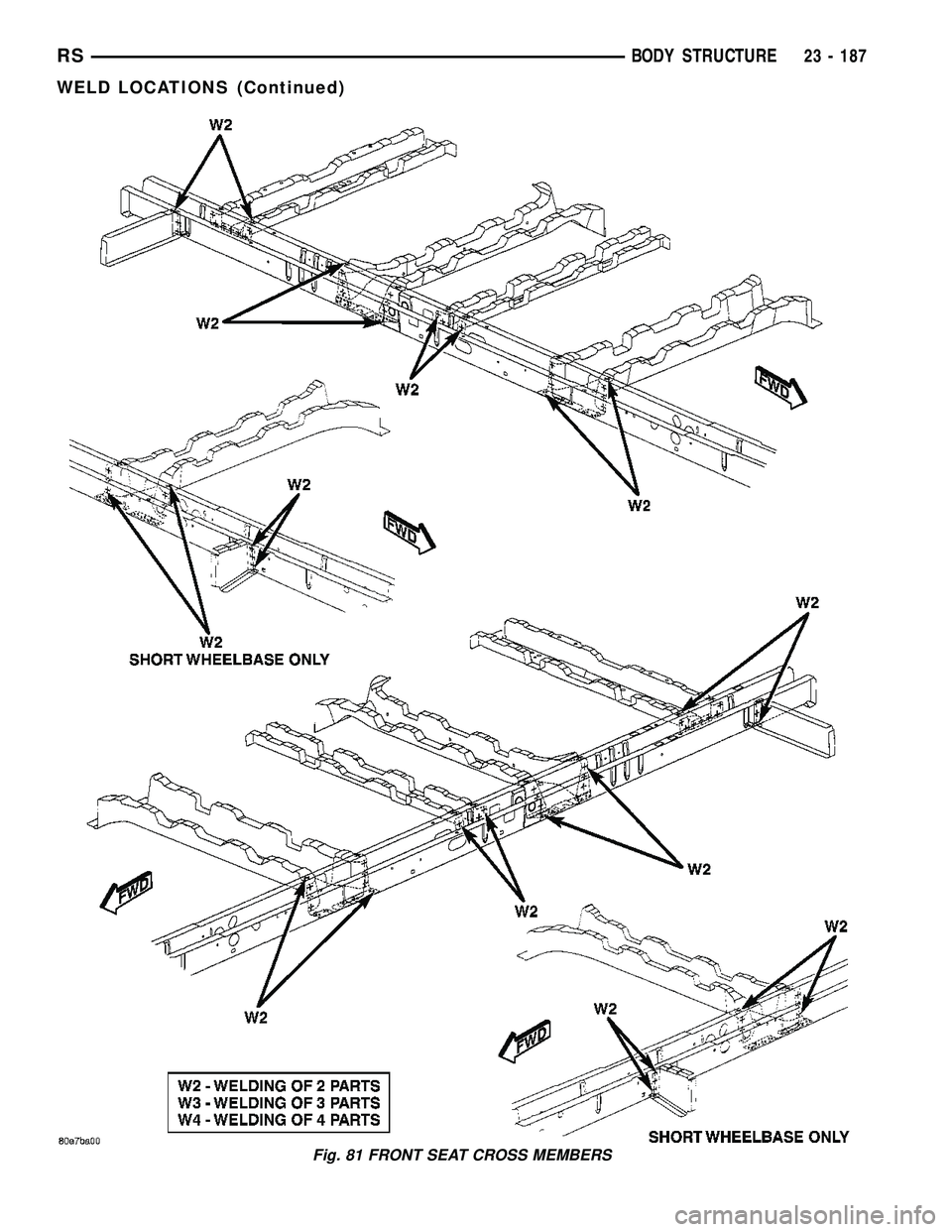

CHRYSLER VOYAGER 2004 Service Manual Fig. 81 FRONT SEAT CROSS MEMBERS RSBODY STRUCTURE23 - 187 WELD LOCATIONS (Continued)

Page 2299 of 2585

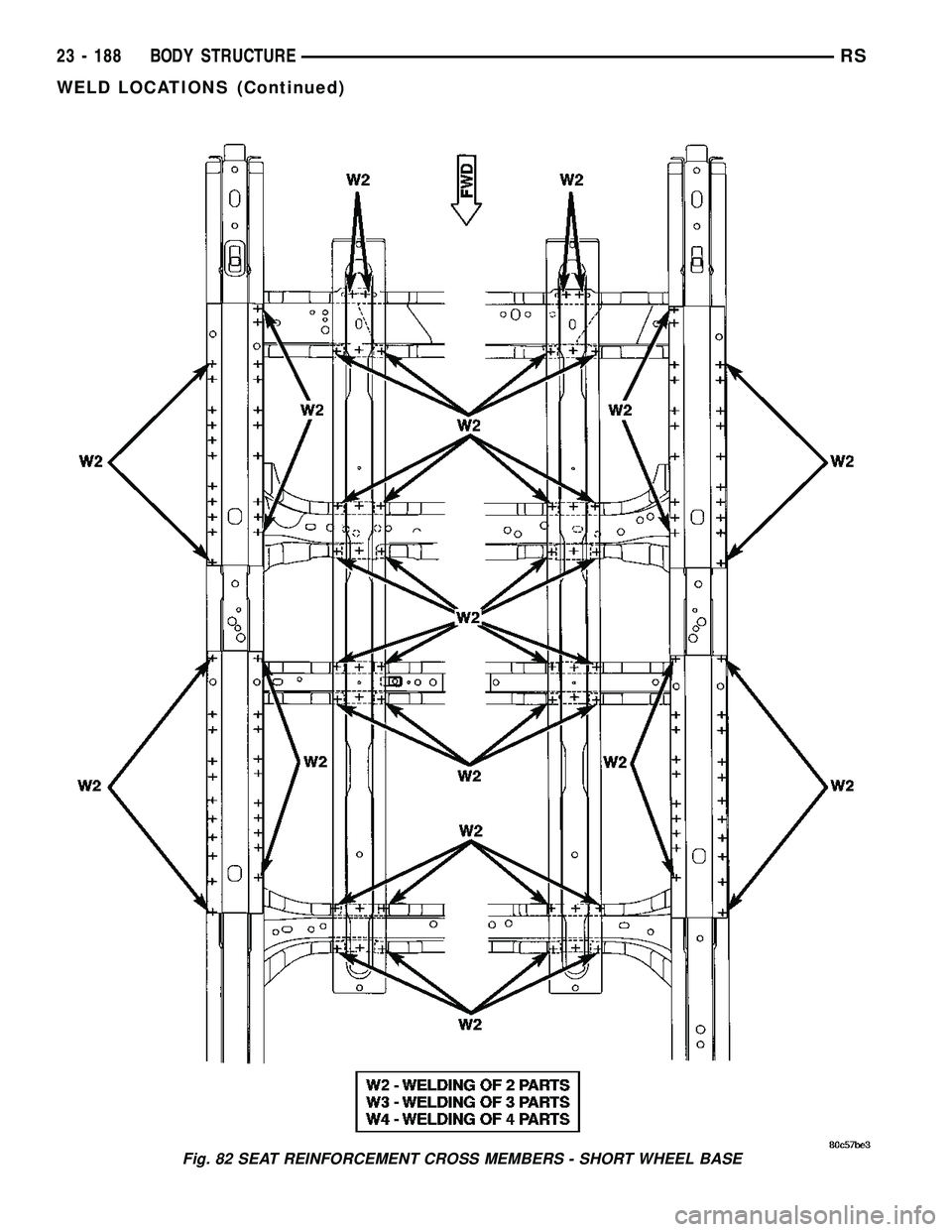

CHRYSLER VOYAGER 2004 Service Manual Fig. 82 SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE 23 - 188 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2300 of 2585

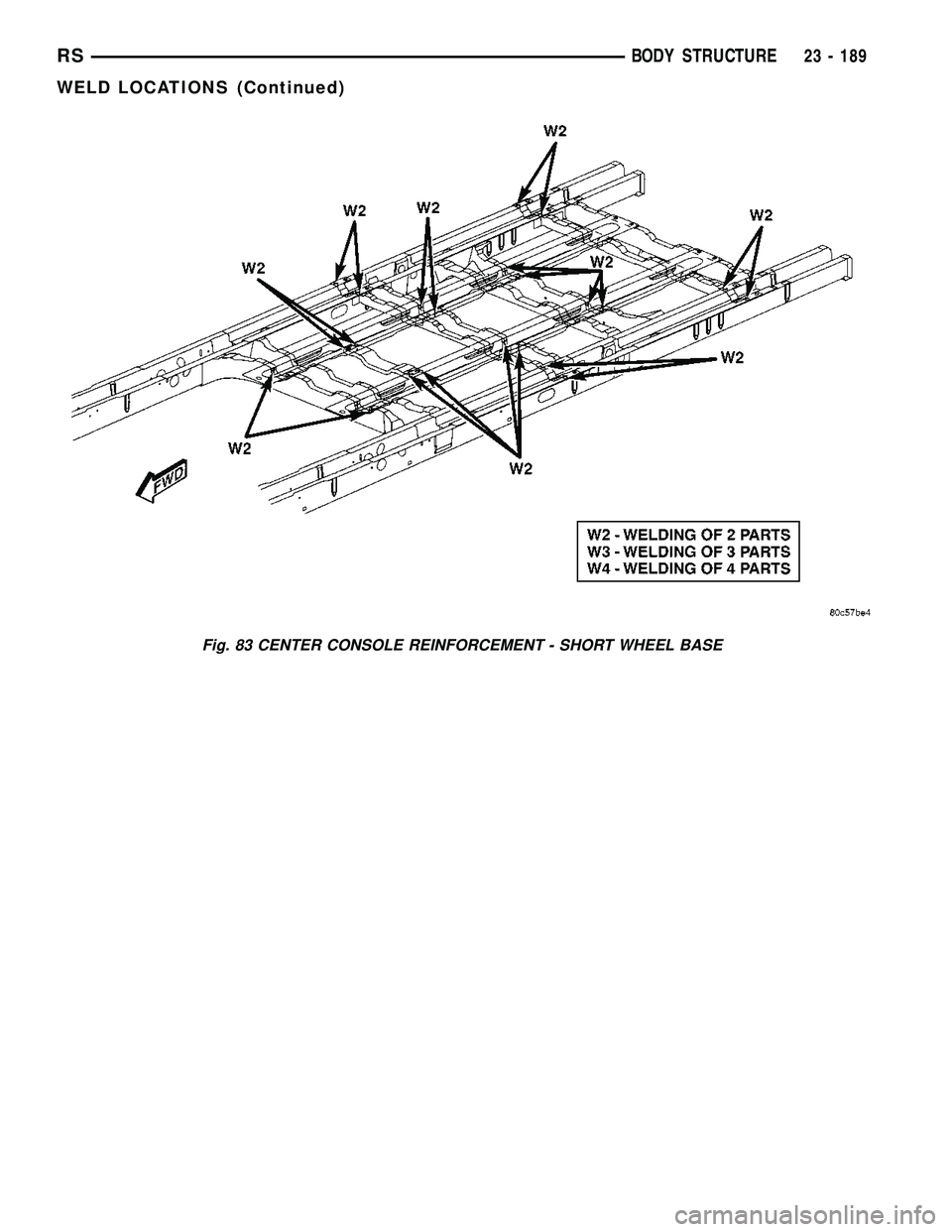

CHRYSLER VOYAGER 2004 Service Manual Fig. 83 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE RSBODY STRUCTURE23 - 189 WELD LOCATIONS (Continued)

Page 2301 of 2585

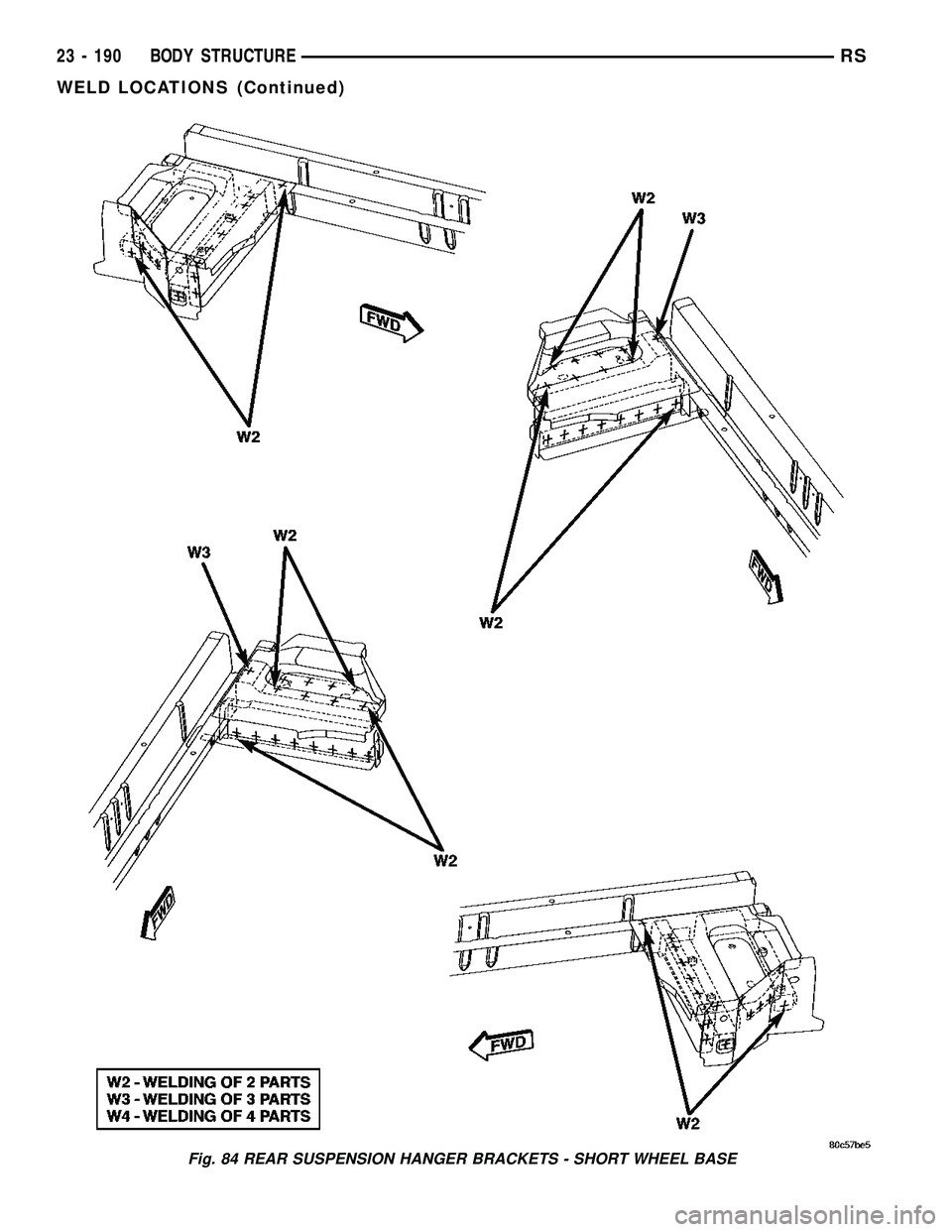

CHRYSLER VOYAGER 2004 Service Manual Fig. 84 REAR SUSPENSION HANGER BRACKETS - SHORT WHEEL BASE 23 - 190 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2302 of 2585

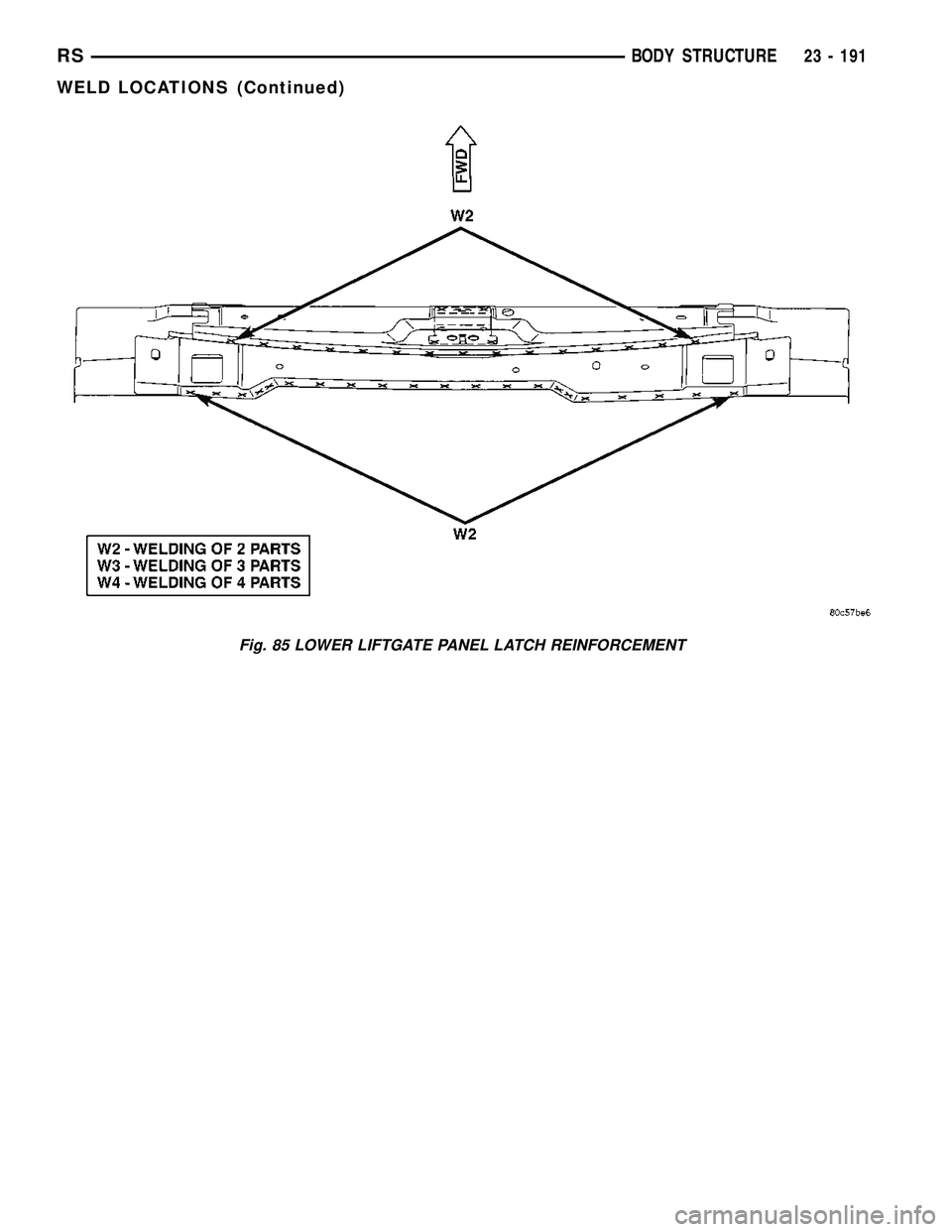

CHRYSLER VOYAGER 2004 Service Manual Fig. 85 LOWER LIFTGATE PANEL LATCH REINFORCEMENT RSBODY STRUCTURE23 - 191 WELD LOCATIONS (Continued)

Page 2303 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 86 ENGINE MOUNTING PLATE & TOW BRACKET 23 - 192 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2304 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 87 HEADLAMP MOUNTING PLATE RSBODY STRUCTURE23 - 193 WELD LOCATIONS (Continued)
