Page 2313 of 2585

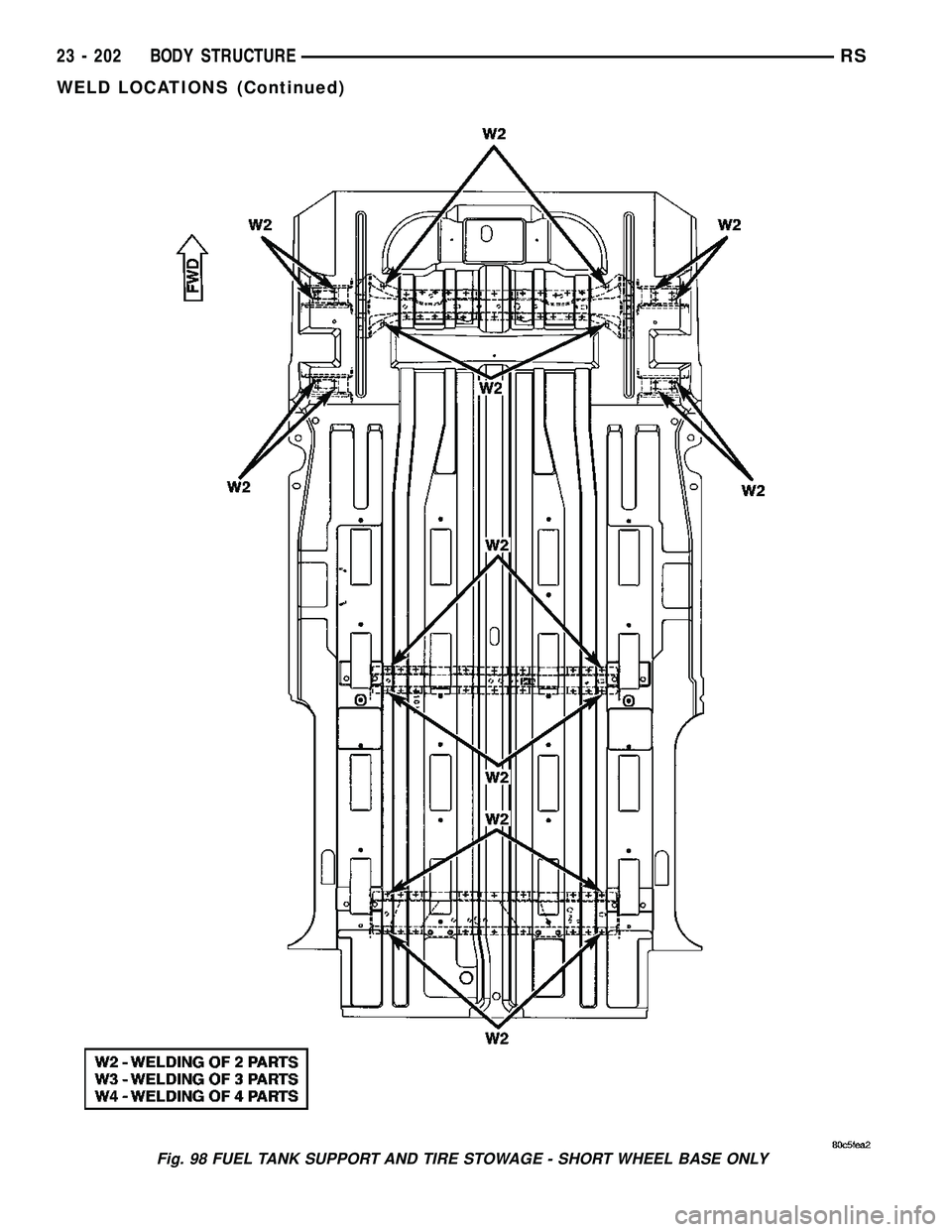

CHRYSLER VOYAGER 2004 Service Manual Fig. 98 FUEL TANK SUPPORT AND TIRE STOWAGE - SHORT WHEEL BASE ONLY 23 - 202 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2314 of 2585

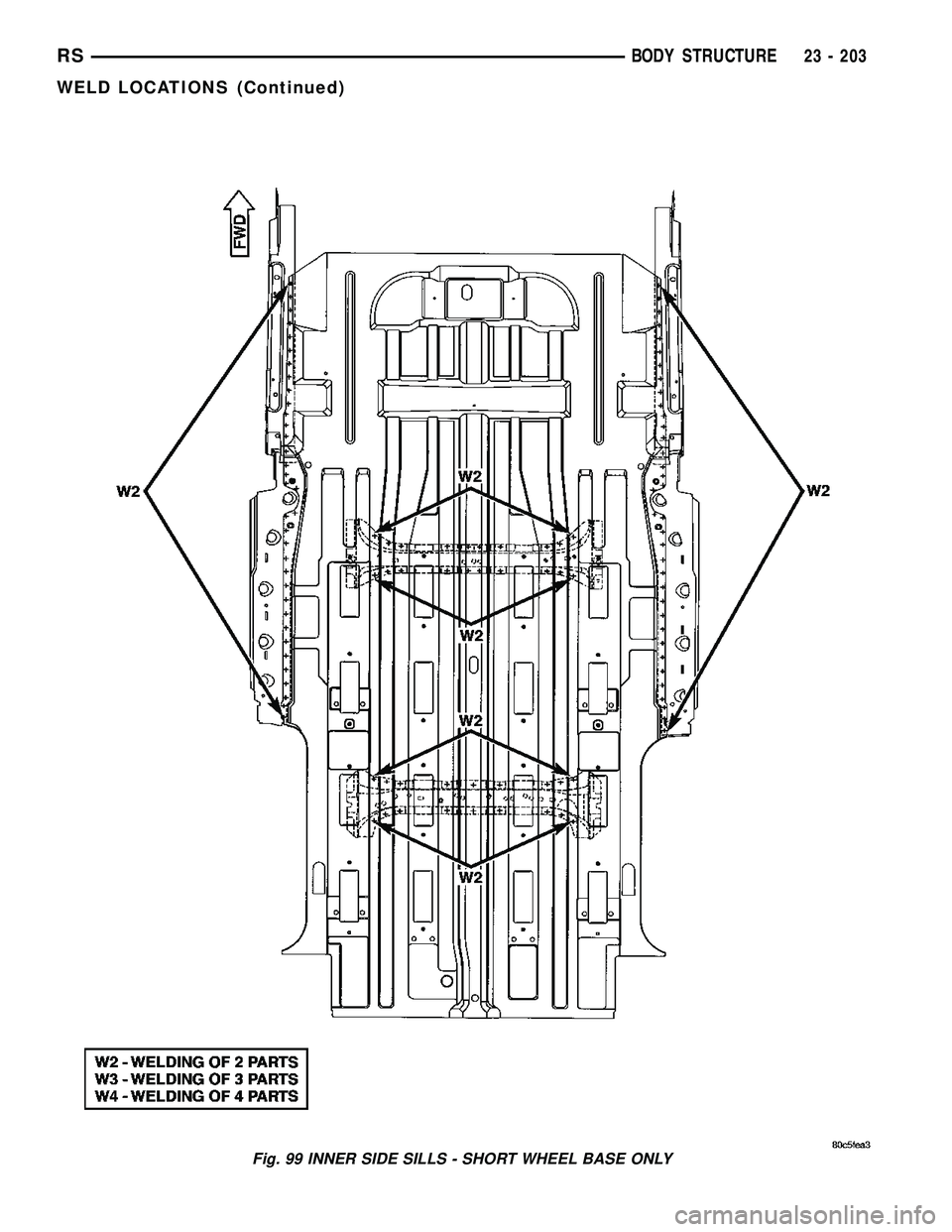

CHRYSLER VOYAGER 2004 Service Manual Fig. 99 INNER SIDE SILLS - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 203 WELD LOCATIONS (Continued)

Page 2315 of 2585

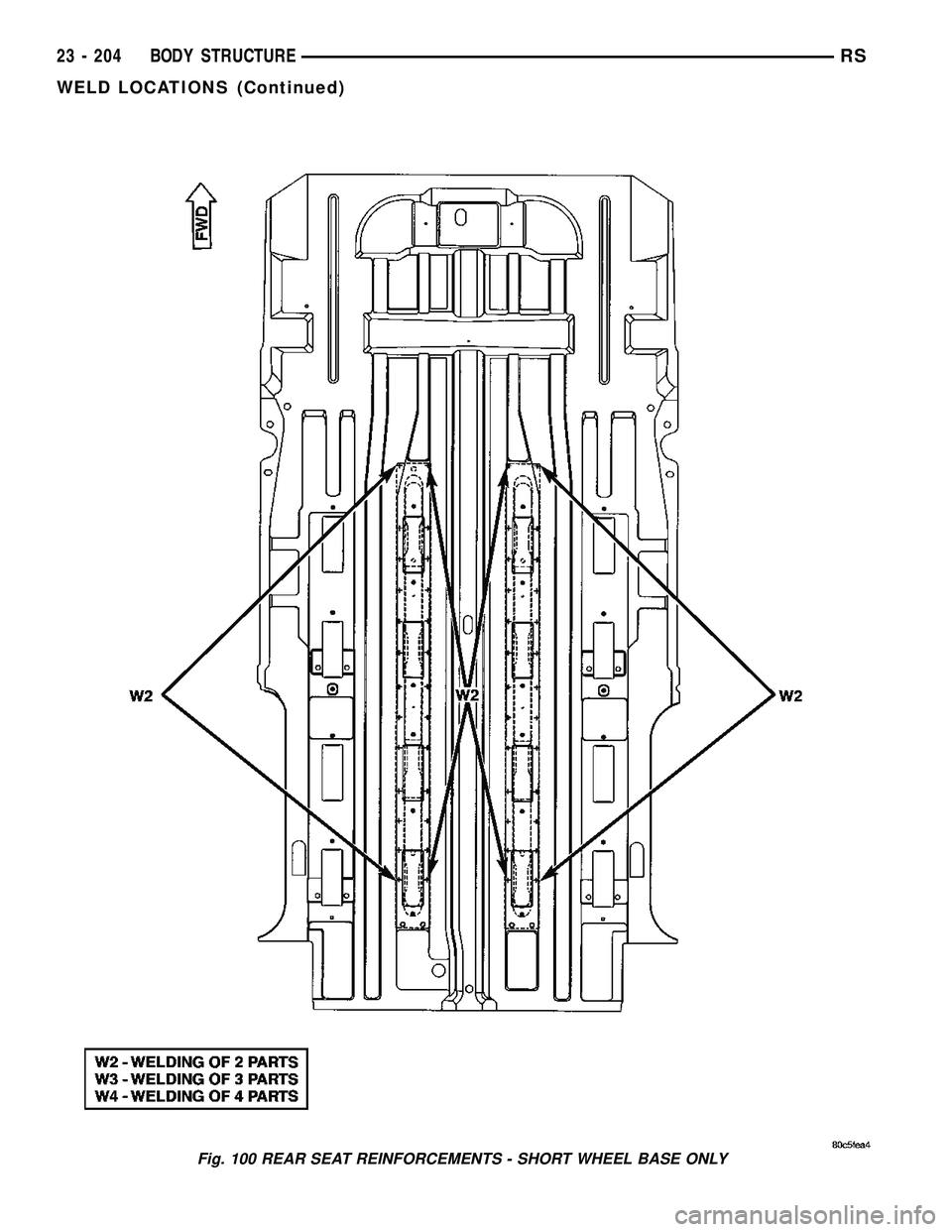

CHRYSLER VOYAGER 2004 Service Manual Fig. 100 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY 23 - 204 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2316 of 2585

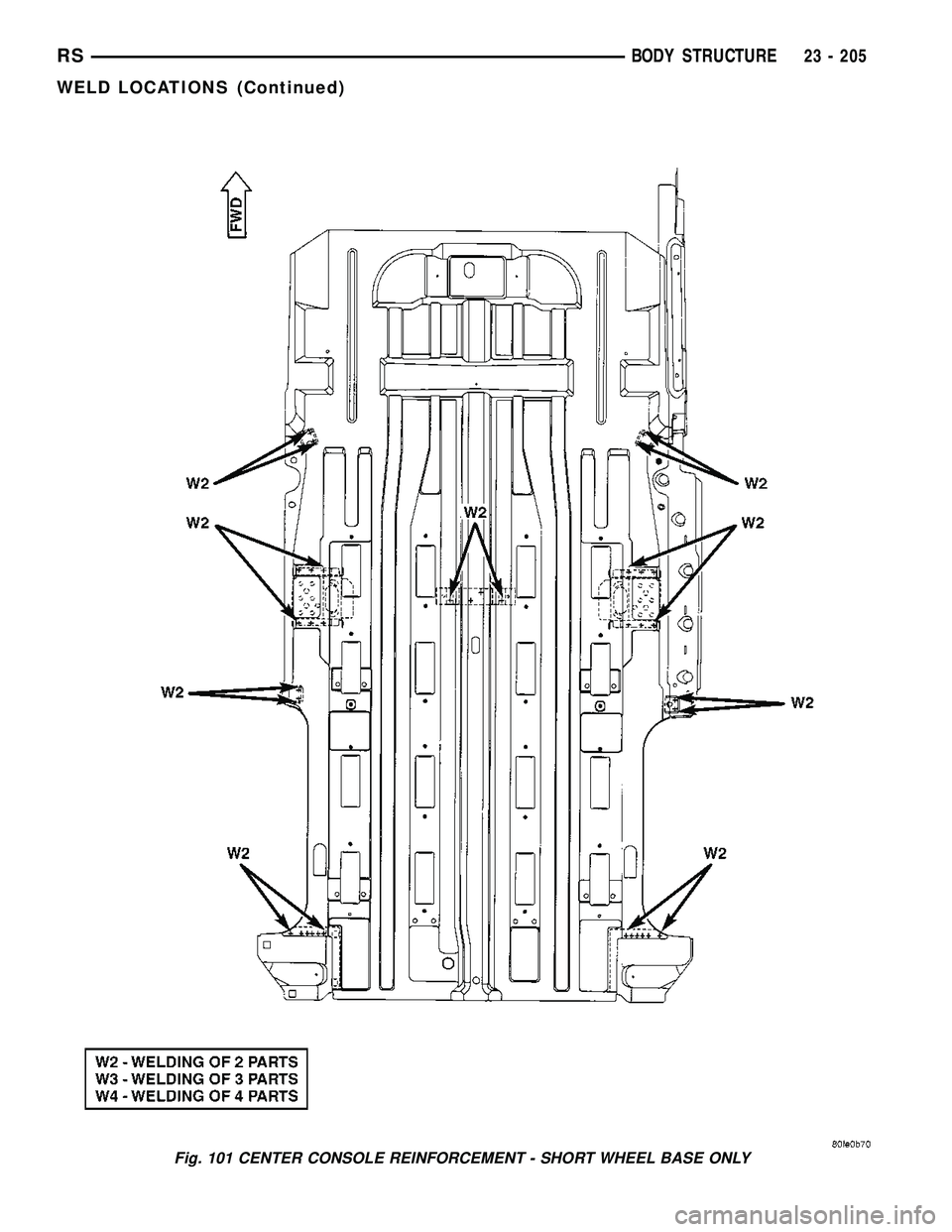

CHRYSLER VOYAGER 2004 Service Manual Fig. 101 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 205 WELD LOCATIONS (Continued)

Page 2317 of 2585

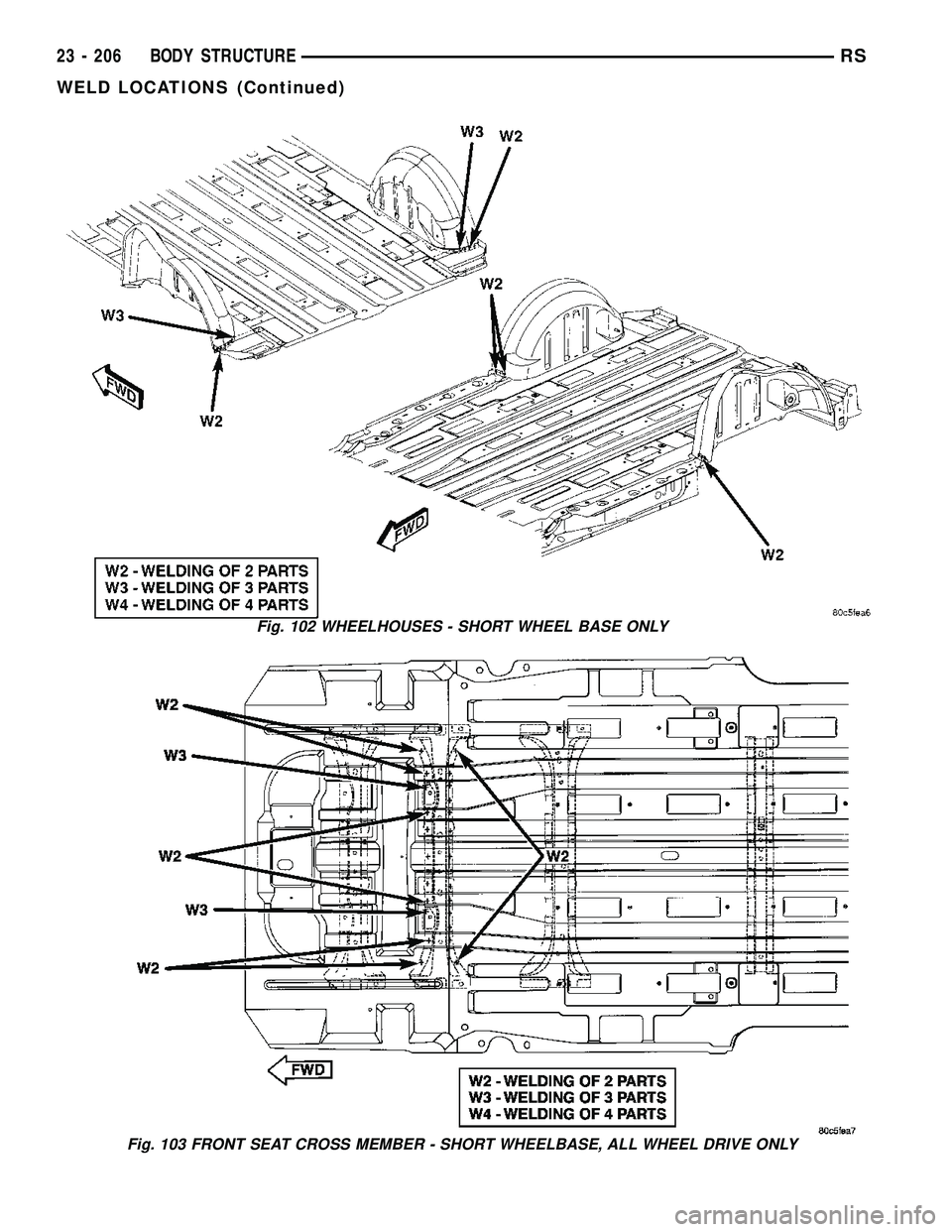

CHRYSLER VOYAGER 2004 Service Manual Fig. 102 WHEELHOUSES - SHORT WHEEL BASE ONLY Fig. 103 FRONT SEAT CROSS MEMBER - SHORT WHEELBASE, ALL WHEEL DRIVE ONLY 23 - 206 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2318 of 2585

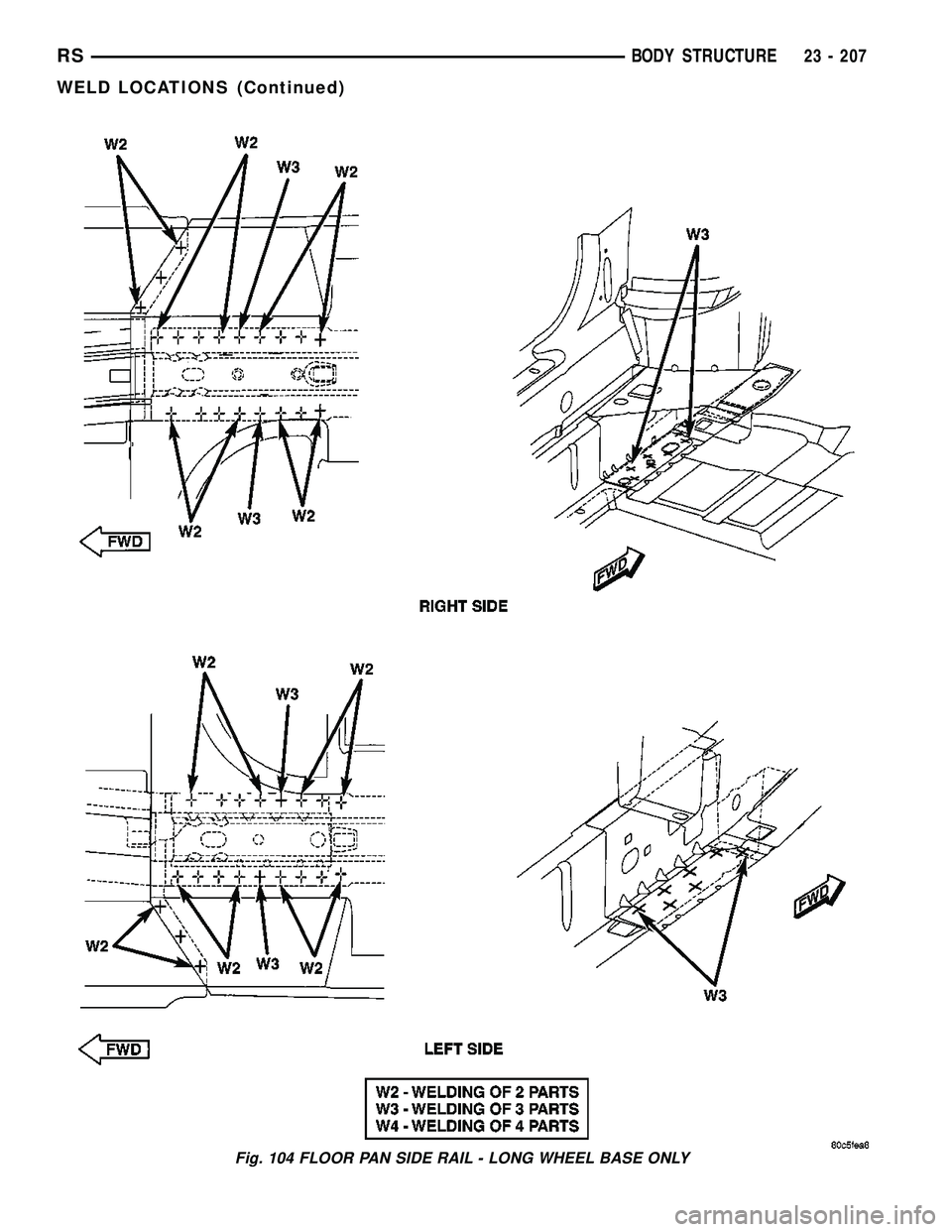

CHRYSLER VOYAGER 2004 Service Manual Fig. 104 FLOOR PAN SIDE RAIL - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 207 WELD LOCATIONS (Continued)

Page 2319 of 2585

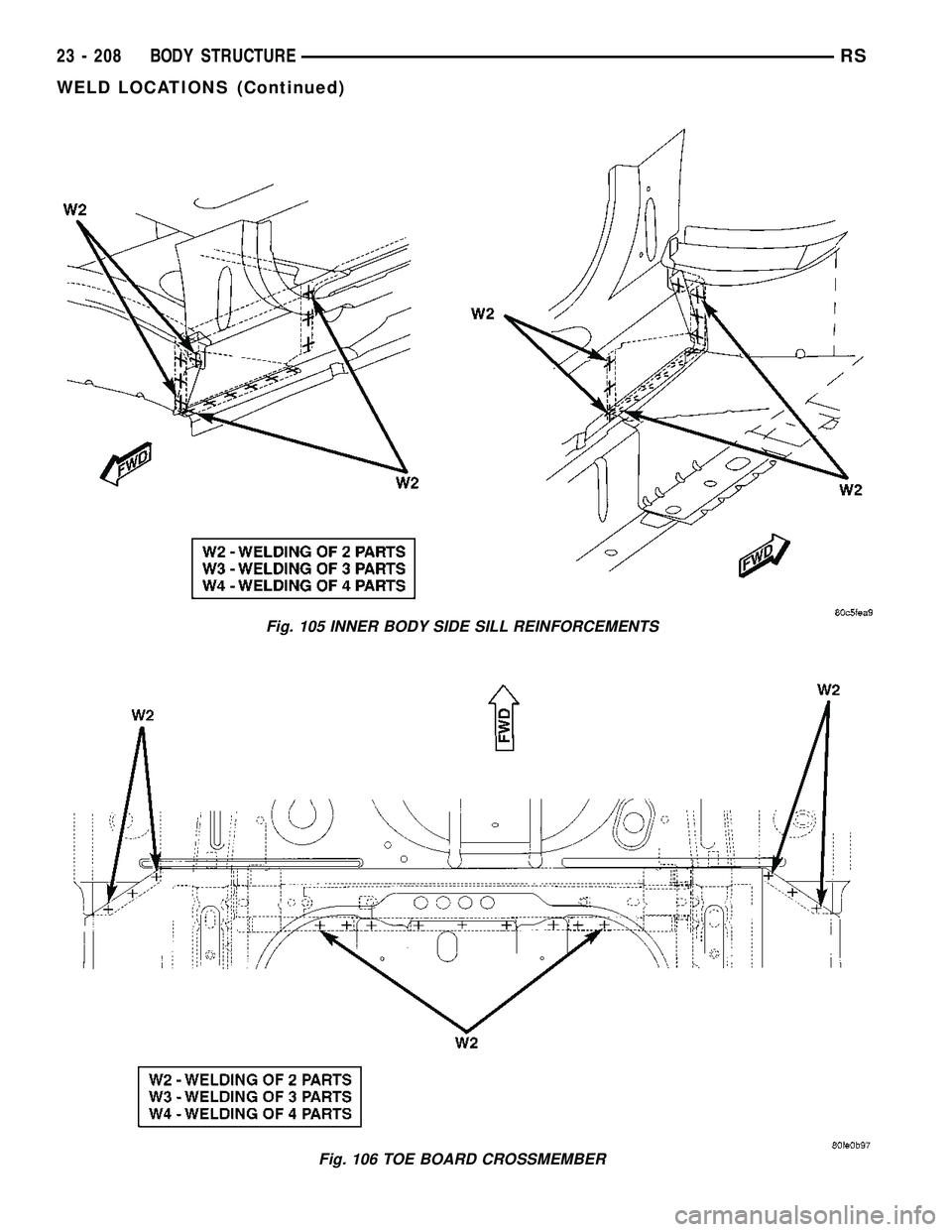

CHRYSLER VOYAGER 2004 Service Manual Fig. 105 INNER BODY SIDE SILL REINFORCEMENTS Fig. 106 TOE BOARD CROSSMEMBER 23 - 208 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2320 of 2585

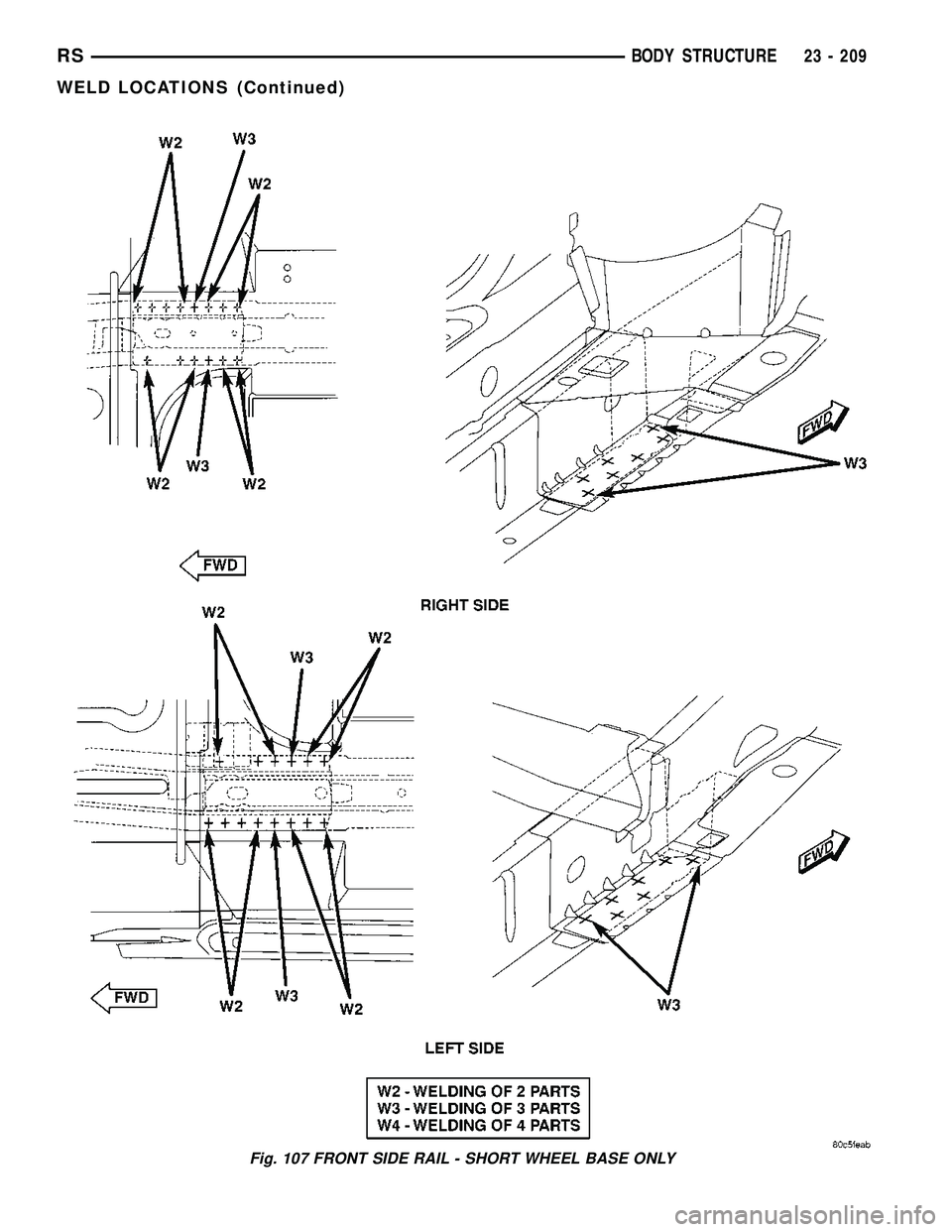

CHRYSLER VOYAGER 2004 Service Manual Fig. 107 FRONT SIDE RAIL - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 209 WELD LOCATIONS (Continued)
