Page 1161 of 2585

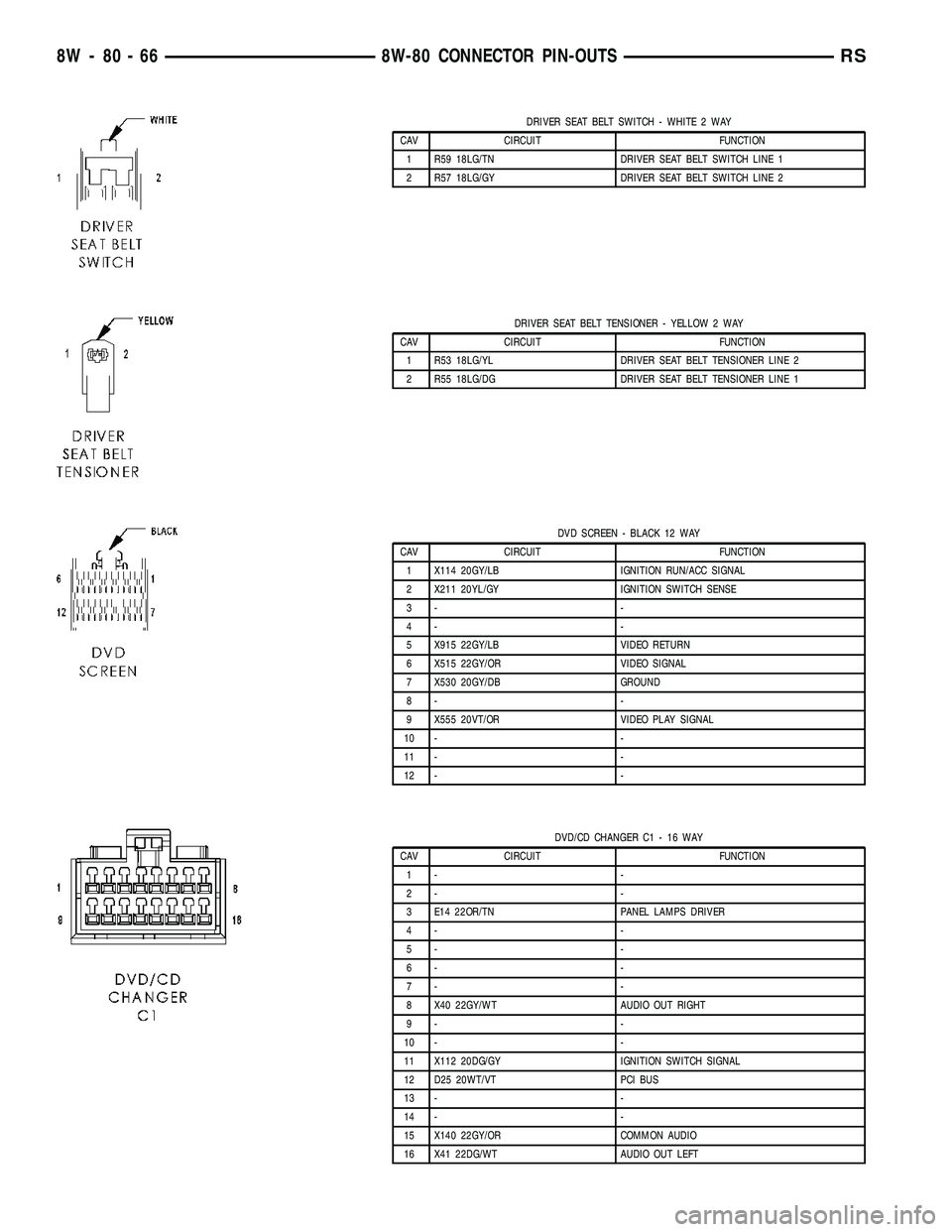

CHRYSLER VOYAGER 2004 Service Manual DRIVER SEAT BELT SWITCH - WHITE 2 WAY CAV CIRCUIT FUNCTION 1 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1 2 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2 DRIVER SEAT BELT TENSIONER - YELLOW 2 WAY CAV CIRCU

Page 1162 of 2585

CHRYSLER VOYAGER 2004 Service Manual DVD/CD CHANGER C2 - 12 WAY CAV CIRCUIT FUNCTION 1 X114 20GY/LB IGNITION RUN/ACC SIGNAL 2 X211 20YL/GY IGNITION SWITCH SENSE 3- - 4- - 5 X915 22GY/LB VIDEO RETURN 6 X515 22GY/OR VIDEO SIGNAL 7 X530 20G

Page 1163 of 2585

CHRYSLER VOYAGER 2004 Service Manual EGR SOLENOID (DIESEL) - LT. GRAY 2 WAY CAV CIRCUIT FUNCTION 1 K35 20GY/YL EGR SOLENOID CONTROL 2 K342 16BR/WT ECM/PCM RELAY OUTPUT ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY CAV CIRCUIT FUNCTION

Page 1164 of 2585

CHRYSLER VOYAGER 2004 Service Manual ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY CAV CIRCUIT FUNCTION 44 - - 45 - - 46 - - 47 L50 20WT/TN PRIMARY BRAKE SWITCH SIGNAL 48 B29 20DG/WT SECONDARY BRAKE SWITCH SIGNAL 49 T751 20YL FUSED IG

Page 1165 of 2585

CHRYSLER VOYAGER 2004 Service Manual ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAY CAV CIRCUIT FUNCTION 82 - - 83 - - 84 - - 85 - - 86 - - 87 - - 88 K35 20GY/YL EGR SOLENOID CONTROL 89 K35 20GY/YL EGR SOLENOID CONTROL 90 - - 91 - - 92

Page 1166 of 2585

CHRYSLER VOYAGER 2004 Service Manual ENGINE COOLANT TEMP SENSOR (DIESEL) - BLUE 2 WAY CAV CIRCUIT FUNCTION 1 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL 2 K900 20DB/DG SENSOR GROUND ENGINE COOLANT TEMP SENSOR (GAS) - BLACK 2 WAY

Page 1167 of 2585

CHRYSLER VOYAGER 2004 Service Manual EVAP/PURGE SOLENOID (GAS) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 K52 18DB/WT EVAP PURGE CONTROL 2 K70 18DB/BR EVAP PURGE RETURN EVAPORATOR TEMPERATURE SENSOR - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 C21 20D

Page 1168 of 2585

CHRYSLER VOYAGER 2004 Service Manual FRONT BLOWER MODULE C1 (ATC) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1- - 2 Z134 12BK/OR GROUND 3 C56 20DB/LB BLOWER MOTOR CONTROL 4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT FRONT BLOWER MODULE C2 (AT
