Page 2329 of 2585

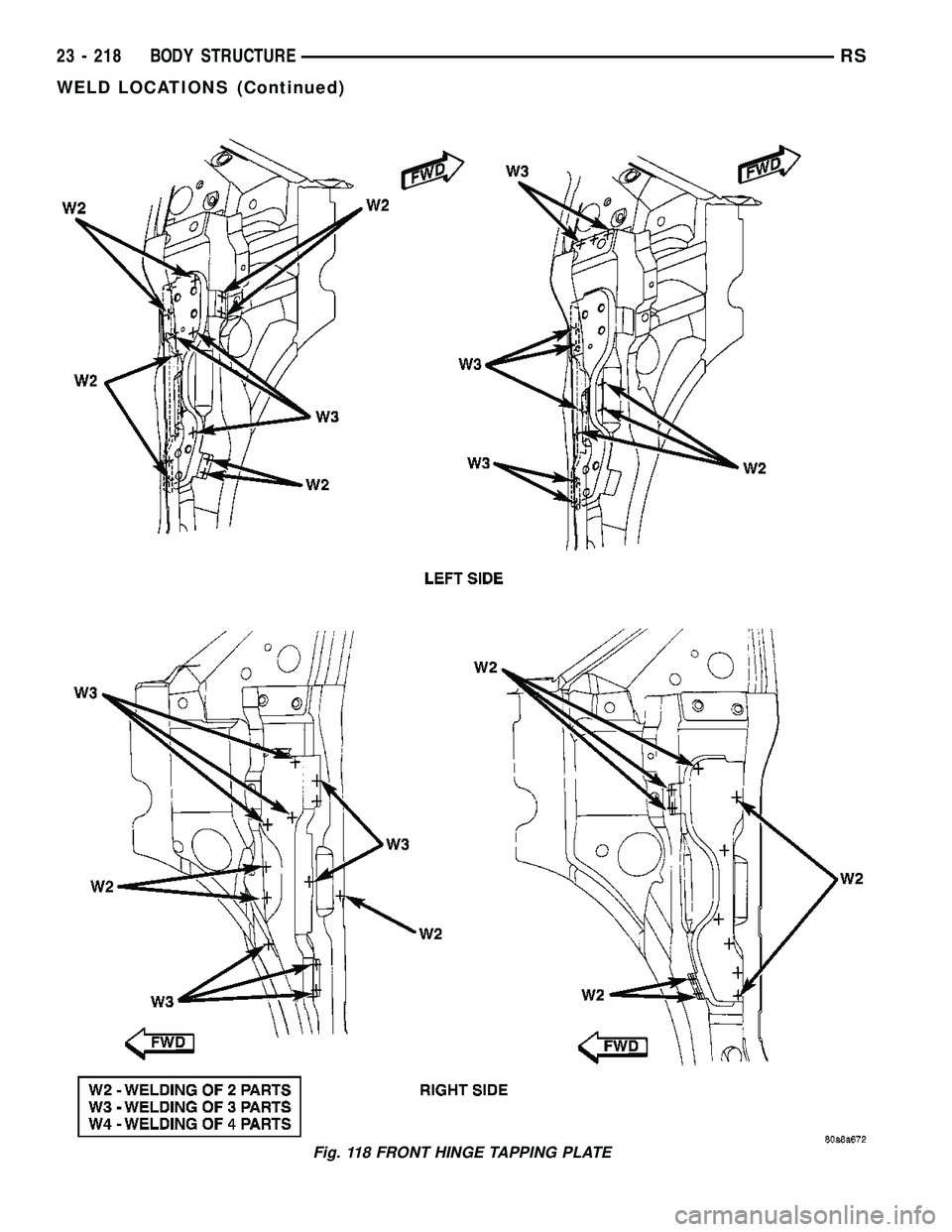

CHRYSLER VOYAGER 2004 Service Manual Fig. 118 FRONT HINGE TAPPING PLATE 23 - 218 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2330 of 2585

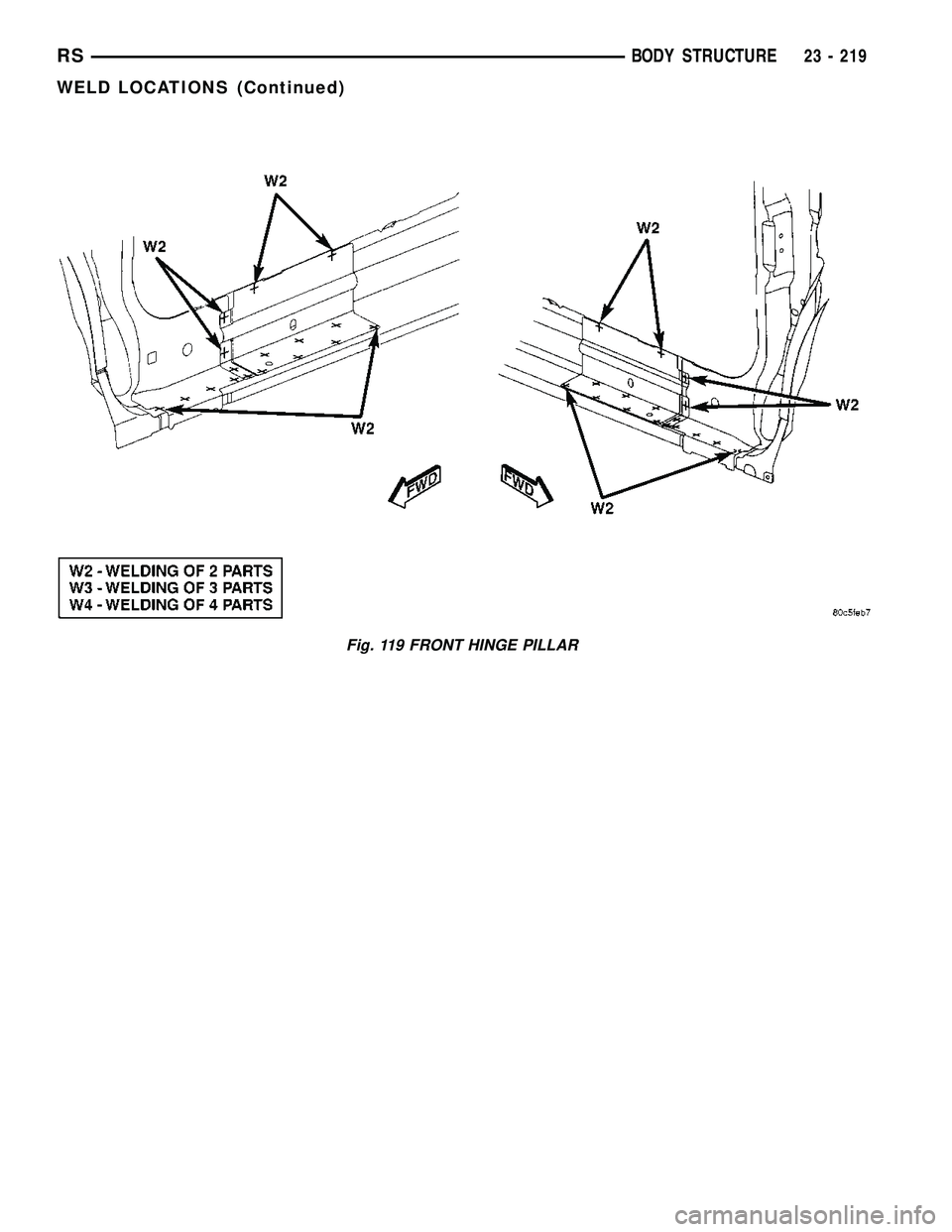

CHRYSLER VOYAGER 2004 Service Manual Fig. 119 FRONT HINGE PILLAR RSBODY STRUCTURE23 - 219 WELD LOCATIONS (Continued)

Page 2331 of 2585

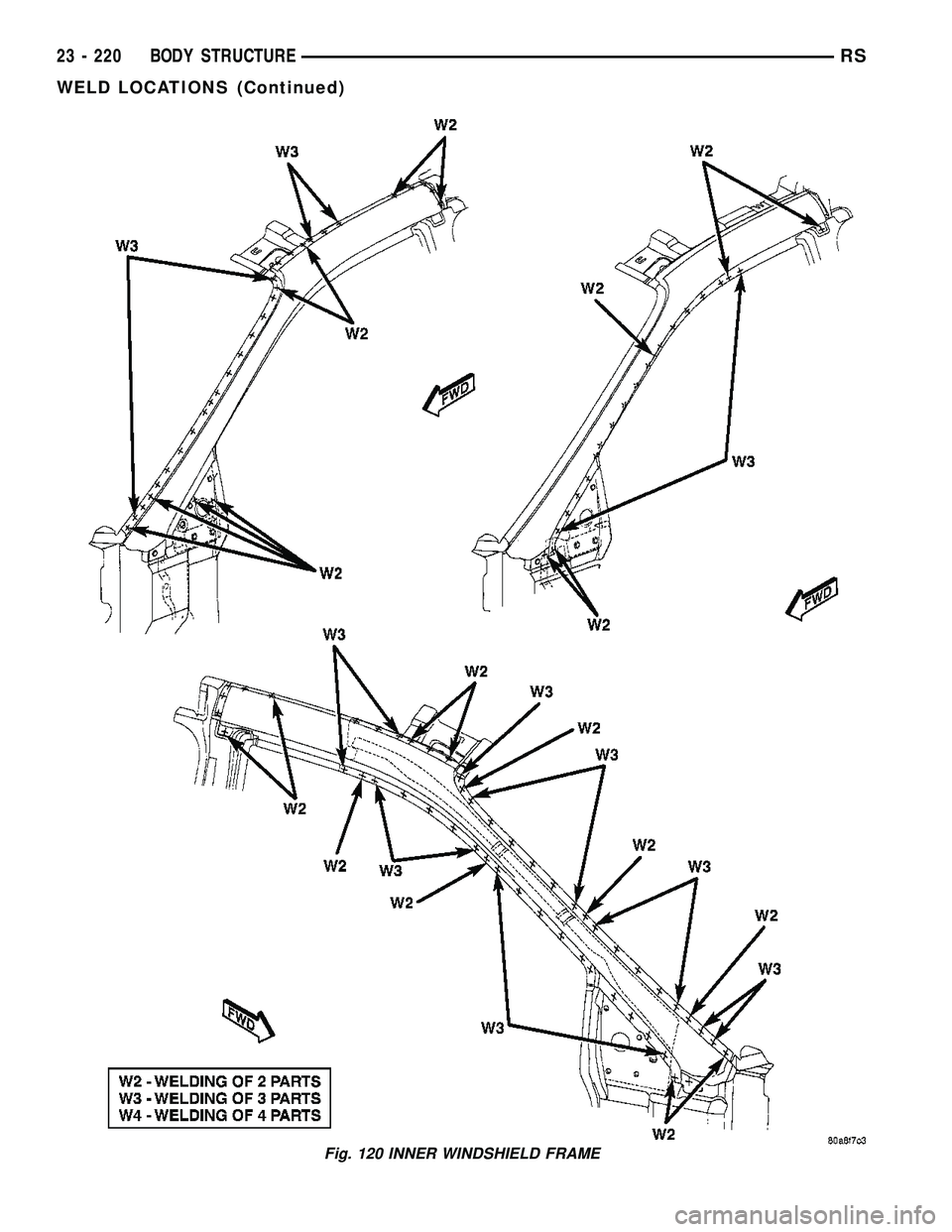

CHRYSLER VOYAGER 2004 Service Manual Fig. 120 INNER WINDSHIELD FRAME 23 - 220 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2332 of 2585

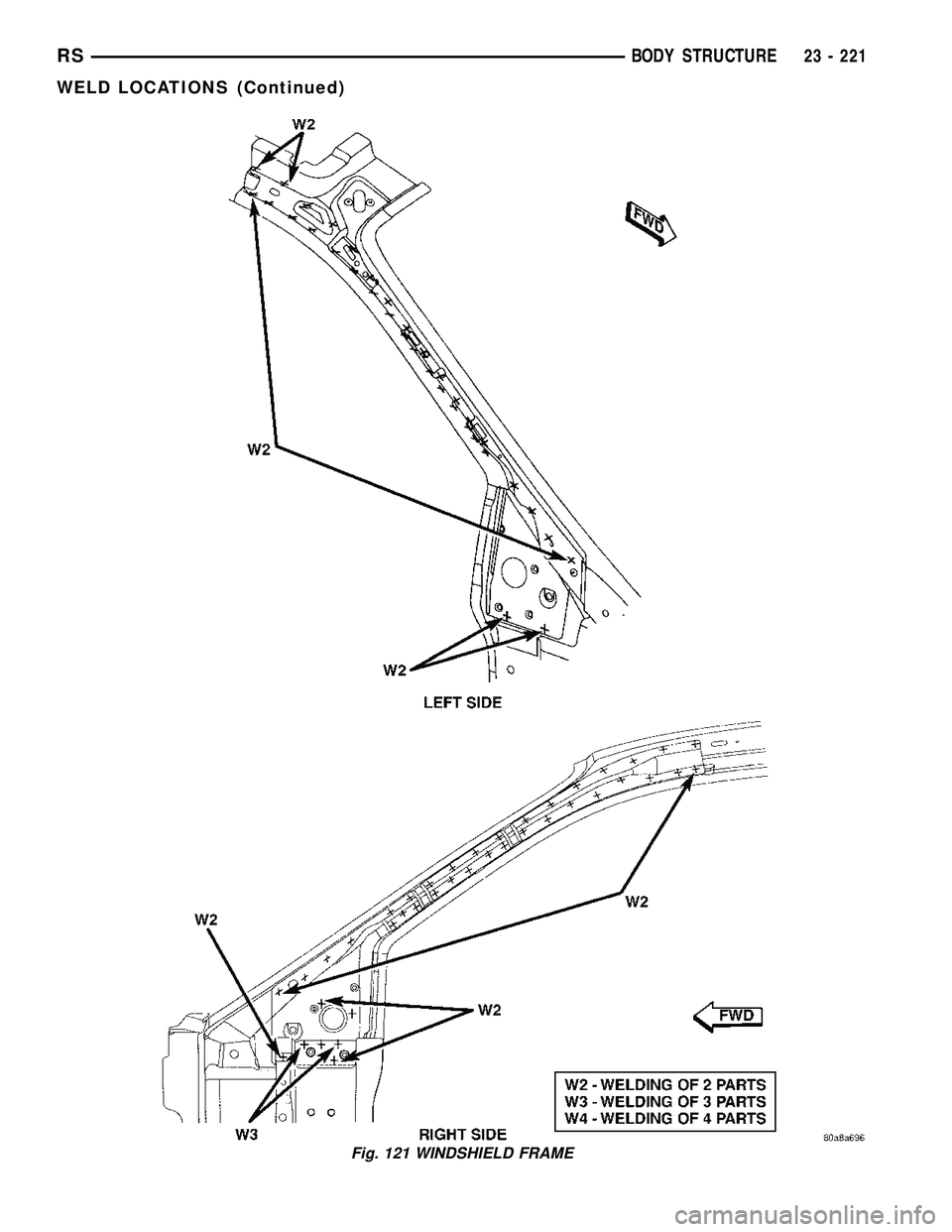

CHRYSLER VOYAGER 2004 Service Manual Fig. 121 WINDSHIELD FRAME RSBODY STRUCTURE23 - 221 WELD LOCATIONS (Continued)

Page 2333 of 2585

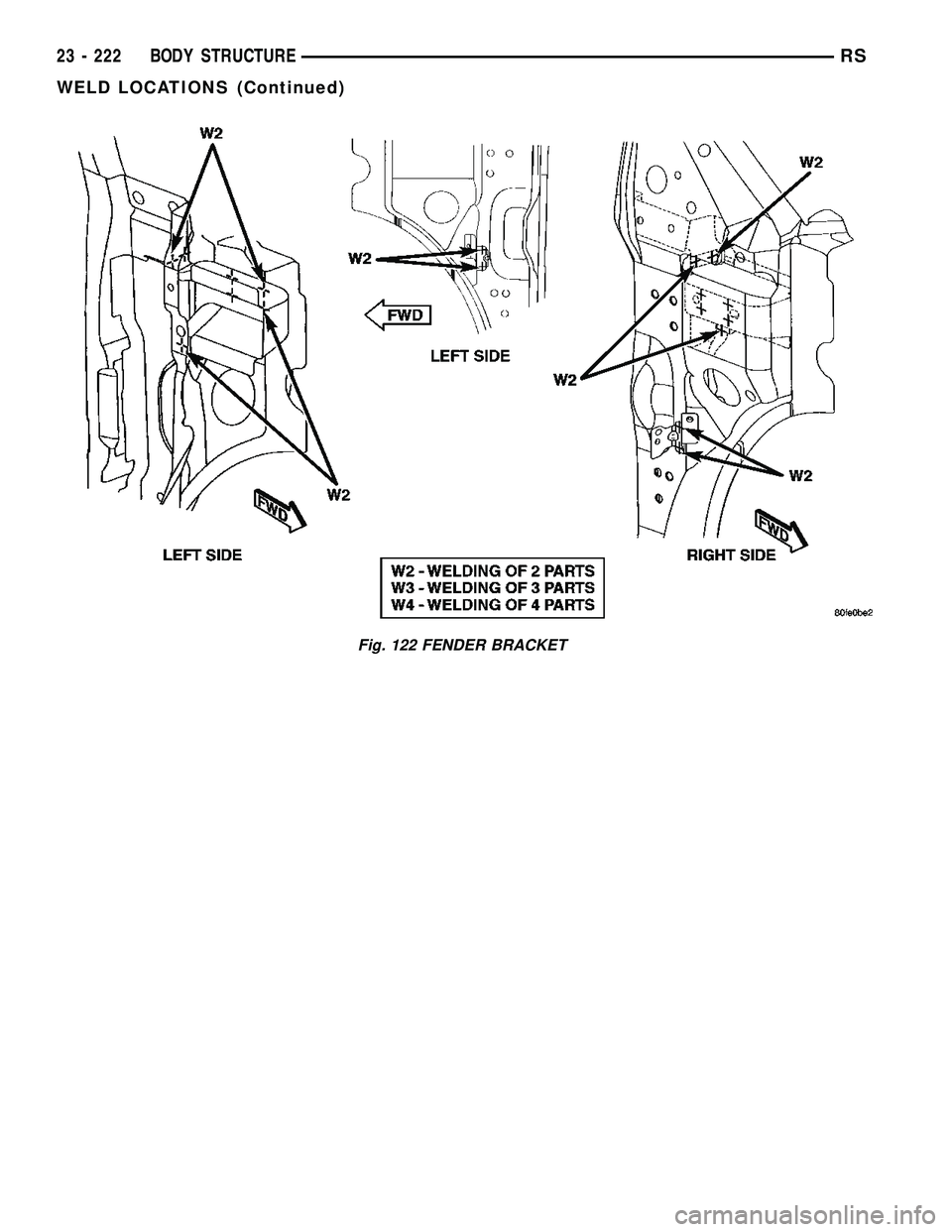

CHRYSLER VOYAGER 2004 Service Manual Fig. 122 FENDER BRACKET 23 - 222 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2334 of 2585

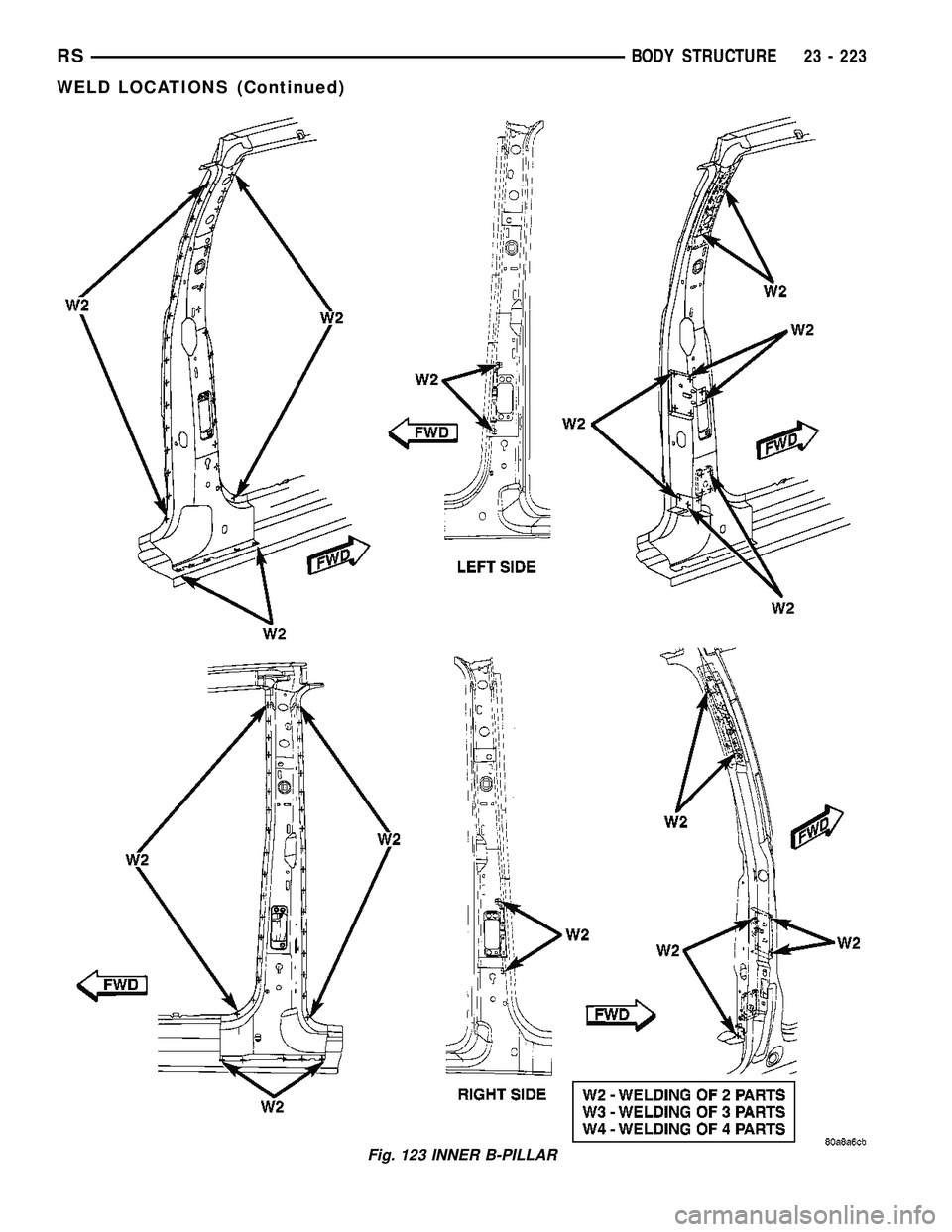

CHRYSLER VOYAGER 2004 Service Manual Fig. 123 INNER B-PILLAR RSBODY STRUCTURE23 - 223 WELD LOCATIONS (Continued)

Page 2335 of 2585

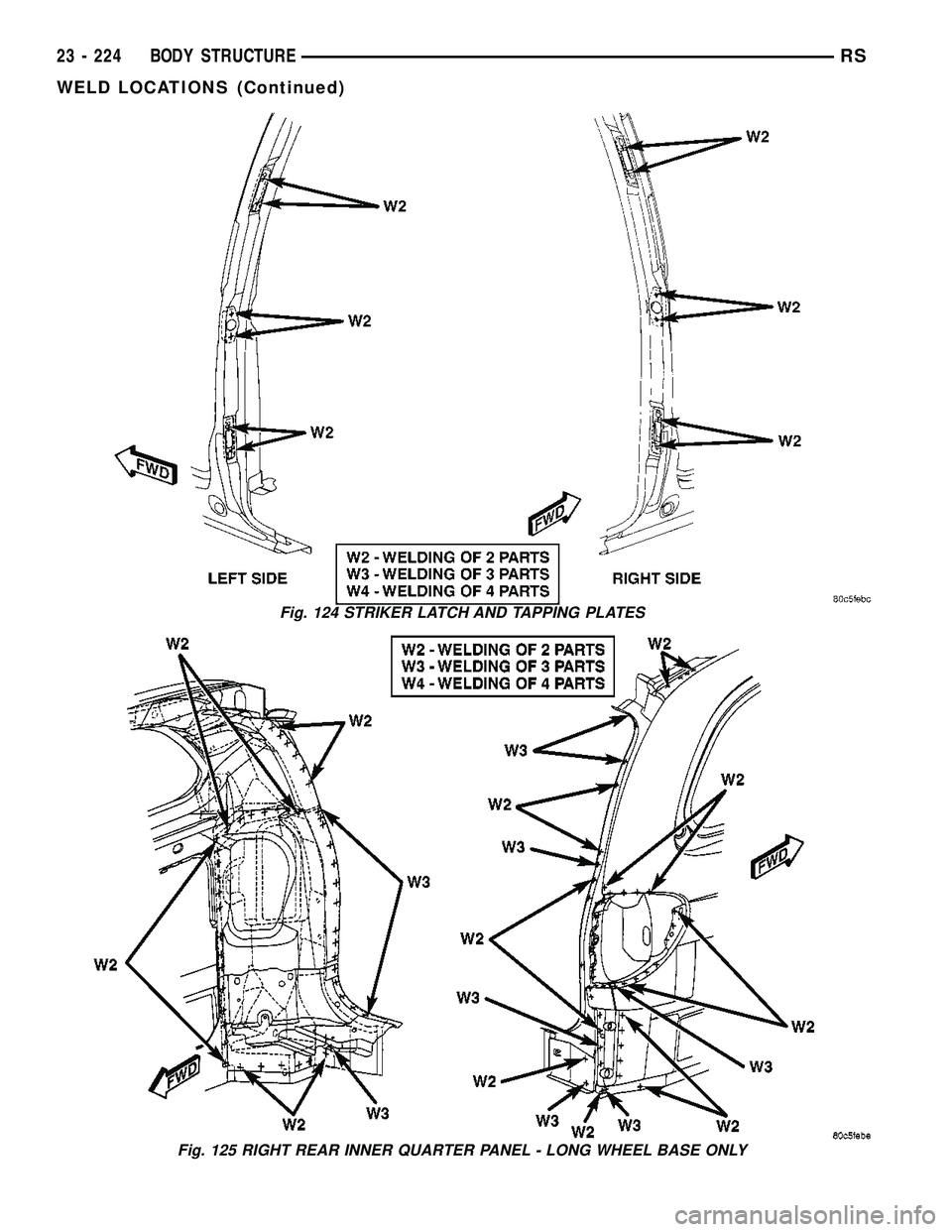

CHRYSLER VOYAGER 2004 Service Manual Fig. 124 STRIKER LATCH AND TAPPING PLATES Fig. 125 RIGHT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY 23 - 224 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2336 of 2585

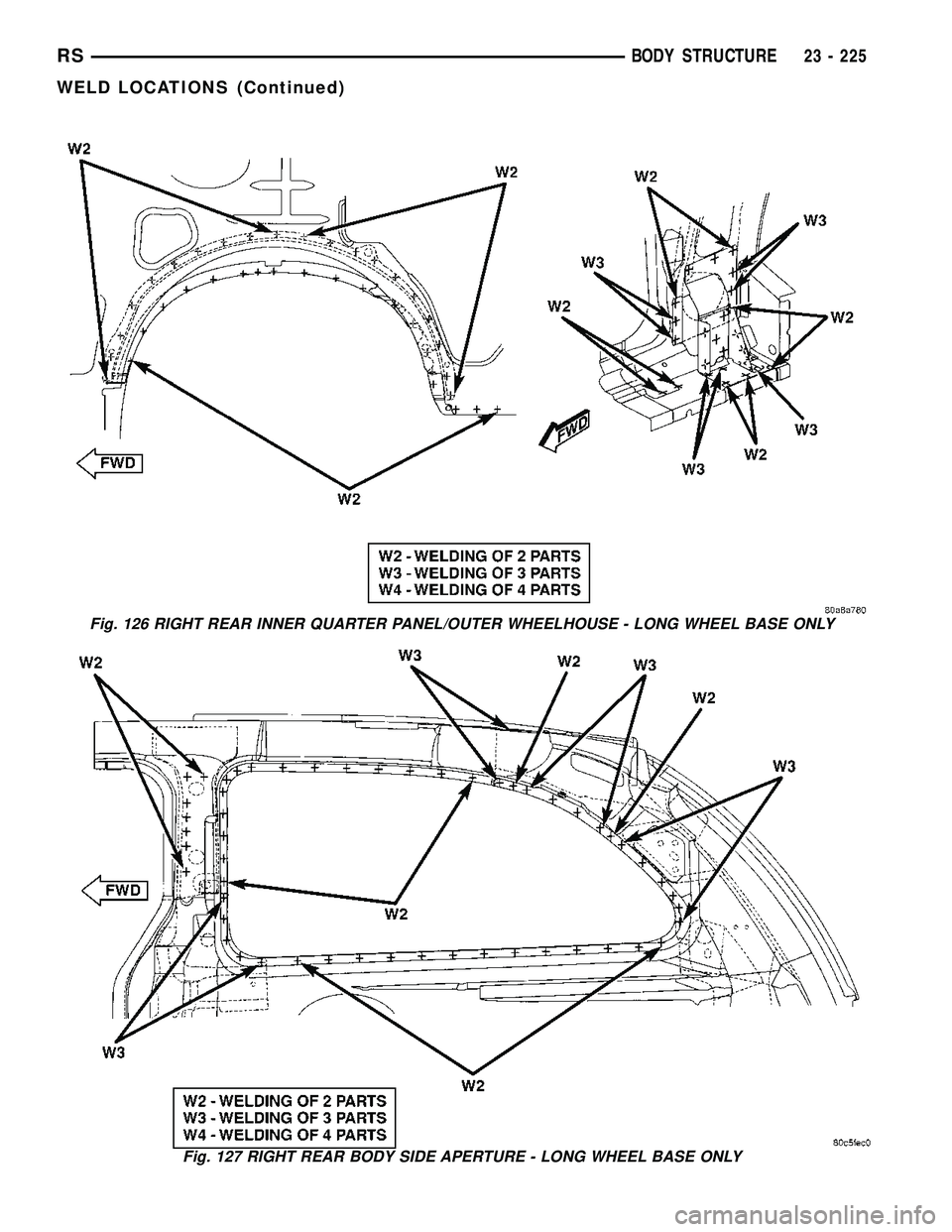

CHRYSLER VOYAGER 2004 Service Manual Fig. 126 RIGHT REAR INNER QUARTER PANEL/OUTER WHEELHOUSE - LONG WHEEL BASE ONLY Fig. 127 RIGHT REAR BODY SIDE APERTURE - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 225 WELD LOCATIONS (Continued)
