Page 2369 of 2585

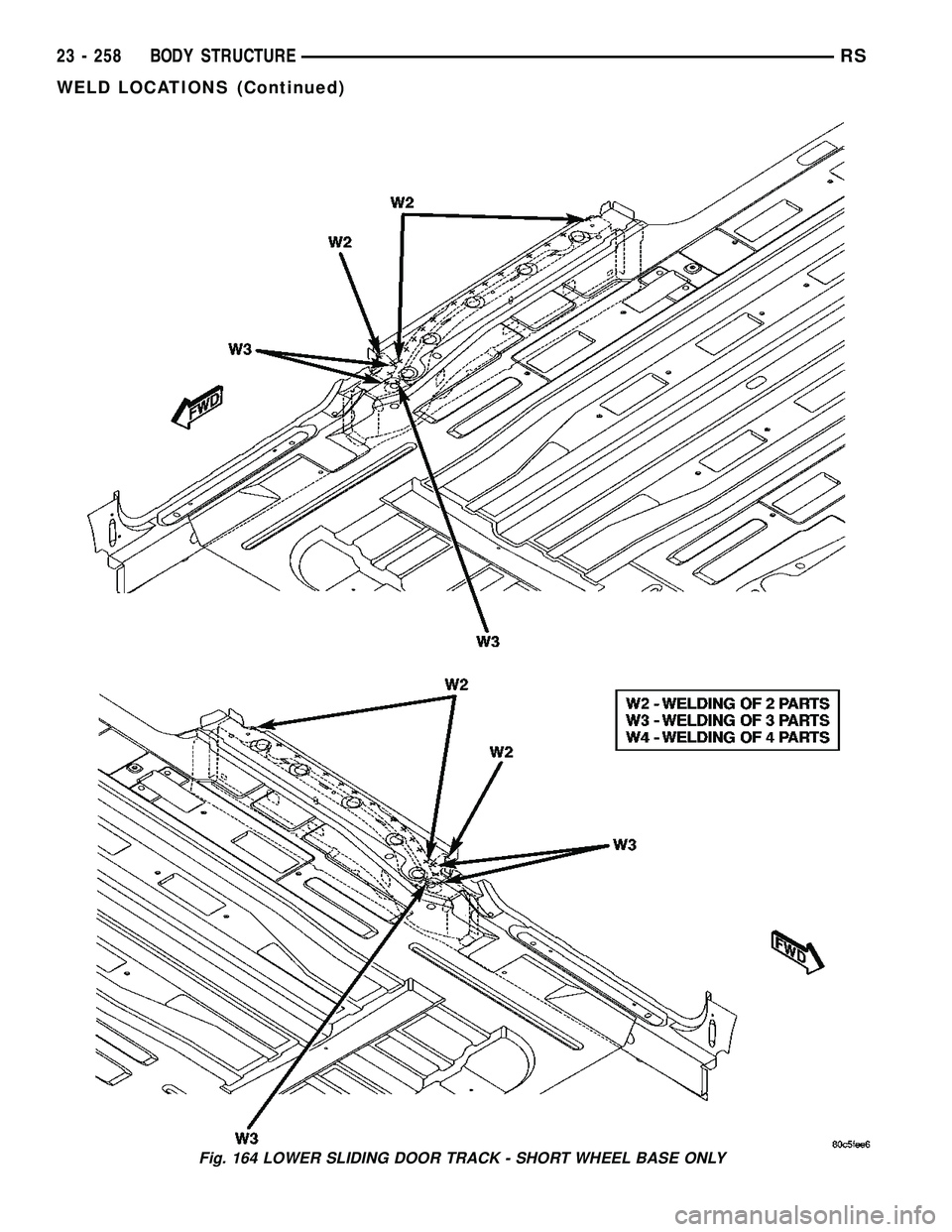

CHRYSLER VOYAGER 2004 Service Manual Fig. 164 LOWER SLIDING DOOR TRACK - SHORT WHEEL BASE ONLY 23 - 258 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2370 of 2585

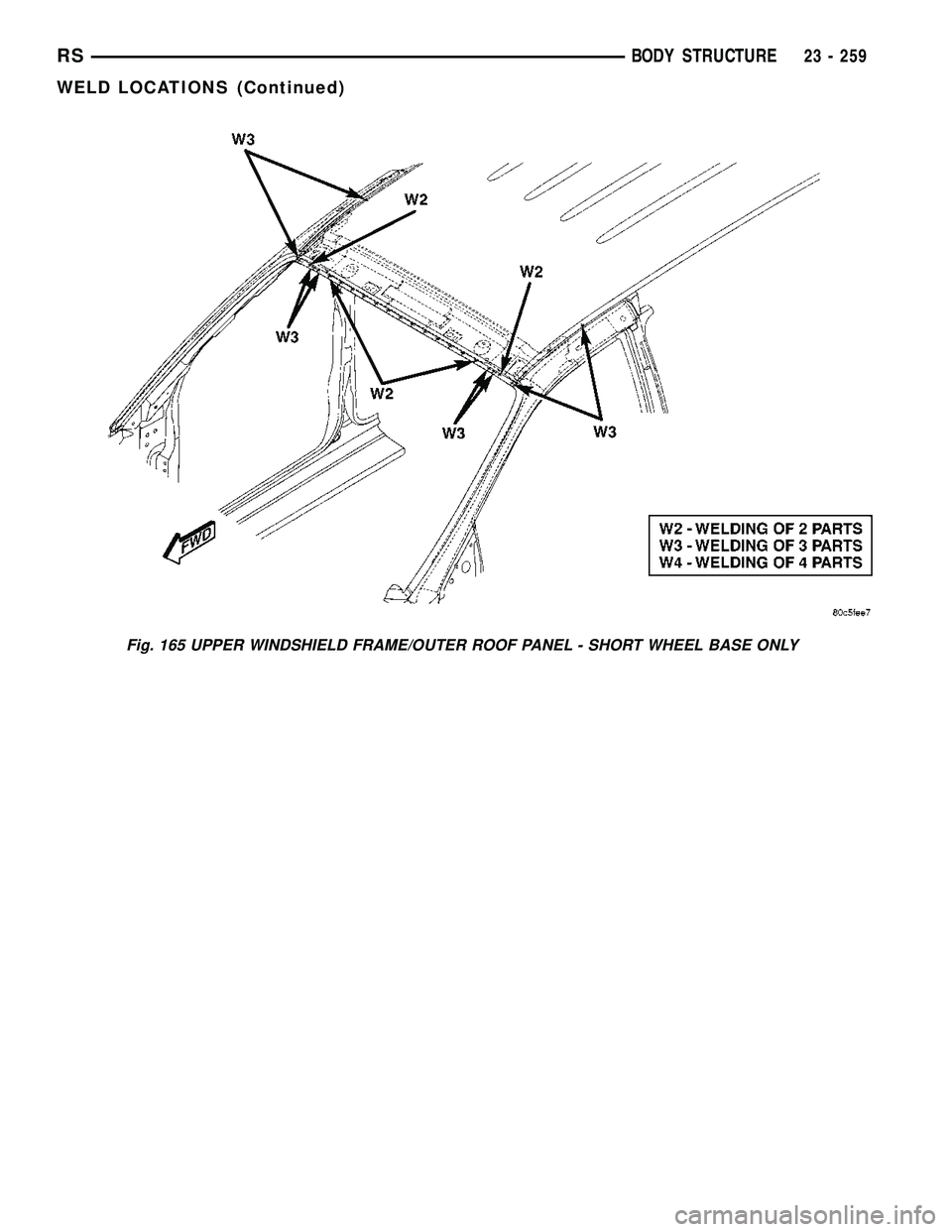

CHRYSLER VOYAGER 2004 Service Manual Fig. 165 UPPER WINDSHIELD FRAME/OUTER ROOF PANEL - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 259 WELD LOCATIONS (Continued)

Page 2371 of 2585

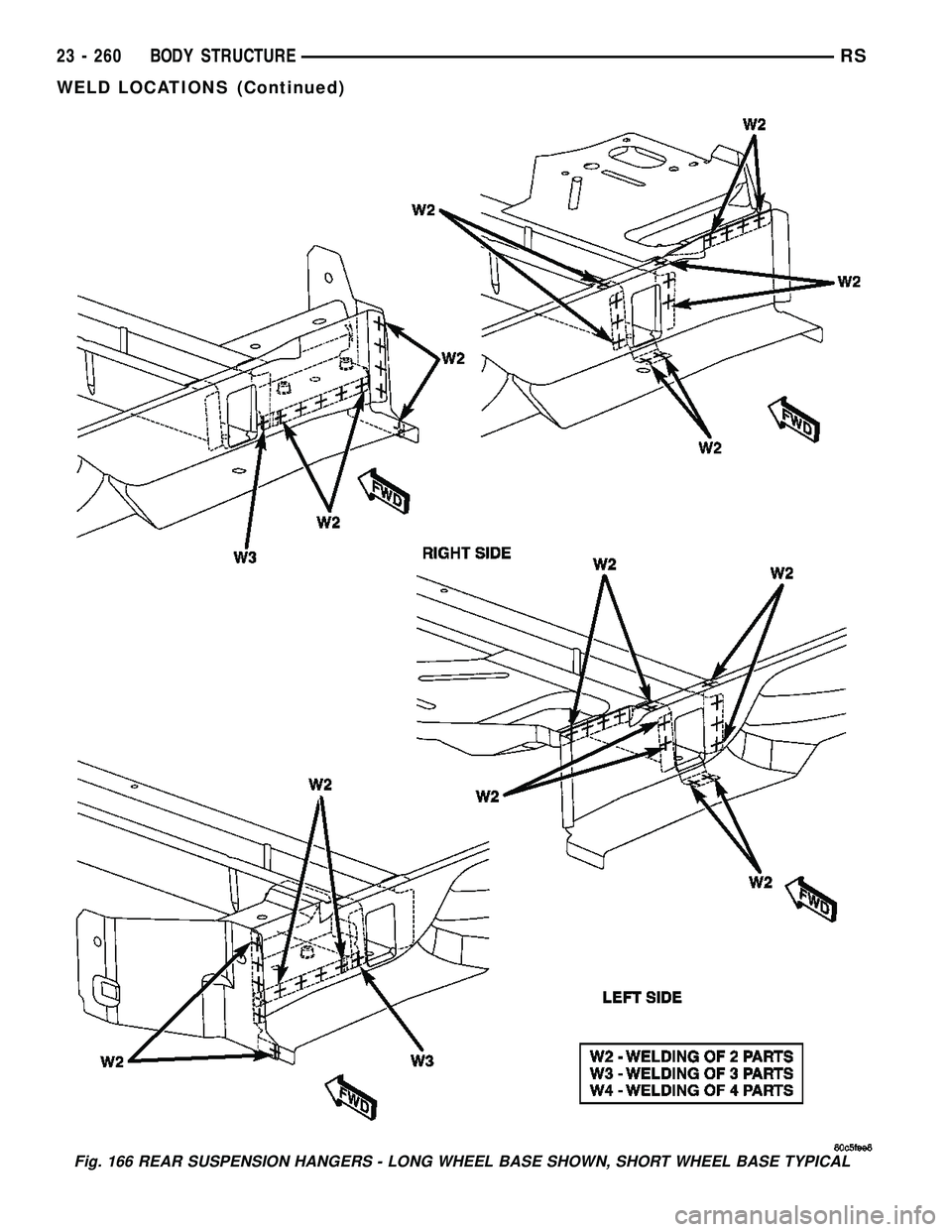

CHRYSLER VOYAGER 2004 Service Manual Fig. 166 REAR SUSPENSION HANGERS - LONG WHEEL BASE SHOWN, SHORT WHEEL BASE TYPICAL 23 - 260 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2372 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 167 FRONT LOWER LIFTGATE OPENING Fig. 168 REAR JACKING REINFORCEMENT - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 261 WELD LOCATIONS (Continued)

Page 2373 of 2585

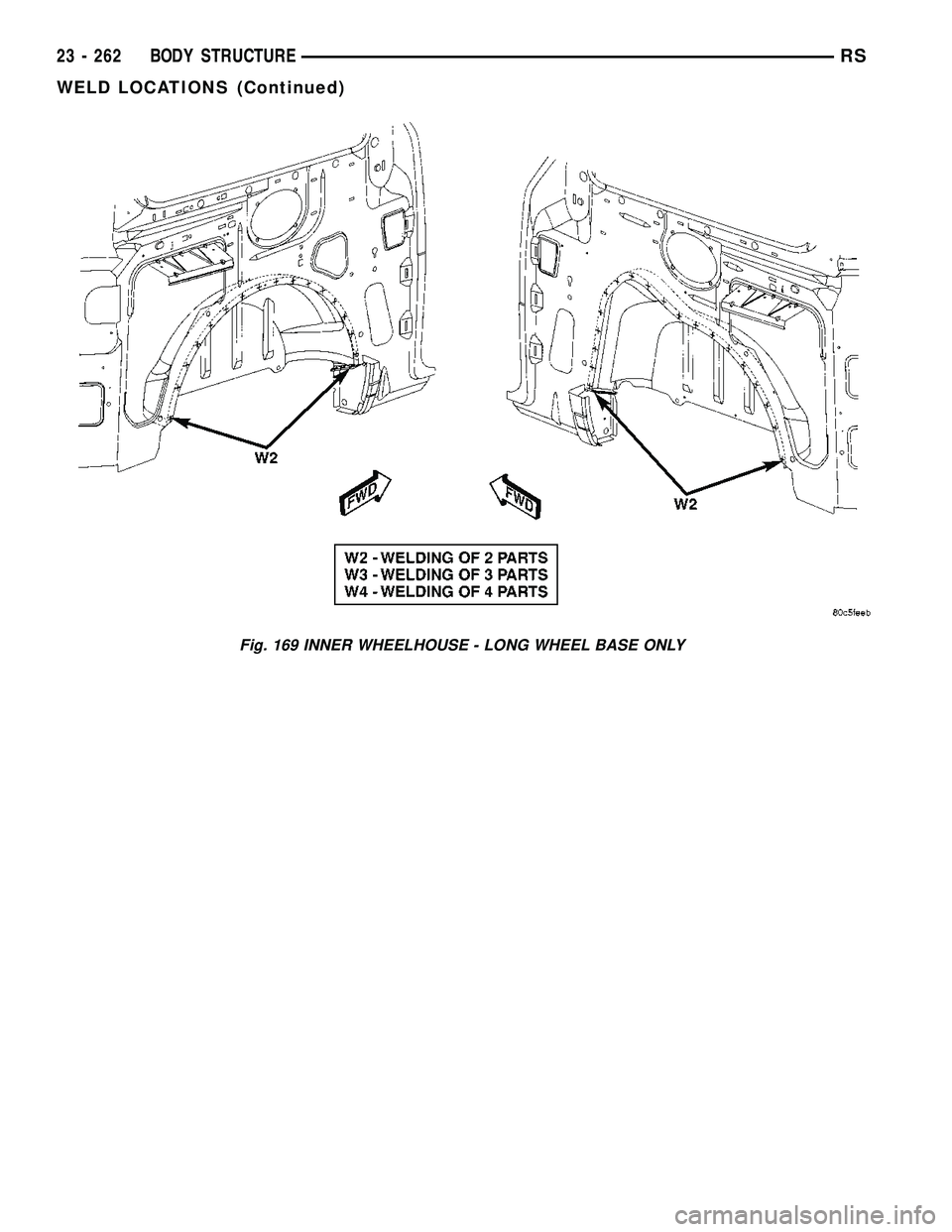

CHRYSLER VOYAGER 2004 Service Manual Fig. 169 INNER WHEELHOUSE - LONG WHEEL BASE ONLY 23 - 262 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2374 of 2585

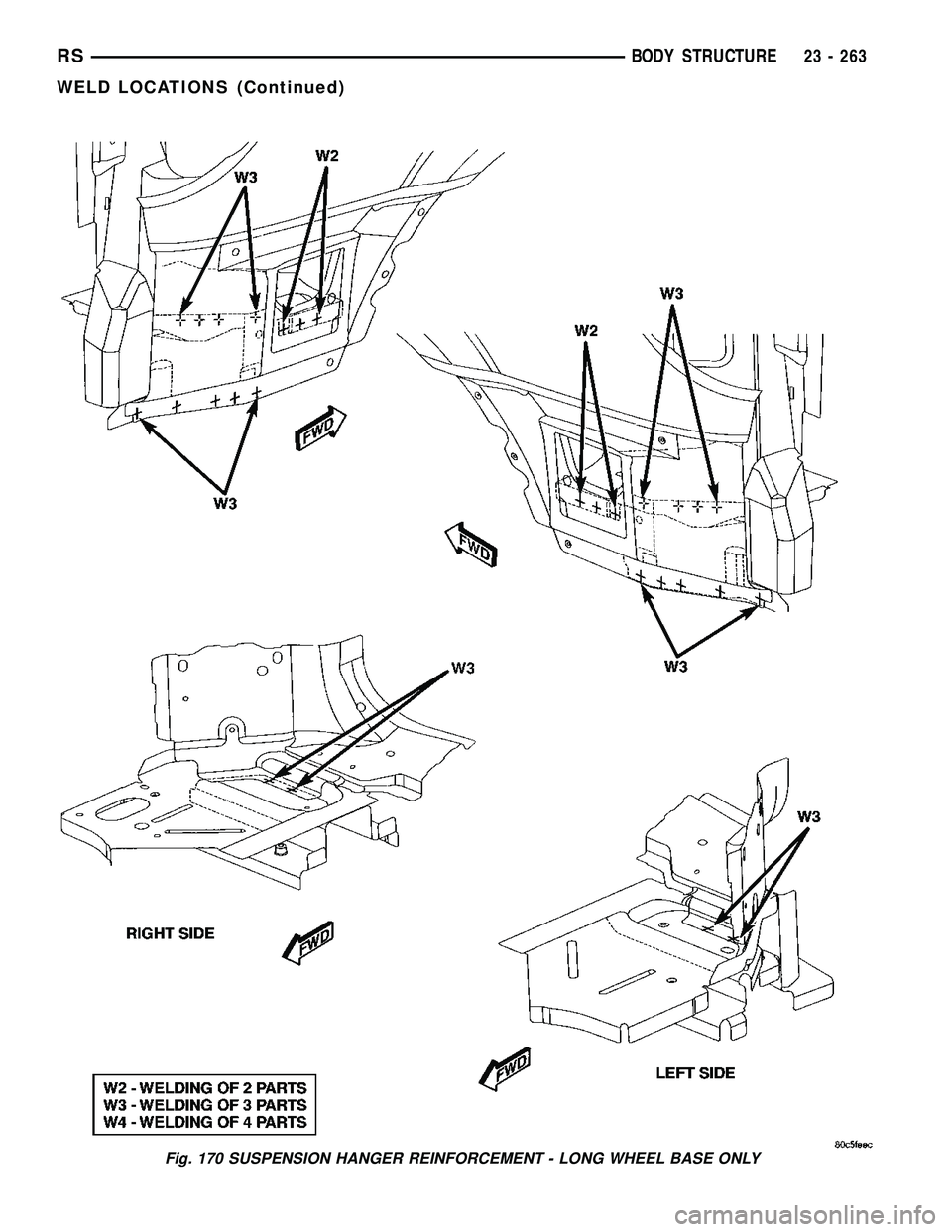

CHRYSLER VOYAGER 2004 Service Manual Fig. 170 SUSPENSION HANGER REINFORCEMENT - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 263 WELD LOCATIONS (Continued)

Page 2375 of 2585

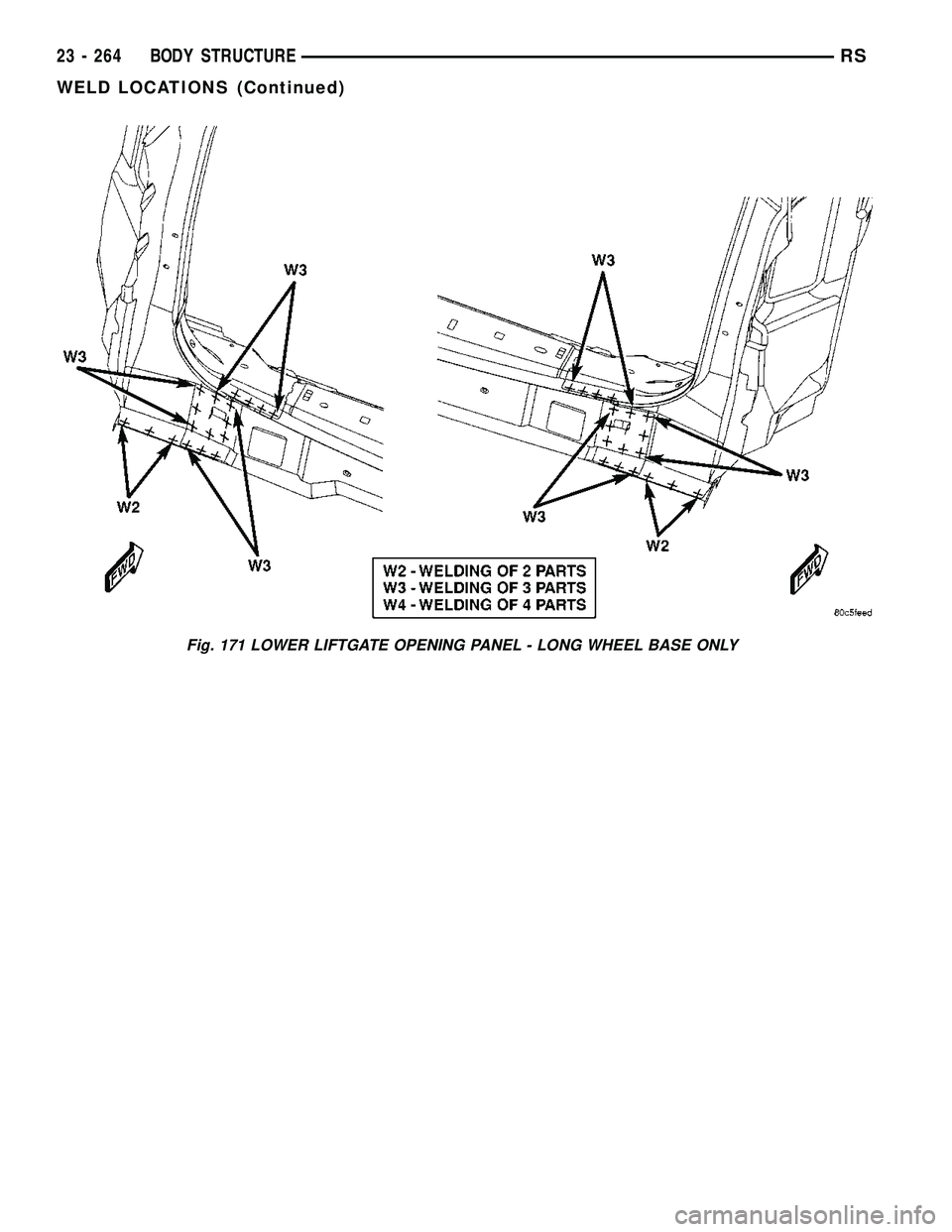

CHRYSLER VOYAGER 2004 Service Manual Fig. 171 LOWER LIFTGATE OPENING PANEL - LONG WHEEL BASE ONLY 23 - 264 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2376 of 2585

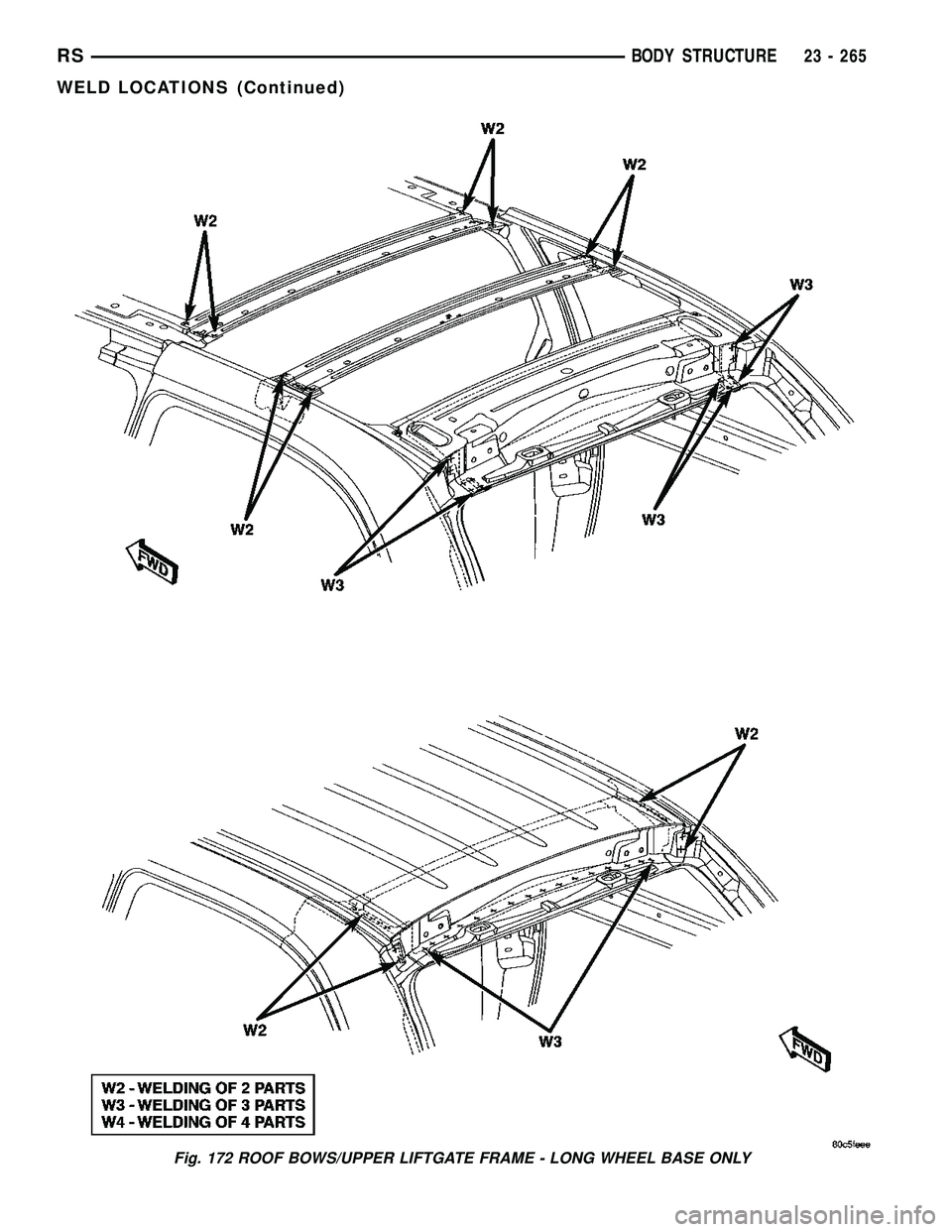

CHRYSLER VOYAGER 2004 Service Manual Fig. 172 ROOF BOWS/UPPER LIFTGATE FRAME - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 265 WELD LOCATIONS (Continued)
