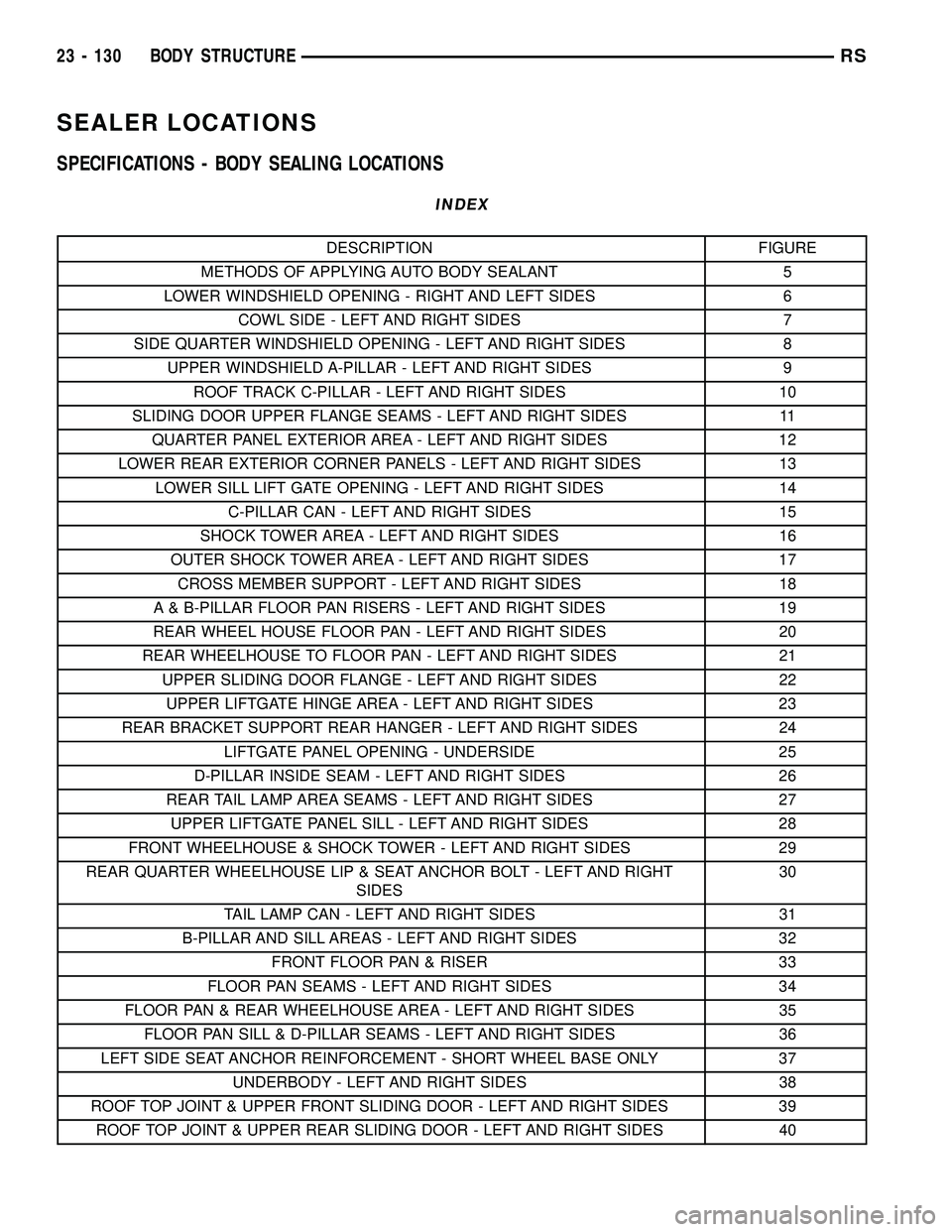

Page 2241 of 2585

CHRYSLER VOYAGER 2004 Service Manual SEALER LOCATIONS SPECIFICATIONS - BODY SEALING LOCATIONS INDEX DESCRIPTION FIGURE METHODS OF APPLYING AUTO BODY SEALANT 5 LOWER WINDSHIELD OPENING - RIGHT AND LEFT SIDES 6 COWL SIDE - LEFT AND RIGHT S

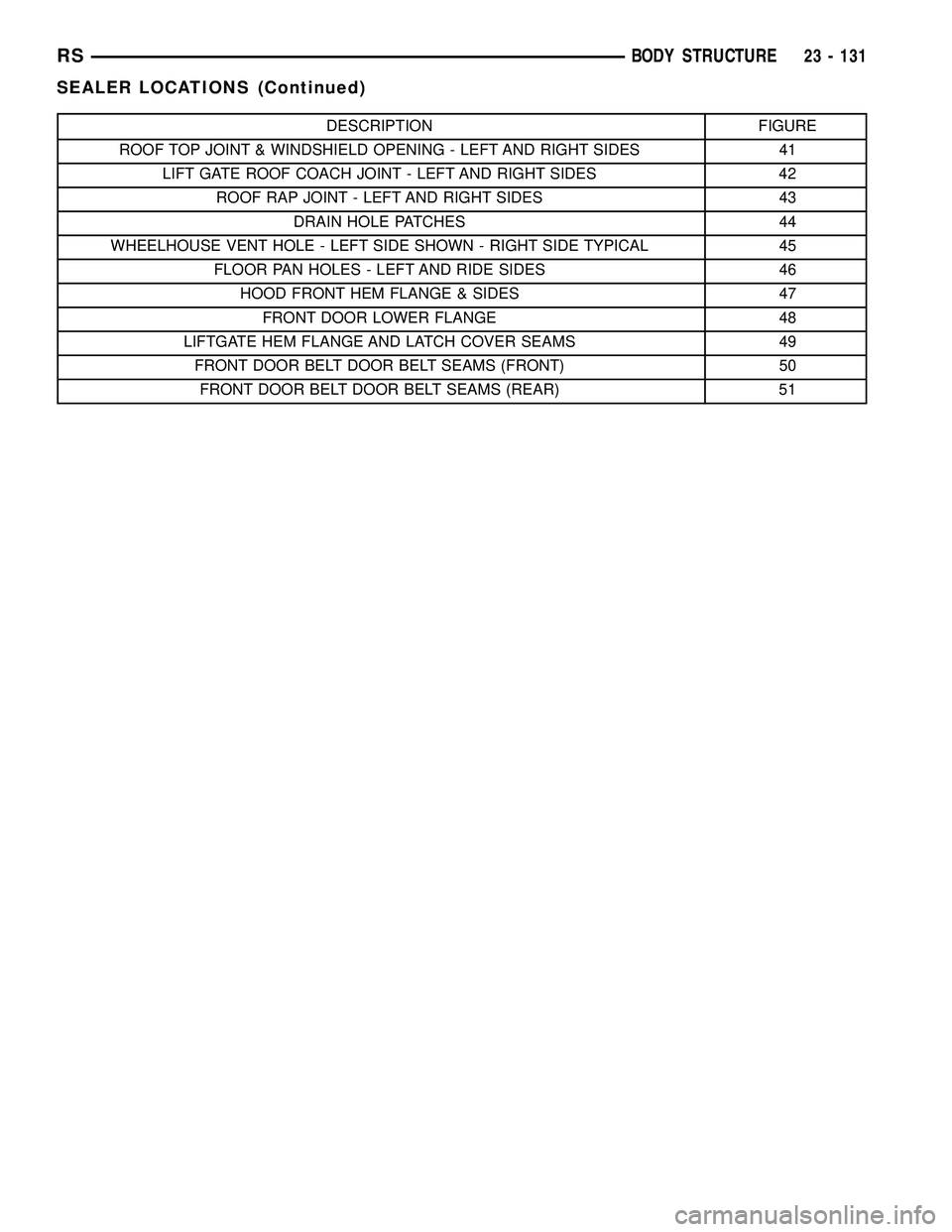

Page 2242 of 2585

CHRYSLER VOYAGER 2004 Service Manual DESCRIPTION FIGURE ROOF TOP JOINT & WINDSHIELD OPENING - LEFT AND RIGHT SIDES 41 LIFT GATE ROOF COACH JOINT - LEFT AND RIGHT SIDES 42 ROOF RAP JOINT - LEFT AND RIGHT SIDES 43 DRAIN HOLE PATCHES 44 WHE

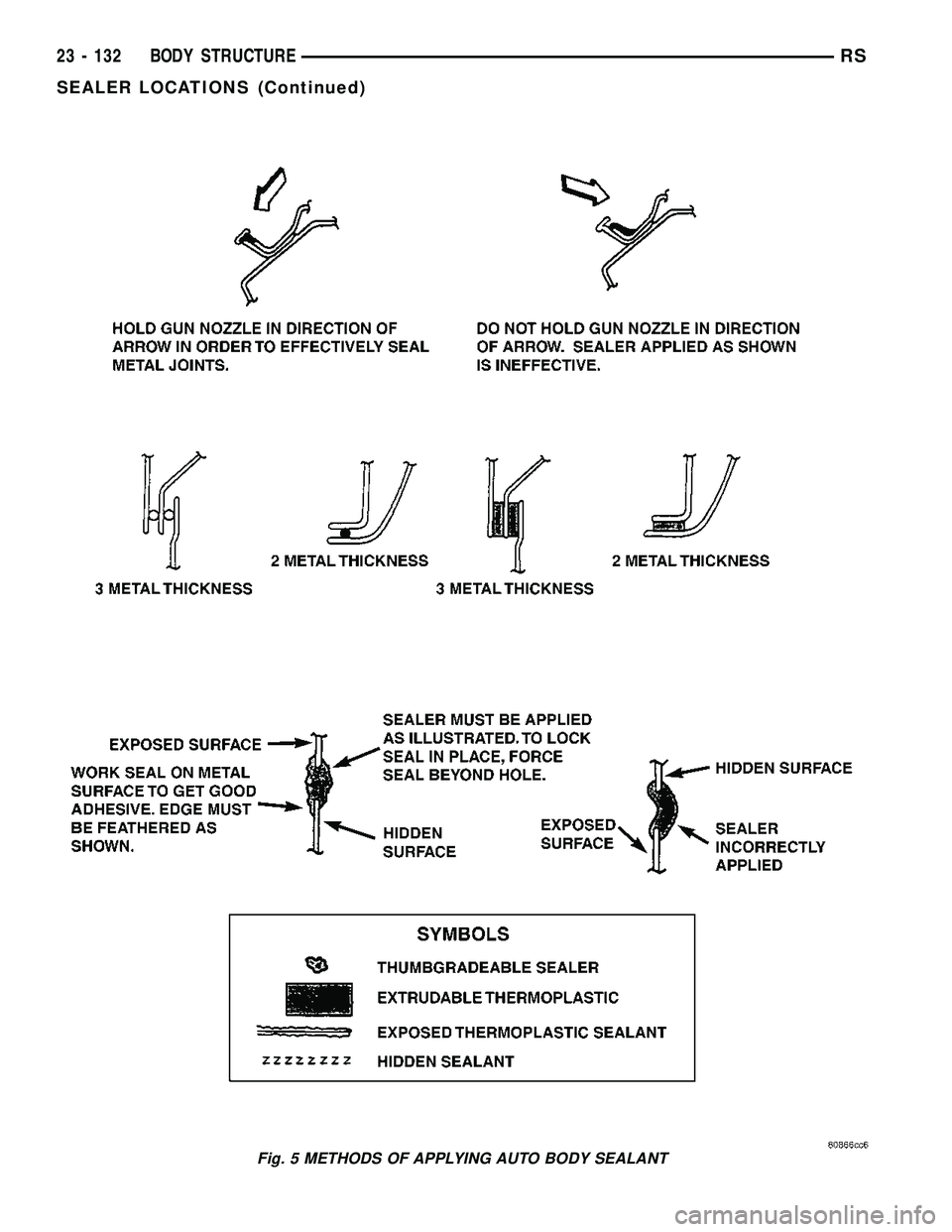

Page 2243 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 5 METHODS OF APPLYING AUTO BODY SEALANT 23 - 132 BODY STRUCTURERS SEALER LOCATIONS (Continued)

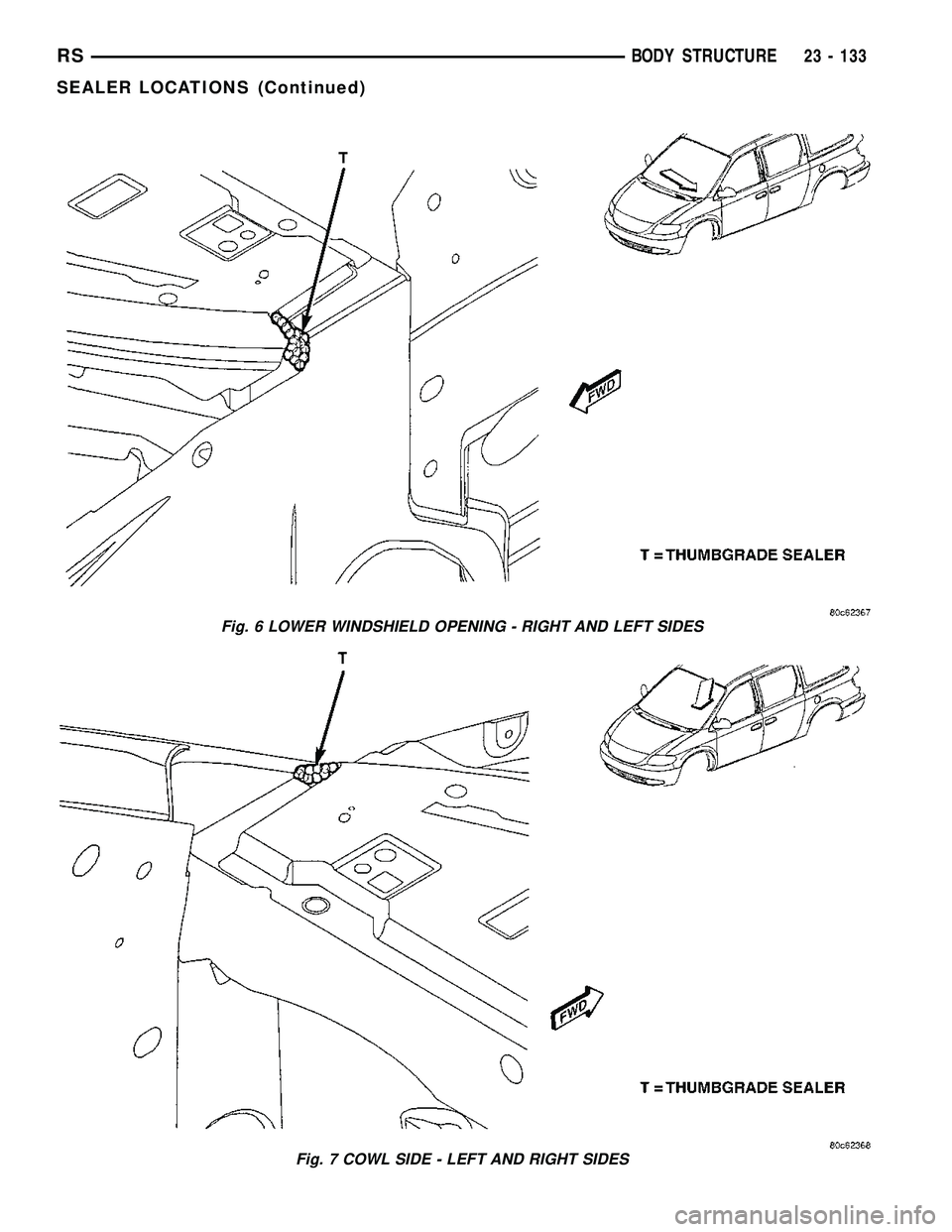

Page 2244 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 6 LOWER WINDSHIELD OPENING - RIGHT AND LEFT SIDES Fig. 7 COWL SIDE - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 133 SEALER LOCATIONS (Continued)

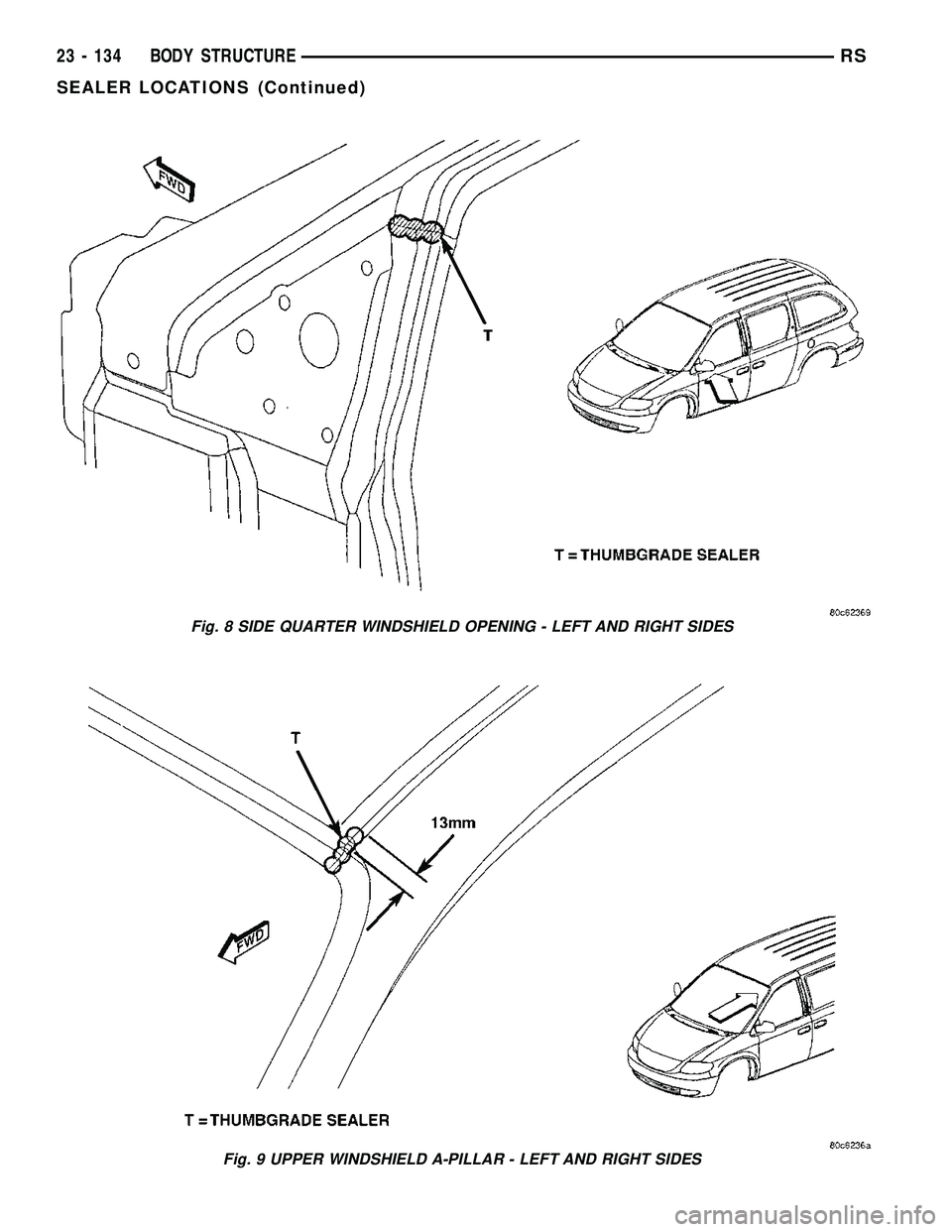

Page 2245 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 8 SIDE QUARTER WINDSHIELD OPENING - LEFT AND RIGHT SIDES Fig. 9 UPPER WINDSHIELD A-PILLAR - LEFT AND RIGHT SIDES 23 - 134 BODY STRUCTURERS SEALER LOCATIONS (Continued)

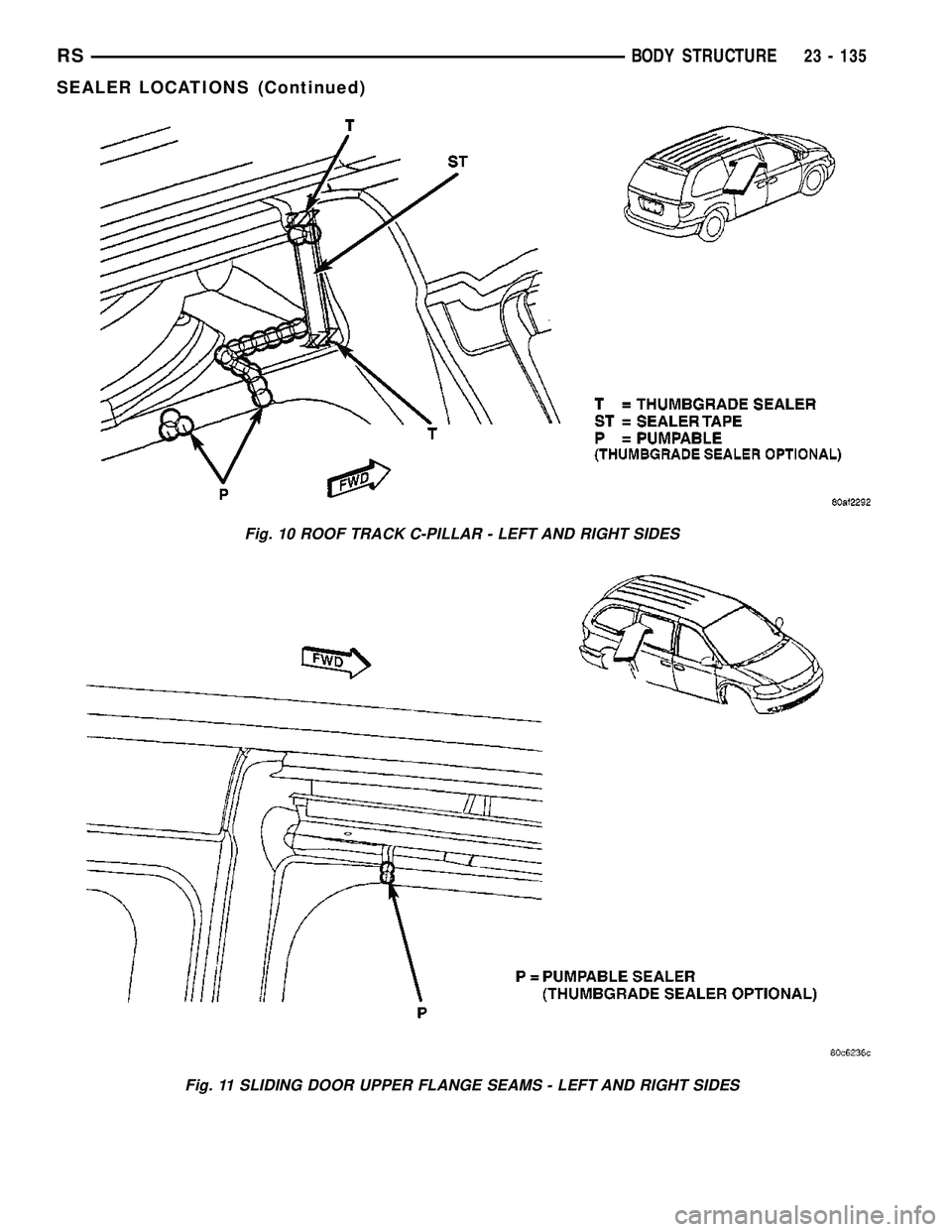

Page 2246 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 10 ROOF TRACK C-PILLAR - LEFT AND RIGHT SIDES Fig. 11 SLIDING DOOR UPPER FLANGE SEAMS - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 135 SEALER LOCATIONS (Continued)

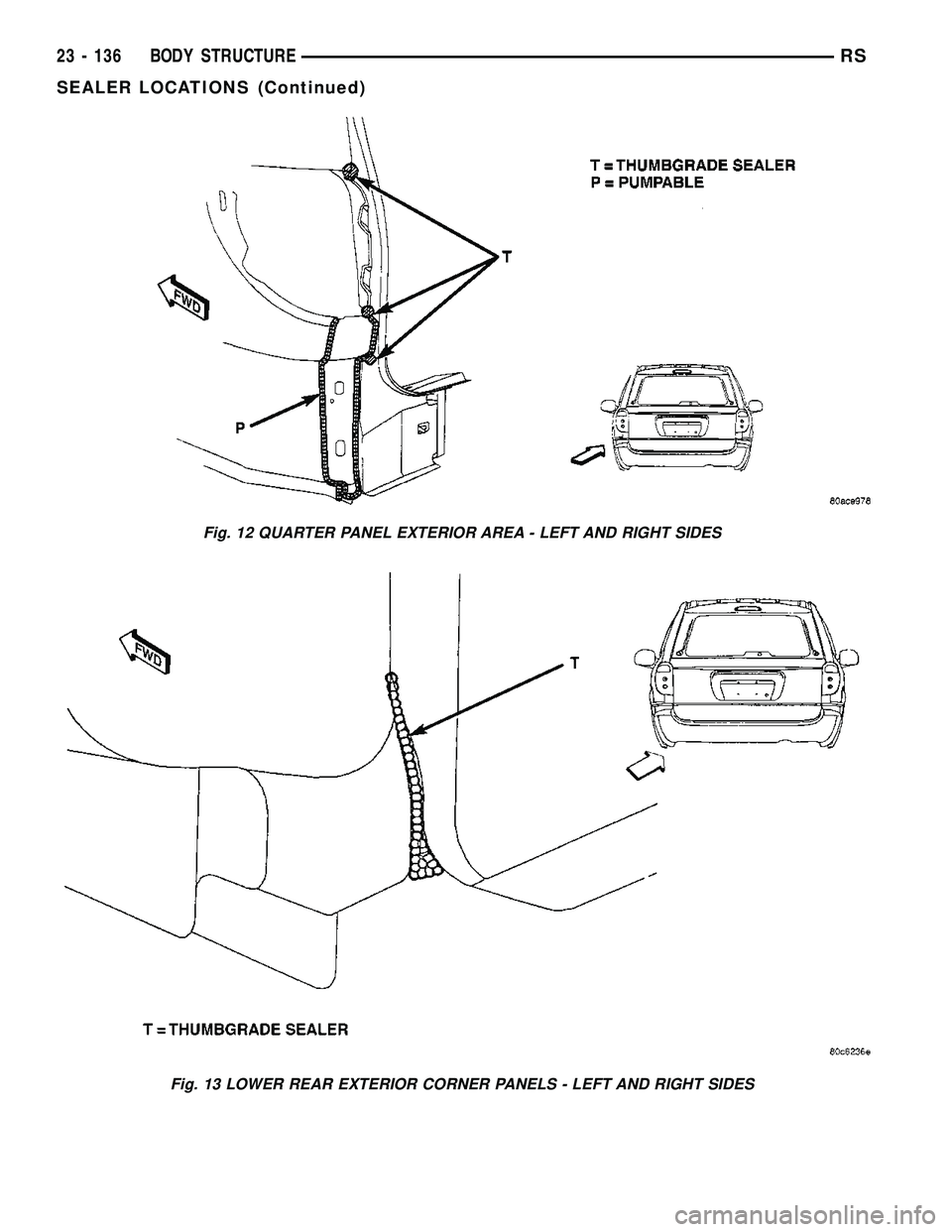

Page 2247 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 12 QUARTER PANEL EXTERIOR AREA - LEFT AND RIGHT SIDES Fig. 13 LOWER REAR EXTERIOR CORNER PANELS - LEFT AND RIGHT SIDES 23 - 136 BODY STRUCTURERS SEALER LOCATIONS (Continued)

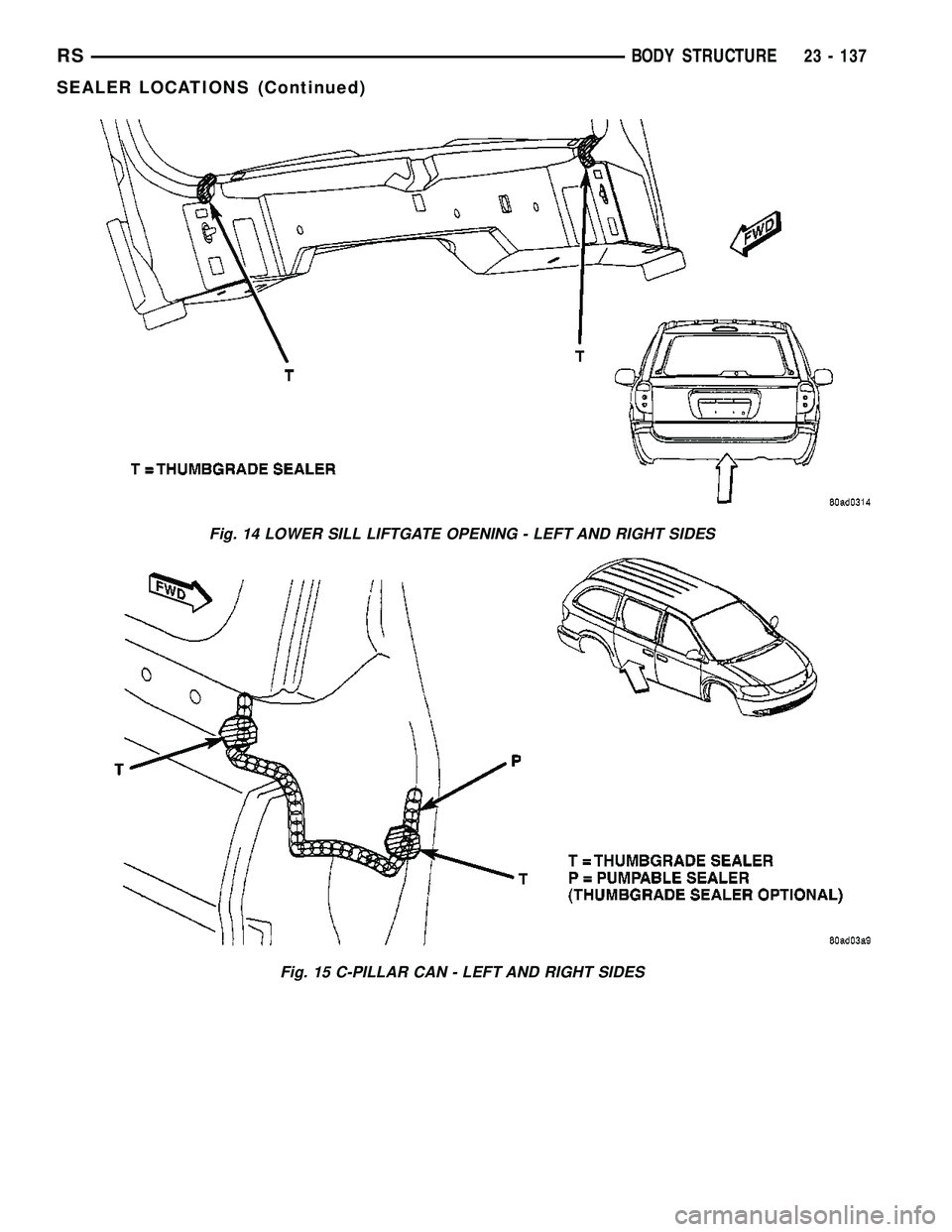

Page 2248 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 14 LOWER SILL LIFTGATE OPENING - LEFT AND RIGHT SIDES Fig. 15 C-PILLAR CAN - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 137 SEALER LOCATIONS (Continued)
