Page 2057 of 2585

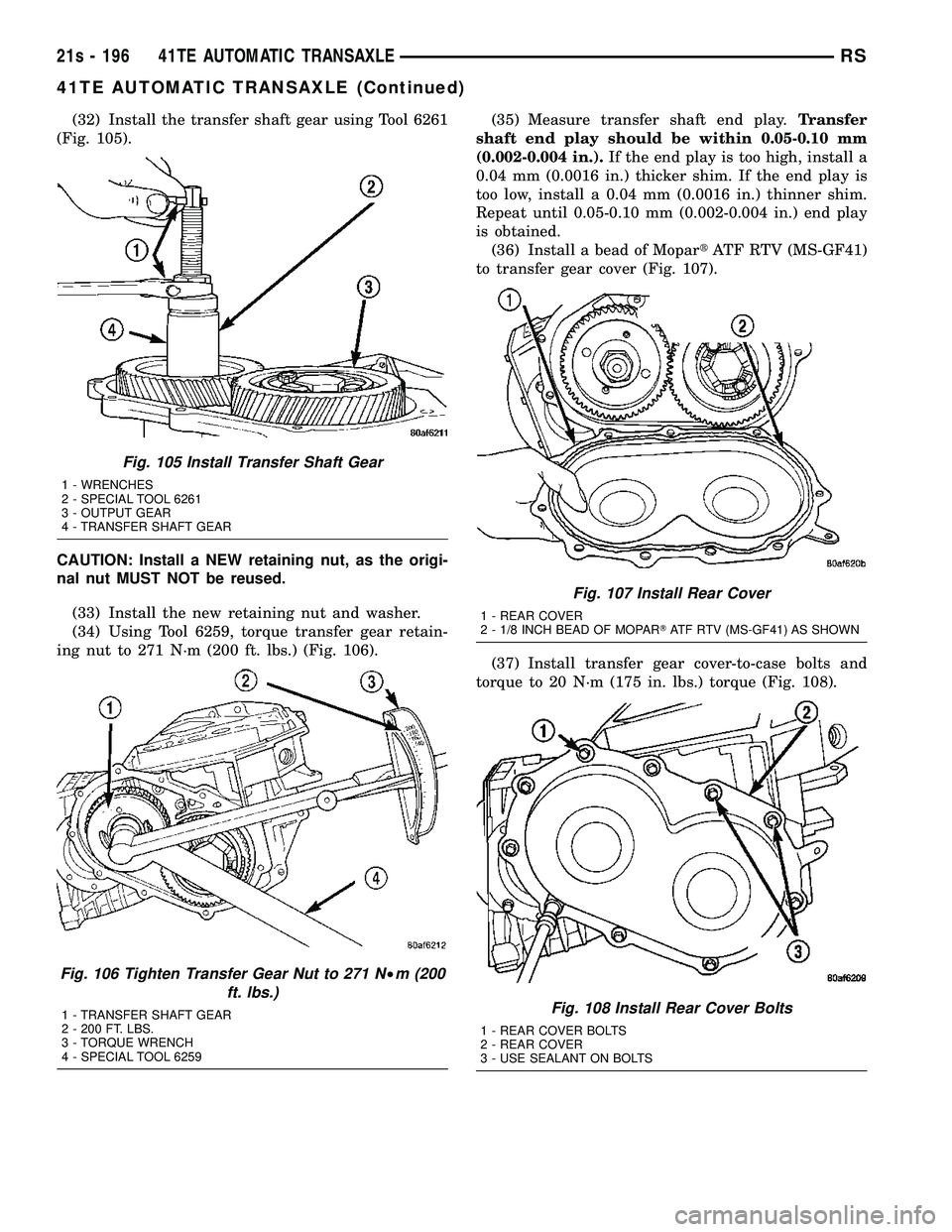

(32) Install the transfer shaft gear using Tool 6261
(Fig. 105).
CAUTION: Install a NEW retaining nut, as the origi-
nal nut MUST NOT be reused.
(33) Install the new retaining nut and washer.
(34) Using Tool 6259, torque transfer gear retain-
ing nut to 271 N´m (200 ft. lbs.) (Fig. 106). (35) Measure transfer shaft end play.
Transfer
shaft end play should be within 0.05-0.10 mm
(0.002-0.004 in.). If the end play is too high, install a
0.04 mm (0.0016 in.) thicker shim. If the end play is
too low, install a 0.04 mm (0.0016 in.) thinner shim.
Repeat until 0.05-0.10 mm (0.002-0.004 in.) end play
is obtained. (36) Install a bead of Mopar tATF RTV (MS-GF41)
to transfer gear cover (Fig. 107).
(37) Install transfer gear cover-to-case bolts and
torque to 20 N´m (175 in. lbs.) torque (Fig. 108).
Fig. 105 Install Transfer Shaft Gear
1 - WRENCHES
2 - SPECIAL TOOL 6261
3 - OUTPUT GEAR
4 - TRANSFER SHAFT GEAR
Fig. 106 Tighten Transfer Gear Nut to 271 N²m (200
ft. lbs.)
1 - TRANSFER SHAFT GEAR
2 - 200 FT. LBS.
3 - TORQUE WRENCH
4 - SPECIAL TOOL 6259
Fig. 107 Install Rear Cover
1 - REAR COVER
2 - 1/8 INCH BEAD OF MOPAR TATF RTV (MS-GF41) AS SHOWN
Fig. 108 Install Rear Cover Bolts
1 - REAR COVER BOLTS
2 - REAR COVER
3 - USE SEALANT ON BOLTS
21s - 196 41TE AUTOMATIC TRANSAXLERS
41TE AUTOMATIC TRANSAXLE (Continued)
Page 2058 of 2585

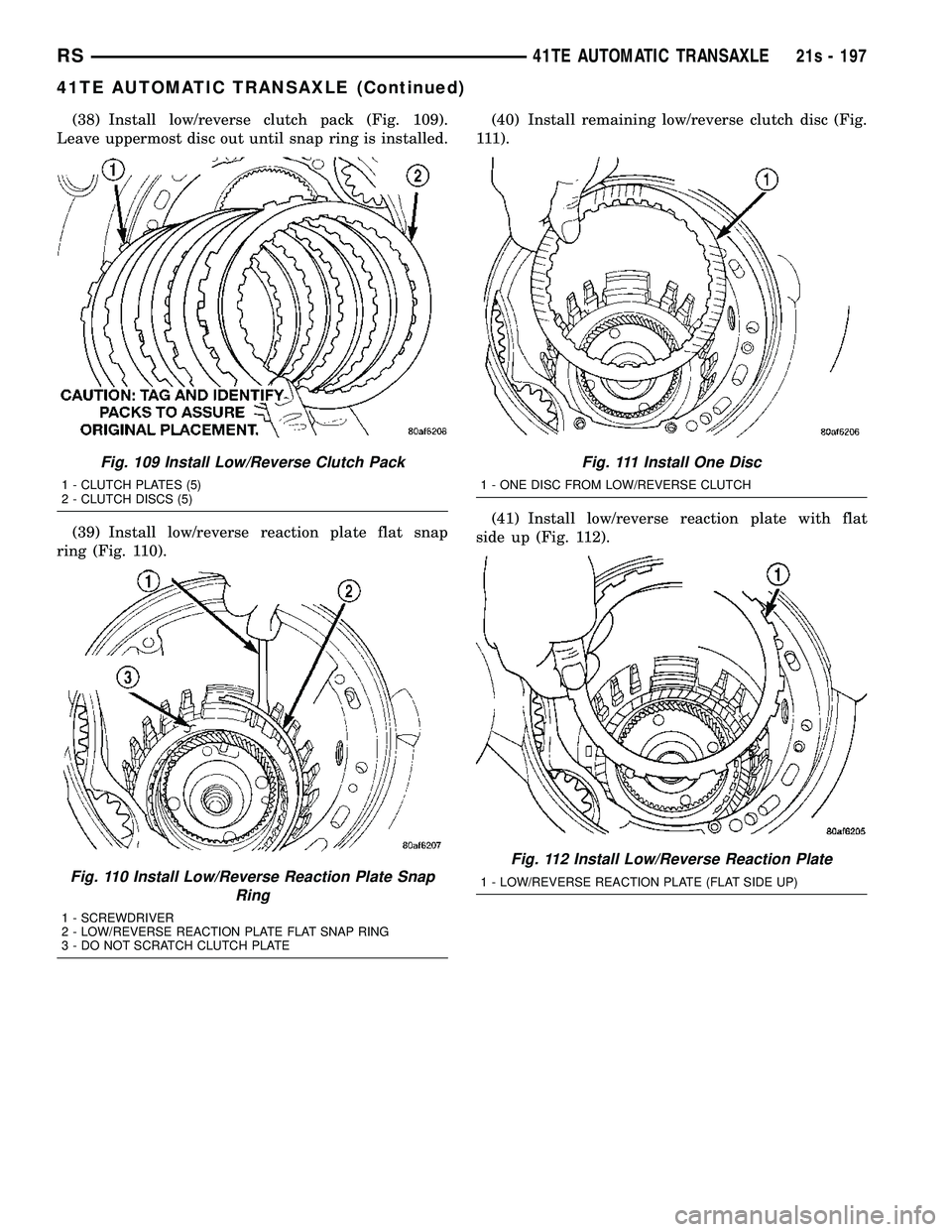

(38) Install low/reverse clutch pack (Fig. 109).
Leave uppermost disc out until snap ring is installed.
(39) Install low/reverse reaction plate flat snap
ring (Fig. 110). (40) Install remaining low/reverse clutch disc (Fig.
111).
(41) Install low/reverse reaction plate with flat
side up (Fig. 112).
Fig. 109 Install Low/Reverse Clutch Pack
1 - CLUTCH PLATES (5)
2 - CLUTCH DISCS (5)
Fig. 110 Install Low/Reverse Reaction Plate Snap Ring
1 - SCREWDRIVER
2 - LOW/REVERSE REACTION PLATE FLAT SNAP RING
3 - DO NOT SCRATCH CLUTCH PLATE
Fig. 111 Install One Disc
1 - ONE DISC FROM LOW/REVERSE CLUTCH
Fig. 112 Install Low/Reverse Reaction Plate
1 - LOW/REVERSE REACTION PLATE (FLAT SIDE UP)
RS 41TE AUTOMATIC TRANSAXLE21s - 197
41TE AUTOMATIC TRANSAXLE (Continued)
Page 2059 of 2585

(42) Install tapered snap ring (with tapered side
up) as shown in (Fig. 113) (Fig. 114).
(43) Set up dial indicator as shown in (Fig. 115) to
measure low/reverse clutch clearance. Press down on
clutch pack with finger and zero dial indicator. Low/
Reverse clutch pack clearance is 0.89-1.47 mm
(0.035-0.058 in.) . Set up indicator and record mea-
surement in four (4) places. Take average of readings
and select the proper low/reverse reaction plate to
achieve specifications.
LOW/REVERSE REACTION PLATE CHART
PART NUMBER THICKNESS
4799846AA 5.88 mm (0.232 in.)
4799847AA 6.14 mm (0.242 in.)
4799848AA 6.40 mm (0.252 in.)
4799849AA 6.66 mm (0.262 in.)
4799855AA 6.92 mm (0.273 in.)
(44) Install 2/4 clutch pack (Fig. 116).
NOTE: The 2/4 Clutch Piston has bonded seals
which are not individually serviceable. Seal replace-
ment requires replacement of the piston assembly.
Fig. 113 Tapered Snap Ring Instructions
Fig. 114 Snap Ring Installed
1 - SCREWDRIVER
2 - TAPERED SNAP RING (INSTALL AS SHOWN)
Fig. 115 Check Low/Reverse Clutch Clearance
1 - DIAL INDICATOR
2 - DIAL INDICATOR TIP TOOL 6268
3 - HOOK TOOL
Fig. 116 Install 2/4 Clutch Pack
1 - CLUTCH PLATE (4)
2 - CLUTCH DISC (4)
21s - 198 41TE AUTOMATIC TRANSAXLERS
41TE AUTOMATIC TRANSAXLE (Continued)
Page 2060 of 2585

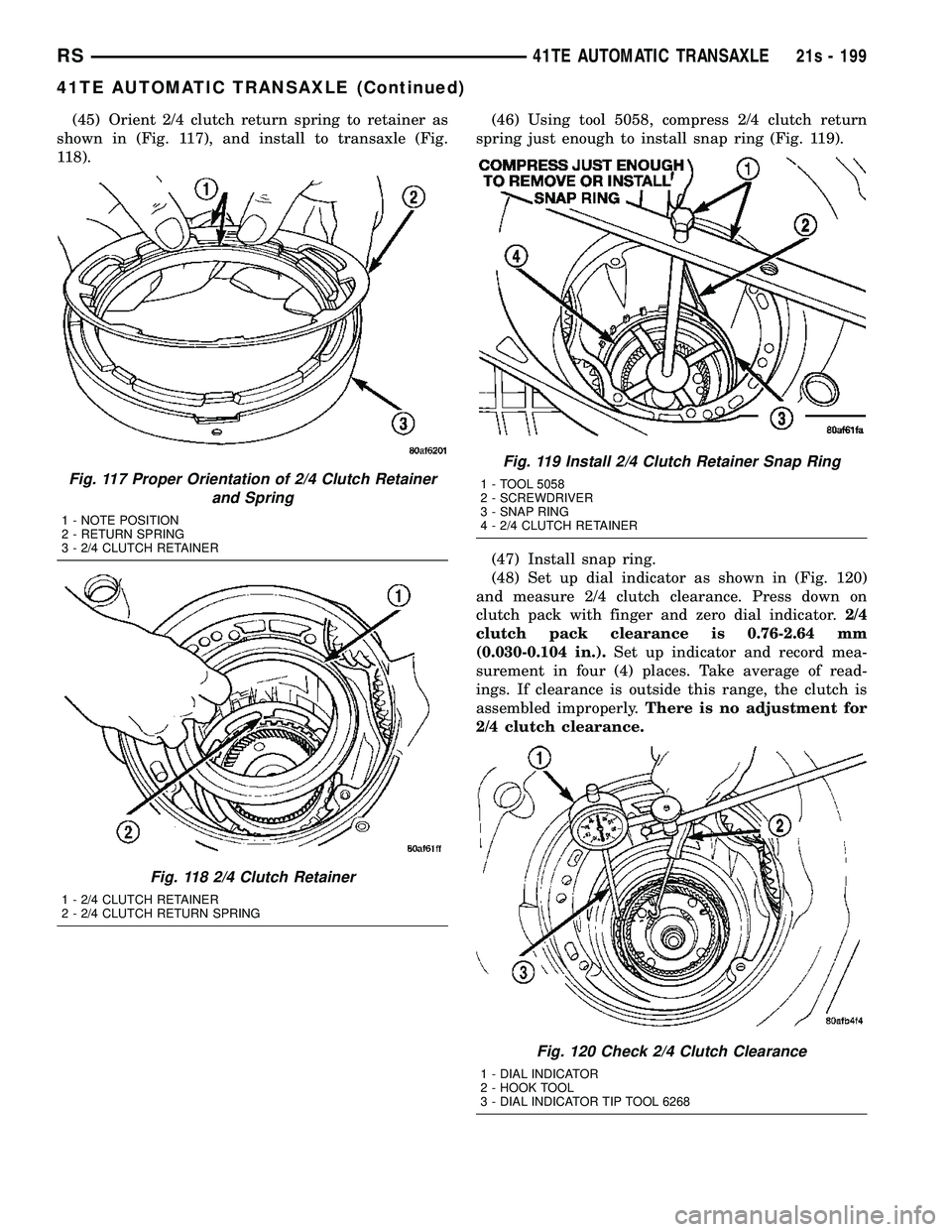

(45) Orient 2/4 clutch return spring to retainer as
shown in (Fig. 117), and install to transaxle (Fig.
118). (46) Using tool 5058, compress 2/4 clutch return
spring just enough to install snap ring (Fig. 119).
(47) Install snap ring.
(48) Set up dial indicator as shown in (Fig. 120)
and measure 2/4 clutch clearance. Press down on
clutch pack with finger and zero dial indicator. 2/4
clutch pack clearance is 0.76-2.64 mm
(0.030-0.104 in.). Set up indicator and record mea-
surement in four (4) places. Take average of read-
ings. If clearance is outside this range, the clutch is
assembled improperly. There is no adjustment for
2/4 clutch clearance.
Fig. 117 Proper Orientation of 2/4 Clutch Retainer and Spring
1 - NOTE POSITION
2 - RETURN SPRING
3 - 2/4 CLUTCH RETAINER
Fig. 118 2/4 Clutch Retainer
1 - 2/4 CLUTCH RETAINER
2 - 2/4 CLUTCH RETURN SPRING
Fig. 119 Install 2/4 Clutch Retainer Snap Ring
1 - TOOL 5058
2 - SCREWDRIVER
3 - SNAP RING
4 - 2/4 CLUTCH RETAINER
Fig. 120 Check 2/4 Clutch Clearance
1 - DIAL INDICATOR
2 - HOOK TOOL
3 - DIAL INDICATOR TIP TOOL 6268
RS 41TE AUTOMATIC TRANSAXLE21s - 199
41TE AUTOMATIC TRANSAXLE (Continued)
Page 2061 of 2585

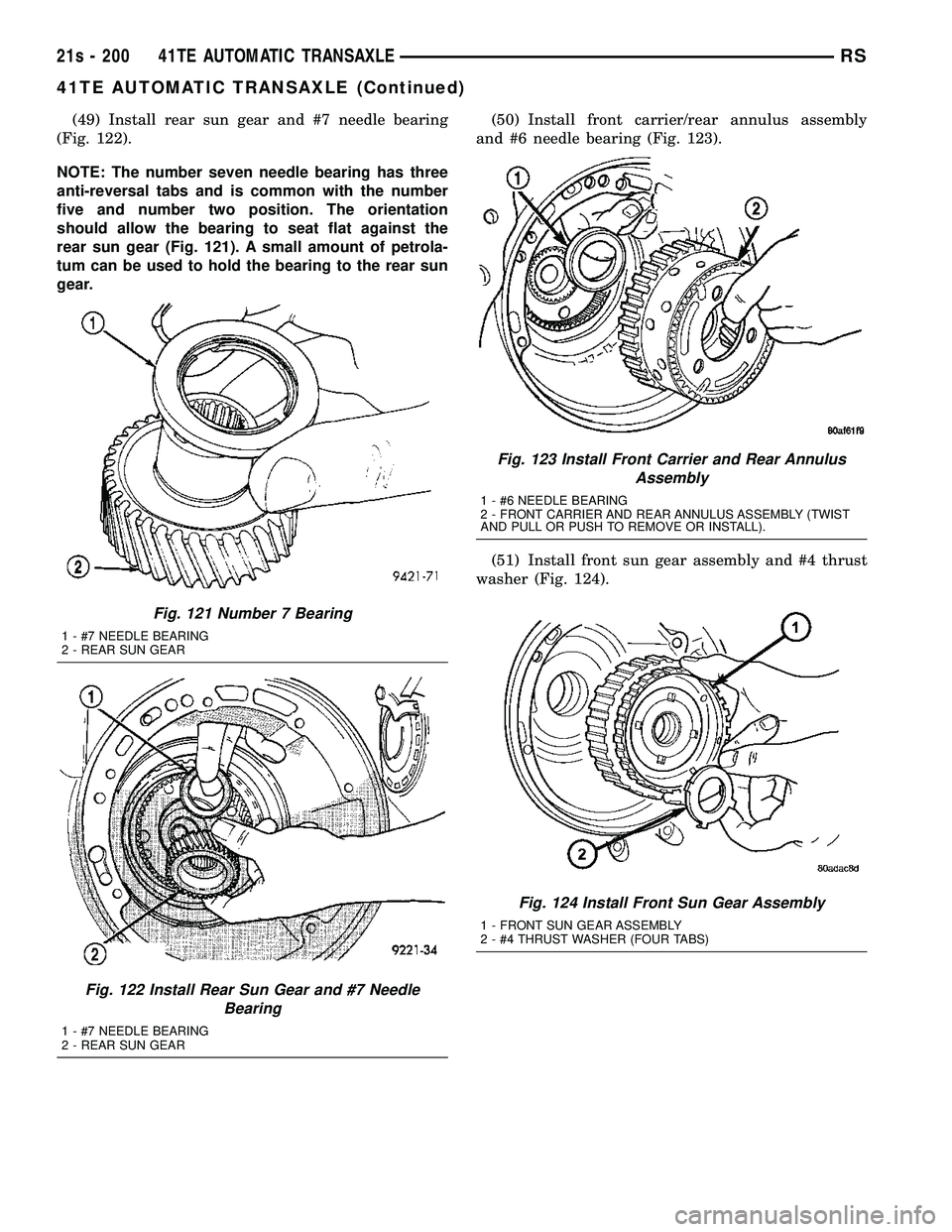

(49) Install rear sun gear and #7 needle bearing
(Fig. 122).
NOTE: The number seven needle bearing has three
anti-reversal tabs and is common with the number
five and number two position. The orientation
should allow the bearing to seat flat against the
rear sun gear (Fig. 121). A small amount of petrola-
tum can be used to hold the bearing to the rear sun
gear. (50) Install front carrier/rear annulus assembly
and #6 needle bearing (Fig. 123).
(51) Install front sun gear assembly and #4 thrust
washer (Fig. 124).
Fig. 121 Number 7 Bearing
1 - #7 NEEDLE BEARING
2 - REAR SUN GEAR
Fig. 122 Install Rear Sun Gear and #7 Needle Bearing
1 - #7 NEEDLE BEARING
2 - REAR SUN GEAR
Fig. 123 Install Front Carrier and Rear AnnulusAssembly
1 - #6 NEEDLE BEARING
2 - FRONT CARRIER AND REAR ANNULUS ASSEMBLY (TWIST
AND PULL OR PUSH TO REMOVE OR INSTALL).
Fig. 124 Install Front Sun Gear Assembly
1 - FRONT SUN GEAR ASSEMBLY
2 - #4 THRUST WASHER (FOUR TABS)
21s - 200 41TE AUTOMATIC TRANSAXLERS
41TE AUTOMATIC TRANSAXLE (Continued)
Page 2062 of 2585

(52)DETERMINING #4 THRUST PLATE
THICKNESS / INPUT SHAFT END PLAY: (a) Select the thinnest #4 thrust plate thickness
and install to input clutch assembly (Fig. 125). Use
petrolatum to retain. (b)
Install input clutch assembly into position and
verify that it is completely seated by viewing through
input speed sensor hole. If view through input speed
sensor hole is not as shown in (Fig. 126), the input
clutch assembly is not seated properly.
(c) Remove oil pump o-ring (Fig. 127). Be sure
to reinstall oil pump o-ring after selecting the
proper #4 thrust plate. (d) Install pump and gasket to transmission.
Install and torque bolts. (e) Set up input shaft for measurement with
Indicator Set C3339 and End Play Set 8266 as
shown in (Fig. 128). (f) Measure the input shaft end play with the
transaxle in the vertical position. Input shaft end
play must be within 0.005 to 0.025 inch. For
example, if end play reading is 0.055 inch, select
No. 4 Thrust Plate which is 0.071 to 0.074 thick.
This should provide an input shaft end play read-
ing of 0.020 inch which is within specifications. (g) Refer to the No. 4 thrust plate chart to select
the proper No. 4 thrust plate:
Fig. 125 Select Thinnest No. 4 Thrust Plate
1 - OVERDRIVE SHAFT ASSEMBLY
2 - #4 THRUST PLATE (SELECT)
3 - 3 DABS OF PETROLATUM FOR RETENTION
Fig. 126 View Through Input Speed Sensor Hole
1 - INPUT CLUTCH RETAINER
2 - INPUT SPEED SENSOR HOLE
3 - OIL COOLER FITTINGS
Fig. 127 Remove Oil Pump O-Ring
1 - OIL PUMP ASSEMBLY
2 - O-RING
Fig. 128 Measure Input Shaft End Play Using End Play Set 8266
1 - TOOL 8266±8
2 - TOOL 8266±2
3 - TOOL C-3339
RS 41TE AUTOMATIC TRANSAXLE21s - 201
41TE AUTOMATIC TRANSAXLE (Continued)
Page 2063 of 2585

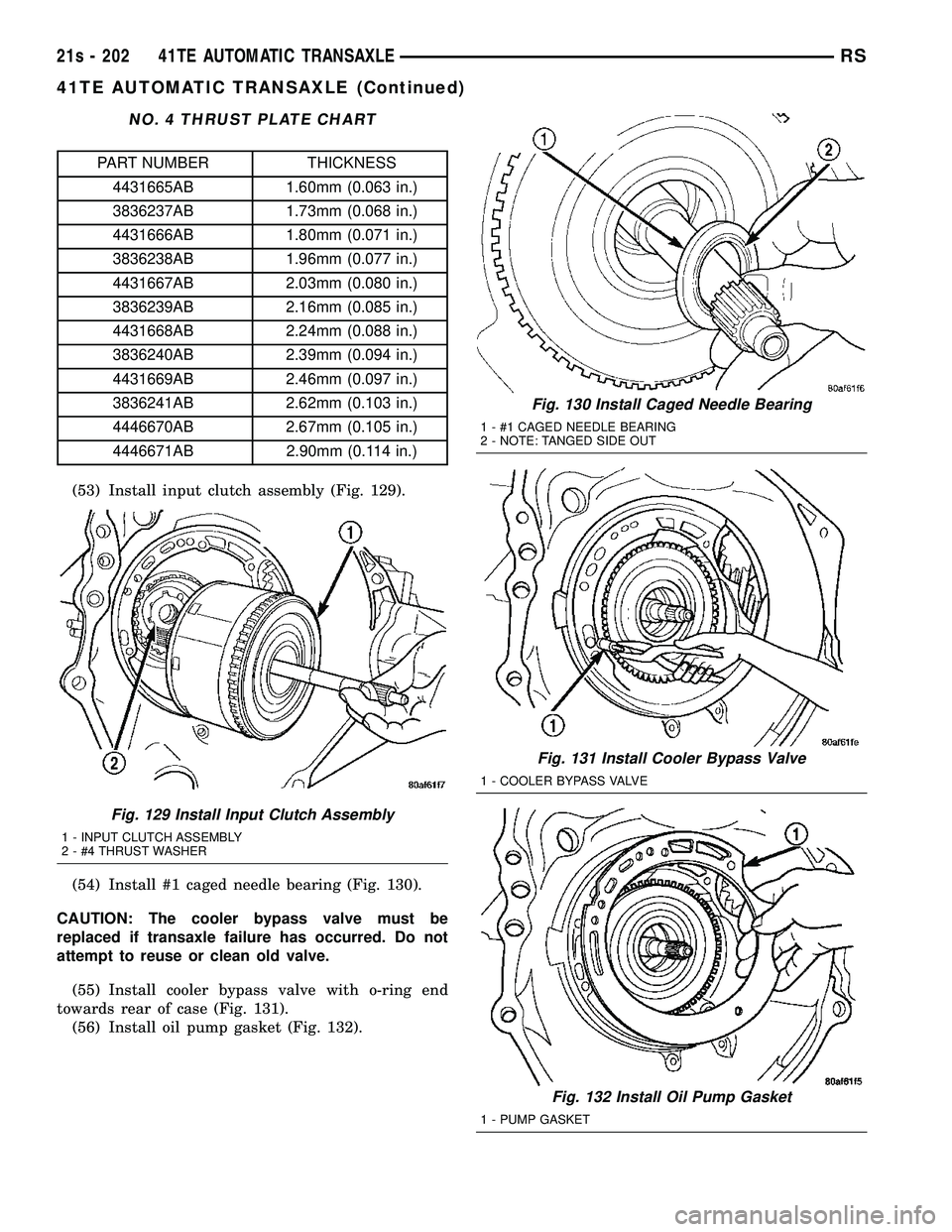

NO. 4 THRUST PLATE CHART
PART NUMBER THICKNESS4431665AB 1.60mm (0.063 in.)
3836237AB 1.73mm (0.068 in.)
4431666AB 1.80mm (0.071 in.)
3836238AB 1.96mm (0.077 in.)
4431667AB 2.03mm (0.080 in.)
3836239AB 2.16mm (0.085 in.)
4431668AB 2.24mm (0.088 in.)
3836240AB 2.39mm (0.094 in.)
4431669AB 2.46mm (0.097 in.)
3836241AB 2.62mm (0.103 in.)
4446670AB 2.67mm (0.105 in.)
4446671AB 2.90mm (0.114 in.)
(53) Install input clutch assembly (Fig. 129).
(54) Install #1 caged needle bearing (Fig. 130).
CAUTION: The cooler bypass valve must be
replaced if transaxle failure has occurred. Do not
attempt to reuse or clean old valve. (55) Install cooler bypass valve with o-ring end
towards rear of case (Fig. 131). (56) Install oil pump gasket (Fig. 132).
Fig. 129 Install Input Clutch Assembly
1 - INPUT CLUTCH ASSEMBLY
2 - #4 THRUST WASHER
Fig. 130 Install Caged Needle Bearing
1 - #1 CAGED NEEDLE BEARING
2 - NOTE: TANGED SIDE OUT
Fig. 131 Install Cooler Bypass Valve
1 - COOLER BYPASS VALVE
Fig. 132 Install Oil Pump Gasket
1 - PUMP GASKET
21s - 202 41TE AUTOMATIC TRANSAXLERS
41TE AUTOMATIC TRANSAXLE (Continued)
Page 2064 of 2585

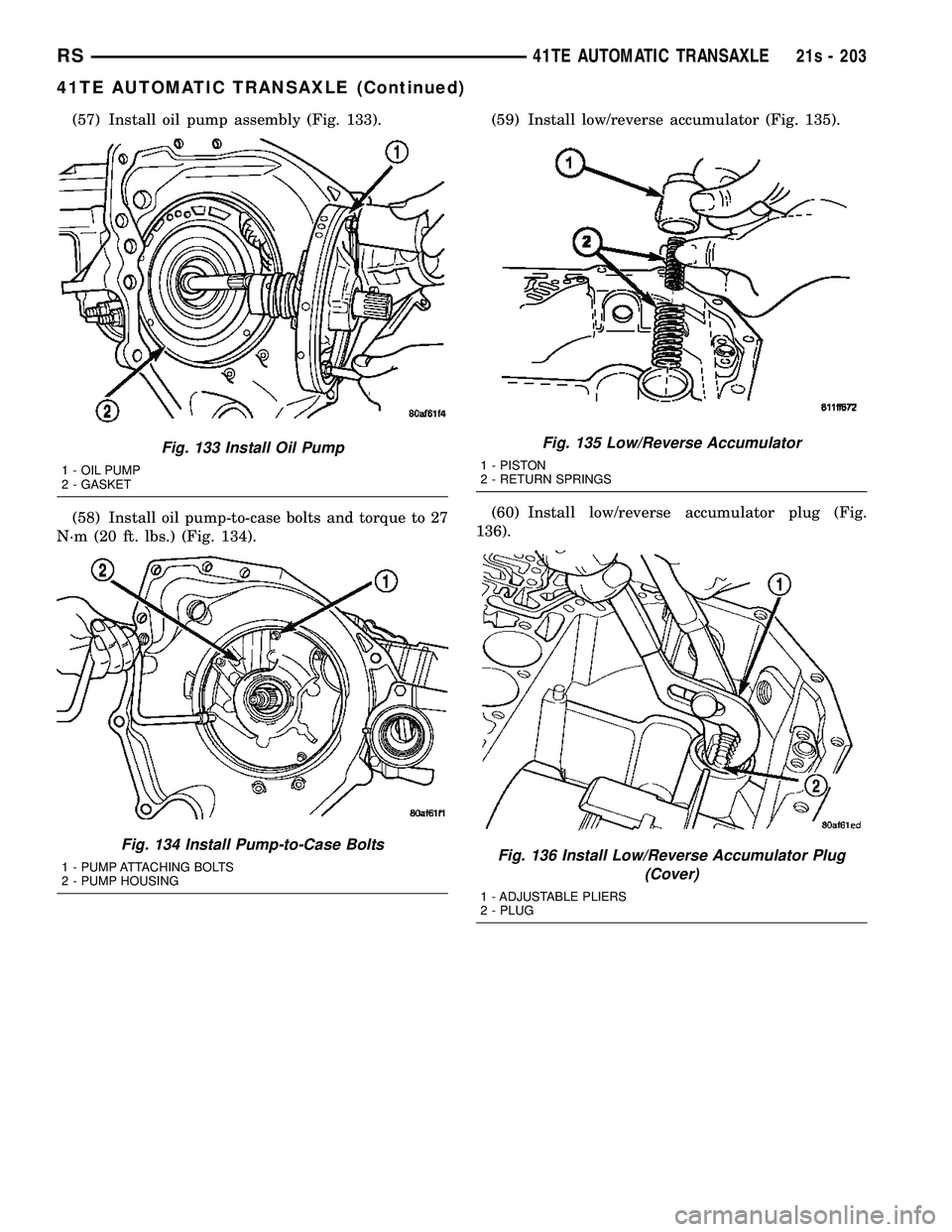

(57) Install oil pump assembly (Fig. 133).
(58) Install oil pump-to-case bolts and torque to 27
N´m (20 ft. lbs.) (Fig. 134). (59) Install low/reverse accumulator (Fig. 135).
(60) Install low/reverse accumulator plug (Fig.
136).
Fig. 133 Install Oil Pump
1 - OIL PUMP
2 - GASKET
Fig. 134 Install Pump-to-Case Bolts
1 - PUMP ATTACHING BOLTS
2 - PUMP HOUSING
Fig. 135 Low/Reverse Accumulator
1 - PISTON
2 - RETURN SPRINGS
Fig. 136 Install Low/Reverse Accumulator Plug (Cover)
1 - ADJUSTABLE PLIERS
2 - PLUG
RS 41TE AUTOMATIC TRANSAXLE21s - 203
41TE AUTOMATIC TRANSAXLE (Continued)
