Page 1153 of 2585

CHRYSLER VOYAGER 2004 Service Manual CLUTCH PEDAL UPSTOP SWITCH (DIESEL) - RED 2 WAY CAV CIRCUIT FUNCTION 1 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE 2 Z150 20BK/LG GROUND CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY CAV CIRCUIT FUNCTION

Page 1154 of 2585

CHRYSLER VOYAGER 2004 Service Manual CRANK CASE VENTILATION HEATER (DIESEL) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 Z153 18BK/GY GROUND 2 N1 18DB/OR FUEL HEATER RELAY OUTPUT CRANKSHAFT POSITION SENSOR (DIESEL)-2WAY CAV CIRCUIT FUNCTION 1 K3

Page 1155 of 2585

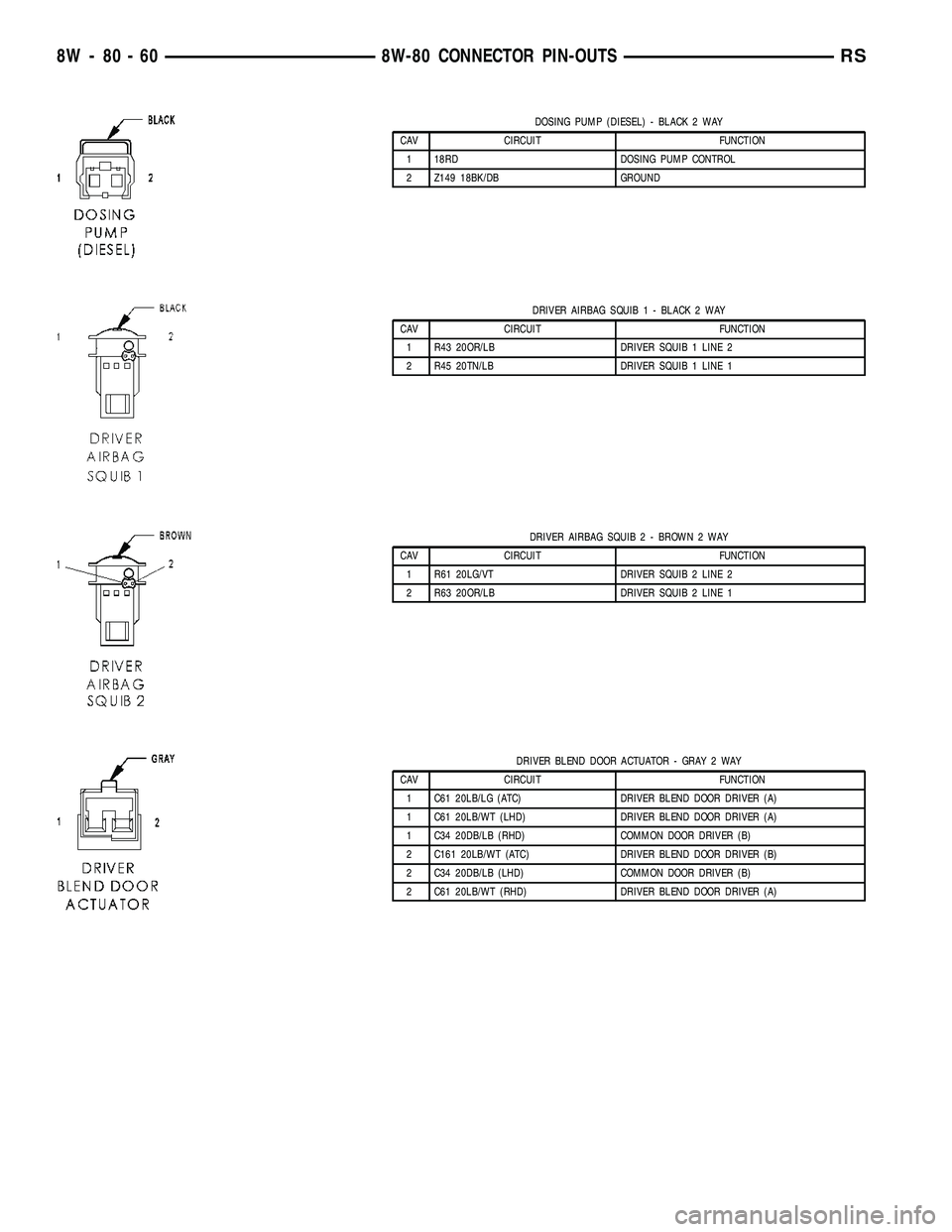

CHRYSLER VOYAGER 2004 Service Manual DOSING PUMP (DIESEL) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 18RD DOSING PUMP CONTROL 2 Z149 18BK/DB GROUND DRIVER AIRBAG SQUIB 1 - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 R43 20OR/LB DRIVER SQUIB 1 LINE 2 2

Page 1156 of 2585

CHRYSLER VOYAGER 2004 Service Manual DRIVER DOOR COURTESY LAMP - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 Z321 20BK/BR (LHD) GROUND 1 Z322 20BK/BR (RHD) GROUND 2- - 3 M21 20YL/BR COURTESY LAMPS DRIVER DRIVER DOOR LOCK SWITCH - BLACK 3 WAY CAV C

Page 1157 of 2585

CHRYSLER VOYAGER 2004 Service Manual DRIVER HEATED SEAT MODULE C2 - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 S1 18DB (LHD) SEAT BACK HEATER B(+) DRIVER 1 S1 18RD (RHD) SEAT BACK HEATER B(+) DRIVER 2 S2 18DG (LHD) SEAT BACK HEATER GROUND 2 S2 18

Page 1158 of 2585

CHRYSLER VOYAGER 2004 Service Manual DRIVER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 P17 14LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH SENSE 1 P117 14LG/LB (LHD) (MEMORY) SEAT HORIZONTAL REARWARD DRIVER 1 P115 14

Page 1159 of 2585

CHRYSLER VOYAGER 2004 Service Manual DRIVER POWER SEAT RECLINER POSITION SENSOR - BLACK 3 WAY CAV CIRCUIT FUNCTION A P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY B P47 20LG/LB RECLINER POSITION SIGNAL C P28 20LG/BR SEAT POSITION SENSOR GROUND D

Page 1160 of 2585

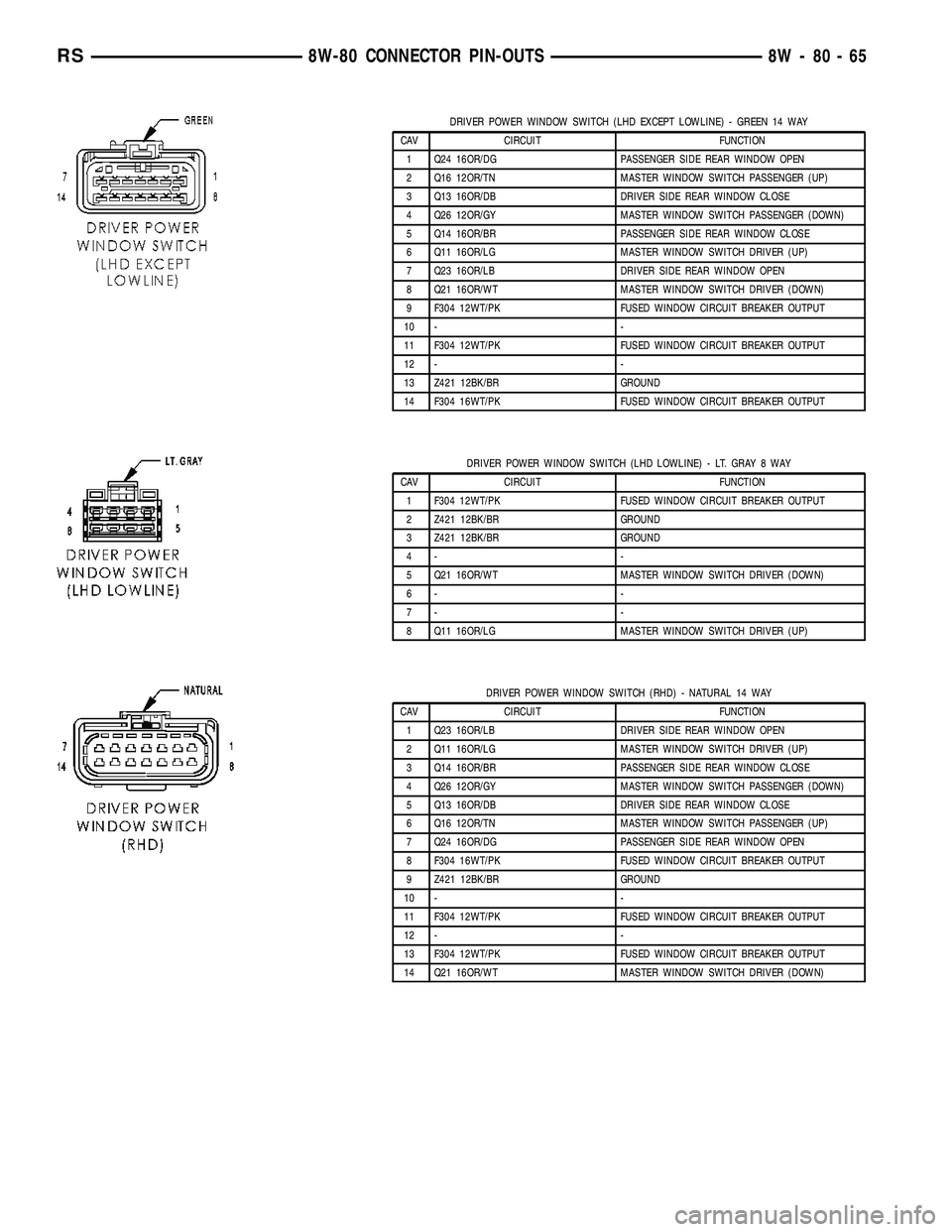

CHRYSLER VOYAGER 2004 Service Manual DRIVER POWER WINDOW SWITCH (LHD EXCEPT LOWLINE) - GREEN 14 WAY CAV CIRCUIT FUNCTION 1 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN 2 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER (UP) 3 Q13 16OR/DB DRIVER
