Page 2361 of 2585

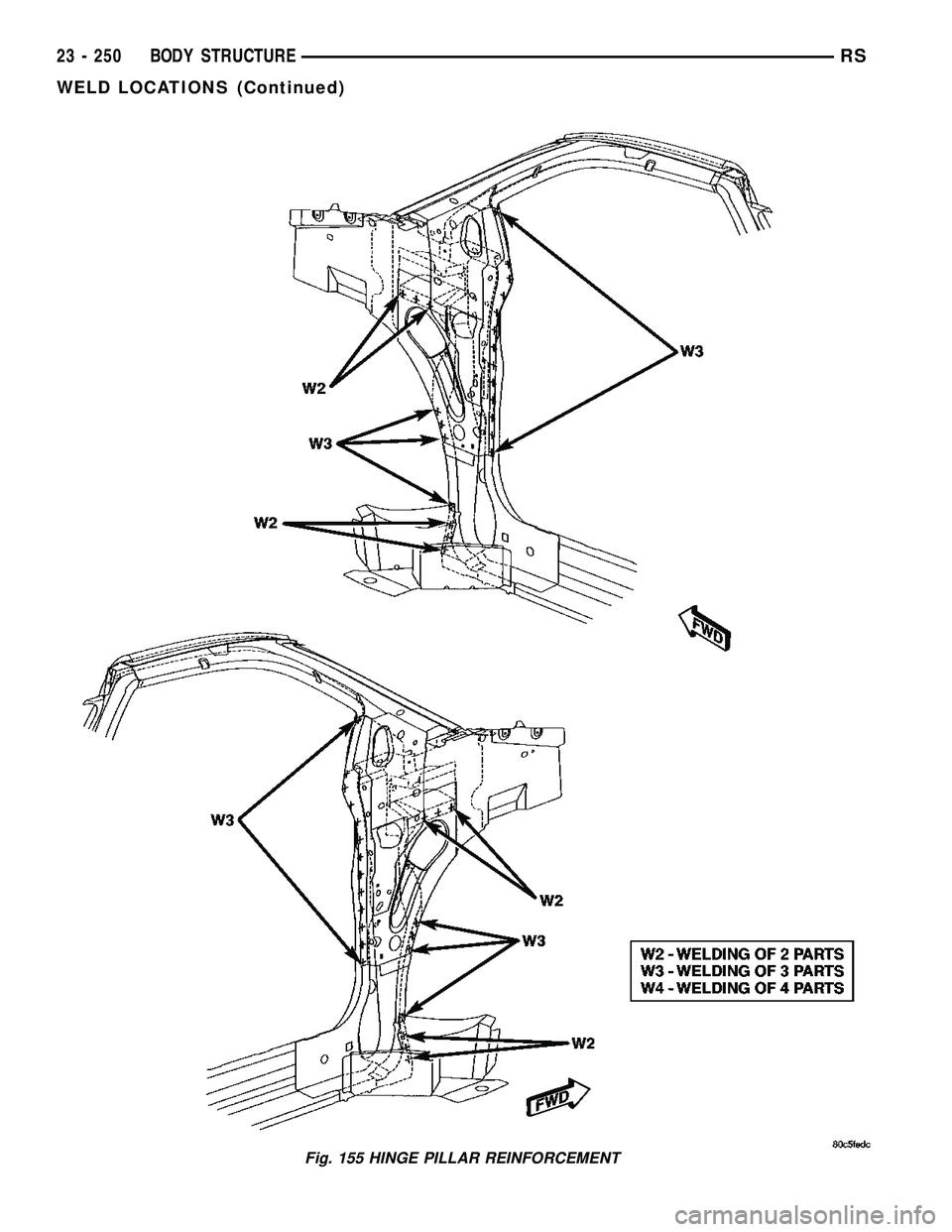

CHRYSLER VOYAGER 2004 Service Manual Fig. 155 HINGE PILLAR REINFORCEMENT 23 - 250 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2362 of 2585

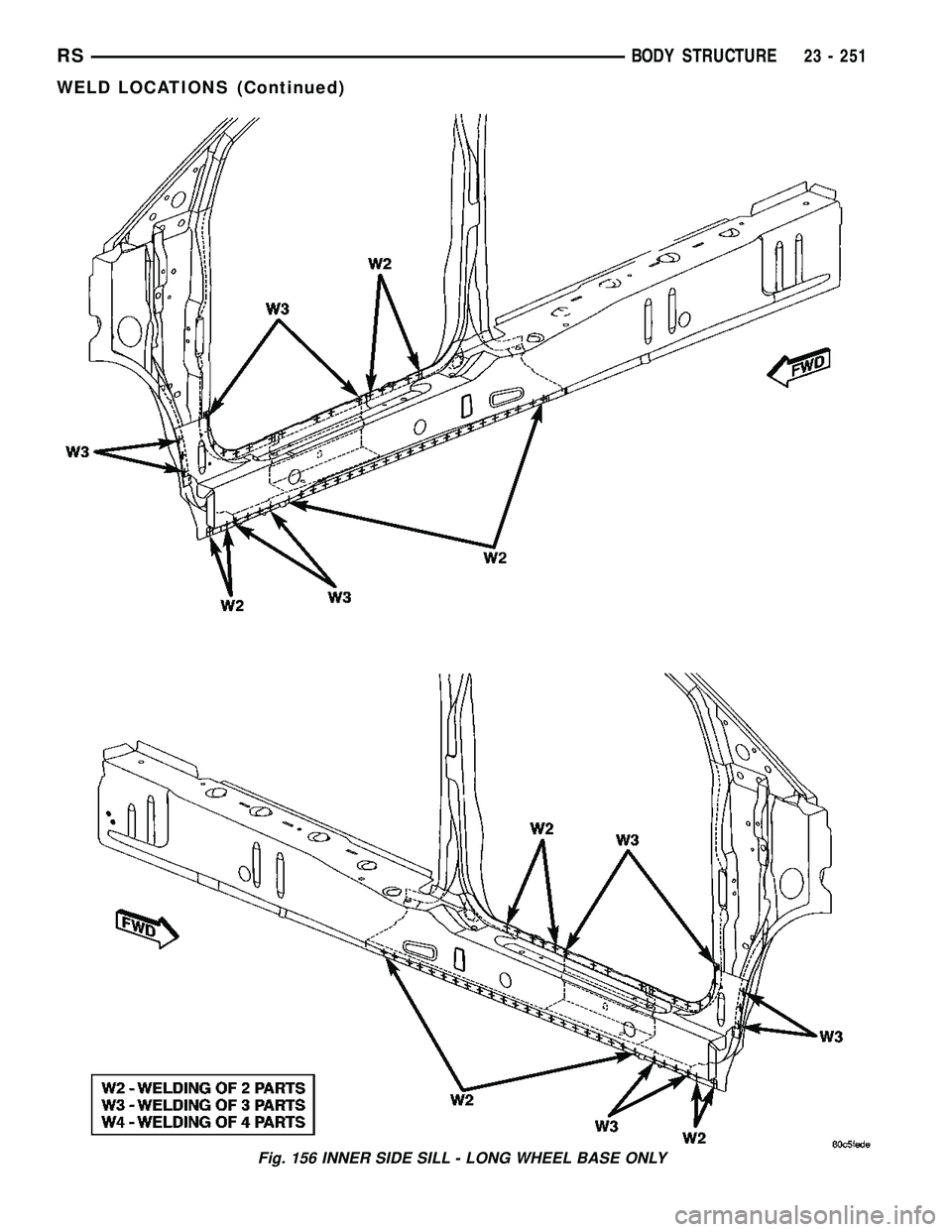

CHRYSLER VOYAGER 2004 Service Manual Fig. 156 INNER SIDE SILL - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 251 WELD LOCATIONS (Continued)

Page 2363 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 157 INNER SIDE SILL/OUTER SIDE SILL - LONG WHEEL BASE ONLY 23 - 252 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2364 of 2585

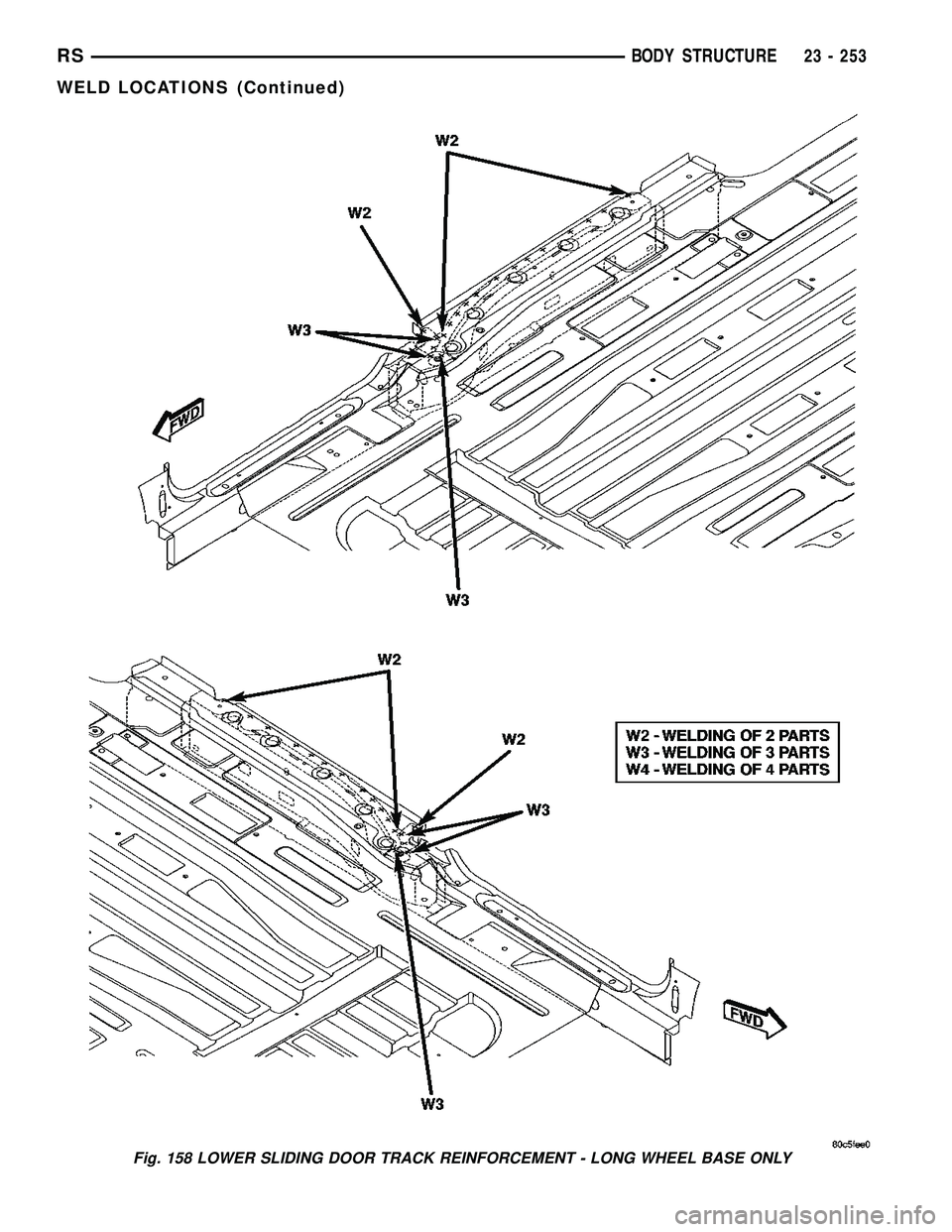

CHRYSLER VOYAGER 2004 Service Manual Fig. 158 LOWER SLIDING DOOR TRACK REINFORCEMENT - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 253 WELD LOCATIONS (Continued)

Page 2365 of 2585

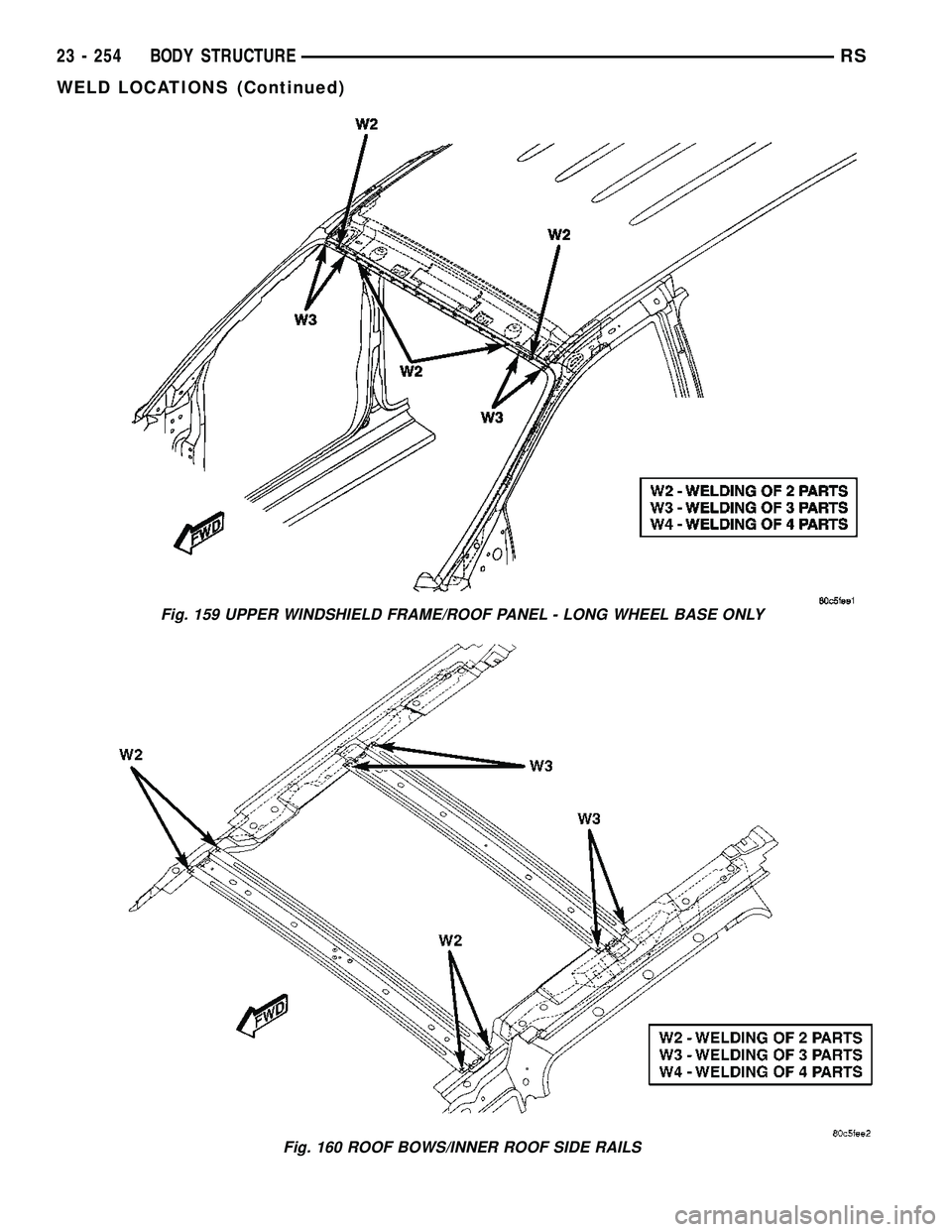

CHRYSLER VOYAGER 2004 Service Manual Fig. 159 UPPER WINDSHIELD FRAME/ROOF PANEL - LONG WHEEL BASE ONLY Fig. 160 ROOF BOWS/INNER ROOF SIDE RAILS 23 - 254 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2366 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 161 OUTER ROOF PANEL - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 255 WELD LOCATIONS (Continued)

Page 2367 of 2585

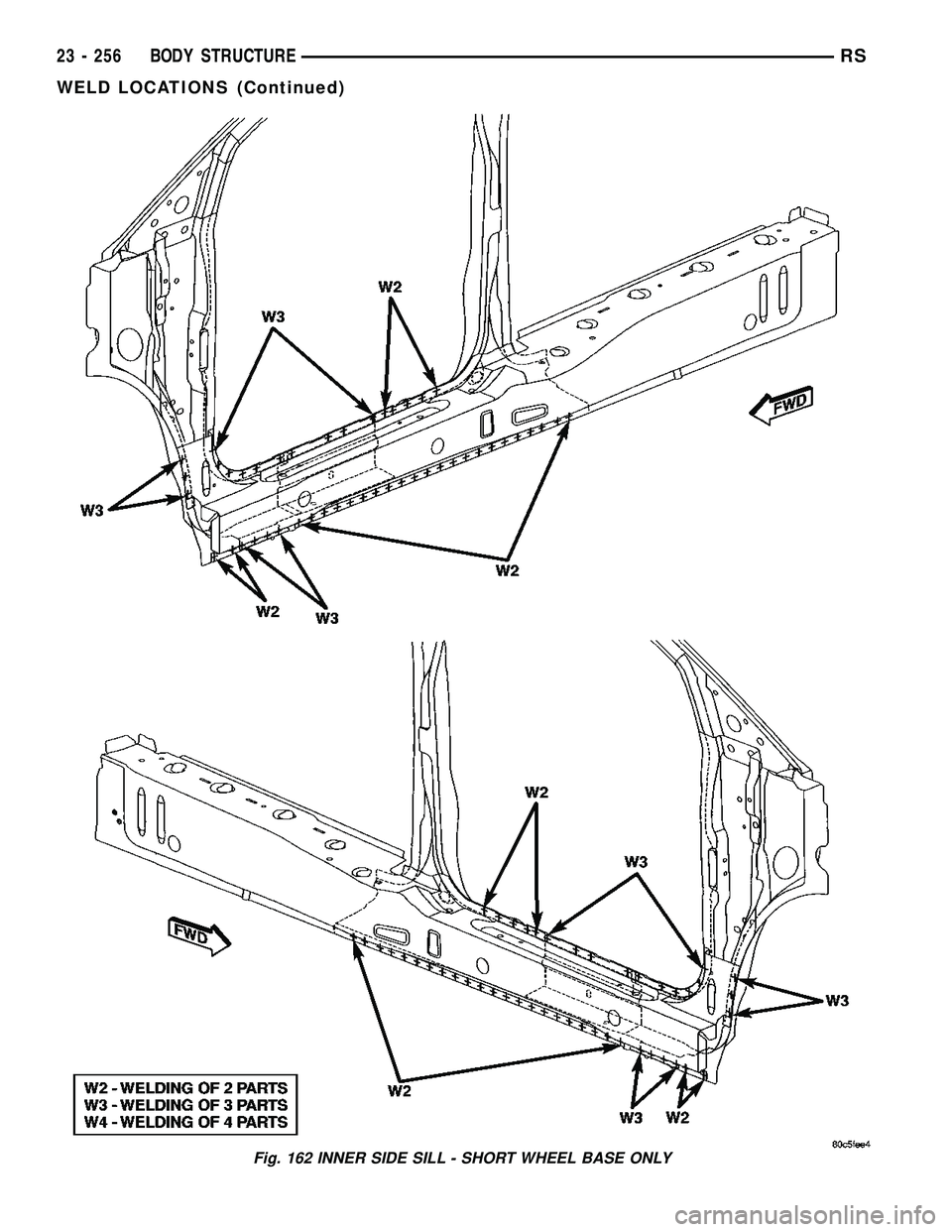

CHRYSLER VOYAGER 2004 Service Manual Fig. 162 INNER SIDE SILL - SHORT WHEEL BASE ONLY 23 - 256 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2368 of 2585

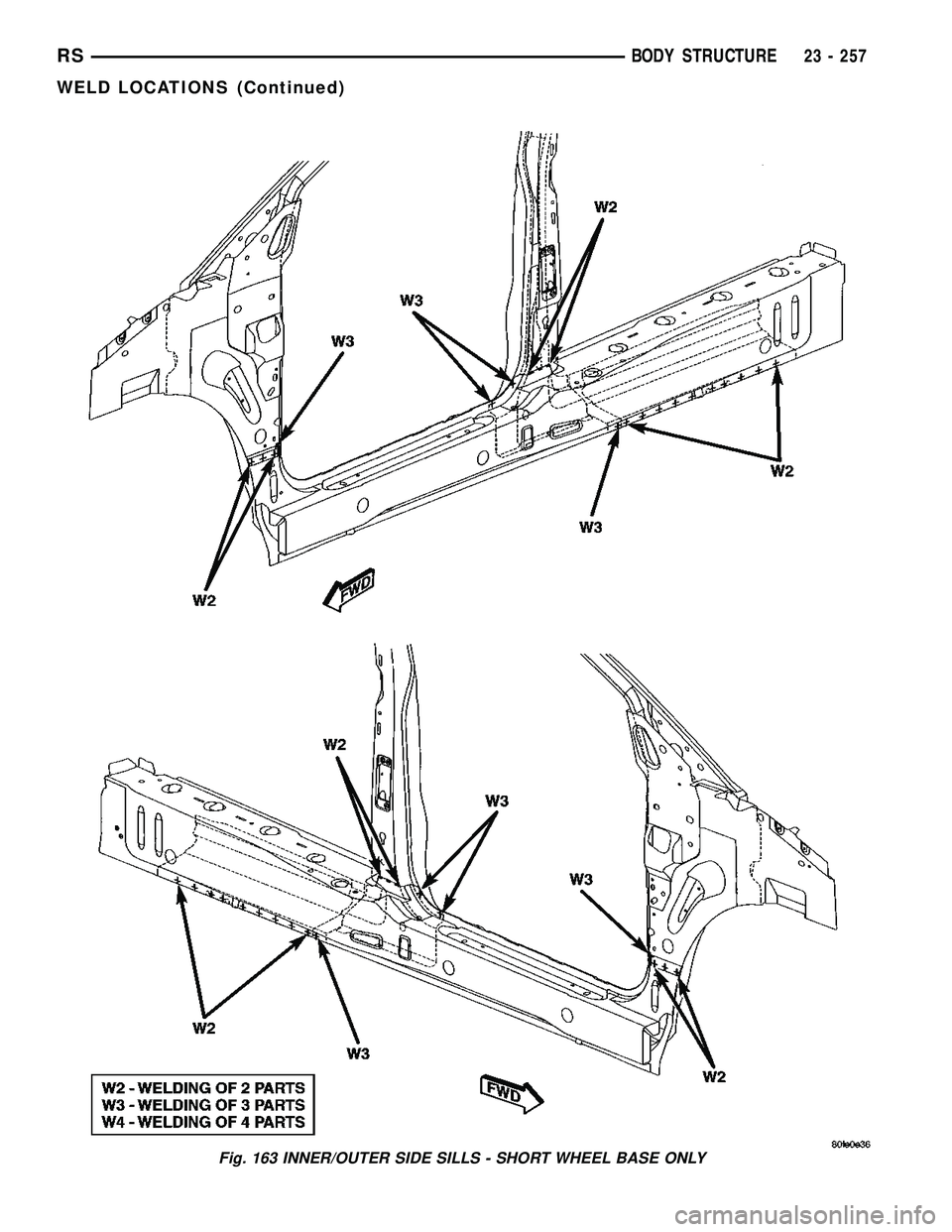

CHRYSLER VOYAGER 2004 Service Manual Fig. 163 INNER/OUTER SIDE SILLS - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 257 WELD LOCATIONS (Continued)
