Page 2377 of 2585

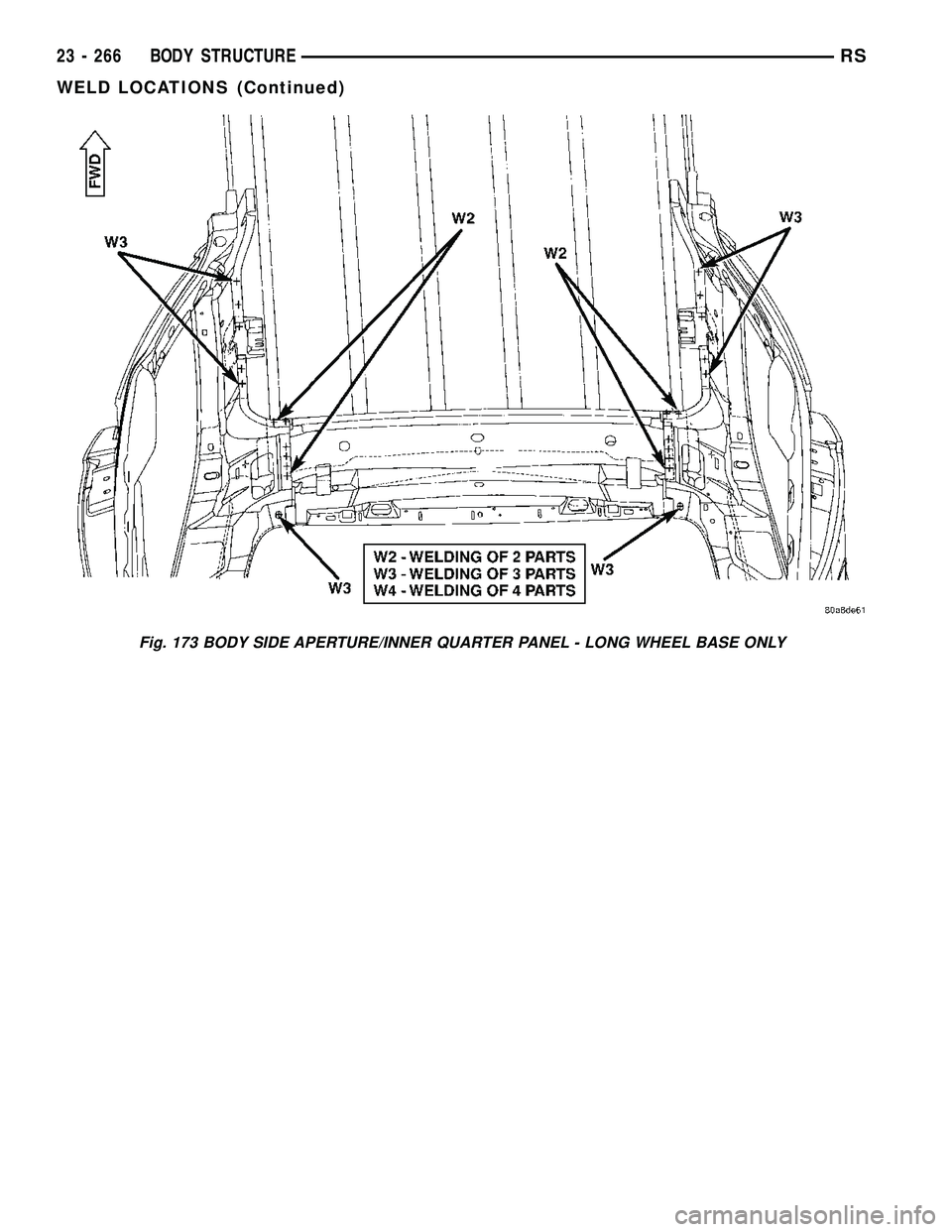

CHRYSLER VOYAGER 2004 Service Manual Fig. 173 BODY SIDE APERTURE/INNER QUARTER PANEL - LONG WHEEL BASE ONLY 23 - 266 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2378 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 174 REAR JACKING REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 267 WELD LOCATIONS (Continued)

Page 2379 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 175 INNER WHEELHOUSE/INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 23 - 268 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2380 of 2585

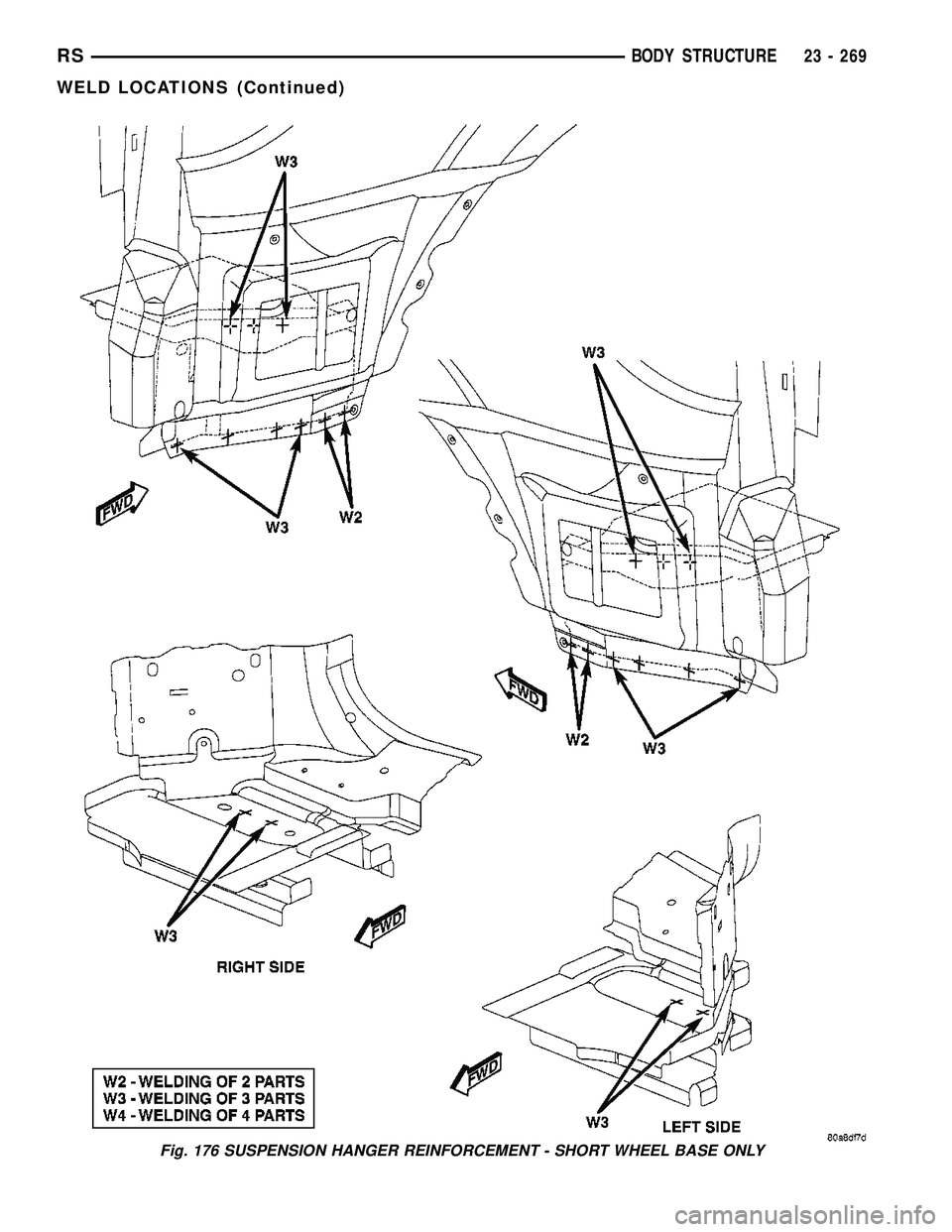

CHRYSLER VOYAGER 2004 Service Manual Fig. 176 SUSPENSION HANGER REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 269 WELD LOCATIONS (Continued)

Page 2381 of 2585

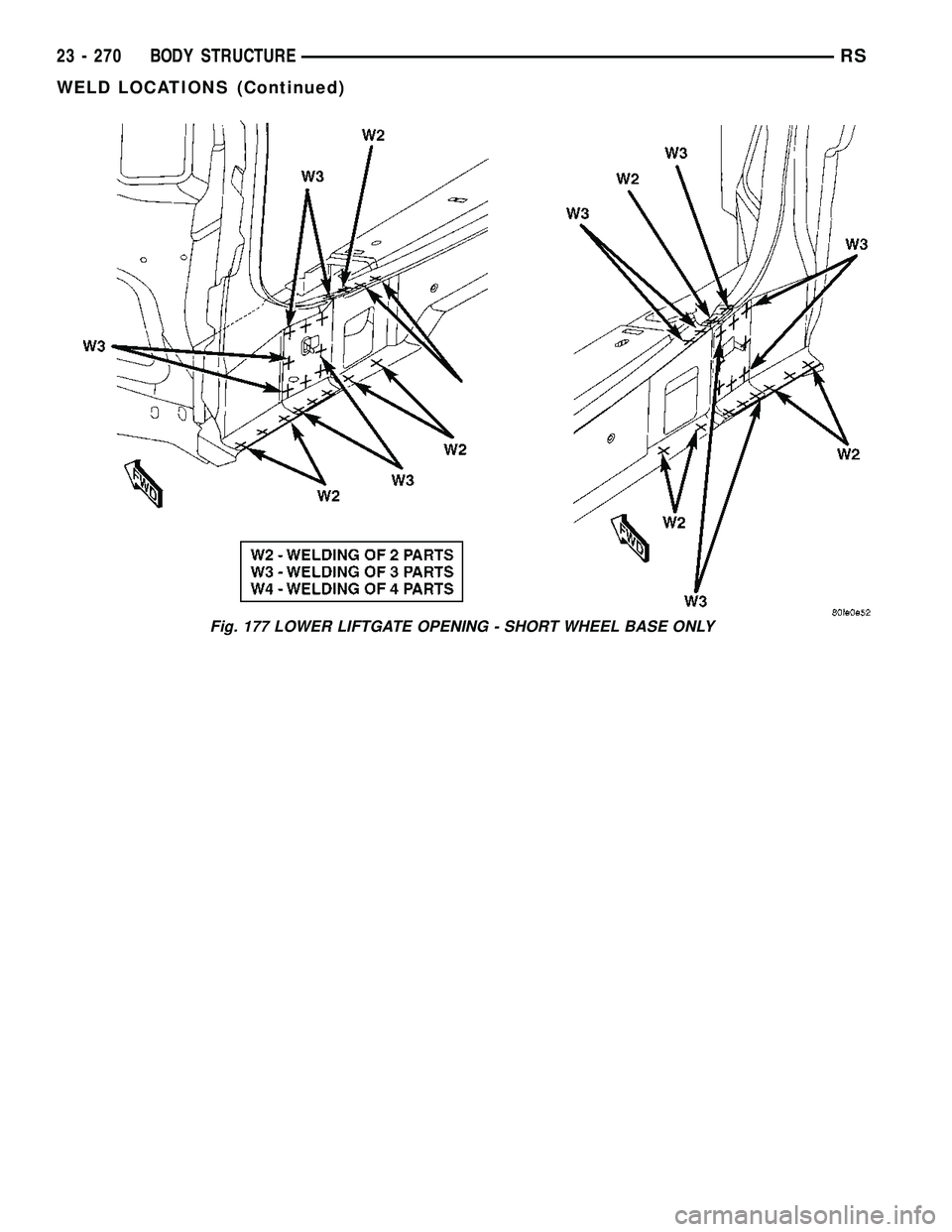

CHRYSLER VOYAGER 2004 Service Manual Fig. 177 LOWER LIFTGATE OPENING - SHORT WHEEL BASE ONLY 23 - 270 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2382 of 2585

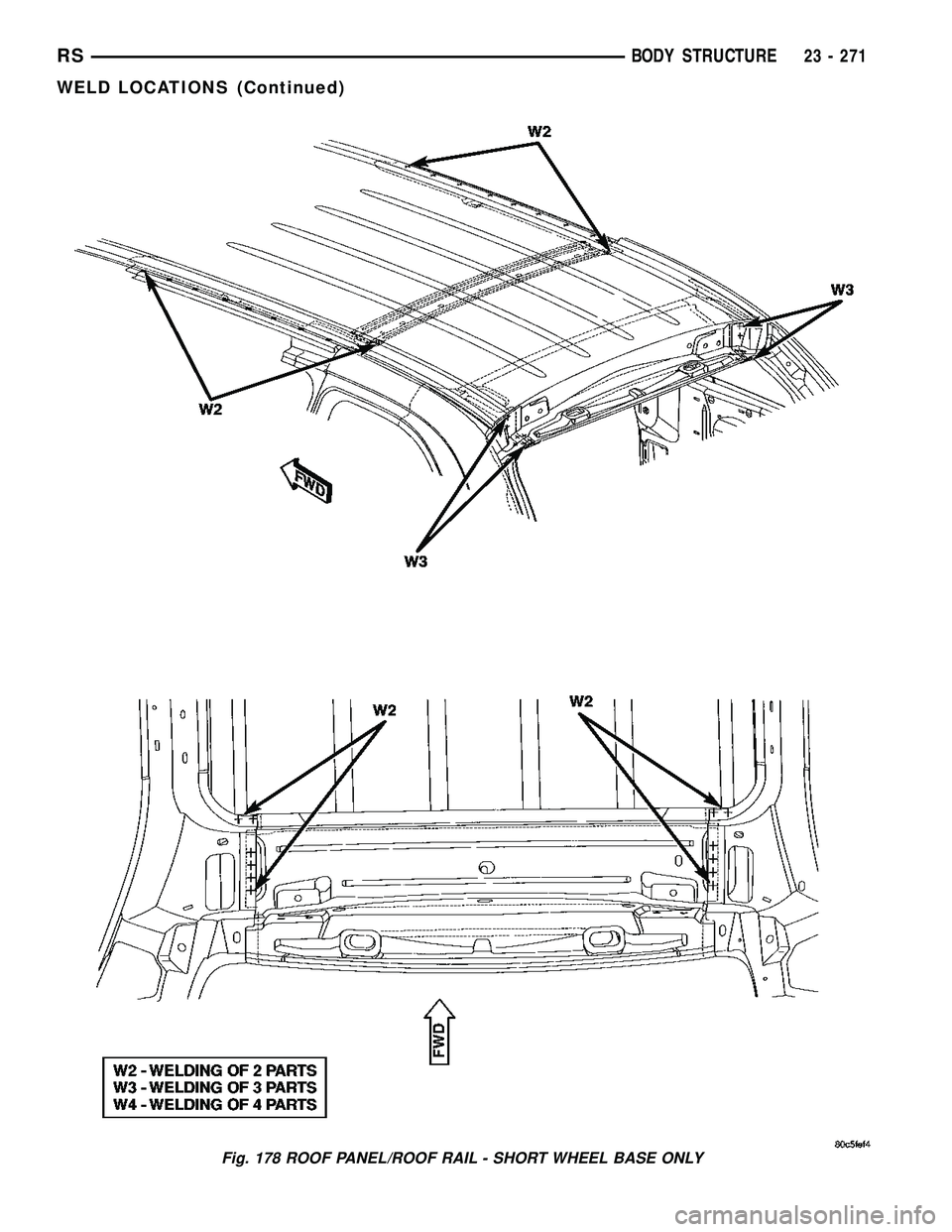

CHRYSLER VOYAGER 2004 Service Manual Fig. 178 ROOF PANEL/ROOF RAIL - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 271 WELD LOCATIONS (Continued)

Page 2383 of 2585

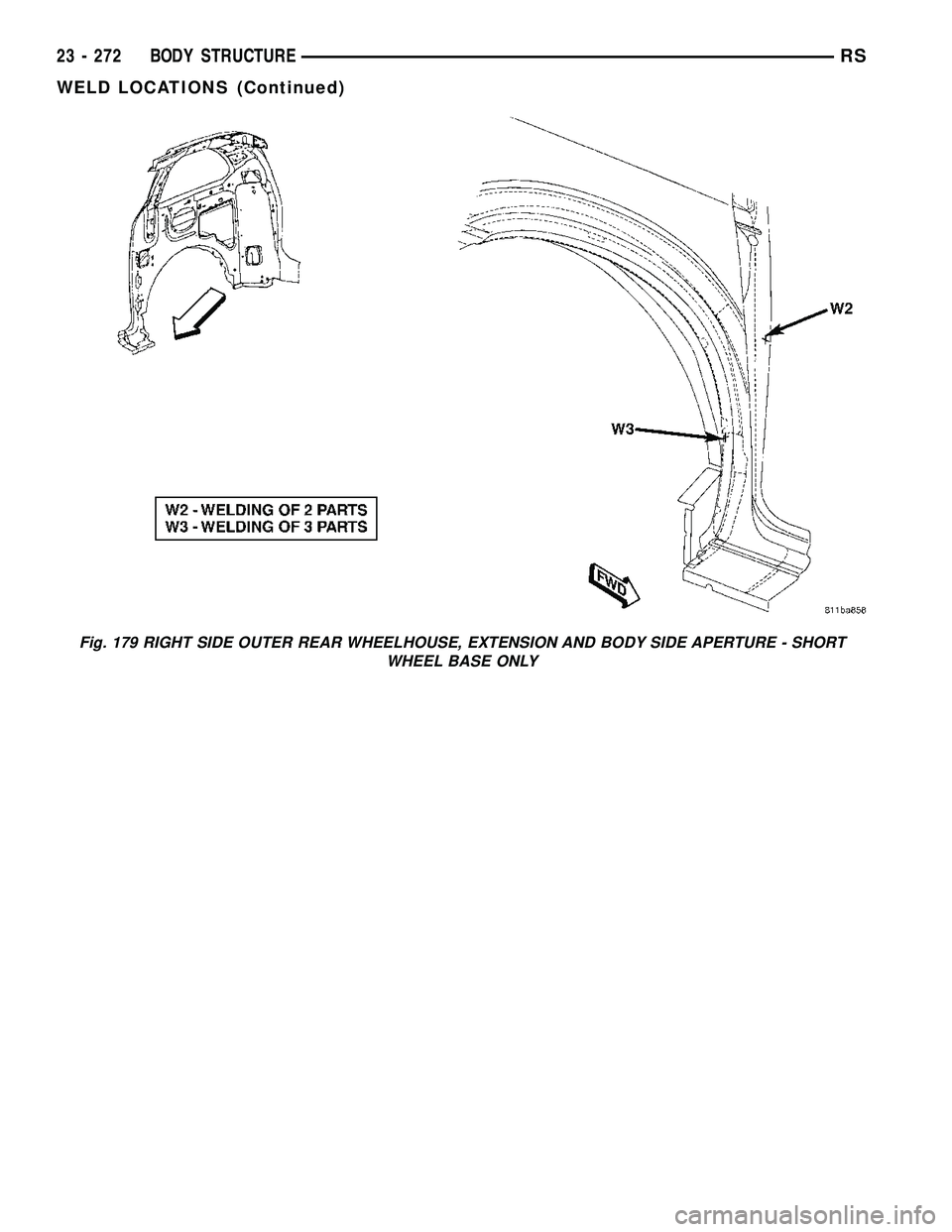

CHRYSLER VOYAGER 2004 Service Manual Fig. 179 RIGHT SIDE OUTER REAR WHEELHOUSE, EXTENSION AND BODY SIDE APERTURE - SHORT WHEEL BASE ONLY 23 - 272 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2384 of 2585

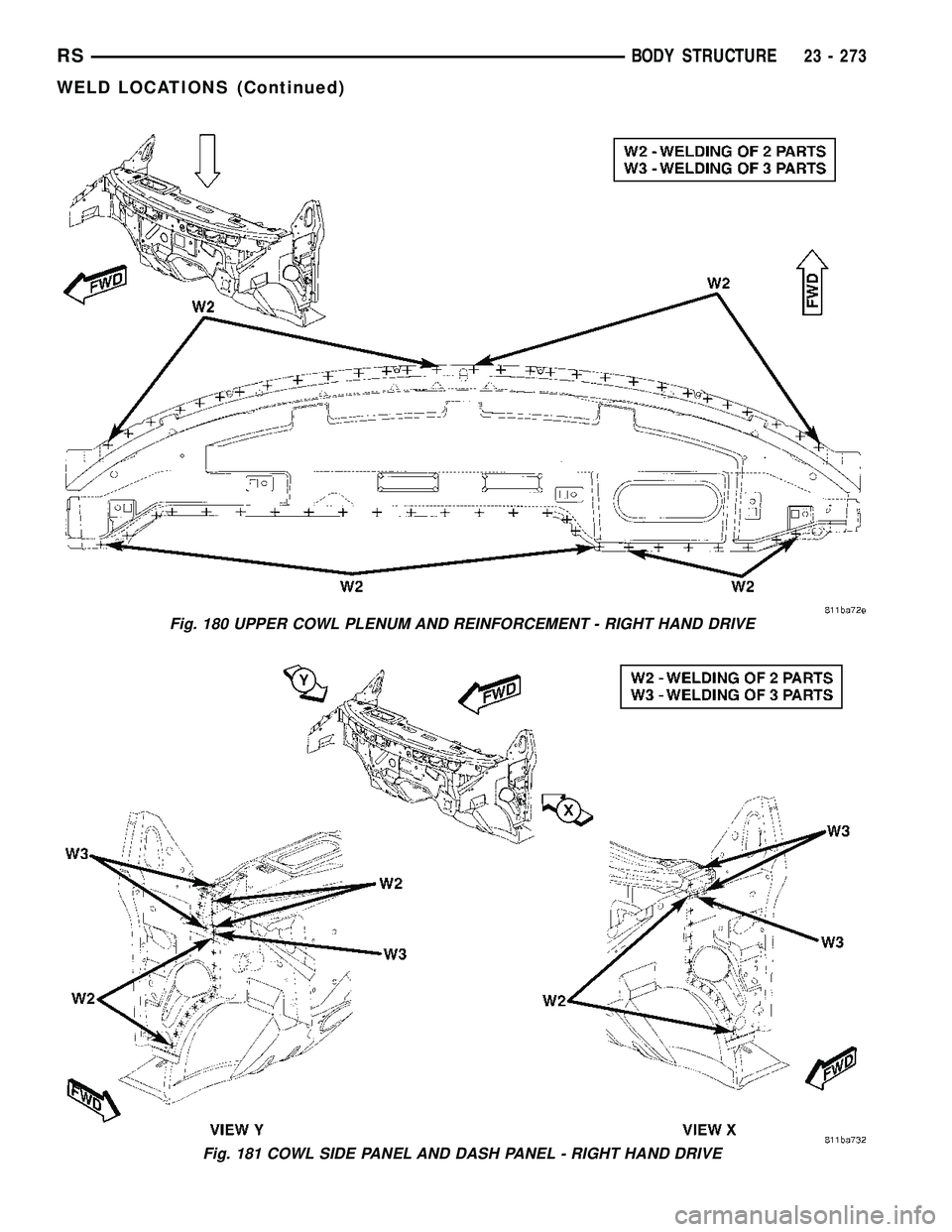

CHRYSLER VOYAGER 2004 Service Manual Fig. 180 UPPER COWL PLENUM AND REINFORCEMENT - RIGHT HAND DRIVE Fig. 181 COWL SIDE PANEL AND DASH PANEL - RIGHT HAND DRIVE RSBODY STRUCTURE23 - 273 WELD LOCATIONS (Continued)
