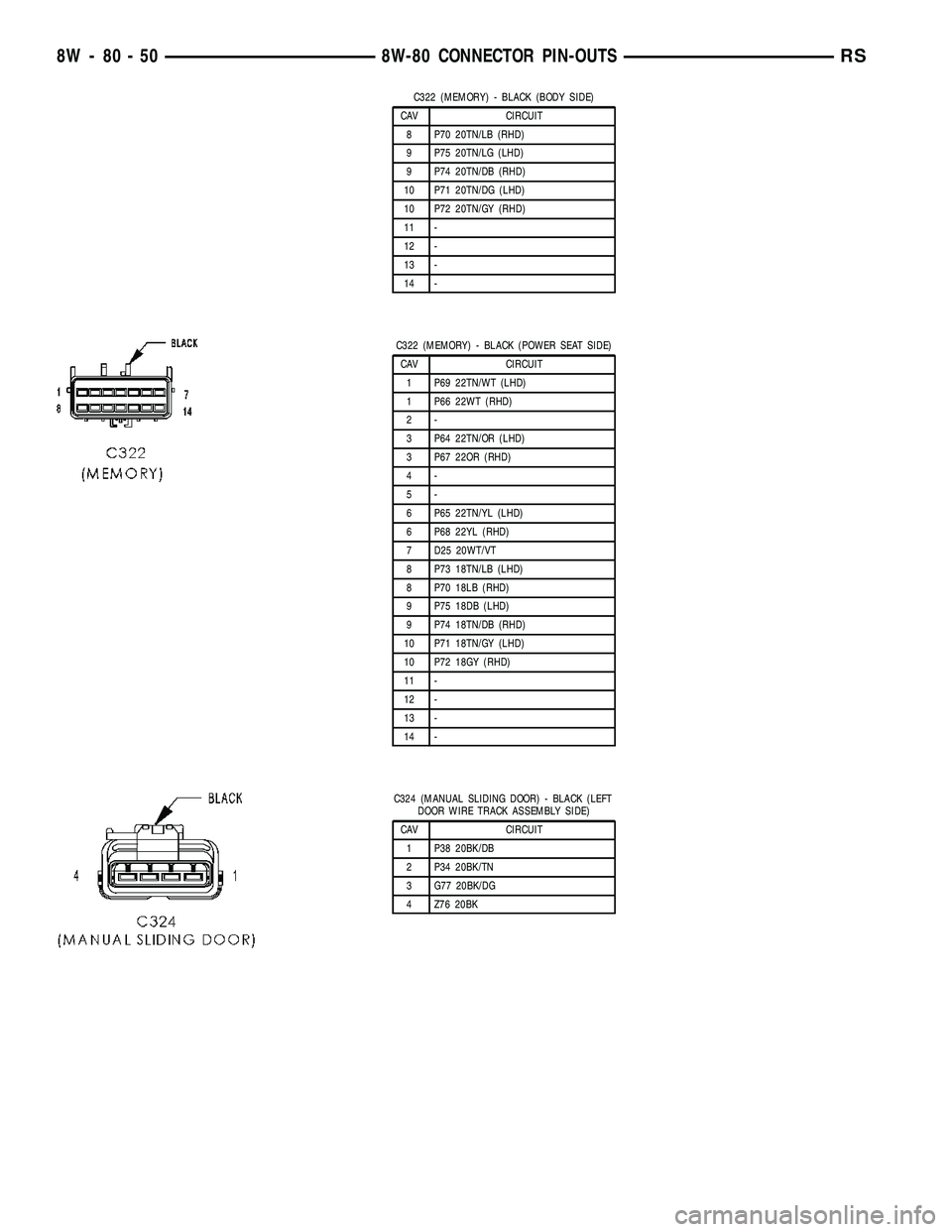

CHRYSLER VOYAGER 2004 Service Manual C322 (MEMORY) - BLACK (BODY SIDE) CAV CIRCUIT 8 P70 20TN/LB (RHD) 9 P75 20TN/LG (LHD) 9 P74 20TN/DB (RHD) 10 P71 20TN/DG (LHD) 10 P72 20TN/GY (RHD) 11 - 12 - 13 - 14 - C322 (MEMORY) - BLACK (POWER SEA

Page 1146 of 2585

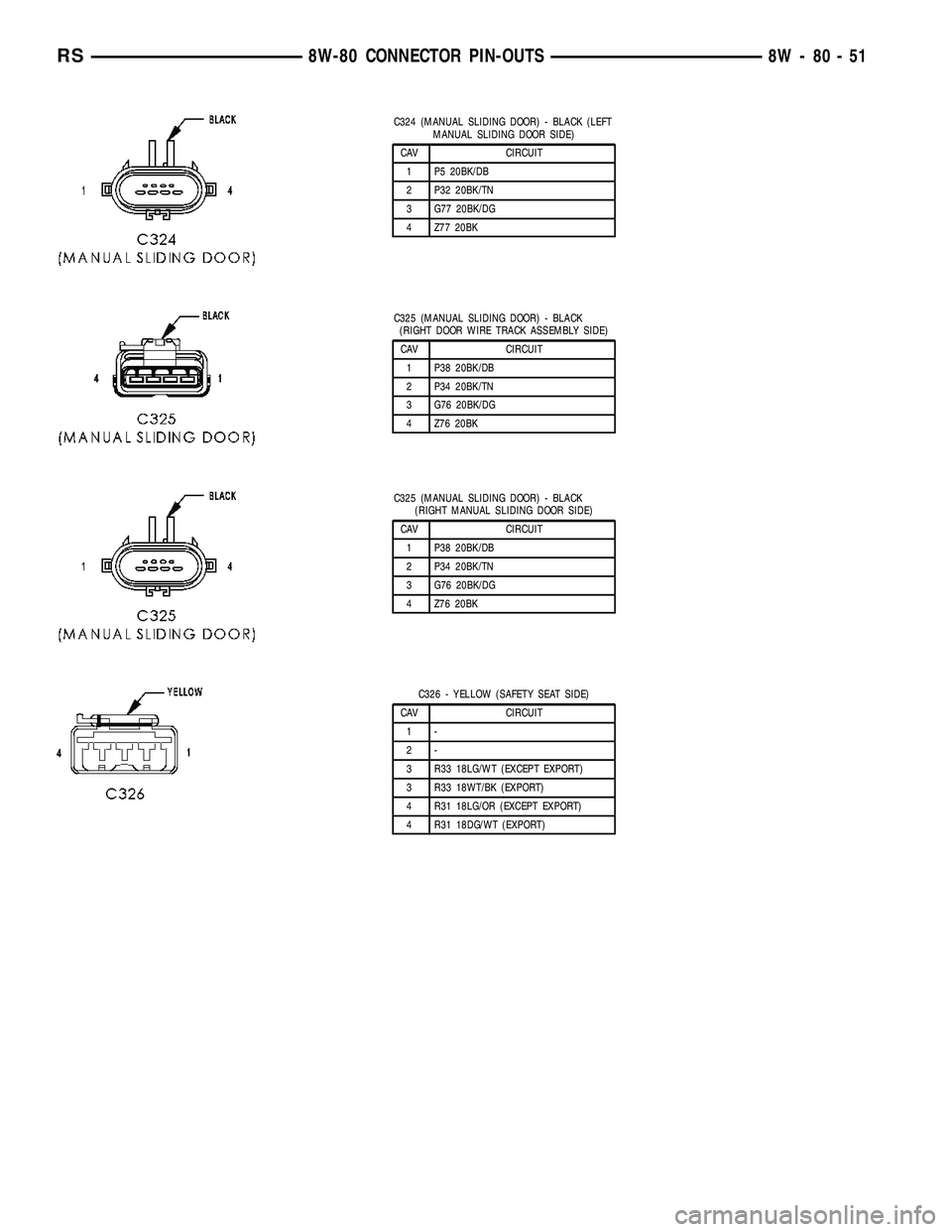

CHRYSLER VOYAGER 2004 Service Manual C324 (MANUAL SLIDING DOOR) - BLACK (LEFT MANUAL SLIDING DOOR SIDE) CAV CIRCUIT 1 P5 20BK/DB 2 P32 20BK/TN 3 G77 20BK/DG 4 Z77 20BK C325 (MANUAL SLIDING DOOR) - BLACK (RIGHT DOOR WIRE TRACK ASSEMBLY SI

Page 1147 of 2585

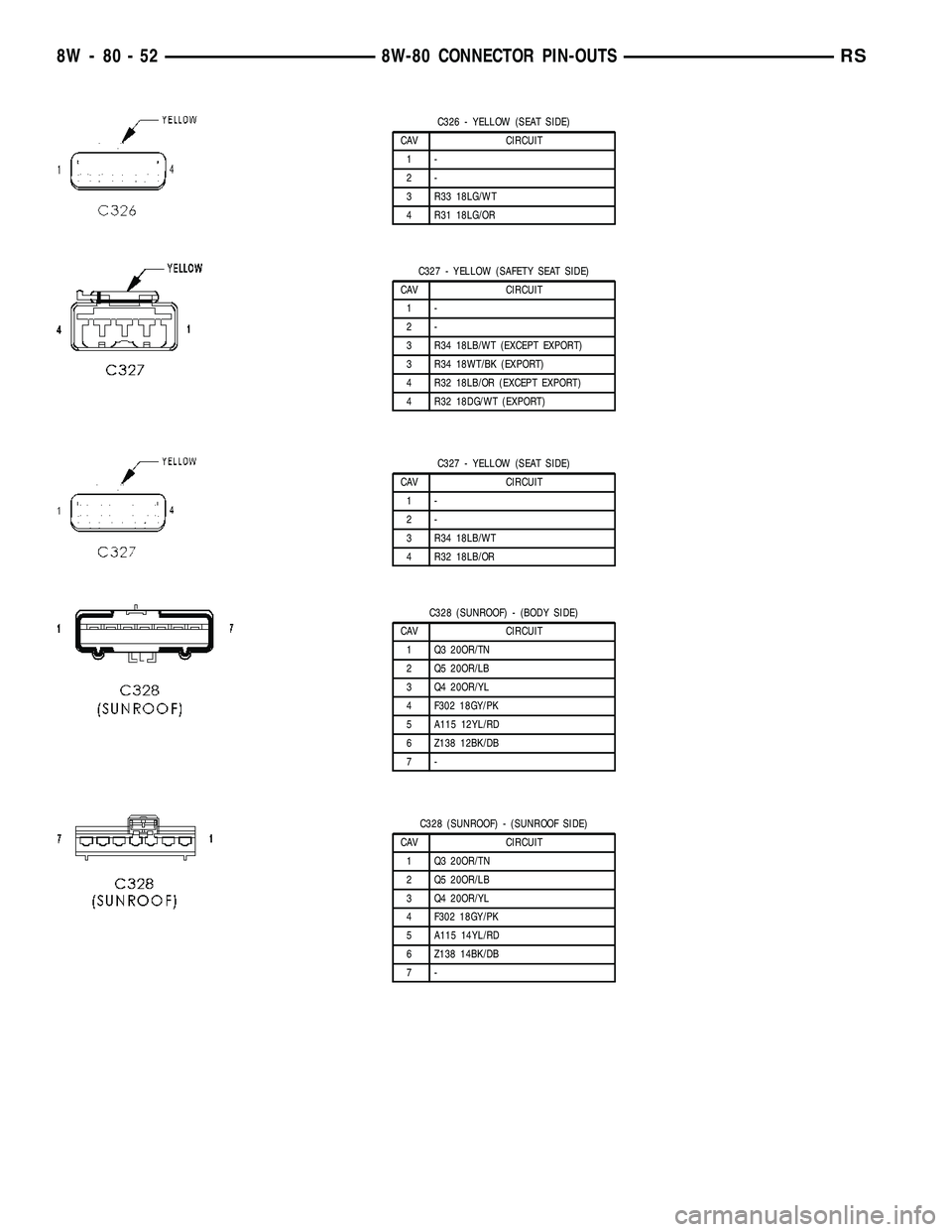

CHRYSLER VOYAGER 2004 Service Manual C326 - YELLOW (SEAT SIDE) CAV CIRCUIT 1- 2- 3 R33 18LG/WT 4 R31 18LG/OR C327 - YELLOW (SAFETY SEAT SIDE) CAV CIRCUIT 1- 2- 3 R34 18LB/WT (EXCEPT EXPORT) 3 R34 18WT/BK (EXPORT) 4 R32 18LB/OR (EXCEPT EX

Page 1148 of 2585

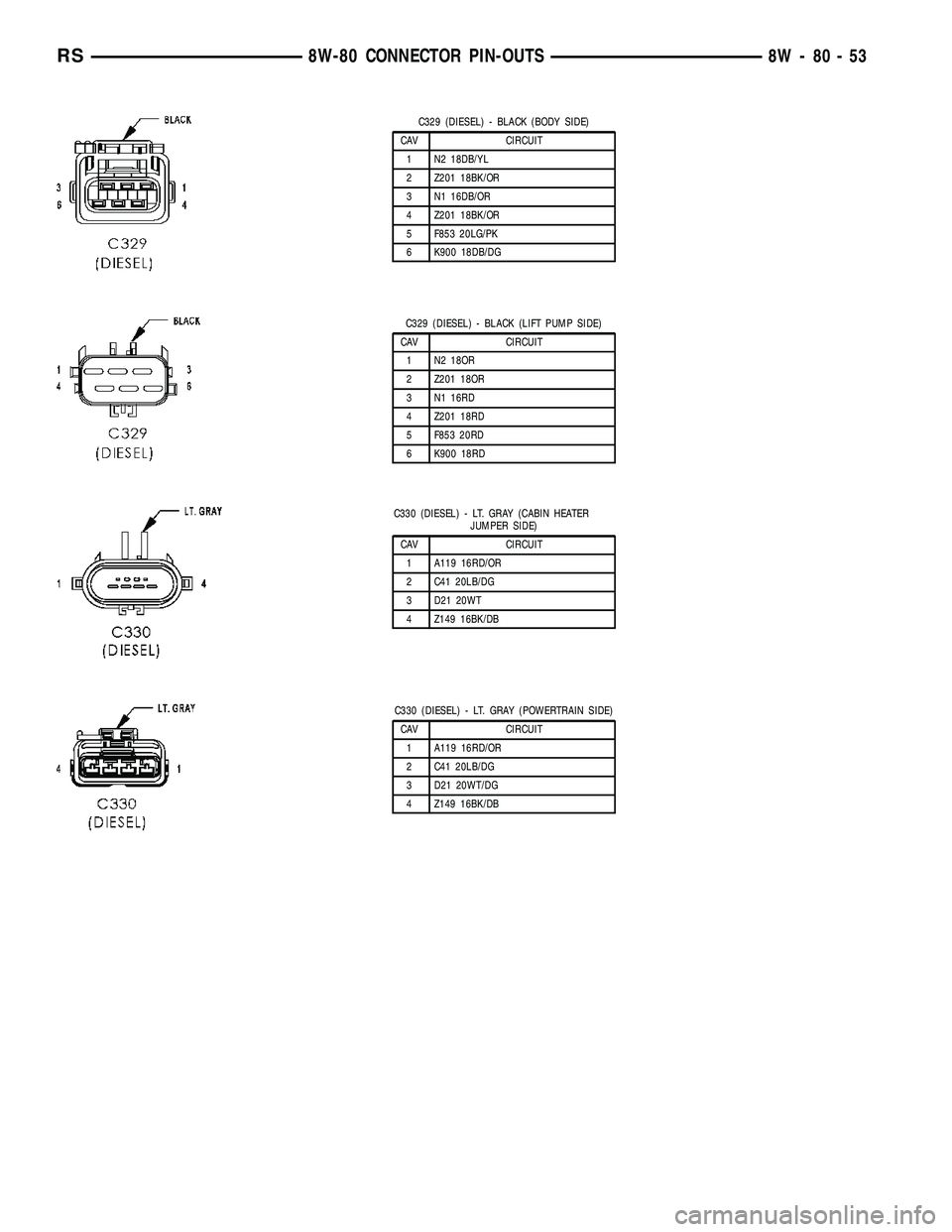

CHRYSLER VOYAGER 2004 Service Manual C329 (DIESEL) - BLACK (BODY SIDE) CAV CIRCUIT 1 N2 18DB/YL 2 Z201 18BK/OR 3 N1 16DB/OR 4 Z201 18BK/OR 5 F853 20LG/PK 6 K900 18DB/DG C329 (DIESEL) - BLACK (LIFT PUMP SIDE) CAV CIRCUIT 1 N2 18OR 2 Z201

Page 1149 of 2585

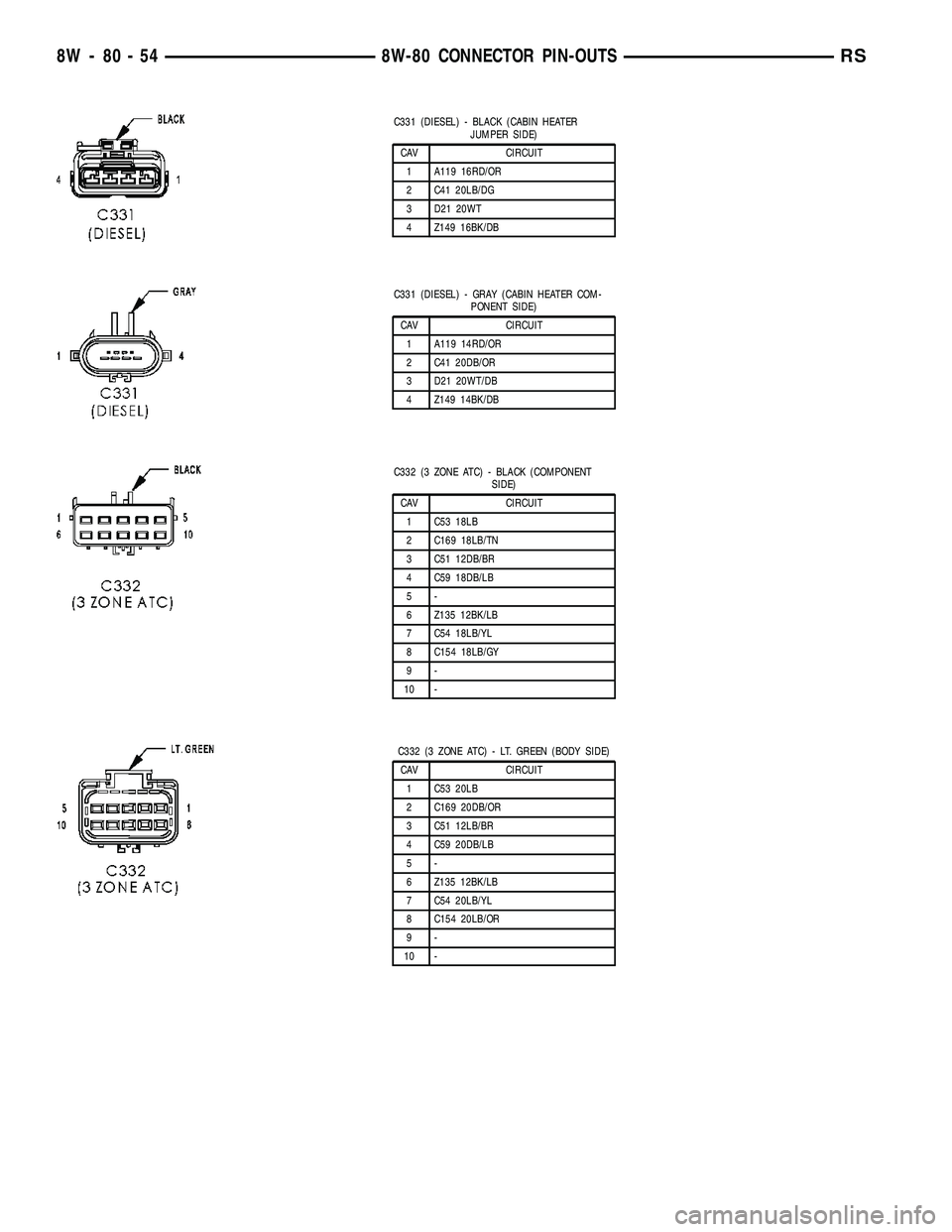

CHRYSLER VOYAGER 2004 Service Manual C331 (DIESEL) - BLACK (CABIN HEATER JUMPER SIDE) CAV CIRCUIT 1 A119 16RD/OR 2 C41 20LB/DG 3 D21 20WT 4 Z149 16BK/DB C331 (DIESEL) - GRAY (CABIN HEATER COM- PONENT SIDE) CAV CIRCUIT 1 A119 14RD/OR 2 C4

Page 1150 of 2585

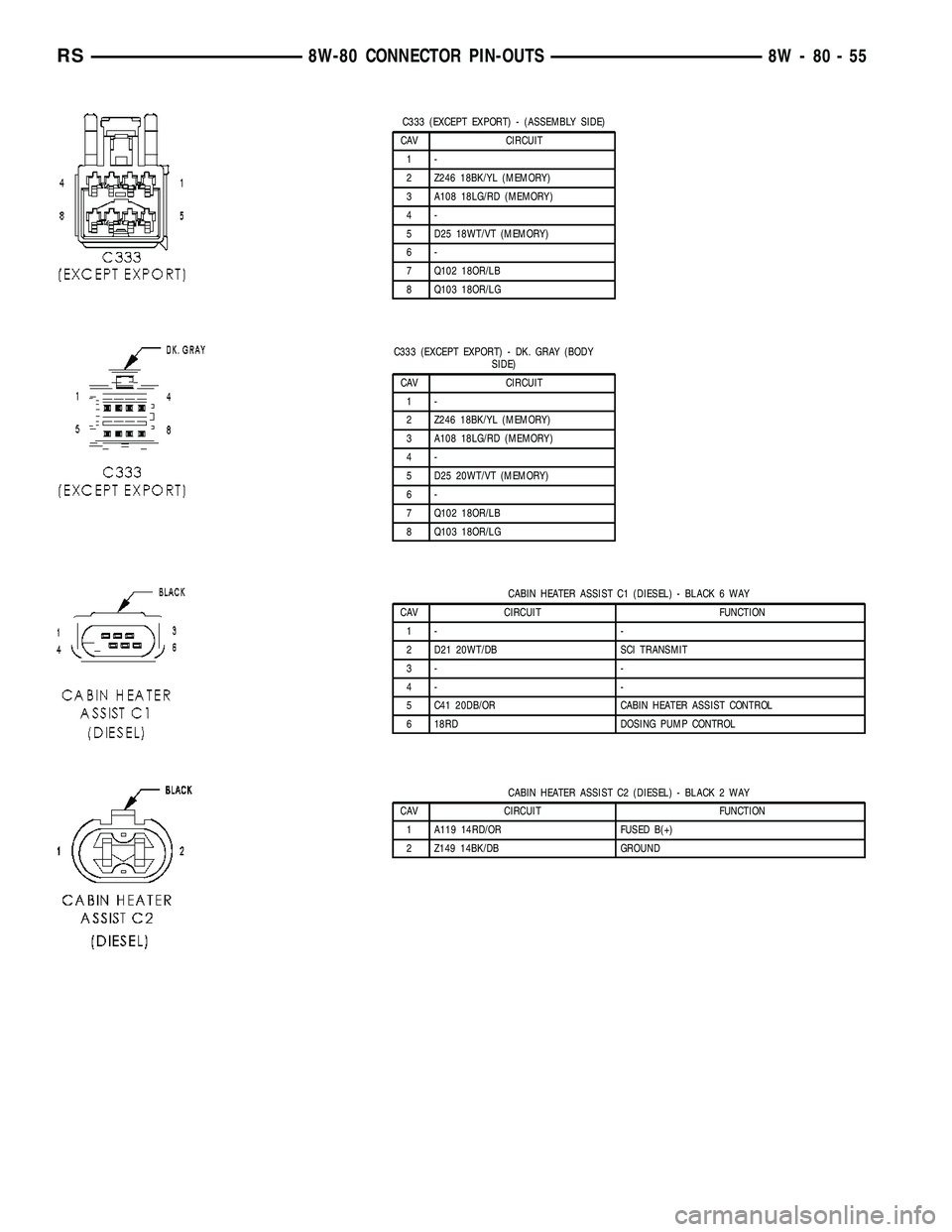

CHRYSLER VOYAGER 2004 Service Manual C333 (EXCEPT EXPORT) - (ASSEMBLY SIDE) CAV CIRCUIT 1- 2 Z246 18BK/YL (MEMORY) 3 A108 18LG/RD (MEMORY) 4- 5 D25 18WT/VT (MEMORY) 6- 7 Q102 18OR/LB 8 Q103 18OR/LG C333 (EXCEPT EXPORT) - DK. GRAY (BODY S

Page 1151 of 2585

CHRYSLER VOYAGER 2004 Service Manual CAMSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 K944 20BK/GY CAMSHAFT POSITION SENSOR GROUND 2 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL 3 K342 16BR/WT ECM/PCM RELAY OUTPUT CA

Page 1152 of 2585

CHRYSLER VOYAGER 2004 Service Manual CLOCKSPRING C1 - WHITE 6 WAY CAV CIRCUIT FUNCTION 1 X920 22GY/OR RADIO CONTROL MUX RETURN 2 X20 22GY/WT RADIO CONTROL MUX 3 X3 22DG/VT HORN SWITCH SENSE 4 V37 22VT SPEED CONTROL SWITCH SIGNAL 5 K900 2
