Page 1137 of 2585

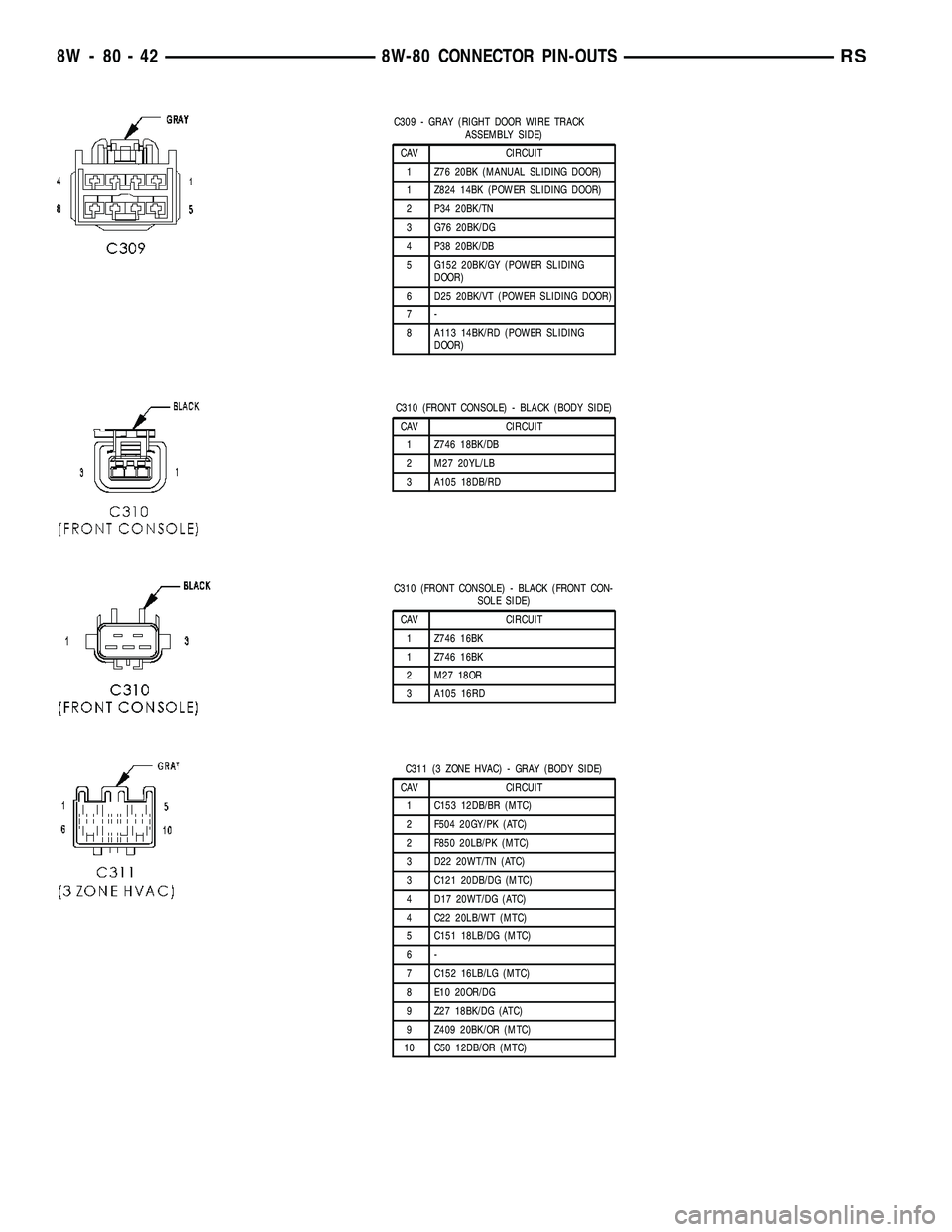

CHRYSLER VOYAGER 2004 Service Manual C309 - GRAY (RIGHT DOOR WIRE TRACK ASSEMBLY SIDE) CAV CIRCUIT 1 Z76 20BK (MANUAL SLIDING DOOR) 1 Z824 14BK (POWER SLIDING DOOR) 2 P34 20BK/TN 3 G76 20BK/DG 4 P38 20BK/DB 5 G152 20BK/GY (POWER SLIDING

Page 1138 of 2585

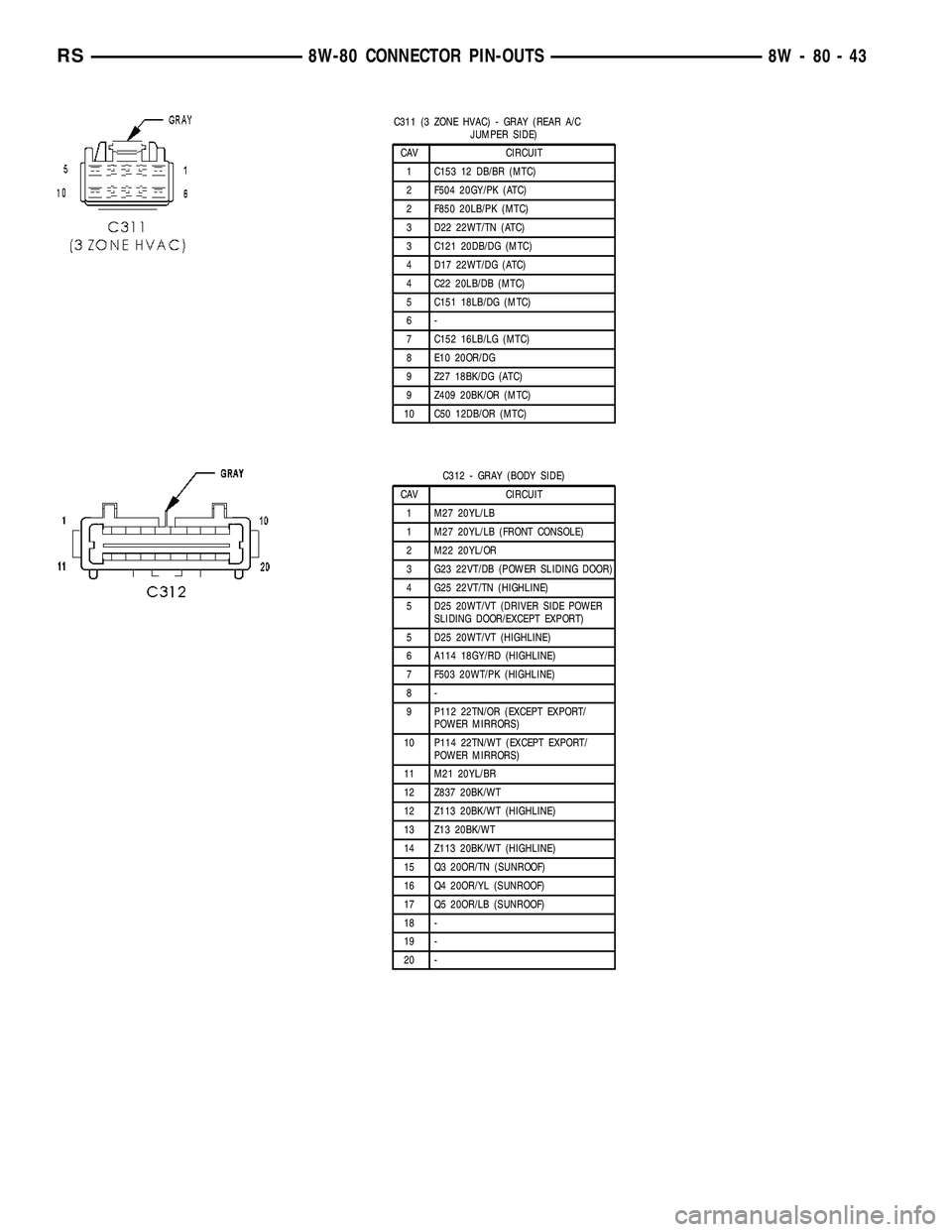

CHRYSLER VOYAGER 2004 Service Manual C311 (3 ZONE HVAC) - GRAY (REAR A/C JUMPER SIDE) CAV CIRCUIT 1 C153 12 DB/BR (MTC) 2 F504 20GY/PK (ATC) 2 F850 20LB/PK (MTC) 3 D22 22WT/TN (ATC) 3 C121 20DB/DG (MTC) 4 D17 22WT/DG (ATC) 4 C22 20LB/DB

Page 1139 of 2585

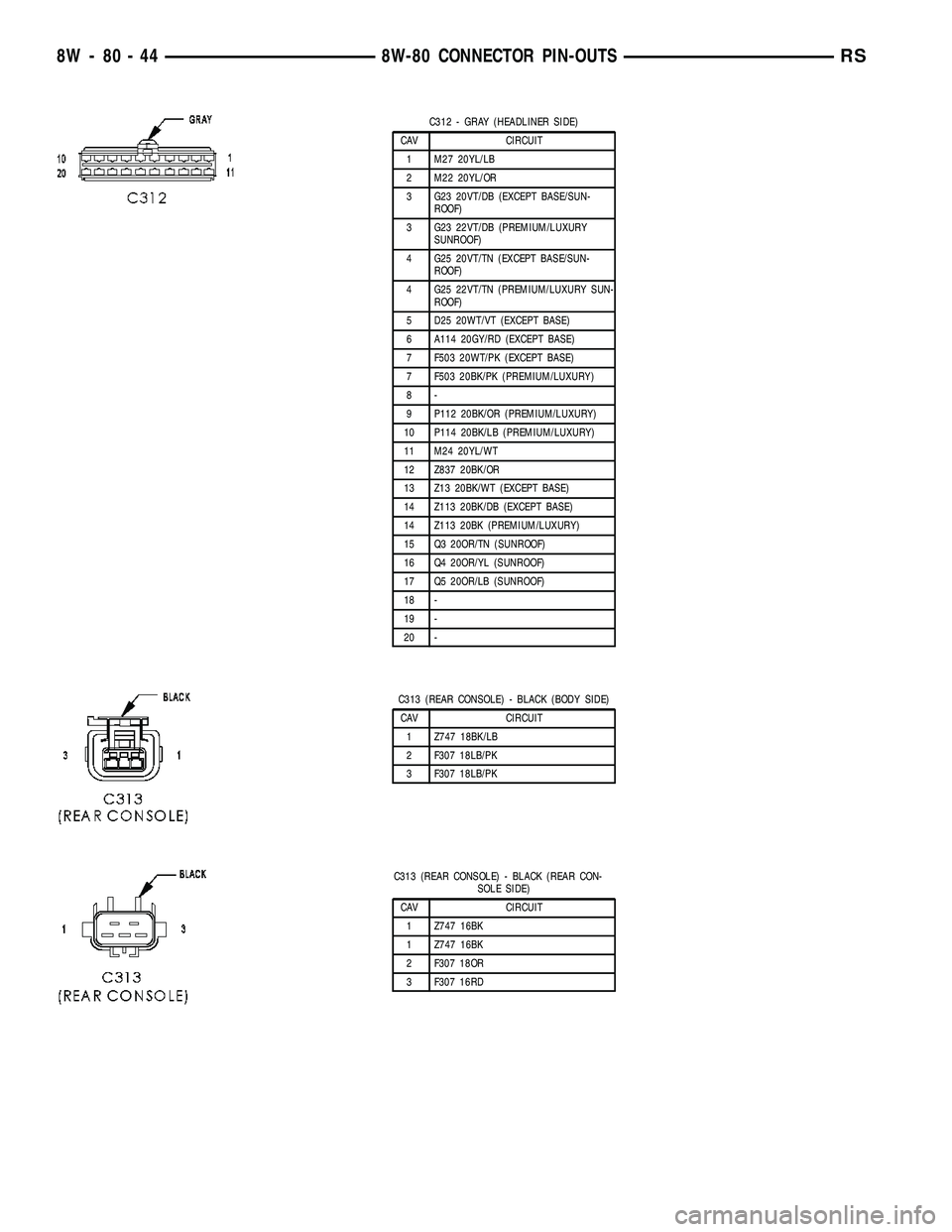

CHRYSLER VOYAGER 2004 Service Manual C312 - GRAY (HEADLINER SIDE) CAV CIRCUIT 1 M27 20YL/LB 2 M22 20YL/OR 3 G23 20VT/DB (EXCEPT BASE/SUN- ROOF) 3 G23 22VT/DB (PREMIUM/LUXURY SUNROOF) 4 G25 20VT/TN (EXCEPT BASE/SUN- ROOF) 4 G25 22VT/TN (P

Page 1140 of 2585

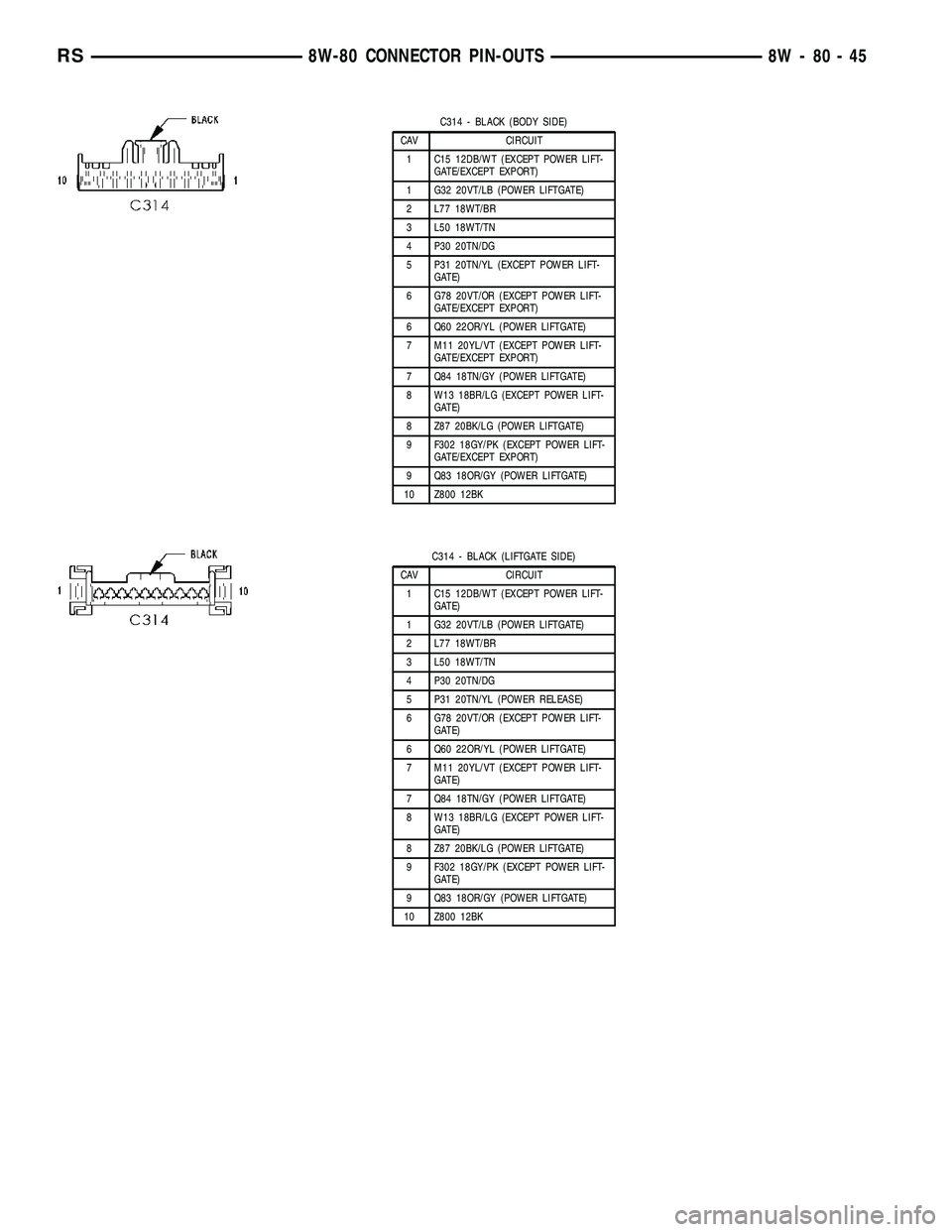

CHRYSLER VOYAGER 2004 Service Manual C314 - BLACK (BODY SIDE) CAV CIRCUIT 1 C15 12DB/WT (EXCEPT POWER LIFT- GATE/EXCEPT EXPORT) 1 G32 20VT/LB (POWER LIFTGATE) 2 L77 18WT/BR 3 L50 18WT/TN 4 P30 20TN/DG 5 P31 20TN/YL (EXCEPT POWER LIFT- GA

Page 1141 of 2585

CHRYSLER VOYAGER 2004 Service Manual C315 (POWER LIFTGATE) - BLACK (BODY SIDE) CAV CIRCUIT 1 C15 12DB/WT 2 Q76 22OR/LB 3 G78 20VT/OR 4 M11 20YL/VT 5- 6 Q85 18TN/WT 7 Q94 22TN/LG 8 W13 18BR/LG 9 F302 18GY/PK 10 Z245 18BK/GY C315 (POWER LI

Page 1142 of 2585

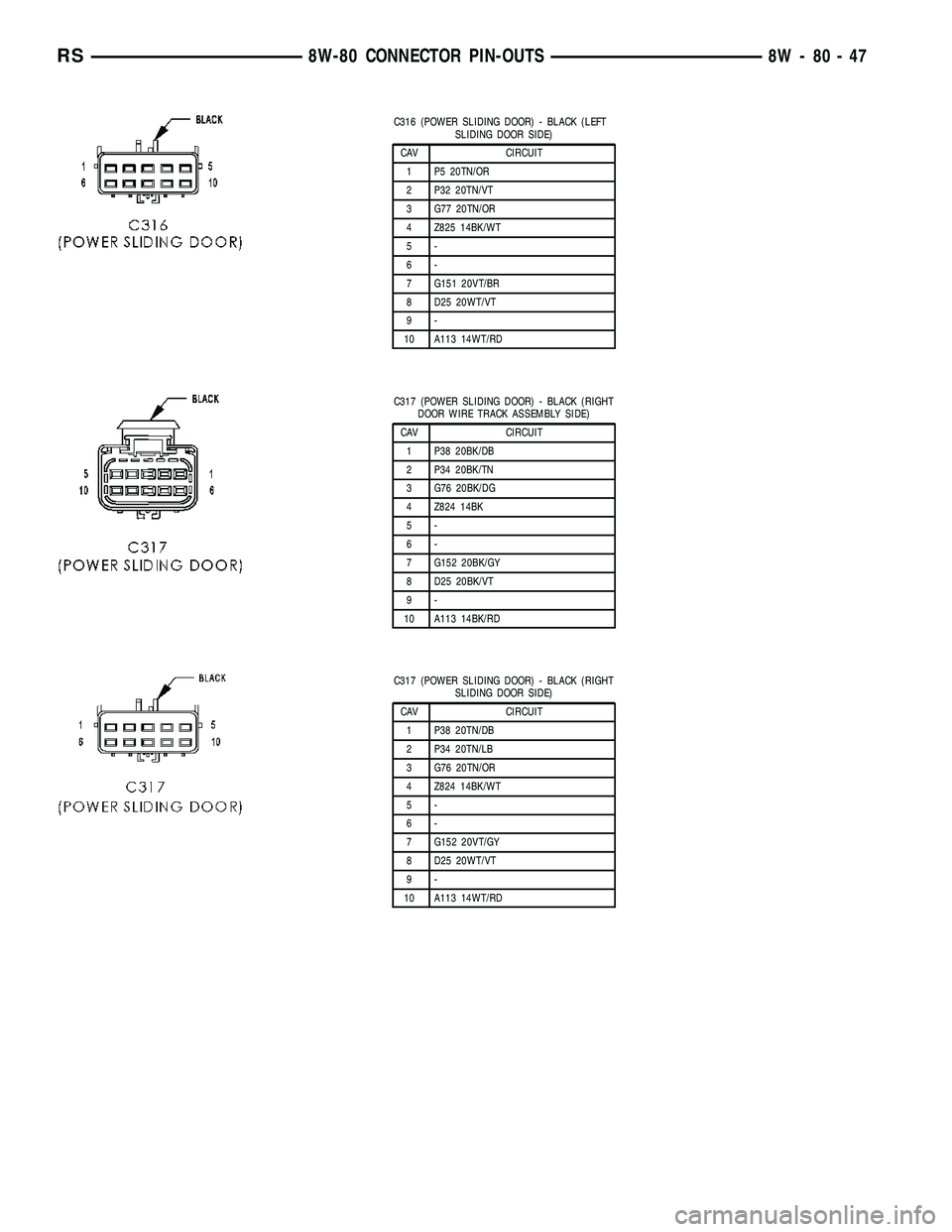

CHRYSLER VOYAGER 2004 Service Manual C316 (POWER SLIDING DOOR) - BLACK (LEFT SLIDING DOOR SIDE) CAV CIRCUIT 1 P5 20TN/OR 2 P32 20TN/VT 3 G77 20TN/OR 4 Z825 14BK/WT 5- 6- 7 G151 20VT/BR 8 D25 20WT/VT 9- 10 A113 14WT/RD C317 (POWER SLIDING

Page 1143 of 2585

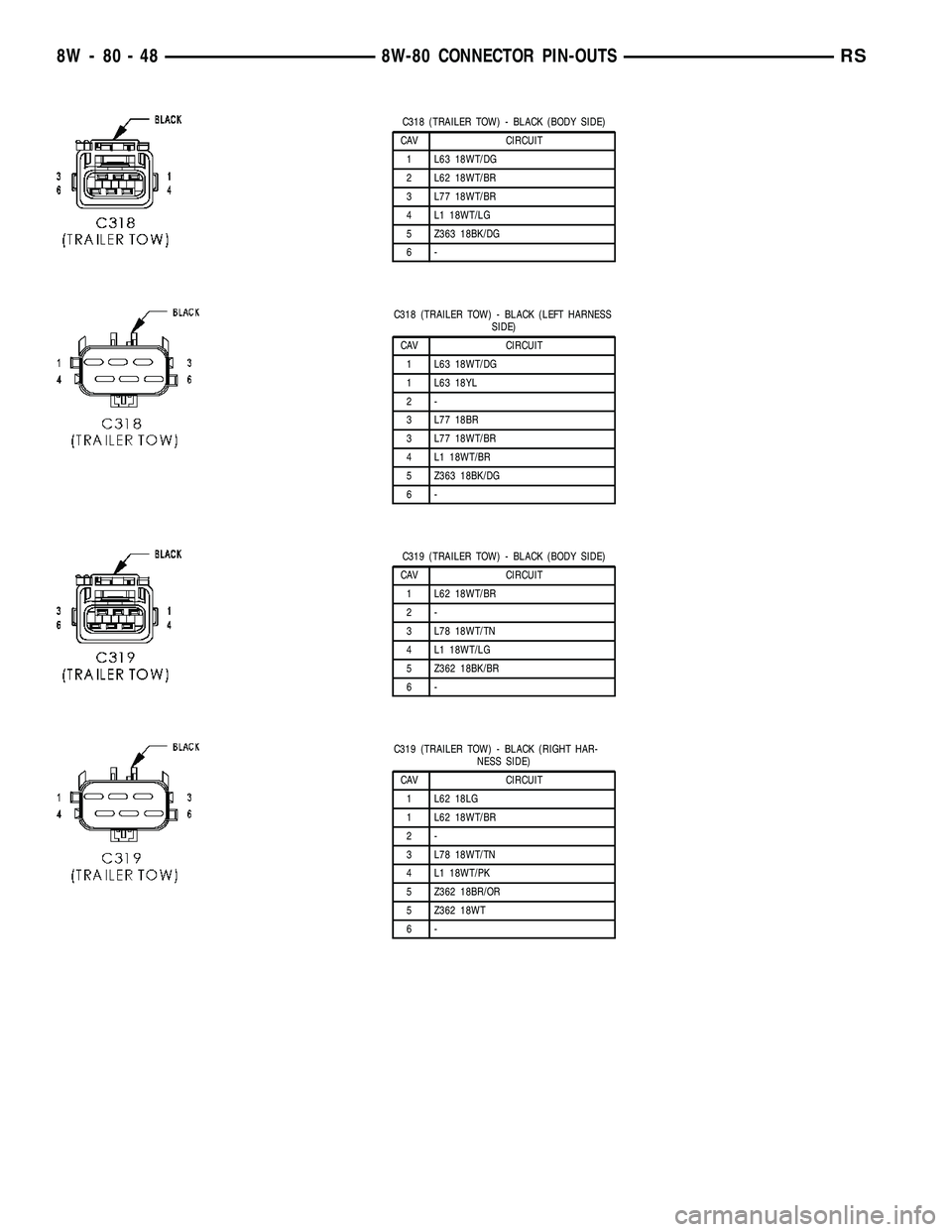

CHRYSLER VOYAGER 2004 Service Manual C318 (TRAILER TOW) - BLACK (BODY SIDE) CAV CIRCUIT 1 L63 18WT/DG 2 L62 18WT/BR 3 L77 18WT/BR 4 L1 18WT/LG 5 Z363 18BK/DG 6- C318 (TRAILER TOW) - BLACK (LEFT HARNESS SIDE) CAV CIRCUIT 1 L63 18WT/DG 1 L

Page 1144 of 2585

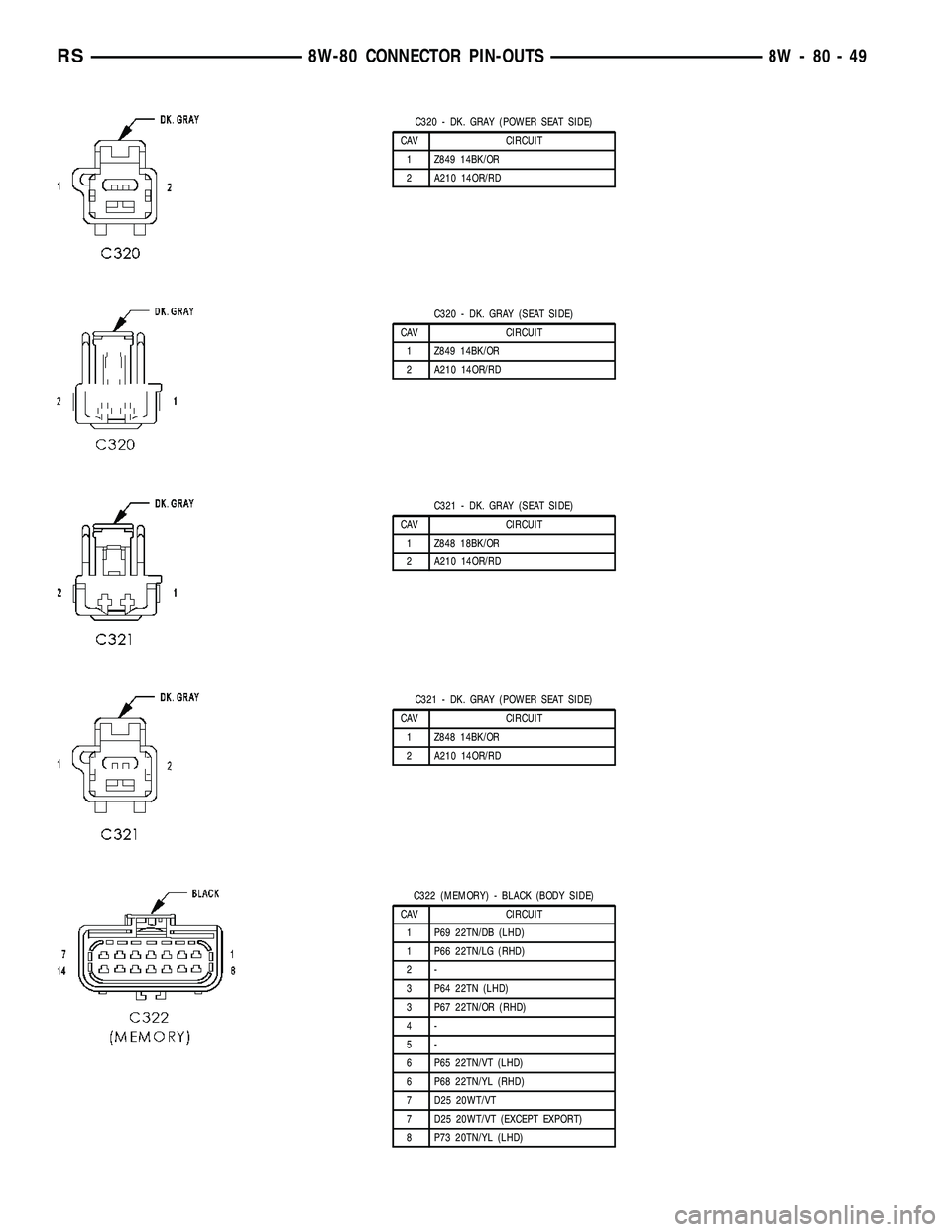

CHRYSLER VOYAGER 2004 Service Manual C320 - DK. GRAY (POWER SEAT SIDE) CAV CIRCUIT 1 Z849 14BK/OR 2 A210 14OR/RD C320 - DK. GRAY (SEAT SIDE) CAV CIRCUIT 1 Z849 14BK/OR 2 A210 14OR/RD C321 - DK. GRAY (SEAT SIDE) CAV CIRCUIT 1 Z848 18BK/OR
