Page 1281 of 2585

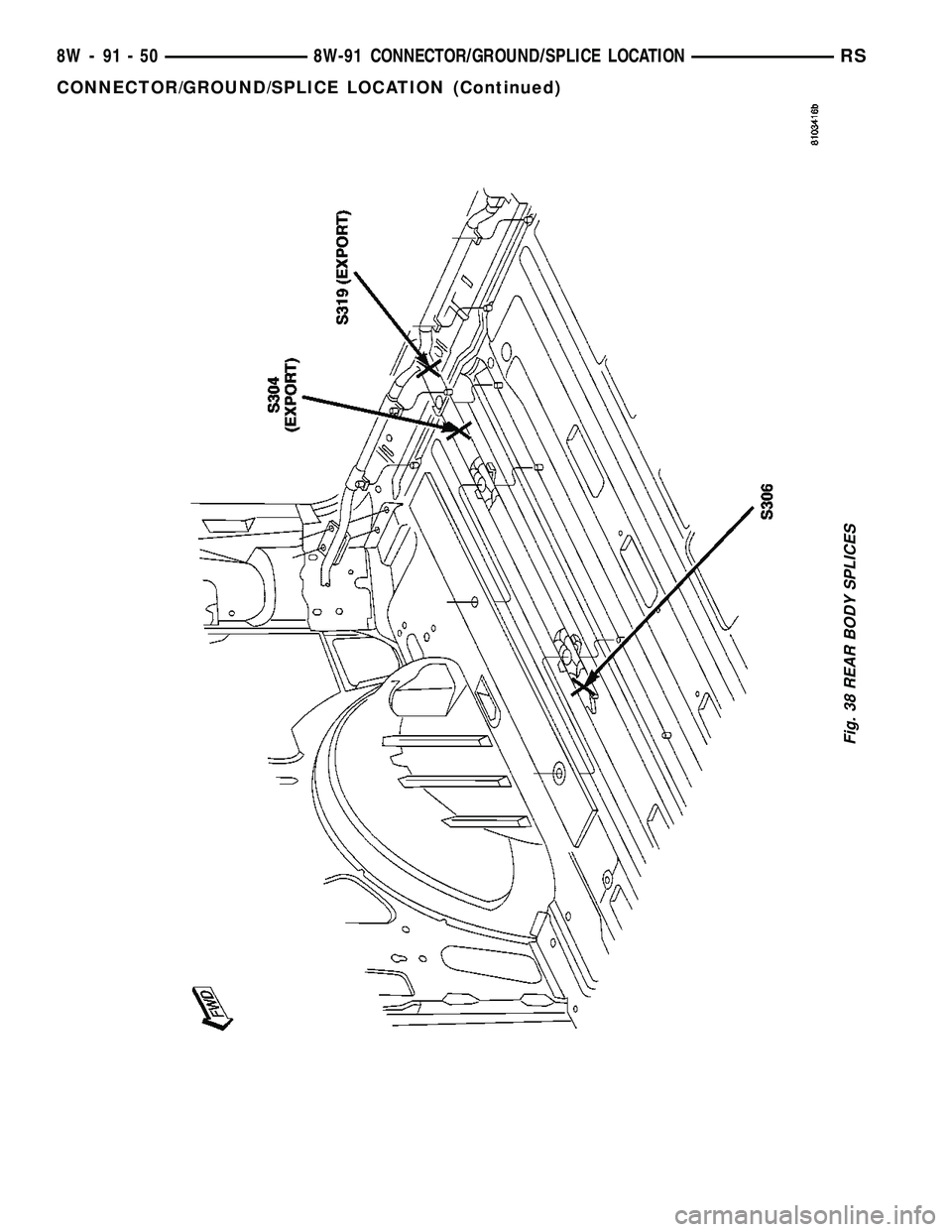

CHRYSLER VOYAGER 2004 Service Manual Fig. 38 REAR BODY SPLICES 8W - 91 - 50 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1282 of 2585

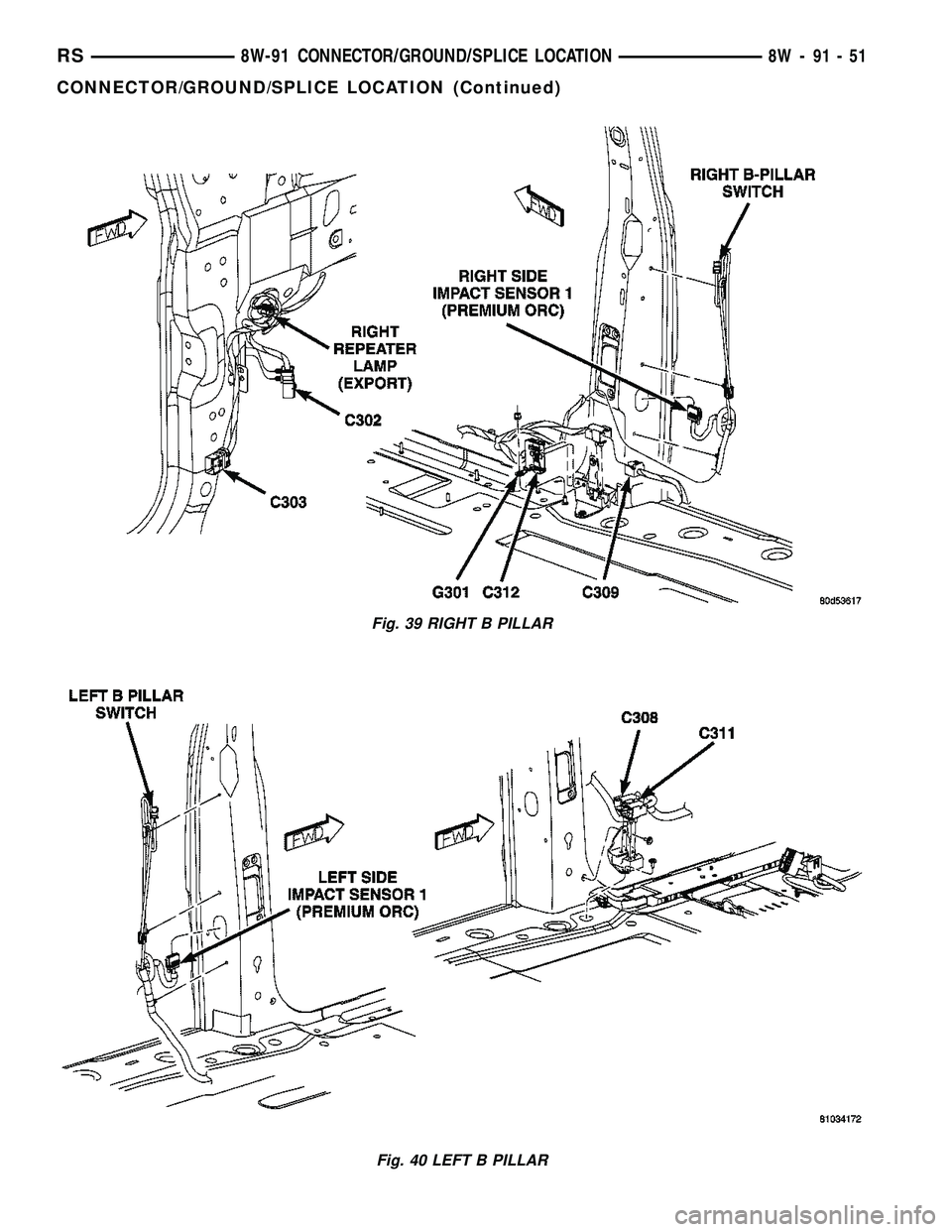

CHRYSLER VOYAGER 2004 Service Manual Fig. 39 RIGHT B PILLAR Fig. 40 LEFT B PILLAR RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-51 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1283 of 2585

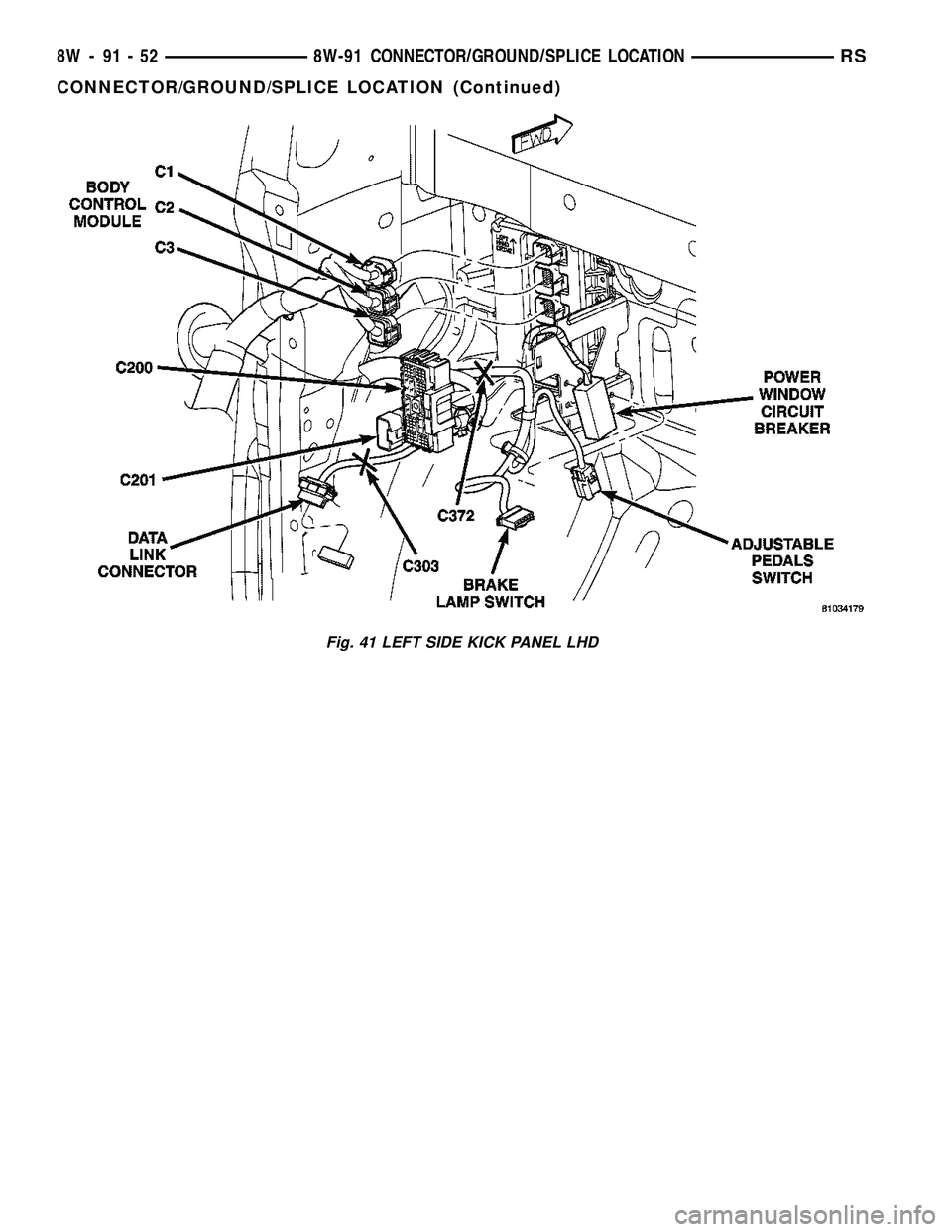

CHRYSLER VOYAGER 2004 Service Manual Fig. 41 LEFT SIDE KICK PANEL LHD 8W - 91 - 52 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1284 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 42 RIGHT SIDE KICK PANEL RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-53 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1285 of 2585

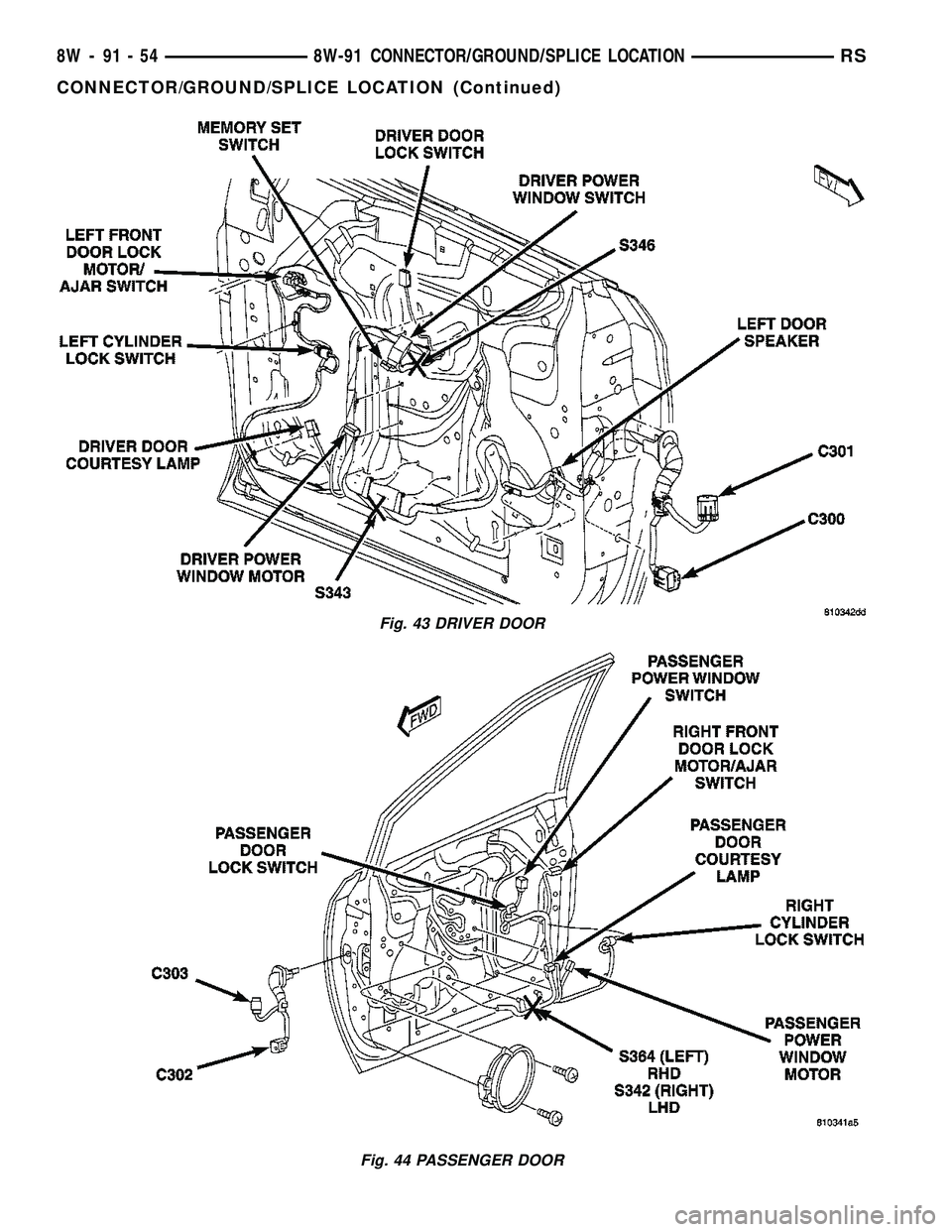

CHRYSLER VOYAGER 2004 Service Manual Fig. 43 DRIVER DOOR Fig. 44 PASSENGER DOOR 8W - 91 - 54 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1286 of 2585

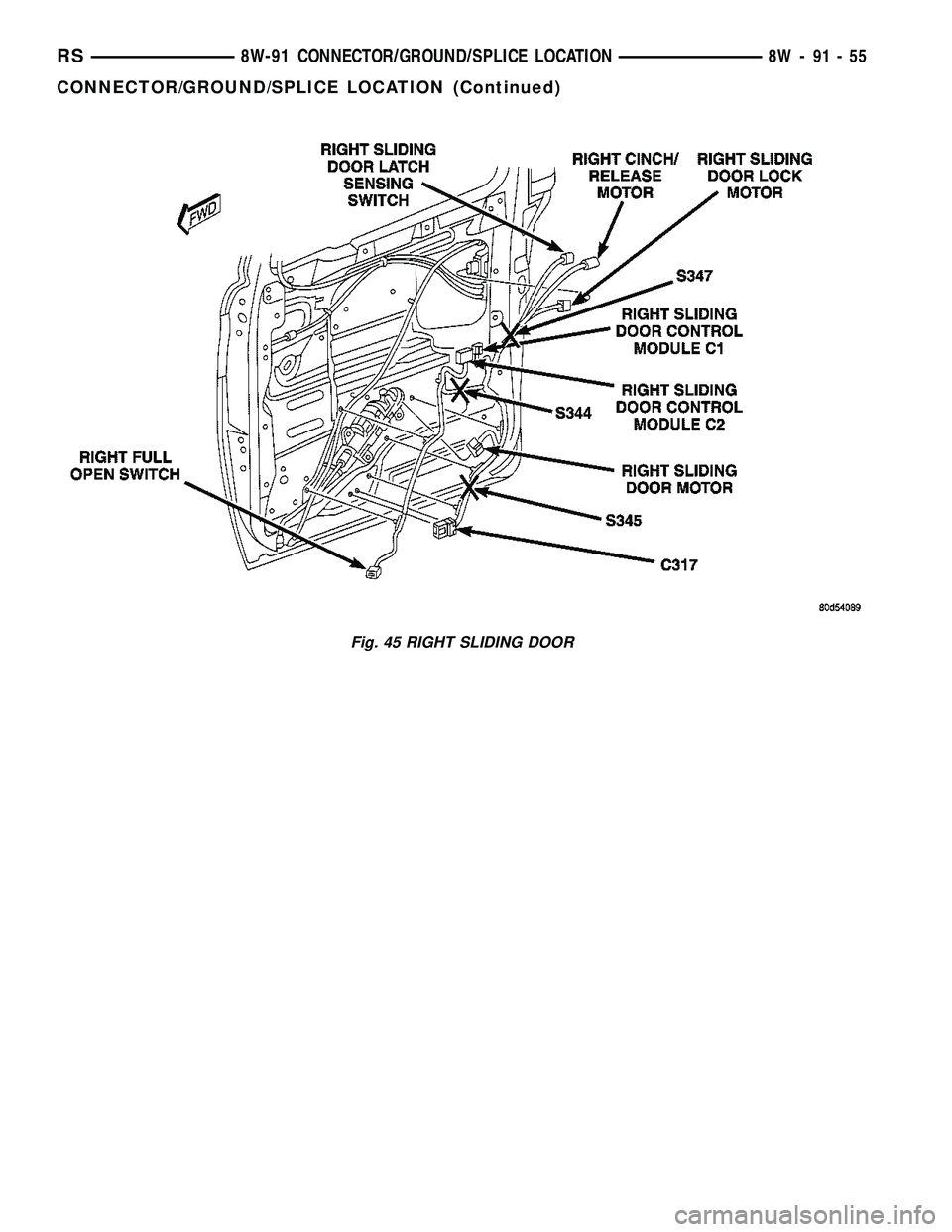

CHRYSLER VOYAGER 2004 Service Manual Fig. 45 RIGHT SLIDING DOOR RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-55 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1287 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 46 LIFTGATE AND SLIDING DOOR MODULES 8W - 91 - 56 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1288 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 47 LEFT REAR BODY RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-57 CONNECTOR/GROUND/SPLICE LOCATION (Continued)
