Page 2249 of 2585

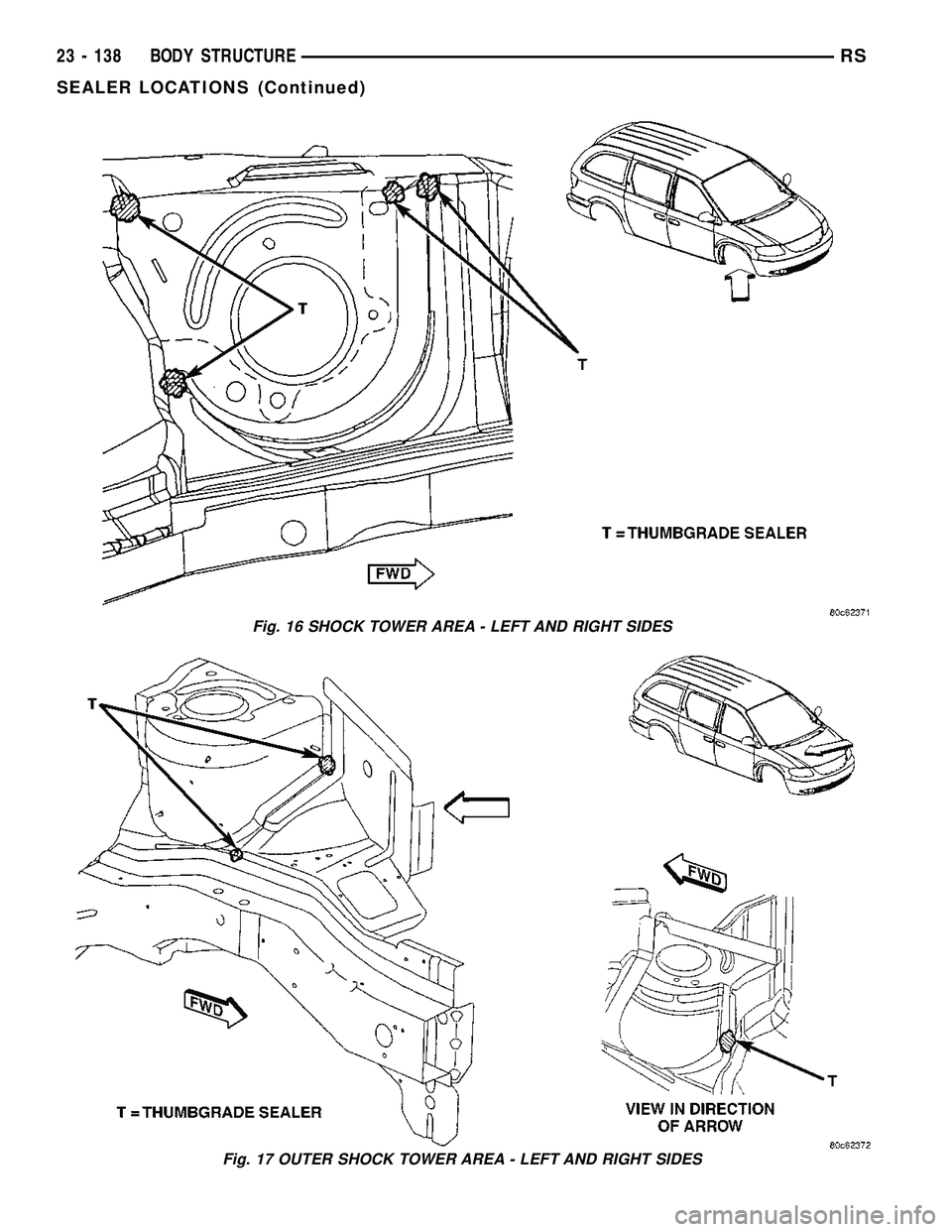

CHRYSLER VOYAGER 2004 Service Manual Fig. 16 SHOCK TOWER AREA - LEFT AND RIGHT SIDES Fig. 17 OUTER SHOCK TOWER AREA - LEFT AND RIGHT SIDES 23 - 138 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 2250 of 2585

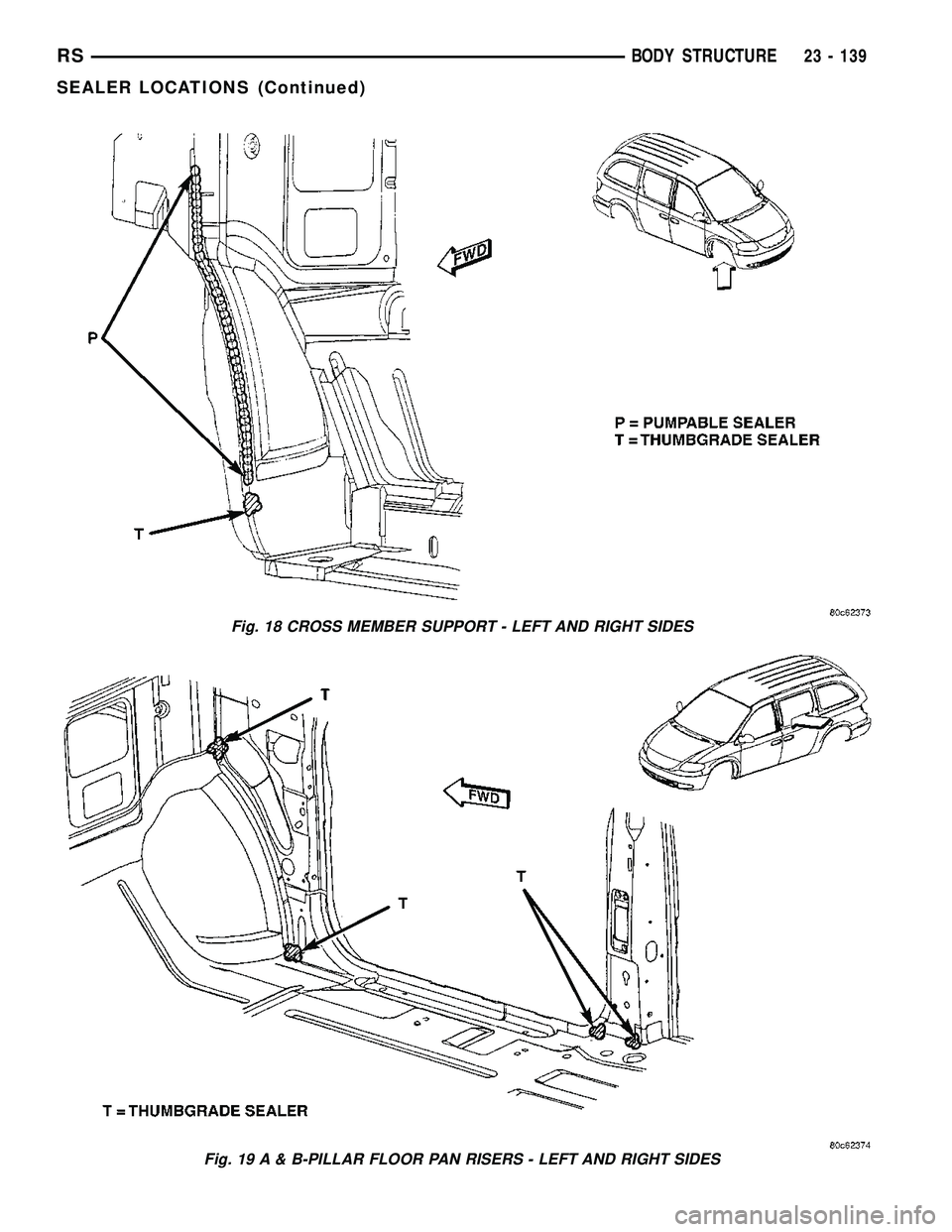

CHRYSLER VOYAGER 2004 Service Manual Fig. 18 CROSS MEMBER SUPPORT - LEFT AND RIGHT SIDES Fig. 19 A & B-PILLAR FLOOR PAN RISERS - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 139 SEALER LOCATIONS (Continued)

Page 2251 of 2585

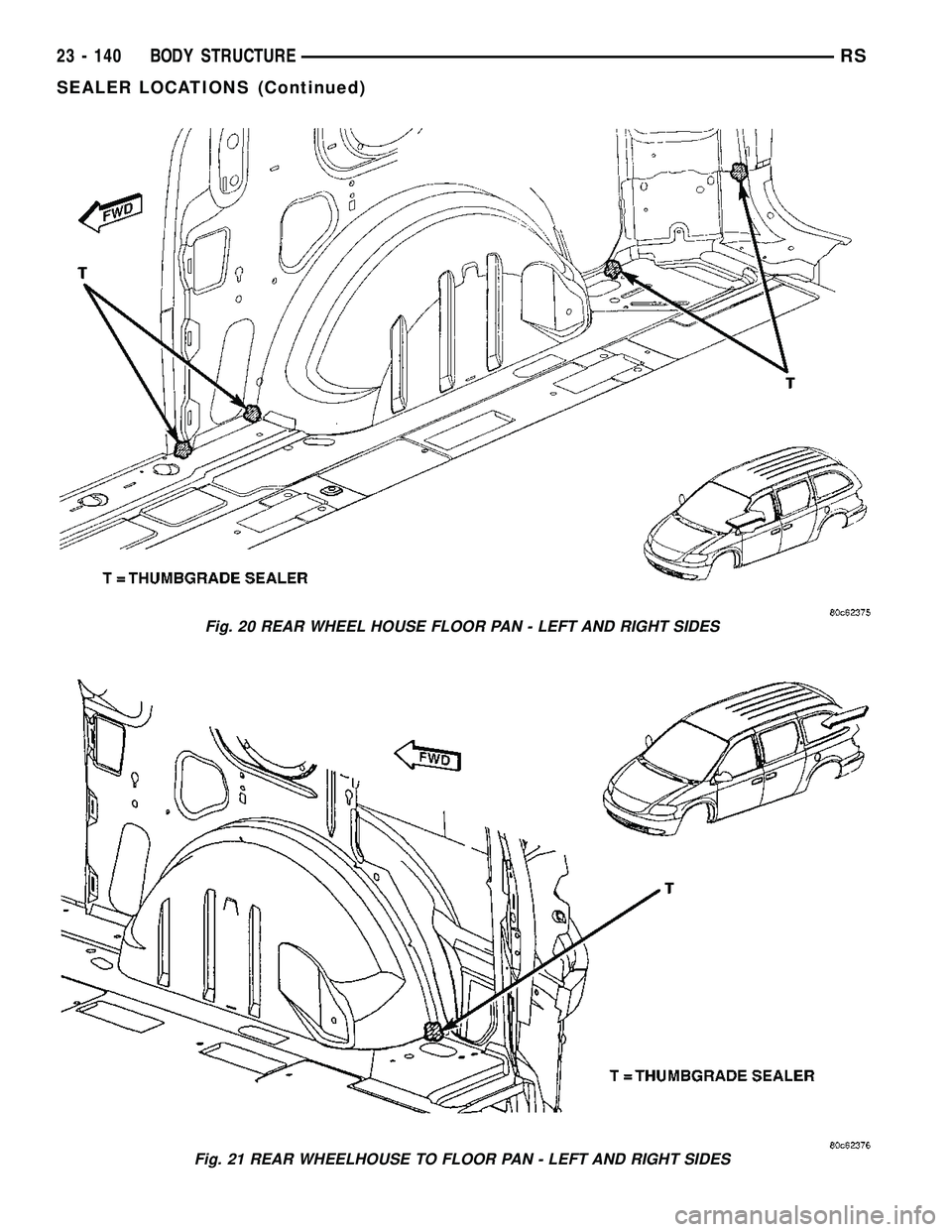

CHRYSLER VOYAGER 2004 Service Manual Fig. 20 REAR WHEEL HOUSE FLOOR PAN - LEFT AND RIGHT SIDES Fig. 21 REAR WHEELHOUSE TO FLOOR PAN - LEFT AND RIGHT SIDES 23 - 140 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 2252 of 2585

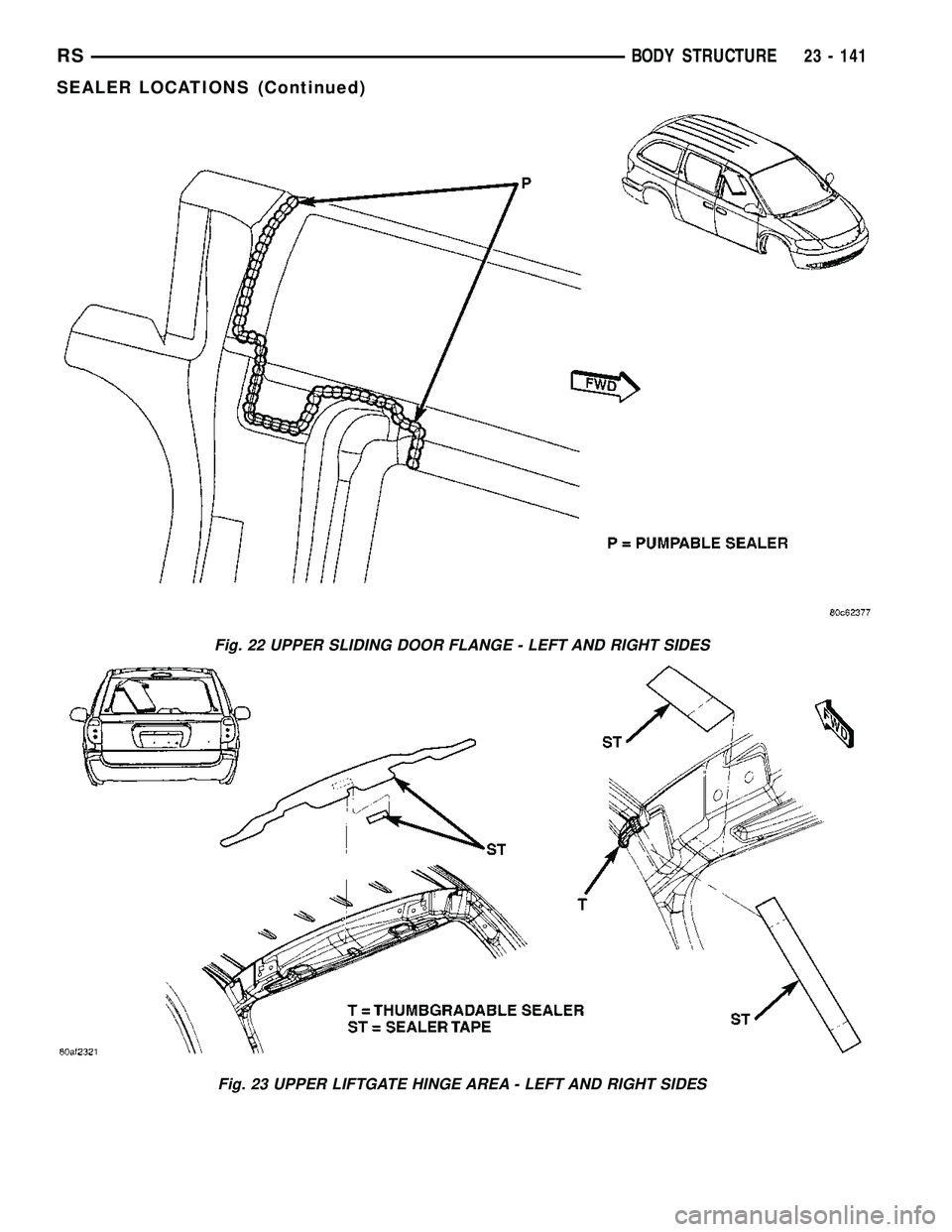

CHRYSLER VOYAGER 2004 Service Manual Fig. 22 UPPER SLIDING DOOR FLANGE - LEFT AND RIGHT SIDES Fig. 23 UPPER LIFTGATE HINGE AREA - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 141 SEALER LOCATIONS (Continued)

Page 2253 of 2585

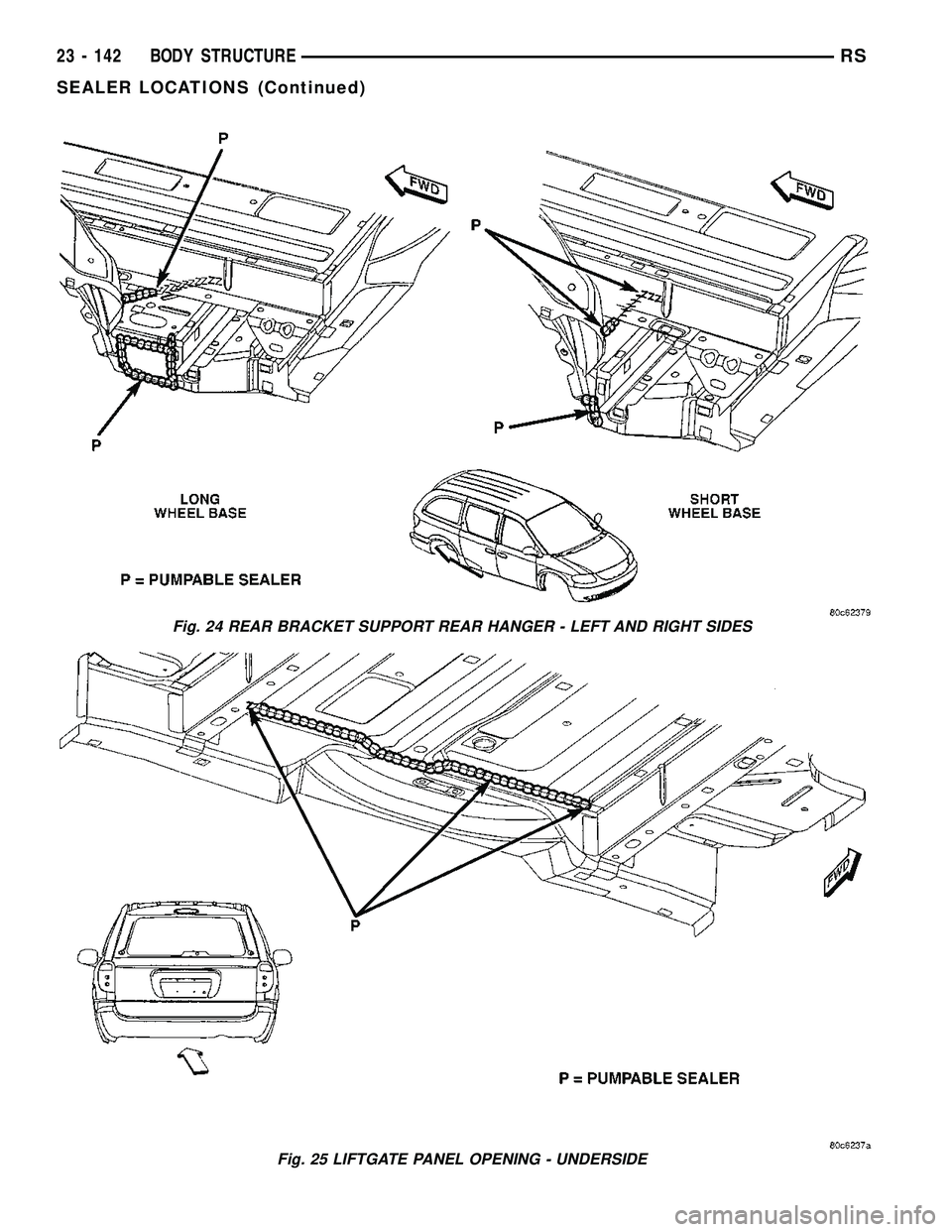

CHRYSLER VOYAGER 2004 Service Manual Fig. 24 REAR BRACKET SUPPORT REAR HANGER - LEFT AND RIGHT SIDES Fig. 25 LIFTGATE PANEL OPENING - UNDERSIDE 23 - 142 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 2254 of 2585

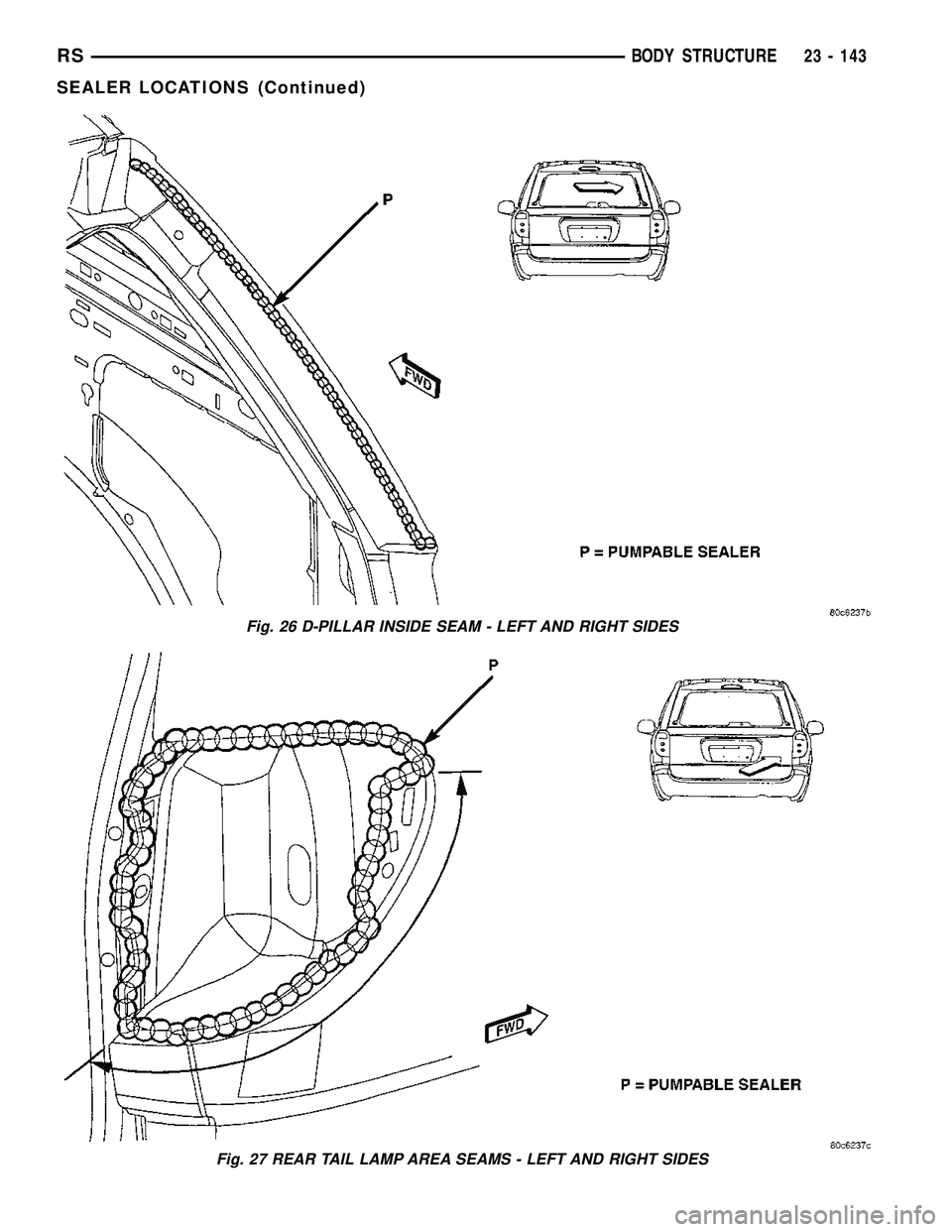

CHRYSLER VOYAGER 2004 Service Manual Fig. 26 D-PILLAR INSIDE SEAM - LEFT AND RIGHT SIDES Fig. 27 REAR TAIL LAMP AREA SEAMS - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 143 SEALER LOCATIONS (Continued)

Page 2255 of 2585

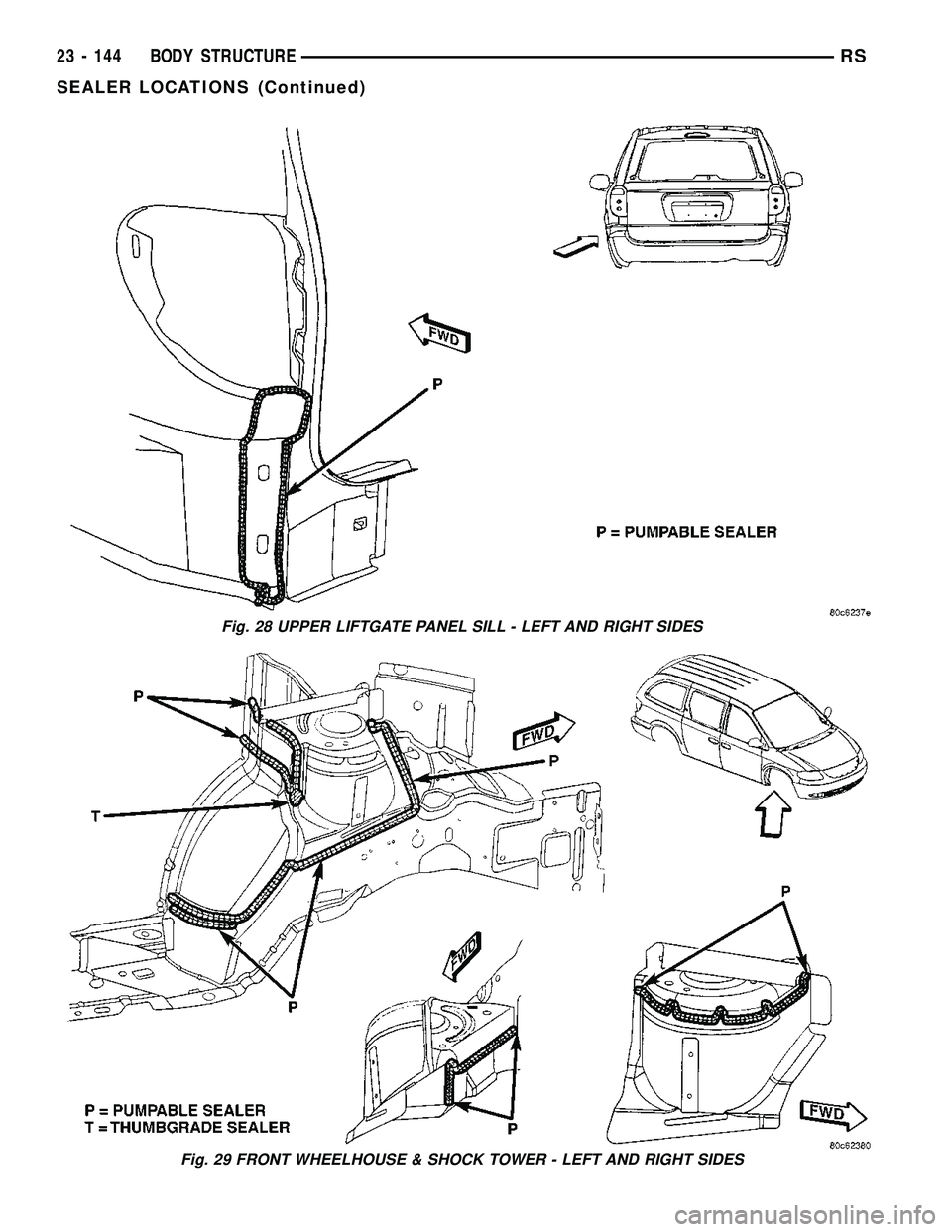

CHRYSLER VOYAGER 2004 Service Manual Fig. 28 UPPER LIFTGATE PANEL SILL - LEFT AND RIGHT SIDES Fig. 29 FRONT WHEELHOUSE & SHOCK TOWER - LEFT AND RIGHT SIDES 23 - 144 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 2256 of 2585

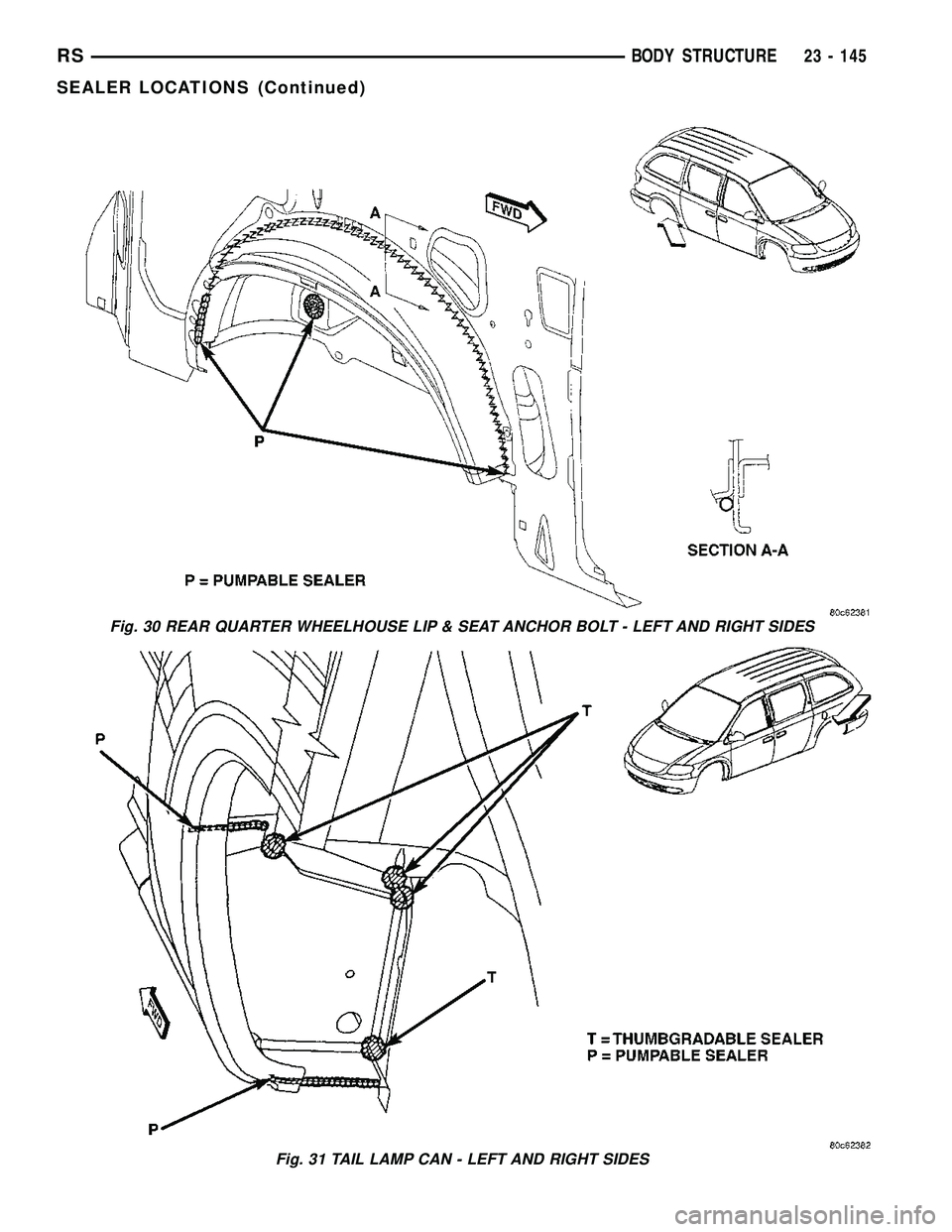

CHRYSLER VOYAGER 2004 Service Manual Fig. 30 REAR QUARTER WHEELHOUSE LIP & SEAT ANCHOR BOLT - LEFT AND RIGHT SIDES Fig. 31 TAIL LAMP CAN - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 145 SEALER LOCATIONS (Continued)
