CHRYSLER VOYAGER 2004 Service Manual 8W-70 SPLICE INFORMATION
Component Page
S101.............................. 8W-42-20
S103............................... 8W-18-4
S106............................... 8W-15-2
S107........................

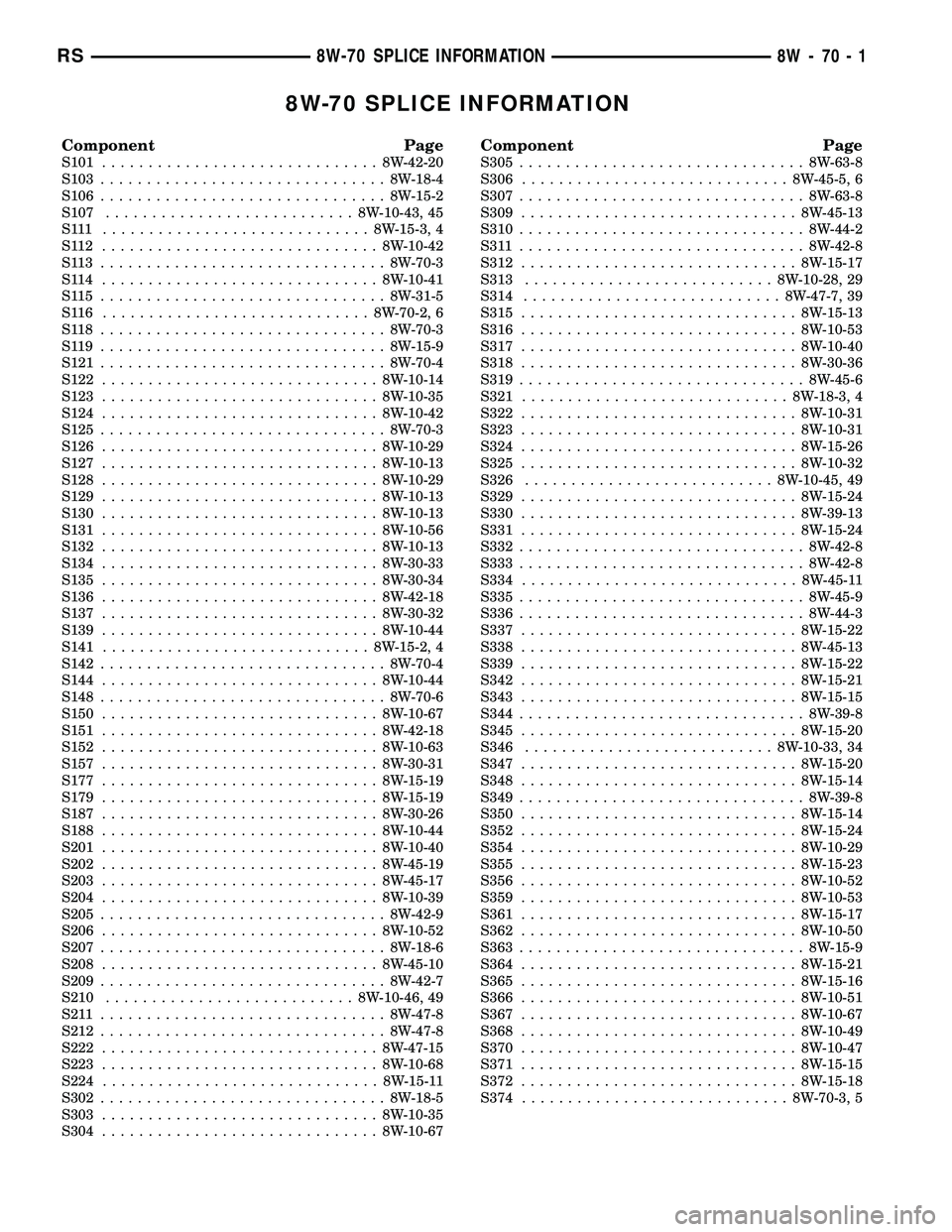

8W-70 SPLICE INFORMATION
Component Page
S101.............................. 8W-42-20
S103............................... 8W-18-4
S106............................... 8W-15-2
S107........................... 8W-10-43, 45
S111 ............................. 8W-15-3, 4
S112 .............................. 8W-10-42
S113 ............................... 8W-70-3
S114 .............................. 8W-10-41
S115 ............................... 8W-31-5

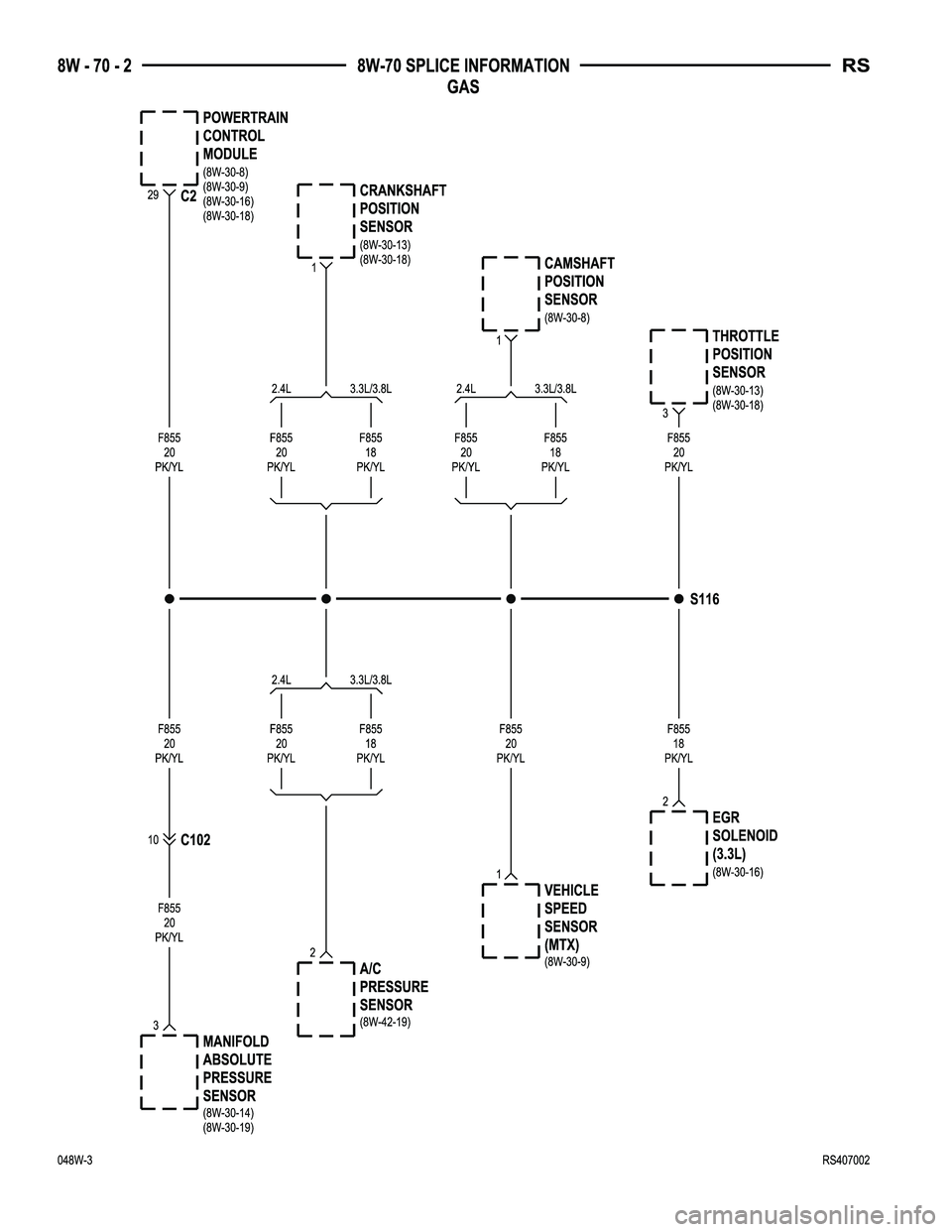

S116 ............................. 8W-70-2, 6

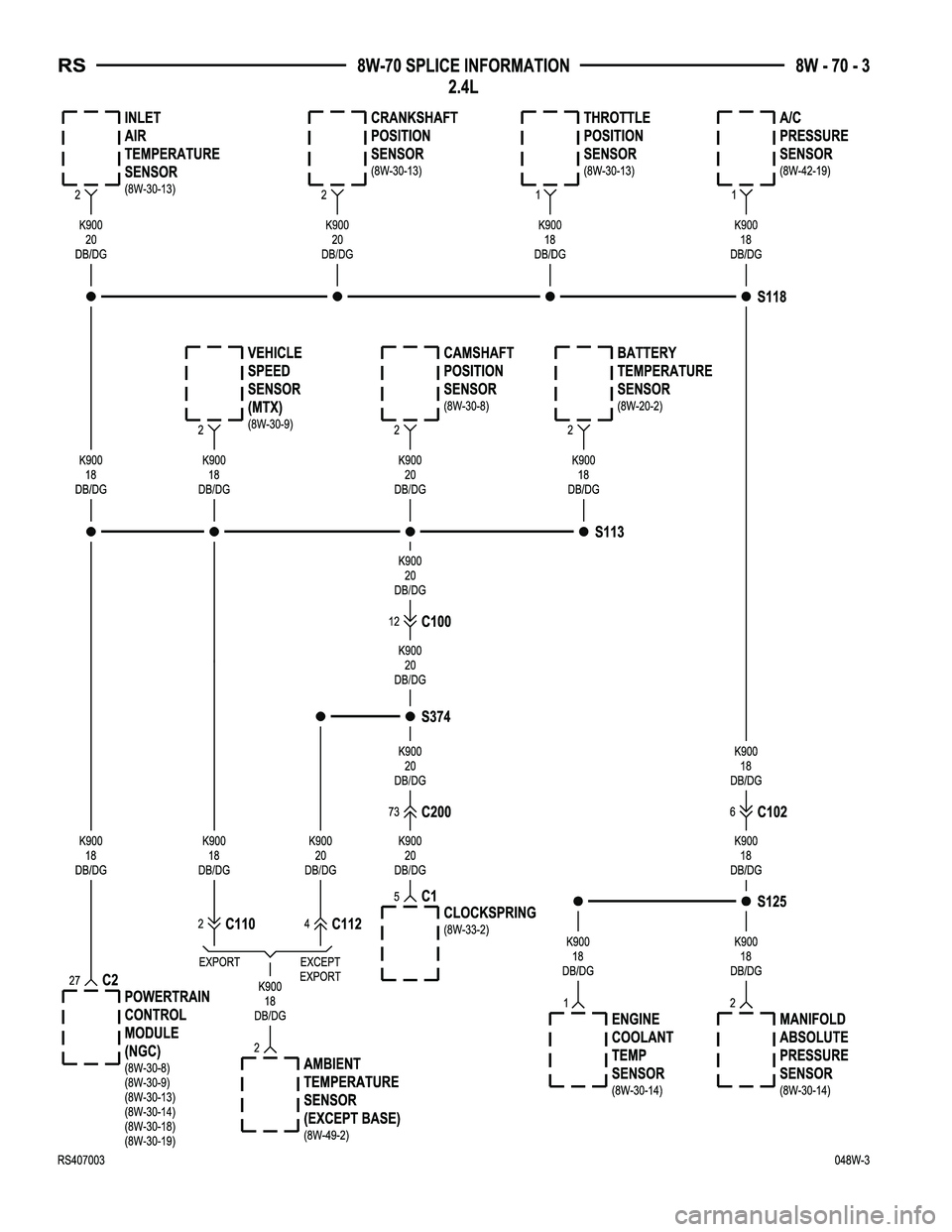

S118 ............................... 8W-70-3
S119 ............................... 8W-15-9

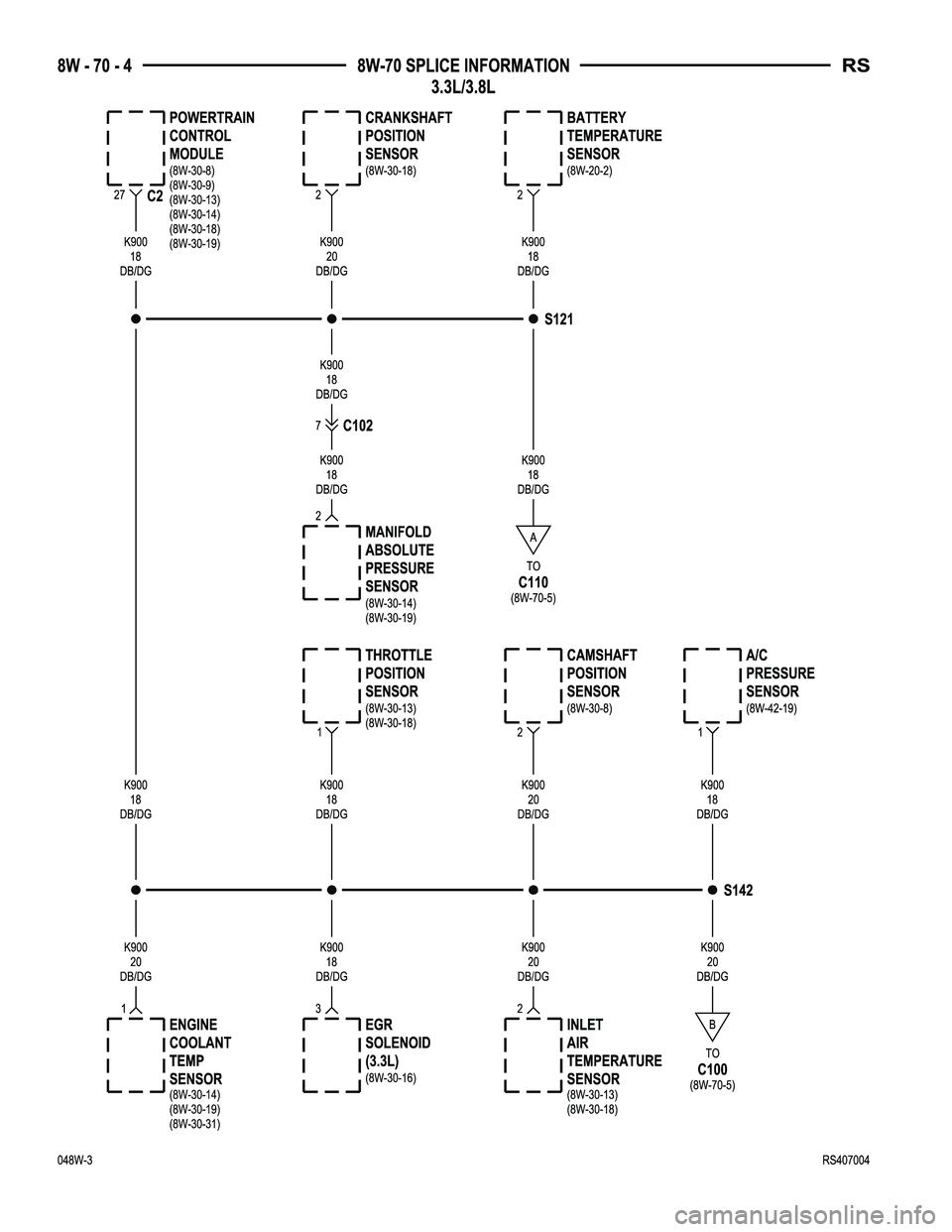

S121............................... 8W-70-4
S122.............................. 8W-10-14
S123.............................. 8W-10-35
S124.............................. 8W-10-42
S125............................... 8W-70-3
S126.............................. 8W-10-29
S127.............................. 8W-10-13
S128.............................. 8W-10-29
S129.............................. 8W-10-13
S130.............................. 8W-10-13
S131.............................. 8W-10-56
S132.............................. 8W-10-13
S134.............................. 8W-30-33
S135.............................. 8W-30-34
S136.............................. 8W-42-18
S137.............................. 8W-30-32
S139.............................. 8W-10-44
S141............................. 8W-15-2, 4
S142............................... 8W-70-4
S144.............................. 8W-10-44

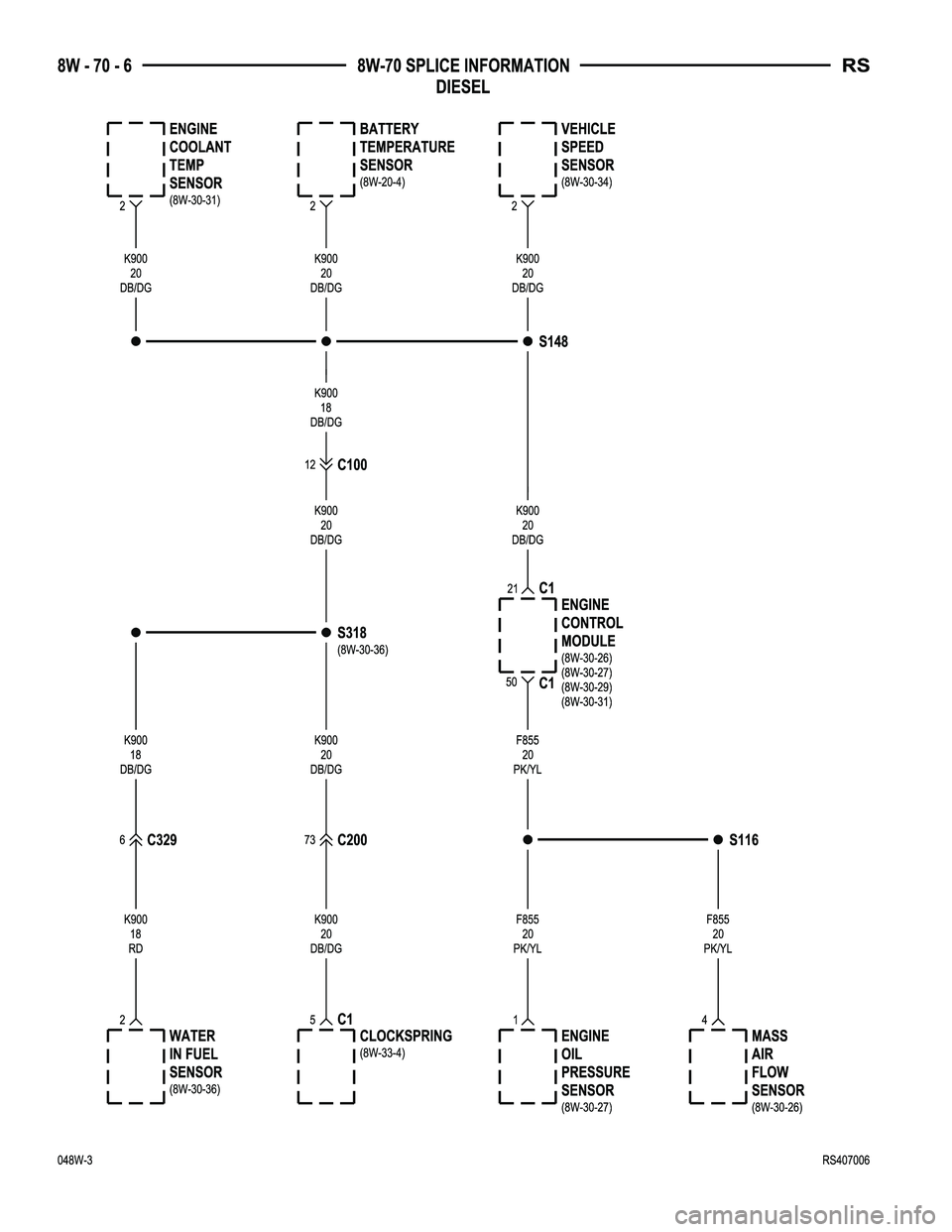

S148............................... 8W-70-6
S150.............................. 8W-10-67
S151.............................. 8W-42-18
S152.............................. 8W-10-63
S157.............................. 8W-30-31
S177.............................. 8W-15-19
S179.............................. 8W-15-19
S187.............................. 8W-30-26
S188.............................. 8W-10-44
S201.............................. 8W-10-40
S202.............................. 8W-45-19
S203.............................. 8W-45-17
S204.............................. 8W-10-39
S205............................... 8W-42-9
S206.............................. 8W-10-52
S207............................... 8W-18-6
S208.............................. 8W-45-10
S209............................... 8W-42-7
S210........................... 8W-10-46, 49
S211 ............................... 8W-47-8
S212............................... 8W-47-8
S222.............................. 8W-47-15
S223.............................. 8W-10-68
S224.............................. 8W-15-11
S302............................... 8W-18-5
S303.............................. 8W-10-35
S304.............................. 8W-10-67
Component Page
S305............................... 8W-63-8
S306............................. 8W-45-5, 6
S307............................... 8W-63-8
S309.............................. 8W-45-13
S310............................... 8W-44-2
S311 ............................... 8W-42-8
S312.............................. 8W-15-17
S313........................... 8W-10-28, 29
S314............................ 8W-47-7, 39
S315.............................. 8W-15-13
S316.............................. 8W-10-53
S317.............................. 8W-10-40
S318.............................. 8W-30-36
S319............................... 8W-45-6
S321............................. 8W-18-3, 4
S322.............................. 8W-10-31
S323.............................. 8W-10-31
S324.............................. 8W-15-26
S325.............................. 8W-10-32
S326........................... 8W-10-45, 49
S329.............................. 8W-15-24
S330.............................. 8W-39-13
S331.............................. 8W-15-24
S332............................... 8W-42-8
S333............................... 8W-42-8
S334.............................. 8W-45-11
S335............................... 8W-45-9
S336............................... 8W-44-3
S337.............................. 8W-15-22
S338.............................. 8W-45-13
S339.............................. 8W-15-22
S342.............................. 8W-15-21
S343.............................. 8W-15-15
S344............................... 8W-39-8
S345.............................. 8W-15-20
S346........................... 8W-10-33, 34
S347.............................. 8W-15-20
S348.............................. 8W-15-14
S349............................... 8W-39-8
S350.............................. 8W-15-14
S352.............................. 8W-15-24
S354.............................. 8W-10-29
S355.............................. 8W-15-23
S356.............................. 8W-10-52
S359.............................. 8W-10-53
S361.............................. 8W-15-17
S362.............................. 8W-10-50
S363............................... 8W-15-9
S364.............................. 8W-15-21
S365.............................. 8W-15-16
S366.............................. 8W-10-51
S367.............................. 8W-10-67
S368.............................. 8W-10-49
S370.............................. 8W-10-47
S371.............................. 8W-15-15
S372.............................. 8W-15-18

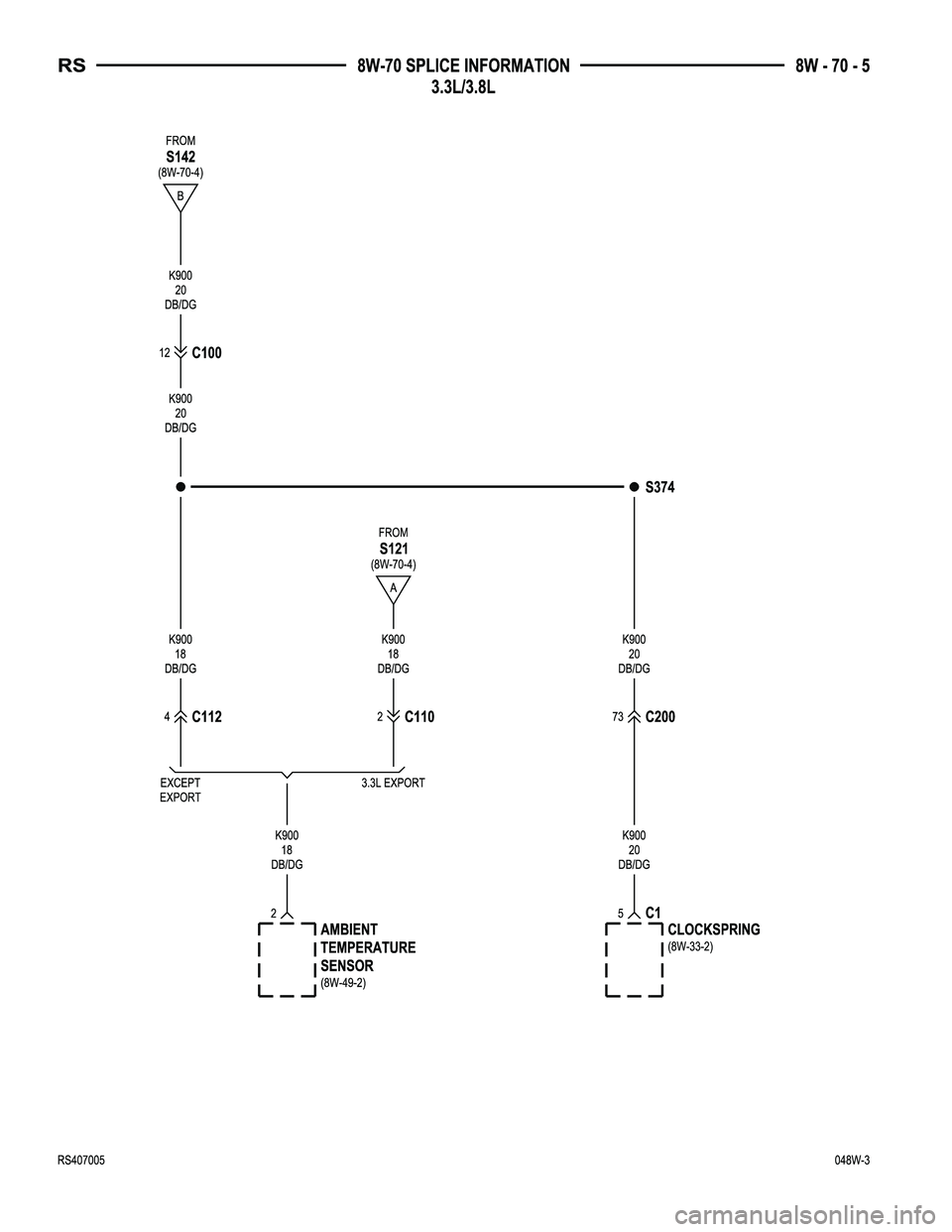

S374............................. 8W-70-3, 5
RS8W-70 SPLICE INFORMATION8W-70-1

Page 1091 of 2585

Page 1092 of 2585

Page 1093 of 2585

Page 1094 of 2585

Page 1095 of 2585

Page 1096 of 2585

CHRYSLER VOYAGER 2004 Service Manual 8W-80 CONNECTOR PIN-OUTS
Component Page
A/C Compressor Clutch............... 8W-80-6
A/C Pressure Sensor.................. 8W-80-6
A/C-Heater Control C1 (MTC).......... 8W-80-6
A/C-Heater Control C2 (

8W-80 CONNECTOR PIN-OUTS
Component Page
A/C Compressor Clutch............... 8W-80-6
A/C Pressure Sensor.................. 8W-80-6
A/C-Heater Control C1 (MTC).......... 8W-80-6
A/C-Heater Control C2 (MTC).......... 8W-80-7
Accelerator Pedal Position Sensor (Diesel) . 8W-80-7
Adjustable Pedals Module (Except Export) . 8W-80-7
Adjustable Pedals Motor (Except Export) . . 8W-80-8
Adjustable Pedals Relay (Except Export/Except
Memory)......................... 8W-80-8
Adjustable Pedals Sensor (Except Export) . 8W-80-8
Adjustable Pedals Switch (Except Export) . 8W-80-9
Airbag Control Module (ORC) (Base)..... 8W-80-9
Airbag Control Module C1 (ORC)
(Premium)...................... 8W-80-10
Airbag Control Module C2 (ORC)
(Premium)....................... 8W-80-11
Ambient Temperature Sensor.......... 8W-80-11
ATC Remote Sensor (ATC)............ 8W-80-12
Auto Temp Control C1............... 8W-80-12
Auto Temp Control C2............... 8W-80-12
Auto Temp Control C3............... 8W-80-13
Automatic Day/Night Mirror (Luxury) . . . 8W-80-13
Back-Up Lamp Switch (MTX).......... 8W-80-13
Battery Temperature Sensor........... 8W-80-13
Blower Motor Resistor C1 (MTC)....... 8W-80-14
Blower Motor Resistor C2 (MTC)....... 8W-80-14
Body Control Module C1.............. 8W-80-14
Body Control Module C2.............. 8W-80-15
Body Control Module C3.............. 8W-80-16
Body Control Module C4.............. 8W-80-17
Body Control Module C5.............. 8W-80-18
Boost Pressure Sensor (Diesel)......... 8W-80-18
Brake Fluid Level Switch............. 8W-80-19
Brake Lamp Switch................. 8W-80-19
Brake Transmission Shift Interlock
Solenoid........................ 8W-80-19
C100............................. 8W-80-19
C100............................. 8W-80-20
C101 (Diesel)...................... 8W-80-20
C101 (Diesel)...................... 8W-80-21
C101 (Gas)........................ 8W-80-21
C101 (Gas)........................ 8W-80-21
C102 (Gas)........................ 8W-80-21
C102 (Gas)........................ 8W-80-22
C103 (Diesel)...................... 8W-80-22
C103 (Diesel)...................... 8W-80-22
C104 (Except Export)................ 8W-80-23
C104 (Except Export)................ 8W-80-23
C106 (Export)...................... 8W-80-23
C106 (Export)...................... 8W-80-23
C107 (Export)...................... 8W-80-24
C107 (Export)...................... 8W-80-24Component Page
C110 (Gas Export).................. 8W-80-24
C110 (Gas Export).................. 8W-80-24
C111(EATX)....................... 8W-80-25
C111(EATX)....................... 8W-80-25
C112 (Except Export)................ 8W-80-25
C112 (Except Export)................ 8W-80-25
C200............................. 8W-80-26
C200............................. 8W-80-28
C201 (Base ORC)................... 8W-80-30
C201 (Base ORC)................... 8W-80-30
C202............................. 8W-80-30
C202............................. 8W-80-30
C204 (Premium).................... 8W-80-31
C204 (Premium).................... 8W-80-31
C300 (LHD)....................... 8W-80-31
C300 (LHD)....................... 8W-80-32
C300 (RHD)....................... 8W-80-32
C300 (RHD)....................... 8W-80-32
C301 (Except Premium).............. 8W-80-33
C301 (Except Premium).............. 8W-80-33
C301 (LHD Premium/Memory)......... 8W-80-33
C301 (LHD Premium/Memory)......... 8W-80-33
C301 (RHD/LHD Premium Except
Memory)........................ 8W-80-34
C301 (RHD/LHD Premium Except
Memory)........................ 8W-80-34
C302 (Except RHD Memory).......... 8W-80-34
C302 (Except RHD Memory).......... 8W-80-34
C302 (RHD Memory)................ 8W-80-35
C302 (RHD Memory)................ 8W-80-35
C303 (LHD)....................... 8W-80-35
C303 (LHD)....................... 8W-80-36
C303 (RHD)....................... 8W-80-36
C303 (RHD)....................... 8W-80-36
C304 (LHD Premium ORC)........... 8W-80-37
C304 (LHD Premium ORC)........... 8W-80-37
C304 (Base ORC)................... 8W-80-37
C304 (Base ORC)................... 8W-80-37
C305............................. 8W-80-37
C305............................. 8W-80-38
C306 (RHD Premium ORC)........... 8W-80-38
C306 (RHD Premium ORC)........... 8W-80-38
C306 (Base ORC)................... 8W-80-38
C306 (Base ORC)................... 8W-80-39
C307 (Base ORC)................... 8W-80-39
C307 (Base ORC)................... 8W-80-39
C307 (Premium ORC)................ 8W-80-40
C307 (Premium ORC)................ 8W-80-40
C308............................. 8W-80-41
C308............................. 8W-80-41
C309............................. 8W-80-41
C309............................. 8W-80-42
RS8W-80 CONNECTOR PIN-OUTS8W-80-1
