Page 2257 of 2585

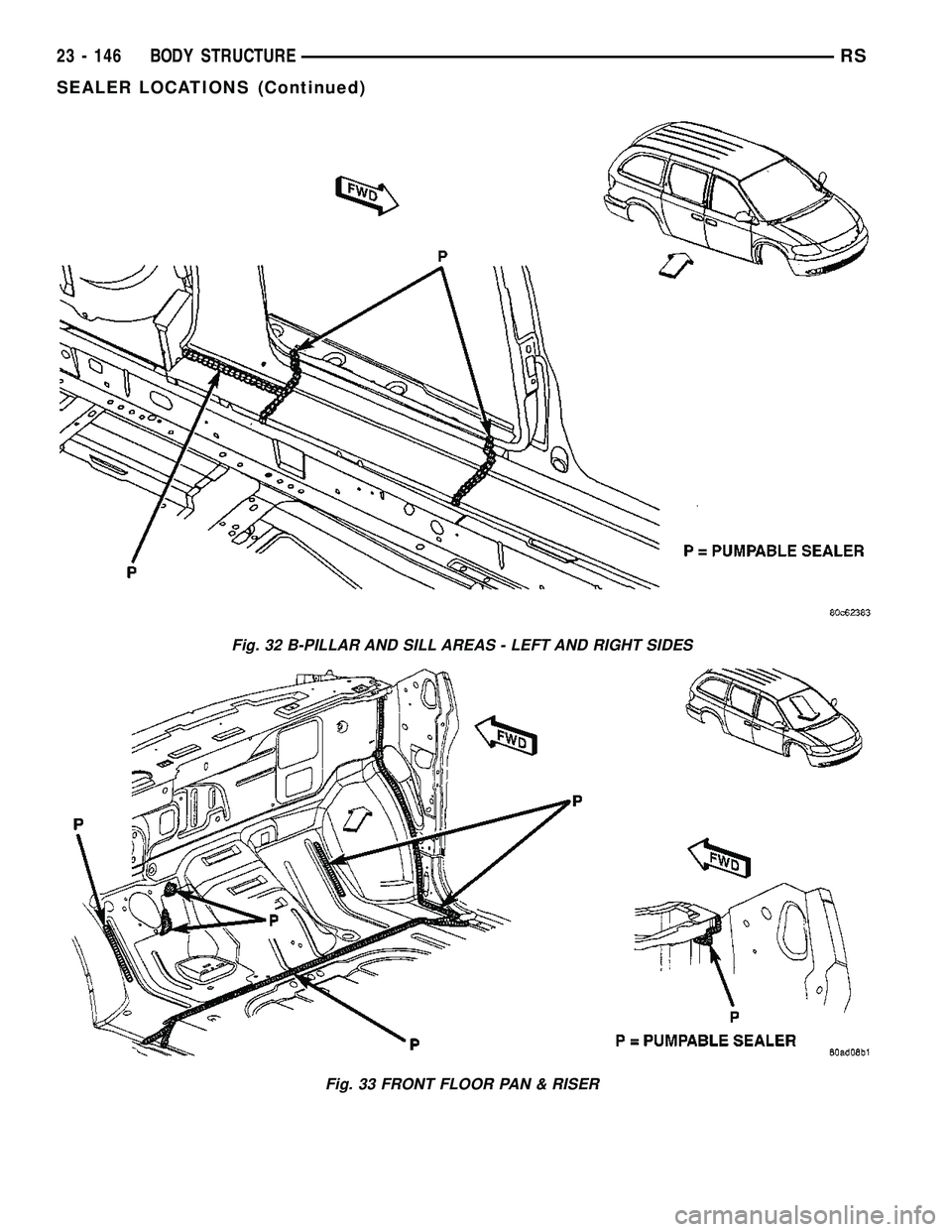

CHRYSLER VOYAGER 2004 Service Manual Fig. 32 B-PILLAR AND SILL AREAS - LEFT AND RIGHT SIDES Fig. 33 FRONT FLOOR PAN & RISER 23 - 146 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 2258 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 34 FLOOR PAN SEAMS - LEFT AND RIGHT SIDES Fig. 35 FLOOR PAN & REAR WHEELHOUSE AREA - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 147 SEALER LOCATIONS (Continued)

Page 2259 of 2585

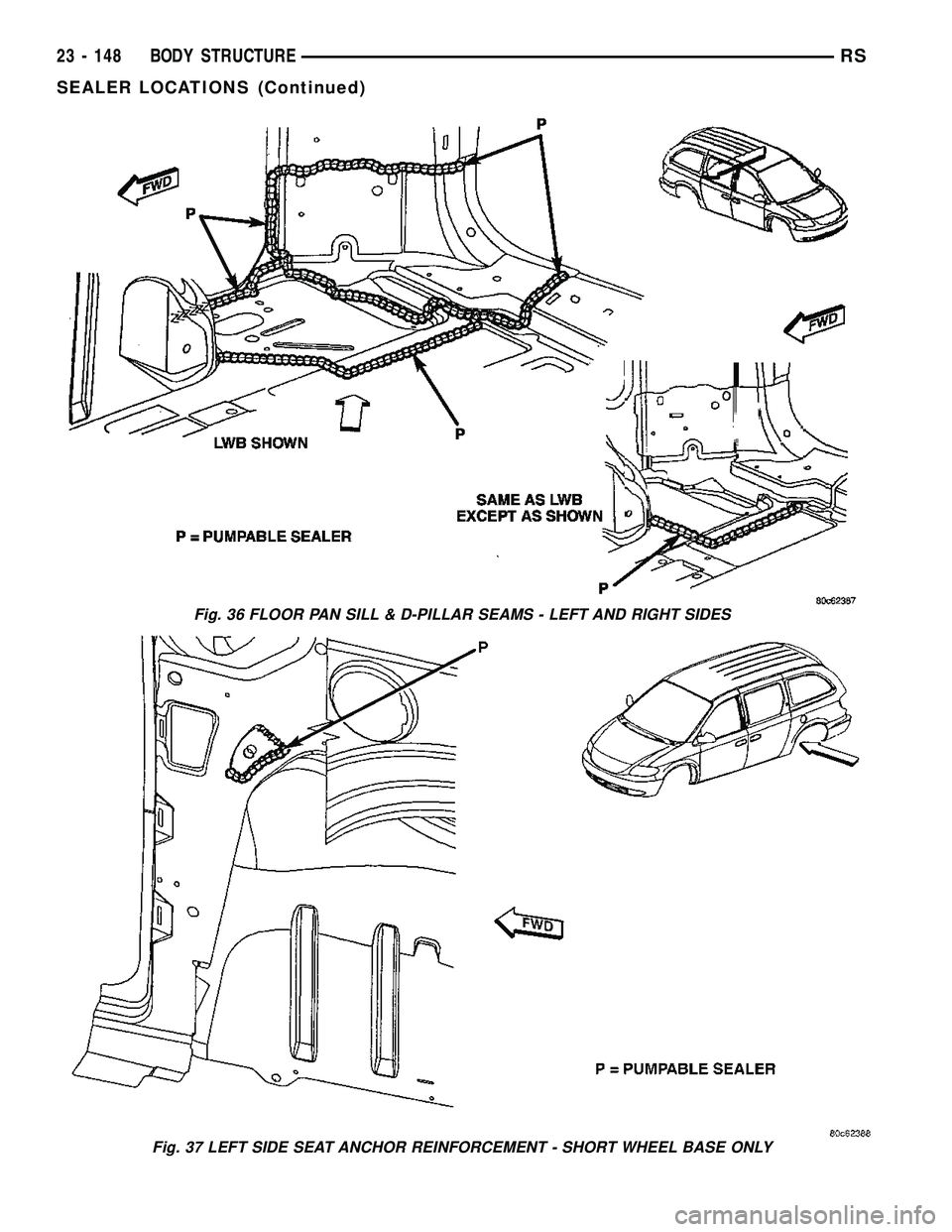

CHRYSLER VOYAGER 2004 Service Manual Fig. 36 FLOOR PAN SILL & D-PILLAR SEAMS - LEFT AND RIGHT SIDES Fig. 37 LEFT SIDE SEAT ANCHOR REINFORCEMENT - SHORT WHEEL BASE ONLY 23 - 148 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 2260 of 2585

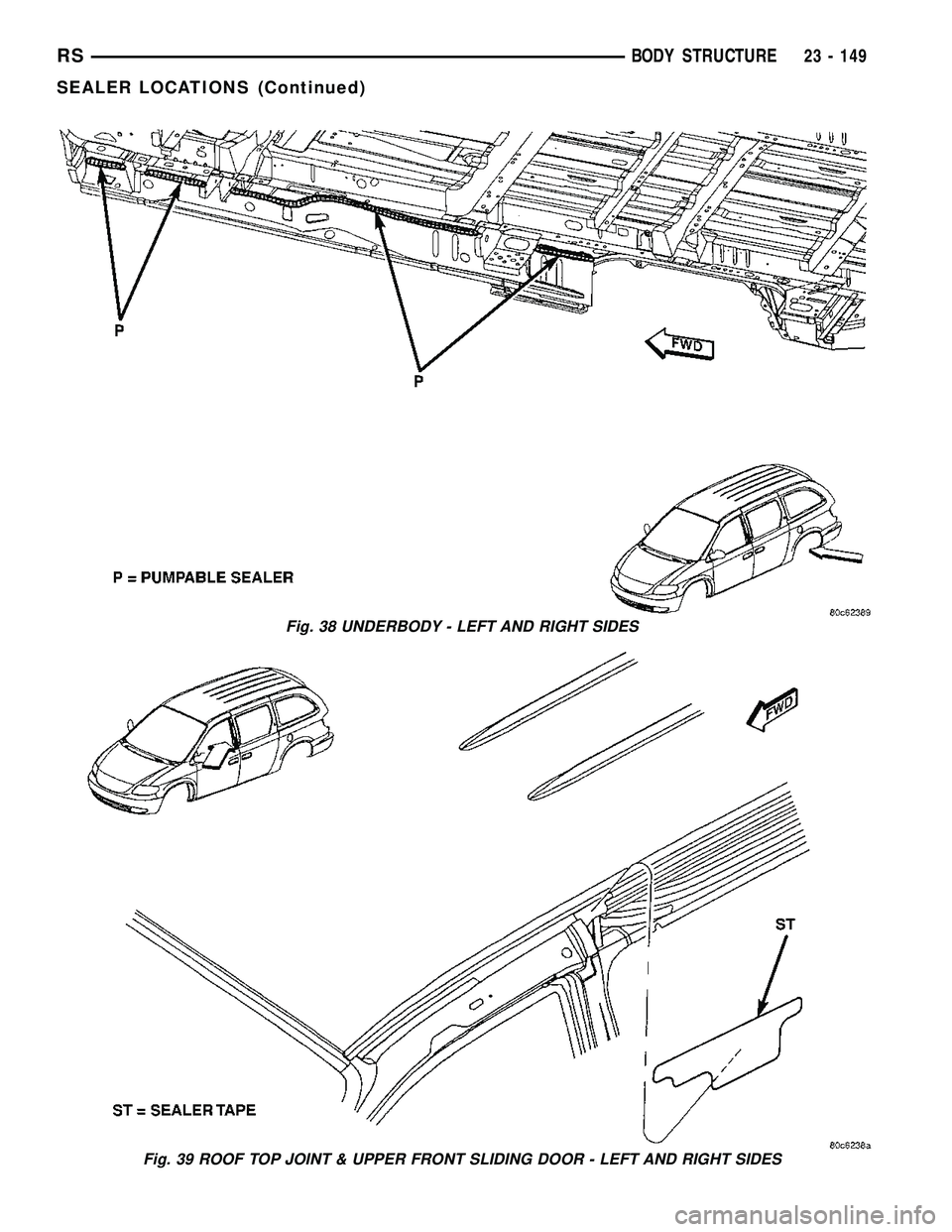

CHRYSLER VOYAGER 2004 Service Manual Fig. 38 UNDERBODY - LEFT AND RIGHT SIDES Fig. 39 ROOF TOP JOINT & UPPER FRONT SLIDING DOOR - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 149 SEALER LOCATIONS (Continued)

Page 2261 of 2585

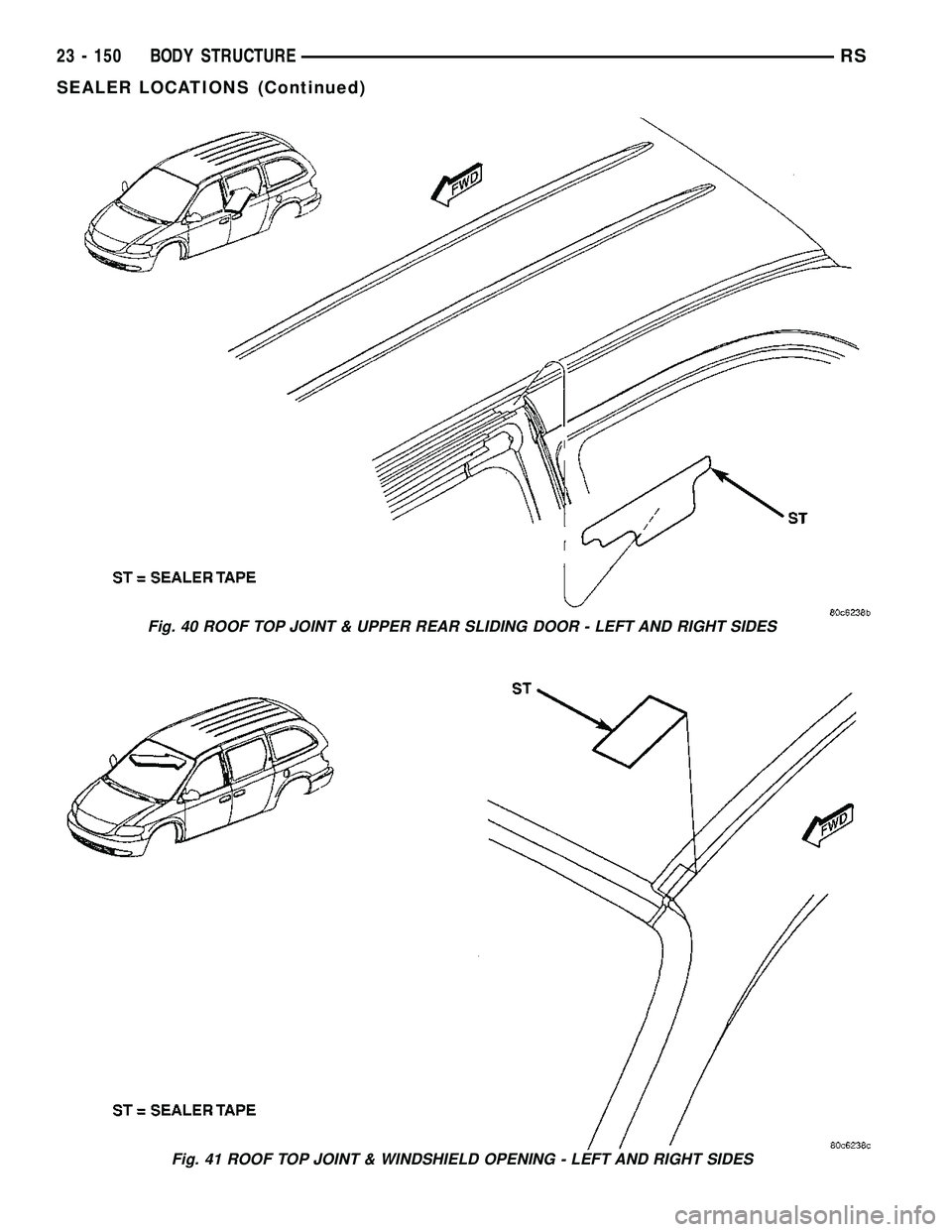

CHRYSLER VOYAGER 2004 Service Manual Fig. 40 ROOF TOP JOINT & UPPER REAR SLIDING DOOR - LEFT AND RIGHT SIDES Fig. 41 ROOF TOP JOINT & WINDSHIELD OPENING - LEFT AND RIGHT SIDES 23 - 150 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 2262 of 2585

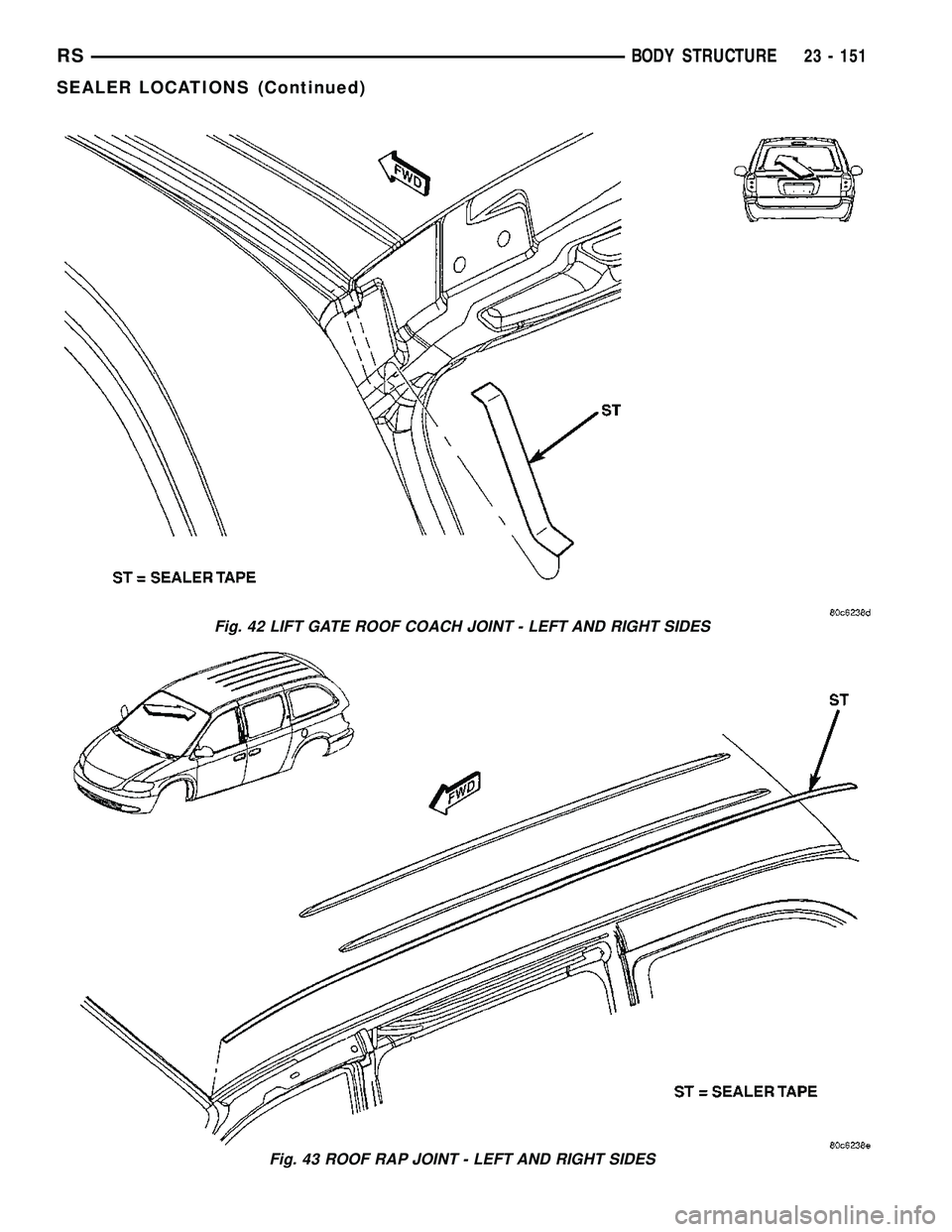

CHRYSLER VOYAGER 2004 Service Manual Fig. 42 LIFT GATE ROOF COACH JOINT - LEFT AND RIGHT SIDES Fig. 43 ROOF RAP JOINT - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 151 SEALER LOCATIONS (Continued)

Page 2263 of 2585

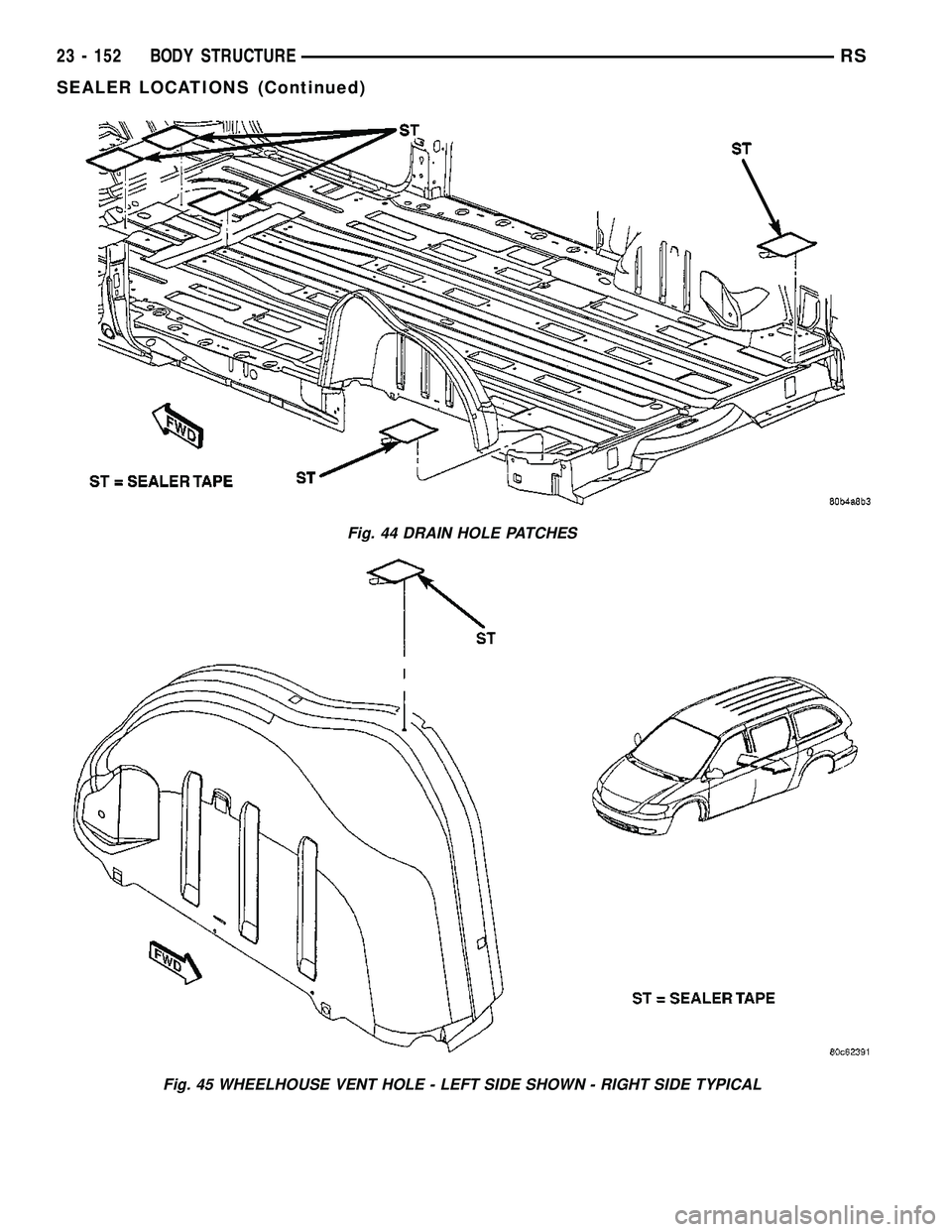

CHRYSLER VOYAGER 2004 Service Manual Fig. 44 DRAIN HOLE PATCHES Fig. 45 WHEELHOUSE VENT HOLE - LEFT SIDE SHOWN - RIGHT SIDE TYPICAL 23 - 152 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 2264 of 2585

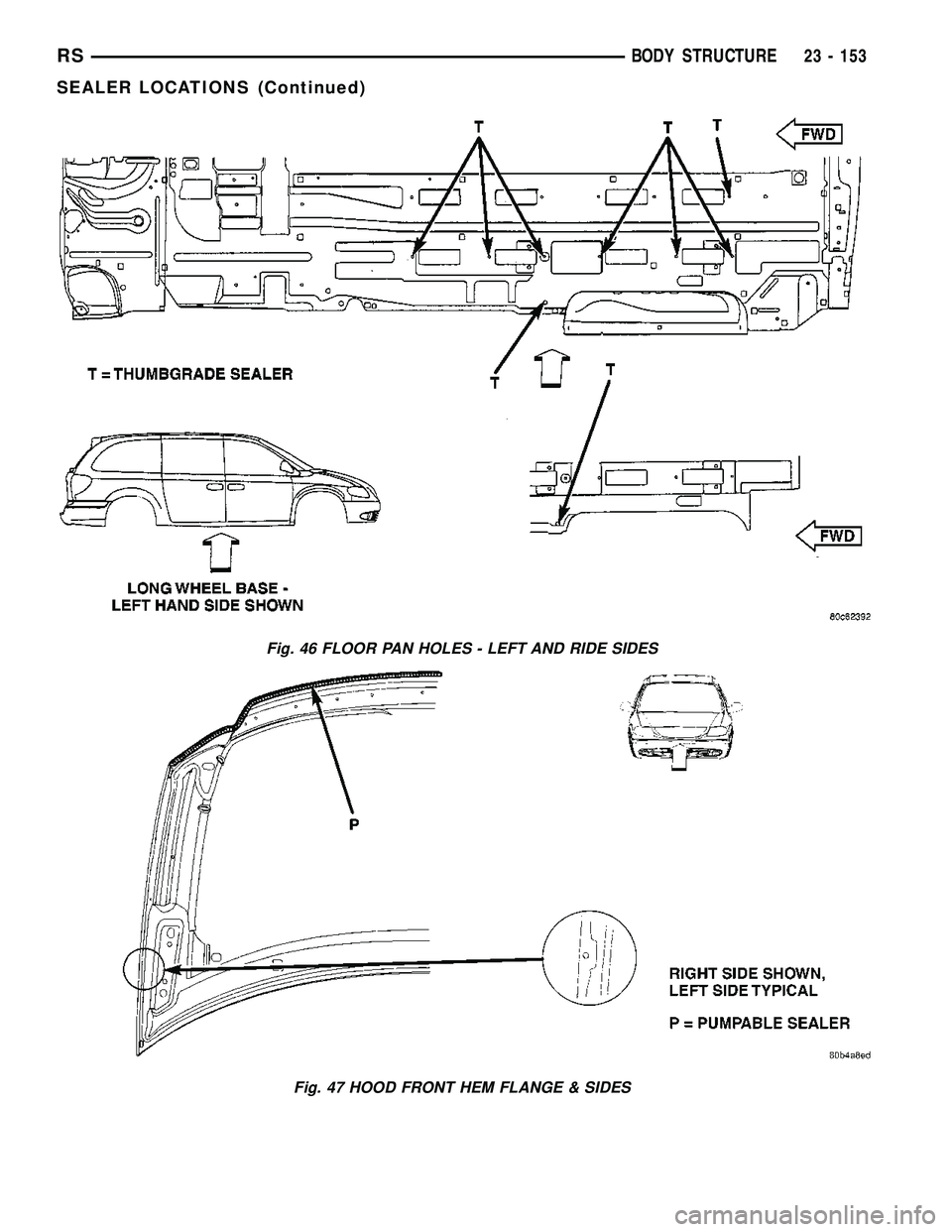

CHRYSLER VOYAGER 2004 Service Manual Fig. 46 FLOOR PAN HOLES - LEFT AND RIDE SIDES Fig. 47 HOOD FRONT HEM FLANGE & SIDES RSBODY STRUCTURE23 - 153 SEALER LOCATIONS (Continued)
