Page 2265 of 2585

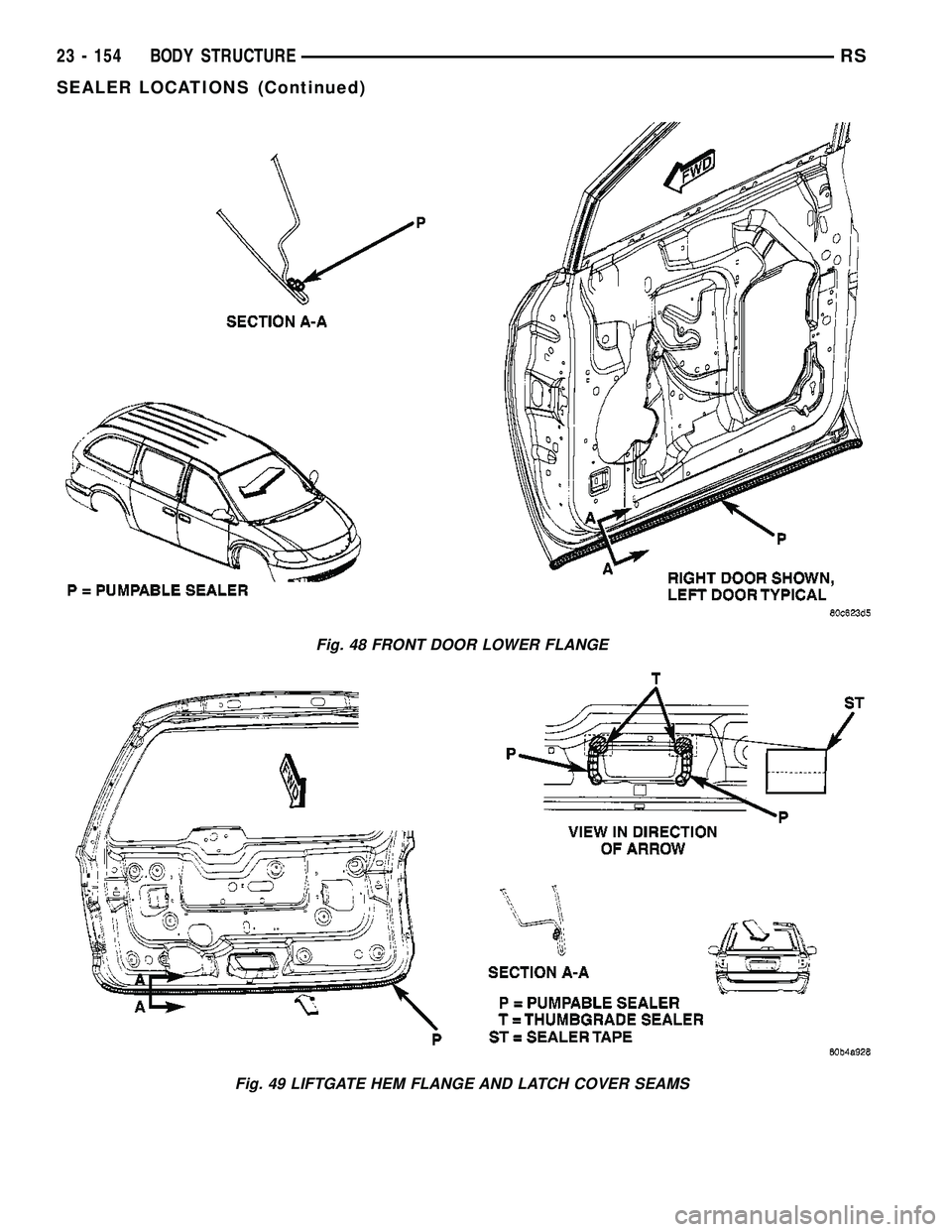

CHRYSLER VOYAGER 2004 Service Manual Fig. 48 FRONT DOOR LOWER FLANGE Fig. 49 LIFTGATE HEM FLANGE AND LATCH COVER SEAMS 23 - 154 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 2266 of 2585

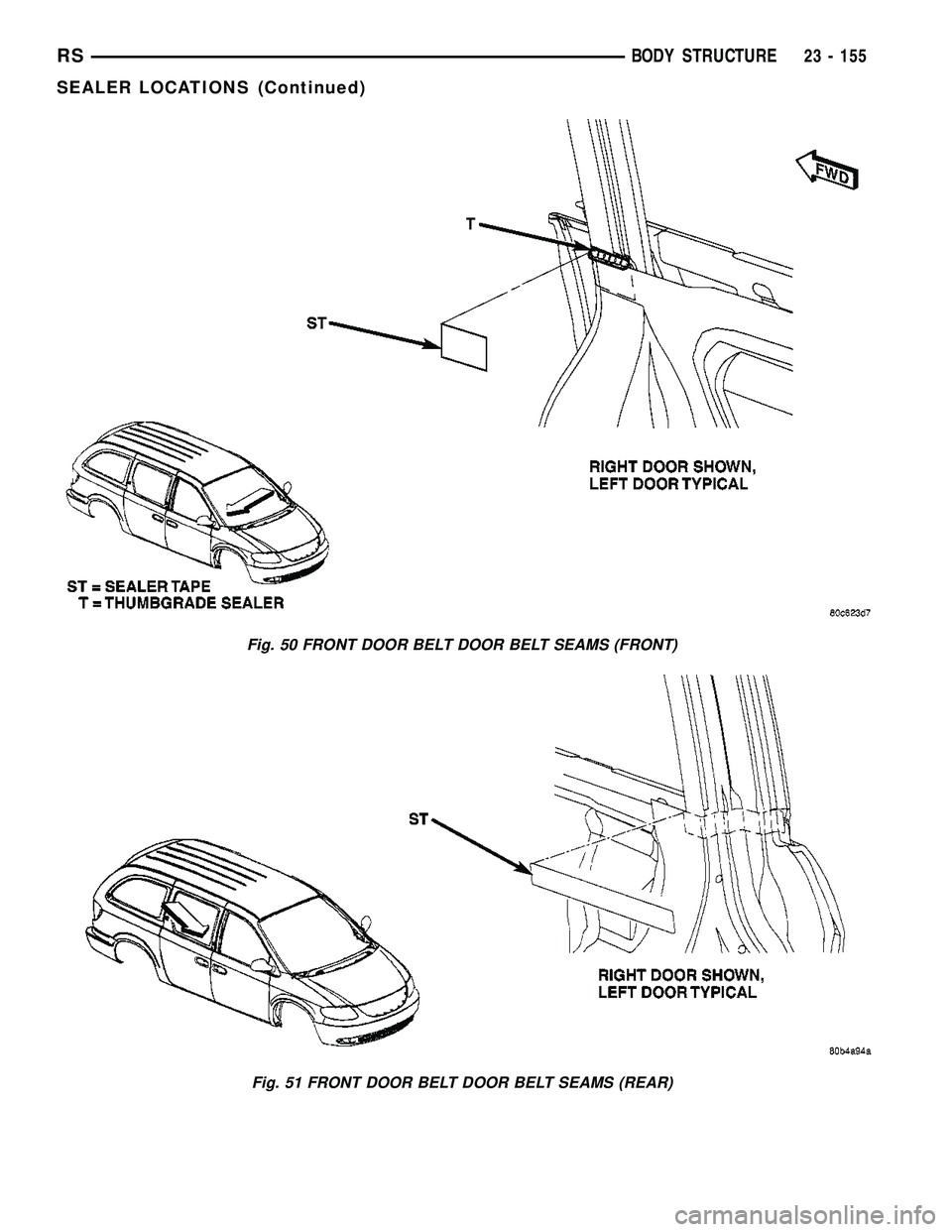

CHRYSLER VOYAGER 2004 Service Manual Fig. 50 FRONT DOOR BELT DOOR BELT SEAMS (FRONT) Fig. 51 FRONT DOOR BELT DOOR BELT SEAMS (REAR) RSBODY STRUCTURE23 - 155 SEALER LOCATIONS (Continued)

Page 2267 of 2585

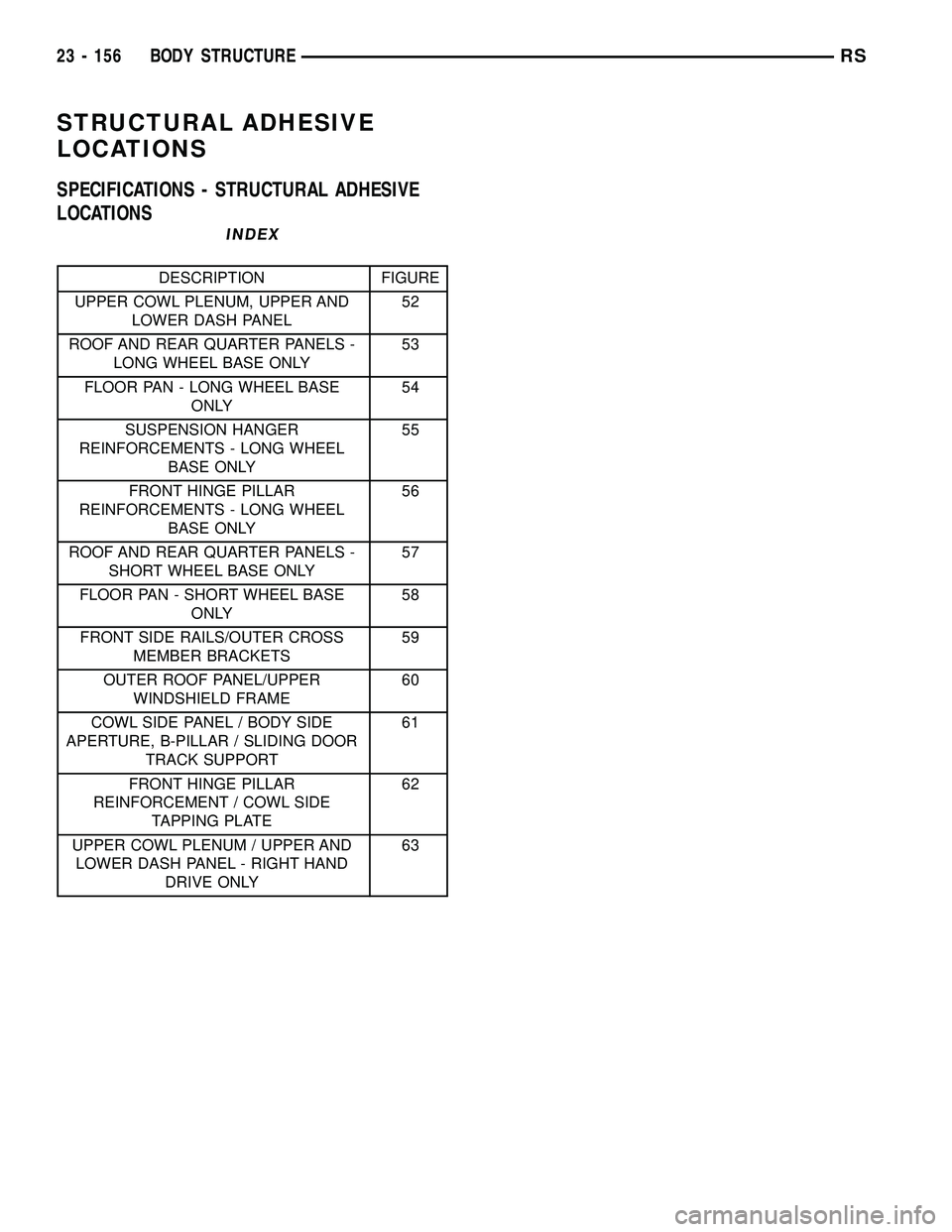

CHRYSLER VOYAGER 2004 Service Manual STRUCTURAL ADHESIVE LOCATIONS SPECIFICATIONS - STRUCTURAL ADHESIVE LOCATIONS INDEX DESCRIPTION FIGURE UPPER COWL PLENUM, UPPER AND LOWER DASH PANEL52 ROOF AND REAR QUARTER PANELS - LONG WHEEL BASE ONL

Page 2268 of 2585

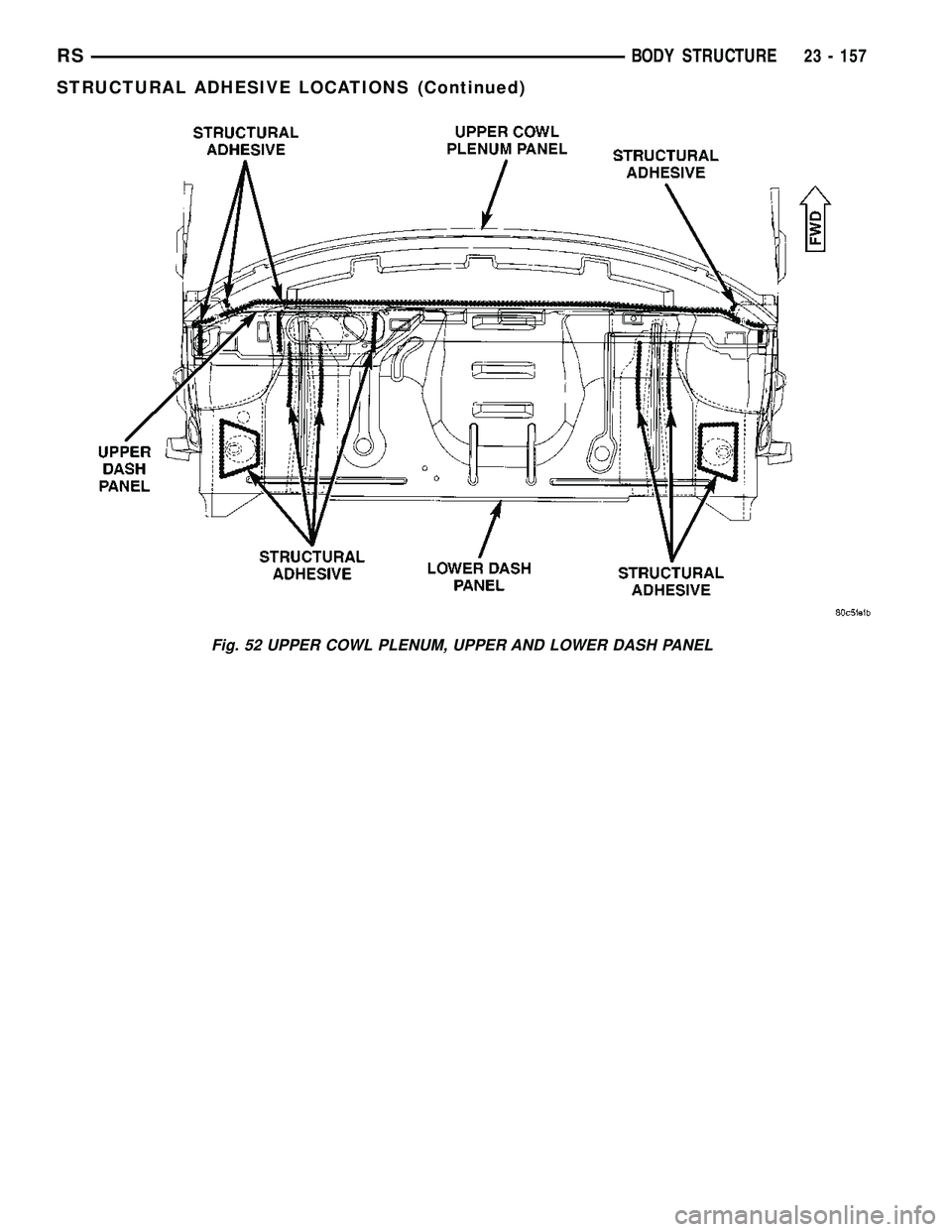

CHRYSLER VOYAGER 2004 Service Manual Fig. 52 UPPER COWL PLENUM, UPPER AND LOWER DASH PANEL RSBODY STRUCTURE23 - 157 STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 2269 of 2585

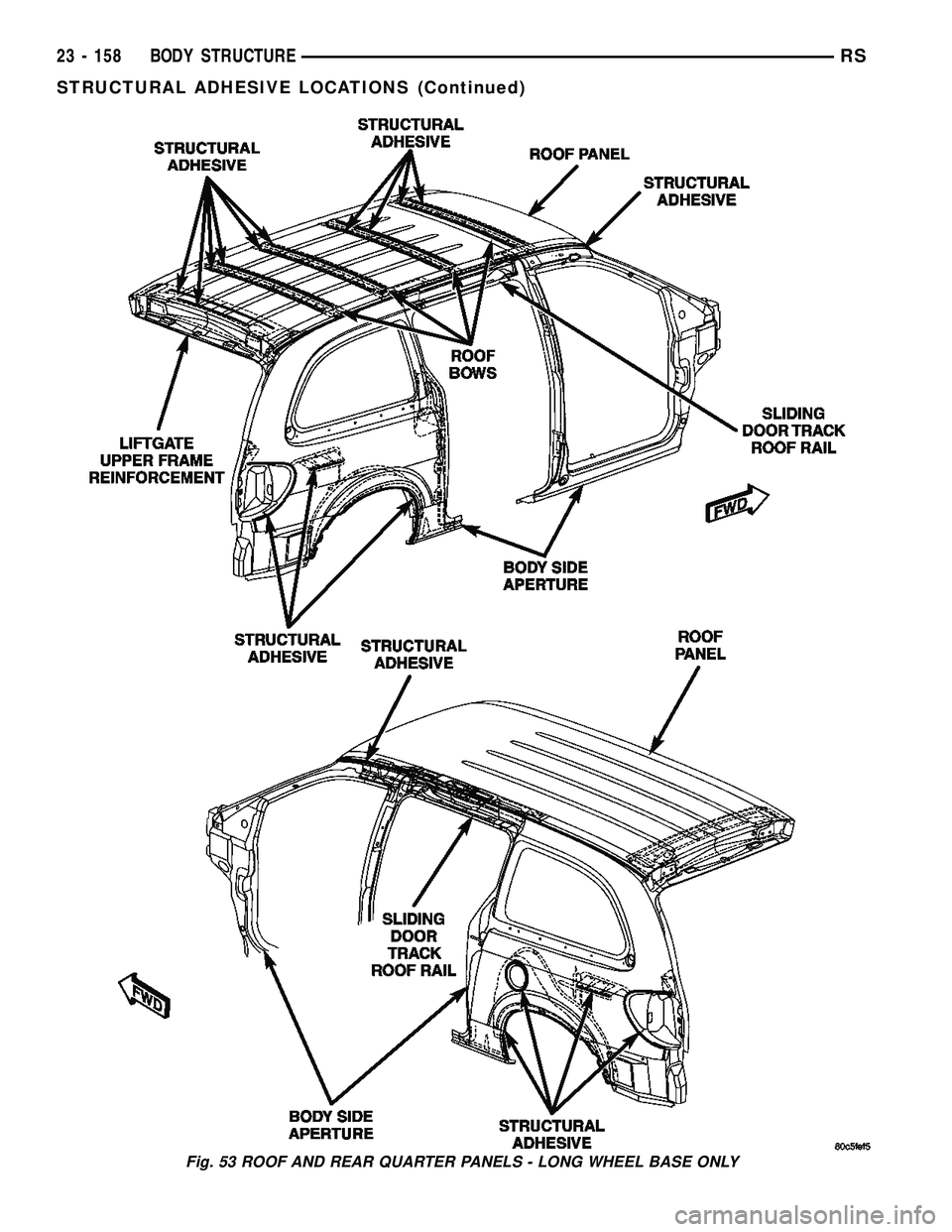

CHRYSLER VOYAGER 2004 Service Manual Fig. 53 ROOF AND REAR QUARTER PANELS - LONG WHEEL BASE ONLY 23 - 158 BODY STRUCTURERS STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 2270 of 2585

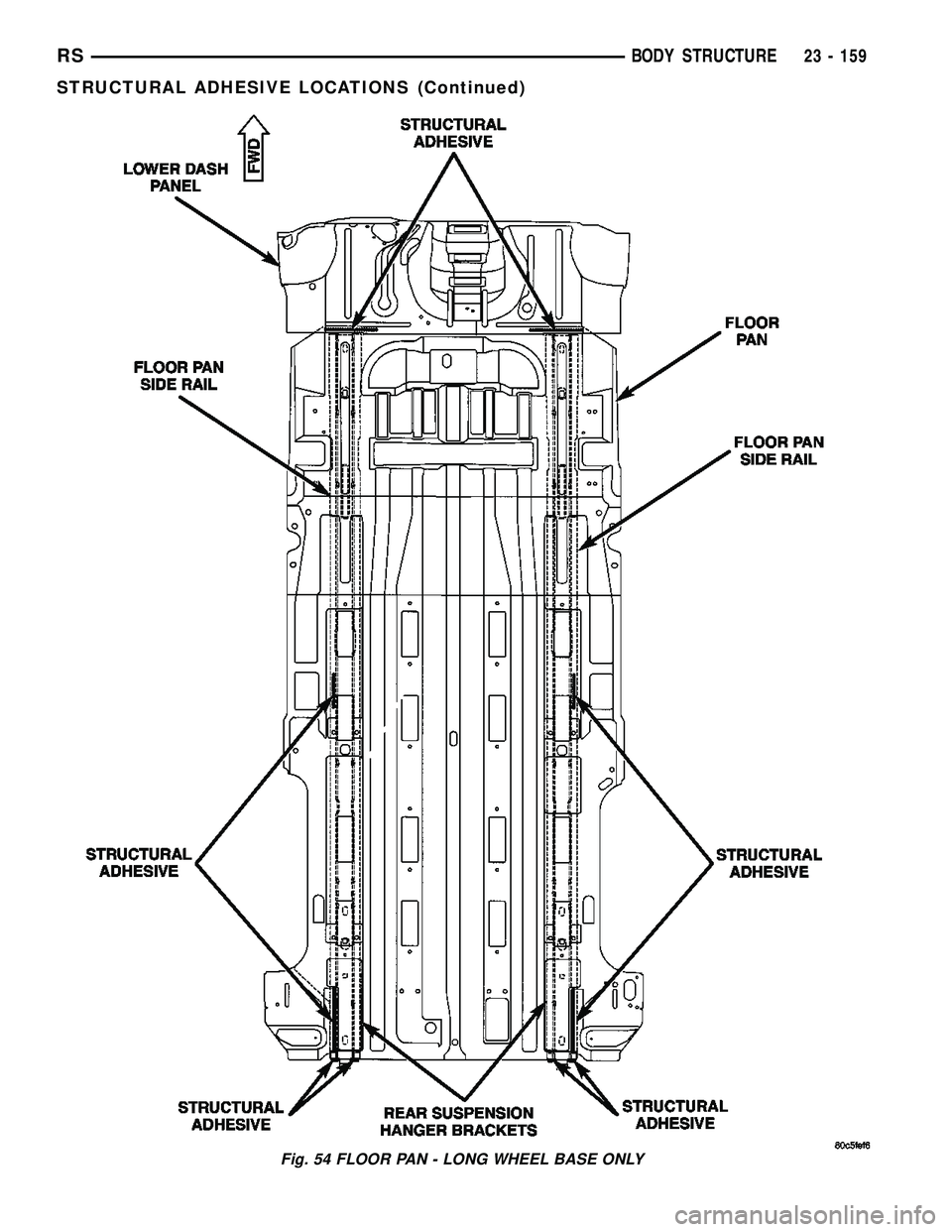

CHRYSLER VOYAGER 2004 Service Manual Fig. 54 FLOOR PAN - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 159 STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 2271 of 2585

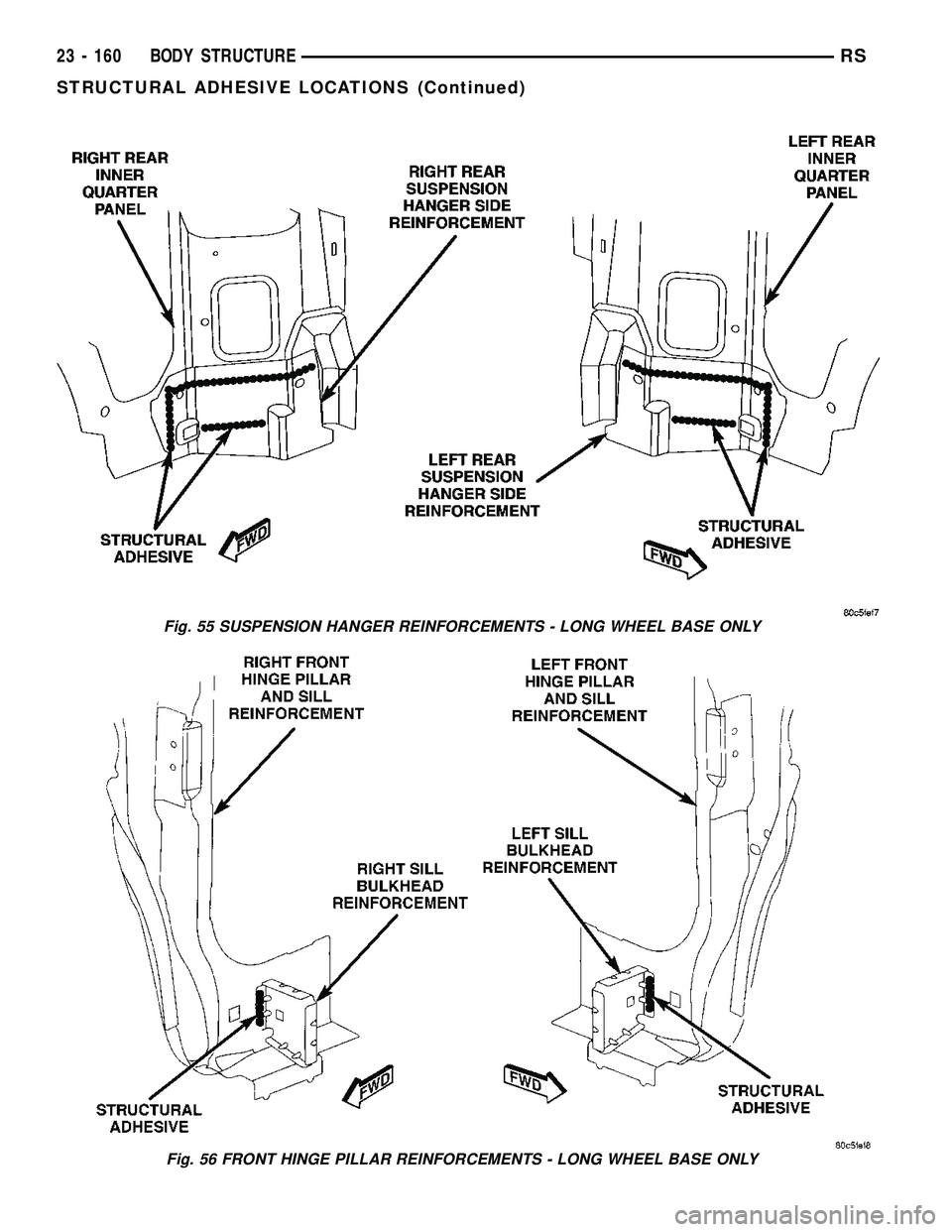

CHRYSLER VOYAGER 2004 Service Manual Fig. 55 SUSPENSION HANGER REINFORCEMENTS - LONG WHEEL BASE ONLY Fig. 56 FRONT HINGE PILLAR REINFORCEMENTS - LONG WHEEL BASE ONLY 23 - 160 BODY STRUCTURERS STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 2272 of 2585

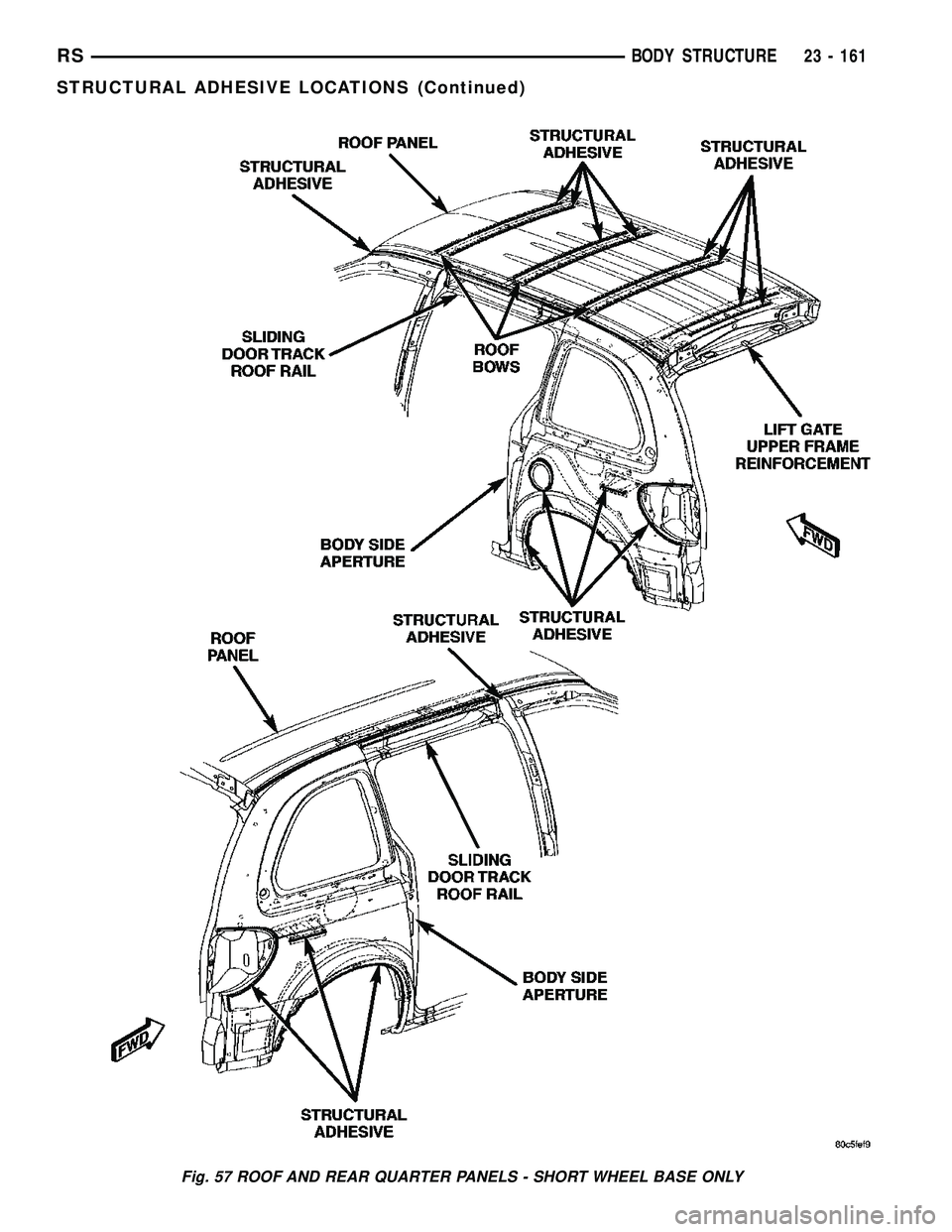

CHRYSLER VOYAGER 2004 Service Manual Fig. 57 ROOF AND REAR QUARTER PANELS - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 161 STRUCTURAL ADHESIVE LOCATIONS (Continued)
