Page 1265 of 2585

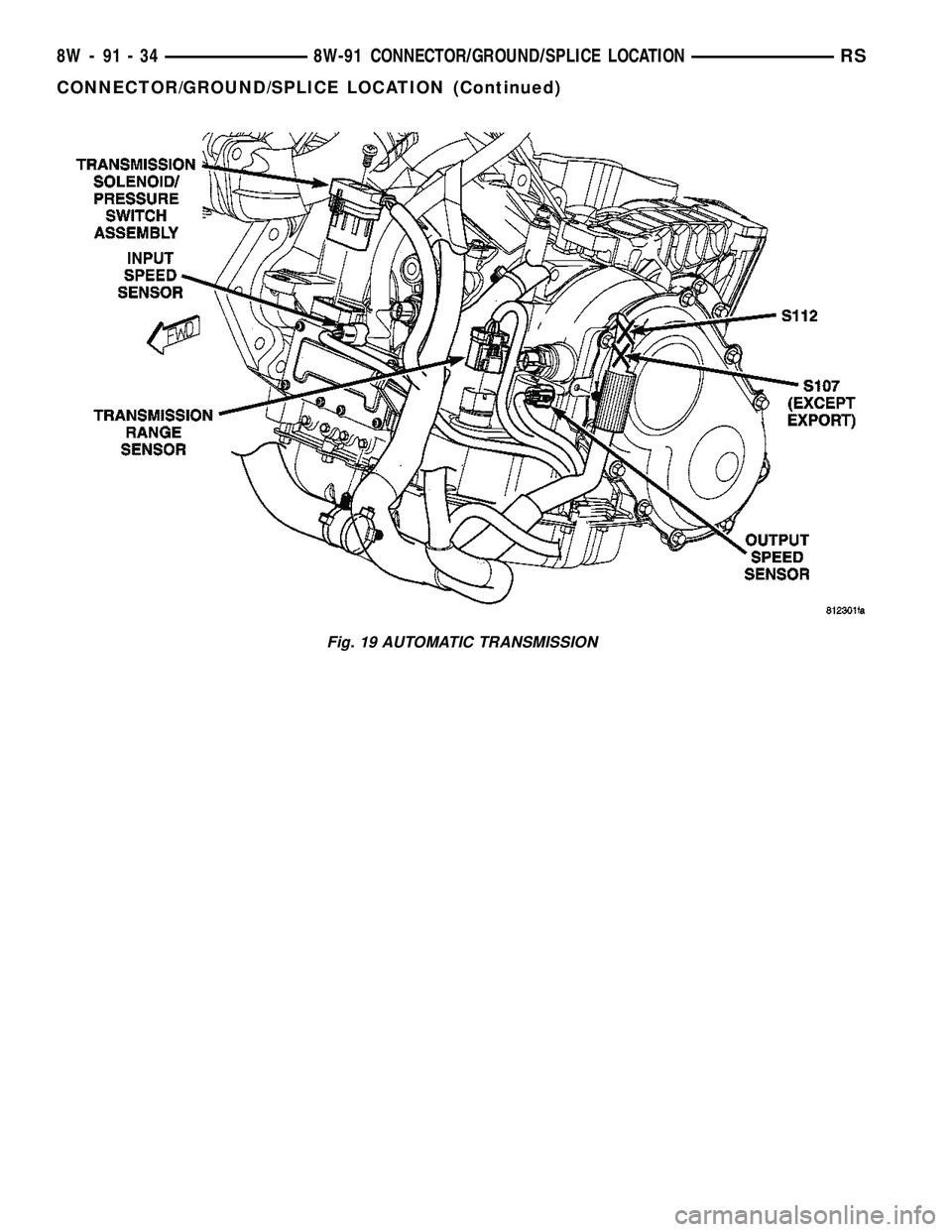

CHRYSLER VOYAGER 2004 Service Manual Fig. 19 AUTOMATIC TRANSMISSION 8W - 91 - 34 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1266 of 2585

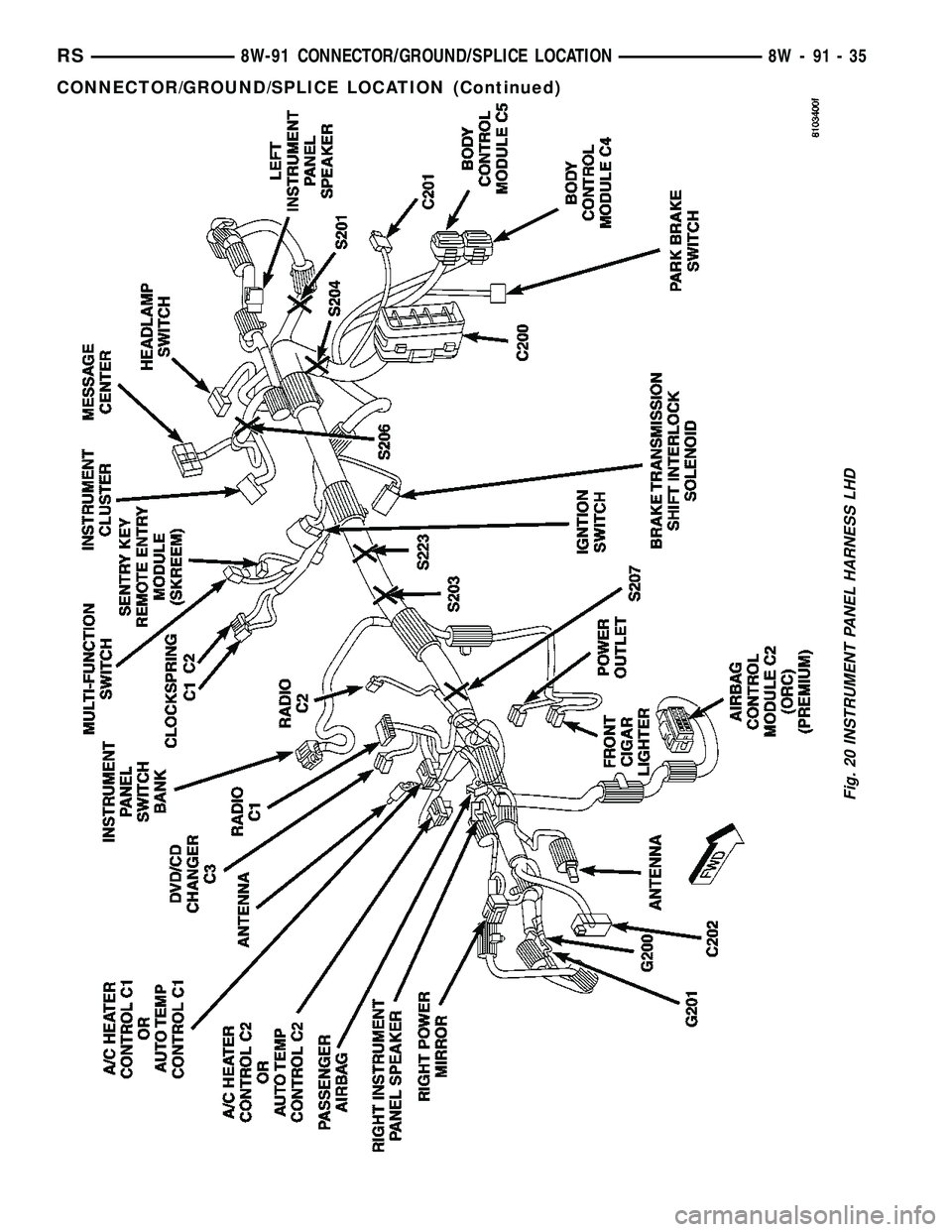

CHRYSLER VOYAGER 2004 Service Manual Fig. 20 INSTRUMENT PANEL HARNESS LHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-35 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1267 of 2585

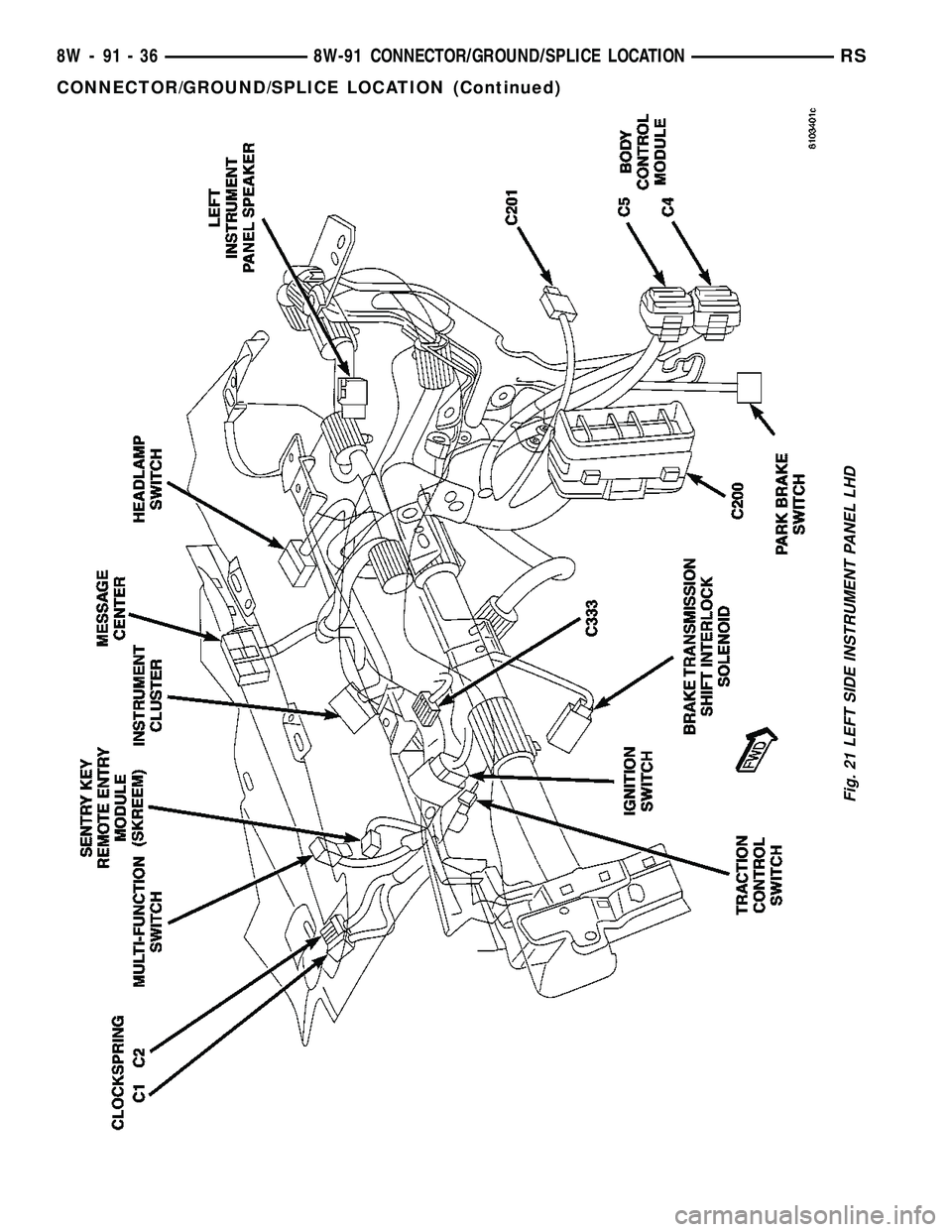

CHRYSLER VOYAGER 2004 Service Manual Fig. 21 LEFT SIDE INSTRUMENT PANEL LHD 8W - 91 - 36 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1268 of 2585

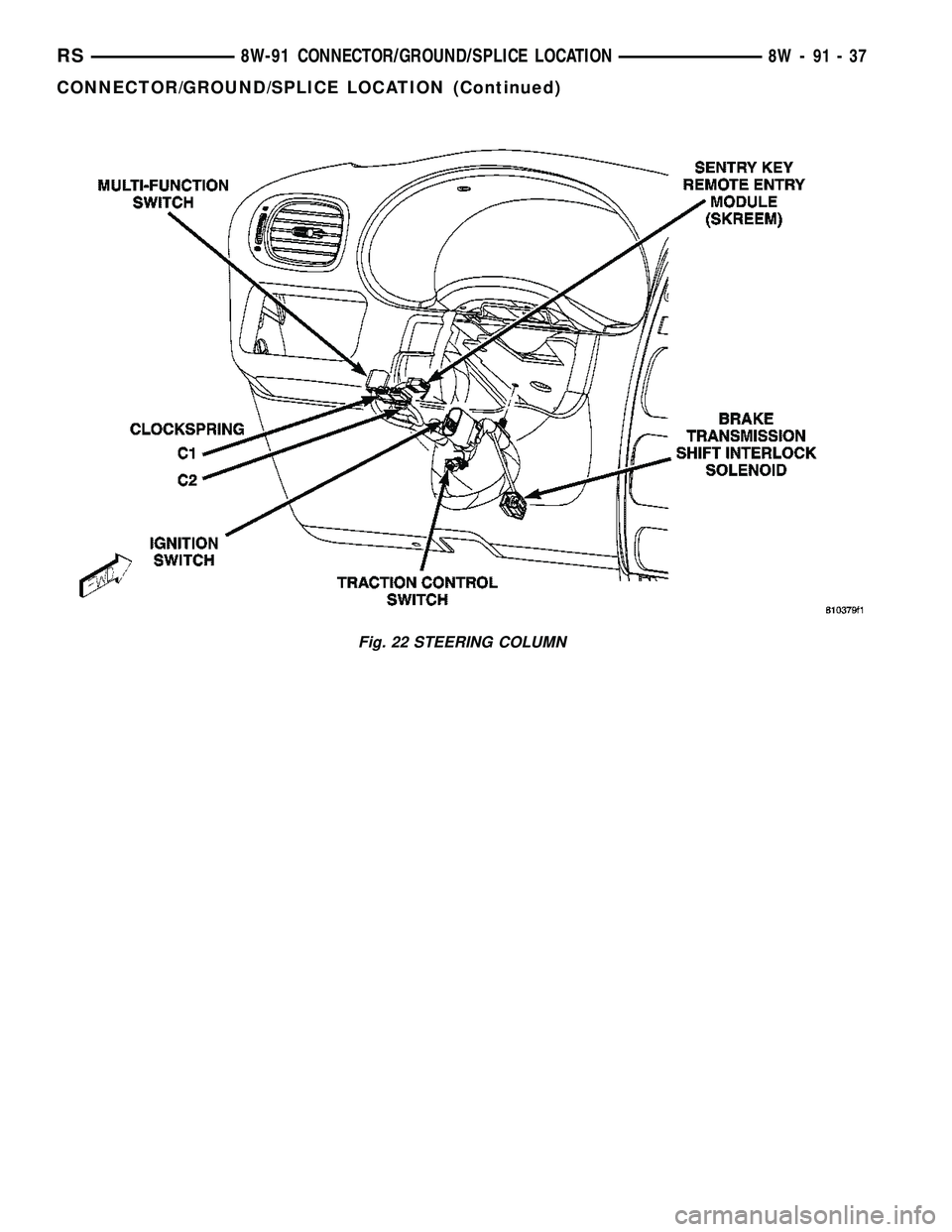

CHRYSLER VOYAGER 2004 Service Manual Fig. 22 STEERING COLUMN RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-37 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1269 of 2585

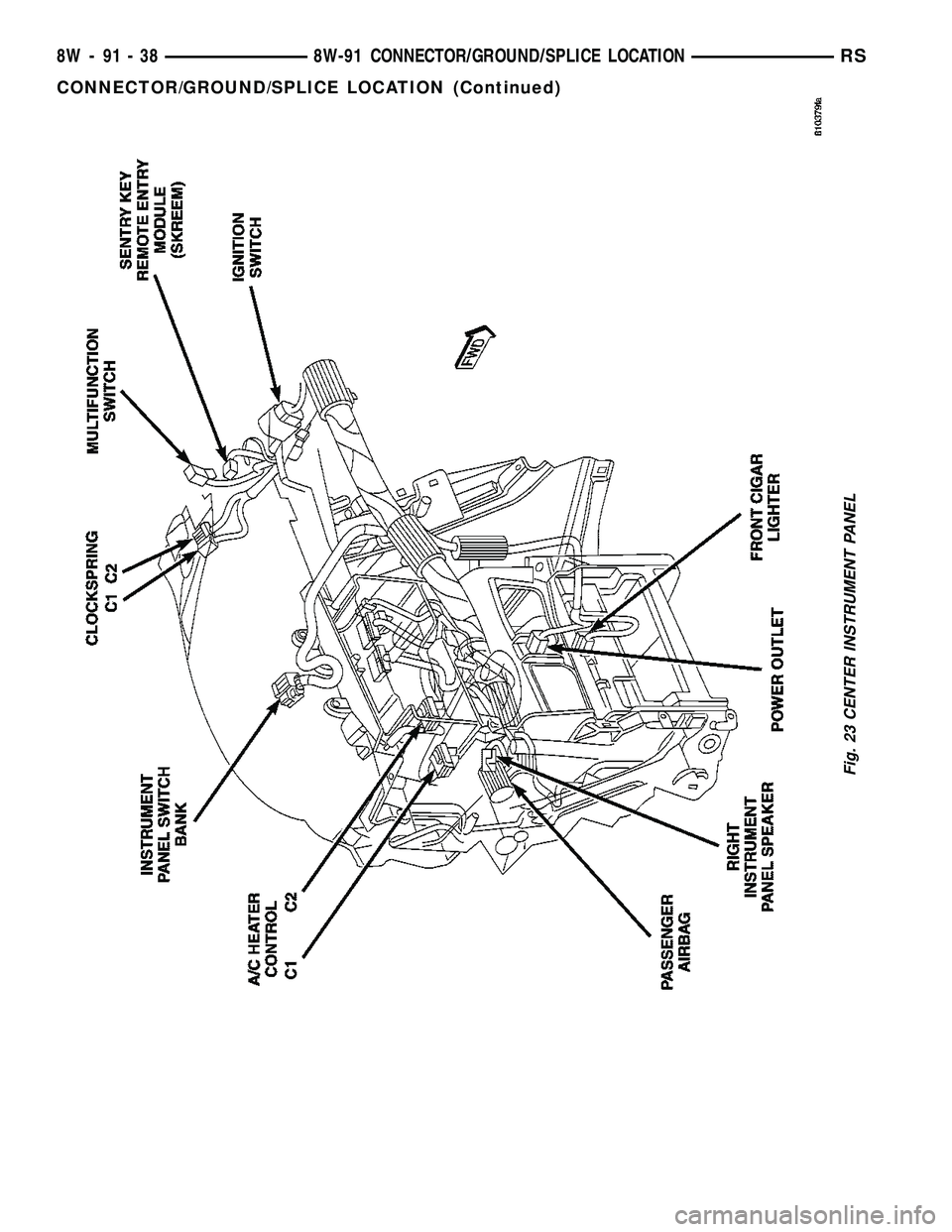

CHRYSLER VOYAGER 2004 Service Manual Fig. 23 CENTER INSTRUMENT PANEL 8W - 91 - 38 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1270 of 2585

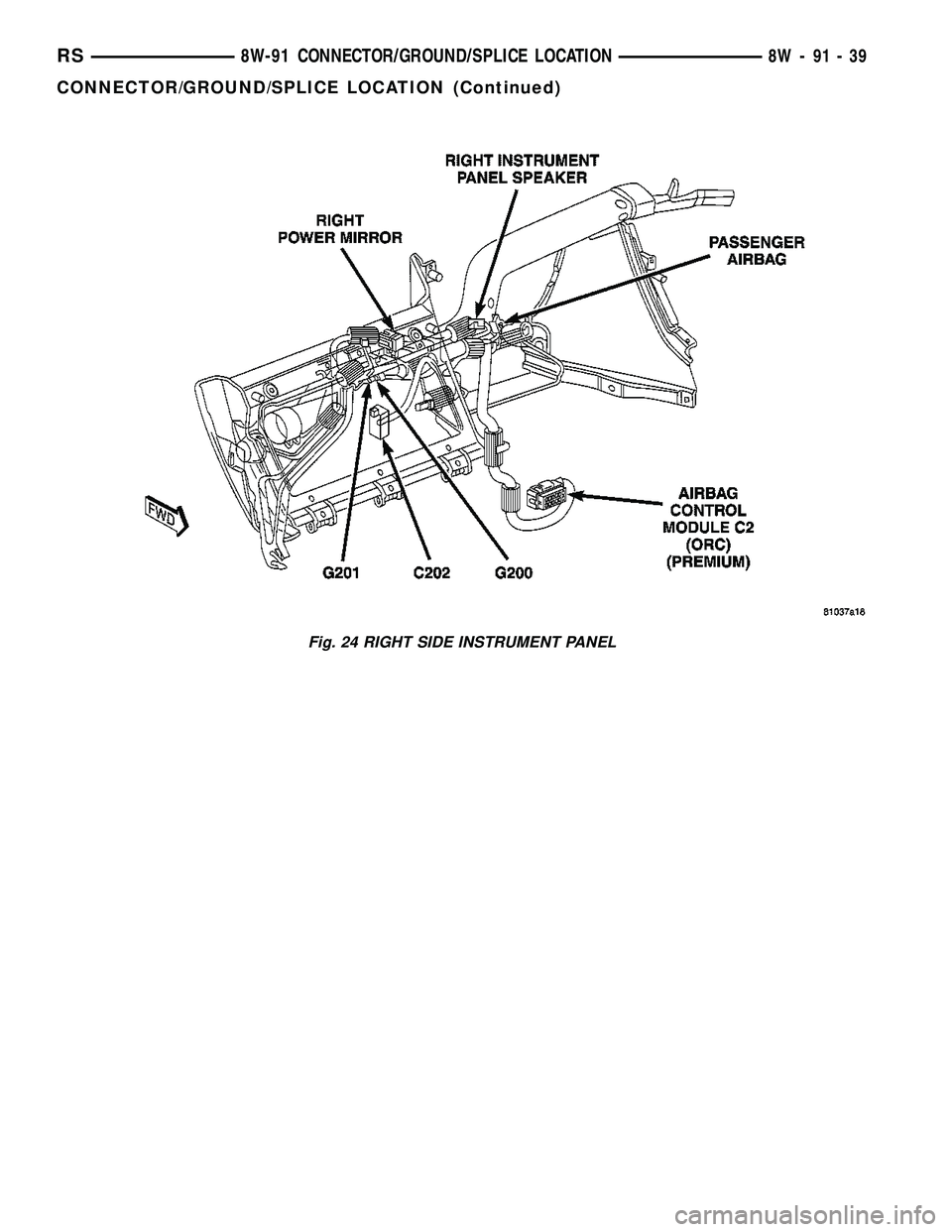

CHRYSLER VOYAGER 2004 Service Manual Fig. 24 RIGHT SIDE INSTRUMENT PANEL RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-39 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1271 of 2585

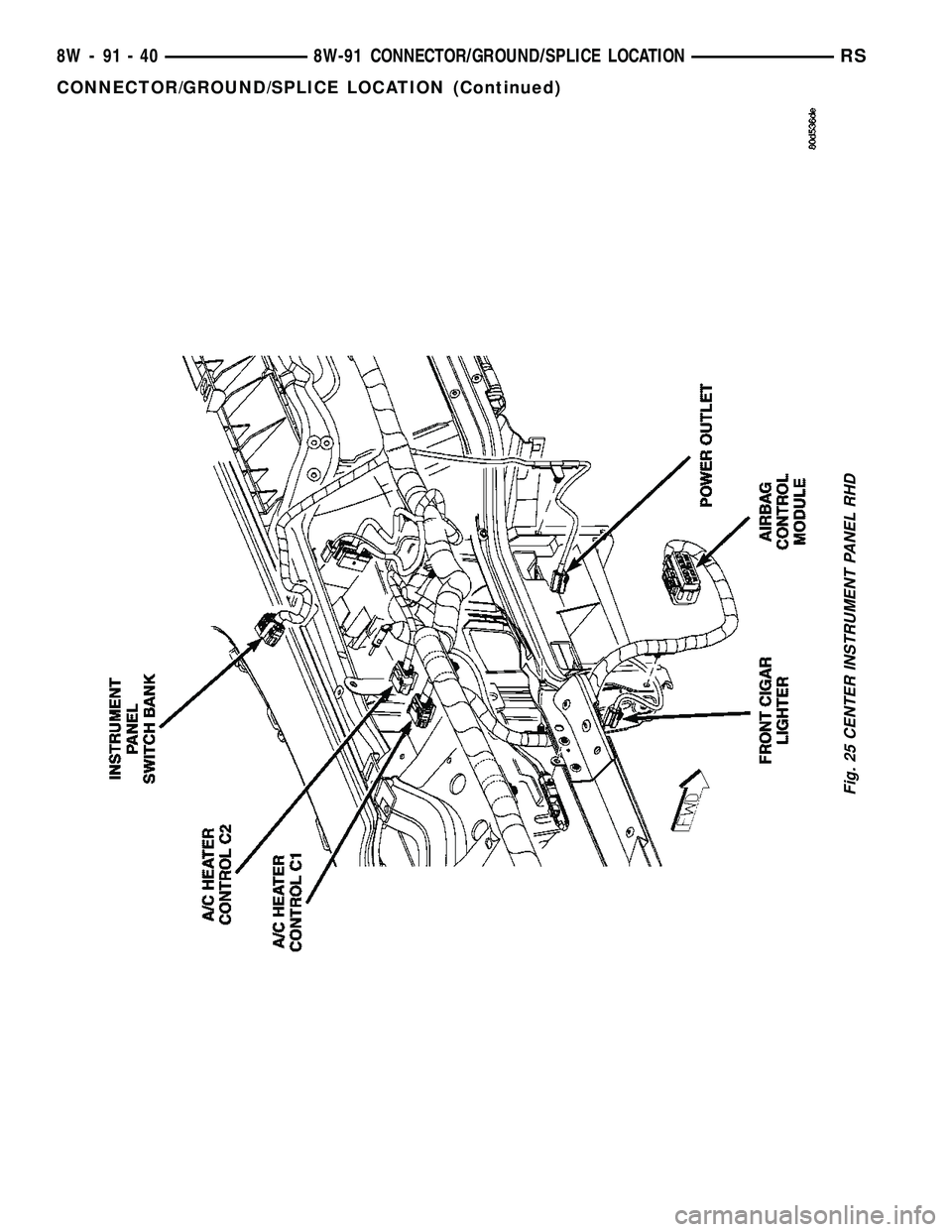

CHRYSLER VOYAGER 2004 Service Manual Fig. 25 CENTER INSTRUMENT PANEL RHD 8W - 91 - 40 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1272 of 2585

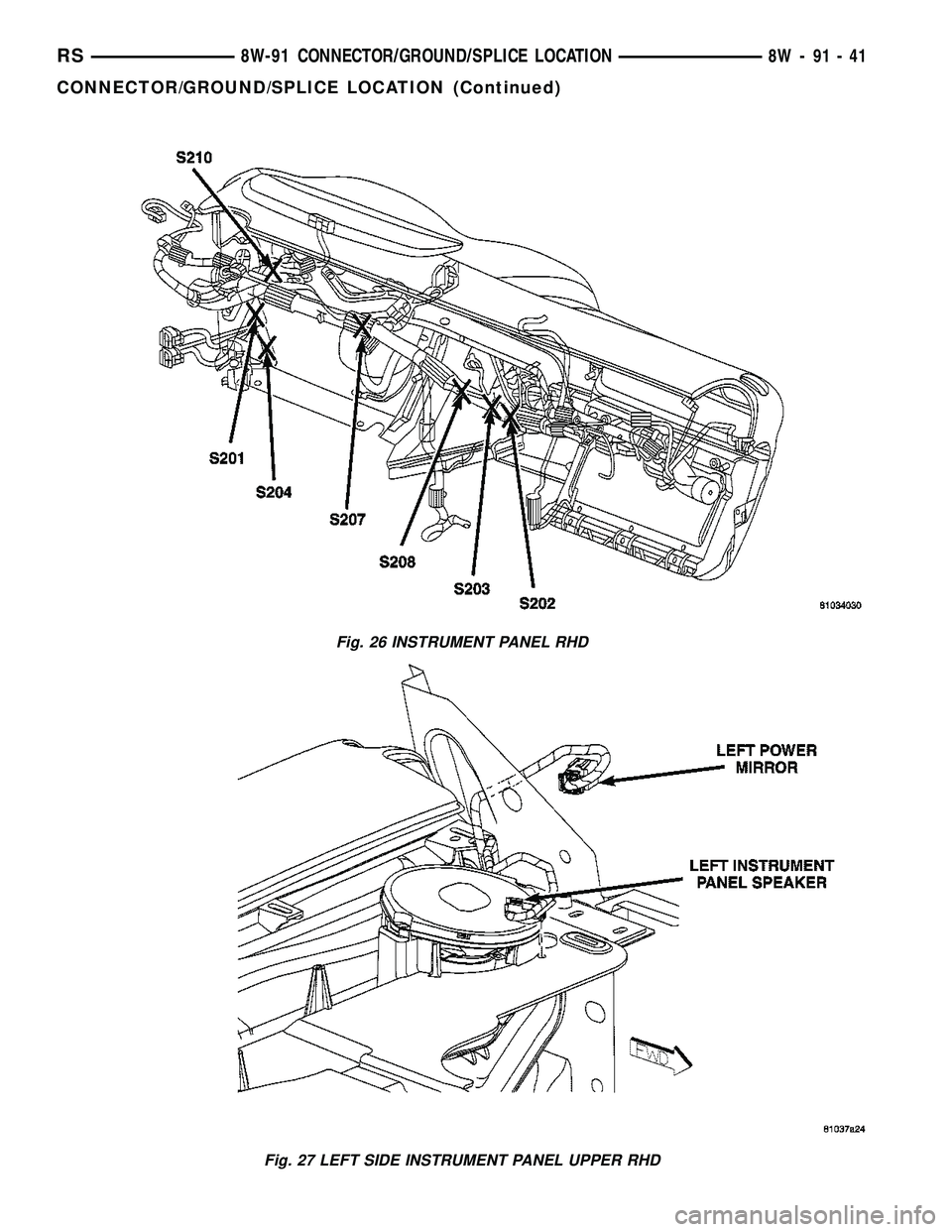

CHRYSLER VOYAGER 2004 Service Manual Fig. 26 INSTRUMENT PANEL RHD Fig. 27 LEFT SIDE INSTRUMENT PANEL UPPER RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-41 CONNECTOR/GROUND/SPLICE LOCATION (Continued)
