Page 2289 of 2585

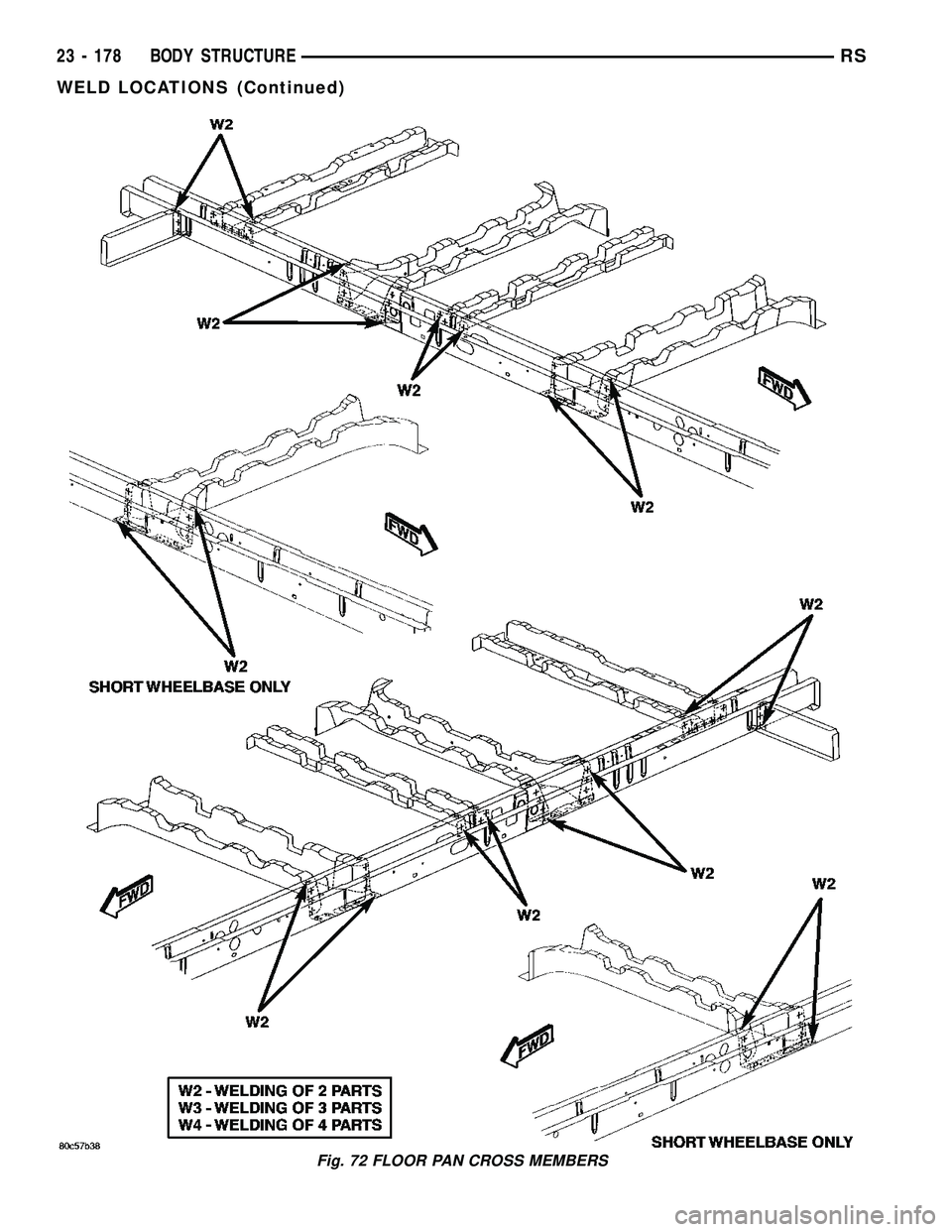

CHRYSLER VOYAGER 2004 Service Manual Fig. 72 FLOOR PAN CROSS MEMBERS 23 - 178 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2290 of 2585

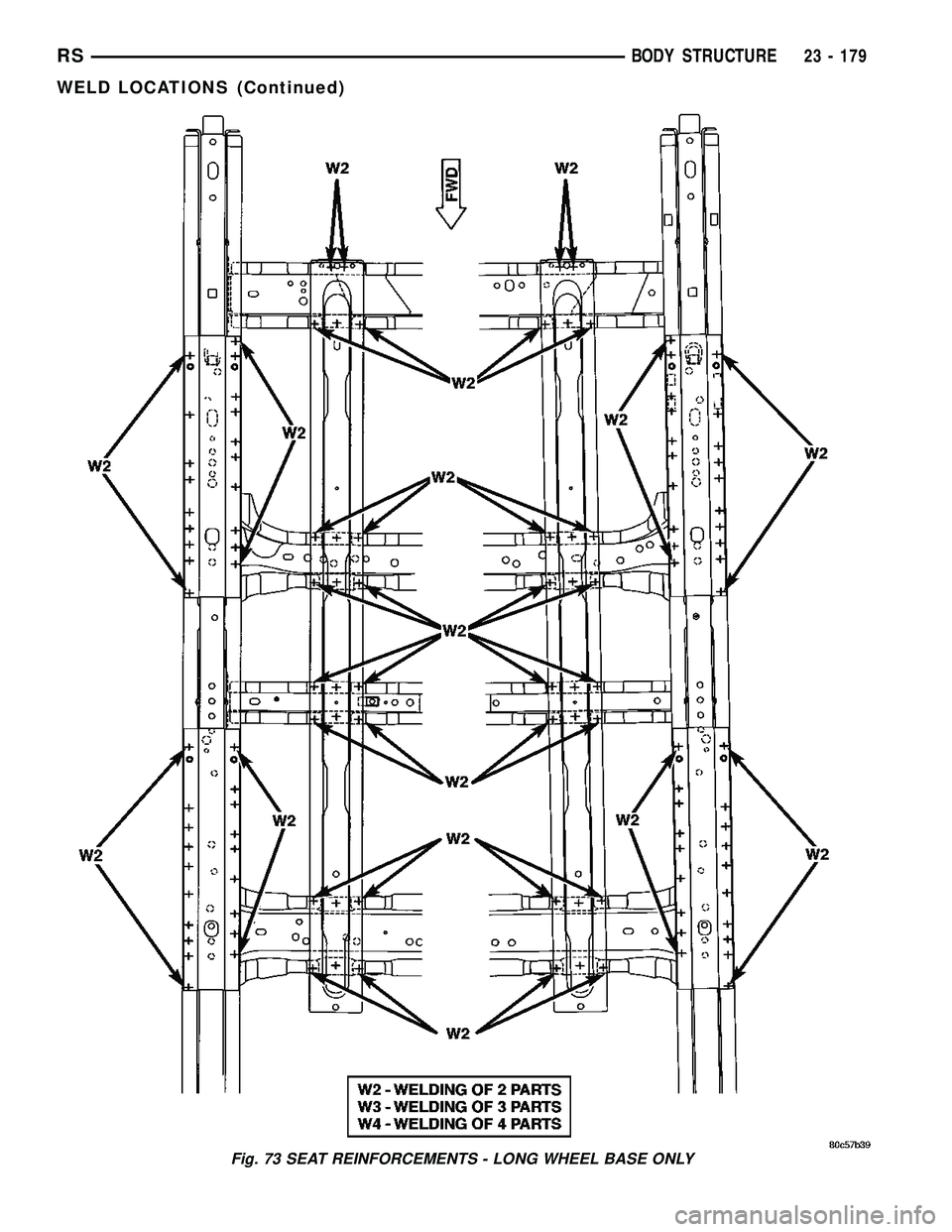

CHRYSLER VOYAGER 2004 Service Manual Fig. 73 SEAT REINFORCEMENTS - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 179 WELD LOCATIONS (Continued)

Page 2291 of 2585

CHRYSLER VOYAGER 2004 Service Manual Fig. 74 STRIKER REINFORCEMENTS - LONG WHEEL BASE ONLY 23 - 180 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2292 of 2585

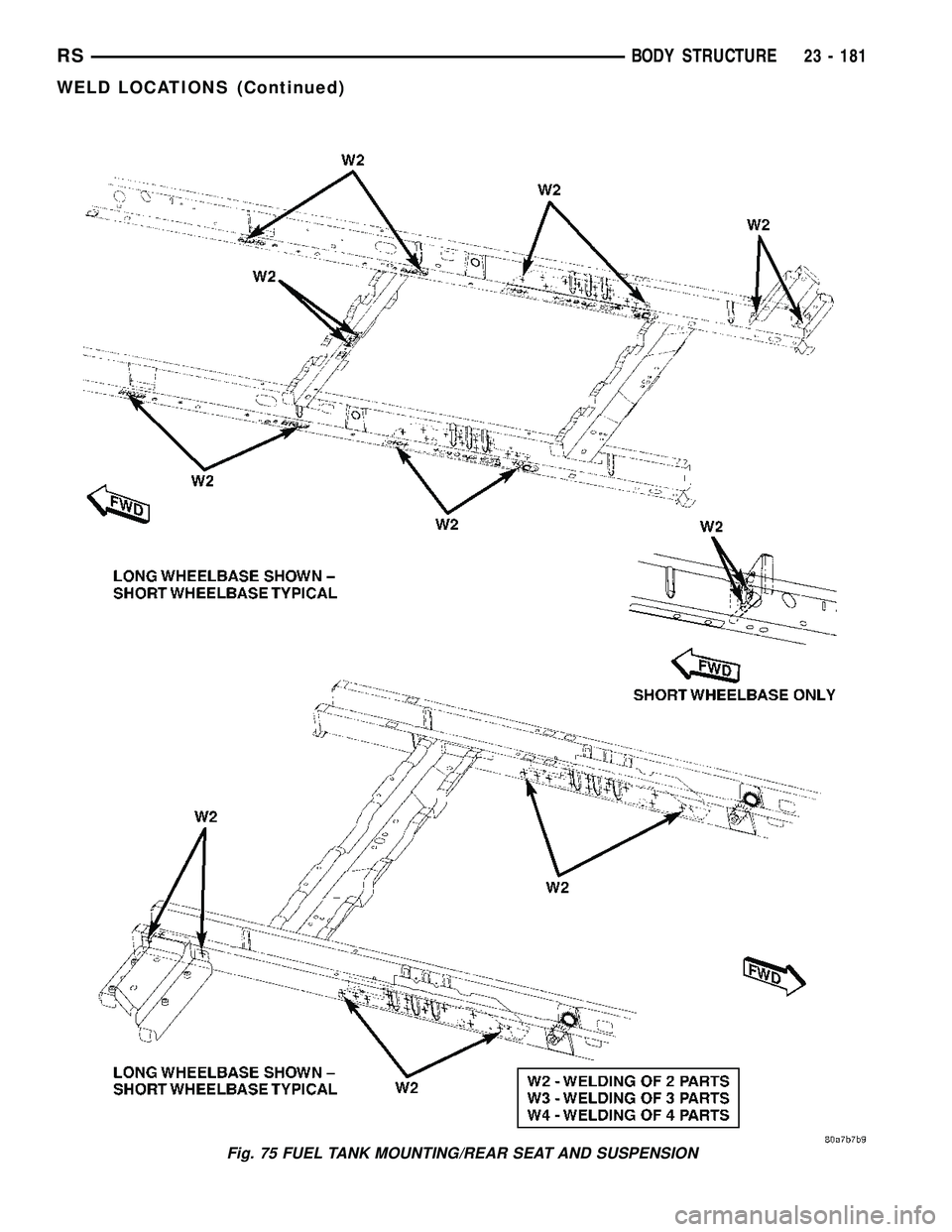

CHRYSLER VOYAGER 2004 Service Manual Fig. 75 FUEL TANK MOUNTING/REAR SEAT AND SUSPENSION RSBODY STRUCTURE23 - 181 WELD LOCATIONS (Continued)

Page 2293 of 2585

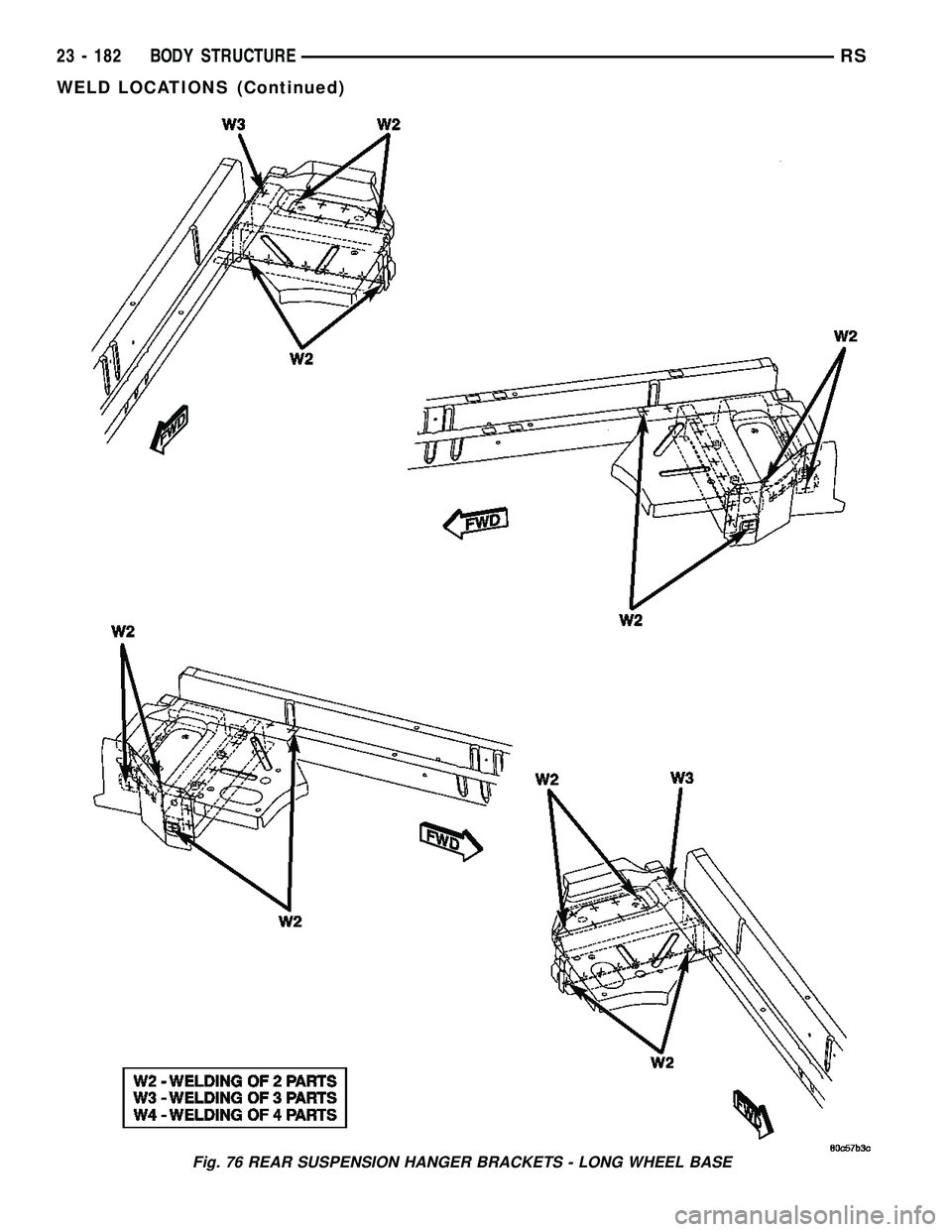

CHRYSLER VOYAGER 2004 Service Manual Fig. 76 REAR SUSPENSION HANGER BRACKETS - LONG WHEEL BASE 23 - 182 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2294 of 2585

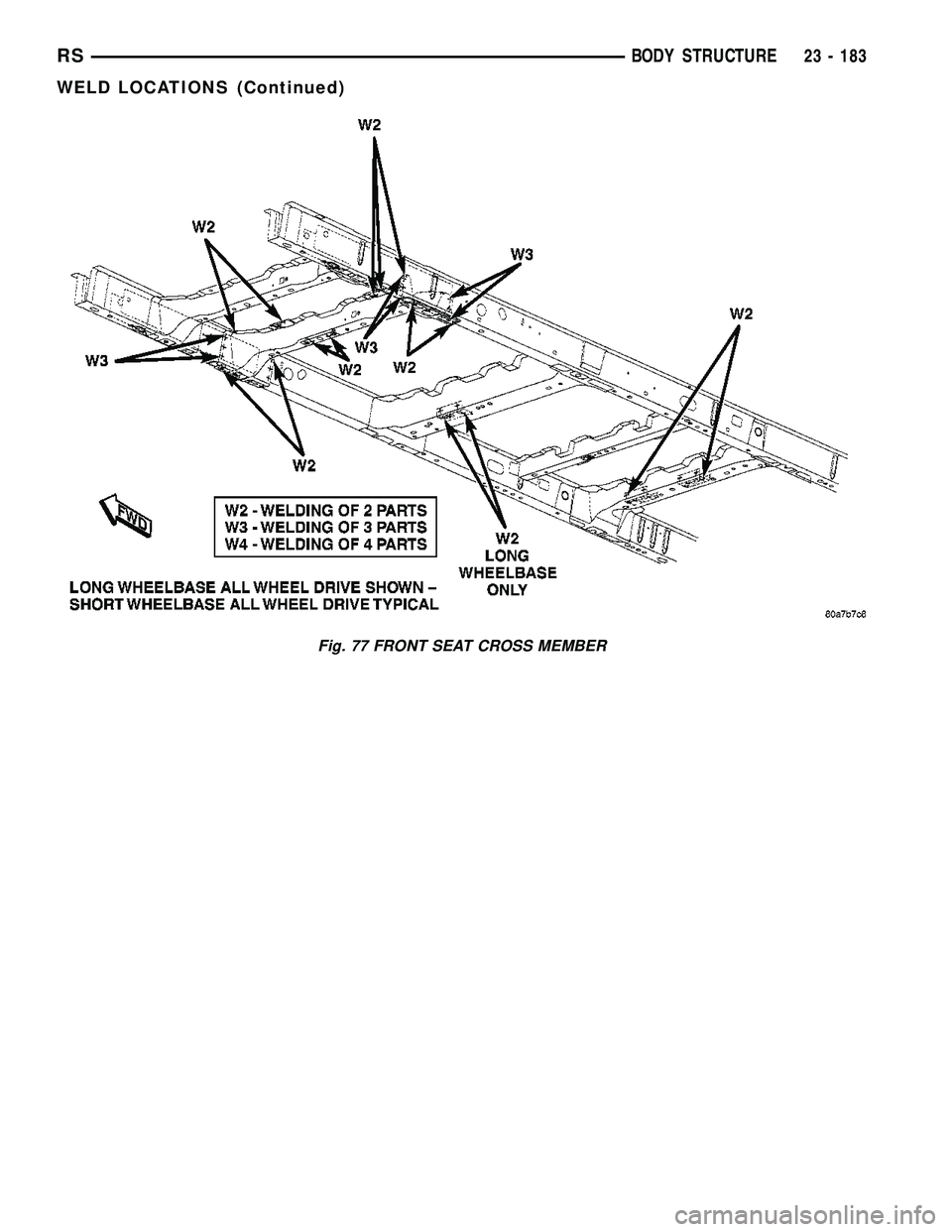

CHRYSLER VOYAGER 2004 Service Manual Fig. 77 FRONT SEAT CROSS MEMBER RSBODY STRUCTURE23 - 183 WELD LOCATIONS (Continued)

Page 2295 of 2585

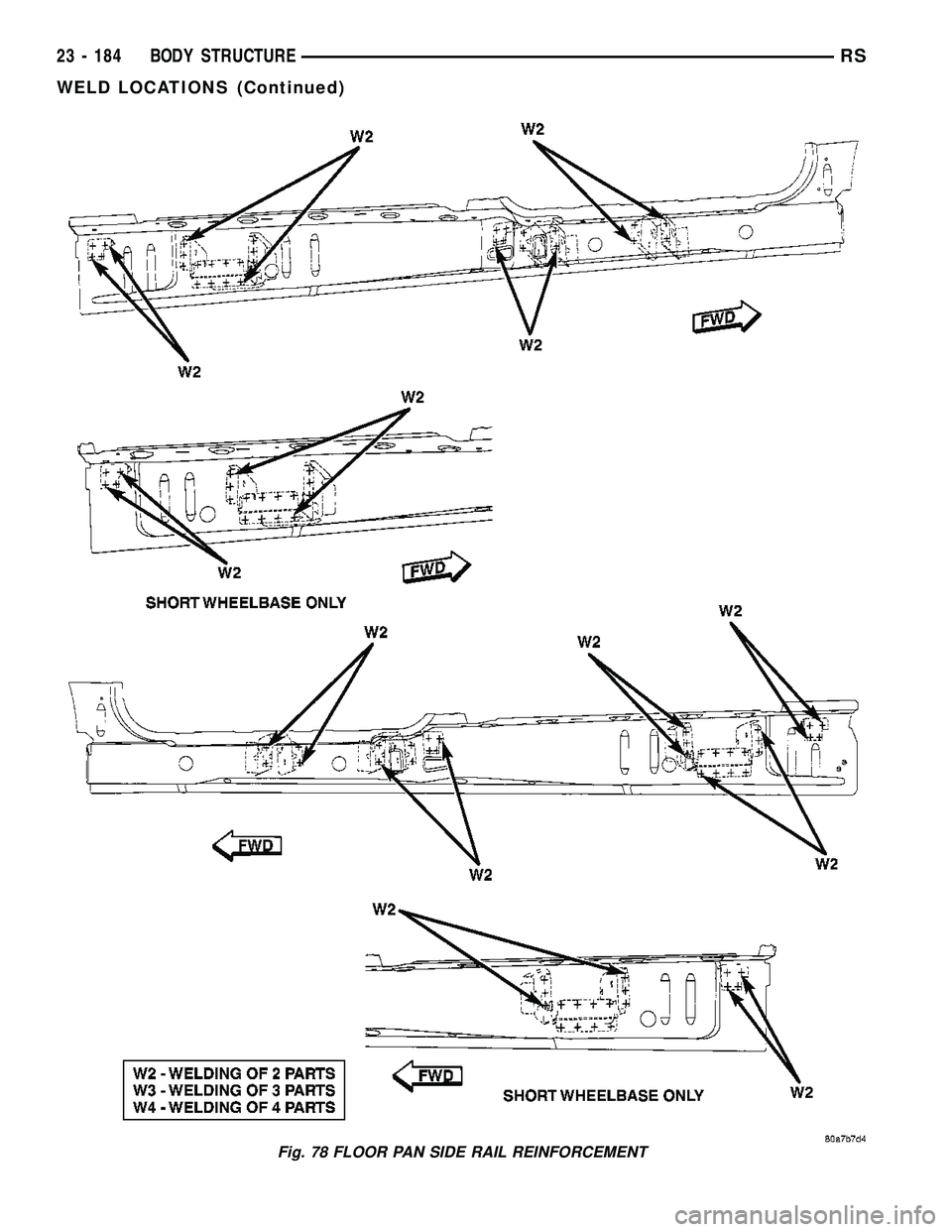

CHRYSLER VOYAGER 2004 Service Manual Fig. 78 FLOOR PAN SIDE RAIL REINFORCEMENT 23 - 184 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2296 of 2585

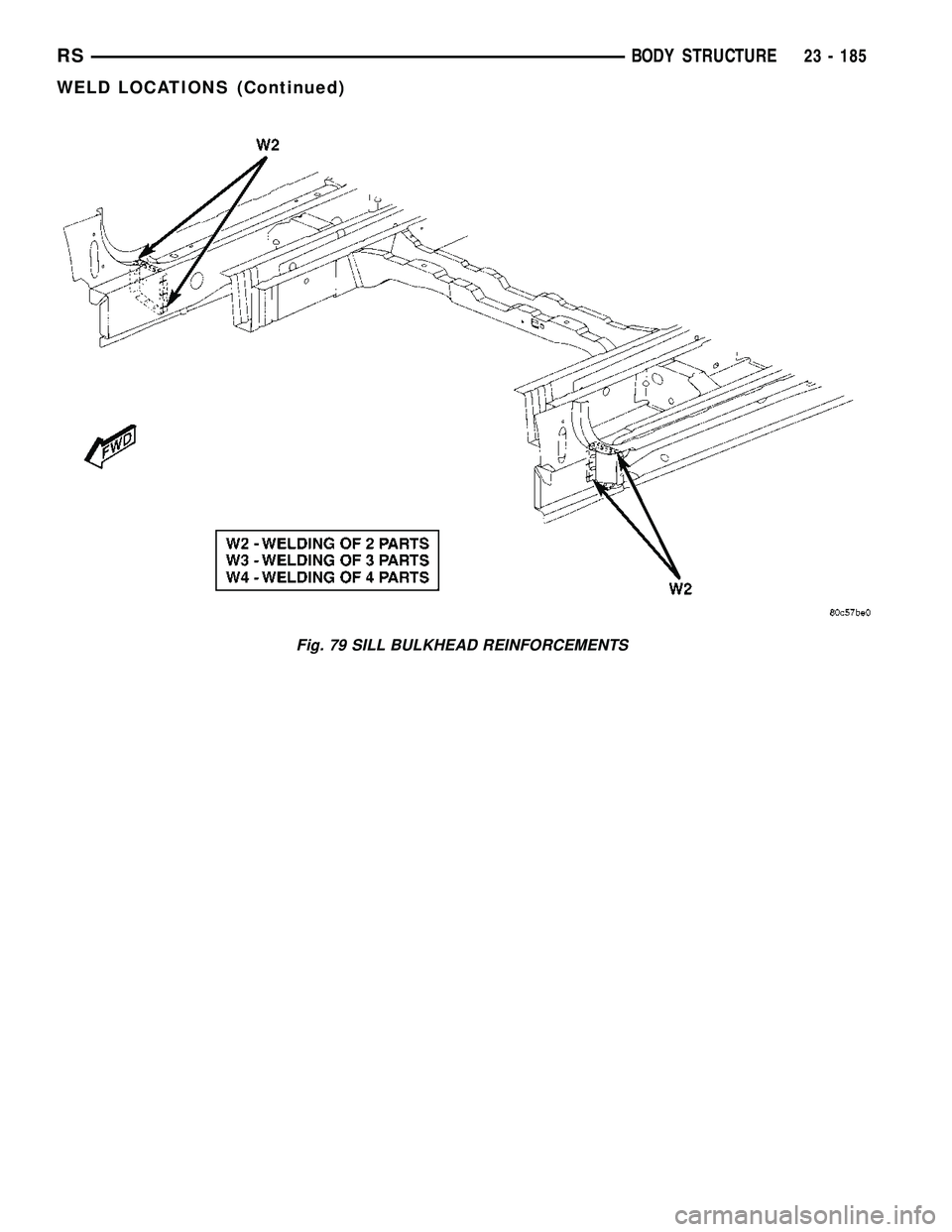

CHRYSLER VOYAGER 2004 Service Manual Fig. 79 SILL BULKHEAD REINFORCEMENTS RSBODY STRUCTURE23 - 185 WELD LOCATIONS (Continued)
