Page 1193 of 2585

CHRYSLER VOYAGER 2004 Service Manual LIFTGATE CINCH/RELEASE MOTOR (POWER LIFTGATE) - BLUE 7 WAY CAV CIRCUIT FUNCTION 1 Z78 20BK/OR GROUND 2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE 3 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE 4 Z245 18BK/GY GR

Page 1194 of 2585

CHRYSLER VOYAGER 2004 Service Manual MASS AIR FLOW SENSOR (DIESEL) - ORANGE 5 WAY CAV CIRCUIT FUNCTION 1- - 2 K342 16BR/WT ECM/PCM RELAY OUTPUT 3 K957 20BK/OR MASS AIR FLOW SENSOR GROUND 4 F855 20PK/YL SENSOR REFERENCE VOLTAGE A 5 K55 20

Page 1195 of 2585

CHRYSLER VOYAGER 2004 Service Manual MEMORY SEAT/MIRROR MODULE C2 - GRAY 16 WAY CAV CIRCUIT FUNCTION 1- - 2- - 3 P73 18TN/LB LEFT MIRROR COMMON DRIVER (RIGHT/DOWN) 4 P75 18DB LEFT MIRROR LEFT DRIVER 5 P71 18TN/GY LEFT MIRROR UP DRIVER 6

Page 1196 of 2585

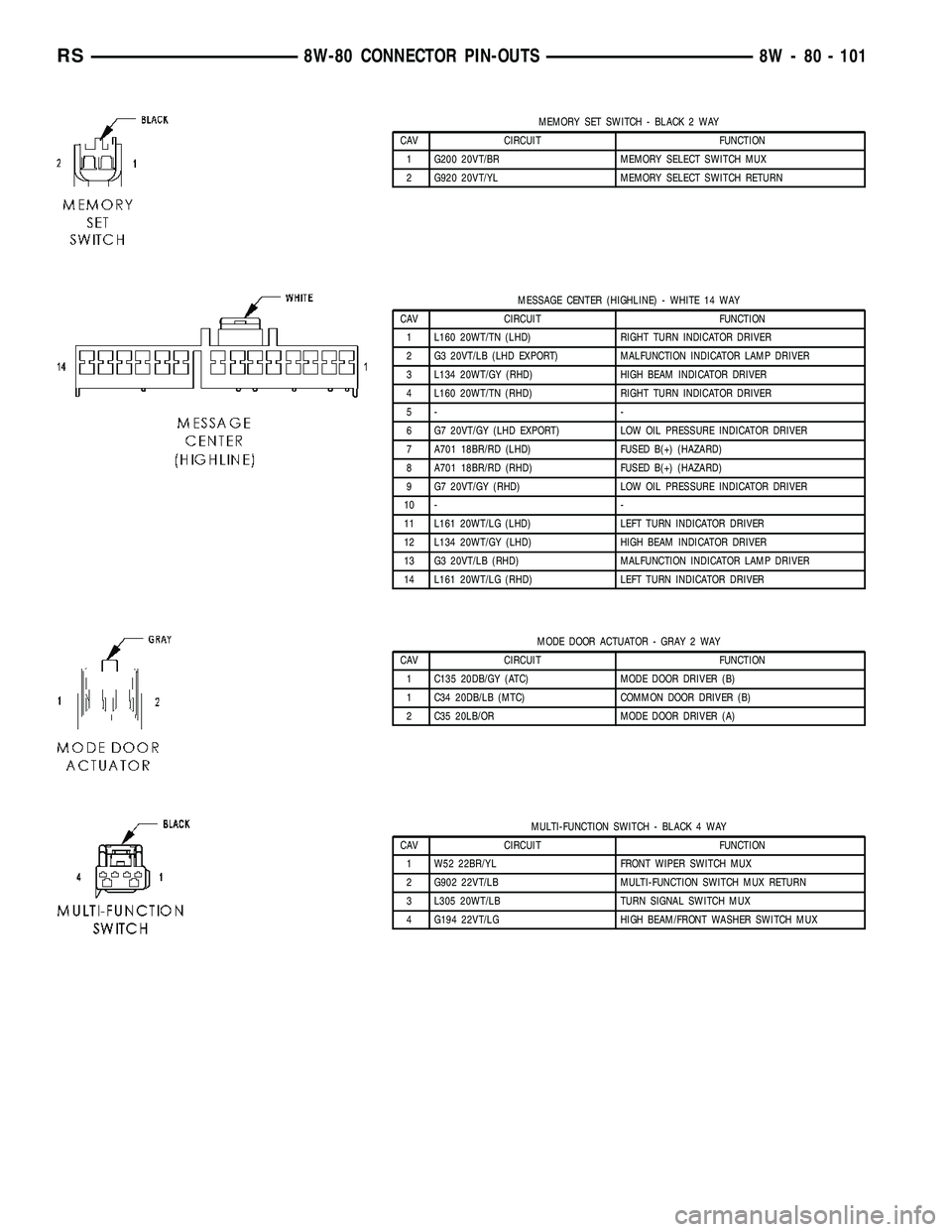

CHRYSLER VOYAGER 2004 Service Manual MEMORY SET SWITCH - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 G200 20VT/BR MEMORY SELECT SWITCH MUX 2 G920 20VT/YL MEMORY SELECT SWITCH RETURN MESSAGE CENTER (HIGHLINE) - WHITE 14 WAY CAV CIRCUIT FUNCTION 1

Page 1197 of 2585

CHRYSLER VOYAGER 2004 Service Manual NATURAL VACUUM LEAK DETECTION ASSEMBLY (EXCEPT EXPORT) - LT. GRAY 3 WAY CAV CIRCUIT FUNCTION 1 Z166 18BK/WT GROUND 2 K107 18VT/WT NVLD SWITCH SIGNAL 3 K106 18VT/LB NVLD SOL CONTROL OUTPUT SPEED SENSOR

Page 1198 of 2585

CHRYSLER VOYAGER 2004 Service Manual OXYGEN SENSOR 1/2 DOWNSTREAM (GAS)-4WAY CAV CIRCUIT FUNCTION 1 Z43 18BK/DB GROUND 2 K299 18BR/WT O2 1/2 HEATER CONTROL 3 K904 18DB/DG (2.4L) O2 RETURN (DOWN) 3 K904 18BR/DG (3.3L/3.8L) O2 RETURN (DOWN

Page 1199 of 2585

CHRYSLER VOYAGER 2004 Service Manual PASSENGER FOLDING MIRROR RELAY (EXPORT) - BLUE 9 WAY CAV CIRCUIT FUNCTION 1- - 2- - 3- - 4 A108 20LG/RD FUSED B(+) 5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT 6 P162 18LG/DG PASSENGER FOLDING

Page 1200 of 2585

CHRYSLER VOYAGER 2004 Service Manual PASSENGER HEATED SEAT MODULE C2 - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 S1 18WT SEAT BACK HEATER B(+) DRIVER 2 S2 18GY SEAT BACK HEATER GROUND PASSENGER HEATED SEAT MODULE C3 - GREEN 4 WAY CAV CIRCUIT FUN
