Page 65 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
335
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

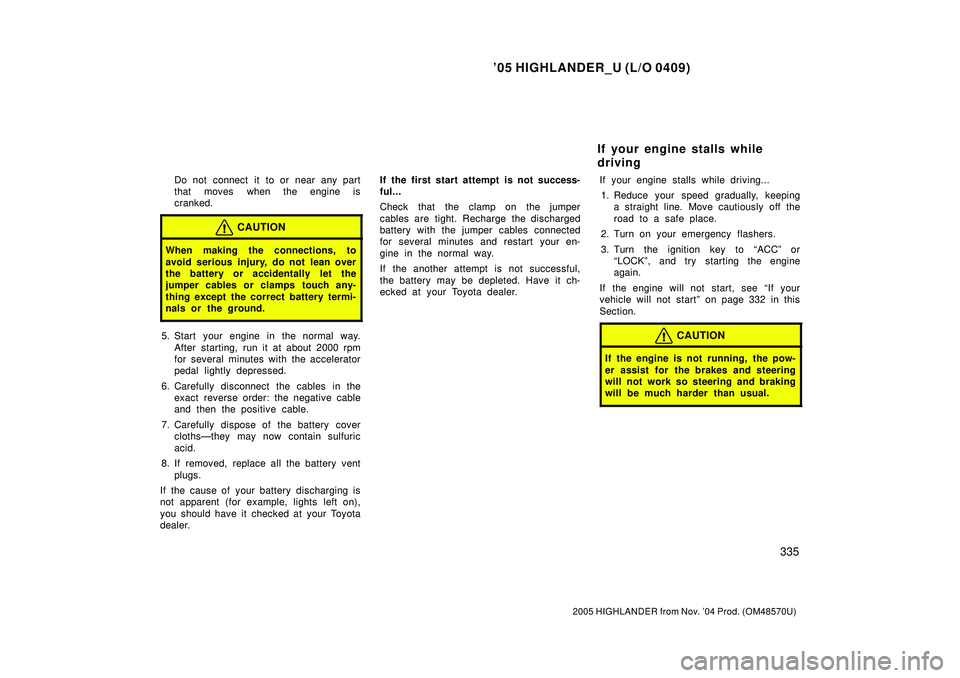

Do not connect it to or near any part
that moves when the engine is
cranked.
CAUTION
When making the connections, to
avoi

Page 66 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
336
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

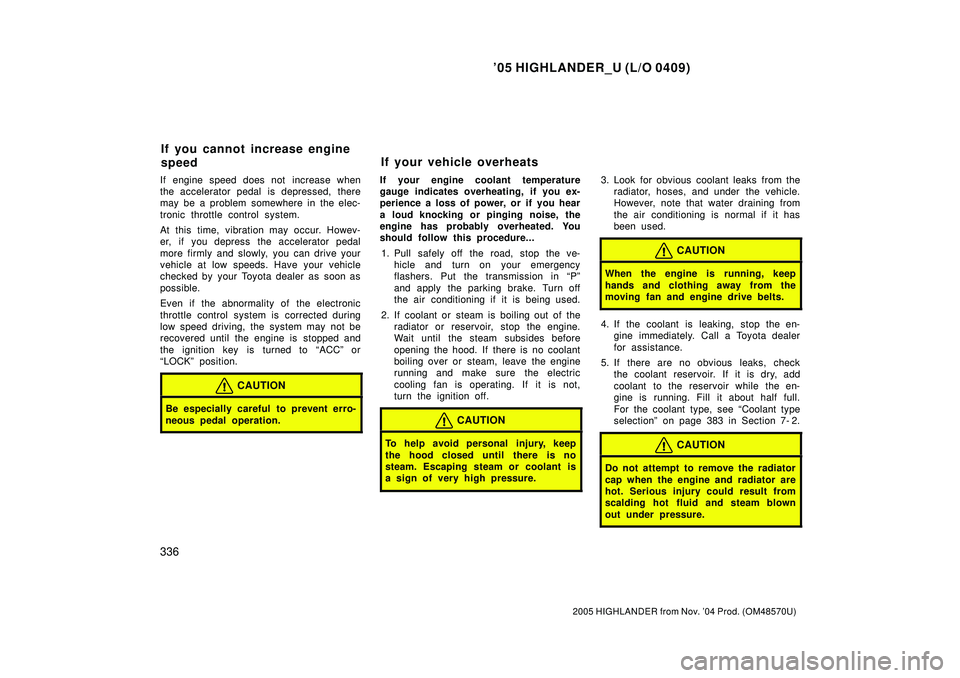

If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-

'05 HIGHLANDER_U (L/O 0409)
336
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to ACCº or
LOCKº position.
CAUTION
Be especially careful to prevent erro-
neous pedal operation.
If your engine coolant temperature
gauge indicates overheating, if you ex-
perience a loss of power, or if you hear
a loud knocking or pinging noise, the
engine has probably overheated. You
should follow this procedure...
1. Pull safely off the road, stop the ve-
hicle and turn on your emergency
flashers. Put the transmission in Pº
and apply the parking brake. Turn off
the air conditioning if it is being used.
2. If coolant or steam is boiling out of the
radiator or reservoir, stop the engine.
Wait until the steam subsides before
opening the hood. If there is no coolant
boiling over or steam, leave the engine
running and make sure the electric
cooling fan is operating. If it is not,
turn the ignition off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
3. Look for obvious coolant leaks from the
radiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the engine is running, keep
hands and clothing away from the
moving fan and engine drive belts.
4. If the coolant is leaking, stop the en-
gine immediately. Call a Toyota dealer
for assistance.
5. If there are no obvious leaks, check
the coolant reservoir. If it is dry, add
coolant to the reservoir while the en-
gine is running. Fill it about half full.
For the coolant type, see Coolant type
selectionº on page 383 in Section 7- 2.
CAUTION
Do not attempt to remove the radiator
cap when the engine and radiator are
hot. Serious injury could result from
scalding hot fluid and steam blown
out under pressure.
If you cannot increase engine
speedIf your vehicle overheats

Page 67 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
337
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

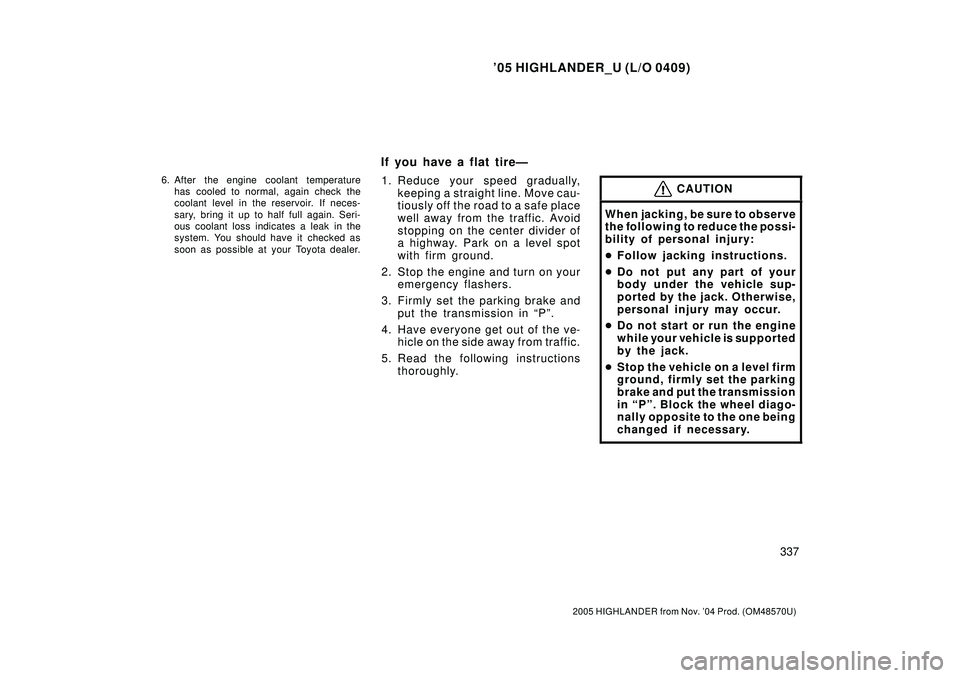

6. After the engine coolant temperature
has cooled to normal, again check the
coolant level in the reservoir. If neces-
s

Page 68 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
338
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

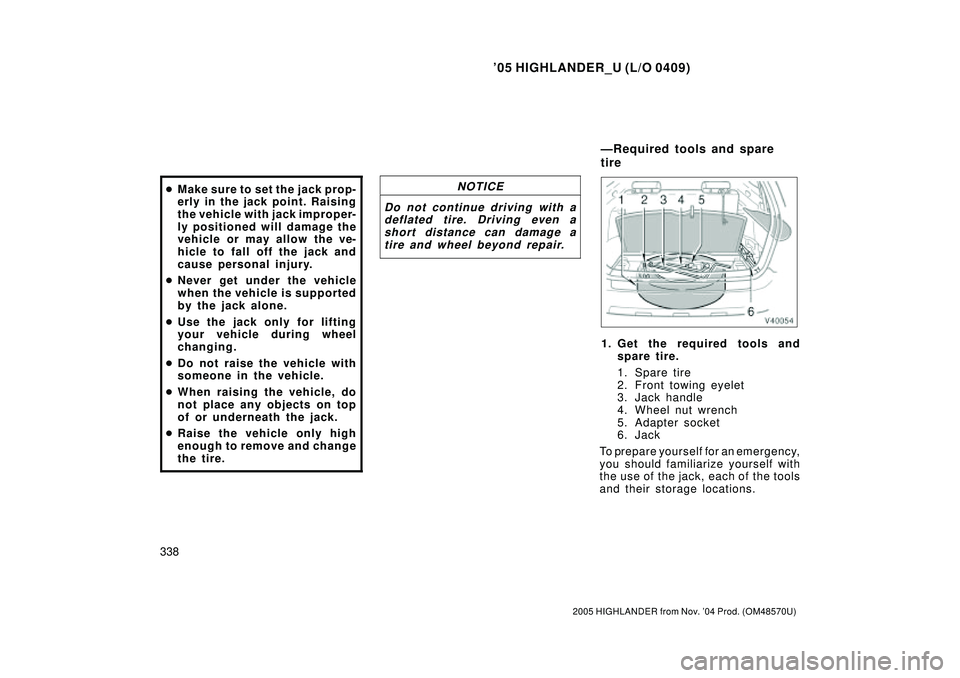

Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damag

Page 69 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
339
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

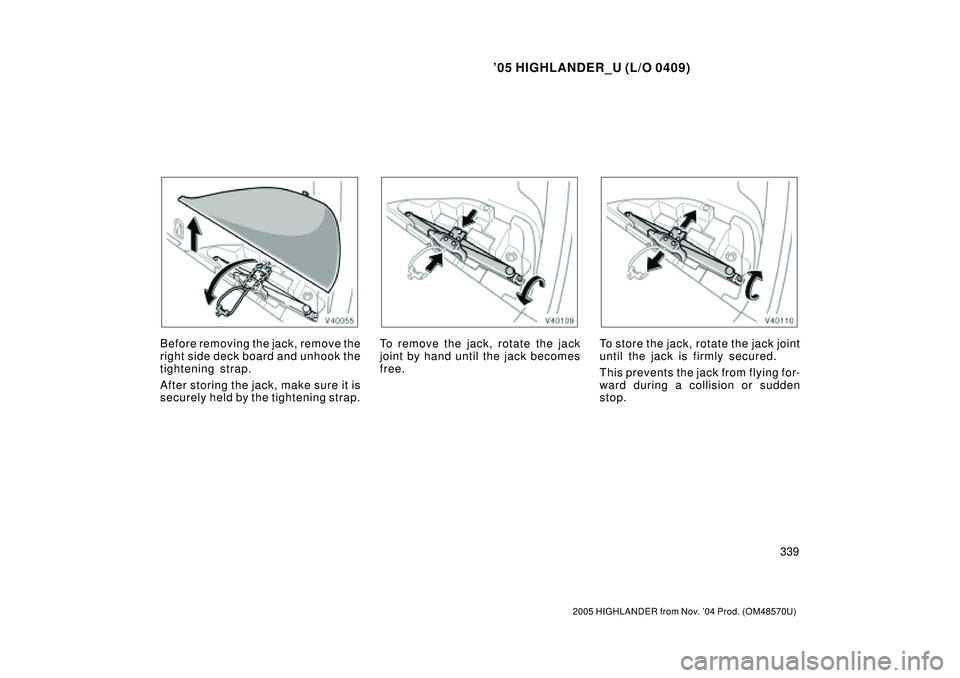

Before removing the jack, remove the
right side deck board and unhook the
tightening strap.
After storing the jack, make

Page 70 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
340
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)
To detach the spare tire:
1. Vehicles with aluminium wheelsÐ
Remove the inside spare tire cov-
er by turning it counterc

Page 71 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
341
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

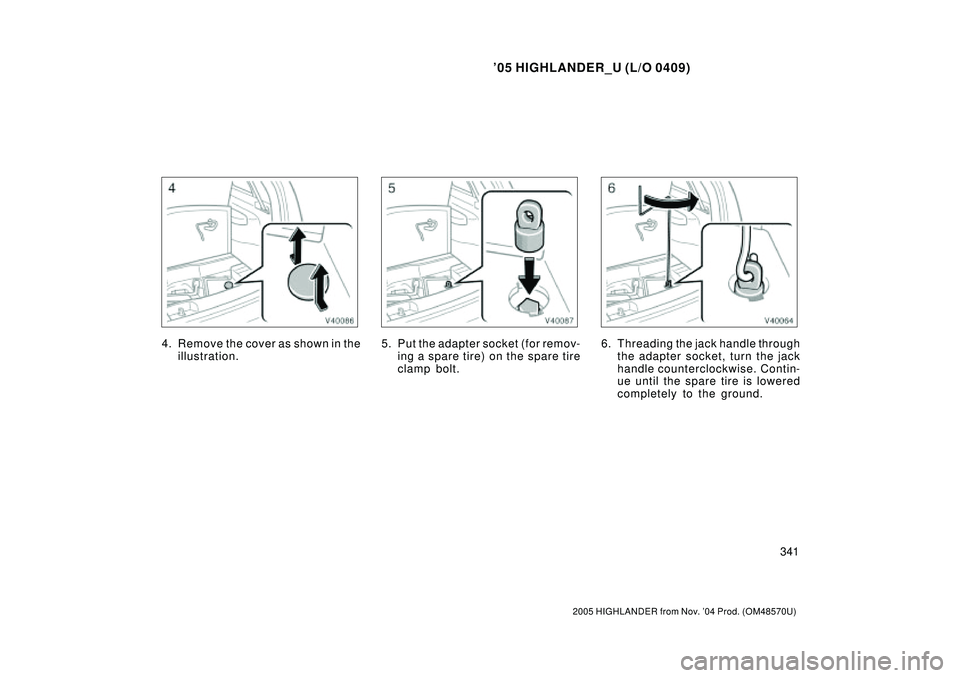

4. Remove the cover as shown in the
illustration.5. Put the adapter socket (for remov-
ing a spar e tir e) on the spar e

Page 72 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
342
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

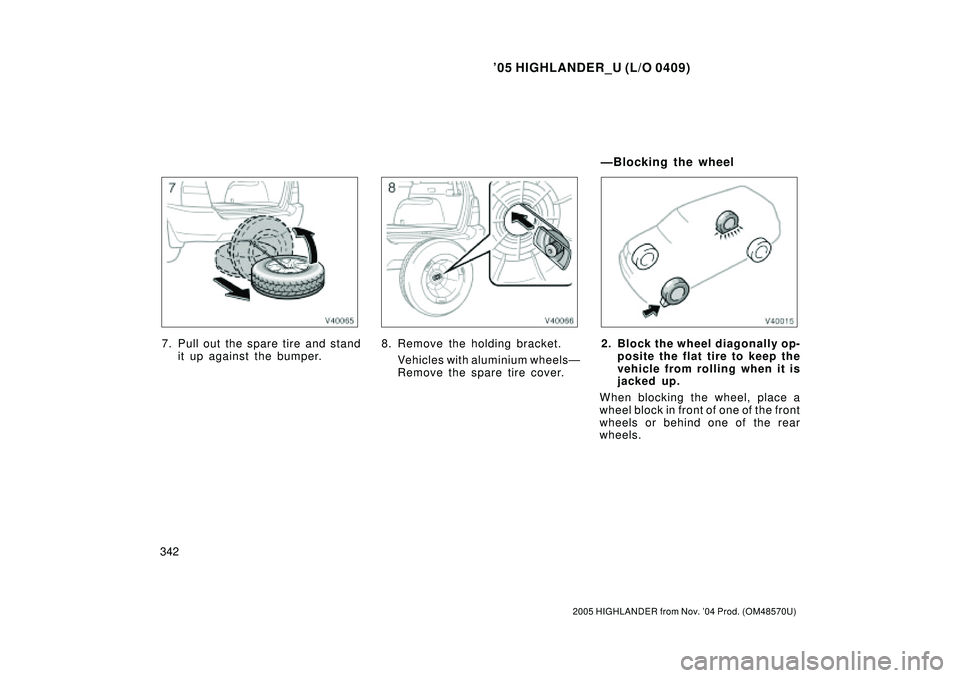

7. Pull out the spare tire and stand
it up against the bumper.8. Remove the holding bracket.
Vehicles with aluminium whee
