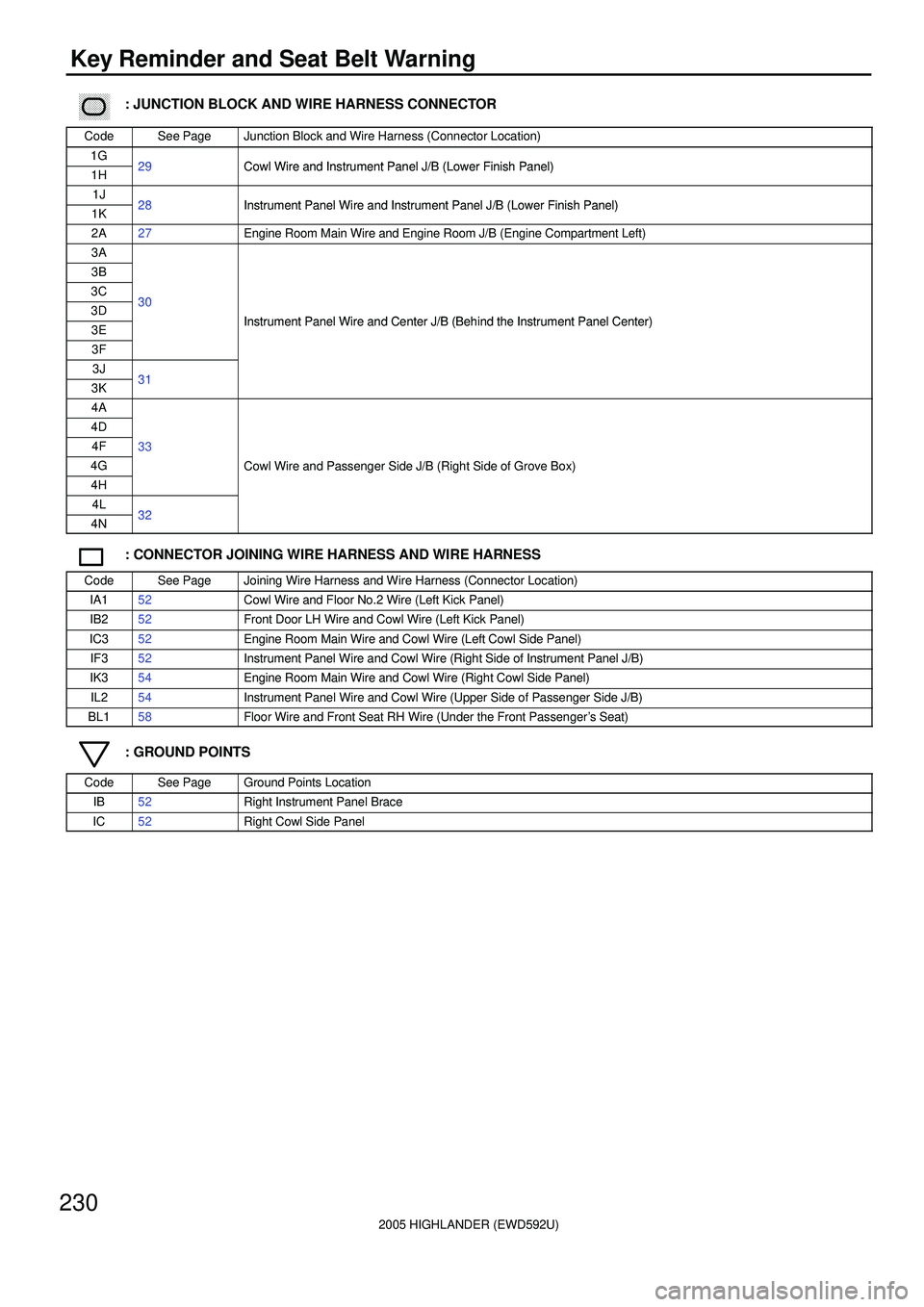

Page 545 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
230
Key Reminder and Seat Belt Warning
�� : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1G29Cowl Wire an

Page 546 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
231
MEMO

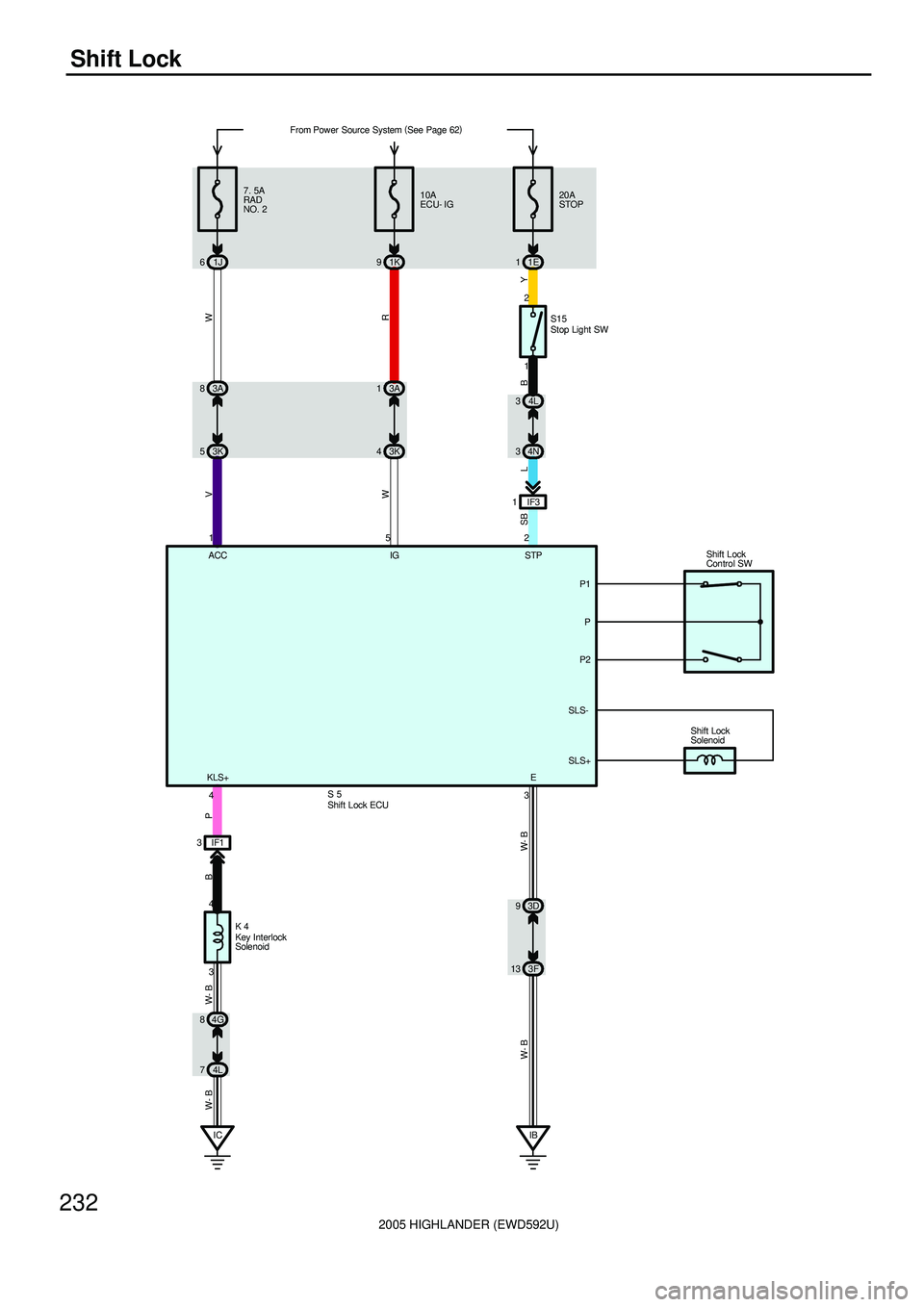

Page 547 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
232
Shift Lock
1J 61K91E1
3 4Shift Lock
Control SW
Shift Lock
Solenoid
3 42 5 1
P1
P
P2
SLS-
SLS+
IC7. 5A
RAD
NO. 210A
ECU- IG20A
STOP
ACC IG STP
KLS+E
P
W- B W- B W- BV
W
SB

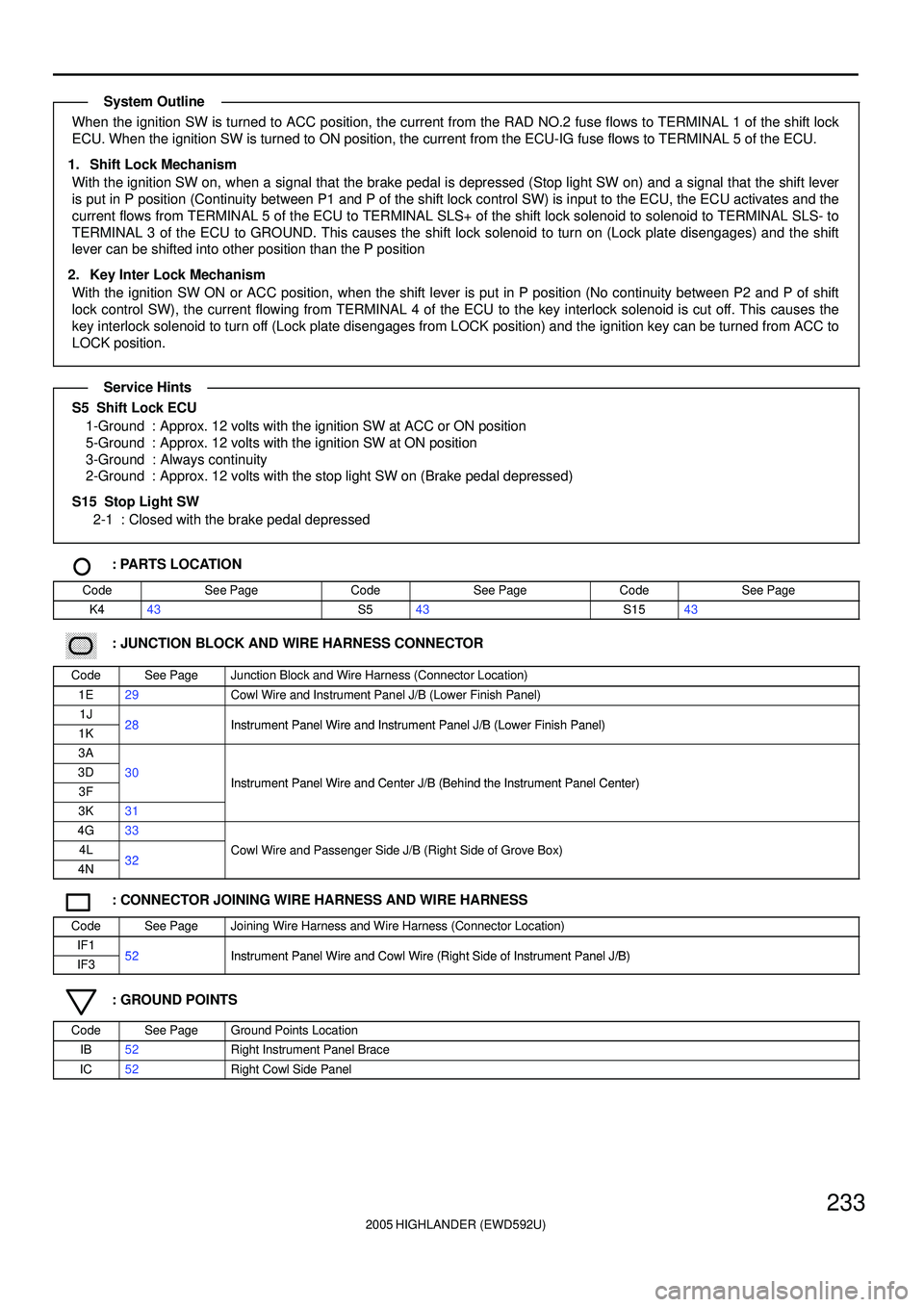

Page 548 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
233
When the ignition SW is turned to ACC position, the current from the RAD NO.2 fuse flows to TERMINAL 1 of the shift lock
ECU. When the ignition SW is turned to ON positio

2005 HIGHLANDER (EWD592U)
233
When the ignition SW is turned to ACC position, the current from the RAD NO.2 fuse flows to TERMINAL 1 of the shift lock
ECU. When the ignition SW is turned to ON position, the current from the ECU-IG fuse flows to TERMINAL 5 of the ECU.
1. Shift Lock Mechanism
With the ignition SW on, when a signal that the brake pedal is depressed (Stop light SW on) and a signal that the shift lever
is put in P position (Continuity between P1 and P of the shift lock control SW) is input to the ECU, the ECU activates and the
current flows from TERMINAL 5 of the ECU to TERMINAL SLS+ of the shift lock solenoid to solenoid to TERMINAL SLS- to
TERMINAL 3 of the ECU to GROUND. This causes the shift lock solenoid to turn on (Lock plate disengages) and the shift
lever can be shifted into other position than the P position
2. Key Inter Lock Mechanism
With the ignition SW ON or ACC position, when the shift lever is put in P position (No continuity between P2 and P of shift
lock control SW), the current flowing from TERMINAL 4 of the ECU to the key interlock solenoid is cut off. This causes the
key interlock solenoid to turn off (Lock plate disengages from LOCK position) and the ignition key can be turned from ACC to
LOCK position.
S5 Shift Lock ECU
1-Ground : Approx. 12 volts with the ignition SW at ACC or ON position
5-Ground : Approx. 12 volts with the ignition SW at ON position
3-Ground : Always continuity
2-Ground : Approx. 12 volts with the stop light SW on (Brake pedal depressed)
S15 Stop Light SW
2-1 : Closed with the brake pedal depressed
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
K443S543S1543
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1E29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1J28Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)1K28Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)
3A
3D30Instrument Panel Wire and Center J/B (Behind the Instrument Panel Center)3FInstrument Panel Wire and Center J/B (Behind the Instrument Panel Center)
3K31
4G33
4L32Cowl Wire and Passenger Side J/B (Right Side of Grove Box)
4N32g(g )
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
IF152Instrument Panel Wire and Cowl Wire (Right Side of Instrument Panel J/B)IF352Instrument Panel Wire and Cowl Wire (Right Side of Instrument Panel J/B)
: GROUND POINTS
CodeSee PageGround Points Location
IB52Right Instrument Panel Brace
IC52Right Cowl Side Panel
System Outline
Service Hints

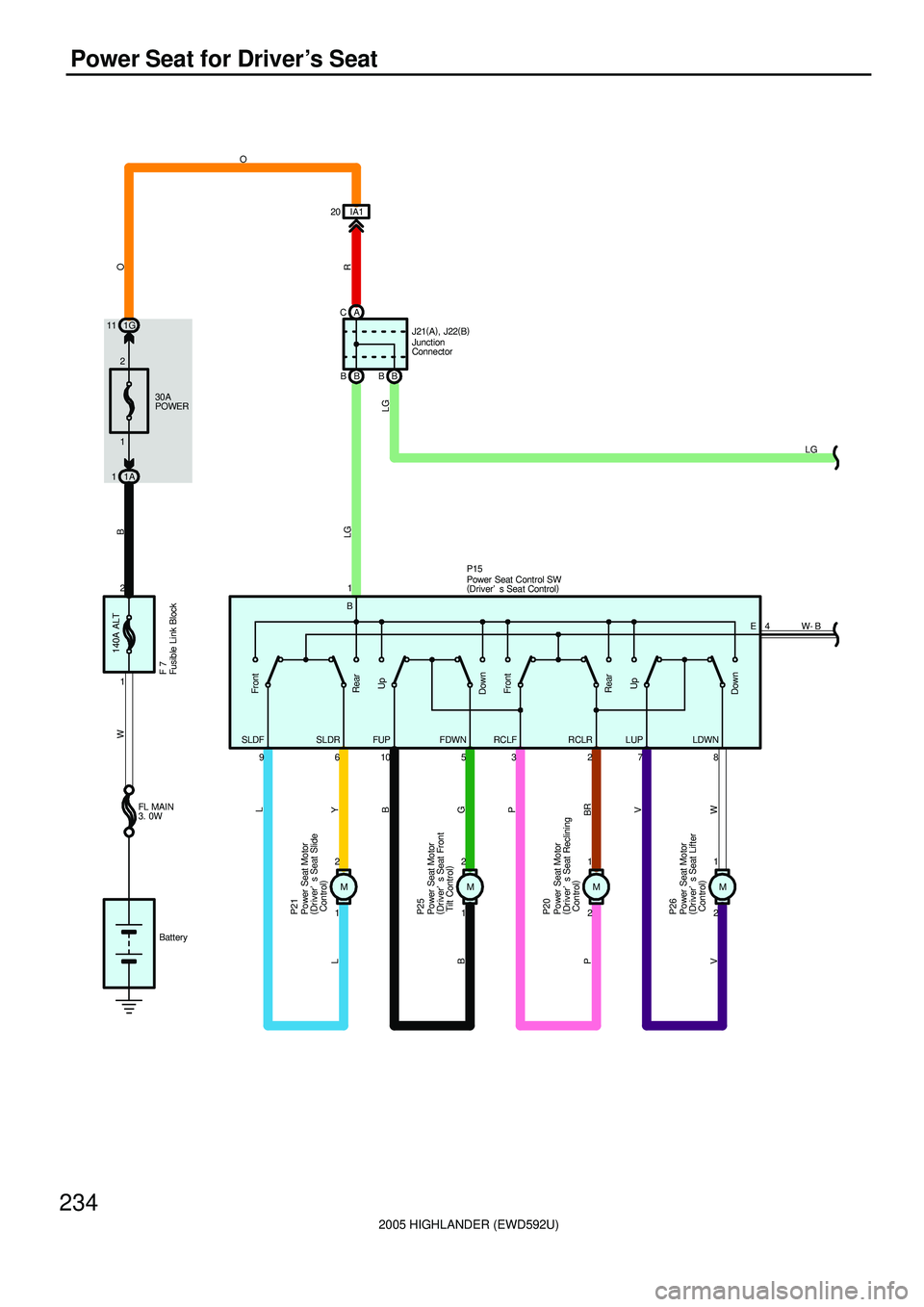

Page 549 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
234
Power Seat for Drivers Seat
1G 11
30A
POWER
1A 11 2
140A ALT
2
1
F 7B WO
IA1 20
R LG Front
Rear
Up
96105
Down
Front
32
Rear
Up
78
Down
1
4
1 2
Y LL
P21
1 2
G BB
P25
2 1

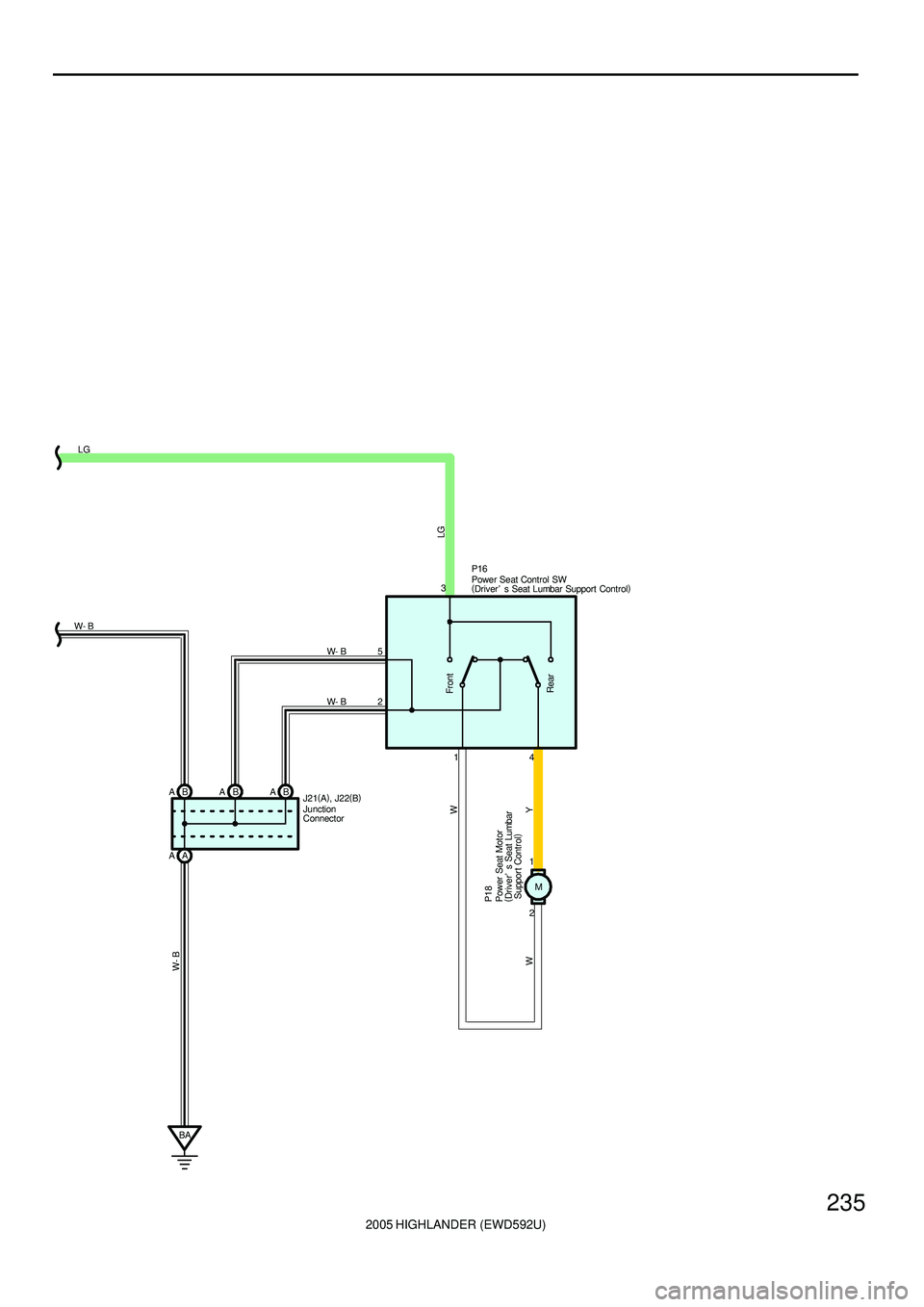

Page 550 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
235
Rear Front
14 23
LG W- B
BA2 1
Y WW
P18
P16
W- BLG
W- B
A AB ABA B A5 W- B
M J21(
A)
, J22(
B)
Junction
ConnectorPower Seat Control SW
(
Driver s Seat Lumbar Support Co

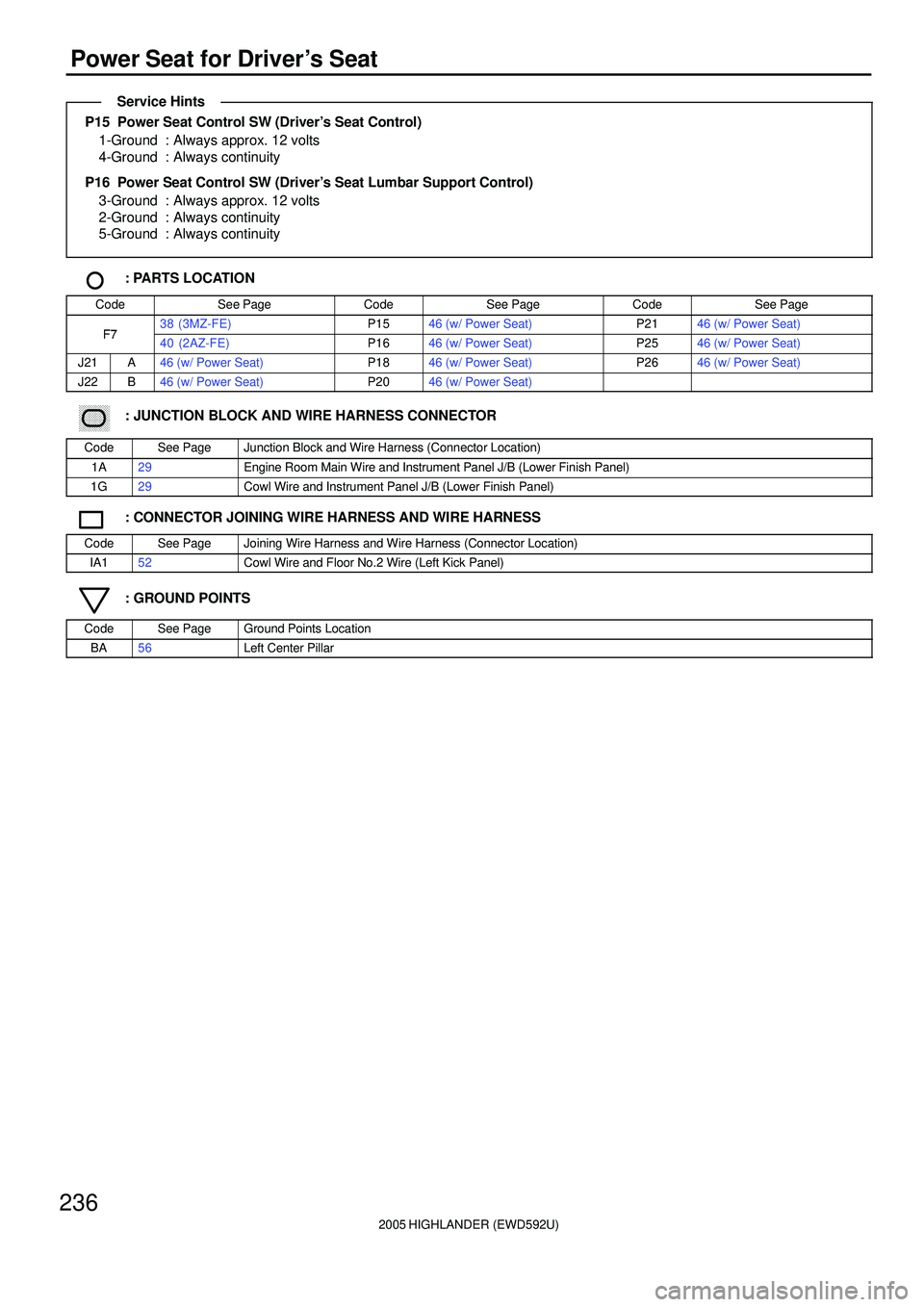

Page 551 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
236
Power Seat for Drivers Seat
P15 Power Seat Control SW (Drivers Seat Control)
1-Ground : Always approx. 12 volts
4-Ground : Always continuity
P16 Power Seat Control SW

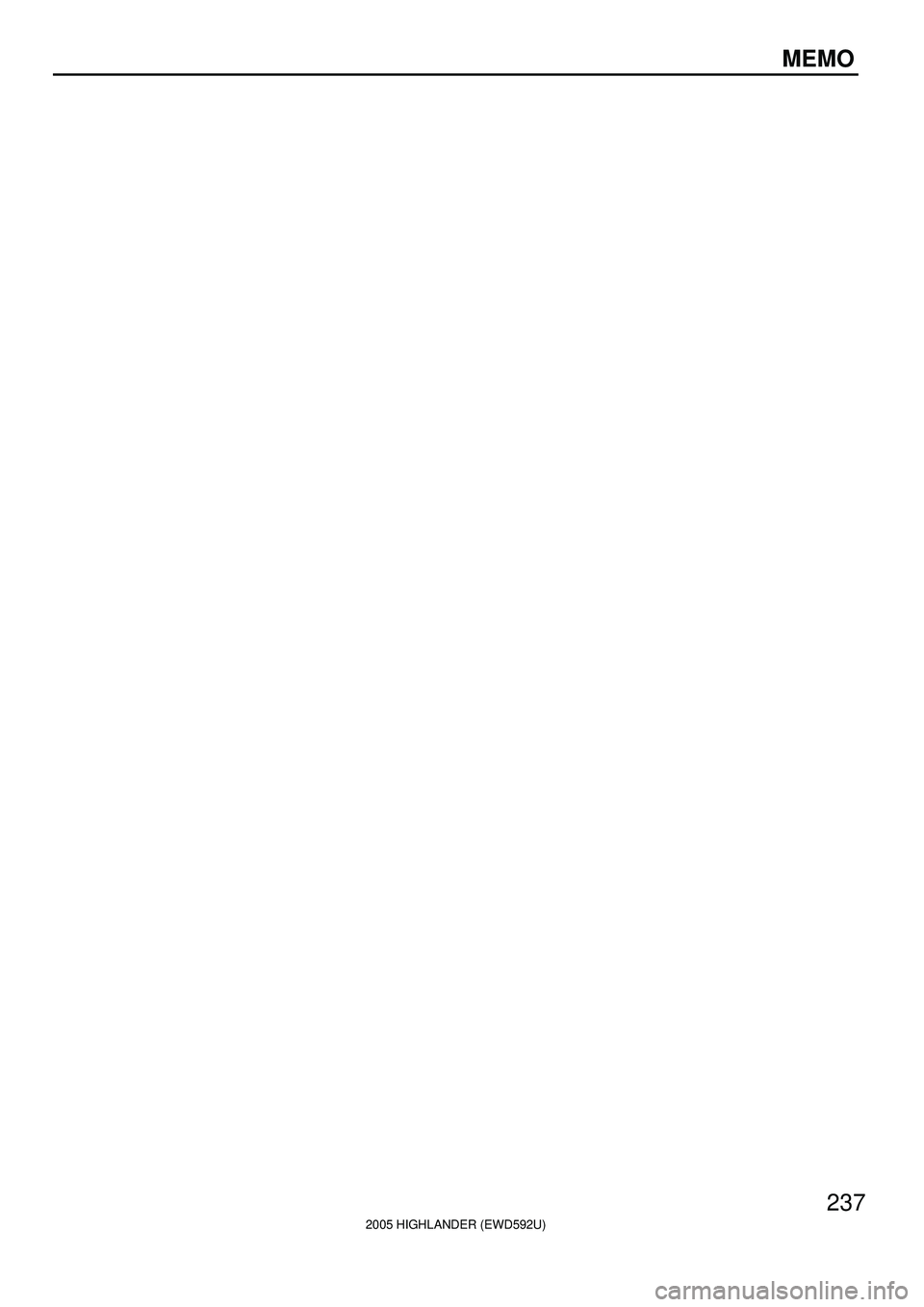

Page 552 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
237
MEMO
