Page 529 of 2572

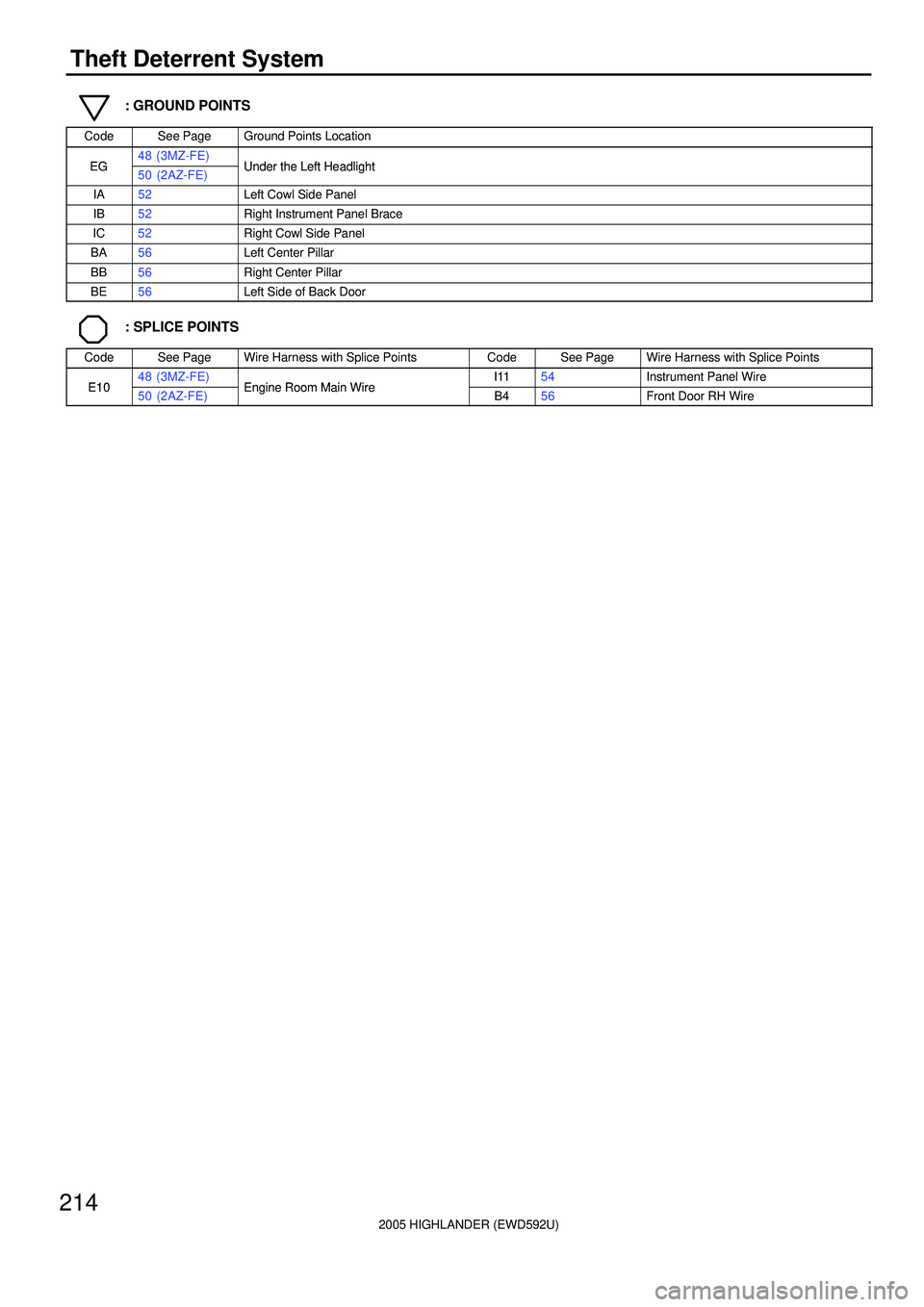

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
214
Theft Deterrent System
: GROUND POINTS
CodeSee PageGround Points Location
EG48 (3MZ-FE)Under the Left HeadlightEG50 (2AZ-FE)Under the Left Headlight
IA52Left Cowl Side Pa

Page 530 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
215
MEMO

Page 531 of 2572

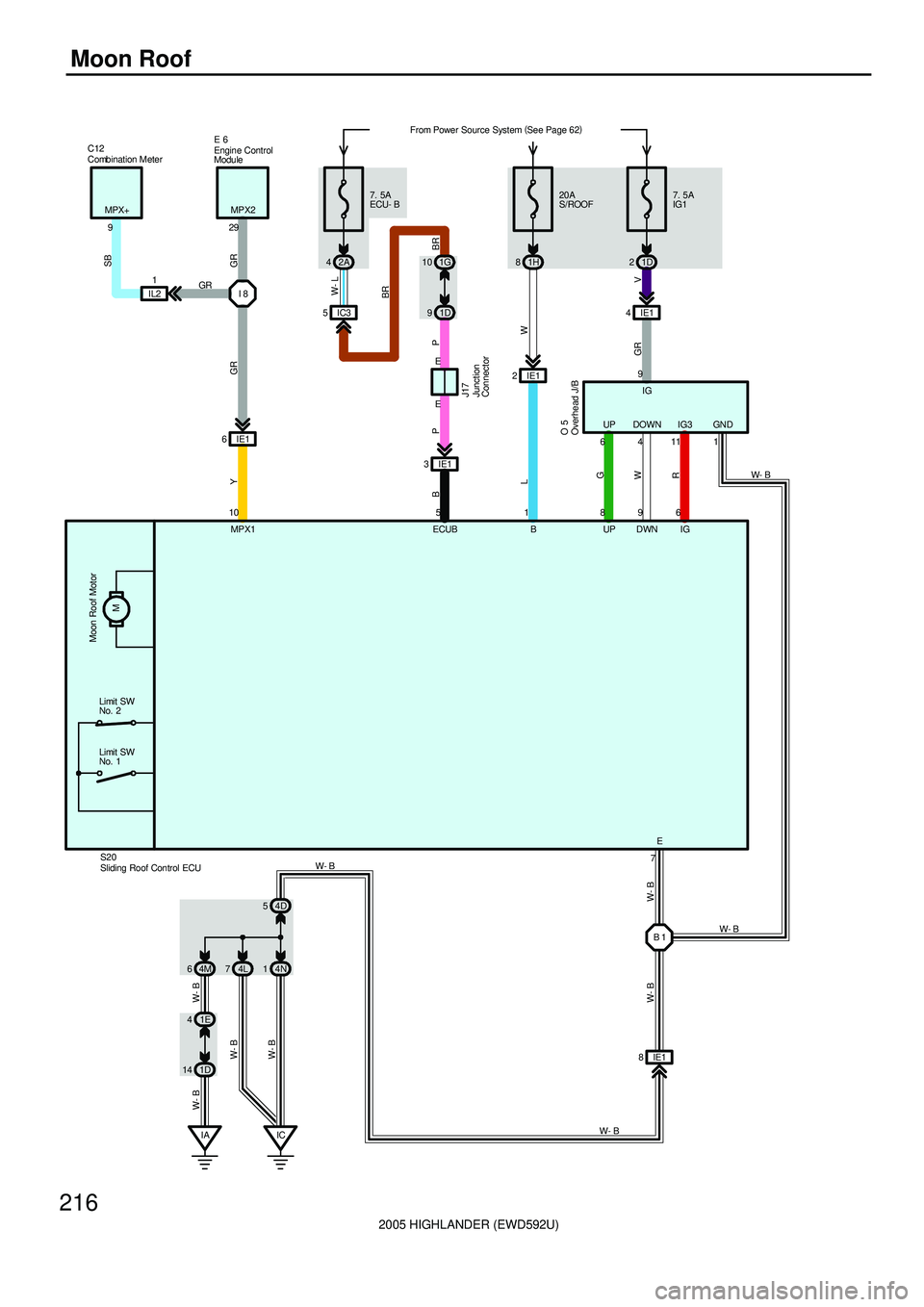

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
216
Moon Roof
20A
S/ROOF
1H 8
IC2IE1
W- B
W L
W- B
S20
7 1 5
1E 4
1D 14
M Moon Roof Motor
Limit SW
No. 2
Limit SW
No. 1
IA
W- B
4D 5
4N 1 4M 6
W- B
W- B
W- B
ECUB B
E 7. 5A
E

Page 532 of 2572

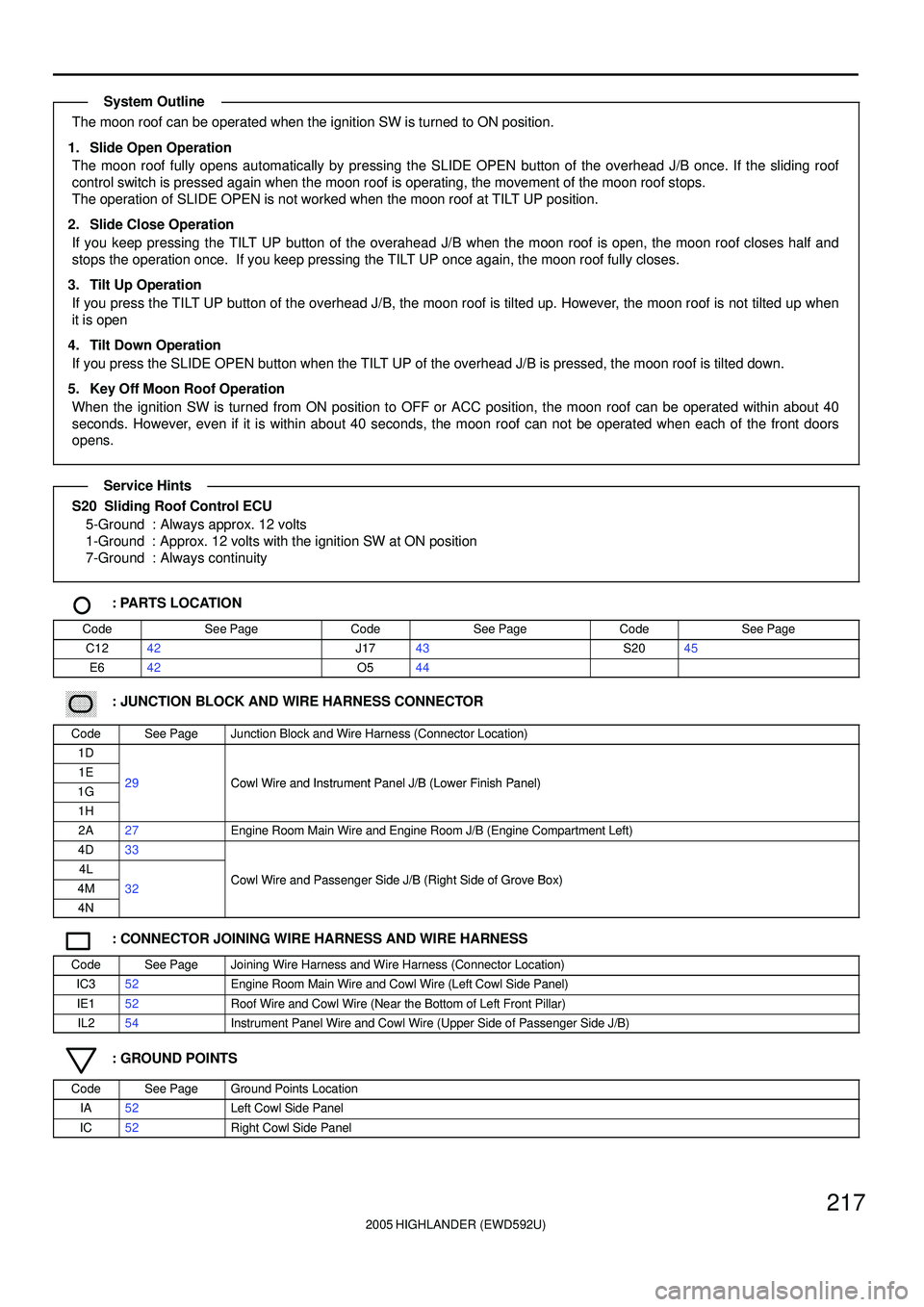

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
217
The moon roof can be operated when the ignition SW is turned to ON position.
1. Slide Open Operation
The moon roof fully opens automatically by pressing the SLIDE OPEN bu

2005 HIGHLANDER (EWD592U)
217
The moon roof can be operated when the ignition SW is turned to ON position.
1. Slide Open Operation
The moon roof fully opens automatically by pressing the SLIDE OPEN button of the overhead J/B once. If the sliding roof
control switch is pressed again when the moon roof is operating, the movement of the moon roof stops.
The operation of SLIDE OPEN is not worked when the moon roof at TILT UP position.
2. Slide Close Operation
If you keep pressing the TILT UP button of the overahead J/B when the moon roof is open, the moon roof closes half and
stops the operation once. If you keep pressing the TILT UP once again, the moon roof fully closes.
3. Tilt Up Operation
If you press the TILT UP button of the overhead J/B, the moon roof is tilted up. However, the moon roof is not tilted up when
it is open
4. Tilt Down Operation
If you press the SLIDE OPEN button when the TILT UP of the overhead J/B is pressed, the moon roof is tilted down.
5. Key Off Moon Roof Operation
When the ignition SW is turned from ON position to OFF or ACC position, the moon roof can be operated within about 40
seconds. However, even if it is within about 40 seconds, the moon roof can not be operated when each of the front doors
opens.
S20 Sliding Roof Control ECU
5-Ground : Always approx. 12 volts
1-Ground : Approx. 12 volts with the ignition SW at ON position
7-Ground : Always continuity
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
C1242J1743S2045
E642O544
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1D
1E29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)1G29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1H
2A27Engine Room Main Wire and Engine Room J/B (Engine Compartment Left)
4D33
4LCowl Wire and Passenger Side J/B (Right Side of Grove Box)4M32Cowl Wire and Passenger Side J/B (Right Side of Grove Box)
4N
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
IC352Engine Room Main Wire and Cowl Wire (Left Cowl Side Panel)
IE152Roof Wire and Cowl Wire (Near the Bottom of Left Front Pillar)
IL254Instrument Panel Wire and Cowl Wire (Upper Side of Passenger Side J/B)
: GROUND POINTS
CodeSee PageGround Points Location
IA52Left Cowl Side Panel
IC52Right Cowl Side Panel
System Outline
Service Hints

Page 533 of 2572

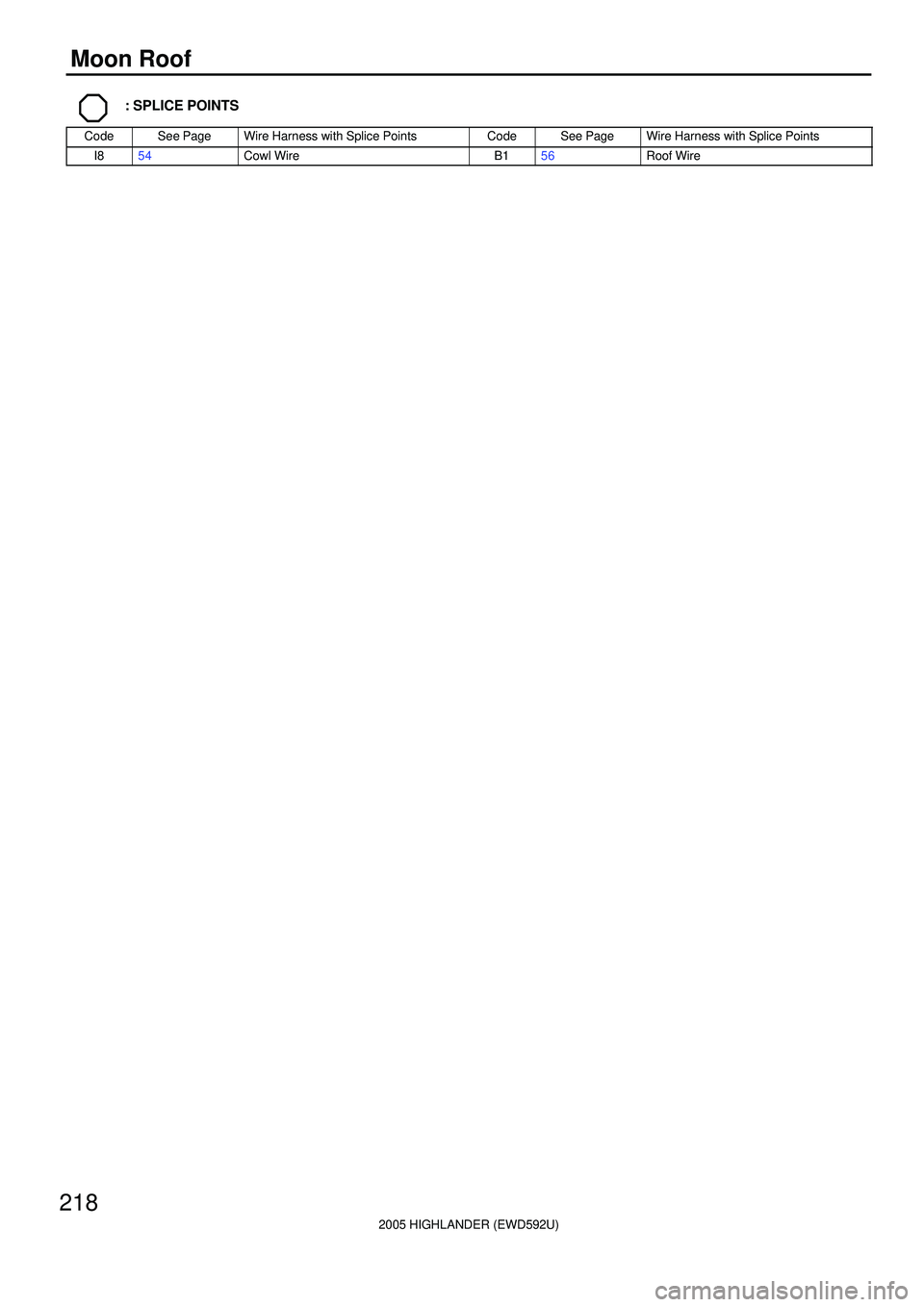

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
218
Moon Roof
: SPLICE POINTS
CodeSee PageWire Harness with Splice PointsCodeSee PageWire Harness with Splice Points
I854Cowl WireB156Roof Wire

Page 534 of 2572

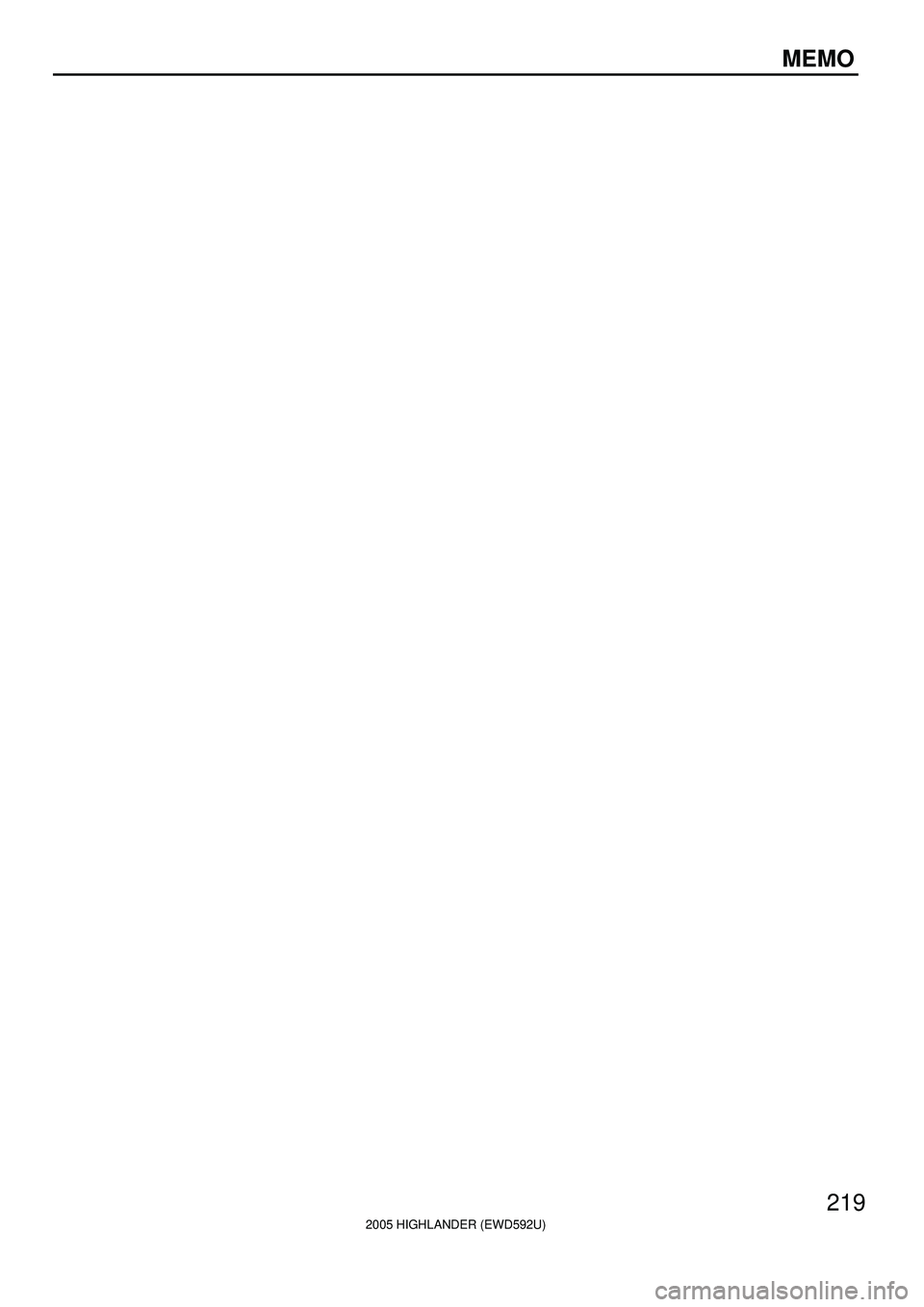

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
219
MEMO

Page 535 of 2572

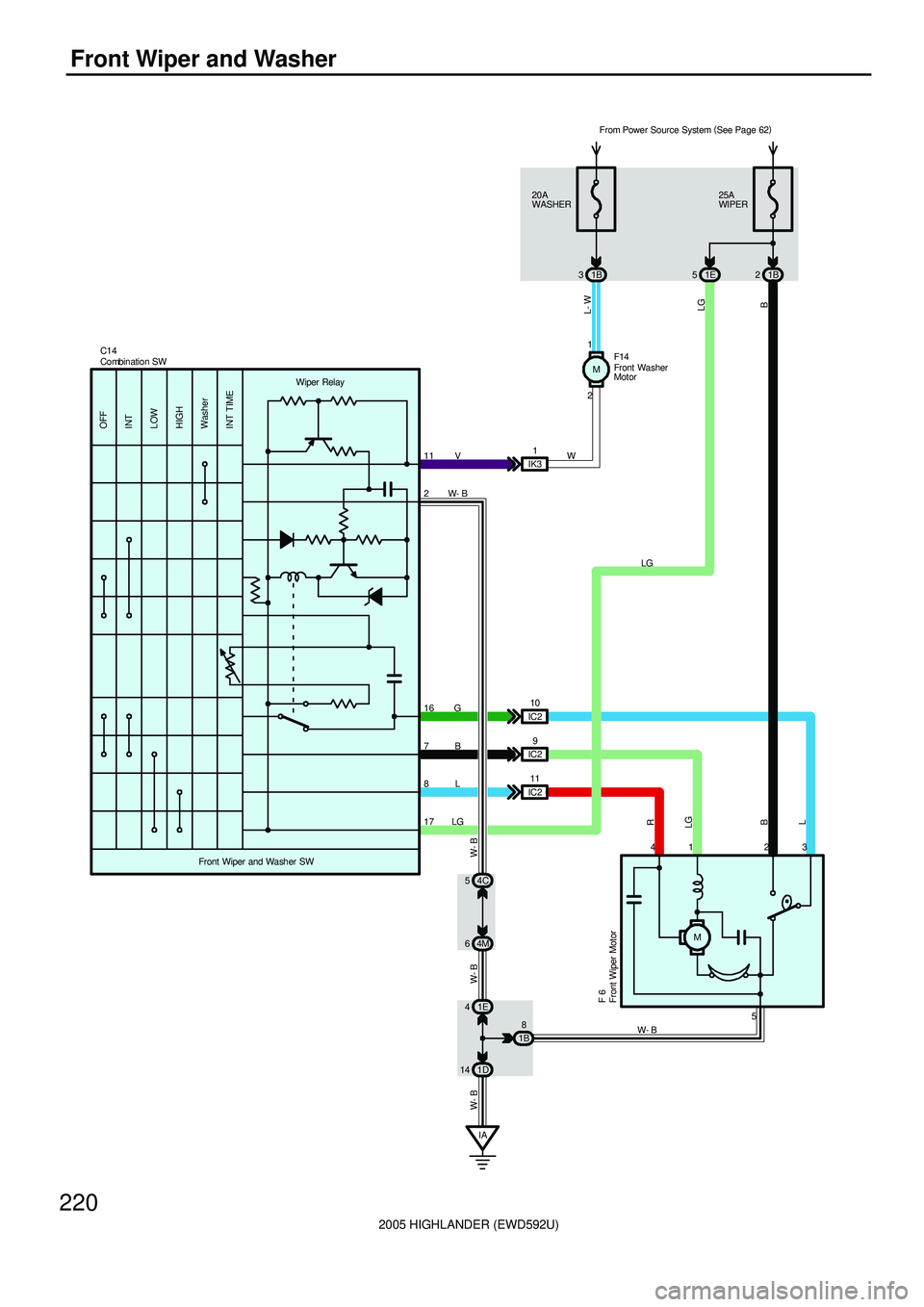

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
220
Front Wiper and Washer
C14
Wiper Relay
INT TIME Washer HIGH LOW
INT
OFF
3 2 1 4
5 M25A
WIPER
1B 2 20A
WASHER
1B 31E5
2 1
IK31
IA 11
16
7
8
17 2V
W- B
G
B
L
LGW
L- W
LG
B

Page 536 of 2572

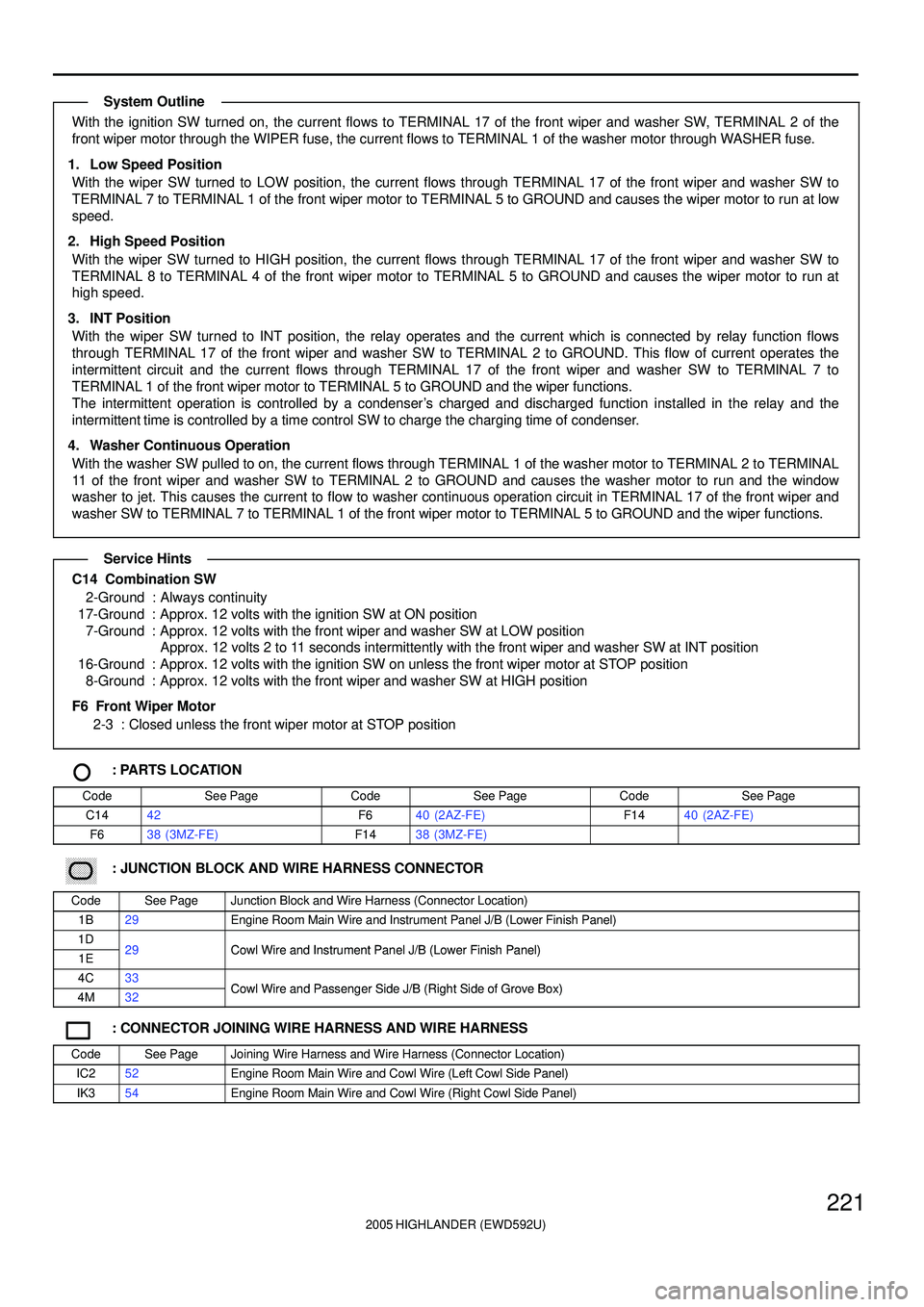

TOYOTA HIGHLANDER 2001 Service Repair Manual 2005 HIGHLANDER (EWD592U)
221
With the ignition SW turned on, the current flows to TERMINAL 17 of the front wiper and washer SW, TERMINAL 2 of the
front wiper motor through the WIPER fuse, the current

2005 HIGHLANDER (EWD592U)
221
With the ignition SW turned on, the current flows to TERMINAL 17 of the front wiper and washer SW, TERMINAL 2 of the
front wiper motor through the WIPER fuse, the current flows to TERMINAL 1 of the washer motor through WASHER fuse.
1. Low Speed Position
With the wiper SW turned to LOW position, the current flows through TERMINAL 17 of the front wiper and washer SW to
TERMINAL 7 to TERMINAL 1 of the front wiper motor to TERMINAL 5 to GROUND and causes the wiper motor to run at low
speed.
2. High Speed Position
With the wiper SW turned to HIGH position, the current flows through TERMINAL 17 of the front wiper and washer SW to
TERMINAL 8 to TERMINAL 4 of the front wiper motor to TERMINAL 5 to GROUND and causes the wiper motor to run at
high speed.
3. INT Position
With the wiper SW turned to INT position, the relay operates and the current which is connected by relay function flows
through TERMINAL 17 of the front wiper and washer SW to TERMINAL 2 to GROUND. This flow of current operates the
intermittent circuit and the current flows through TERMINAL 17 of the front wiper and washer SW to TERMINAL 7 to
TERMINAL 1 of the front wiper motor to TERMINAL 5 to GROUND and the wiper functions.
The intermittent operation is controlled by a condenser's charged and discharged function installed in the relay and the
intermittent time is controlled by a time control SW to charge the charging time of condenser.
4. Washer Continuous Operation
With the washer SW pulled to on, the current flows through TERMINAL 1 of the washer motor to TERMINAL 2 to TERMINAL
11 of the front wiper and washer SW to TERMINAL 2 to GROUND and causes the washer motor to run and the window
washer to jet. This causes the current to flow to washer continuous operation circuit in TERMINAL 17 of the front wiper and
washer SW to TERMINAL 7 to TERMINAL 1 of the front wiper motor to TERMINAL 5 to GROUND and the wiper functions.
C14 Combination SW
2-Ground : Always continuity
17-Ground : Approx. 12 volts with the ignition SW at ON position
7-Ground : Approx. 12 volts with the front wiper and washer SW at LOW position
Approx. 12 volts 2 to 11 seconds intermittently with the front wiper and washer SW at INT position
16-Ground : Approx. 12 volts with the ignition SW on unless the front wiper motor at STOP position
8-Ground : Approx. 12 volts with the front wiper and washer SW at HIGH position
F6 Front Wiper Motor
2-3 : Closed unless the front wiper motor at STOP position
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
C1442F640 (2AZ-FE)F1440 (2AZ-FE)
F638 (3MZ-FE)F1438 (3MZ-FE)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1B29Engine Room Main Wire and Instrument Panel J/B (Lower Finish Panel)
1D29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)1E29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
4C33Cowl Wire and Passenger Side J/B (Right Side of Grove Box)4M32Cowl Wire and Passenger Side J/B (Right Side of Grove Box)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
IC252Engine Room Main Wire and Cowl Wire (Left Cowl Side Panel)
IK354Engine Room Main Wire and Cowl Wire (Right Cowl Side Panel)
System Outline
Service Hints
