Skid Control ECU with Actuator
ABS MTR Relay
ABS CUT Relay
FL MAIN
BatteryS27
S27
S27
S27
ABS2 F7
FL Block ABS R/BR+
MR
BM
MRF 12
3 5
91415 45
5
55
55
555
1
2 35
12
B
W B-OLG
W-L
B-R
G-RB-O
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-835
1025 Author: Date:

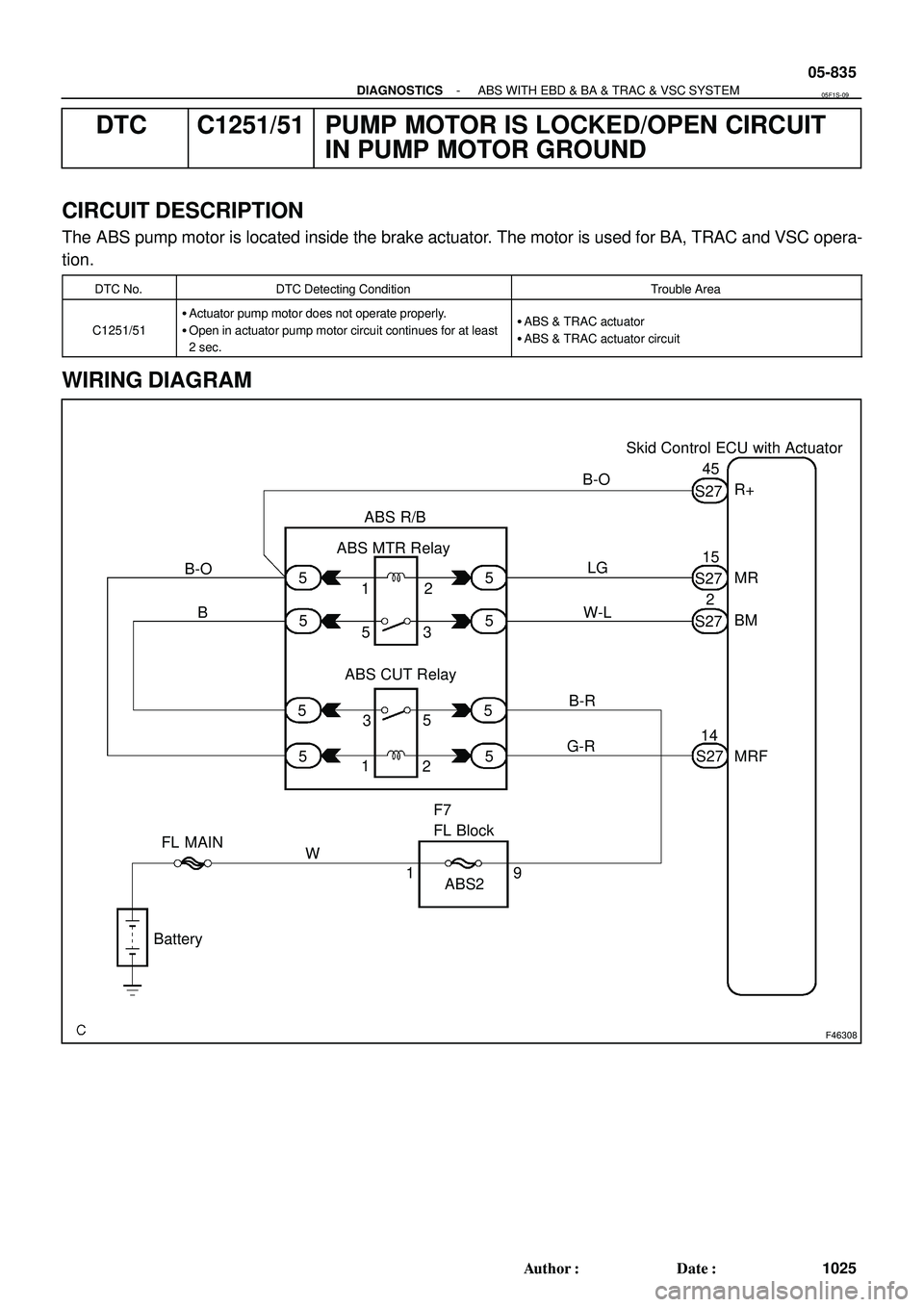

DTC C1251/51 PUMP MOTOR IS LOCKED/OPEN CIRCUIT
IN PUMP MOTOR GROUND
CIRCUIT DESCRIPTION
The ABS pump motor is located inside the brake actuator. The motor is used for BA, TRAC and VSC opera-
tion.
DTC No.DTC Detecting ConditionTrouble Area
C1251/51
Actuator pump motor does not operate properly.
Open in actuator pump motor circuit continues for at least
2 sec.ABS & TRAC actuator
ABS & TRAC actuator circuit
WIRING DIAGRAM
05F1S-09
Page 818 of 2572

G24767GND2
Skid Control ECU
(harness side connector)
S27
05-836
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
1026 Author: Date:

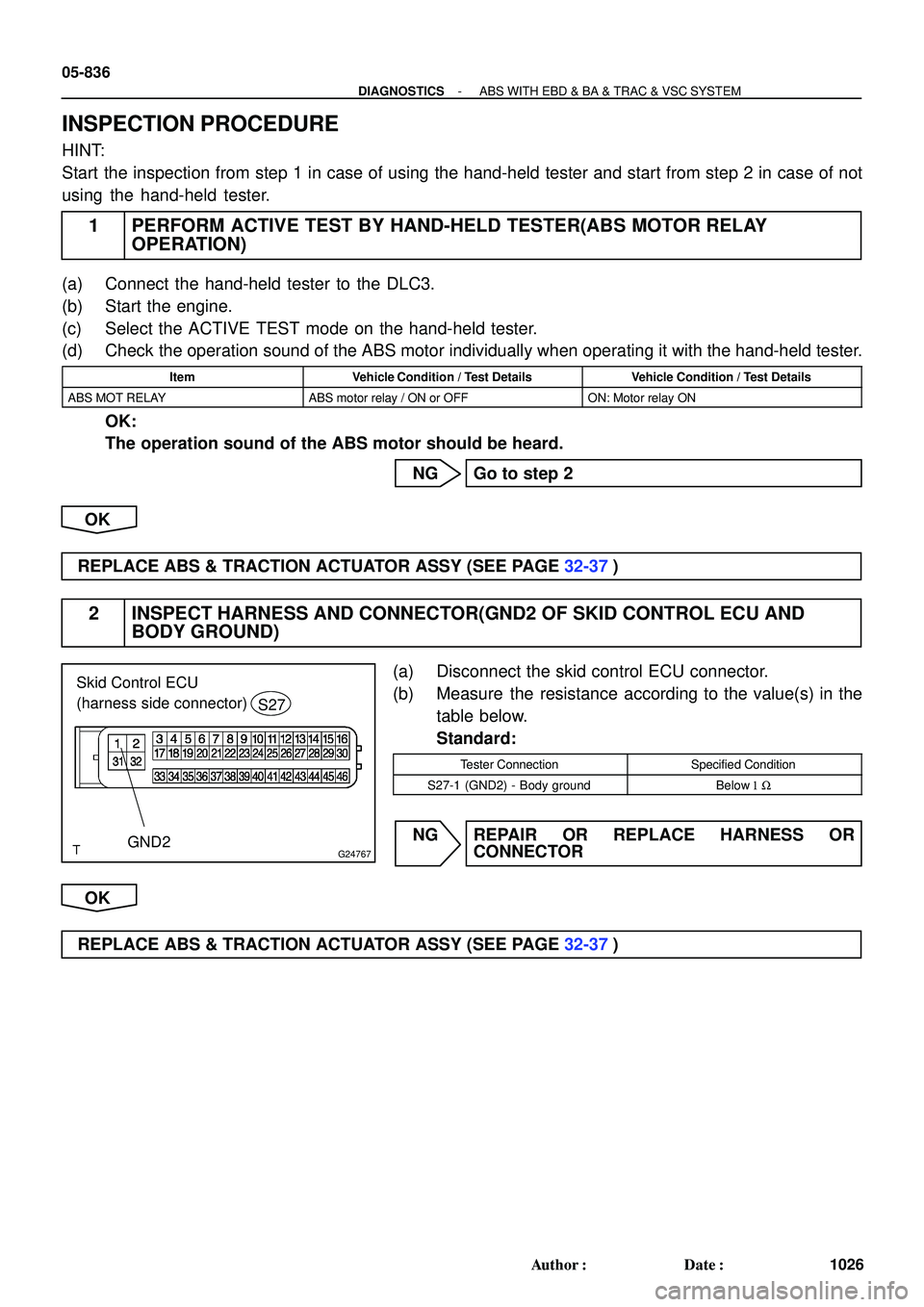

INSPECTION PROCEDURE
HINT:
Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not
using the hand-held tester.
1 PERFORM ACTIVE TEST BY HAND-HELD TESTER(ABS MOTOR RELAY
OPERATION)
(a) Connect the hand-held tester to the DLC3.
(b) Start the engine.
(c) Select the ACTIVE TEST mode on the hand-held tester.
(d) Check the operation sound of the ABS motor individually when operating it with the hand-held tester.
ItemVehicle Condition / Test DetailsVehicle Condition / Test Details
ABS MOT RELAYABS motor relay / ON or OFFON: Motor relay ON
OK:
The operation sound of the ABS motor should be heard.
NG Go to step 2
OK
REPLACE ABS & TRACTION ACTUATOR ASSY (SEE PAGE 32-37)
2 INSPECT HARNESS AND CONNECTOR(GND2 OF SKID CONTROL ECU AND
BODY GROUND)
(a) Disconnect the skid control ECU connector.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
S27-1 (GND2) - Body groundBelow 1 W
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
REPLACE ABS & TRACTION ACTUATOR ASSY (SEE PAGE 32-37)
Page 819 of 2572

F46316
Passenger Side J/BB13
Brake Pedal Load
Sensing SWSkid Control ECU
with Actuator
FSW+ IC4 S27
IC4J
4N W-B W-BG-W
P 1
26 7
17
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-837
1027 Author: Date:

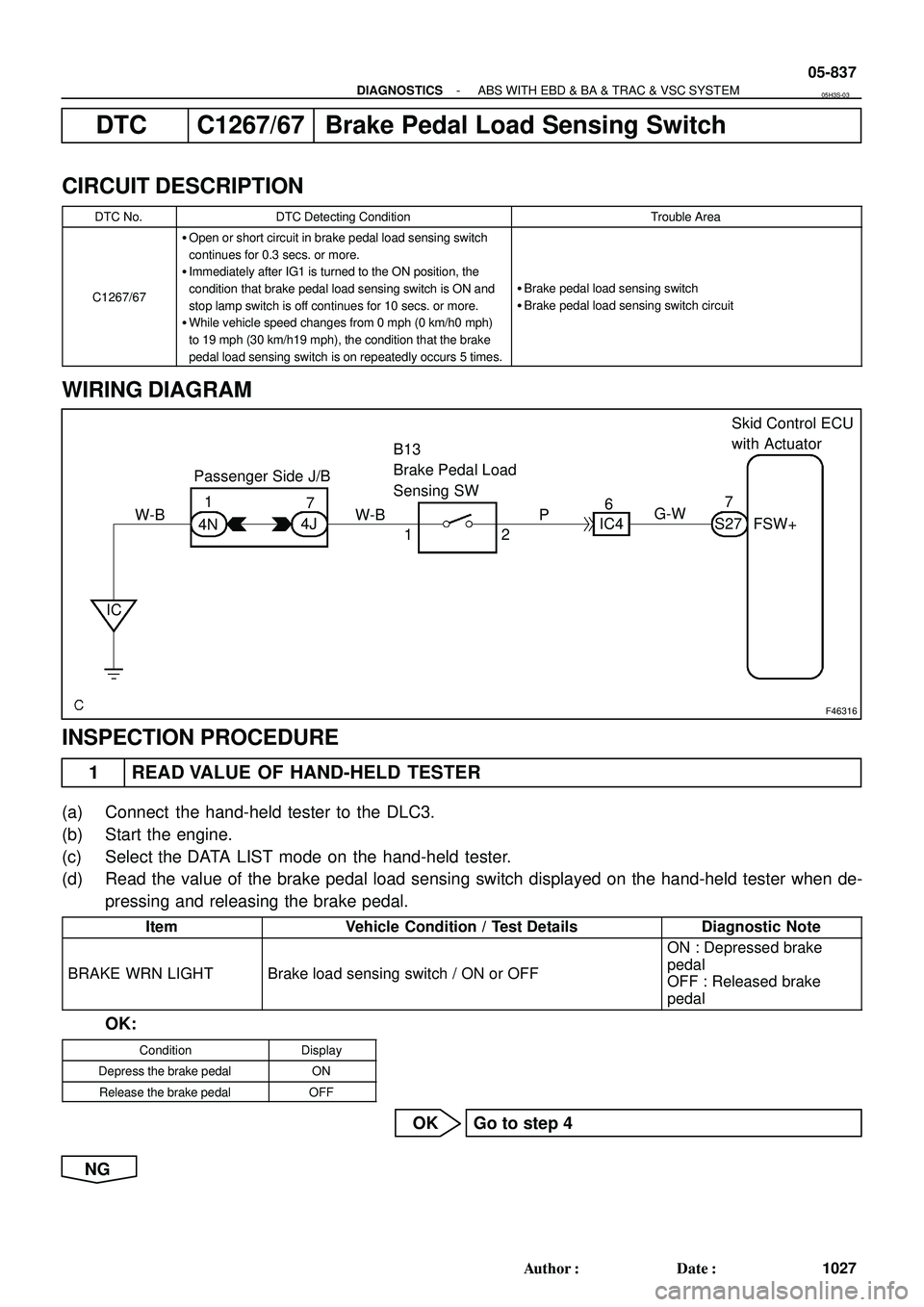

DTC C1267/67 Brake Pedal Load Sensing Switch
CIRCUIT DESCRIPTION
DTC No.DTC Detecting ConditionTrouble Area
C1267/67
Open or short circuit in brake pedal load sensing switch
continues for 0.3 secs. or more.
Immediately after IG1 is turned to the ON position, the
condition that brake pedal load sensing switch is ON and
stop lamp switch is off continues for 10 secs. or more.
While vehicle speed changes from 0 mph (0 km/h0 mph)
to 19 mph (30 km/h19 mph), the condition that the brake
pedal load sensing switch is on repeatedly occurs 5 times.
Brake pedal load sensing switch
Brake pedal load sensing switch circuit
WIRING DIAGRAM
INSPECTION PROCEDURE
1 READ VALUE OF HAND-HELD TESTER
(a) Connect the hand-held tester to the DLC3.
(b) Start the engine.
(c) Select the DATA LIST mode on the hand-held tester.
(d) Read the value of the brake pedal load sensing switch displayed on the hand-held tester when de-
pressing and releasing the brake pedal.
ItemVehicle Condition / Test DetailsDiagnostic Note
BRAKE WRN LIGHTBrake load sensing switch / ON or OFF
ON : Depressed brake
pedal
OFF : Released brake
pedal
OK:
ConditionDisplay
Depress the brake pedalON
Release the brake pedalOFF
OK Go to step 4
NG
05H3S-03
Page 820 of 2572

G26239
Brake pedal sub-assy
Brake Pedal Load
Sensing Switch
1000 W
270 W Release Brake Pedal (ON)
Depress Brake Pedal (OFF)
21
1 2
B13FSW+
GND
G26242
Skid Control ECU
(harness side connector)
Brake Pedal Load Sensing Switch
(harness side connector)S27
B13
FSW
FSW+
05-838
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
1028 Author: Date:

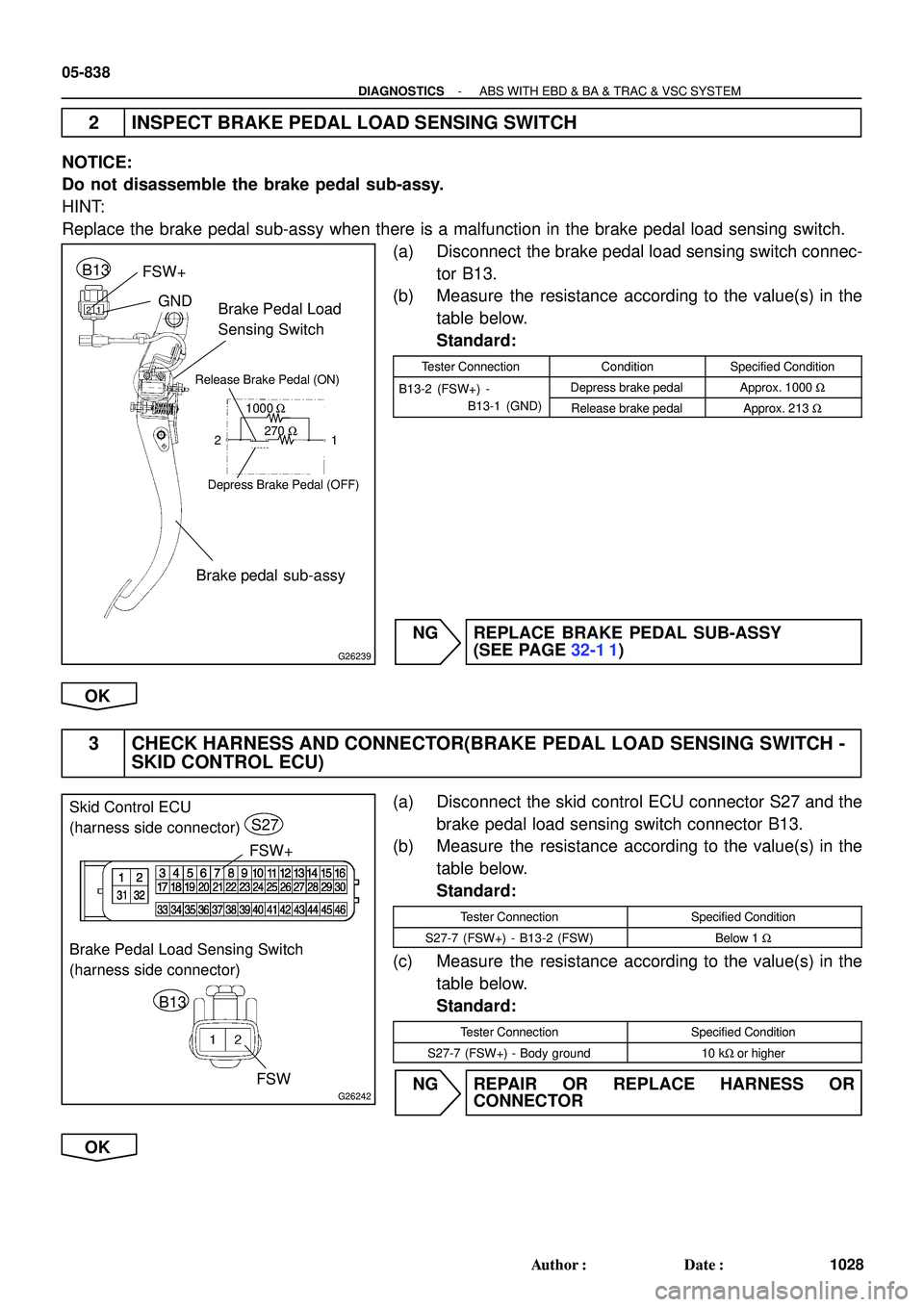

2 INSPECT BRAKE PEDAL LOAD SENSING SWITCH
NOTICE:
Do not disassemble the brake pedal sub-assy.
HINT:
Replace the brake pedal sub-assy when there is a malfunction in the brake pedal load sensing switch.
(a) Disconnect the brake pedal load sensing switch connec-
tor B13.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionConditionSpecified Condition
B13-2 (FSW+) -Depress brake pedalApprox. 1000 WB13 2 (FSW+)
B13-1 (GND)
Release brake pedalApprox. 213 W
NG REPLACE BRAKE PEDAL SUB-ASSY
(SEE PAGE 32-1 1)
OK
3 CHECK HARNESS AND CONNECTOR(BRAKE PEDAL LOAD SENSING SWITCH -
SKID CONTROL ECU)
(a) Disconnect the skid control ECU connector S27 and the
brake pedal load sensing switch connector B13.
(b) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
S27-7 (FSW+) - B13-2 (FSW)Below 1 W
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester ConnectionSpecified Condition
S27-7 (FSW+) - Body ground10 kW or higher
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
Page 821 of 2572
G24767STP Skid Control ECU
(harness side connector)
S27
- DIAGNOSTICSABS WITH EBD & BA & TRAC & VSC SYSTEM
05-839
1029 Author: Date:

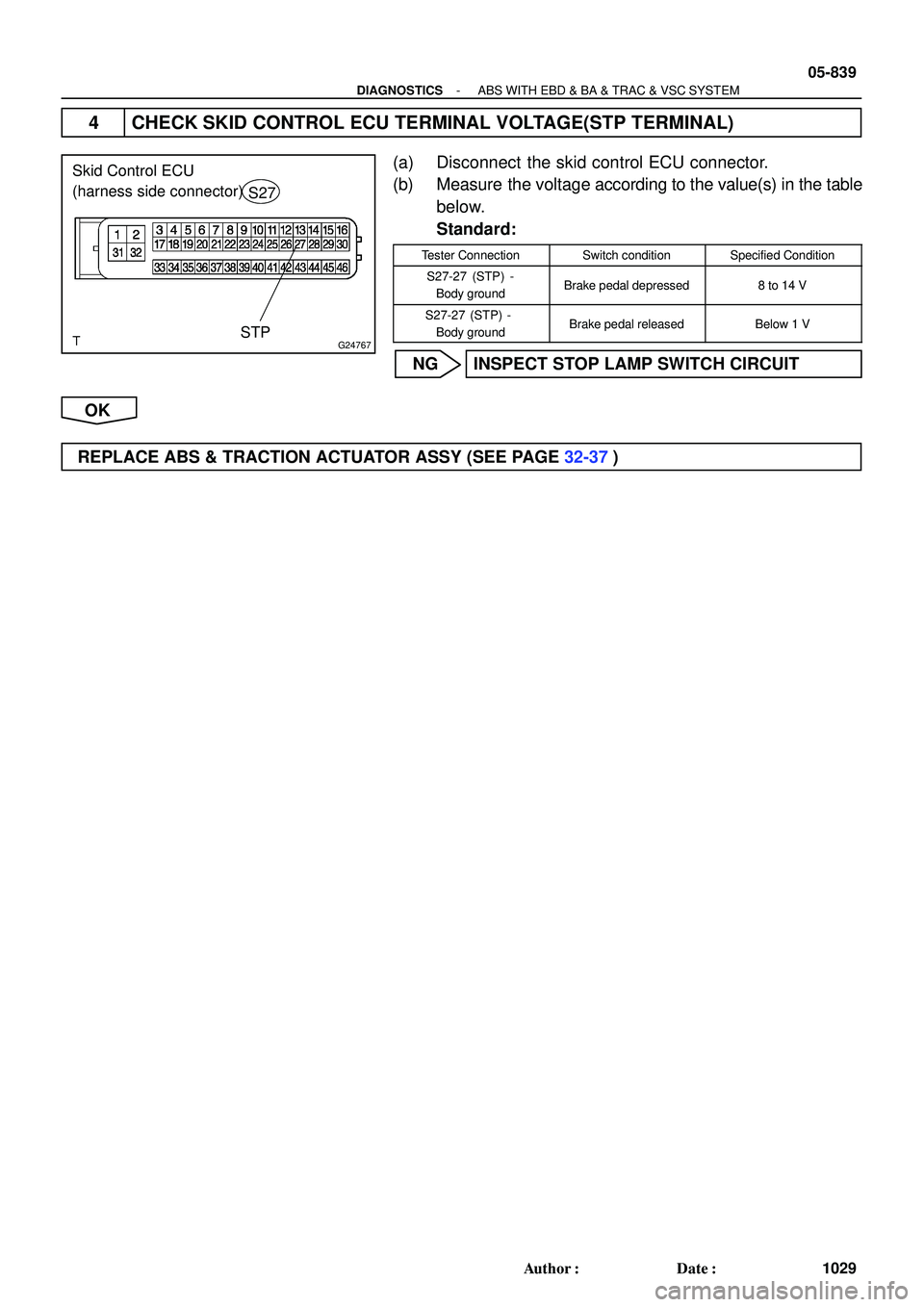

4 CHECK SKID CONTROL ECU TERMINAL VOLTAGE(STP TERMINAL)
(a) Disconnect the skid control ECU connector.
(b) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester ConnectionSwitch conditionSpecified Condition
S27-27 (STP) -
Body groundBrake pedal depressed8 to 14 V
S27-27 (STP) -
Body groundBrake pedal releasedBelow 1 V
NG INSPECT STOP LAMP SWITCH CIRCUIT
OK
REPLACE ABS & TRACTION ACTUATOR ASSY (SEE PAGE 32-37)
Page 822 of 2572

6716B-01
BE4029
Tester Probe
Tin FoilHeat Wire
E32576
BE0150
Repair Point
Masking TapeBroken
Wire
BE0151
Repair PointFine Tip Brush
Glass
- AUDIO & VISUAL SYSTEMWINDOW GLASS (ANTENNA WIRE)
67-33
3552 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

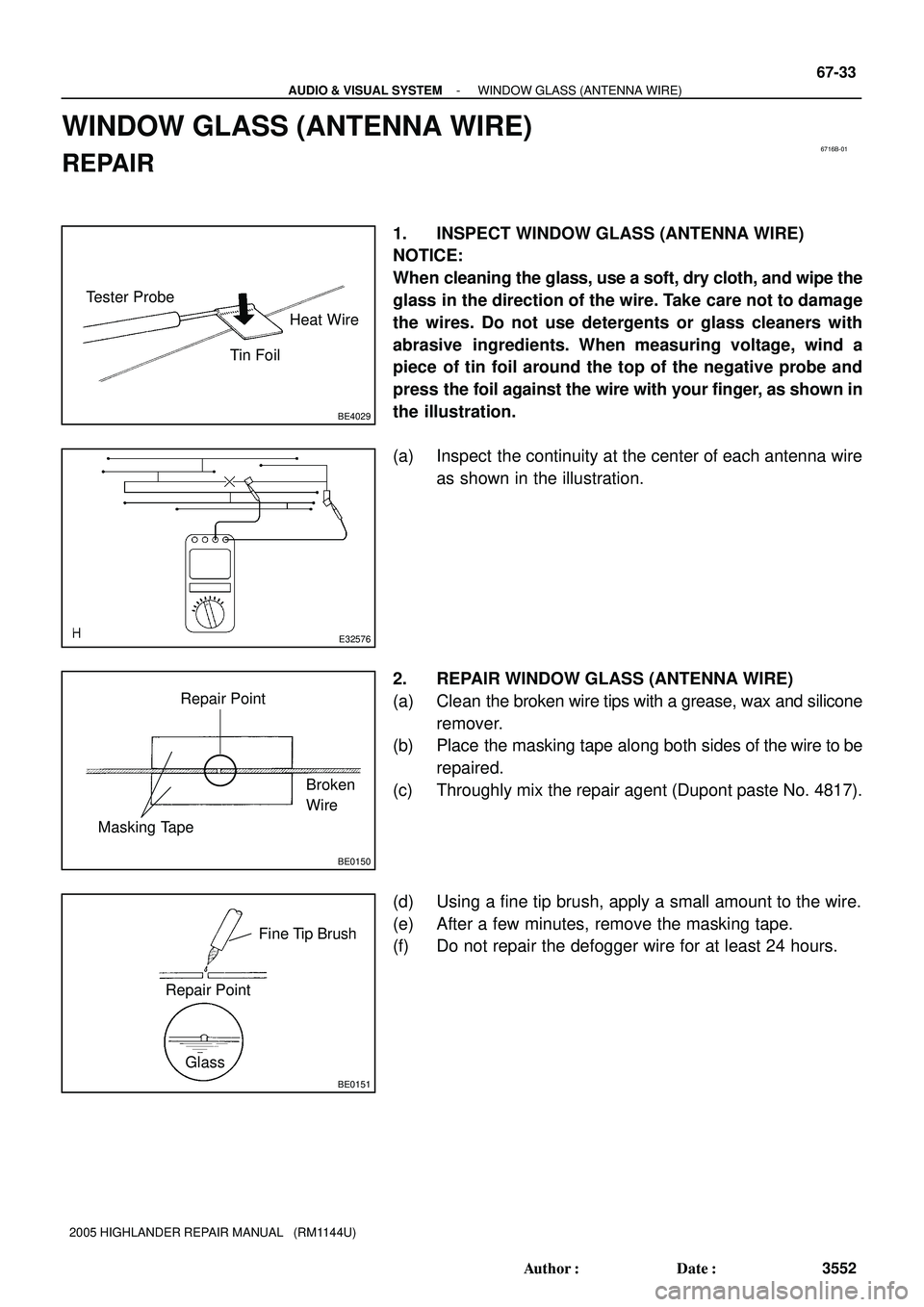

WINDOW GLASS (ANTENNA WIRE)
REPAIR
1. INSPECT WINDOW GLASS (ANTENNA WIRE)
NOTICE:
When cleaning the glass, use a soft, dry cloth, and wipe the
glass in the direction of the wire. Take care not to damage
the wires. Do not use detergents or glass cleaners with
abrasive ingredients. When measuring voltage, wind a
piece of tin foil around the top of the negative probe and
press the foil against the wire with your finger, as shown in
the illustration.
(a) Inspect the continuity at the center of each antenna wire
as shown in the illustration.
2. REPAIR WINDOW GLASS (ANTENNA WIRE)
(a) Clean the broken wire tips with a grease, wax and silicone
remover.
(b) Place the masking tape along both sides of the wire to be
repaired.
(c) Throughly mix the repair agent (Dupont paste No. 4817).
(d) Using a fine tip brush, apply a small amount to the wire.
(e) After a few minutes, remove the masking tape.
(f) Do not repair the defogger wire for at least 24 hours.
Page 823 of 2572
G30963
IC4
S27 W Y
WG
W BWL
WB
CANL CANH
CANLCANH
CANL CANH
CANL CANHESS S14
Steering SensorJ16
J/CSkid Control ECU
With Actuator
D3
DLC31011
12
1325
2
146 9S27 S27
IC4
3
11
22 10
218
19
Y1
Yaw Rate Sensor
W BIO213 IO212
9
20VSC
STRG
VSC
STRG
YAW
DLC3S27 12
W-B
W-B
W-B1
32GND2
GND1
4 CGW-BW-B
W-B1
1 1
1 3 6
4C
4C 4N4N
W-B Passenger Side J/B
J19
J/C
W-BJ4
J/C
AAA
BF
ICEH
EB GNDYAW
DLC3
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
05-2131
2321 Author: Date:
CHECK CAN BUS LINE (CAN-L) FOR SHORT TO GND
CIRCUIT DESCRIPTION
A short to GND is suspected in the CAN bus line when there is continuity between terminals 4 (CG) and 14
(CANL) of the DLC3.
SymptomTrouble Area
There is continuity between terminals 4 (CG) and 14
(CANL) of DLC3.
Short to GND in CAN bus line (CANL)
Skid control ECU
Steering sensor
Yaw rate sensor
WIRING DIAGRAM
05IR7-02
Page 824 of 2572
G25476G26430
Junction Connector:
J16
CANH
CANL
C81825
12345678
9 10111213141516
G25474G26206
DLC3:
CG
CANLD3
05-2132
- DIAGNOSTICSCAN COMMUNICATION SYSTEM
2322 Author: Date:

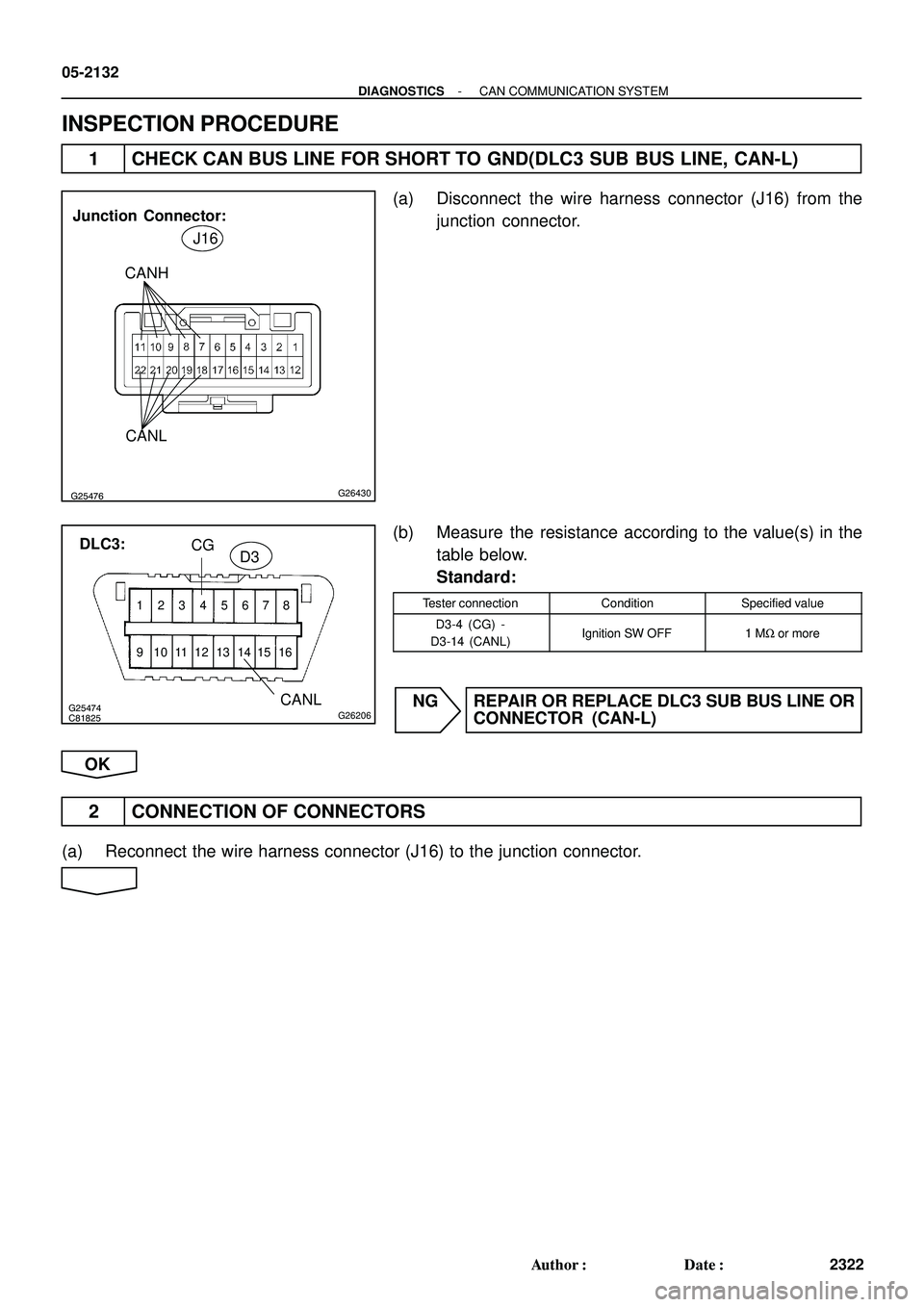

INSPECTION PROCEDURE
