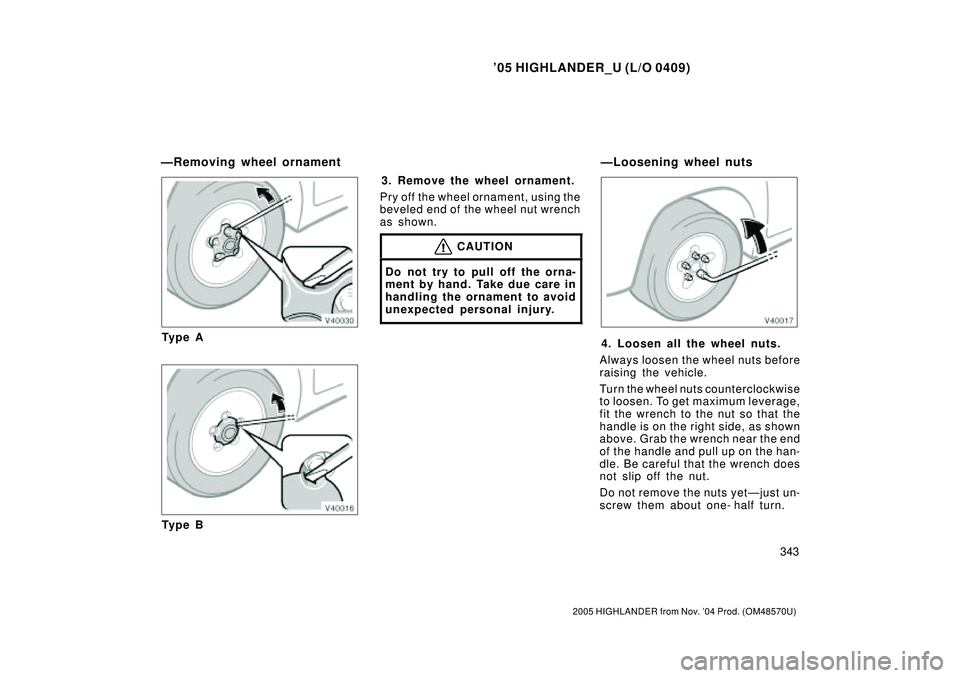

Page 73 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 343 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) Ty p e A Ty p e B3. Remove the wheel ornament. Pry off the wheel ornament, using the beveled end of the wheel nut wrench

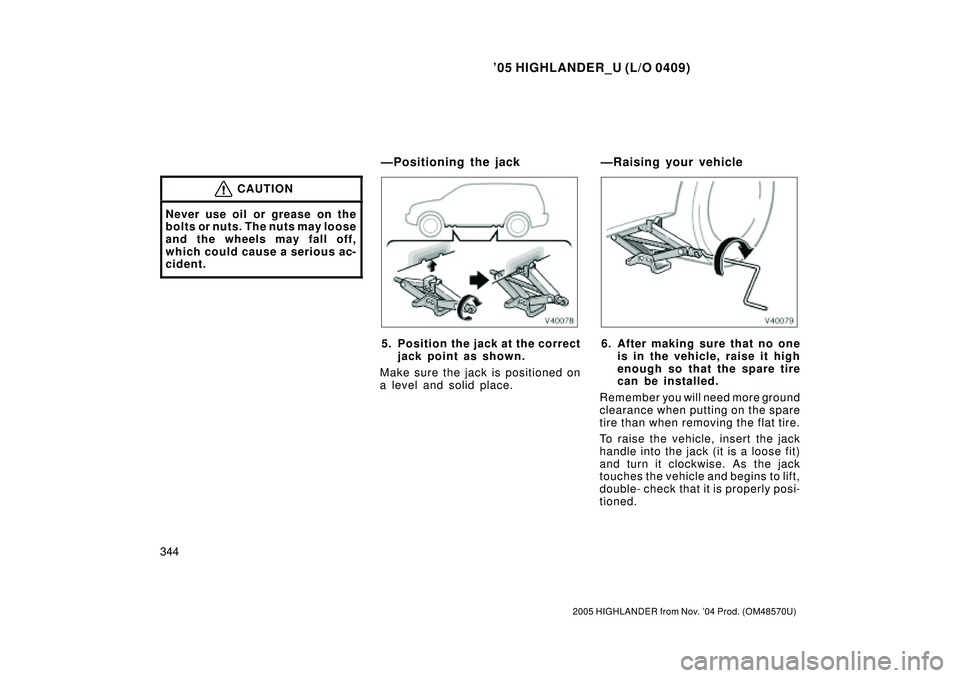

Page 74 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 344 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) CAUTION Never use oil or grease on the bolts or nuts. The nuts may loose and the wheels may fall off, which could cause a

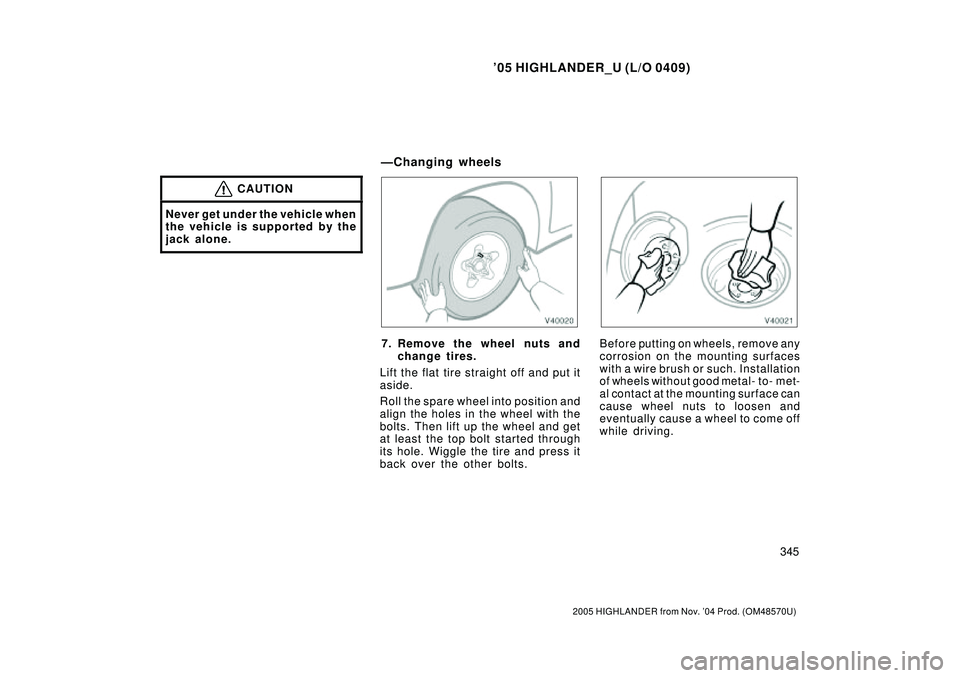

Page 75 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 345 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) CAUTION Never get under the vehicle when the vehicle is supported by the jack alone. 7. Remove the wheel nuts and change

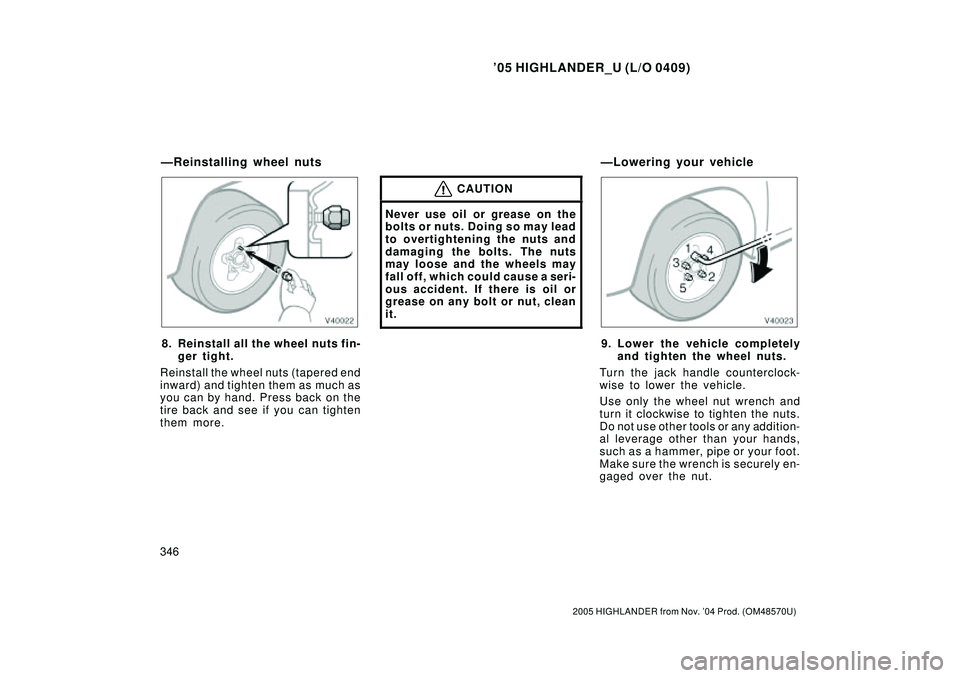

Page 76 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 346 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 8. Reinstall all the wheel nuts fin- ger tight. Reinstall the wheel nuts (tapered end inward) and tighten them as much as

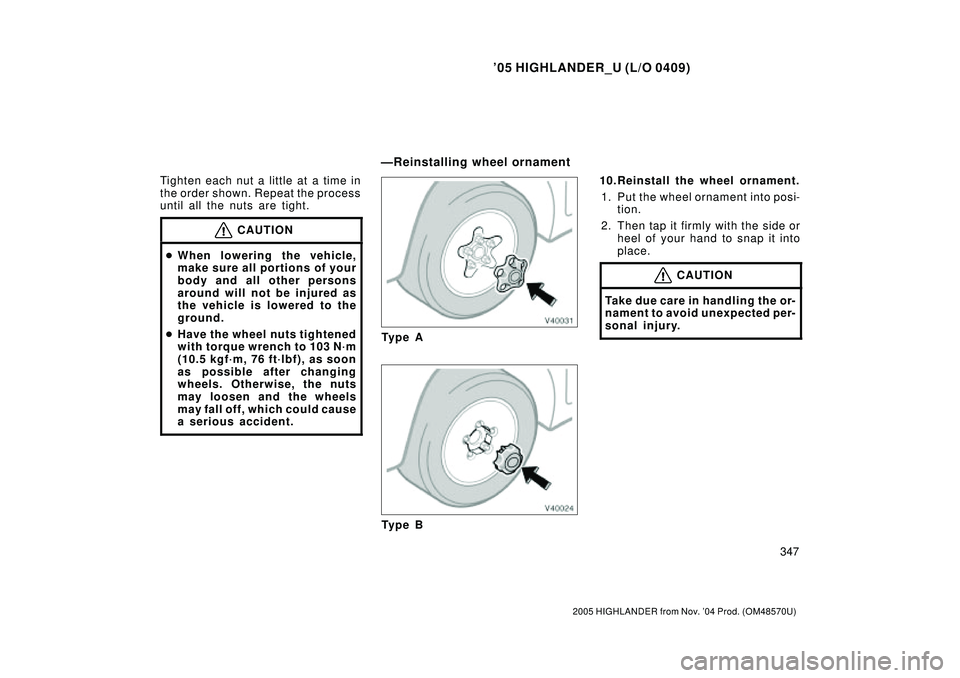

Page 77 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 347 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) Tighten each nut a little at a time in the order shown. Repeat the process until all the nuts are tight. CAUTION When lo

Page 78 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 348 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) 11. Check the air pressure of the re- placed tire. Adjust the air pressure to the specifi- cation designated on page 410

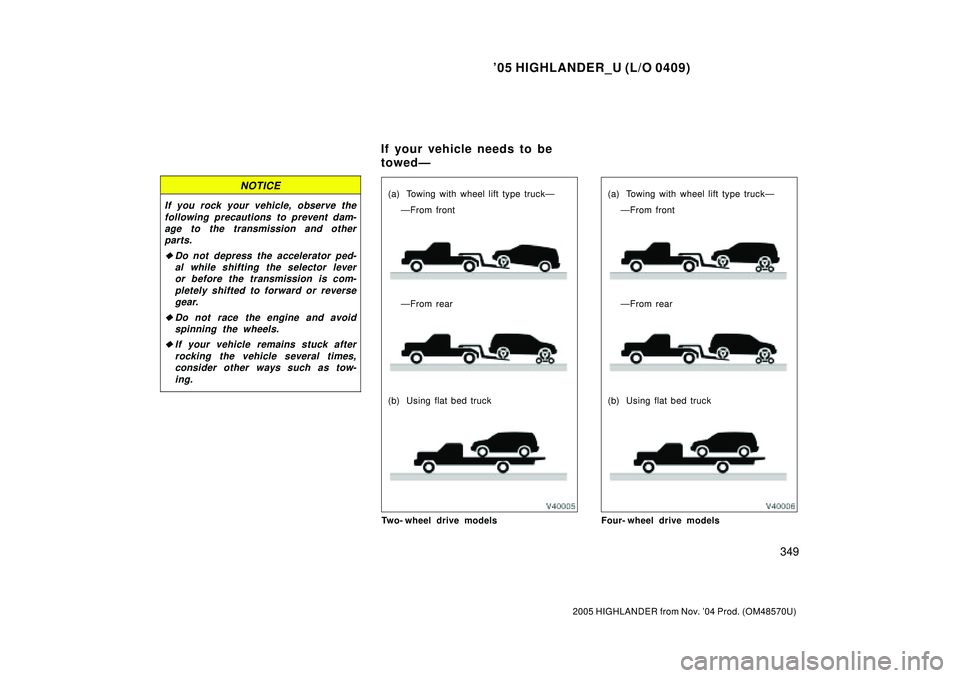

Page 79 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 349 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) NOTICE If you rock your vehicle, observe the following precautions to prevent dam- age to the transmission and other part

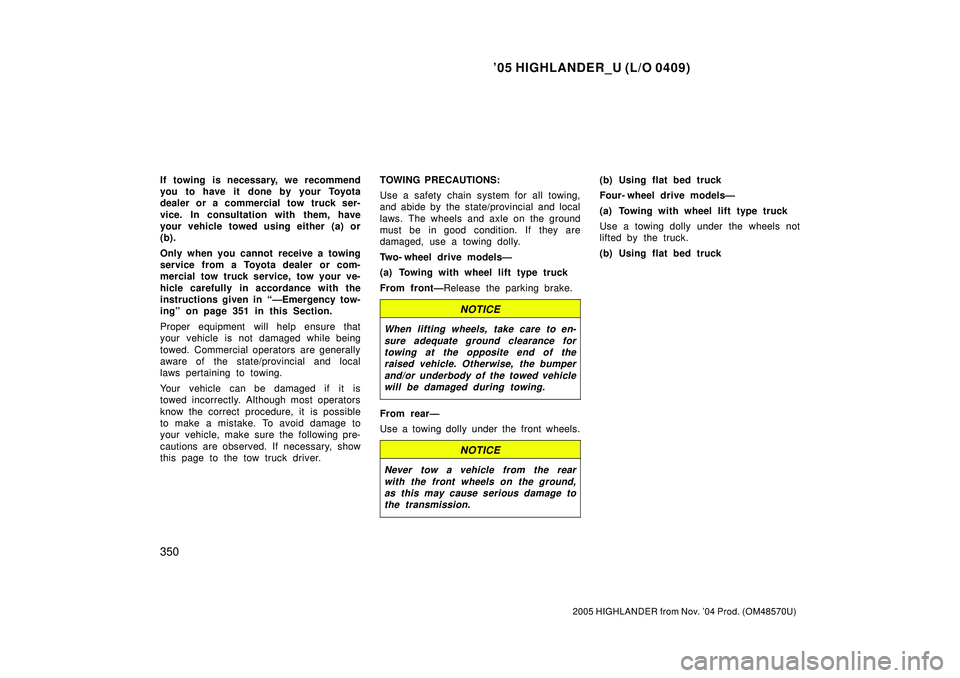

Page 80 of 2572

TOYOTA HIGHLANDER 2001 Service Repair Manual 05 HIGHLANDER_U (L/O 0409) 350 2005 HIGHLANDER from Nov. 04 Prod. (OM48570U) If towing is necessary, we recommend you to have it done by your Toyota dealer or a commercial tow truck ser- vice. In c
