Page 1497 of 2572
E74086
D6
Door Courtesy Lamp Front RHBody ECU
D5
Door Courtesy Lamp Front LH
I14
Ignition Key Cylinder Illumination
T7 Ignition Key Cylinder Illumination
(Transponder Key Amplifier)Passenger Side J/B
I16
Interior Lamp
O5
Overhead J/B
Engine Room J/B
Instrument Panel J/B
F7
FL Block
*1: w/ Engine Immobilizer System
*2: w/o Engine Immobilizer System BR G O10
IN2 3
IN112
B12 PCYL
DCYL 19
B11
11
B12
ILE Y
L 10
IB2 O
1
2 12
3
IB1G V Y8
IL1
Y (*2)
G (*2)
21
Y (*1)
26G (*1)5
4J2
4FBR
1
4H
5
4D
13
12
4D7
4L
1
4N
6
4HW-B
W-B
V
12
IK3 R 3
2A DOME
D.C.C 1
2IG
W-B
B R
R5
IE1
8
IE1
1
IE1 1DOOR
OFF
ON2
3
WW
W
+B1
CTY 712
6
1KP FR DOOR
12
1DD FR DOOR
1
1AW
B3
2ALT
1
Battery
FL MAINIC 4D R
W-B
W
- DIAGNOSTICSLIGHTING SYSTEM
05-1607
1797 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

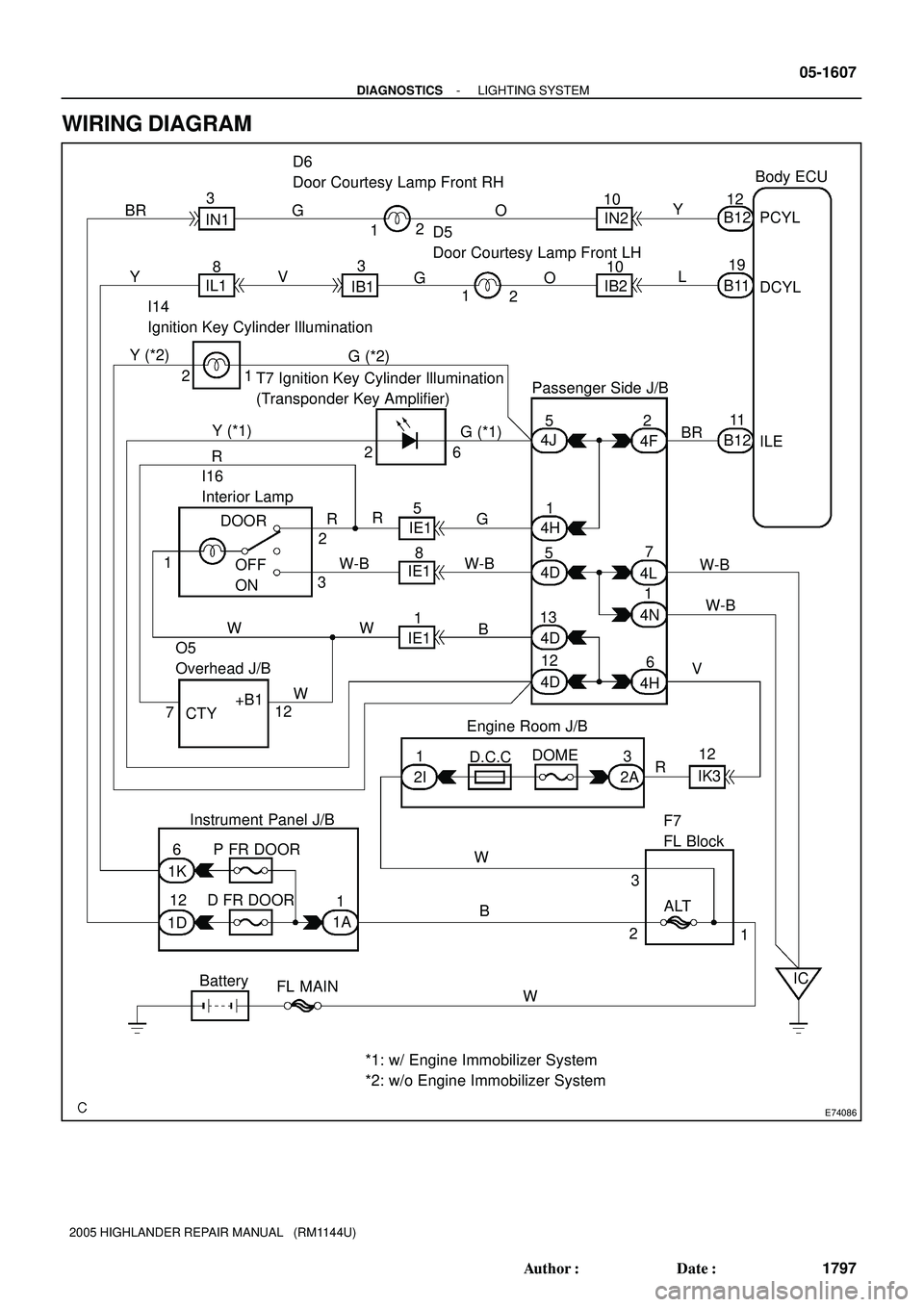

WIRING DIAGRAM
Page 1498 of 2572
E74263
Multiplex Network Body ECU
Connector Front View:
B12B11
B12-12
B11-19 B12-1 1
05-1608
- DIAGNOSTICSLIGHTING SYSTEM
1798 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

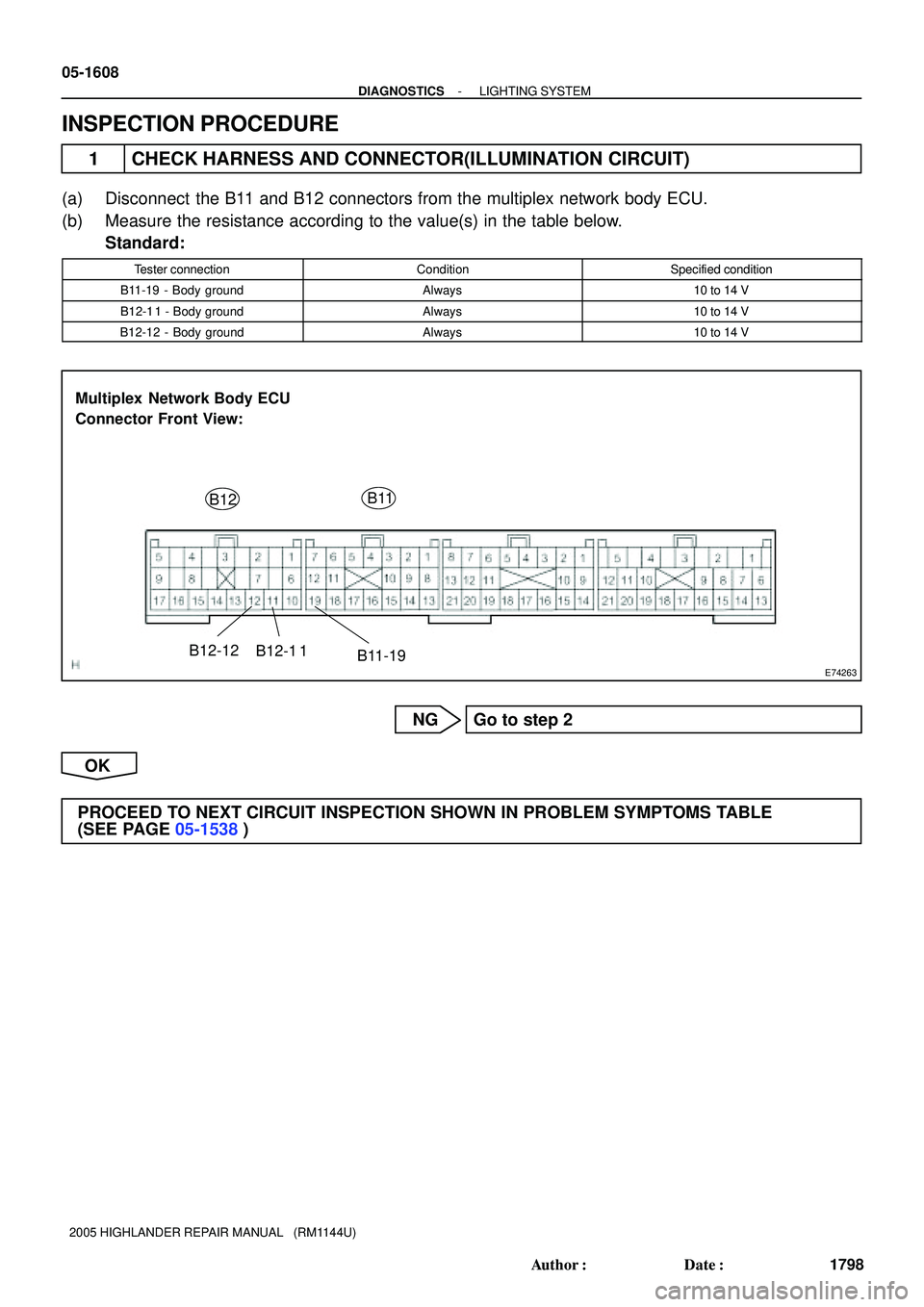

INSPECTION PROCEDURE
1 CHECK HARNESS AND CONNECTOR(ILLUMINATION CIRCUIT)
(a) Disconnect the B11 and B12 connectors from the multiplex network body ECU.
(b) Measure the resistance according to the value(s) in the table below.
Standard:
Tester connectionConditionSpecified condition
B11-19 - Body groundAlways10 to 14 V
B12-1 1 - Body groundAlways10 to 14 V
B12-12 - Body groundAlways10 to 14 V
NG Go to step 2
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
(SEE PAGE 05-1538)
Page 1499 of 2572

E50228E69434
Connector Front View:
I16
E74066
Connector Front View:
T7
E69342
Connector Front View:
I14
E72986
Connector Front View:
O5
- DIAGNOSTICSLIGHTING SYSTEM
05-1609
1799 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

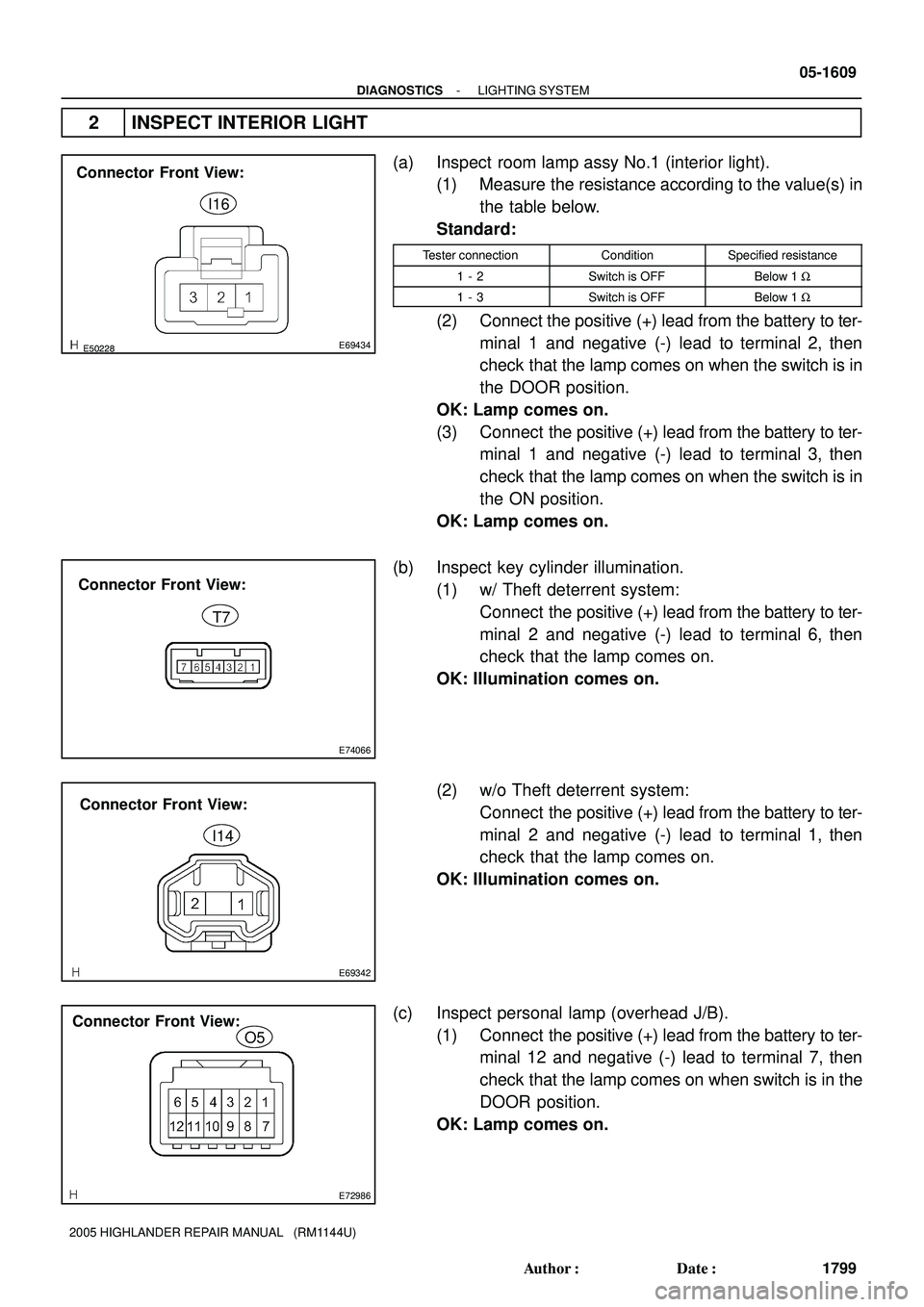

2 INSPECT INTERIOR LIGHT
(a) Inspect room lamp assy No.1 (interior light).
(1) Measure the resistance according to the value(s) in
the table below.
Standard:
Tester connectionConditionSpecified resistance
1 - 2Switch is OFFBelow 1 W
1 - 3Switch is OFFBelow 1 W
(2) Connect the positive (+) lead from the battery to ter-
minal 1 and negative (-) lead to terminal 2, then
check that the lamp comes on when the switch is in
the DOOR position.
OK: Lamp comes on.
(3) Connect the positive (+) lead from the battery to ter-
minal 1 and negative (-) lead to terminal 3, then
check that the lamp comes on when the switch is in
the ON position.
OK: Lamp comes on.
(b) Inspect key cylinder illumination.
(1) w/ Theft deterrent system:
Connect the positive (+) lead from the battery to ter-
minal 2 and negative (-) lead to terminal 6, then
check that the lamp comes on.
OK: Illumination comes on.
(2) w/o Theft deterrent system:
Connect the positive (+) lead from the battery to ter-
minal 2 and negative (-) lead to terminal 1, then
check that the lamp comes on.
OK: Illumination comes on.
(c) Inspect personal lamp (overhead J/B).
(1) Connect the positive (+) lead from the battery to ter-
minal 12 and negative (-) lead to terminal 7, then
check that the lamp comes on when switch is in the
DOOR position.
OK: Lamp comes on.
Page 1500 of 2572
E69342
Connector Front View:
D5
D6
05-1610
- DIAGNOSTICSLIGHTING SYSTEM
1800 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

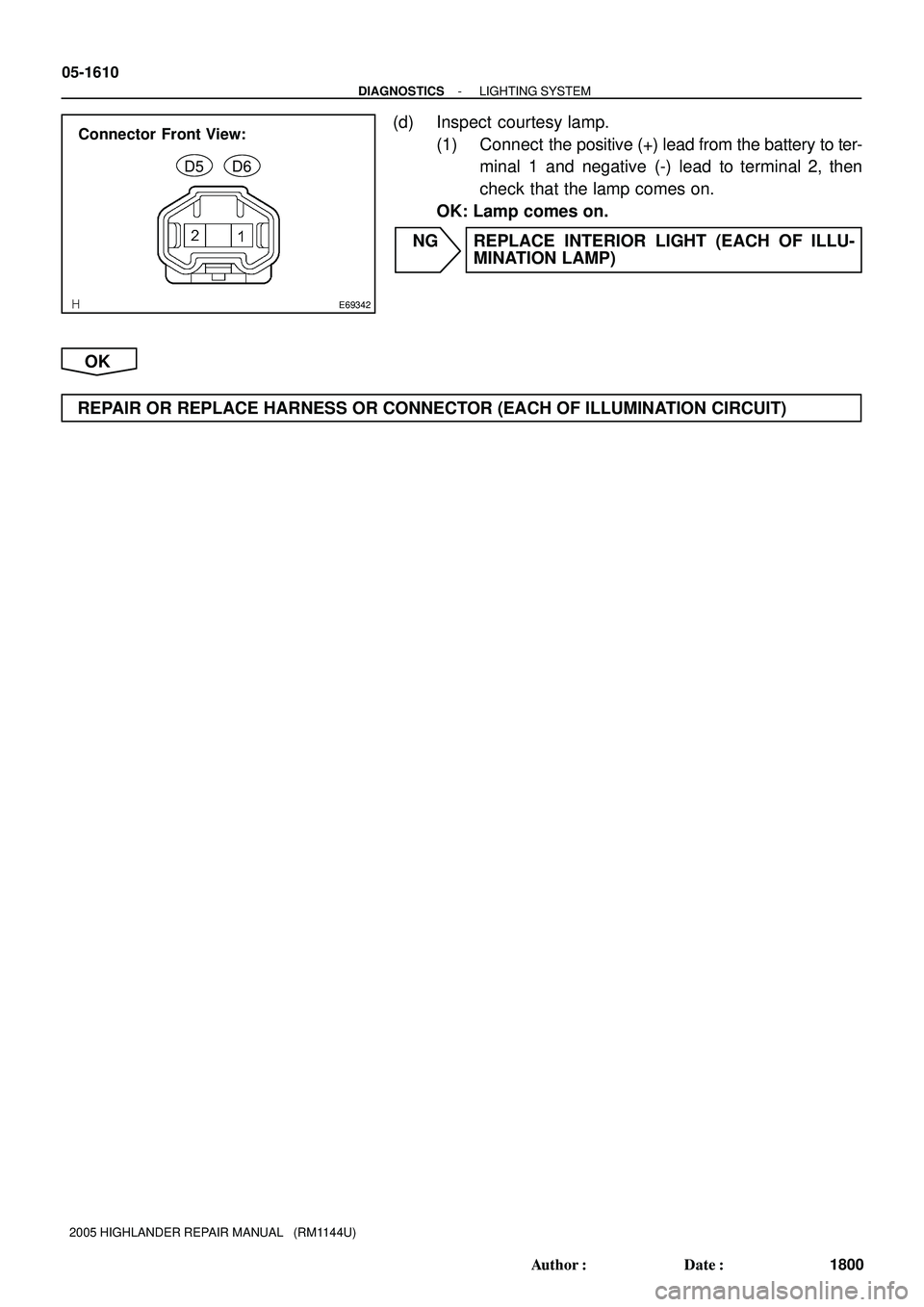

(d) Inspect courtesy lamp.
(1) Connect the positive (+) lead from the battery to ter-
minal 1 and negative (-) lead to terminal 2, then
check that the lamp comes on.
OK: Lamp comes on.
NG REPLACE INTERIOR LIGHT (EACH OF ILLU-
MINATION LAMP)
OK
REPAIR OR REPLACE HARNESS OR CONNECTOR (EACH OF ILLUMINATION CIRCUIT)
Page 1501 of 2572
B51273
2G E3
Security Courtesy Switch
(Engine Hood Courtesy Switch)
IK315
G-B
J1
J/CT4 Theft Warning ECU Assy
6
IL2DSWH 34
W
EGW-B
1
A
I04148
Not Pushed (ON)
Pushed
(OFF)Security
Courtesy Switch
05-2038
- DIAGNOSTICSTHEFT DETERRENT SYSTEM
2228 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

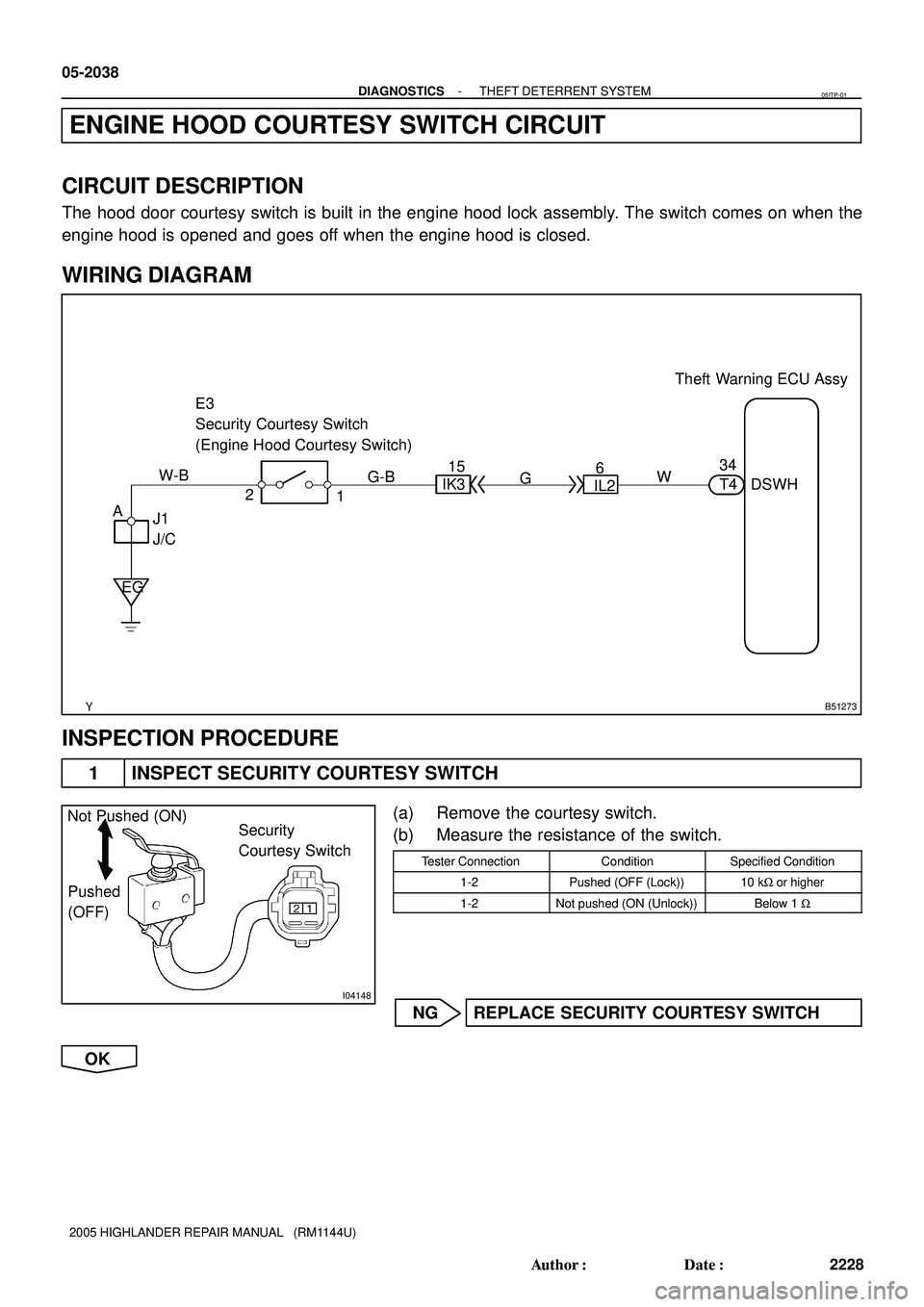

ENGINE HOOD COURTESY SWITCH CIRCUIT
CIRCUIT DESCRIPTION
The hood door courtesy switch is built in the engine hood lock assembly. The switch comes on when the
engine hood is opened and goes off when the engine hood is closed.
WIRING DIAGRAM
INSPECTION PROCEDURE
1 INSPECT SECURITY COURTESY SWITCH
(a) Remove the courtesy switch.
(b) Measure the resistance of the switch.
Tester ConnectionConditionSpecified Condition
1-2Pushed (OFF (Lock))10 kW or higher
1-2Not pushed (ON (Unlock))Below 1 W
NG REPLACE SECURITY COURTESY SWITCH
OK
05ITP-01
Page 1502 of 2572
B77252
T4
Theft Warning ECU Assy Wire Harness Side
E3
Security Courtesy Switch
B31016
E3
Security Courtesy Switch Wire Harness Side
- DIAGNOSTICSTHEFT DETERRENT SYSTEM
05-2039
2229 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

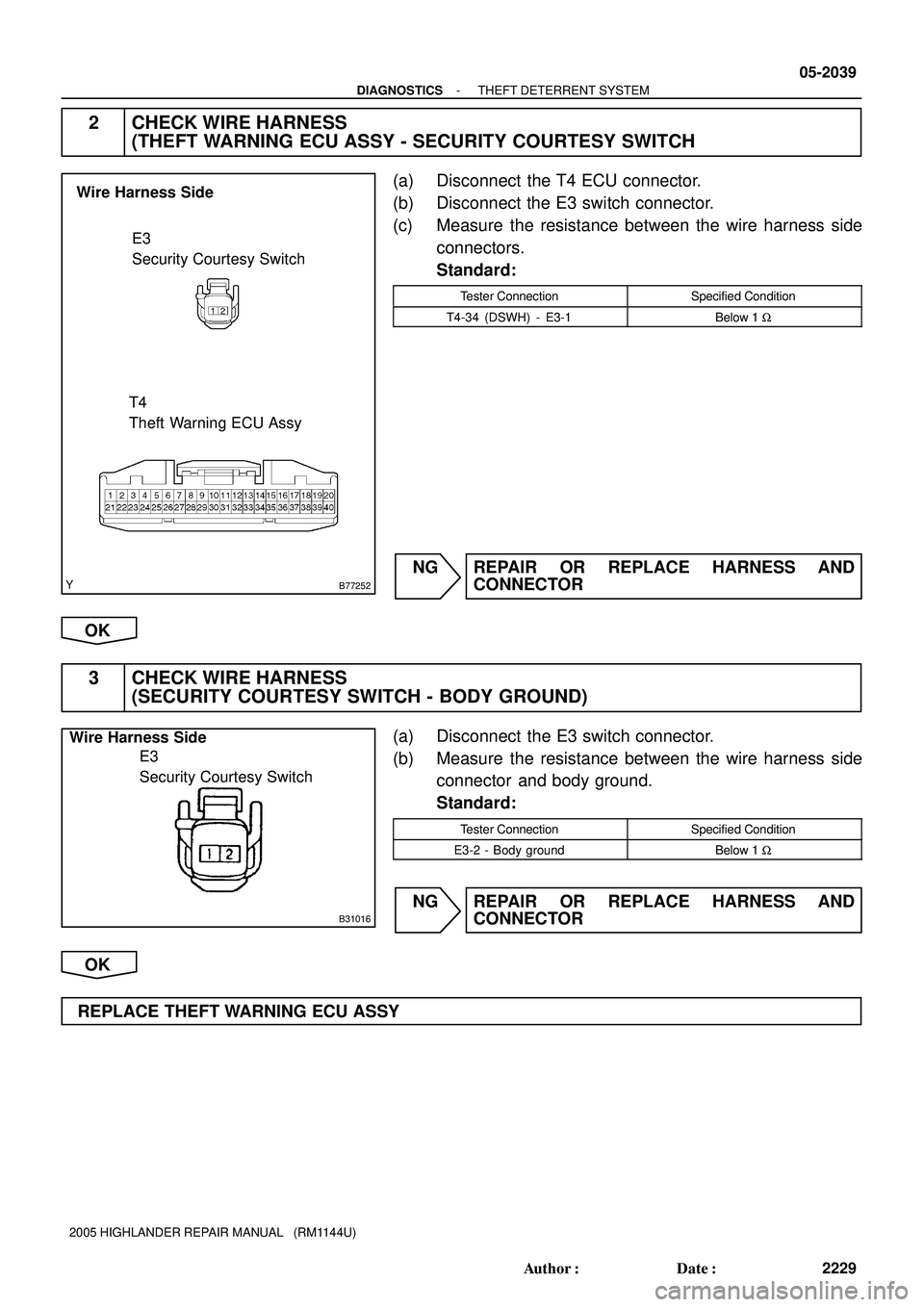

2 CHECK WIRE HARNESS
(THEFT WARNING ECU ASSY - SECURITY COURTESY SWITCH
(a) Disconnect the T4 ECU connector.
(b) Disconnect the E3 switch connector.
(c) Measure the resistance between the wire harness side
connectors.
Standard:
Tester ConnectionSpecified Condition
T4-34 (DSWH) - E3-1Below 1 W
NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
3 CHECK WIRE HARNESS
(SECURITY COURTESY SWITCH - BODY GROUND)
(a) Disconnect the E3 switch connector.
(b) Measure the resistance between the wire harness side
connector and body ground.
Standard:
Tester ConnectionSpecified Condition
E3-2 - Body groundBelow 1 W
NG REPAIR OR REPLACE HARNESS AND
CONNECTOR
OK
REPLACE THEFT WARNING ECU ASSY
Page 1503 of 2572
![TOYOTA HIGHLANDER 2001 Service Repair Manual 05F2X-05
C81121D25472
SST
SST
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-891
1081 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
HYDRAULIC TEST
1. PERFORM TOYOTA HIGHLANDER 2001 Service Repair Manual 05F2X-05
C81121D25472
SST
SST
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-891
1081 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
HYDRAULIC TEST
1. PERFORM](/manual-img/14/57457/w960_57457-1502.png)
05F2X-05
C81121D25472
SST
SST
- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-891
1081 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
HYDRAULIC TEST

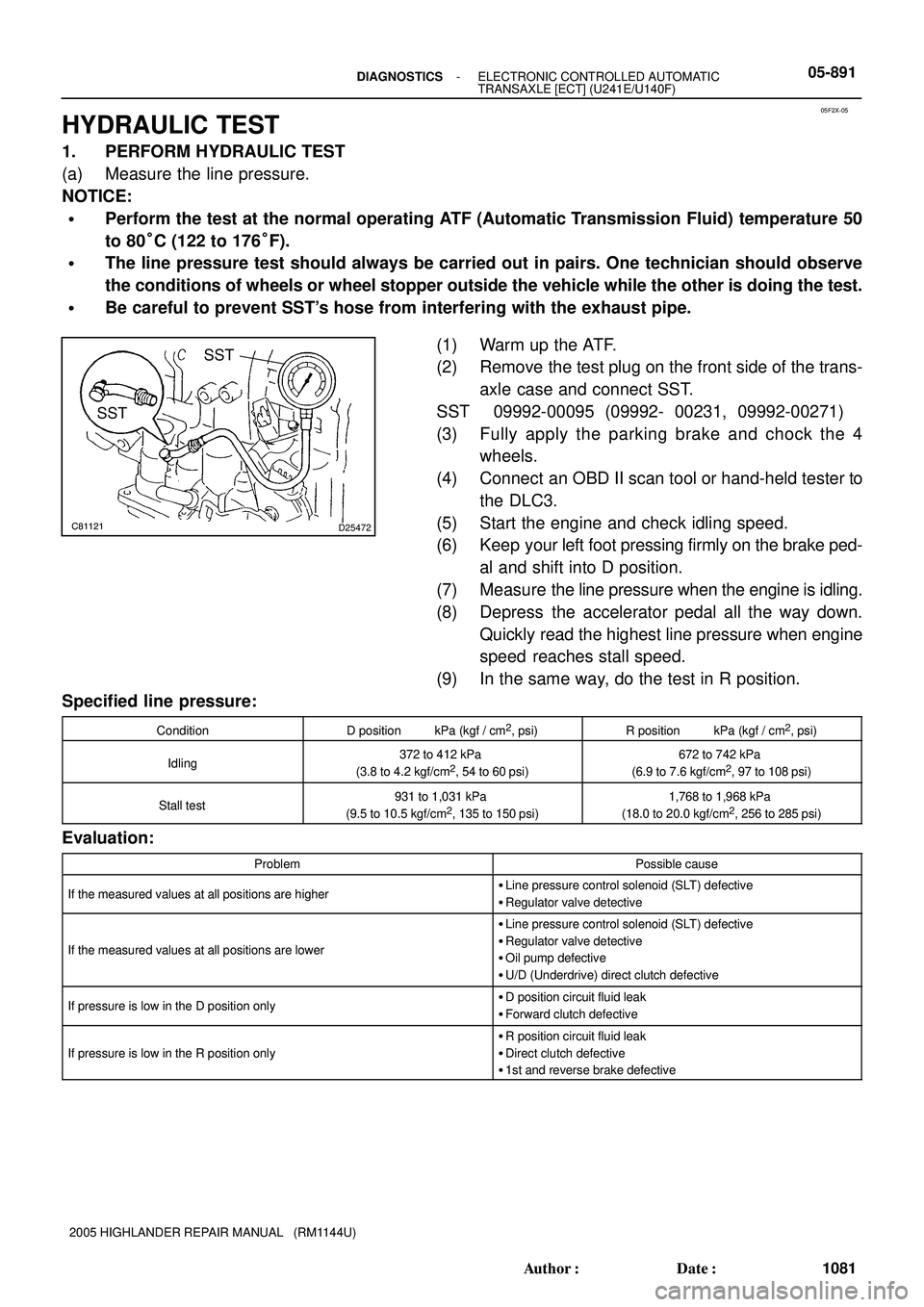

1. PERFORM HYDRAULIC TEST
